GB 18 LTX BL Q I - Drill/Driver METABO - Free user manual and instructions

Brand	Metabo
Model	GB 18 LTX BL Q I
Product type	Cordless drill/driver
Power supply	Li-Ion battery 18 V (CAS)
No-load speed (n0)	See technical specifications (fig. K)
Max. tightening torque (M3)	See technical specifications (fig. K)
Max. drilling capacity (steel D2)	See technical specifications (fig. K)
Max. drilling capacity (softwood D3)	See technical specifications (fig. K)
Chuck	Self-tightening chuck, Quick change
Main functions	Drilling, screwdriving, tapping, electronic safety stop, torque limitation, pulse mode, reversing rotation
Safety	Additional handle, automatic stop in case of jamming, protection against overloading and deep discharging of battery, LED warning light
Maintenance and cleaning	Clean the chuck by turning the sleeve vertically; only use Metabo or CAS accessories
Spare parts and repairability	Use genuine Metabo parts; repairs by an electrician; addresses at www.metabo.com
Operating temperature	-20 °C to 50 °C (limited performance below 0 °C)
Storage temperature	0 °C to 30 °C
Battery	Li-Ion, do not expose to fire, protect from moisture
Battery transport	Compliant with UN 3480/3481 regulations; certified packaging

Frequently Asked Questions - GB 18 LTX BL Q I METABO

How to charge the battery of the Metabo GB 18 LTX BL Q I?

Charge the battery before first use. Use a compatible Metabo charger. Charging instructions are in the charger's manual. If power drops, recharge the battery.

How to adjust the tightening torque?

Turn the adjusting ring (13) to select the desired mode: 1 to 10 for torque limitation, lock for maximum torque, and pulse for pulse mode. The setting depends on the material and screw diameter.

What to do if the drill stops suddenly?

This is the electronic safety stop (Safety Stop) triggered by a sudden jam. Release the trigger (15) and press again to restart. If the red LED stays on, the safety stop is faulty: have the machine repaired.

How to use the tapping function?

Set the speed selector switch (4) to '1'. Slide the sliding switch (3) to tapping position. Choose the appropriate torque with the adjusting ring (13). Insert the tap into the suitable chuck. Lubricate the hole. To tap, press the trigger and apply moderate pressure. The machine automatically reverses at the end of the thread.

How to change the direction of rotation?

Use the rotation direction switch (5) located on both sides of the machine. Push it to the right for forward, to the left for reverse. The center position locks the trigger (transport safety).

Which accessories can I use?

Only use original Metabo or CAS (Cordless Alliance System) batteries and accessories. For taps, use specific chucks (M8-12 or M4-6). Consult the Metabo catalog or www.metabo.com.

How to clean the self-tightening chuck?

Hold the tool vertically, chuck downward. Turn the sleeve completely in the 'GRIP, ZU' direction and then in the 'AUF, RELEASE' direction. Dust falls out. Repeat if necessary.

What do the LED indicators on the battery mean?

The LED indicators (11) show the charge status. Press the button (10) to display the level. If a LED flashes, the battery is almost empty. If the battery is defective or overheated, the system emits an audible signal.

Can I use the drill in pulse mode for screwdriving?

Yes, but not in drilling mode. Set the adjusting ring (13) to the pulse symbol. Caution: do not use for long as the motor may overheat. Pulse mode is not available if the sliding switch (3) is in drilling position.

How to dispose of the used battery?

Do not dispose of the battery in household waste. Fully discharge it, protect the contacts with tape, and return it to a Metabo dealer or a collection point for recycling. Follow local regulations.

USER MANUAL GB 18 LTX BL Q I METABO

7.2

C

7.3

D

7.4

E

7.5

F

= Impuls

1...10

Nm ... Nm

= max. Nm

7.7

G

7.9

H

7.10

|

7.11

J

7.12

			GB 18 LTX BL Q I*1) Serial Number: 02362..
U	V		18
n0	/min, rpm	1	0 - 550
		2	0 - 2000
M1	Nm (in-lbs)		65 (575)
M2	Nm (in-lbs)		65 (575)
M3	Nm (in-lbs)		130 (1151)
M4	Nm (in-lbs)	1	3 - 20 (26.6 - 177)
		2	1 - 9 (8.9 - 79.7)
D1 max	mm (in) M 12 (1/2" UNC/UNF)
D2 max	mm (in)		13 (1/2)
D3 max	mm (in)	2	68 (2 11/16)
m	k	g	( l b s
G	U	N	F ( i n
Dmax	mm (in)		13 (1/2)
ah, D/Kh, D	m/s2		<2,5 / 1,5
ah, S/Kh, S	m/s2		<2,5 / 1,5
LpA/KpA	dB(A)		77 / 3
LWA/KWA	dB(A)		88 / 3

L

*2) 2014/30/EU, 2006/42/EC, 2011/65/EU
*3) EN 62841-1:2015, EN 62841-2-1:2018, EN 62841-2-2:2014, EN 50581:2012

Original Instructions

1. Declaration of Conformity

We, being solely responsible, hereby declare that these cordless tappers / cordless drills/drivers, identified by type and serial number *1), meet all relevant requirements of directives *2) and standards *3). Technical documents at *4) -

→ Fig. K+L.

2. Specified Use

The cordless tapper / cordless drills/drivers are suitable for drilling in metal, wood, plastic and similar materials, and also for screwdriving and cutting internal threads.

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3. General Safety Instructions

For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING – Read all safety warnings, instructions, illustrations and cifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Always include these documents when passing on your power tool.

4. Special Safety Instructions

Use the additional handle supplied with the tool. Loss of control can cause personal injury.

Brace the power tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury.

Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Safety instructions when using long drill bits: a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in

personal injury.

b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage and loss of control, resulting in personal injury.

Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).

Always hold the machine with both hands on the designated handles, take a secure stance and concentrate on the work.

WARNING – Always wear protective goggles.

Protect battery packs from water and moisture!

Do not expose battery packs to fire!

Do not use faulty or deformed battery packs! Do not open battery packs!

Do not touch or short circuit battery pack contacts!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out

and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

If the machine is defective, remove the battery pack from the machine.

Remove the battery pack from the machine before making any adjustments, changing tools, maintaining or cleaning.

Make sure that the tool is switched off before fitting the battery pack.

Keep hands away from the rotating tool!

Remove chips and similar material only when the machine is at a standstill.

Secure the workpiece to prevent slipping or rotation (e.g. by securing with screw clamps).

LED light (14): do not observe the LED radiation directly with optical instruments.

CAUTION Do not stare at operating lamp.

Reducing dust exposure:

WARNING - Some dust created by power sanding, sawing, grinding, drilling, and other truction activities contains chemicals known to

cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

This also applies to dust from other materials such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.

Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).

Collect the particles generated at the source, avoid deposits in the surrounding area.

Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.

Use a suitable extraction unit.

Reduce dust exposure with the following measures:

• do not direct the escaping particles and the exhaust air stream towards yourself or nearby persons or towards dust deposits,
• use an extraction unit and/or air purifiers,
• ensure good ventilation of the workplace and keep it clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
• Vacuum or wash protective clothing. Do not blow, beat or brush protective gear.

Transport of li-ion battery packs:

The shipping of li-ion battery pack is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo.

Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).

5. Figures

Illustrations are provided at the beginning of the operating instructions.

Symbol explanation:

Movement direction

Drill bit

Slow

Fast

6. Overview

→ Fig. A

1 Key less chuck
2 Additional handle
3 Slide switch (drilling, threadtapping)
4 G e a r s w i t c h
5 Rotation selector switch (rotation setting, transport lock) - both sides of the machine

6 H a n d l e
7 Bit depot *
8 Belthook *
9 Battery pack release button
0 Capacity indicator button *
1 Capacity and signal indicator *
2 Battery pack *
3 Setting wheel (pulse function, torque control, max. torque)
14 LED lamp (Working light and red warning lamp)
15 Trigger switch *equipment-specific

7. Use

7.1 Electronic safety shutdown (...LTX BL...)

In case of sudden rotation of the power tool around the drill axis, e.g. due to catching/jamming of the accessory, the machine switches off automatically - for better control of the machine and high user protection compared to machines without this function.

The shutdown is indicated by a single red flashing of the LED light (14) and a single beep.

7.2 Battery pack, capacity and signal indicator Fig. B

Charge the battery pack before use.

Recharge the battery pack if performance diminishes.

Instructions on charging the battery pack can be found in the operating instructions of the Metabo charger.

7.3 Removing and inserting the battery pack → Fig. C

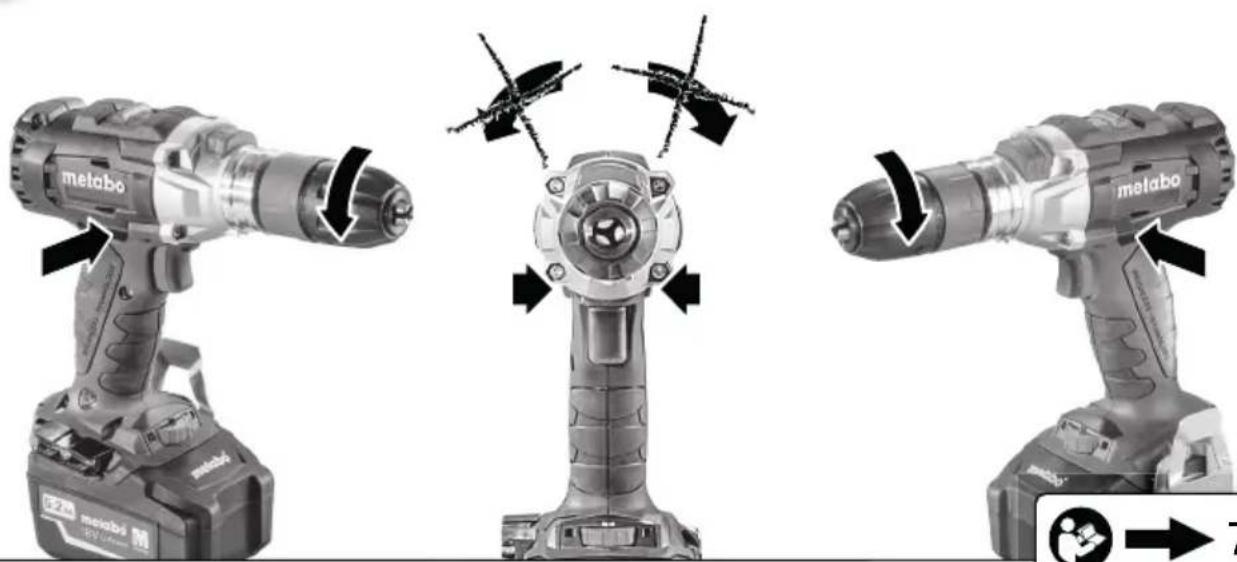

7.4 Setting the direction of rotation, engaging the transporting safety device (switch-on lock) Fig. D

ENGLISHen

7.5 Select the gear Fig. E

Do not set the gear switch (4) unless the motor has stopped completely!

7.6 Set drill, thread tapping → Fig. A

Activate slide switch (3).

Note: To screw the sliding switch (3) select the "Drill" position.

7.7 Setting torque control, maximum torque, pulse function

Do not work for long periods with pulse function switched on! (The motor can heat.)

Fig. F

Set the desired operating mode at the setting wheel (13):

= Pulse function

1...10

= Torque control

= maximum torque

Note: Pulse function is only available when sliding switch (3) is set to "Drill".

7.8 Switching On/Off, setting the speed

Fig. A

Switching on, speed: press the trigger switch (15). Press in the trigger switch to increase the rotational speed.

Switching off: release the trigger switch (15). Note: the noise that the machine makes when it switches off is due to the design (quick stop) and has no influence on the function or the service life of the machine.

7.9 Keyless chuck Fig.G

With a soft tool shank, retightening may be required after a short drilling period.

Cleaning: from time to time, hold the machine vertically with the chuck facing downwards and turn the sleeve fully in the direction "GRIP, ZU" and then turn fully in the direction "AUF, RELEASE". The dust collected falls from the keyless chuck.

7.10 Threadcutting Fig. H

Only use machine tappers, which fulfil the following conditions:

- Only use undamaged and sharp machine taps. - Only use machine taps for right-hand threads.

Preparations:

• Make a hole (with a diameter that fits the tap used).
• Set the gear switch (4) to Gear "1".
• Move the sliding switch (3) to "Thread tapping"
• Adjust setting wheel (13) (see fig. below): The appropriate setting depends on many factors, in principle the following applies: a) Blind holes and small through holes:

For blind holes, do not select too much torque so that the tap does not snap when it reaches the bottom of the hole. The Pulse position corresponds to the smallest torque and the smallest speed. Both values increase up to position 4. b) Through holes:

Select a larger torque. From position 4 the speed remains the same and only the torque increases. For "Maximum torque" select position

• Attach the chuck matching the tap (chuck "M8-12"/"M 4-6")
• Open the chuck.
• In sert tap.

- Insert taps of sizes M8 - M12, to the stop in the chuck "M8-12" so that the square is held by the holder inside the chuck.

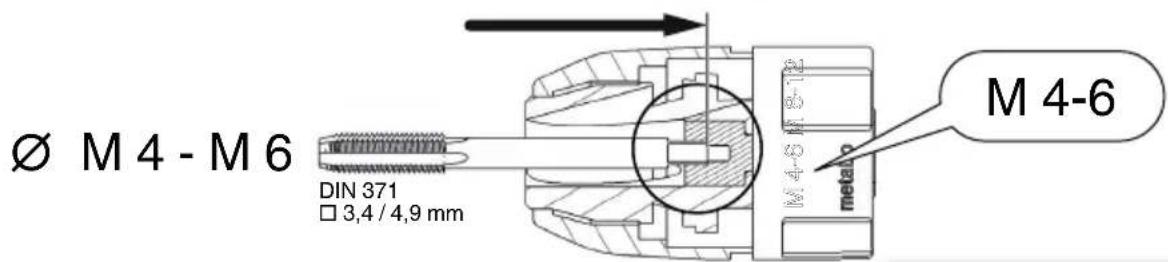

- Insert taps of sizes M4 - M6, to the stop in the chuck "M4-6" so that the square is held by the holder inside the chuck.

• Close chuck and clamp tight.
• Lubricate hole and tap with appropriate cutting oil.

Tappingthread

• Place tap on the hole.
• Move machine in axial direction.
• Depress the trigger switch (15) and at a low speed and with moderate pressure, let the tap cut into the hole. The speed can be increased during the thread tapping.
• When the desired thread depth is reached, pull the machine evenly from the hole while keep the trigger switch (15) depressed. The machine automatically changes its direction of rotation.

Note: If the sliding switch (3) is in the "Thread tapping" position, right and left pulse function are not available.

Note: If the sliding switch (3) is in the position "Thread tapping" position and there is no pressure on the tap, the machine runs in left mode! If pressure is placed on the tap, the machine automatically changes to right mode.

7.11 Chuck with quick-change system Quick

To remove: Push the interlock ring forward (a), advance and pull off the chuck (b).

To fit: push the interlock ring forward and move the chuck as far as the limit stop on the drill spindle.

7.12 Fitting the belt hook (equipment-specific) / bit depot (equipment-specific)

Fit the belt hook (8) as shown.

Fit the bit depot (7) as shown.

8. Troubleshooting

8.1 Defective electronic safety shutdown (...LTX BL...)

Red continuous lighting of the LED lamp (14) signals a defective safety shutdown. Have the machine repaired. See chapter 10.

8.2 The machine's multifunctional monitoring system

If the machine switches off automatically, the machine electronics have activated automatic protection mode. There will be a warning signal (beep). The beeping stops after a maximum of 30 seconds or when the trigger switch (15) is released.

In spite of this protective function, overloading is still possible with certain applications and can result in damage to the machine.

Causes and remedies:

1. Battery pack almost empty → Fig. A, B (The electronics protect the battery pack against damage through total discharge).
   If one LED (11) is flashing, the battery pack is almost flat. If necessary, press the button (10) and check the LEDs (11) to see the charge level. If the battery pack is almost flat, it must be recharged.

2. Long continuous overloading of the machine will activate the temperature cut-out.

Leave the machine or battery pack to cool.

Note: if the battery pack feels very warm, the pack will cool more quickly in an "AIR COOLED" charger.

Note: the machine will cool more quickly if you operate it at idling speed.

1. Metabo safety shutdown: the machine has SHUT DOWN by itself. If the speed suddenly drops (for example, if the machine suddenly seizes or kickback occurs), the machine switches off. Switch off the machine at the trigger switch (15). Switch it on again and continue to work as normal. Try to prevent the machine from seizing.

8.3 Note:

The LED lamp (14) switches off automatically after a specific time.

9. Accessories

Use only original Metabo or CAS (Cordless Alliance System) battery packs and accessories.

Use only accessories that fulfil the requirements and specifications listed in these operating instructions.

Fit accessories securely. If the machine is operated in a holder: secure the machine well. Loss of control can cause personal injury.

For a complete range of accessories, see www.metabo.com or the catalogue.

10. Repairs

Repairs to electrical tools must ONLY be carried out by qualified electricians!

Contact your local Metabo representative if you have Metabo power tools requiring repairs. See www.metabo.com for addresses.

You can download a list of spare parts from www.metabo.com.

11. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Battery packs may not be disposed of with regular waste. Return faulty or used battery packs to your Metabo dealer!

Do not allow battery packs to come into contact with water!

Protect the environment, and do not dispose of power tools and battery packs with household waste. Observe national regulations on separated collection and recycling of disused machines, packaging and accessories.

Discharge the battery pack in the power tool before disposal. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).

12. Technical Data

→ Fig. K. We reserve the right to make technical improvements.

U = Voltage of battery pack

n _ 0 = No - load speed

Tightening torque for screwing:

M _ 1 = Soft screwing application (wood)

M₂= Pulse torque

M _ 3 = Hard screwing applications (metal)

M _ 4 = A d j u s t a b l e t o r q u e

D_{1\ max} = Max. thread diameter

D_{2\ max} = Max. drill bit diameter in steel

D _ 3 = Max. drill bit diameter in soft wood

m = Weight (with the smallest battery pack)

G = Spindl

D _ = Chuck clamping range

ENGLISHen

Measured values determined in conformity with EN 62841.

Permitted ambient temperature during operation: -20 °C to 50 °C (limited performance with temperatures below 0 °C). Permitted ambient temperature for storage: 0 °C to 30 °C

= Direct current

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

Emission values

These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on the operating conditions, the condition of the power tool or the accessories. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates.

Vibration total value (vector sum of three directions) determined in accordance with EN 62841:

a_{h, ID} = Vibration emission value (impact drilling in concrete)

a_h,D = Vibration emission value (Drilling in metal)

a_h,S = Vibration emission value (screwing without impact)

K_n,... = Uncertainty (vibration)

Typical A-effective perceived sound levels:

L_pA = Sound - pressure level

L_WA = Acoustic power level

K_pA , K_WA= Uncertainty (noise level)

The noise level can exceed 80 dB(A) during operation.

Wear ear protectors!

Notice originale

K_n,... = incertitude (vibration)

Transport van Li-lon-occupacks:

--- Corrente contínua

• Montér den borepatron, der passer til gevindboret (borepatron „M8-12“ hhv. „M 4-6“)
• Åbn borepatronen .
• l n d s æ t gevindboret.
