Product type	Unmanaged Gigabit network switch
Model	TP-Link TL-SG1048
Number of ports	48 RJ45 ports 10/100/1000 Mbps
Housing material	Metal
Installation	On desk (rubber feet provided) or 19" rack (mounting brackets included)
Power supply	100-240 V~, 50/60 Hz, external adapter
Maximum power consumption	21 W
Dimensions (W x D x H)	440 x 230 x 44 mm
Weight	3.5 kg
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH, non-condensing
Ventilation	Fanless (silent operation)
Standards and certifications	IEEE 802.3, 802.3u, 802.3ab, 802.3x; CE, FCC
Main features	Auto-negotiation, Auto-MDI/MDIX, IEEE 802.3x Flow Control, Store and Forward
Maintenance and cleaning	Unplug the device, clean with a soft dry cloth. Do not use liquids or aerosols.
Safety	Do not open or repair yourself. Use only the supplied adapter. Keep away from water.
Warranty	TP-Link limited warranty (duration indicated on packaging).
Spare parts and repairability	Power adapter available as spare part. Repair by authorized service only.

Frequently Asked Questions - TL-SG1048 TP-LINK

How to install the switch on a desk?

Place the switch on a flat, sturdy surface. Remove the protective coverings from the rubber feet provided, turn the device over, and attach the feet to the four corners.Ensure the surface can support the weight of the switch and cables.

How to install the switch in a rack?

Check the grounding and stability of the rack. Attach the mounting brackets to each side of the switch using the screws provided, then use suitable bolts (not included) to secure it to the rack.

What cables to use to connect devices?

Use RJ45 Ethernet cables (Cat5e or higher) to connect your computers, routers, or other network devices to the switch's 48 ports.

How to power on the switch?

Plug the provided power cord into the switch's power connector, then connect the other end to an electrical outlet. There is no power switch; unplug the cord to disconnect power.

Does the switch get hot? Is this normal?

Slight warming is normal. The metal housing dissipates heat. If the temperature is excessive, check the ventilation around the device and ensure it is not obstructed.

What to do if a port does not work?

Check that the cable is firmly inserted and the connected device is powered on. Test with another cable or another port. If the problem persists, restart the switch by disconnecting and reconnecting power.

Can I use the switch with a router?

Yes, connect an Ethernet cable from a LAN port on the router to any of the switch's 48 ports. The switch will extend your local network.

How to clean the switch?

Unplug the device, then use a soft dry cloth to wipe the surface. Never use liquids, aerosols, or abrasive cleaners.

What does the TP-Link warranty cover?

The limited warranty covers hardware and manufacturing defects under normal use, for the duration indicated on the packaging. Opening the device voids the warranty. For any claims, contact customer service.

Where can I find the full user manual?

You can download the complete PDF manual from notice-facile.com. It is available in several languages, including French.

USER MANUAL TL-SG1048 TP-LINK

Unmanaged Rackmount Switch

CONTENTS

Deutsch....01

English....04

Español....07

Ελληνικά....10

Français....13

Italiano....16

Português....19

Suomi....22

Nederlands....25

Svenska....28

Norsk....31

Dansk....34

Türkçe....37

Installation

- Tischmontage

- Einschalten

Installation

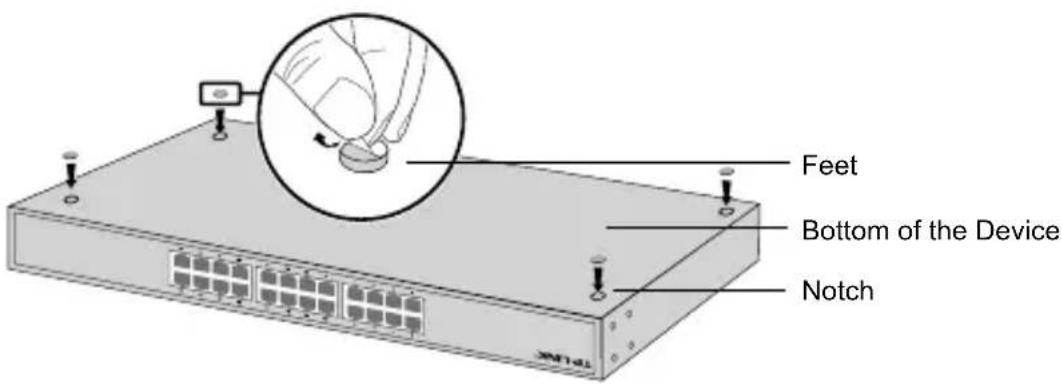

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

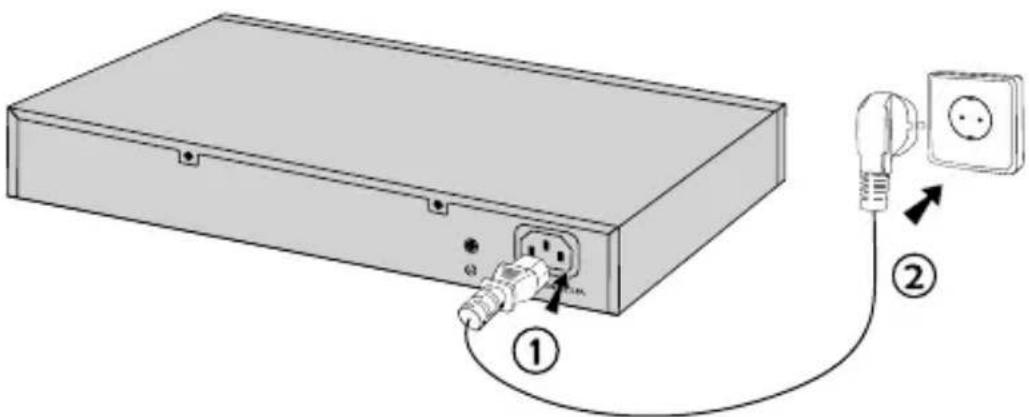

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Instalación

- Encender

Εγκατάσταση

Installation

- Pose libre

Installazione

Instalação

Asennus

- Pöytäasennus

Installatie

- Desktop installatie

Installation

- Desktop-installation

Montering

- Skrivebordsmontering

Installation

- Stationær installation

Kurulum

- Masaüstü Kurulumu

Deutsch

Sicherheitsinformation

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
