Product Type	4-Function Cordless Impact Driver/Hammer Driver Drill
Brand	Makita
Model	DTP131Y1J
Rated Voltage	14.4 V DC
Battery Type	Lithium-ion (compatible with BL1415/BL1415N/BL1430/BL1440/BL1450/BL1815/BL1815N/BL1820/BL1820B/BL1830/BL1840/BL1840B/BL1850/BL1850B)
Net Weight (with battery)	1.5 kg
Operation Modes	Impact driver, hammer drill, drill, screwdriver
No Load Speed (impact driver mode)	0 - 1,400 / 0 - 2,200 / 0 - 2,800 min⁻¹ (Soft/Medium/Hard)
Blows per Minute (impact driver mode)	0 - 1,200 / 0 - 2,400 / 0 - 3,200 min⁻¹ (Soft/Medium/Hard)
Tightening Capacity (standard bolt)	5 mm - 14 mm
Drilling Capacity (concrete)	8 mm
Drilling Capacity (steel)	10 mm (low speed) / 6.5 mm (high speed)
Drilling Capacity (wood)	21 mm (low speed) / 12 mm (high speed)
Impact Force Adjustment	3 levels (Soft, Medium, Hard)
Clutch Torque Adjustment	9 positions + P mode (self-drilling screws)
Electronic Clutch	Yes (in screwdriver mode)
Lighting	Front LED lamp with switch
Forward/Reverse Switch	Yes, with neutral position
Variable Speed	Yes, by trigger
Hanging Hook	Yes, removable and reversible
Sound Level (pressure)	85 dB(A)
Sound Level (power)	96 dB(A)
Vibration (concrete drilling)	13 m/s²
Maintenance	Clean with a dry cloth; have repairs performed by a Makita authorized service center
Spare Parts and Repairability	Screw bits, hook, carrying case, authentic Makita battery and charger

Frequently Asked Questions - DTP131Y1J MAKITA

What types of batteries can I use with the DTP131Y1J impact driver/hammer driver drill?

The DTP131Y1J is compatible with Makita 14.4 V lithium-ion batteries from the BL1415/BL1415N, BL1430/BL1440/BL1450 series, as well as certain 18 V batteries such as BL1815/BL1815N/BL1820/BL1820B/BL1830/BL1840/BL1840B/BL1850/BL1850B. Use only authentic Makita batteries to avoid any risk.

How do I install or remove the battery?

To remove the battery, slide it out of the tool while pressing the button on the front of the battery. To install, align the tongue with the groove in the casing and push until it clicks. Check that the red indicator is no longer visible to ensure proper locking.

How do I change the bit or drill?

Pull the sleeve forward, insert the bit fully, then release the sleeve. For short bits, use the provided bit adapter. Ensure the bit is securely fastened before use.

How do I select the operation mode?

Turn the mode change ring to one of the four positions: impact driver (impact), hammer drill (hammer), drill (drill), or screwdriver (screwdriver). The arrow must point exactly to the desired symbol.

How do I adjust the impact force in impact driver mode?

Press the button to cycle through the three levels: Soft, Medium, Hard. The selected level is displayed on the panel. You can change this setting about one minute after releasing the trigger.

How do I adjust the clutch torque in screwdriver mode?

In screwdriver mode, press the ⚡ button to cycle through levels 1 to 9, then the special P mode (for self-drilling screws). Minimum torque is level 1, maximum is level 9. Perform a test on a similar material before actual work.

What should I do if the front lamp does not turn on?

Press the lamp button on the LED display to toggle between ON and OFF. When the button is in the ON position, the lamp turns on when you press the trigger and turns off about 10 seconds after releasing it.

How do I reverse the rotation direction?

Use the reverse lever located above the trigger. Push it to side A for clockwise rotation, side B for counterclockwise. Turn the tool off before changing direction and place the lever in neutral position when not in use.

What are the important safety precautions?

Wear ear protectors, always use the auxiliary handles, hold the tool by insulated gripping surfaces to avoid electric shock in case of contact with a hidden wire, and do not touch the bit immediately after use as it may be hot.

How do I maintain the impact driver/hammer driver drill?

Clean the tool with a dry cloth. Never use gasoline, thinner, or alcohol. For any repairs, contact a Makita authorized service center and use only Makita replacement parts.

USER MANUAL DTP131Y1J MAKITA

Line drawing of a Makita electric drill with attached battery pack (no text or symbols)

012233 012428

1

015659 012237 4

3

012231 012249

5

7
012238 012240 8

9
012239

10
012244

11 12

012241 004521

13 14

012234
012235

15 16

Line drawing of a hand using a power drill to shoot material from a vertical surface (no text or symbols)

012236
012242

17 18

012423 012425

ENGLISH (Original instructions)

	Explanation of general view
1 Red indicator	12 Speed change lever	23 Sleeve
2 Button	13 Mode mark	24 Bit-piece
3 Battery cartridge	14 Action mode changing ring	25 Groove
4 Star marking	15 Arrow	26 Hook
5 Indicator lamps	16 Changed in three steps	27 Screw
6 Check button	17 Hard	28 Standard bolt
7 Switch trigger	18 Medium	29 Fastening torque
8 Lamp	19 Soft	30 Fastening time
9 LED display	20 Control button	31 Proper fastening torque
10 Lamp button	21 Battery capacity	32 High tensile bolt
11 Reversing switch lever	22 Bit

SPECIFICATIONS

Model DTP131 DTP141
Impact driver mode	Fastening Capacities	Machine screw 4	mm-8 mm
		Standard bolt 5	mm-14 mm
		High tensile bolt	5 mm-12 mm
	No load speed (min-1)(Soft / Medium / Hard)		0-1,400/0-2,2000-2,800		0-1,300/0-2,2000-2,700
	Impacts per minute(Soft / Medium / Hard)		0-1,200/0-2,400/0-3,200
			Low (1) / High (2)
Hammer drill mode	No load speed (min-1)		0-700/0-2,800		0-700/0-2,700
	Blows per minute (min-1)		0-8,400/0-32,400
	Drilling Capacities / Concrete		8 mm
Drill mode	Drilling Capacities	Steel	10 mm / 6.5 mm
		Wood	21 mm / 12 mm
		No load speed (min-1)	0-700/0-2,800		0-700/0-2,700
Screwdriver mode	Fastening Capacities	M a c h i n e s c r e w	3.5 mm-6 mm/4 mm-6 mm
		Self drilling screw	4 mm,5 mm/4 mm (Thickness 3.2 mm max.)
		No load speed (min-1)	0-300/0-1,100 (depends on torque setting)0-600/0-2,300 (P mode)
Battery cartridge			BL1415/BL1415N	BL1430/BL1440/BL1450	BL1815/BL1815N/BL1820/BL1820B	BL1830/BL1840/BL1840B/BL1850/BL1850B
Net weight			1.5 kg	1.7 kg	1.5 kg	1.8 kg
Rated voltage			D.C. 14.4 V		D.C. 18 V

- Due to our continuing program of research and development, the specifications herein are subject to change without notice.

- Specifications and battery cartridge may differ from country to country.

- Weight, with battery cartridge, according to EPTA-Procedure 01/2003

ENE064-1

Intended use

The tool is intended for impact screw driving in wood and for impact drilling in brick, concrete and stone as well as for drilling and screw driving without impact in wood, metal, ceramic and plastic.

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

GEB078-2

CORDLESS 4 MODE IMPACT DRIVER SAFETY WARNINGS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
5. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.
8. Do not leave the tool running. Operate the tool only when hand-held.
9. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
10. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC007-10

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).

2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

3. Be careful not to drop or strike battery.

4. Do not use a damaged battery.

5. Follow your local regulations relating to disposal of battery.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged.
   Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ C – 40^ C ( 50^ F – 104^ F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

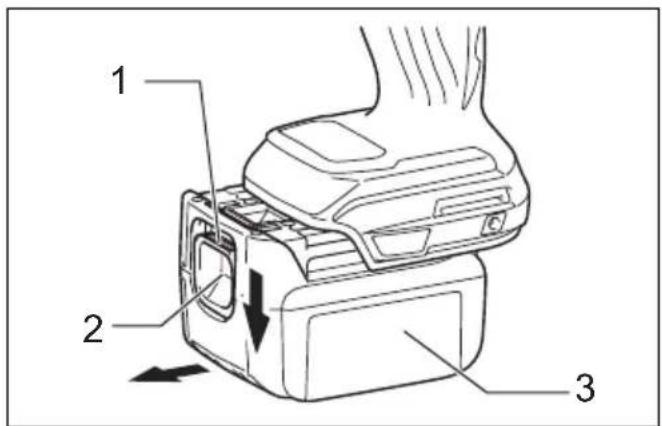

Installing or removing battery cartridge (Fig. 1)

CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

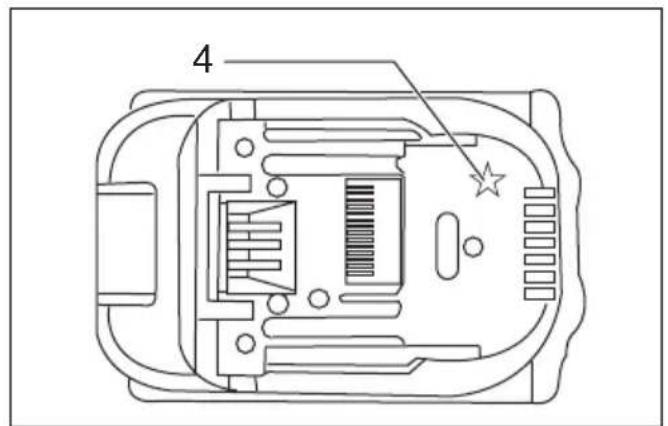

Battery protection system (Lithium-ion battery with star marking) (Fig. 2)

Lithium-ion batteries with a star marking are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life.

The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

- Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, release the trigger switch on the tool and stop the application that caused the tool to become overloaded. Then pull the trigger switch again to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the trigger switch again.

- Low battery voltage:

The remaining battery capacity is too low and the tool will not operate. In this situation, remove and recharge the battery.

Indicating the remaining battery capacity (Fig. 3) (Only for battery cartridges with "B" at the end of the model number.)

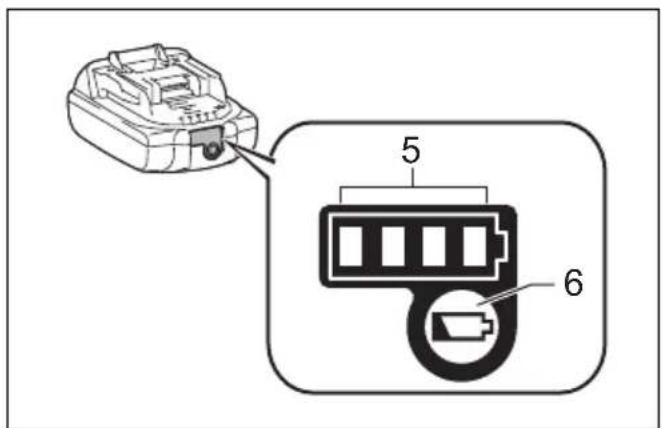

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for few seconds.

Indicator lamps			Remaining capacity
Lighted Off Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
			The battery may have malfunctioned.

015658

NOTE:

- Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

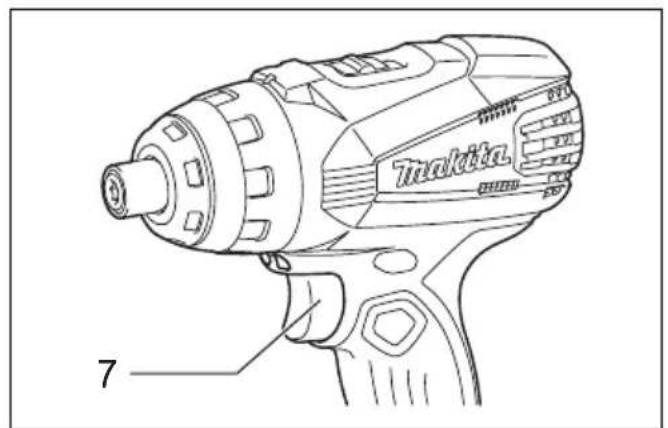

Switch action (Fig. 4)

CAUTION:

- Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. The tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

NOTE:

- The tool will stop three minutes after pulling the switch trigger.

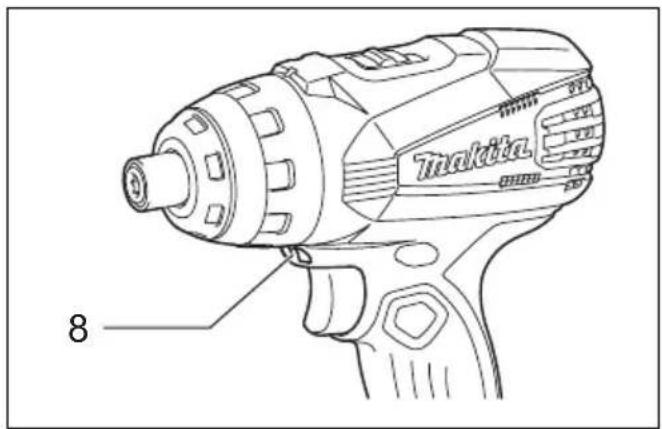

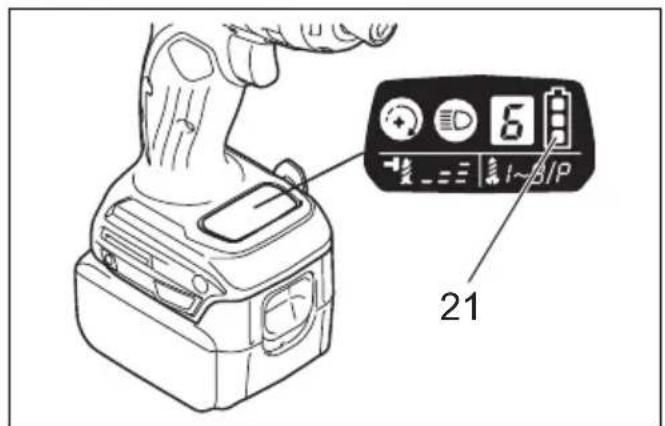

Lighting up the front lamp (Fig. 5 & 6)

CAUTION:

- Do not look in the lamp or see the source of lamp directly.

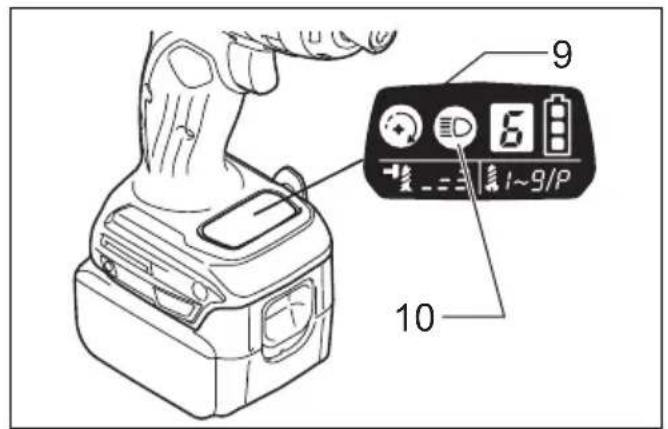

Every time the lamp button ☐ on the LED display is pressed, the lamp status is alternatively changed from the ON to the OFF and from the OFF to the ON.

With the lamp button in the ON status, pull the switch trigger to turn on the lamp. To turn off, release it and the lamp goes out approximately 10 seconds after releasing. With the lamp button in the OFF status, even if the trigger is pulled, the lamp will not light on.

NOTE:

• To make sure the status of lamp, pull the trigger. When the lamp lights up by pulling the switch trigger, the lamp switch is in the ON status. When the lamp does not come on, the lamp switch is in the OFF status.
• During the operation of switch trigger, the lamp status cannot be changed.

- For approximately 10 seconds after releasing the switch trigger, the lamp status can be switched.

Reversing switch action (Fig. 7)

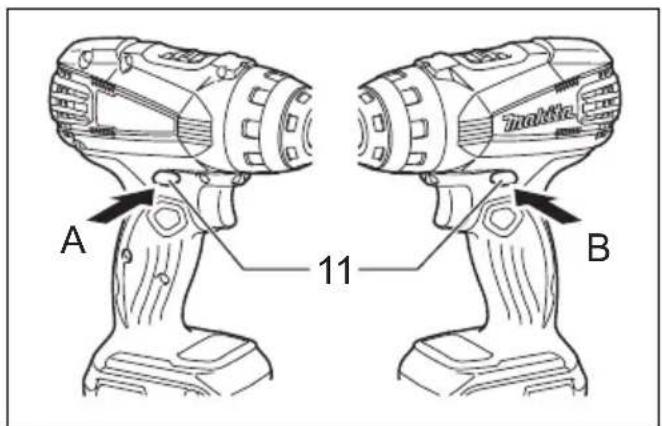

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position.

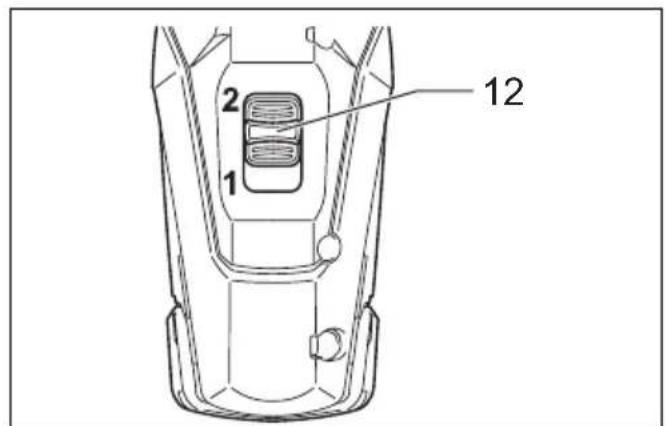

Speed change (Fig. 8)

NOTICE:

• Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway between the "1" side and "2" side, the tool may be damaged.
• Do not use the speed change lever while the tool is running. The tool may be damaged.
• Do not force the lever to "1" side with impact driver mode. The tool may be damaged.

To change the speed, first switch off the tool and then slide the speed change lever to the "2" side for high speed or "1" side for low speed. Be sure that the speed change lever is set to the correct position before operation. Use the right speed for your job.

When turning the action mode changing ring to impact driver mode, set the speed change lever to the "2" side.

Selecting the action mode (Fig. 9)

This tool employs an action mode changing ring. Select one of the 4 modes suitable for your work need by turning this ring.

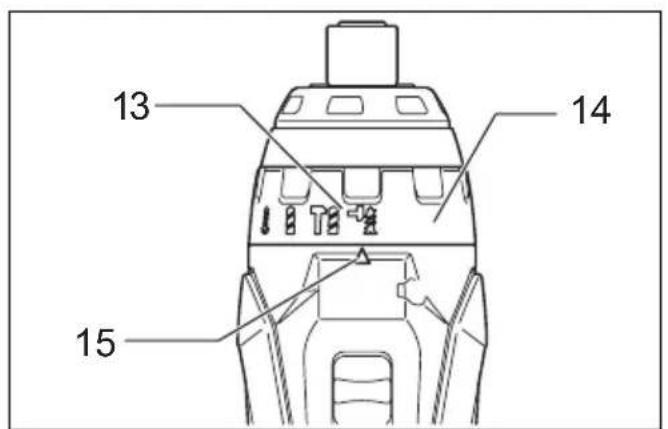

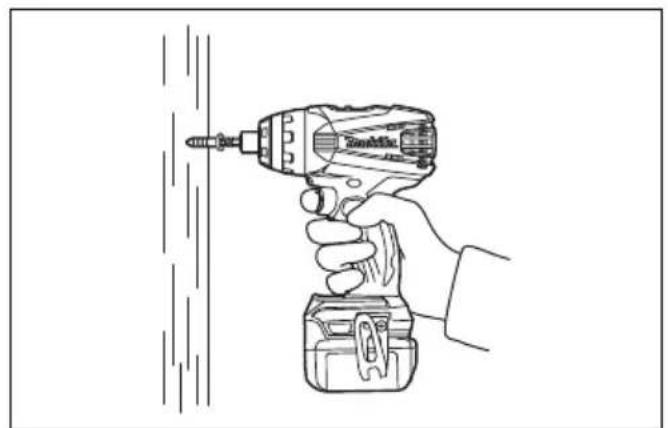

When driving wood screws or bolts, point the arrow at the mark for impact driver mode. The impact force can be adjusted on the LED display.

When drilling into concrete or tiles, point the arrow at the mark for hammer drill mode.

When drilling into wood or metal, point the arrow at the mark for drill mode.

When driving small wood screws or machine screws, point the arrow at the ⚙ mark for screwdriver mode. The fastening torque can be adjusted on the LED display.

CAUTION:

• Always set the arrow correctly to either mode mark. If you operate the tool with the action mode changing ring positioned halfway between the mode marks, the tool may be damaged.
• When turning the action mode changing ring, make sure that the tool stops. If the ring does not easily move, pull the switch trigger slightly to rotate the spindle and then move the ring.
• In the hammer drill mode or drill mode, the blowing force or torque is not adjustable. In those modes, the number on the LED display will be off.

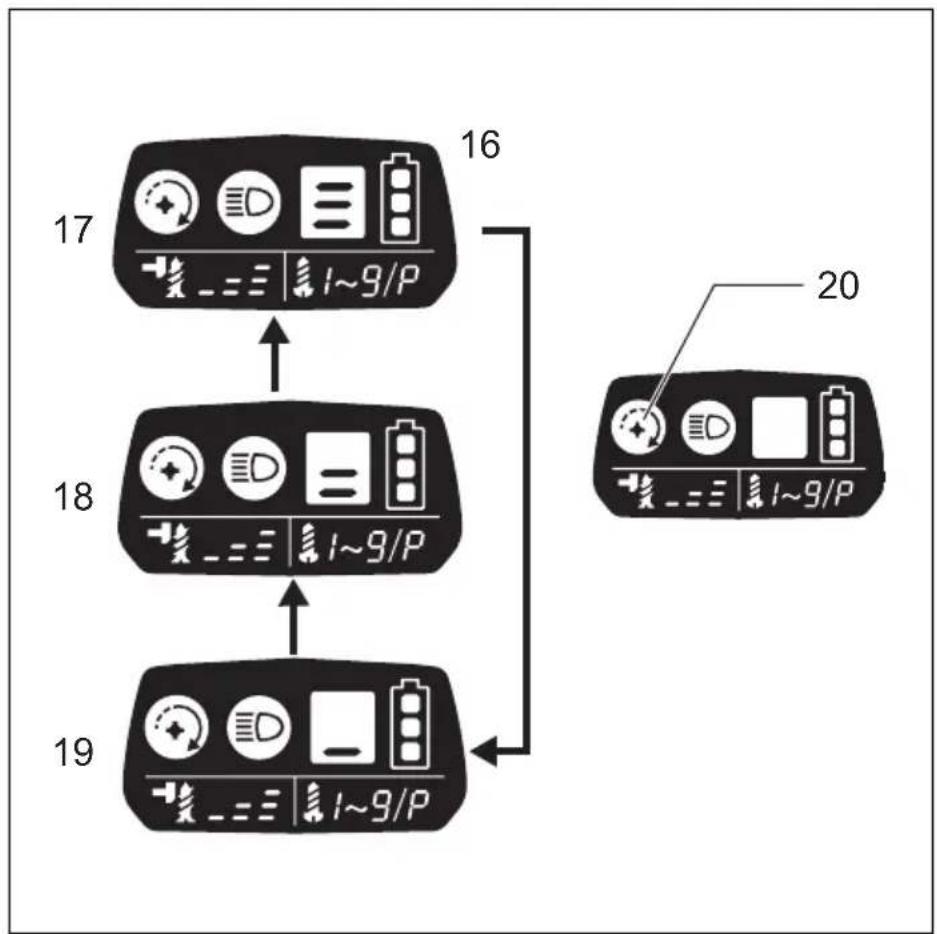

Changing the impact force (impact driver mode “ ^2 ) (Fig. 10)

Impact force grade displayed on panel	Maximum blows		Application Work
	DTP131 DTP141
Hard	3,200 (min-1)	3,200 (min-1)	Tightening when force and speed are desired.	Tightening in underwork material/Tightening long screws/Tightening bolts.
Medium	2,400 (min-1)	2,400 (min-1)	Tightening when a good finishing is needed.	Tightening in the finishing board, plaster board.
Soft	1,200 (min-1)	1,200 (min-1)	Tightening when excessive tightening need to be avoided because of potentially clogged female screw and broken or damaged screw head.	Tightening sash screw/Tightening small screws such as M6.

014262

The impact force can be changed in three steps: hard, medium and soft.

This allows a tightening suitable to the work.

Every time the button 🔒 is pressed, the impact force grade changes in three steps.

For approximately one minute after releasing the switch trigger, the impact force can be changed.

NOTE:

- During the operation of switch trigger, the impact force grade cannot be changed.

Changing the torque setting (screwdriver mode “!”)

The fastening torque can be adjusted by pressing the button in screwdriver mode.

The numbers on the LED display shows torque setting.

The fastening torque is minimum at the number 1 and maximum at the number 9. The indication "P" is a special mode for fastening self drilling screws.

Every time the button is pressed, the torque setting changes from 1 to 9 and P, and then returns to 1.

The torque setting changes fast by keeping pressing the button.

P mode is suitable for fastening self drilling screws into steel plates in the following conditions.

- With speed change lever at "2" side, fastening max. 4 mm screw into total max. 3.2 mm steel plates.

- With speed change lever at "1" side, fastening max. 5 mm screw.

Before an actual operation, drive a trial screw into your material or a piece of duplicate material to determine which torque level is required for a particular application. First, try to fasten the screw at "1". Then increase the number to continue fastening. Hold the tool firmly during operation.

CAUTION:

- Don't fasten the machine screw on P mode. It may twist your wrist suddenly and result in personal injury.

NOTE:

• Make sure to check the number on LED display before operation. If the number is not indicated, contact your nearest Makita service center.
• When the remaining battery capacity gets low in the screwdriver mode, the light flashes a few times when fastening the screw completely. In this case, recharge the battery. If you keep operating, you may not obtain the desired torque.
• During pulling the switch trigger, the torque setting cannot be changed.
• For approximately one minute after releasing the switch trigger, the torque setting can be changed. If you want to change the torque setting after that, pull the switch trigger again.
• The number of torque setting does not mean specific torque rate.

Empty signal for remaining battery capacity (Fig. 11)

(Country specific)

The remaining battery capacity will be signaled on the LED display when pulling the switch trigger.

The remaining battery capacity is shown as the following table.

LED indicator status R	Remaining battery capacity
	About 50% or more
	About 20% – 50%
	About less than 20%

012273

NOTE:

• When the LED display goes off, the tool is turned off to save the battery power. To check the remaining battery capacity, slightly pull the switch trigger.
• The LED display goes off approximately one minute after releasing the switch trigger.
• When the temperature of the tool gets high, the light flashes once per second for one minute, and then the LED display goes off. In this case, cool down the tool before operation.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver/drill/socket bit (Fig. 12)

Use only the driver/drill/socket bit shown in the figure. Do not use any other driver/drill/socket bit.

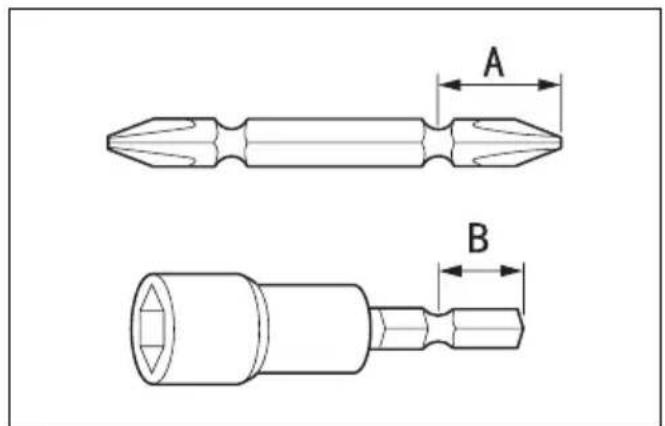

For tool with shallow bit hole

A = 12 mmB = 9 mm

Use only these type of bit. Follow the procedure (1).(Note) Bit-piece is not necessary.

006348

For tool with deep bit hole

A = 17 mmB = 14 mm	To install these types of bits, follow the procedure (1).
A = 12 mmB = 9 mm	To install these types of bits, follow the procedure (2).(Note) Bit-piece is necessary for installing the bit.

011405

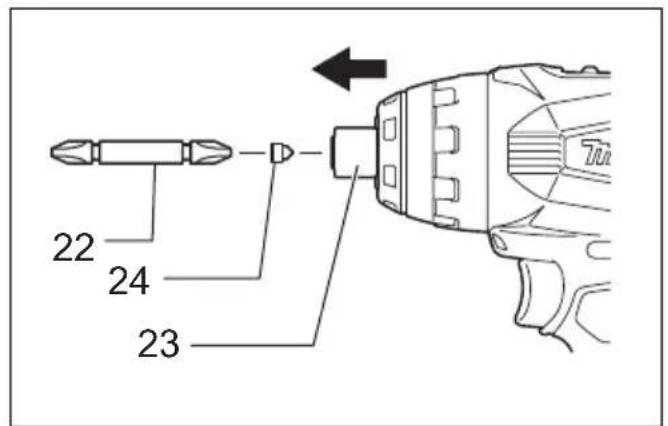

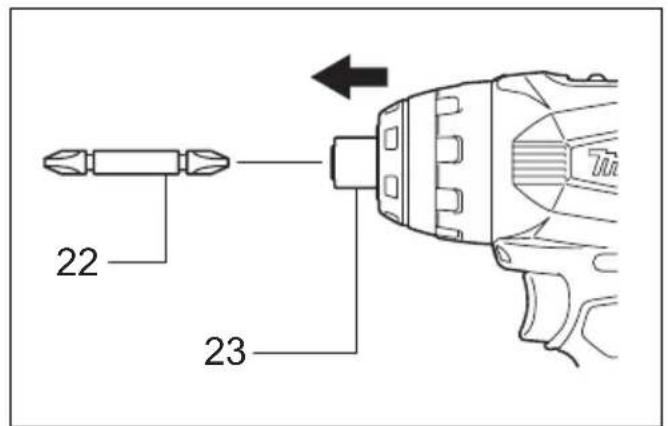

1. To install the bit, pull the sleeve and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit. (Fig. 13)
2. To install the bit, insert the bit-piece and bit into the sleeve as far as it will go. The bit-piece should be inserted into the sleeve with its pointed end facing in. Then release the sleeve to secure the bit. (Fig. 14)

To remove the bit, pull the sleeve in the direction of the arrow and pull the bit out firmly.

CAUTION:

- Do not touch the drill bit shortly after operating as it gets hot. Replace the drill bit after cooling it down.

NOTE:

- If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the bit will not be secured. In this case, try re-inserting the bit according to the instructions above.

- After inserting the bit, make sure that it is firmly secured. If it comes out, do not use it.

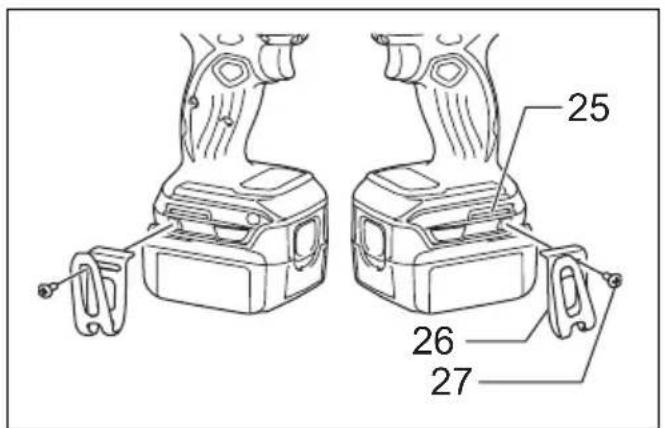

Hook (optional accessory) (Fig. 15)

CAUTION:

- When installing the hook, tighten the screw firmly. Failure to do so may cause the breakage of the tool or personal injury.

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool.

To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

OPERATION (Fig. 16)

CAUTION:

• Always insert the battery cartridge all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.

Impact driver mode “

CAUTION:

- When changing the action mode to the impact driver mode, always check that the tool impacts by tightening wood screws. If the action mode is not changed completely, the tool twists the operator's hand resulting injury.

Screwdriving

Hold the tool firmly and place the point of the driver bit in the screw head. Apply forward pressure to the tool to the extent that the bit will not slip off the screw and turn the tool on to start operation.

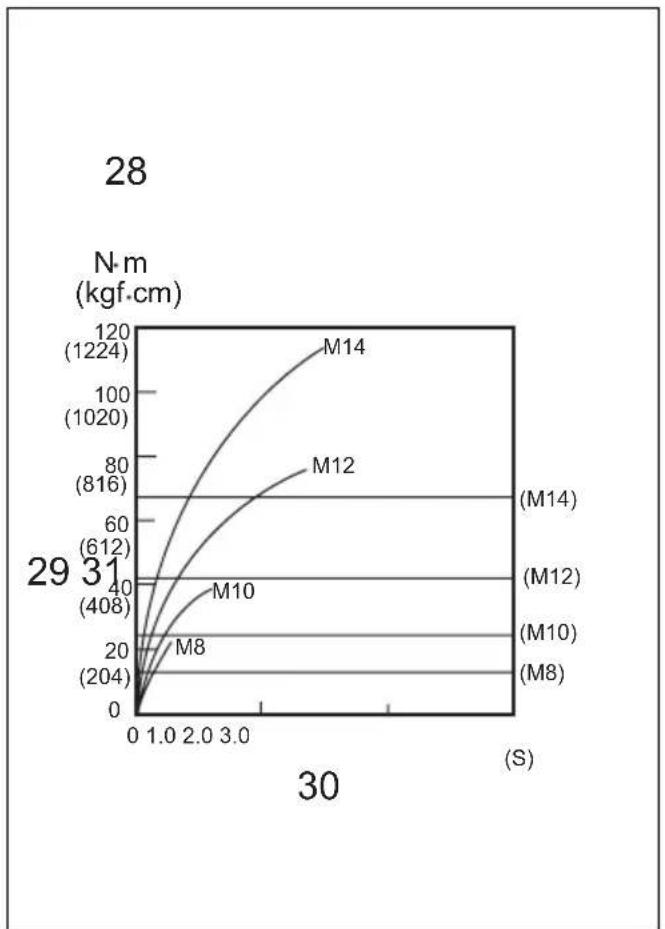

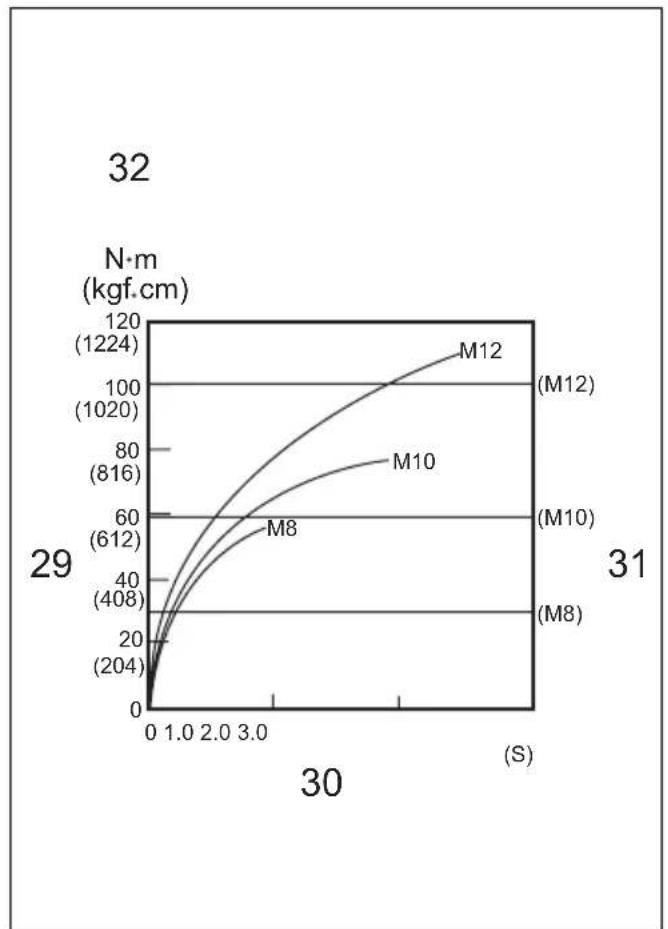

Tightening bolts (Fig. 17 & 18)

The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fastening torque and fastening time is shown in the figures.

NOTE:

• When the action mode is set to impact driver mode, make sure that the tool impacts properly by fastening a wood screw before operation. If the tool does not work properly, contact your nearest Makita service center.
• Hold the tool pointed straight at the screw.
• Use the proper bit for the head of the screw/bolt that you wish to use.
• When fastening screw M8 or smaller, carefully adjust pressure on the switch trigger so that the screw is not damaged.

- If you tighten the screw for a time longer than shown in the figures, the screw or the point of the driver bit may be overstressed, stripped, damaged, etc. Before starting your job, always perform a test operation to determine the proper fastening time for your screw.

The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench.

1. When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.

2. Driver bit or socket bit Failure to use the correct size driver bit or socket bit will cause a reduction in the fastening torque.

3. Bolt

• Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter of bolt.

• Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt and the bolt length.

• The manner of holding the tool or the material of driving position to be fastened will affect the torque.

• Operating the tool at low speed will cause a reduction in the fastening torque.

Hammer drill mode "

CAUTION:

- Always hold the tool firmly during operation. There is a tremendous and sudden twisting force exerted on the tool/bit at the time of hole break-through, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete.

Be sure to use a tungsten-carbide tipped bit.

Position the bit at the desired location for the hole, then pull the switch trigger. Do not force the tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away from the hole.

Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove the bit partially from the hole. By repeating this several times, the hole will be cleaned out and normal drilling may be resumed.

Drilling mode "g"

CAUTION:

• Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.
• There is a tremendous force exerted on the tool/bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece.
• A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.
• Always secure small workpieces in a vise or similar hold-down device.
• Do not pull the switch trigger repeatedly when the motor is locked. It may damage the tool.

For drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece.

For drilling in metal, to prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.

Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.

NOTE:

- Choose suitable speed for the work load. Drilling over the following capacity may damage the tool.

	Drilling capacity
High speed	Steel 6.5 mm
	Wood 12 mm
Low speed	Steel 10 mm
	Wood 21 mm

012989

Screwdriver mode "i"

CAUTION:

• Adjust the number on the LED display to the proper torque level for your work.
• Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged.
• Hold the tool firmly. When the clutch cuts in or refastening, a sudden twisting force may occur and it can twist your wrist.

Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually.

NOTE:

• This tool employs an electronic clutch. The tool stops automatically when the clutch cuts in. To keep operating, release the switch trigger once.
• When driving wood screws, predrill pilot holes to make driving easier and to prevent splitting of the workpiece. See the chart.

Nominal diameter of wood screw (mm)	Recommended size of pilot hole (mm)
3.1 2.0 – 2.2
3.5 2.2 – 2.5
3.8 2.5 – 2.8
4.5 2.9 – 3.2
4.8 3.1 – 3.4
5.1 3.3 – 3.6
5.5 3.7 – 3.9
5.8 4.0 – 4.2
6.1 4.2 – 4.4

006421

NOTE:

- See the following chart for the relation between the number of torque setting and fastening torque rate.

The fastening torque rate will be different depends on materials. Make a test fastening to get the desired torque before operation.

Number on LED Display	Fastening torque rate
	Low (1) High (2)
1	Approx. 2.5 N•m (Approx. 25.5 kgf. cm)	Approx. 1.1 N•m (Approx. 11.2 kgf. cm)
3	Approx. 4.6 N•m (Approx. 46.9 kgf. cm)	Approx. 2.0 N•m (Approx. 20.4 kgf. cm)
5	Approx. 8.1 N•m (Approx. 82.6 kgf. cm)	Approx. 3.0 N•m (Approx. 30.6 kgf. cm)
7	Approx. 10.0 N•m (Approx. 102.0 kgf. cm)	Approx. 4.0 N•m (Approx. 40.8 kgf. cm)
9	Approx. 11.5 N•m (Approx. 117.3 kgf. cm)	Approx. 5.8 N•m (Approx. 59.1 kgf. cm)

012276

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance except for the following troubleshooting related to the light.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

- These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Screw bits
• Hook
• Plastic carrying case
• Makita genuine battery and charger

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Noise

The typical A-weighted noise level determined according to EN60745:

Model DTP131

Sound pressure level ( L_pA ): 85 dB (A)

Sound power level (LWA): 96 dB (A)

Uncertainty (K): 3 dB (A)

Model DTP141

Sound pressure level ( L_pA ): 85 dB (A)

Sound power level (LWA): 96 dB (A)

Uncertainty (K): 3 dB (A)

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Model DTP131

Work mode: impact drilling into concrete

Vibration emission (a h, ID): 13 m/s²

Uncertainty (K): 1.5 m/s ^2

Work mode: impact tightening of fasteners of the maximum capacity of the tool

Vibration emission ( a_h ): 8.5 m/s ^2

Uncertainty (K): 2 m/s ^2

Work mode: drilling into metal

Vibration emission ( a_h,D ): 2.5 m/s ^2 or less

Uncertainty (K): 1.5 m/s ^2

Model DTP141

Work mode: impact drilling into concrete

Vibration emission ( a_h,ID ): 13 m/s ^2

Uncertainty (K): 1.5 m/s ^2

Work mode: impact tightening of fasteners of the maximum capacity of the tool

Vibration emission ( a_h ): 10.5 m/s ^2

Uncertainty (K): 1.5 m/s ^2

Work mode: drilling into metal

Vibration emission ( a_h,D ): 2.5 m/s ^2 or less

Uncertainty (K): 1.5 m/s ^2

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For European countries only

EC Declaration of Conformity

Makita declares that the following Machine(s):

Designation of Machine:

Cordless 4 Mode Impact Driver

Model No./ Type: DTP131, DTP141

Conforms to the following European Directives: 2006/42/EC

They are manufactured in accordance with the following standard or standardized documents:

EN60745

The technical file in accordance with 2006/42/EC is available from:

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

29.5.2015

Yasushi Fukaya

Director

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

Descriptif

Mode marteau perforateur "T"

ATTENTION :

OPTIONELE ACCESSOIRES

LET OP:
