Product type	Programmable timer switch
Brand	SilverCrest
Model	IAN 113027
Model reference	DZ 20 FR
Operating voltage	230 V ~ 50 Hz
Switching voltage	230 V ~
Max switching power	3500 W
Switching current	16(2) A
Number of programs	10 ON/OFF pairs
Minimum switching time	1 minute
Display	LCD with day, hour, minutes, seconds, random symbol, summer time, mode
Backup battery	NiMH 1.2 V, autonomy > 100 h
Random function	Yes, active between 6 PM and 6 AM with interval of 10 to 31 minutes
Operating modes	ON (continuous), AUTO (program), OFF (stop)
Summer/winter time adjustment	Yes, with CLOCK + ON/AUTO/OFF buttons
Ambient temperature range	-10 °C to 40 °C
Intended use	Indoor, closed and dry rooms, private use
Warranty	3 years
Cleaning and maintenance	Damp, soft cloth, mild detergent; disconnect before cleaning; do not use harsh products
Safety	Do not open, do not touch with wet hands, do not cover, disconnect before cleaning

Frequently Asked Questions - IAN 113027 SILVERCREST

How to charge the battery of the SilverCrest IAN 113027 switch?

Plug into a power outlet and let the battery charge for 14 hours. The LCD screen turns on after this initial charge.

How to reset all settings?

Press the MASTERCLEAR button (11) with a pointed object (pen). All programming and time settings will be cleared.

How to set the time and day of the week?

Hold down the CLOCK button (9), then set the day with WEEK (10), the hours with HOUR (12) and the minutes with MINUTE (2). The buttons repeat if held down.

How to program the switch to automatically turn on/off?

Make sure you are in AUTO mode (ON/AUTO/OFF button). Press TIMER (8) to enter program mode. Select the day or group of days with WEEK, then set the ON time with HOUR and MINUTE. Confirm with TIMER to go to the OFF setting. Repeat for each program (up to 10).

What is the random function (RANDOM) for?

The random function (RANDOM 4) activates random switching between 6 PM and 6 AM, with intervals of 10 to 31 minutes, to simulate presence. To activate it, the device must be in AUTO mode; press RANDOM until the R symbol appears on the screen.

How to disable a specific program?

Press TIMER (8) to enter program mode, select the desired program, then press RST/RCL (3) to disable the ON time and again for the OFF time. Confirm with CLOCK (9). Note: the ON and OFF times must be disabled separately.

What to do if the display is in 12-hour mode instead of 24-hour mode?

To switch between 12h and 24h mode, press the TIMER (8) and CLOCK (9) buttons simultaneously. The AM/PM display appears or disappears depending on the mode.

How to clean the SilverCrest IAN 113027 switch?

First unplug the device. Clean with a damp, soft cloth and mild detergent. Do not allow liquid to enter the device. Make sure it is completely dry before plugging it back in.

How to dispose of the device at the end of its life?

Do not dispose of the device in household waste. In accordance with European directive 2012/19/EU, take it to a collection point for electronic waste. Ask your local council for information.

What to do in case of malfunction or defect?

Contact customer service at 00800 48720741 or by email at [e-mail]. Keep the receipt as proof of purchase. The legal warranty is 3 years.

USER MANUAL IAN 113027 SILVERCREST

White electrical power meter with digital display and control buttons (no visible text or symbols)

TIMER SWITCH

GB

TIMERSWITCH

Operation and Safety Notes

FR BE

PROGRAMMATEUR

GB

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB Operation and Safety Notes Page 5

Charging the device......Page 16

Reset all settings......Page 16

Setting the current time......Page 17

Setting standard and summer time.....Page 18

Setting the hour mode......Page 19

Operation

Switching to the clock function ...... Page 20

(De)activating continuous operation ... Page 21

Configuring programs......Page 22

Switching the random function

on and off Page 26

Cleaning......Page 27

Warranty and Service......Page 29

Service address ...... Page 30

Manufacturer......Page 30

Timer Switch Digital – for indoors

- Introduction

Intendeduse

The device is intended as a digital weekly timer switch for use in enclosed, dry rooms and designed for private use. It is not suitable for commercial use. Only operate the device individually. Do not connect several timer switches in series. Any other use is considered improper. The manufacturer is not liable for damages due to improper use. Read the entire instructions for use before using the device. Keep these instructions for use. Include the instructions for use when passing the device on.

• Control elements (Fig. A)

1 LCD display
2 MINUTE button
3 RST/RCL button
4 RANDOM button
5 ON/AUTO/OFF button
6 Socket
7 Plug (reverse)
8 Timer button
9 CLOCK button
10 WEEK button
11 MASTERCLEAR button
12 HOUR button

LCD display (Fig. B)

13 Weekday display

14 R symbol

15 S symbol

16 Seconds display

17 ON - AUTO - OFF

18 Minutes display
19 PROGRAM
20 Hours display
21 CLOCK
22 Program number
23 AM - PM
24 ON - OFF

Technical Data

Model designation: DZ 20 FR

Operatingvoltage:230V \~ 50 Hz

Switchedvoltage:230V \~ 16(2) A

Switching capacity: max. 3500 W

Ambient temperature: -10 °C to 40 °C

Time error: ± 1 minute/month

Shorting switching time: 1 minute

Programs: 10ON/OFF

program sets

Battery:NiMH1.2V

100 h

Use

indoors:

CE compliant:

CE

Safety notices

Children are not able to understand the dangers arising from improper use of electric devices. Never leave children unsupervised when using electric devices.
■ Only plug the device into safely installed sockets.
■ Only connect loads within the specified capacities of the device.
- Do not cover the device. Heat accumulates when covered, creating a fire hazard.

• Regularly check the device for damage. Do not replace damaged parts but contact the manufacturer or dispose of the device in an environmentally responsible way.
  Do not open the device. Opening the device will void the warranty.
  The device contains a rechargeable battery. A defective rechargeable battery must be replaced by the manufacturer.
• Do not touch the device with wet hands or bring into contact with water.
  ■ Disconnect the device from the power mains to de-energise.
• Do not connect heaters or similar loads to the device, as these must never be operated unattended.

●Control-and display elements

Control elements

MASTERCLEAR button 11

This button will delete all time and program settings.

Displays

Weekdays 13

The abbreviations on the LCD display 1 mean:

MO Monday

TU Tuesday

WE Wednesday

TH Thursday

FR Friday

SA Saturday

SU Sunday

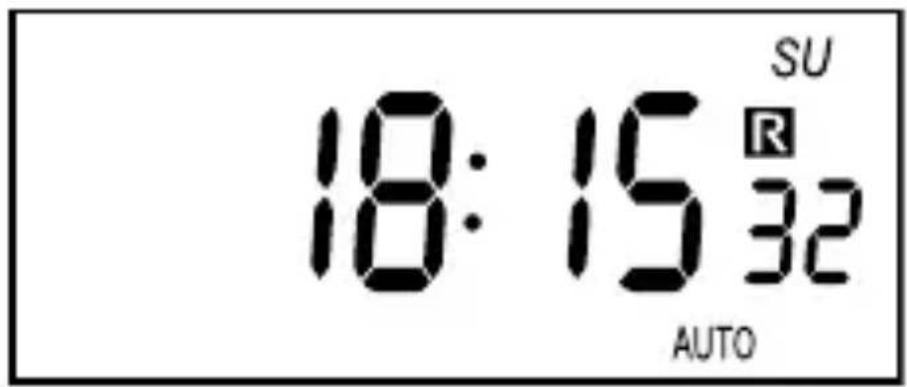

R Symbol 14

The R symbol indicates random switching is activated.

S symbol 15

Indicates the clock has been set to summer time.

ON - AUTO - OFF 17

Indicates the operating mode of the device.

PROGRAM 19

Indicates the program function has been activated.

CLOCK 21

Indicates the clock function has been activated.

Program number 22

Indicates the program number in PROGRAM function.

AM - PM 23

Indicates the hour mode.

ON - OFF 24

Indicates the switching state:

ON = turn-on time, OFF = turn-off time.

The switching state is only visible under program function.

Random function

The R symbol means random. In this mode the device will switch the connected loads on and off at different intervals.

Operating mode function

The different operating modes are:

AUTO = automatic program operation,

ON = continuous operation ON,

OFF = continuous operation OFF.

Program function

This function allows the on- and off times to be programmed for the connected load.

Clock function

This function shows the current time in the LCD.

- Preparation

To start up the device you must:

1. Charge the device.
2. Reset all settings.
3. Set the current time.

- Charging the device

☐ Insert the plug 7 into a mains socket.
☐ Charge the rechargeable battery for 14 hours.

Reset all settings

Reset all settings

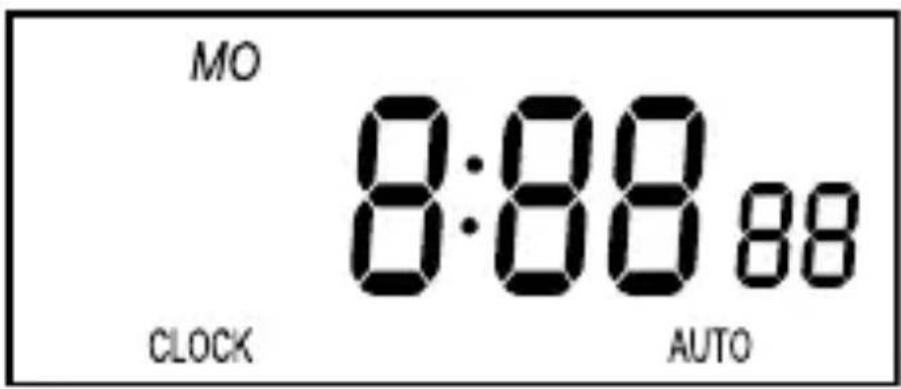

☐ Press the MASTERCLEAR 11 button with a pen or other pointy object. The LCD display 1 will read:

All settings cleared.

- Setting the current time

Note: Hold the HOUR, MINUTE button for faster programming.

☐ Press and hold the CLOCK 21 button.
☐ Set the current day of the week with the WEEK 10 button.
Set the hour with the HOUR 12 button.
Set the minute with the MINUTE 2 button.

Settingstandard and summer time

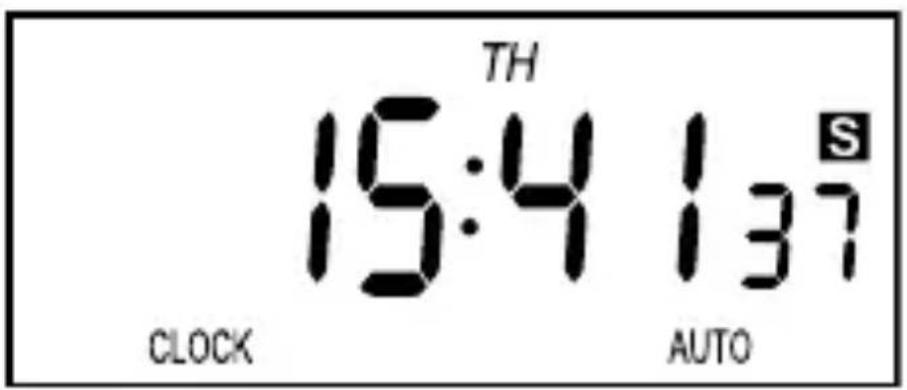

Setting summer time

□ Simultaneously press the CLOCK 9 and ON/AUTO/OFF 5 buttons. The LCD 1 will advance the hour display 20 by one hour and the S symbol 15 disappears.

Setting standard time

□ Simultaneously press the CLOCK 9 and ON/AUTO/OFF 5 buttons. The S symbol 15 disappears from the LCD 1 and the hour 20 decreases by one.

- Setting the hour mode

The LCD 1 can display the current time in 12- or 24-hour mode. In 12-hour mode AM means before 12 noon, PM after 12 noon. The default is 24 hour mode.

Setting to 12 hour mode

□ Simultaneously press the TIMER 8 and CLOCK 9 buttons. The LCD will show AM or PM 23.

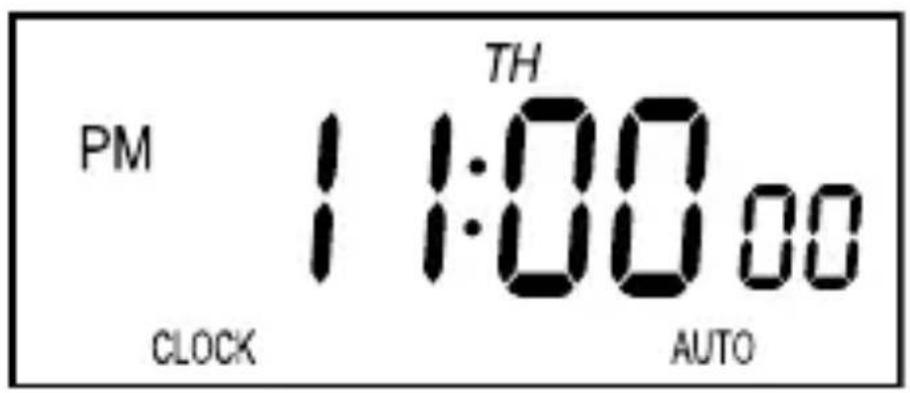

The following illustration shows 23:00 hours in 12-hour mode.

Setting to 24-hour mode

□ Simultaneously press the TIMER 8 and CLOCK 9 buttons. The LCD will stop showing AM or PM 23.

Operation

- Switching to the clock function

The LCD 1 automatically switches back to clock function if a function is not used for more than 30 seconds.

☐ Press the CLOCK 9 button to manually go to the clock function.

(De)activating continuous operation

This device has the following operating modes:

• Continuous operation,
• Automatic program operation

The default is automatic program operation. You can switch the device to continuous operation separate from the programs.

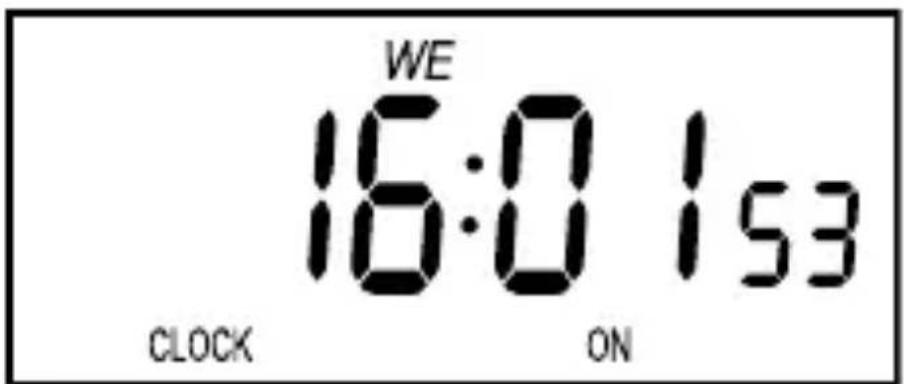

Activating continuous operation

Repeatedly press the ON/AUTO/OFF 5 button until the LCD 1 reads ON 17.

Deactivating continuous operation

☐ Repeatedly press the ON/AUTO/ OFF 5 button until the LCD 1 reads OFF 17.

Activating automatic program operation

☐ Repeatedly press the ON/AUTO/OFF 5 button until the LCD 1 reads AUTO 17.

Configuringprograms

You can set up to 10 ON/OFF programs. The shorted time between switching on and off is one minute.

A program consists of the switch-on and switch-off time. Both times must be programmed to be able to use a program.

Be sure the time settings of the various programs do not overlap. If the times overlap, the switch-on time takes priority.

1. Check if the device is in AUTO 17 mode. If not, set to AUTO 17 (see „Setting the operating mode“).

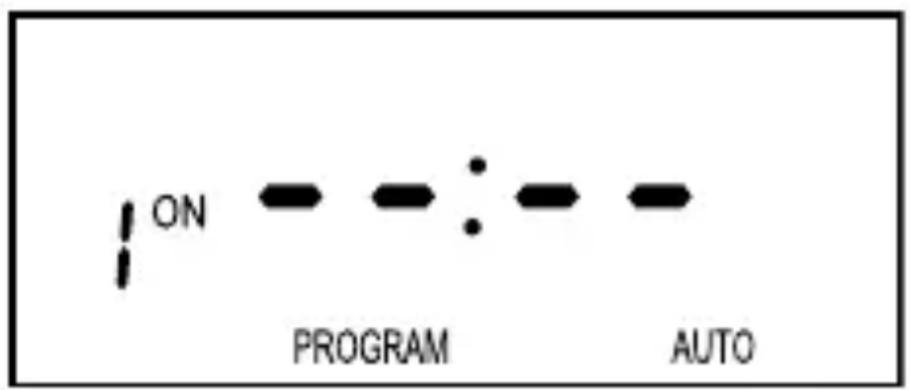

2. Select the program function with the TIMER 8 button. The LCD 1 reads:

1. Press the WEEK 10 button and press repeatedly to select one of the following options:
2. An individual weekday,
3. One of the following combinations:

MO, TU, WE, TH, FR, SA, SU MO, TU, WE, TH, FR SA, SU MO, TU, WE, TH, FR, SA MO, WE, FR TU, TH, SA MO, TU, WE TH, FR, SA MO, WE, FR, SU

1. Set the respective time using the HOUR 12 and MINUTE 2 buttons.
2. Press the TIMER 8 button to confirm the selection. The switch-on time has been programmed. The LCD 1 will switch to switch-off time.
3. Set the switch-off time as described in steps 3. to 5.

Deactivatingprograms

You can deactivate individual programs or all. To completely deactivate a program, you must deactivate the on and off time.

☐ Press the TIMER 8 button.
☐ Repeatedly press the TIMER 8 button to select the respective switch-on time.
☐ Press the RST/RCL 3 button.
☐ Press the TIMER 8 button to select the switch-off time.
☐ Press the RST/RCL 3 button.
☐ Press the CLOCK 9 button to confirm the entry and exit.

Restoring programs

Programs can only be restored whilst deactivated.

☐ Follow the instructions in chapter "Deactivating programs" to restore a deactivated program.

Switching the random function on and off

If the random function is activated, all set programs will be ignored from 18:00 to 6:00. Instead of that, there is a random function during this time period, which alternately switches on and off with an interval of 10 to 31 minutes.

Activating the random function

□ Check if the device is in AUTO 17
mode. If not, set to AUTO 17 (see
„Setting the operating mode“).
□PresstheRANDOM 4 button. The R symbol 14 will appear in the LCD 1.

Deactivating the random function

□ Press the RANDOM 4 button. The R symbol 14 will disappear from the LCD 1.

- Cleaning

ATTENTION! RISK OF ELECTRIC SHOCK! Discon- nect the device from the mains before cleaning.

ATTENTION! RISK OF ELECTRIC SHOCK! Do not allow liquids to enter the device. Liquids entering can result in a short circuit.

ATTENTION! Danger due to harsh cleaners.

□ Never use harsh or scouring cleaners.

□ Clean the device with a soft, slightly damped cloth and mild detergent.
☐ Ensure the device is completely dry before using it again.

●Disposal

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Do not dispose of electric equipment in the house- hold waste!

In accordance with European Directive 2012 / 19 / EC relating to old electrical and electronic appliances, used electrical equipment must be collected separately and recycled in an ecologically compatible way.

Contact your local authorities for information on how to dispose of the appliance at the end of product life.

Warranty and Service

This device is covered by a 3 year warranty from the date of purchase. Please keep your receipt as proof of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch.

The guarantee only applies to faults in material or manufacture when used properly. Any modifications will void the guarantee. This warranty does not limit your legal rights.

Please phone the service centre for guarantee claims. This is the only way to return your product free of charge.

Serviceaddress

BAT

Lindenstraße 35

72074 Tübingen

Germany

E-Mail: [e-mail]

Service phone: [phone]

If you need further information, we recommend that you consult Service/FAQ's on our homepage www.dvw-service.com.

IAN 113027

Manufacturer

BAT

Lindenstraße 35

72074 Tübingen

Germany

30 GB
