STV 45 D5 - Fan SILVERCREST - Free user manual and instructions

Product type	Column fan
Brand	SilverCrest
Model	STV 45 D5
Dimensions (height × width × depth)	70 cm × 30 cm × 30 cm
Weight	3.5 kg
Power supply	230 V ~ 50 Hz
Power consumption	45 W
Number of speeds	3
Oscillation	Yes, automatic rotation
Timer	Yes, up to 8 hours
Remote control	Yes (included)
Material	ABS plastic
Color	Black and silver
Noise level	50 dB(A)
Maximum air flow	1200 m³/h
Care and cleaning	Wipe with a damp cloth; do not immerse
Overheat protection	Yes, automatic shut-off
Spare parts and repairability	Available upon request from the manufacturer
General information	2-year warranty; household use

Frequently Asked Questions - STV 45 D5 SILVERCREST

How to clean the STV 45 D5 fan?

Unplug the appliance. Use a slightly damp soft cloth to wipe the grille and housing. Do not use abrasive products and never immerse the appliance in water.

The remote control does not work, what to do?

First check the remote control batteries (2 AAA batteries, not included). Replace them if necessary. Make sure there is no obstacle between the remote and the receiver. If the problem persists, contact customer service.

The oscillation no longer works, why?

Make sure the oscillation function is activated via the button on the appliance or remote control. If it still does not work, there may be a mechanical blockage or defect. Turn off the appliance, wait a few minutes, then try again. If the problem persists, contact a professional.

What is the height of the fan?

The fan measures approximately 70 cm in height, 30 cm in width, and 30 cm in depth.

The fan makes an abnormal noise, what to do?

Check that the fan is placed on a flat and stable surface. Make sure the screws are tightened properly. If the noise persists, there may be a motor problem. Stop the appliance and contact customer service.

Can I use the fan outdoors?

This fan is designed for indoor household use only. Do not expose it to rain, moisture, or extreme temperatures.

How to set the timer?

Press the 'Timer' button on the appliance or remote control to set the desired duration (from 1 to 8 hours). The fan will turn off automatically after that time.

The fan does not turn on, what to check?

Check that the appliance is properly plugged into a working power outlet. Make sure the outlet has power (try another device). Also check that the safety switch (if present) is in the 'I' position. If nothing works, contact customer service.

What is the power consumption of the fan?

The power consumption is 45 W, which corresponds to a consumption of about 0.045 kWh per hour at full speed.

How to obtain spare parts?

Spare parts are available upon request. Refer to the manual for the manufacturer's contact details or visit the SilverCrest website (accessible via notice-facile.com).

USER MANUAL STV 45 D5 SILVERCREST

10/2017 ID: STV 45 D5_17_V1.3

IAN 288536 IAN 288536 8

DE GB IE FR BE NL CZ ES PT

Deutsch.... 2

English.... 10

Français.... 18

Nederlands.... 28

Česky 36

Español.... 44

Português 52

Übersicht / Overview / Aperçu de l'appareil / Overzicht / Přehled / Vista general / Vista geral

Inhalt

6.1 Start and switch off the appliance 13
6.2 Set blower setting 13
6.3 Set running time.... 14
6.4 Oscillation function 14

1. Cleaning 14
2. Disposal 14
3. Technical specifications .... 15
4. Warranty of the HOYER Handel GmbH 15

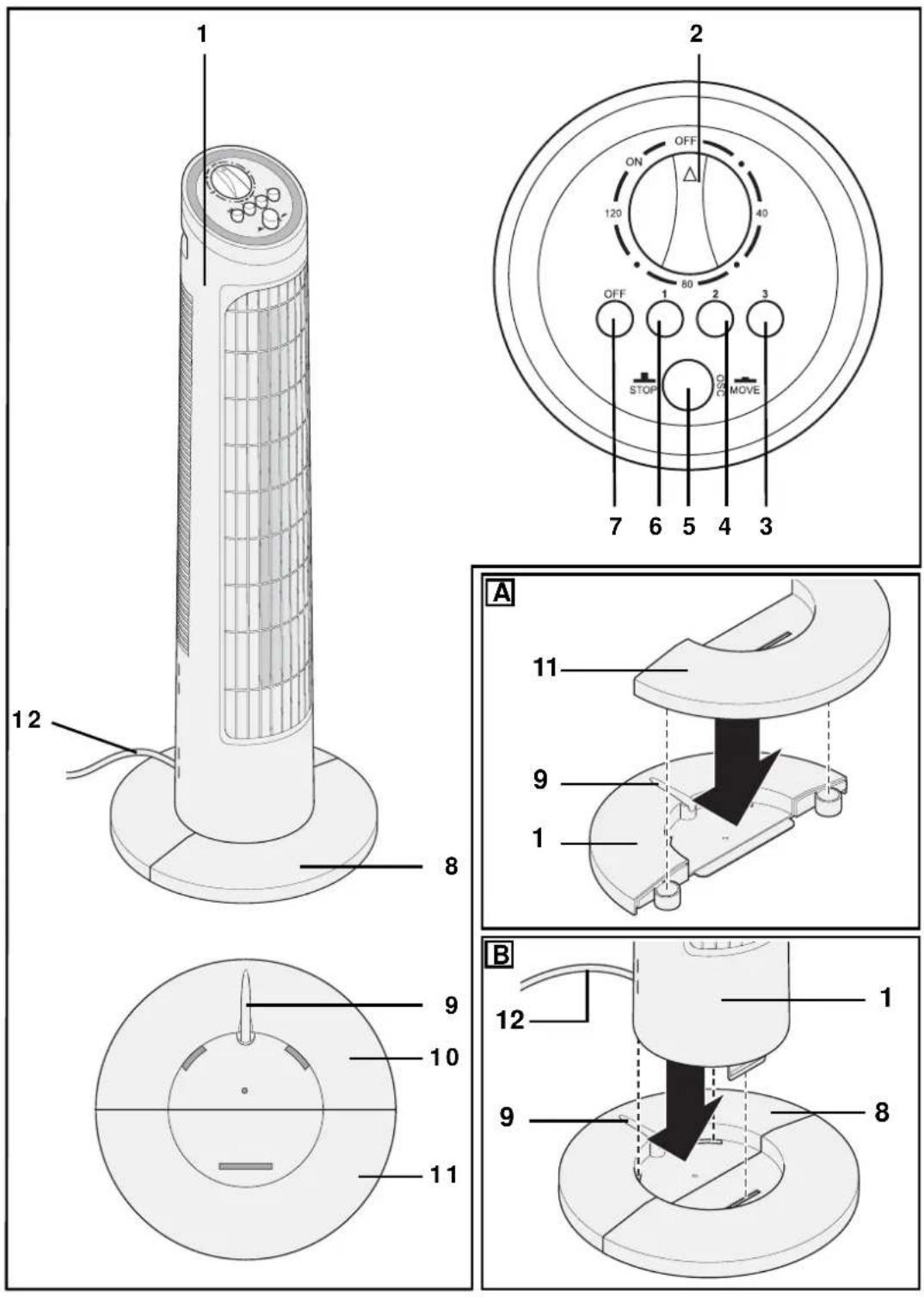

1. Overview

1 Tower fan
2 Rotary switch and timer
3 Button 3: high blower setting
4 Button 2: moderate blower setting
5 Button for oscillation function
6 Button 1: low blower setting
7 Off button (OFF)
8 Base
9 Recess for the mains power cable
10 Rear half of base
11 Front half of base
12 Mains power cable and mains plug

Not shown: screw

10

GB

Thank you for your trust!

Congratulations on your new Tower fan.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to first use.
- Above all, observe the safety instructions!
- The device should only be used as described in these operating instructions.

• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions.

We hope you enjoy your new Tower fan!

2. Intended purpose

Use this Tower fan to circulate air in dry indoor areas.

The device is designed for private, domestic use. The device must only be used indoors.

This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

- This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and user maintenance must not be performed by unsupervised children unless they are older than 8 years and supervised.

- Children under the age of 8 must be kept away from the device and the power cable.

- If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

- This device is not intended to be operated using an external timer clock or a separate remote control system.

DANGER for children

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation!

- Keep the device out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device, the cable and the mains plug must not be immersed in water or any other liquids.

- Protect the device from moisture, water drops and water spray. Failure to observe this instruction may result in an electrical shock hazard.

- If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing.

- Never touch the device with wet hands.

- If the device has fallen into water, pull out the mains plug immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist.

DANGER! Risk of electric shock

- Never put the device into operation if there are visible damages to the device or the power cable or if the device has been dropped before.

- Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Ensure that the power cable cannot be damaged by sharp edges or hot surfaces.

- When using the device, ensure that the power cable cannot be trapped or crushed.

The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.

- When removing the mains plug from the wall socket, always pull the plug and never the cable.

- Disconnect the mains plug from the wall socket...

...if there is a fault, ... when you are not using the device, ... before you clean the device and ... during thunderstorms.

- To avoid any risk, do not make modifications to the product.

- Fully unwind the mains cable during use to avoid overheating and scorching.

- When using an extension cable, this must correspond to the applicable safety regulations.

WARNING! Risk of material damage

• Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire.
• Only use the original accessories.
• Do not use any astringent or abrasive cleaning agents.

4. Items supplied

1 tower fan 1
1 base (consisting of 2 parts) 8
1 screw
1 set of operating instructions

Unpacking

1. Remove all parts from the packaging.
2. Check that all parts are present and intact.

5. Assemble appliance

Before the device can be used, the base 8 must be screwed on:

1. Figure A: put the rear half of the base 10 and the front half of the base 11 together. Ensure that the connection audibly clicks into place.

NOTES:

• The rear half of the base 10 can be identified by the recess for the mains power cable 9.

• Ensure that the mains power cable 12 is lying in the recess for the mains power cable 9.

• Figure B: place the tower fan 1 on the base 8. Ensure that it is standing safely, and that the mains power cable 12 is lying in the recess for the mains power cable 9.

• For safety reasons, screw the tower fan 1 firmly onto the base 8. For this purpose, use the screw supplied.

• Select a location which complies with the safety instructions (see "Safety information" on page 11).

• Insert the mains plug 12 into a mains socket corresponding to the technical data.

6. Operation

6.1 Start and switch off the appliance

1. Plug the power plug into a power supply socket which meets the technical data requirements.
2. Switch on the power supply by turning rotary switch 2 to ON. The appliance is now operational.
3. Switch off the power supply by turning rotary switch 2 to OFF.

6.2 Set blower setting

The blower settings are used to select how fast the appliance circulates air in the room.

The appliance has three blower settings:

• 1, low: press button 6;
• 2, moderate: press button 4;
• 3, high: press button 3.

Press the 7 OFF button to stop the appliance working.

6.3 Set running time

The appliance has a timer which you can use to set the desired running time to between 0 and 120 minutes.

1. Switch on the timer by turning rotary switch 2 to any time between 0 and 120 minutes. The power supply is switched on at the same time.

1. To switch off the timer, set rotary switch 2 to OFF.

NOTE: If you want the appliance to operate continuously, set rotary switch 2 to ON.

6.4 Oscillation function

The appliance has an oscillation function. This causes the appliance to move to and fro, distributing the air produced evenly throughout the room.

1. Switch on the oscillation function by pressing button for oscillation function 5.

2. Switch off the oscillation function by pressing button for oscillation function 5 again.

7. Cleaning

To ensure your appliance gives you lasting service, you should clean it regularly.

DANGER! Risk of electric shock!

- Remove the mains plug before each clean. - Never immerse the appliance in water. - Never allow water or cleaning agent to run into the appliance.

WARNING! Risk of material damage!

- Do not use any astringent or abrasive cleaning agents.

1. Carefully remove major dust deposits with a vacuum cleaner.
2. Clean the outside of the appliance with a damp cloth. You could also use a little washing-up liquid.
3. Wipe the appliance with a cloth moistened with clear water.
4. Do not use the appliance again until it has dried completely.

8. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires sep-

arate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Technical specifications

Model: STV 45 D5

Mains voltage: 220 - 240 V ~ 50/60 Hz

Protection class: II ☐

Power rating: 45 W

Description	Symbol	Value	Unit
Maximum fan flow rate	F	2	2m^3/min
Fan power input	P 35.1	9 W
Service value SV	0.46		(m^3/min)/W
Standby power consumption	P_SB	≤ 0.50	W
Fan sound pow-er level	L_WA	59.2	dB(A)
Maximum air velocity	c	2	5
Measurement standard for ser-vice value	IEC 60879:1986+(cor1:1992)

Technical symbols

	Double insulation
CE	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.

Subject to technical modifications.

10. Warranty of the HOYER Handel GmbH

Dear Customer, your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present-6 edmincluding a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 288536 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak))

(0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 288536

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Tasköprüstraße 3

DE-22761 Hamburg

GERMANY
