STV 50 A1 - Fan SILVERCREST - Free user manual and instructions

Product type	Pedestal fan
Model	STV 50 A1
Brand	SilverCrest
Power supply	220-240 V ~ 50/60 Hz
Power consumption	50 W
Maximum air flow	2 m³/min
Sound power level	61.33 dB(A)
Protection class	II (double insulation)
Standby consumption	≤ 0.50 W
Main functions	3 fan speeds (low, medium, high), adjustable timer up to 120 minutes, oscillation function
Package contents	Pedestal fan, base (2 halves), handle screw, 2 cross-head screws, instruction manual
Assembly	Assemble the base with screws, attach to the fan using the handle screw
Care and cleaning	Unplug before cleaning; vacuum dust, wipe with a damp cloth; do not immerse
Safety	Indoor use only; do not expose to moisture; unplug during thunderstorms; damaged cable must be replaced by a professional
Warranty	3 years from date of purchase; service France: 0800 919270, Belgium: 070 270 171
Repairability	Spare parts available during warranty period; repair by manufacturer or authorized service
Disposal	Do not dispose of with household waste; take to a collection point for electrical and electronic equipment

Frequently Asked Questions - STV 50 A1 SILVERCREST

How to assemble the fan base?

Assemble the rear and front halves of the base by snapping them together until they click, then fix with the two cross-head screws from underneath. Then unscrew the handle screw under the fan, place the base and tighten the screw. Make sure the power cable is placed in the provided recess.

How to set the timer?

Turn the rotary knob 6 to the desired position between 0 and 120 minutes. The appliance starts automatically. For continuous operation, set the knob to ON. The timer does not allow precise minute adjustment.

How to activate the oscillation function?

Press the oscillation function button (button 3) to activate oscillation. Press again to deactivate. This distributes air evenly in the room.

How to clean the fan?

Always unplug the power plug before cleaning. Use a vacuum cleaner to remove dust, then wipe the exterior with a damp cloth. Do not use corrosive products and never immerse the appliance in water. Let it dry completely before plugging it back in.

What is the noise level of the fan?

The sound power level is 61.33 dB(A), which corresponds to moderate noise, comparable to a normal conversation.

What is the power consumption?

The power consumption is 50 watts during operation. In standby mode, consumption is less than or equal to 0.50 watt.

Can I use the fan outdoors?

No, the appliance is designed for indoor use only, in closed and dry spaces. Do not expose it to moisture or rain.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any hazard. Do not use the appliance with a damaged cord.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for recycling of electrical and electronic equipment, in accordance with the WEEE directive.

What does the 3-year warranty cover?

The warranty covers material and manufacturing defects for 3 years from the date of purchase. Please keep the receipt. Wear parts (switches, etc.) and damage due to improper use are excluded. Contact customer service at 0800 919270 (France) or 070 270 171 (Belgium).

USER MANUAL STV 50 A1 SILVERCREST

Operating instructions

FR BE

VENTILATEUR COLONNE

Mode d'emploi

GR CY

ANEMIETHPAS

Οδηγία χρήσης

DK TÄRN VENTILATOR
Betjeningsvejledning
NL BE
TO REN VENTILATOR
Gebruiksaanwijzing
DE
TURM VENTILATOR
Bedienungsanleitung
DK TÄRN VENTILATOR Betjeningsvejledning NL BE TO REN VENTILATOR Gebruiksaanwijzing DE TURM VENTILATOR Bedienungsanleitung
DK TÄRN VENTILATOR Betjeningsvejledning NL BE TO REN VENTILATOR Gebruiksaanwijzing DE TURM VENTILATOR Bedienungsanleitung

English.... 2

Dansk.... 10

Français.... 18

Nederlands.... 28

Ελληνικά 38

Deutsch.... 48

Contents

1. Overview 2
2. Intended purpose .... 3
3. Safety information .... 3
4. Items supplied 5
5. Assemble appliance .... 5
6. Operation 5

6.1 Start and switch off the appliance 5
6.2 Set blower setting 5
6.3 Set running time.... 6
6.4 Oscillation function 6

1. Cleaning 6
2. Disposal 6
3. Technical specifications .... 7
4. Warranty of the HOYER Handel GmbH 8

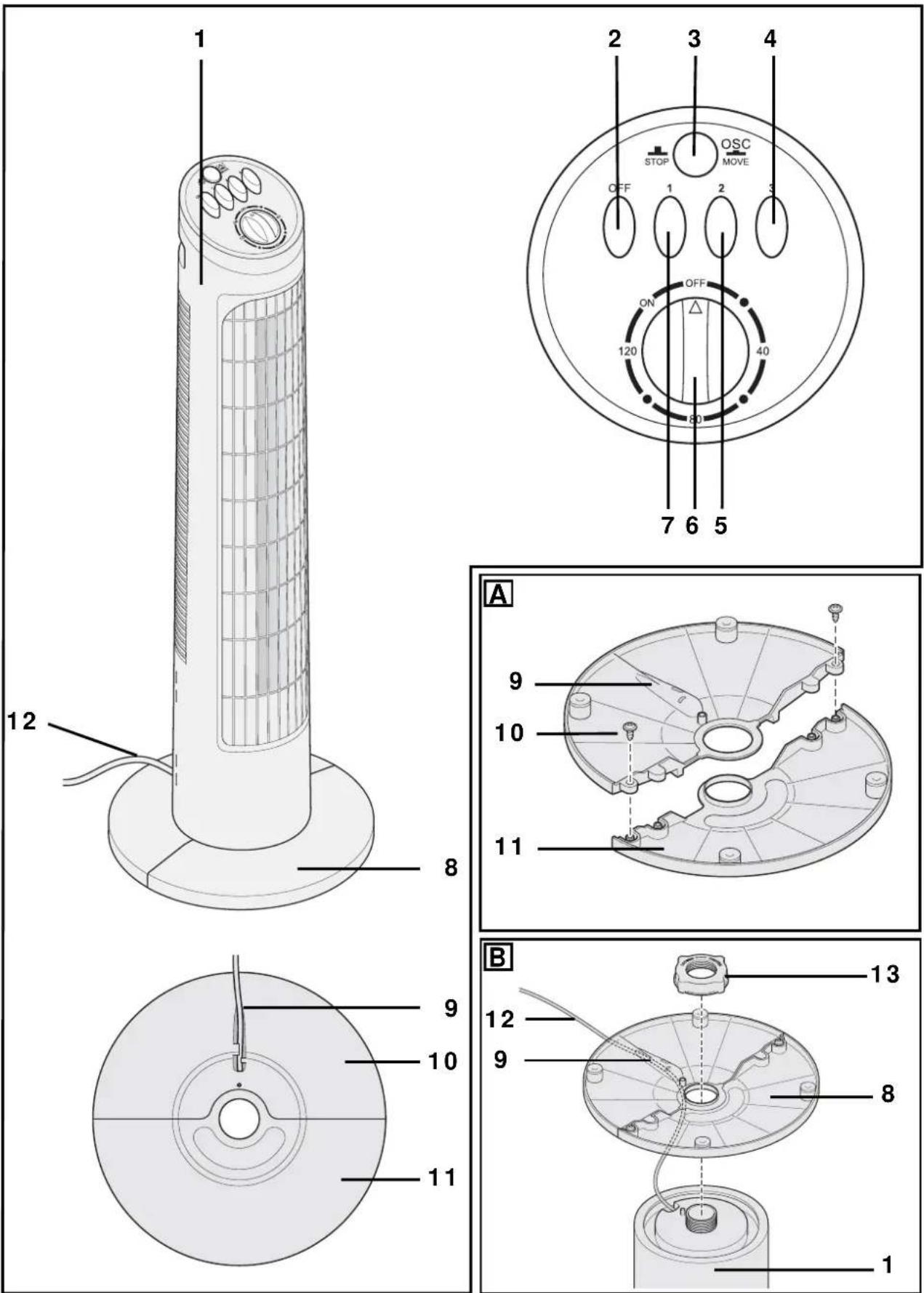

1. Overview

1 Tower fan
2 Off button (OFF)
3 Button for oscillation function
4 Button 3: high blower setting
5 Button 2: moderate blower setting
6 Rotary switch and timer
7 Button 1: low blower setting
8 Base
9 Recess for the mains power cable
10 Rear half of base
11 Front half of base
12 Mains power cable and mains plug
13 Knob screw

Not shown: 2 crosshead screws

Thank you for your trust!

Congratulations on your new Tower fan.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to first use.
- Above all, observe the safety instructions!
- The device should only be used as described in these operating instructions.
- Keep these operating instructions for reference.

- If you pass the device on to someone else, please include these operating instructions. The operating instructions are a part of the product.

We hope you enjoy your new Tower fan!

2. Intended purpose

Use this Tower fan to circulate air in dry indoor areas.

The device is designed for private, domestic use. The device must only be used indoors.

This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

- This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and user maintenance must not be performed by children unless they are supervised.

- If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

- This device is not intended to be operated using an external timer clock or a separate remote control system.

DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation!
• Keep the device out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

• The device, the cable and the mains plug must not be immersed in water or any other liquids.
• Protect the device from moisture, water drops and water spray. Failure to observe this instruction may result in an electrical shock hazard.
• If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing.
• Never touch the device with wet hands.
• If the device has fallen into water, pull out the mains plug immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist.

DANGER! Risk of electric shock

• Never put the device into operation if there are visible damages to the device or the power cable or if the device has been dropped before.
• Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
• Ensure that the power cable cannot be damaged by sharp edges or hot surfaces.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When removing the mains plug from the wall socket, always pull the plug and never the cable.
• Disconnect the mains plug from the wall socket...
  ... if there is a fault, ... when you are not using the device, ... before you clean the device and ... during thunderstorms.
• To avoid any risk, do not make modifications to the product.
• Fully unwind the mains cable during use to avoid overheating and scorching.
• When using an extension cable, this must correspond to the applicable safety regulations.

WARNING! Risk of material damage

• Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire.
• Only use the original accessories.
• Do not use any astringent or abrasive cleaning agents.

4. Items supplied

1 tower fan 1
1 base (consisting of 2 parts) 8
1 knob screw 13
2 crosshead screws
1 set of operating instructions

Unpacking

1. Remove all parts from the packaging.
2. Check that all parts are present and intact.

5. Assemble appliance

Before the device can be used, the base 8 must be screwed on:

1. Figure A: put the rear half of the base 10 and the front half of the base 11 together. Ensure that the connection audibly clicks into place. Fix the two halves from below using the supplied crosshead screws.

NOTES:

• The rear half of the base 10 can be identified by the recess for the mains power cable 9.

• Ensure that the mains power cable 12 is lying in the recess for the mains power cable 9.

• Figure B: fully unscrew the knob screw 13 at the bottom of the fan. Press the mains power cable 12 into the recess for the mains power cable 9

in the base 8 and mount the base on the tower fan 1.

1. Fix the base 8 and the tower fan 1 together using the supplied knob screw 13. Place the tower fan 1 on its base 8 and ensure it is standing in a stable location.

2. Select a location which complies with the safety instructions (see "Safety information" on page 3).

3. Insert the mains plug 12 into a mains socket corresponding to the technical data.

6. Operation

6.1 Start and switch off the appliance

1. Plug the power plug into a power supply socket which meets the technical data requirements.

2. Switch on the power supply by turning rotary switch 6 to ON. The appliance is now operational.

3. Switch off the power supply by turning rotary switch 6 to OFF.

6.2 Set blower setting

The blower settings are used to select how fast the appliance circulates air in the room. The appliance has three blower settings:

• 1, low: press button 7;
• 2, moderate: press button 5;
• 3, high: press button 4.

Press the 2 OFF button to stop the appliance working.

6.3 Set running time

The device has a timer, which allows you to set the desired running time of up to 120 minutes. A to-the-minute setting is not possible.

1. Switch the timer on by rotating the dial 6 to any position between 0 and 120 minutes.

1. To switch off the timer, set rotary switch 6 to OFF.

NOTE: If you want the appliance to operate continuously, set rotary switch 6 to ON.

6.4 Oscillation function

The appliance has an oscillation function. This causes the appliance to move to and fro, distributing the air produced evenly throughout the room.

1. Switch on the oscillation function by pressing button for oscillation function 3.
2. Switch off the oscillation function by pressing button for oscillation function 3 again.

7. Cleaning

To ensure your appliance gives you lasting service, you should clean it regularly.

DANGER! Risk of electric shock!

• Remove the mains plug before each clean.
• Never immerse the appliance in water.
• Never allow water or cleaning agent to run into the appliance.

WARNING! Risk of material damage!

- Do not use any astringent or abrasive cleaning agents.

1. Carefully remove major dust deposits with a vacuum cleaner.
2. Clean the outside of the appliance with a damp cloth. You could also use a little washing-up liquid.
3. Wipe the appliance with a cloth moistened with clear water.
4. Do not use the appliance again until it has dried completely.

8. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires sep-

arate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Technical specifications

Model: STV 50 A1

Mains voltage: 220 - 240 V ~ 50/60 Hz

Protection class: II □

Power rating: 50 W

Description	Symbol	Value	Unit
Maximum fan flow rate	F	2	1 m^3/min
Fan power input P	35,4	4 W
Service value SV	0,6	0	(m^3/min)/W
Standby power consumption	P_SB	≤0,50	W
Fan sound pow-er level	L_WA	61,33	dB(A)
Maximum air velocity	c	2	5
Measurement standard for ser-vice value	IEC 60879:1986+(cor1:1992)

Symbols used

	Double insulation
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
PAP	Recyclable materials: cardboard (except corrugated cardboard)

Subject to technical modifications.

0 m / s

10. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 312846 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak))

(0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 312846

Supplier

Please note that the following address is no

service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Tasköprüstraße 3

DE-22761 Hamburg

GERMANY

Indhold
