STV 45 E1 - Fan SILVERCREST - Free user manual and instructions

Product Type	Tower Fan
Brand	SilverCrest
Model	STV 45 E1
Color	White
Material	Plastic
Power Supply	220-240 V ~ 50 Hz
Power Consumption	45 W
Speed Settings	3 speeds
Oscillation	Yes, 90°
Timer	1-7 hours
Remote Control	Included
Adjustable Height	No (fixed tower)
Noise Level	≤ 60 dB
Airflow	1500 m³/h
Cord Length	1.5 m
Safety Features	Overheating protection, tip-over switch
Cleaning	Wipe with damp cloth; do not immerse
Spare Parts	Available from manufacturer
Certification	CE, GS
Weight	3.5 kg
Dimensions (H x W x D)	1000 x 300 x 300 mm
Product Type	Fan

Frequently Asked Questions - STV 45 E1 SILVERCREST

How do I clean the SilverCrest STV 45 E1 fan?

Unplug the fan. Use a soft damp cloth to wipe the grille and housing. Do not use water directly on the motor or immerse the fan. For stubborn dust, use a vacuum cleaner with a brush attachment.

How do I set the timer?

Press the timer button on the control panel or remote to cycle through hours (1-7). The fan will automatically shut off after the set time.

What should I do if the fan does not start?

Check that the power cord is plugged in and the wall outlet is working. Ensure the tip-over switch is engaged (fan upright). If still not working, contact SilverCrest support.

Is the fan safe to use overnight?

Yes, the fan has overheating protection and a tip-over automatic shut-off. It is designed for continuous use. However, do not cover the fan.

Can I use the fan outdoors?

No, this fan is for indoor use only. Do not expose it to rain or moisture to avoid electric shock.

What batteries does the remote control use?

The remote control uses a CR2025 3V lithium battery. To replace, slide the battery compartment open and insert the new battery with the '+' side up.

How much noise does the fan make?

The noise level is ≤ 60 dB, similar to a quiet conversation. At lower speeds, it is even quieter.

Does the fan oscillate?

Yes, the fan has an oscillation function that rotates left and right. Press the oscillation button to enable or disable it.

Is assembly required?

The fan comes fully assembled. Simply remove from the box and place on a flat, stable surface before use.

What is the warranty period?

The SilverCrest STV 45 E1 comes with a 2-year warranty. Keep the receipt and contact customer service for any defects.

USER MANUAL STV 45 E1 SILVERCREST

TOWER FAN STV 45 E1

TOWER FAN

Operating instructions and safety instructions

TARGA GMBH

Coederweg 4

GERMANY

English....2

Deutsch 14

Contents

1. Intended use....3
2. Package contents.... 3
3. Overview .... 3
4. Technical data.... 4

4.1 Information requirements....4

1. Safety instructions .... 4
2. Copyright......8
3. Before initial use....8

7.1 Unpacking....8

7.2 Assembly 8

1. Initial use 9

8.1 Switching the fan on and off....9

8.2 Configuring the fan speed 9

8.3 Configuring the TIMER 9

8.4 Oscillation 10

1. Maintenance/cleaning....10
2. Environmental and waste disposal information.... 11
3. Marks of conformity .... 11
4. Notes on guarantee and service 12

Congratulations!

By purchasing the SilverCrest STV 45 E1 tower fan, hereinafter referred to as the 'fan', you have opted for a high-quality product.

Familiarise yourself with the fan before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the fan in the manner described in these operating instructions and for the indicated fields of application.

Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the fan to a third party.

1. Intended use

This fan is intended to circulate air for cooling. The fan must not be used outside of closed rooms or in regions with a tropical climate. The fan is not intended for business or commercial use. Use the fan solely for private purposes in living areas; any other use is deemed improper. This fan meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the fan without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories specified by the manufacturer.

Please observe the national regulations and/or laws of the country in which the device is used.

2. Package contents

• SilverCrest STV 45 E1 tower fan - Base (2-part) - Fastening nut - This operating manual

3. Overview

This operating manual also has a cover that can be unfolded. The inside of the cover provides a schematic of the fan and a number key. The numbers identify the following parts/functions:

1 Tower fan 2 Rotary switch (turn power on/off/set timer) 3 Button 3 - fan speed high 4 Button 2 - fan speed medium 5 OSC button (oscillating function) 6 Button 1 - fan speed low 7 OFF button - switch off 8 Base (consists of parts 9 and 10) 9 Front half of the base 10 Rear half of the base 11 Power cable opening

12 Plastic strip 13 Power cable 14 Fastening nut (for the base)

1. Technical data

Input voltage	220-240 V-(AC voltage), 50 Hz
Power consumption 50 W
Protection class II /
Dimensions (W x H x D) approx. 24 x 76 x 24 cm
Weight approx. 2.4 kg

The specifications and design are subject to change without notice.

4.1 Information requirements

Information to identify the model(s) to which the information relates: SilverCrest STV 45 E1, IAN 338870_1907
Designation	Symbol	Value
Maximum volume flow F 10.34 m			3 /min
Fan power consumption P 39.50 W
Service value SV 0.26	(m)		3 /min)/W
Power consumption in standby mode	PSB	--	W
Power consumption in off mode	POFF	0	W
Fan sound power level L	WA	58.39	dB(A)
Maximum air velocity	c 6.03	m/s
Seasonal energy consumption	Q	12.64 kWh/a
Measurement standard for the calculation of the service value	IEC 60879:1986 (corr. 1992)
Contact address for further information	TARGA GmbH, Coesterweg 45, 59494 Soest, GERMANY

5. Safety instructions

Before using the fan for the first time, read the following instructions carefully and observe all warnings, even if you are familiar with using electronic devices. Keep this operating manual in a safe place for future reference. If you give the fan away or sell it, please ensure that you also pass on this operating manual.

DANGER! This icon, in conjunction with the word 'Danger', indicates an impending dangerous situation which, if not prevented, may lead to serious injuries or even death.

WARNING! This icon, in conjunction with the word 'Warning', indicates important information for the safe operation of the device and user safety.

CAUTION! This icon, together with the word 'Caution', indicates important information for protection against damage to property.

This icon indicates that further information on the topic is available.

DANGER! Personal safety

This fan can be used by children ages eight and up, as well as by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, provided they are supervised or have been instructed in the safe use of the fan and understand the resulting dangers. Children must not play with the fan. Cleaning and user maintenance must not be carried out by children unless they are supervised. Also keep the packaging film away from children. There is a risk of suffocation.

DANGER! Risk of electric shock!

- Protect the product from moisture and humidity as well as from dripping or splashing water. Never immerse the product in water or any other liquid!

• Should liquid enter the product, immediately remove the plug from the socket. Have the product examined by a qualified specialist before using it again.
• Do not handle the product with wet or damp hands.
• Do not reach for the product if it is in water or any other liquid. In such cases, immediately remove the plug from the socket.
• Do not use the product if the plug or the connecting cable are damaged, if it does not operate as intended, if it has been dropped on the floor or in water or if it exhibits any other damage. In such cases, contact a qualified specialist for repair.
• Only connect the plug to a socket that has been properly installed, is easily accessible and the mains voltage of which corresponds with the information specified in the 'Technical data' section. The socket must continue to be easily accessible after the plug has been connected.
• Ensure that the connecting cable cannot be damaged by sharp edges or hot surfaces.
• When using the product, ensure that the connecting cable is not jammed or squashed.
• The product is also not fully disconnected from the power supply once it has been switched off. Remove the plug from the socket to fully disconnect it from the power supply. Always pull at the plug to remove it from the socket; never pull on the cable.
• Remove the plug from the socket

o if a fault occurs,

o if you are not using the product,

o during assembly,

o before cleaning the product and ○ during thunderstorms.

• Do not attempt to repair the product yourself. In the event of a defect, switch the product off, remove the plug and contact our service department.
• If this product's connecting cable is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person in order to prevent any hazards.

WARNING! Risk of injury!

• Do not insert your fingers or any objects into the product while it is in operation.
• Do not use the product near explosive or flammable materials.
• Keep hair, clothing and other objects clear of the protective grille while it is in operation.
• Do not transport the product while it is operation.

CAUTION! Damage to property!

• This product is not intended for operation with an external timer or a separate remote-control system.
• Never place the product on hot surfaces (e.g., hobs) or near sources of heat or open flames.
• Only use the original accessories.
• Do not hang or mount the product to the ceiling or wall.
• Only operate the product on a flat, stable surface.

- Never operate the product near highly flammable materials, such as curtains, drapes etc. Keep the product at least 50 cm away from flammable and combustible materials.

The product must not be exposed to direct sources of heat (e.g., heaters), direct sunlight or strong artificial light. Also avoid contact with splashing and dripping water as well as aggressive liquids. Do not operate the product near water. In particular, the product must never be immersed (do not place any objects filled with liquids, e.g., vases or drinks, on the product). Also make sure that the product is not exposed to excessive shocks and vibrations. Furthermore, no foreign bodies should penetrate into the device.

6. Copyright

All contents of this operating manual are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

7. Before initial use

7.1 Unpacking

• Take the product out of the packaging. - Completely remove all packaging materials.

- Check the package contents for completeness. Contact Service immediately in case of missing components.

7.2 Assembly

• Figure A: Put the front half (9) and the back half (10) of the base (8) together.

• Figure B: Insert the thread on the bottom of the tower fan (1) through the base (8). Make sure that the power cable (13) is pinned in the power cable opening (11) so that the opening is completely filled and the power cable (13) is not twisted. To do this, insert the power cable (13) by rotating it slightly under the plastic strip (12) in the power cable opening (11). Then, screw the fastening nut (14) onto the thread. Hand-screw the fixing nut (14) to tighten it.

8. Initial use

8.1 Switching the fan on and off

Proceed as follows to put the fan into operation:

• Select a location that meets the safety instructions in Section 5.
• Operate the fan on a flat, stable surface.
• Insert the plug into a properly installed socket.

- Turn the power supply on by setting the rotary switch (2) to the ON position.

- Turn the power supply off by setting the rotary switch (2) to the OFF position.

8.2 Configuring the fan speed

• Fan speed low: Press button 1 (6) until it locks in place. • Fan speed medium: Press button 2 (4) until it locks in place. • Fan speed high: Press button 3 (3) until it locks in place. - Stop the ventilation by pressing the OFF button (7).

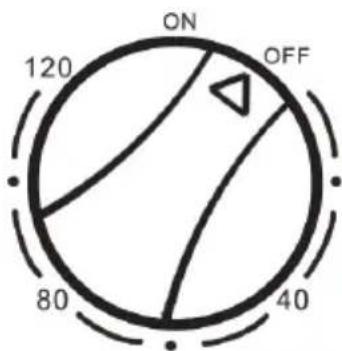

8.3 Configuring the TIMER

The TIMER enables you to set a running time between 0 and 120 minutes.

• Turn the TIMER on by setting the rotary switch (2) to any position between 0 and 120 minutes. This will also turn the power supply on.
• Please note that the TIMER cannot be set to a precise minute.
• Turn the TIMER off by turning the rotary switch (2) to the OFF position.

8.4 Oscillation

The fan can oscillate horizontally.

• Press the OSC (5) button into the lower MOVE position to start the oscillation.
• Press the OSC (5) button again to stop it. The OSC (5) button is now in the upper STOP position.

9. Maintenance/cleaning

DANGER! Risk of electric shock!

• Disconnect the fan from the mains before cleaning commences.
• Do not immerse the fan in water.
• Do not allow any water or cleaning agent to enter the fan.

Maintenance work is required if the fan has been damaged; for example, if the device housing is damaged, liquids or objects have got inside the fan or if the fan has been exposed to rain or moisture. Maintenance work is also required if the fan does not work properly or has been dropped. If you notice any smoke or unusual noises or smells, disconnect the fan from the mains immediately. If this happens, you must stop using the fan until it has been checked by a technician. All maintenance work should only be carried out by qualified specialists. Never open the housing of the fan.

• Remove coarse dust deposits with a vacuum cleaner. • Clean the fan using a clean, slightly damp cloth. Never use abrasive liquids during cleaning. • Use some washing up-liquid on the damp cloth for stubborn stains. • If required, the protective grille can be cleaned with a soft brush.

10. Environmental and waste disposal information

If a product features this icon of a crossed-through waste bin, the product is subject to European Directive 2012/19/EU. Electrical and electronic equipment must not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health.

Further information on disposing of old devices can be obtained from your local authority or the shop where you purchased the product.

Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally friendly manner.

Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following: 1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.

11. Marks of conformity

This product fulfils the requirements specified in the applicable European and national policies. This product's conformity has been verified. The declarations and documents are stored with the manufacturer.

You can download the full EU declaration of conformity at the following link:

https://www.targa.gmbh/downloads/conformity/338870_1907.pdf

12. Notes on guarantee and service

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

- Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 338870_1907

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA GmbH

Coesterweg 45

59494 Soest

GERMANY
