Sven Plus - Baby bed Lionelo - Free user manual and instructions

Product type	Travel / tourist baby crib
Brand	Lionelo
Model	Sven Plus
Dimensions (L x W x H)	Approx. 124 x 64 x 76 cm
Weight	Approx. 11 kg
Mattress included	Yes, removable mattress with Velcro attachment
Integrated changing table	Yes, removable, for children up to 12 months and 11 kg
Canopy and mosquito net	Yes, foldable and removable
Storage organizer	Yes, removable with hooks
Adjustable height	Yes, two positions (high up to 9 kg, low)
Foldability	Yes, folds easily with central handle
Carrying bag included	Yes
Power supply	None (manual crib); interactive toy runs on batteries
Safety standards	EN 716-1:2017+AC:2019, EN 12221-1:2008+A1:2013
Maintenance	Wipe with a damp cloth; changing table: warm water and mild soap
Spare parts	Available from the manufacturer ([e-mail])
Warranty	Check the website for detailed conditions

Frequently Asked Questions - Sven Plus Lionelo

How to install the Sven Plus crib?

Remove the crib from the bag, unfold the legs by pulling them in opposite directions, lock the rails by inserting them correctly, then lower the central lock until it is flat. Place the mattress and secure it with Velcro. Follow figures 1 to 5 in the manual.

From what age can the crib be used?

From birth. The high position is suitable up to 9 kg; as soon as the baby can sit up on their own, use only the low position.

Is the mattress included? Can I add a second one?

Yes, a mattress is included. Do not add a second mattress as it poses a suffocation risk.

How to clean the crib and changing table?

Crib: wipe with a damp cloth and let dry. Changing table: clean with warm water and mild soap. Do not use chemical cleaners, do not machine dry, do not iron.

Is the crib compliant with safety standards?

Yes, it complies with standards EN 716-1:2017+AC:2019 (baby cribs) and EN 12221-1:2008+A1:2013 (changing tables).

Can I use the changing table separately?

The changing table attaches to the crib using fixings on the frame. It can be left hanging on the side when not in use, but it is not designed for independent use.

How to fold the crib for transport?

Remove all accessories, pull the central handle upward, unlock the rails by pressing the side buttons, then fold the legs. Wrap the folded crib with the mattress and secure with Velcro straps, then store in the carrying bag.

Are the canopy and mosquito net removable?

Yes, the canopy clips onto the crib and unclips easily. The mosquito net attaches to the canopy and can be removed separately.

Where can I get spare parts?

Contact the manufacturer at [e-mail] for approved spare parts. Use only parts recommended by the manufacturer.

What is the weight capacity of the changing table?

The changing table is suitable for children up to 12 months and weighing up to 11 kg. Never leave the child unattended on the changing table.

USER MANUAL Sven Plus Lionelo

Line drawing of a mechanical component with no text or symbols

Diagram showing a device being processed from a simple outline to a rectangular box, with arrows indicating motion direction (no text or symbols)

Diagram showing a robotic arm before and after motion, with no visible text or symbols

Technical line drawing of a metal frame with a diagonal panel and an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical or structural component with two downward arrows indicating force or displacement (no text or symbols present)

↓

Technical line drawing of a mechanical assembly with a curved bracket and two clamps (no text or symbols)

5

Diagram showing a mechanical assembly with a downward arrow and a small component, no text or symbols present

A

Pure mechanical diagram showing a bracket with arrows indicating fastening or adjustment (no text or symbols)

B

7

Pure mechanical diagram showing a curved component with a black arrow indicating direction (no text or symbols)

A

Pure mechanical diagram showing a bracket with two arrows pointing to specific features (no text or symbols)

B

Technical line drawing of a mechanical device with labeled components A and B, no readable text or symbols present.

8

Diagram showing a folding view of a baby crib with an arrow indicating the change (no text or symbols present)

Diagram showing a mechanical device before and after assembly, with directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical device before and after assembly, with arrows indicating motion direction (no text or symbols)

Dear Customer!

In case of any questions or comments on the purchased product, please contact

us: [e-mail]

Note: The assembly of the product must be performed by an adult.

Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

Producer:

BrandLine Group Sp. z o. o.

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot.
• Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
• Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords.
• Do not use more than one mattress in the cot.
• The cot is ready for use only when the locking mechanisms are on. Before use, carefully check that these mechanisms are fully switched on.

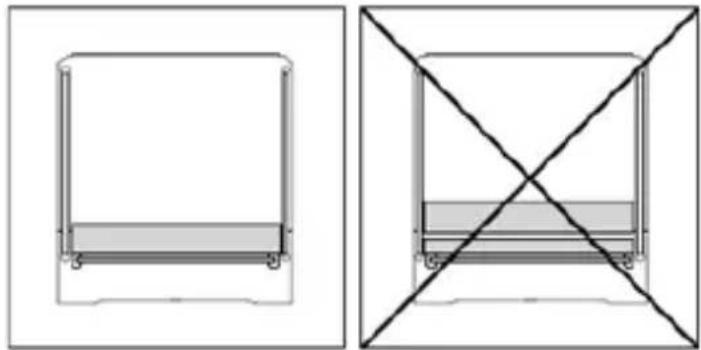

• The lowest position of the cot is the safest and should always be used as soon as the child starts to sit up.
• The upper position of the cot is suitable for children weighing up to 9 kg. If your child starts to sit down himself, use only the lower position.
• If you leave the child unattended in the cot, always make sure that the side entrance is fastened with a zipper.

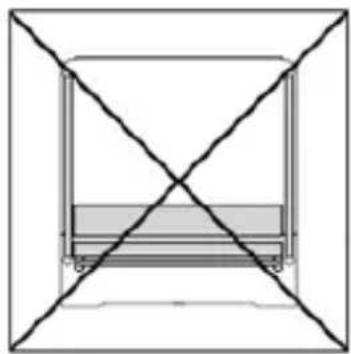

- Before replacing the base with the lowest one, it is necessary to remove the support rails.

- All mounting elements should always be tight, connections should be regularly checked and tightened if necessary.

- The cot can not be used by children who can get out of it themselves, it may cause a fall and serious injuries or even death.

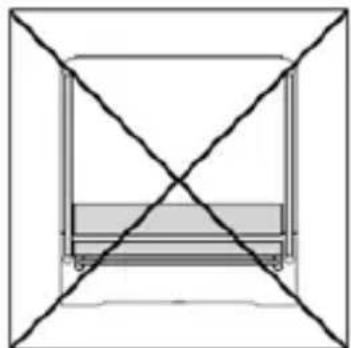

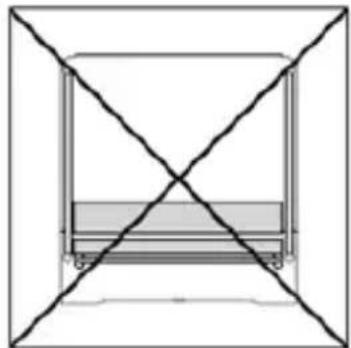

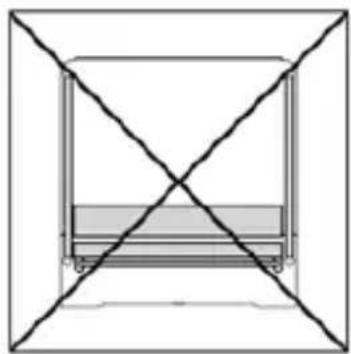

- WARNING - Only use the mattress sold with this cot, do not add a second mattress on this one, suffocation hazards.

- The mattress is an integral part of the bed.

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

CHANGING PAD WARNING - Do not leave the child unattended.

- The baby cots should be blocked before using the changing table.

- The changing table is suitable for children up to 12 months of age and weighing up to 11 kg.

- Any additional or replacement parts can only be obtained from the manufacturer.

- Do not use the changing unit if any part is broken, torn or missing.

- Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the changing unit.

- All mounting elements should always be tightened, joints should be checked regularly and tightened if necessary.

Safe use of batteries

- Batteries should not be charged.

- Batteries should only be charged under adult supervision.

- Batteries must be removed from the toy before charging.

- Do not insert different types of batteries or new and used batteries.

• Insert batteries with the correct polarity.
• Exhausted batteries should be removed from the toy.
• The supply terminals are not to be short – circuited.
• To replace the batteries: use a screwdriver to open the door and access the battery compartment. Replace the batteries and make sure they are inserted correctly. Screw the door with a screwdriver.
• The toy cannot be connected to more power sources than recommended.

Assembly instruction

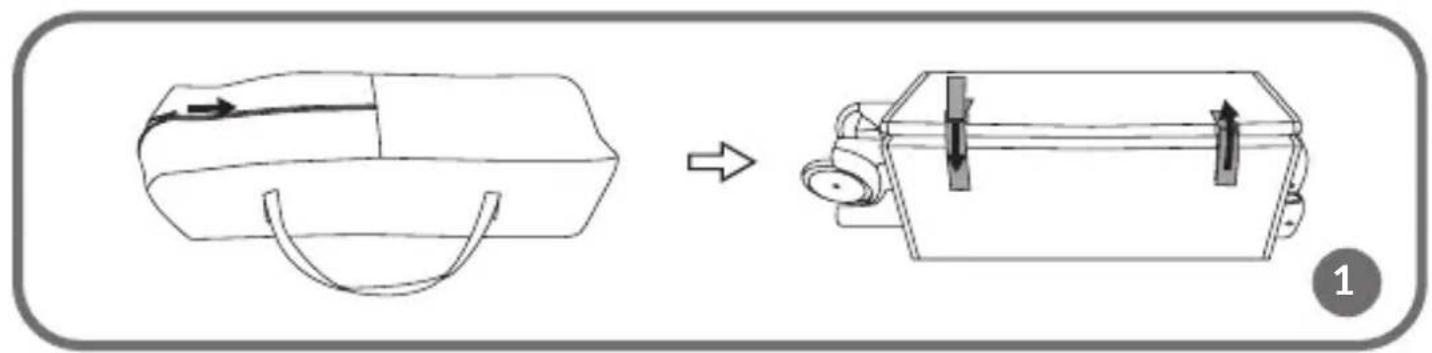

1. Take the cot out of the bag and loosen the adhesive straps. Place the cot on the floor and put the bag aside (see fig. 1).

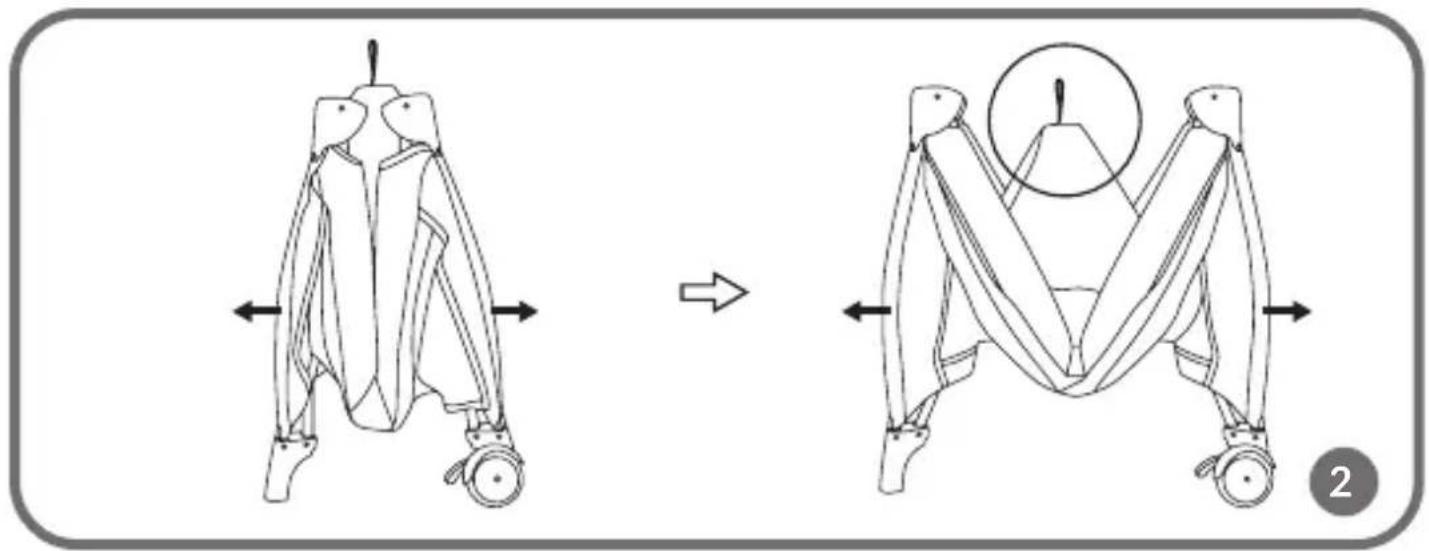

2. Separate the legs pulling them apart. Keep the central lock up. Otherwise handrails will not fit in the right place (see fig. 2).

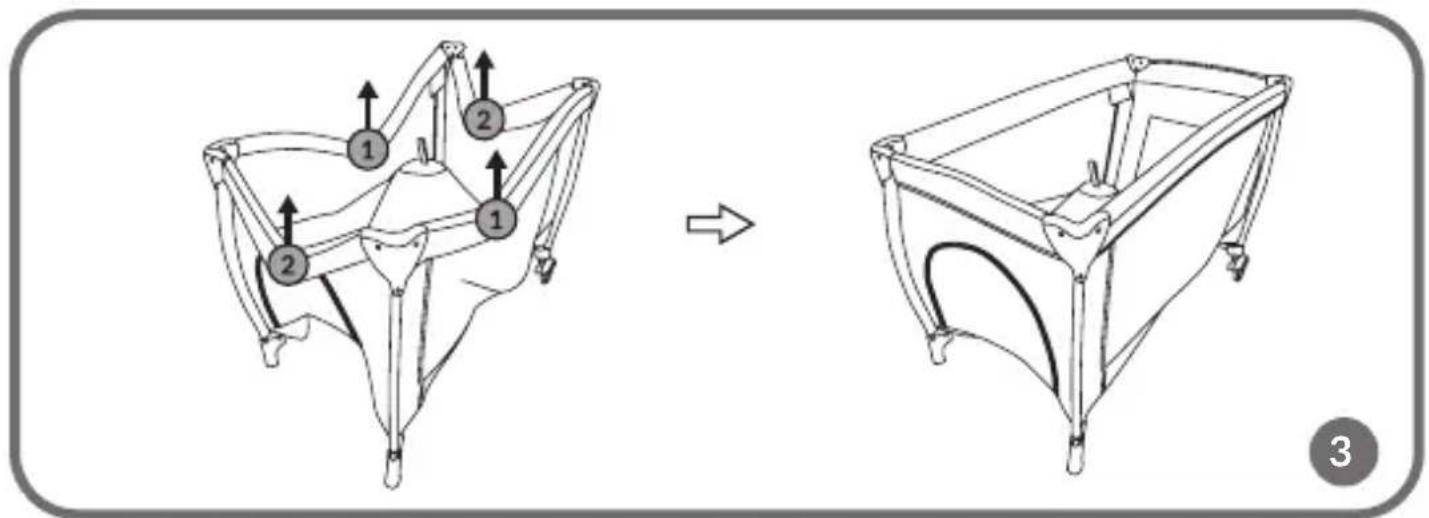

3. Pull the middle part of each top rail covered with material so that they fit into place. Start with the longer rails, and then the shorter ones (see fig. 3).

Note! So that the sides of the cot / handrails are properly blocked, the central blockade of the floor must be raised upwards. The baby rails will not lock when the floor is unfolded.

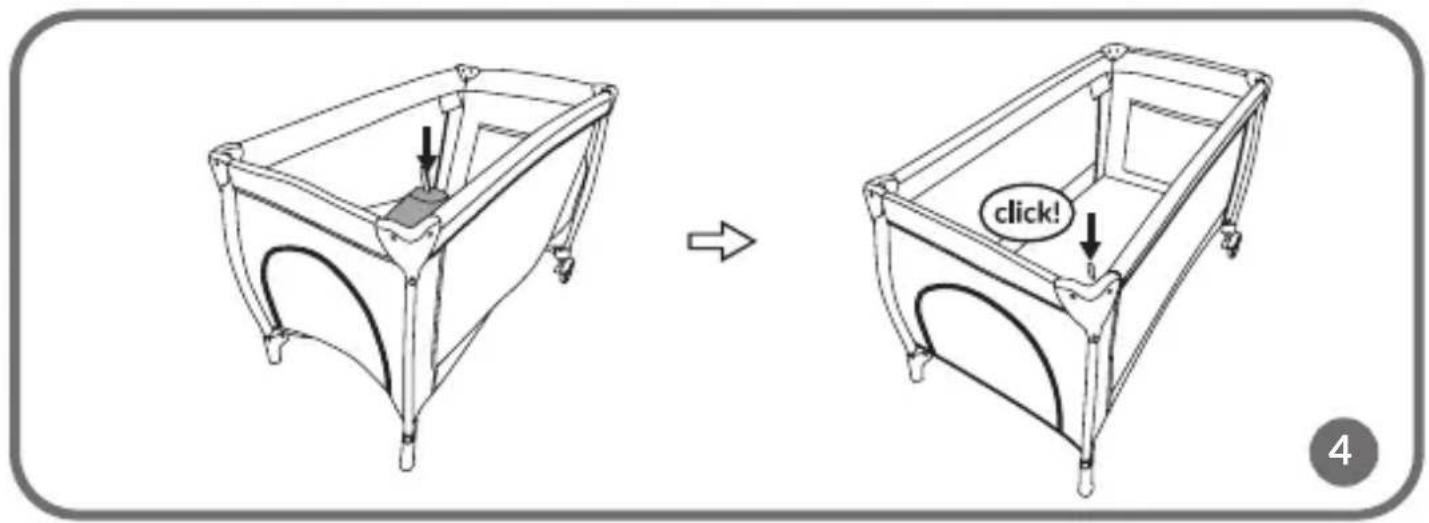

1. Push the middle lock until the surface is completely flat (you will hear the click sound) (see fig. 4).

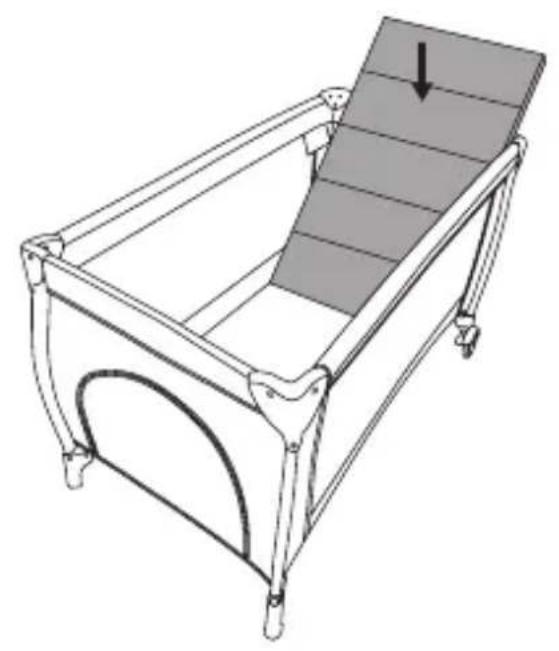

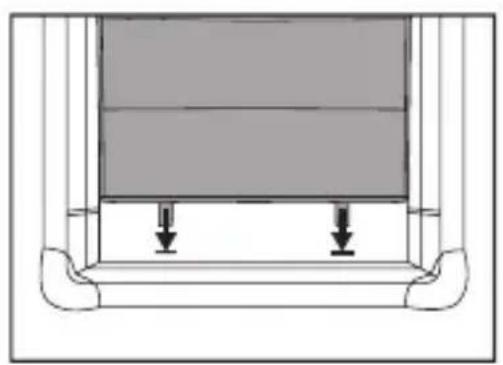

2. Place the mattress in the cot (see fig. 5). Fasten the mattress using Velcro on the two short sides of the mattress (there are special openings in the floor for fastening).

Base installation

The base should be attached using the zipper. Once the base is attached, secure the zipper with a buckle and cover it with a Velcro pad. Slide the reinforcement tubes into the sewn handles and connect them (they must be paired properly). Place the mattress onto the tube-reinforced base and fasten it with Velcro from below (fig. 6).

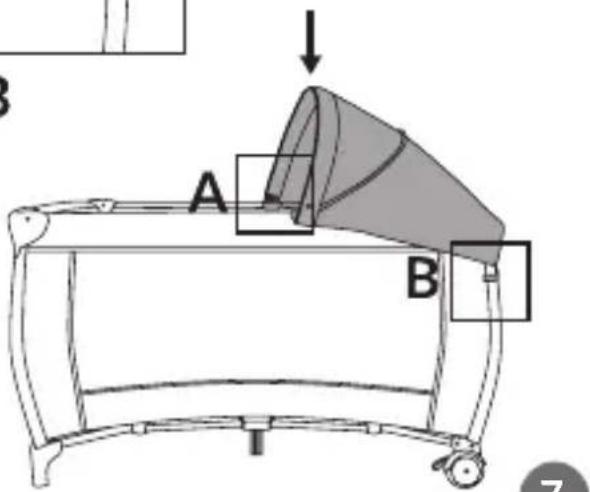

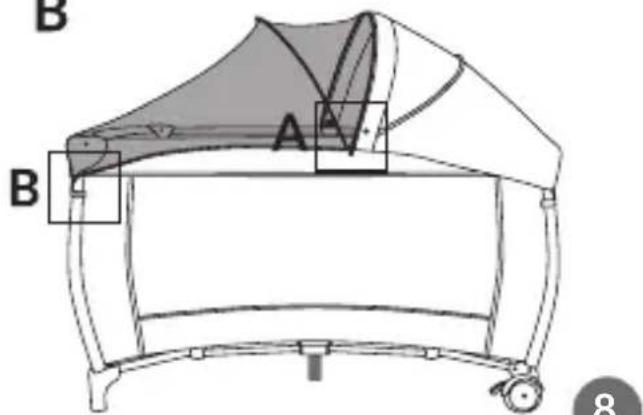

Canopy installation

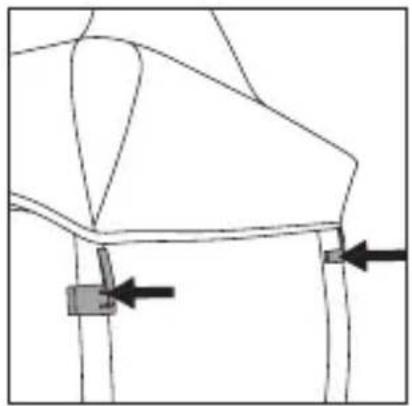

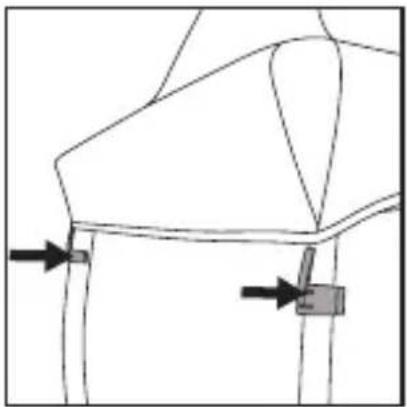

Place the rear part of the canopy on the cot, then stretch the fabric and attach the canopy to the cot using plastic clamp holders.

After the roof has been mounted, it should be pressed several times from the top to get rid of the pointed shape, which is picked up in the carton (see fig. 7).

The mosquito net may only be used with the canopy folded out. If you want to fold the canopy - detach the mosquito net (fig. 8).

Changing table assembly instruction

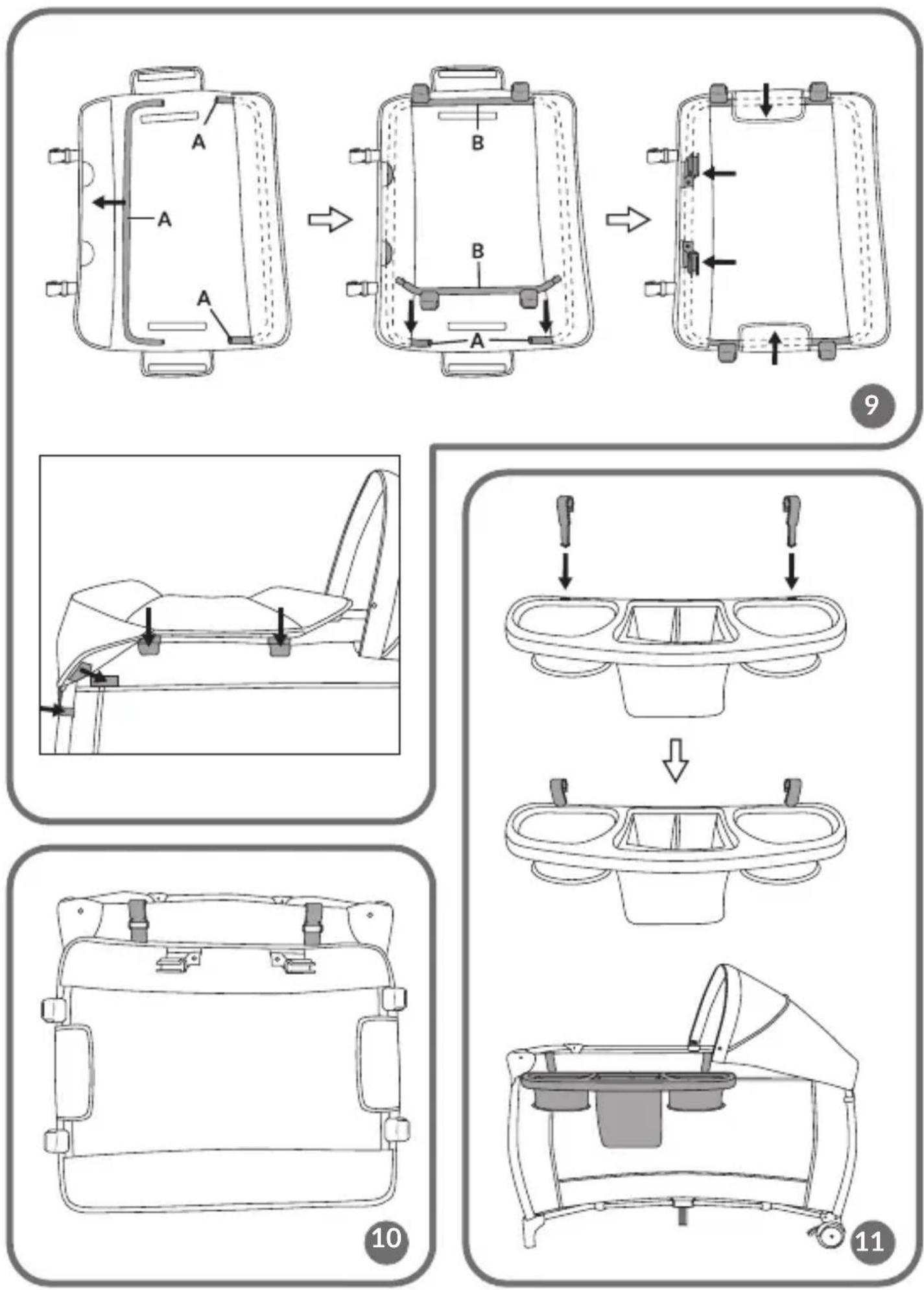

Put the stabilizing tubes (A) into the fabric guides on the changing table. Connect the tubes (B). Fasten the Velcro on the shorter ends of the fabric. Then mount the changing table with the use of mounting elements to both short and long side of the cot frame. Attach the organizer to the dedicated part of the cot frame and fasten the Velcro closure (see fig. 9). Leave the changing table hanging on the side of the cot when not currently in use (fig. 10).

Organizer installation

Put the hooks on the organizer and mount it on the cot frame (see fig. 11).

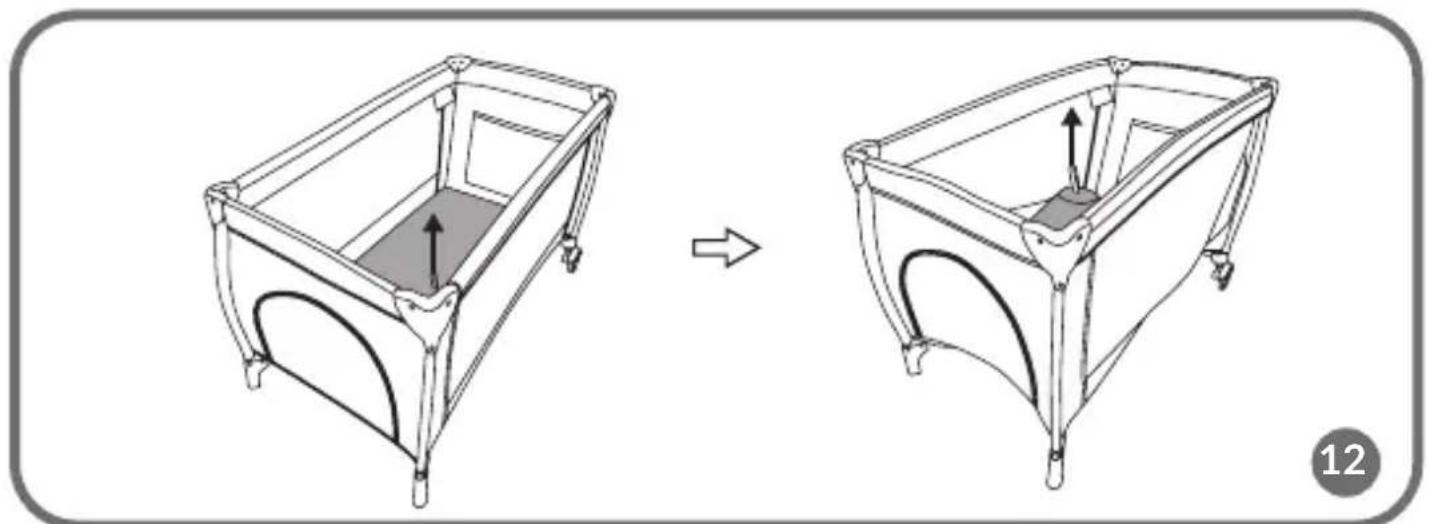

The cot folding instruction

1. Remove all the cot accessories. Remove the mattress, canopy, organizer and all the other accessories. Grasp the centre handle located in the middle of the floor and pull it up (see fig. 12). The upper level base doesn't need to be taken down before folding.

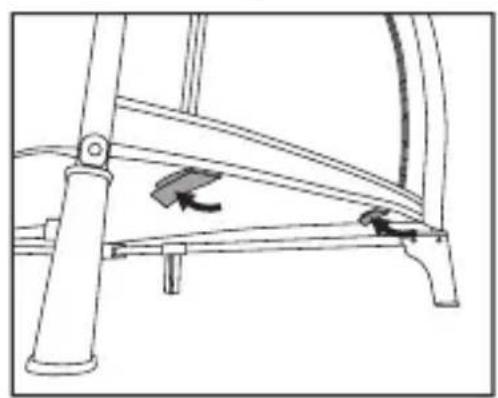

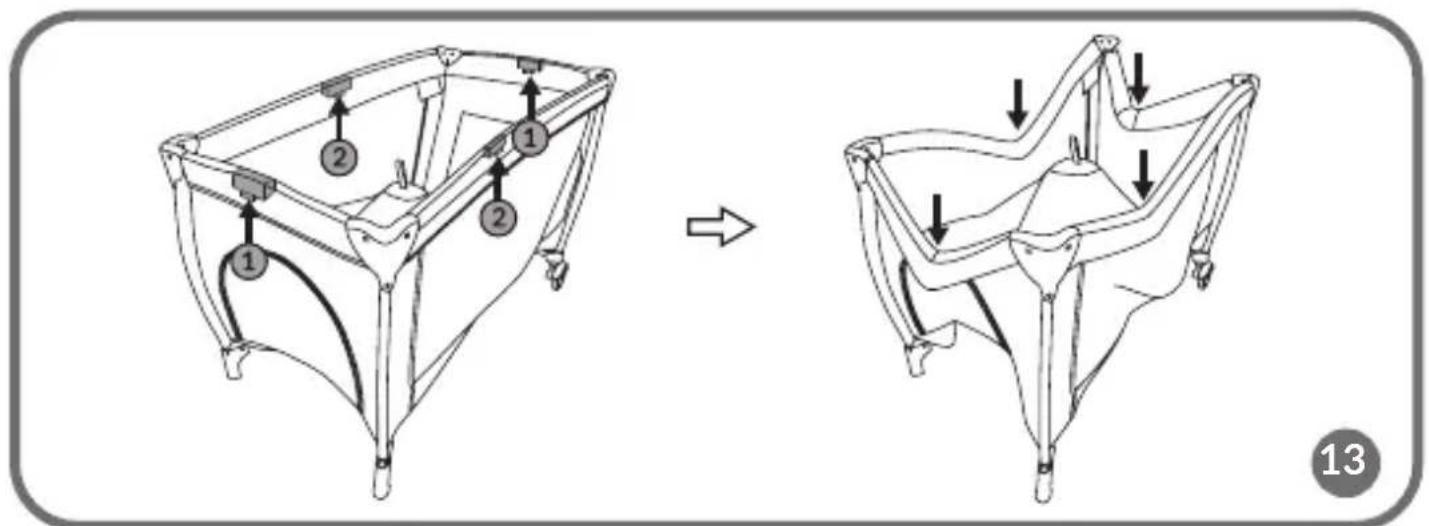

2. To unlock the upper rails, press the indicated buttons on each side of them. Pull it slightly up and then push it down. Unlock the shorter sides first, and then do the same with the longer ones (fig. 13).

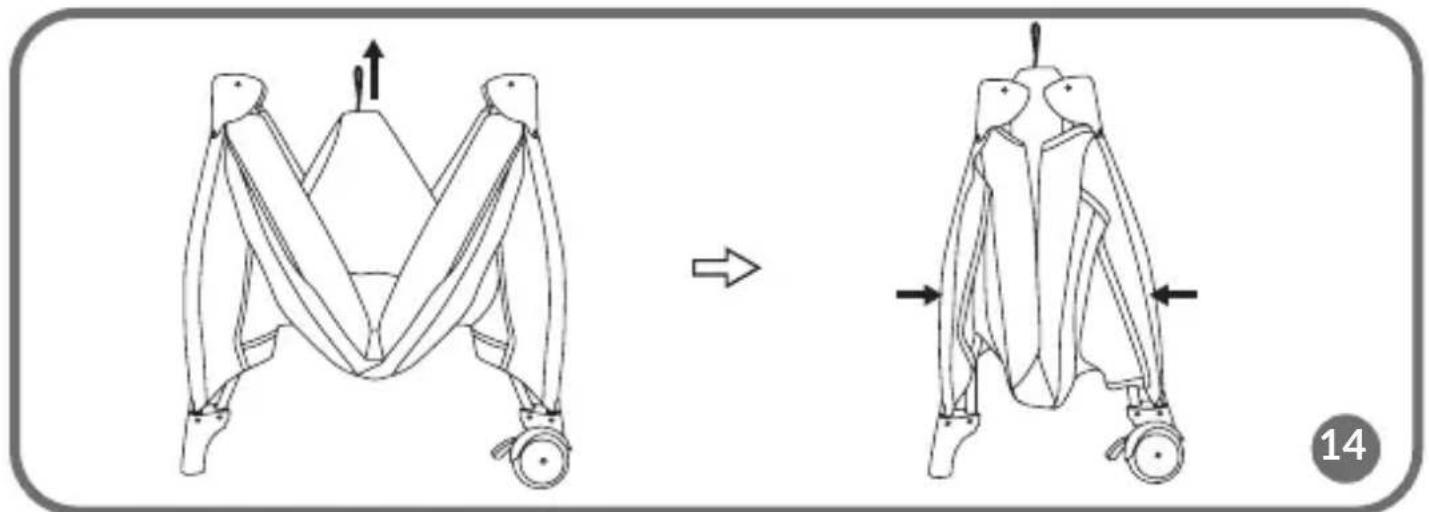

3. While still pulling up the handle, lift the floor of the cot and fold the legs (see fig. 14).

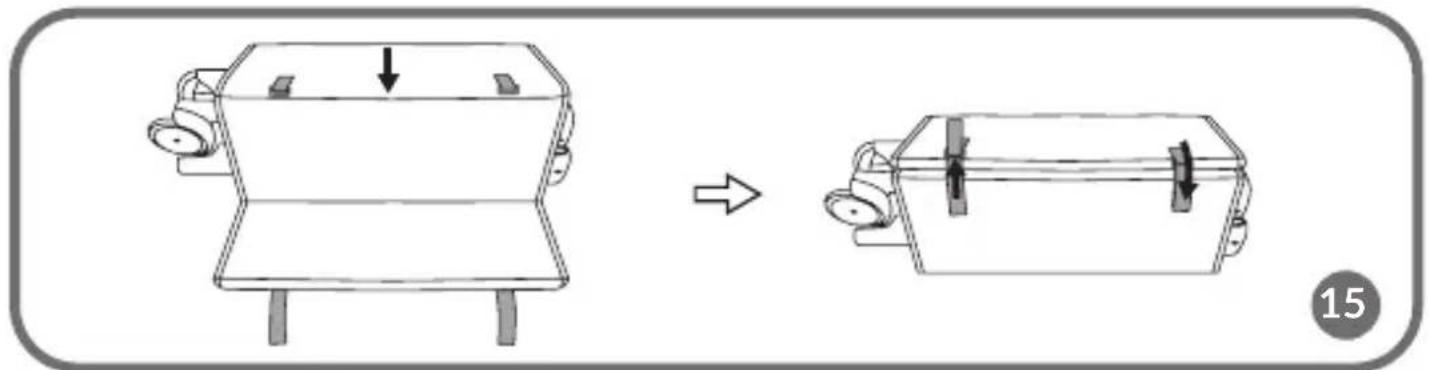

4. Wrap the folded cot with the mattress and fasten it with Velcro straps. Put the folded cot into the bag (see fig. 15.). If these disassembly is unsuccessful, repeat the whole process again until the product is folded.

Cleaning

Wipe the product with a damp cloth, then allow to dry.

Changing table - clean with warm water and mild soap. Do not dry clean and do not use caustic agents. Do not dry mechanically, do not iron.

The product has been tested and meets all the requirements of the:

EN 716-1:2017+AC:2019, EN 12221-1:2008+A1:2013

Interactive dog:

CE This product complies with the requirements of the Toy Safety Directive (2009/48 / EC), therefore the CE mark has been affixed and a declaration of compliance with European standards has been issued.

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.

PL

Drogi Kliencie!

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

Simple line drawing of a rectangular frame with a shaded base (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded bottom rectangle, no text or symbols present.

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

Two technical diagrams showing a rectangular frame with a shaded base and a diagonal cross-section, no text or symbols present.

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines dividing it into two sections (no text or symbols)

Illustration showing human figures with directional arrows, no text or symbols present

Simple line drawing of a rectangular frame with a shaded base (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines dividing it into two sections (no text or symbols)

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

Illustration showing human figures in various poses with arrows indicating movement (no text or symbols)

Two technical diagrams showing a rectangular frame with a shaded base and a diagonal line crossing through it, no text or symbols present.

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

PŘEBALOVACÍ PULT VAROVÁNÍ:

Simple line drawing of a rectangular frame with a horizontal base and vertical supports (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded base, no text or symbols present.

PELENKÁZÓASZTAL FIGYELMEZTETÉSEK:

Simple line drawing of a rectangular frame with a horizontal base and vertical supports (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded base, no text or symbols present.

Simple line drawing of a rectangular frame with a horizontal base and corner handles (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines intersecting at center (no text or symbols)

Illustration showing human figures with different poses and motion directions (no text or symbols)

Two technical diagrams showing a rectangular frame with a shaded base and a diagonal line crossing through it (no text or symbols)

- Hjulene på barnesengen må låses før stellebordet tas i bruk.

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

Illustration showing human figures in various poses with arrows indicating movement (no text or symbols)

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

Simple line drawing of a rectangular frame with a shaded bottom panel (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a central shaded rectangle (no text or symbols)

Illustration showing human figures with different poses and directional arrows, no text or symbols present

Two technical diagrams showing a rectangular frame with a shaded base and a diagonal line crossing through it, no text or symbols present.

MÄHKIMISLAUD HOIATUSED -Ärge jätke last järelevalveta.

Illustration showing human figures in various poses with arrows indicating movement (no text or symbols)

- Enne lapsevoodi kasutamist lukustage lapsevoodi rattad.

Two technical diagrams showing a rectangular frame with a shaded base and a cross-shaped line intersecting it, no text or symbols present.

BRĪDINĀJUMI PAR PĀRTINAMO VIRSMU -

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

Detailed warranty conditions are available on the website:
