Flower - Baby bed Lionelo - Free user manual and instructions

Product type	Folding baby bed (travel bed)
Brand and model	Lionelo Flower
Approximate dimensions (L x W x H)	120 x 60 x 75 cm (estimated)
Approximate weight	10 kg (estimated)
Recommended age	0 to 36 months
Maximum child weight (bed)	15 kg
Maximum weight for changing mat	11 kg
Maximum age for changing mat	12 months
Mattress heights	2 positions (high for ≤9 kg, low for >9 kg or as soon as baby sits up)
Materials	Fabric, metal frame, plastic
Power supply	None (manual)
Main functions	Baby bed, removable changing mat, storage under the bed (bag), foldable, portable
Care and cleaning	Damp cloth; changing mat: warm water and mild soap, do not dry clean, do not tumble dry, do not iron
Safety	Mechanical locks, side zipper, conforms to standards EN 716-1:2017+AC:2019 and EN 12221-1:2008+A1:2013
Spare parts and repairability	Spare parts available only from manufacturer ([e-mail])
General information	Assembly by adult mandatory; do not use additional mattress; risk of strangulation with cords

Frequently Asked Questions - Flower Lionelo

What is the maximum weight supported by the Flower Lionelo bed?

The bed supports a child up to 15 kg (approximately 36 months).

Can I use the changing mat for a child older than 12 months?

No, the changing mat is designed for children up to 12 months and a maximum weight of 11 kg. Never leave the child unattended.

How do I adjust the mattress height of the bed?

The bed offers 2 positions. The high position is suitable for children under 9 kg or who do not sit up independently. As soon as the child sits up, use only the low position. To change the height, remove the support rails.

Is the bed easy to fold and store?

Yes, the bed folds by pulling the central handle upward after unlocking the handrails. It stores in the provided carry bag.

Can I wash the mattress and fabric in a washing machine?

No. Clean with a damp cloth for the bed. The changing mat can be cleaned with warm water and a mild soap. Do not dry clean, do not tumble dry, do not iron.

Is it safe to leave my baby alone in the bed?

Yes, as long as the side zipper is fully closed and the bed is in a locked position. Always check the locks before use.

Can I add another mattress to the bed?

No, only use the mattress provided with the bed. Adding another mattress presents a risk of strangulation.

How do I install the changing mat?

Press the button (Fig. 7), join the long and short tubes, then attach the plastic elements to the bed frame. Lock the wheels before use.

Where can I get spare parts?

Spare parts are available only from the manufacturer. Contact [e-mail].

What safety standards does this bed meet?

The product complies with European standards EN 716-1:2017+AC:2019 (baby beds) and EN 12221-1:2008+A1:2013 (changing mats).

USER MANUAL Flower Lionelo

Black and white photo of a baby crib with patterned backrest and two cats on the back (no text or symbols visible)

Simple line drawing of a toolbox with a black arrow indicating direction (no text or symbols)

Diagram showing a hand holding a tool inside a device with an inset close-up of the component, labeled in Chinese.

Diagram of three figures inside a door with directional arrows indicating movement (no text or symbols)

Line drawing of a person standing with arms raised, no text or symbols present

1 2 1 2 CLICK

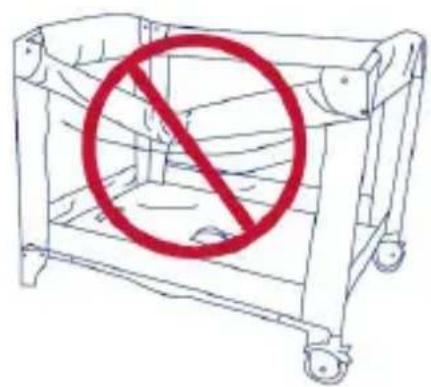

Diagram of a baby care unit with a red prohibition symbol overlaid on the frame

1

Line drawing of a person using a wooden scale to lift or lift a cart, with a black arrow indicating the motion direction (no text or symbols)

Diagram showing a geological or structural cross-section with an arrow pointing to a feature, no text or symbols present.

Line drawing of a person climbing a rope, enclosed in a rounded square frame (no text or symbols)

Diagram of a mechanical or electrical component with internal structure and two red directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical component with two directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating features (no text or symbols)

Diagram of a boat hull with arrows indicating direction of movement or force (no text or symbols present)

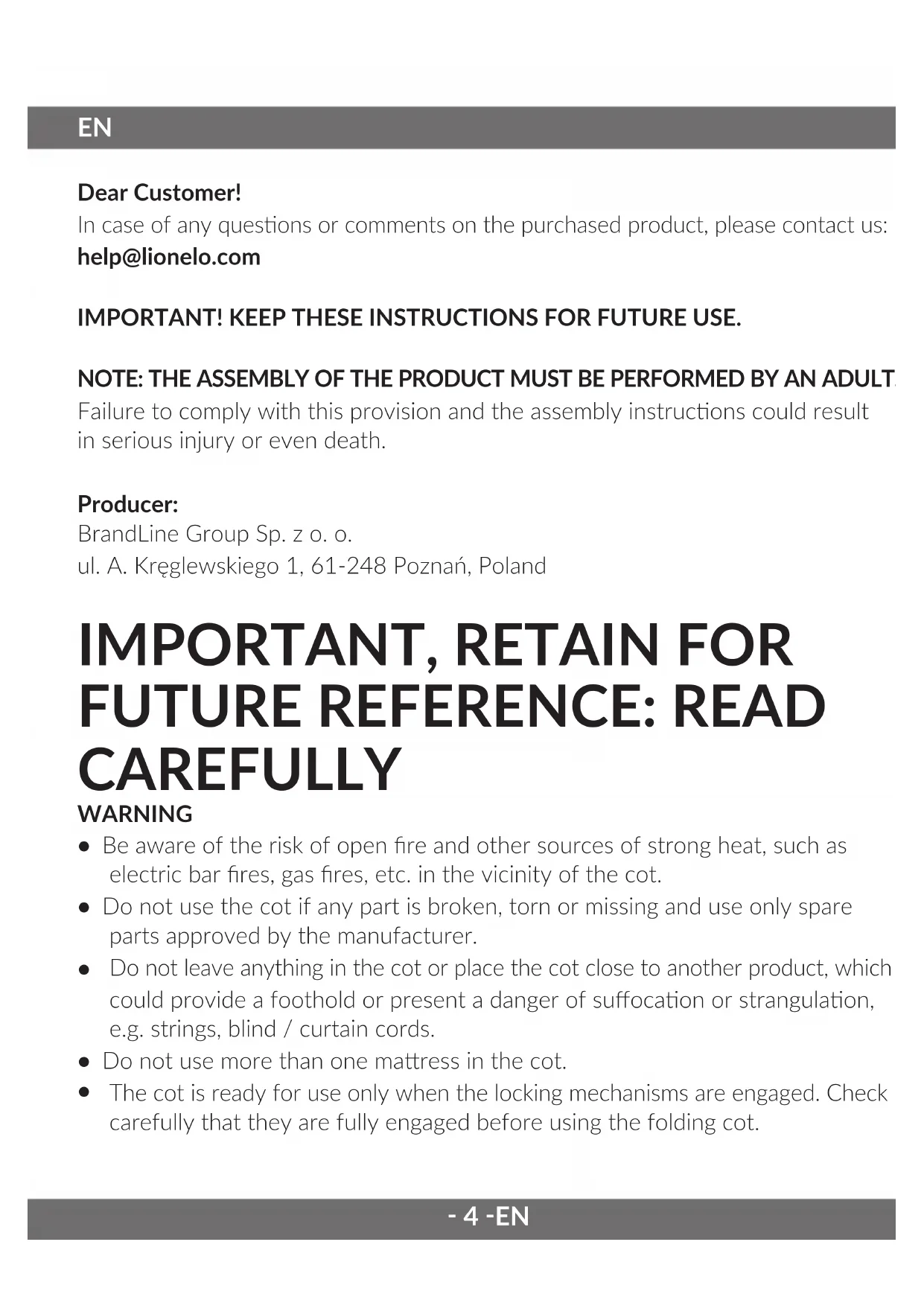

Dear Customer!

In case of any questions or comments on the purchased product, please contact us:

[e-mail]

IMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE USE.

NOTE: THE ASSEMBLY OF THE PRODUCT MUST BE PERFORMED BY AN ADULT

Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

Producer:

BrandLine Group Sp. z o. o.

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the vicinity of the cot.
• Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
• Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind / curtain cords.
• Do not use more than one mattress in the cot.
• The cot is ready for use only when the locking mechanisms are engaged. Check carefully that they are fully engaged before using the folding cot.

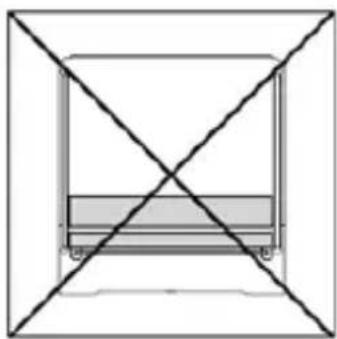

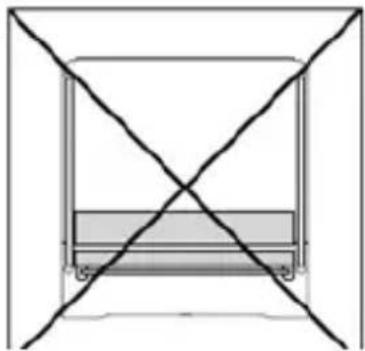

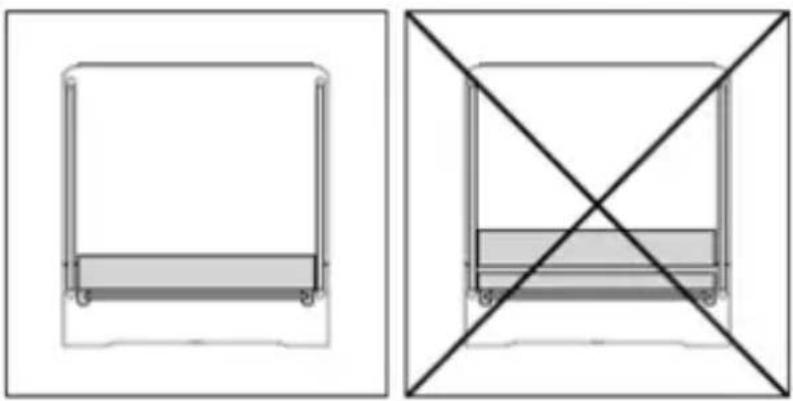

- The lowest position is safest. The base should always be used in that position as soon as the baby is old enough to sit up.

- The upper position of the cot is suitable for children weighing up to 9 kg. If your child starts to sit down himself, use only the lower position.

- If you leave the child unallowed in the crib, always make sure that the side entrance is fastened with a zipper.

- It is essential to remove detachable support rails before the cot is used in the lowest position.

- All assembly ☐ngs should always be ☐ghtened properly and ☐ngs should be checked regularly and re☐ghtened as necessary.

- To prevent injuries from falls: when the child is able to climb out of the cot, the cot shall no longer be used for that child.

- The product is intended for children aged 0+ to 36 months and weighing up to 15 kg.

- WARNING - Only use the maress sold with this cot, do not add a second maress on this one, suocaon hazards.

• The maßress is an integral part of the bed.

- The maress should be inserted with the Velcro down.

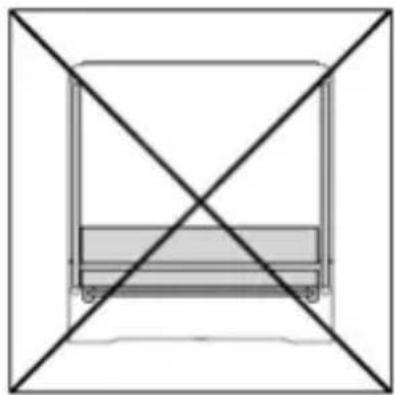

Two technical diagrams showing a rectangular frame with a shaded horizontal bar inside, crossed out by a diagonal line (no text or symbols)

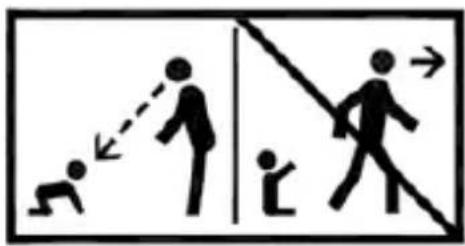

CHANGING PAD WARNING - Do not leave the child unal-ended.

- The baby cots should be blocked before using the changing table.

- The changing table is suitable for children up to 12 months of age and weighing up to 11 kg.

- Any additional or replacement parts can only be obtained from the manufacturer.

Diagram illustrating human behavior with stick figures and directional arrows, possibly depicting a physical or social interaction scenario.

• Do not use the changing unit when any part is broken, torn or missing.
• Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the changing unit.

Assembly instruction

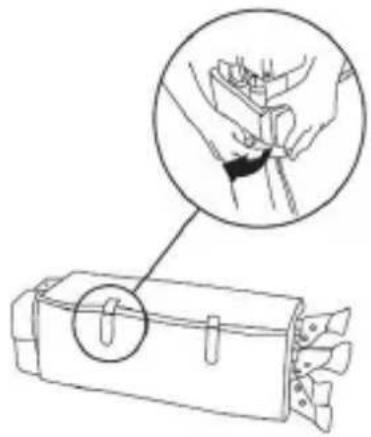

1. Take the travel baby bed out of the bag and loosen the adhesive straps. Place the bed on the floor and put the bag aside (see fig. 1).

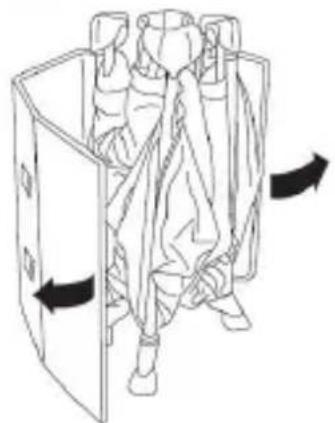

2. Separate the legs pulling them apart. Keep the central lock up. Otherwise handrails will not fit in the right place (see fig. 2).

Note! So that the sides of the cot / handrails are properly blocked, the central blockade of the floor must be raised upwards. The baby rails will not lock when the floor is unfolded.

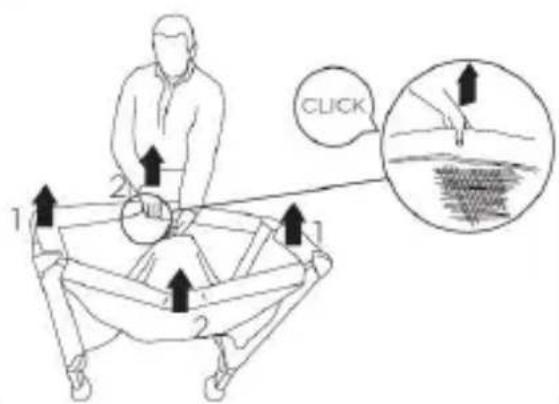

1. Pull the middle part of each top rail covered with material so that they fit into place. Start with the longer rails, and then the shorter ones (see fig. 3).

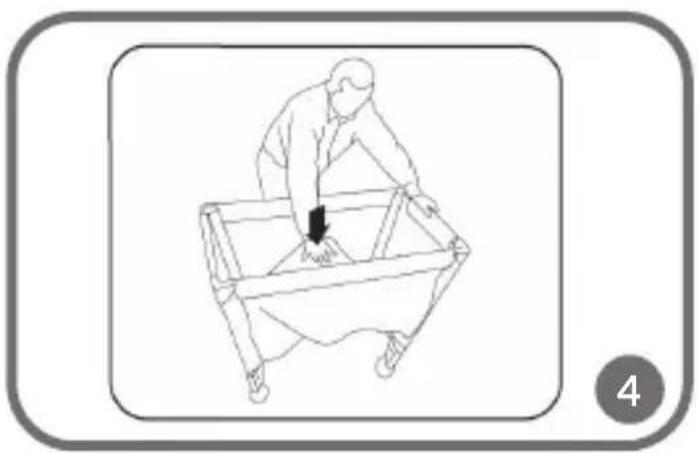

2. Push the middle lock until the surface is completely flat (you will hear the click sound) (see fig. 4).

Base installation

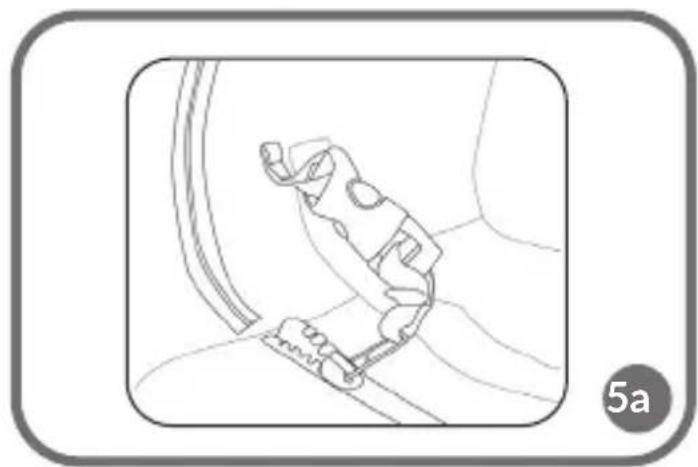

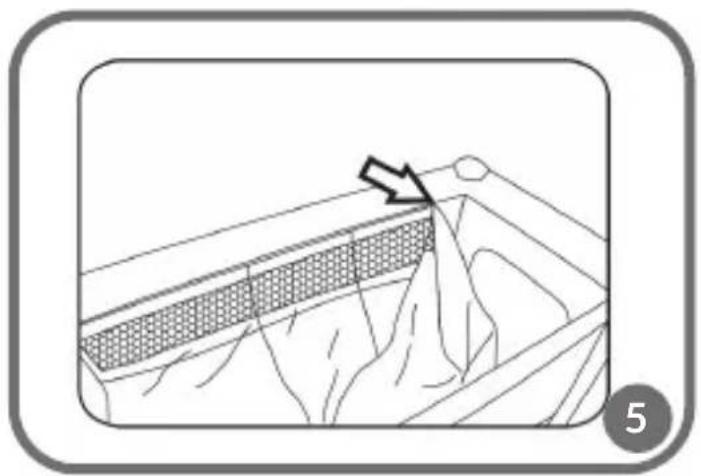

Mount the platform with the zipper (fig. 5). Secure the zipper by fastening the clasp (see figure 5a). Connect the stiffening pipes located at the bottom of the platform together (Fig. 6). Place the mattress on a platform and connect it to the platform with Velcro.

Changing table assembly instruction

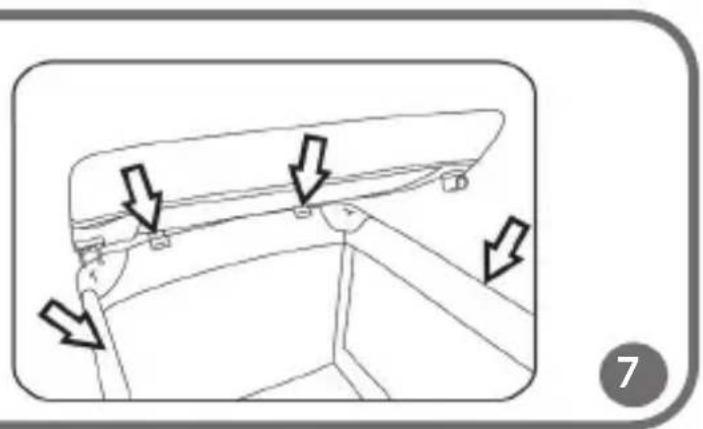

Push the button marked on fig. 7 and connect short and long stiffening tubes of the changing table. Install the plastic fastening elements on the long and short sides of the bed.

Organizer installation

Put the hooks on the organizer and mount it on the bed frame.

Baby bed folding instruction

1. Remove all the bed accessories. Remove the mattress, canopy, organizer and all the other accessories. Grasp the centre handle located in the middle of the floor and pull it up.

2. To unlock the upper rails, press the indicated buttons on each side of them. Pull it slightly up and then push it down. Unlock the shorter sides first, and then do the same with the longer ones.

3. While still pulling up the handle, lift the floor of the baby bed and fold the legs.

4. Wrap the folded bed with the mattress and fasten it with Velcro straps. Put the folded baby bed into the bag. If the installation is unsuccessful, repeat the whole process again until submission

Cleaning

Wipe the product with a damp cloth, then allow to dry.

Changing table - clean with warm water and mild soap. Do not dry clean and do not use caustic agents. Do not dry mechanically, do not iron.

The product has been tested and meets all the requirements of the: EN 716-1:2017+AC:2019, EN 12221-1:2008+A1:2013

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.
