Dear Customer!

In case of any questions or comments on the purchased product, please contact us: [e-mail]

IMPORTANT

Please read this manual before you start using the product to see all its functions and use it in accordance with intended use.

Producer:

BrandLine Group Sp. z o. o.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!

WARNING

1. Do not use this product without reading the instructions for use first.
2. Stop using the product as soon as the child can sit or kneel or pull itself up.
3. Placing additional items in the product may cause suffocation.
4. Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.
5. Do not use more than one mattress in the product.
6. Product should be placed on horizontal floor.

7. Young children should not be allowed to play unsupervised in the vicinity of the crib.

8. The crib should be locked in the fixed position when the child is left unattended.

9. All assembly fittings should always be tightened properly and care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc) which would pose a risk of strangulation.
10. The maximum thickness of the mattress is marked by a red lining on the inside of the crib. Do not use a mattress thicker than indicated.
11. Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. In the near vicinity of the crib.
12. DO NOT use crib if any parts are missing, damaged, or broken. Contact Lionelo for replacement parts and instructional literature if needed. DO NOT substitute parts.

WARNINGS for mattress:

1. Do not use the mattress if any part is broken, torn, or missing, use only spare parts approved by manufacturer.
2. Intended for cots of maximum internal size 93 x 53 cm.
3. Do not use more than one mattress in the cot.
4. Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot.

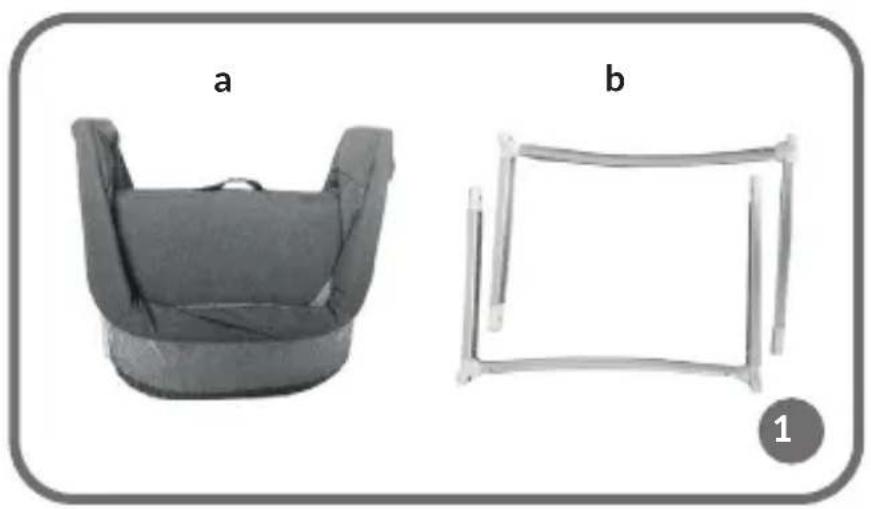

Bed components

1.Main body of the bed (fig. 1a)
2. Legss (fig. 1b)

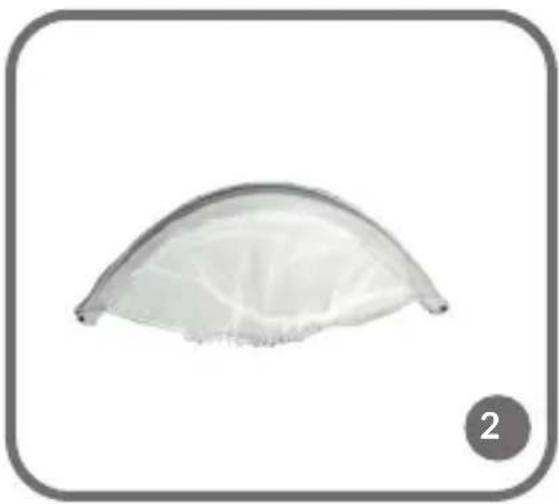

3.Mosquito net (fig. 2)

How to assemble

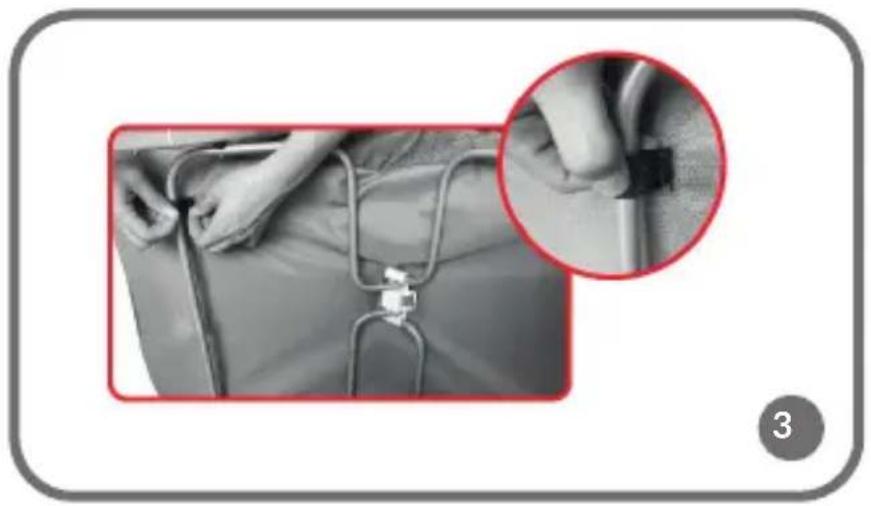

1. Attach the structure to the bed by means of Velcro (fig. 3).

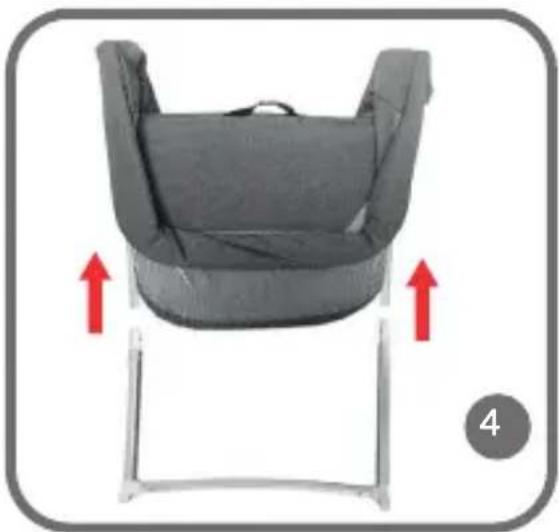

2. Adjust legs to the main body of the bed by putting tubes on each other. You will hear a distinctive locking click (fig. 4).

Note!

Make sure the legs have been locked and do not move.

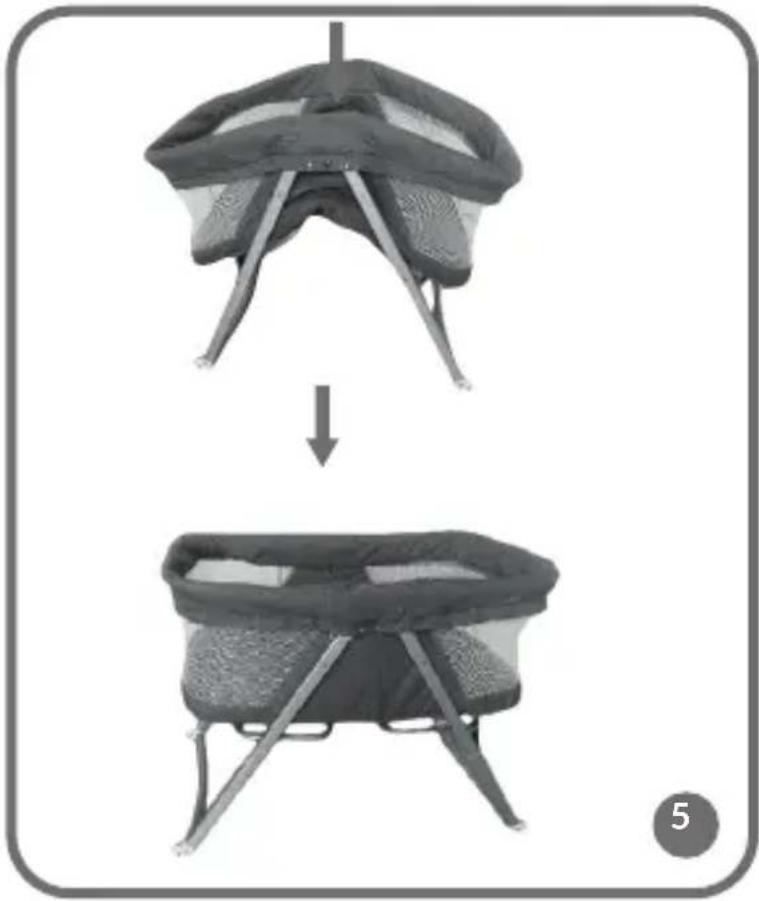

1. Press the central part of the bed until you can unfold it completely (fig. 5).

Note!

Make sure the bed has been unfolded completely and is stable.

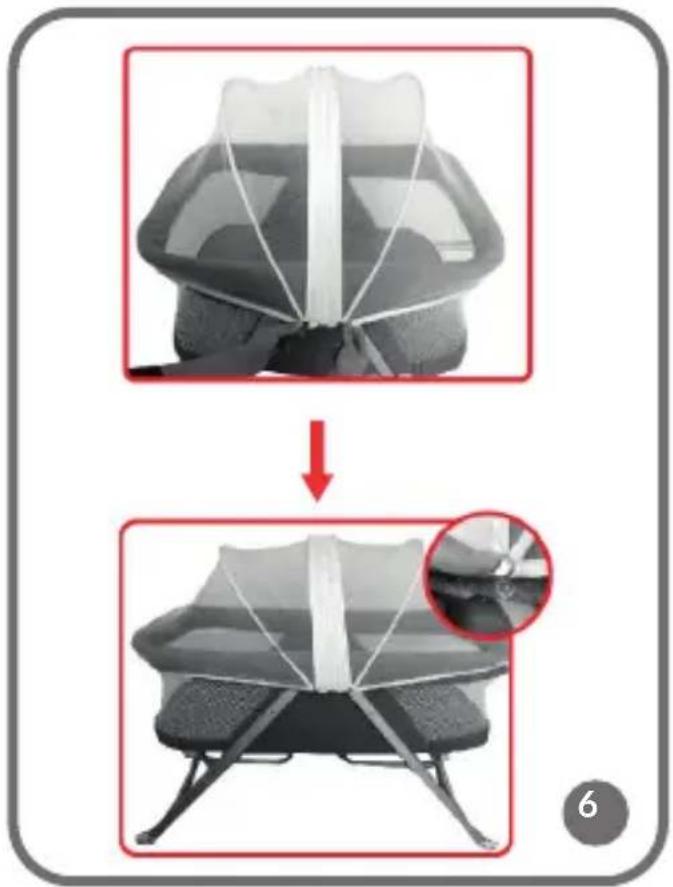

1. How to assemble mosquito net:

Unfold the mosquito net and stretch on the bed. Next, attach it by means of fasteners (fig. 6).

Cradle feature:

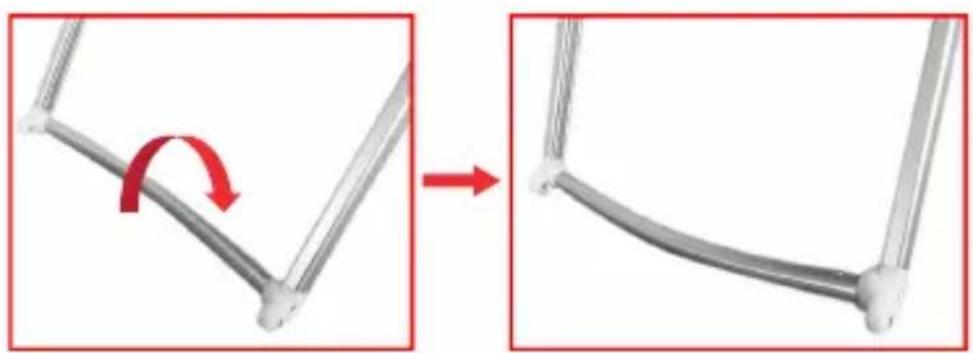

To use the bed as a cradle, rotate the base slats downwards (fig. 7).

Folding:

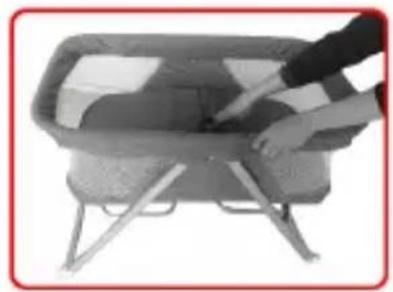

1. Keep the arm with your hand. Use another hand to pull the tape inside the bed until you can unfold it completely (fug. 8).

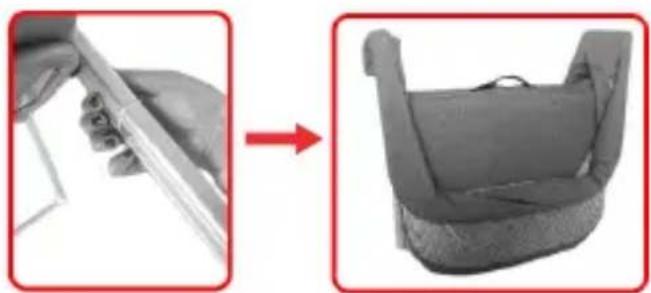

2. If you want to detach legs, press the locking buttons located by the contact of legs and structure. Slide legs down (fig. 9).

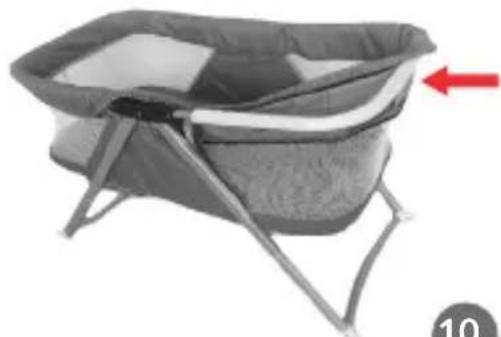

3. If you want to remove a cover, unfold the bed and then unzip locks on its edges and remove the cover (fig. 10).

Maintenance and cleaning:

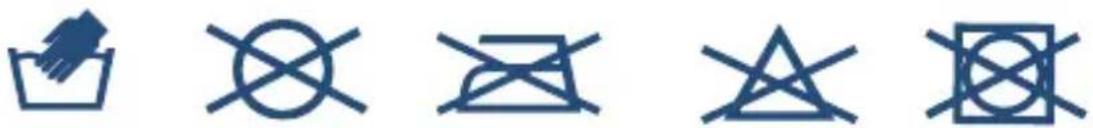

1. Clean the cover in accordance with guidelines.
2. Clean the bed and check its technical condition on a regular basis (fig. 11).

The pictures are for reference only. The real design of the products may differ from the pictures presented.

The product has been tested and meets all the requirements of: EN 16890:2017, EN 1130:2019
