Product Type	Baby Bed / Crib
Brand	Lionelo
Model	Simon
Overall Dimensions (L x W x H)	120 x 60 x 85 cm (approx.)
Mattress Size Required	120 x 60 cm (standard)
Product Weight	Approximately 18 kg
Maximum User Weight	15 kg (toddler mode)
Age Range	0 - 36 months (approx.)
Material - Frame	Solid beechwood and MDF
Material - Mattress	Foam with hypoallergenic cover (if included)
Assembly Required	Yes, with included tools and instructions
Safety Standards	Complies with EN 716 safety regulations
Convertible	Yes, converts from crib to toddler bed
Mattress Included	Yes (standard foam mattress)
Drop-Side	No (fixed side for safety)
Wheels/Casters	No (stationary legs with non-slip pads)
Storage	No built-in storage
Color Options	White, Natural wood (may vary)
Cleaning Instructions	Wipe with damp cloth; mild soap if needed
Warranty	2 years (manufacturer warranty)
Country of Origin	Poland (EU)

Frequently Asked Questions - Simon Lionelo

What are the overall dimensions of the Lionelo Simon baby bed?

The approximate dimensions are 120 x 60 x 85 cm (length x width x height). Always refer to the manual for exact measurements.

What mattress size does the Lionelo Simon require?

It requires a standard 120 x 60 cm crib mattress. Ensure the mattress fits snugly with no gaps.

Is the Lionelo Simon easy to assemble?

Yes, assembly is straightforward with the included tools and step-by-step instructions. It is recommended that two adults perform the assembly.

Up to what age can my child use the Lionelo Simon?

The crib is suitable from birth up to approximately 36 months (or until your child reaches a height of 90 cm or begins climbing out).

Does the Lionelo Simon convert into a toddler bed?

Yes, it converts into a toddler bed by removing one side panel. A conversion kit may be required (check the manual).

What safety standards does the Lionelo Simon comply with?

It complies with EN 716 safety regulations for children's cots, ensuring safe gaps and sturdy construction.

How do I clean and maintain the Lionelo Simon baby bed?

Clean with a damp cloth and mild soap. Do not use abrasive cleaners or immerse in water. Check screws regularly for tightness.

What is the maximum weight capacity of the Lionelo Simon?

The maximum weight capacity is 15 kg when used as a toddler bed. For the crib stage, it is safe for babies up to 15 kg as well.

Does the Lionelo Simon come with a mattress?

Yes, it includes a foam mattress with a hypoallergenic cover. Check the product listing for exact specifications.

Are replacement parts available for the Lionelo Simon?

Yes, Lionelo offers replacement parts such as screws, side rails, and mattress support boards. Contact their customer service or consult the manual for ordering.

USER MANUAL Simon Lionelo

Black baby crib with open blanket, folded seats, and teddy bear ornaments hanging from the canopy (no text or symbols visible)

Solid light blue rectangular shape with no text, symbols, or patterns

Wstep.

PL

Drogi Kliencie!

Two simple line drawings of a storage unit with horizontal bars and diagonal cross lines, no text or symbols present.

PL

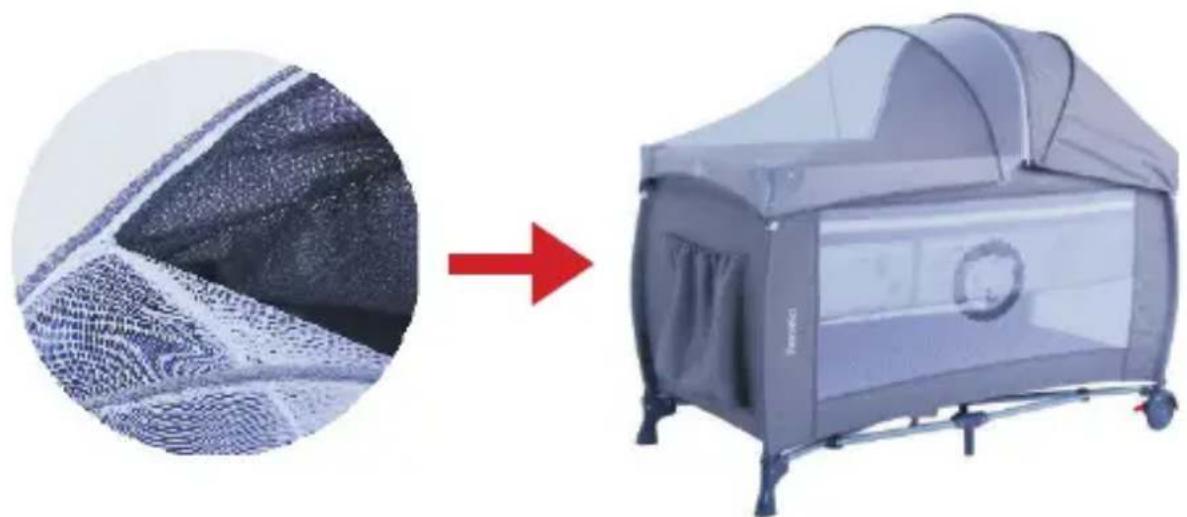

Instrukcja montażu

Three-step packaging process: open cardboard box, wire bag with plastic wrap, and closed bag wrapped in plastic wrap (no text or symbols visible)

Close-up of a camera module with a cloth cover and black clip attachment (no visible text or symbols)

Two views of a gray fabric bag with wheels, one showing a red arrow pointing to a circular detail (no text or symbols visible)

Two baby playroom units with transparent lids, one showing a red arrow indicating transformation (no text or symbols visible)

PL

Exterior view of a baby crib with a red arrow pointing to the interior (no text or symbols visible)

Line drawings of three different household appliances or storage units, showing front, side, and top views with no text or symbols.

Product photo showing a baby crib with mesh bedding being processed, with close-up views of the interior (no text or symbols visible)

PL

Product comparison image showing a textured fabric sample being transferred to a modern baby care unit (no text or symbols visible)

Three-step diagram showing a car seat assembly process: opening, adding red arrows to a lid, and finally adjusting a back cover (no text or symbols present)

Diagram showing a car interior with attached sensors and a red downward arrow indicating a reduction or change (no text or symbols present)

Montaż organizera

Three-panel illustration showing a car interior with internal compartments and a back cover, each with red arrows indicating a process or transformation (no text or symbols present)

PL

Line drawing of a person using a bench to lift a seat, with an inset showing the same seat (no text or symbols)

Anatomical line drawing of a human pelvic region (no labels or text)

Line drawing of a human figure in profile view, showing torso and legs with no text or symbols

Thank you for placing your trust in us and choosing Lionelo.

Our products are made with the utmost care to ensure comfort and above all, maximum safety of your child. Implementation of high quality materials and modern technologies allows us to provide users with a product that is perfectly suited for everyday use.

IMPORTANT!

STOP THESE INSTRUCTIONS FOR FUTURE USE.

In case of any questions or comments on the purchased product, please contact us:

Note: The assembly of the product must be performed by an adult.

Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

Importer:

BrandLine Group Sp. z o. o.

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot.
  • Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
• Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords
• Do not use more than one mattress in the cot. The instructions for use shall include the following statements.
  • Statement that a cot is ready for use, only when the locking mechanisms are engaged and to check carefully that they are fully engaged before using the folding cot.
  • If the height of the cot base is adjustable, a statement that the lowest position is the safest and that the base should always be used in that position as soon as the baby is old enough to sit up.

• If you leave the child unattended in the cot, always make sure that the movable side is closed.
• Before changing the base position to the lowest one, it is necessary to remove the support rails.

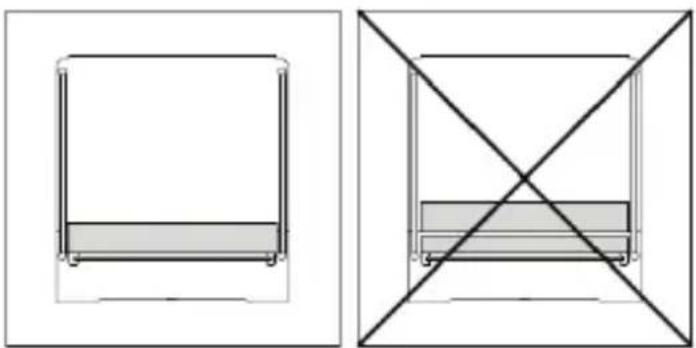

• Thickness of the mattress shall be such that the internal height (surface of the mattress to the upper edge of the cot frame) is at least 500 mm in the lowest position of the cot base and at least 200 mm in the highest position of the cot base.
• If the requirement in the above paragraph is met, the mark on the crib indicates that the mark indicates the maximum thickness of the mattress to be used with the crib.
• The minimum size of the mattress to be used with the cot. The dimension shall take into account that there shall be no gap more than 30 mm between the mattress and the sides end ends in any position of the mattress.
• All assembly fittings should always be tightened properly and fittings should be checked regularly and retightened as necessary
• The cot cannot be used by children who can get out of it themselves, it can cause a fall and serious injuries or even death.
• The product is intended for children from 0+ to 36 months

WARNING — Only use the mattress sold with this cot, do not add a second mattress on this one, suffocation hazards

Two simple line drawings of a rectangular frame with a shaded base, crossed by diagonal lines (no text or symbols)

EN

Assembly instruction

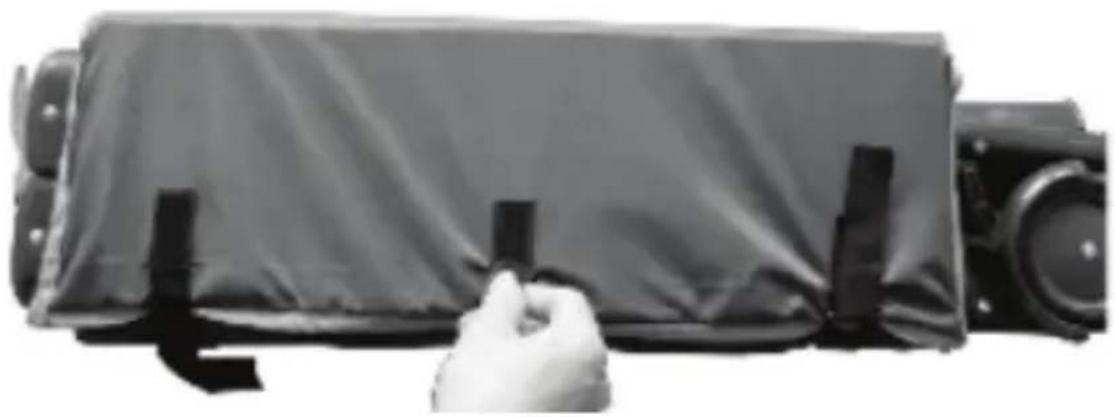

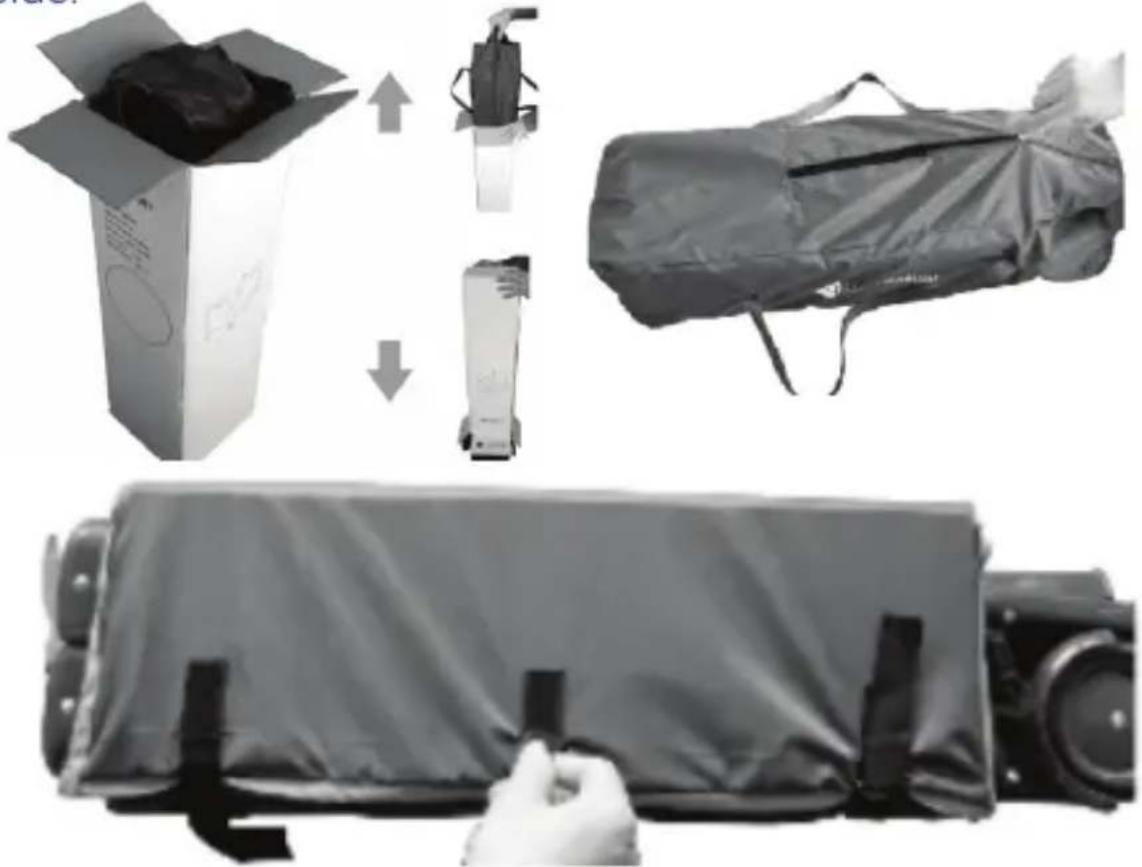

1. Take the travel baby bed out of the bag and loosen the adhesive straps. Place the bed on the floor and put the bag aside.

Black-and-white photo collage showing a cardboard box, a camera, and a bag with a cloth cover (no text or symbols visible)

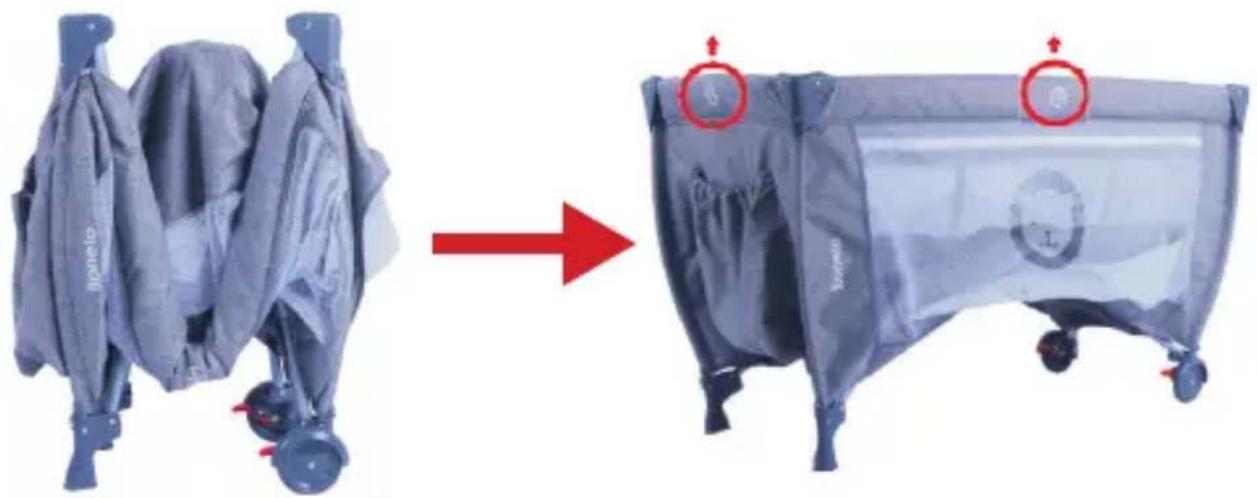

1. Separate the legs pulling them apart. Keep the central lock up. Otherwise handrails will not fit in the right place.

EN

Two-step photo showing a blue umbrella with red buttons and a transparent bag with a face, both before and after transformation (no text or symbols visible)

Note! so that the sides of the cot / handrails are properly blocked, the central blockade of the floor must be raised upwards. The baby rails will not lock when the floor is unfolded.

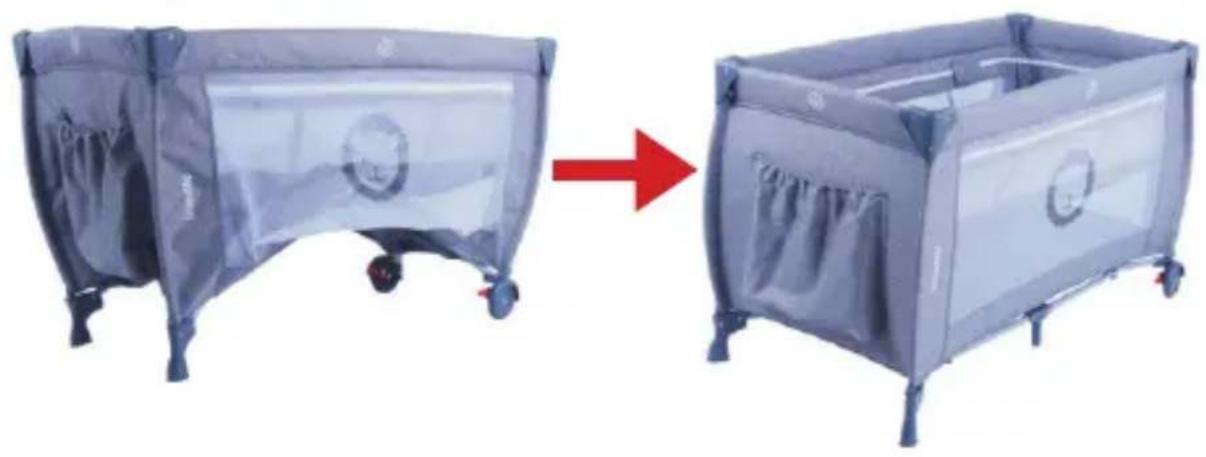

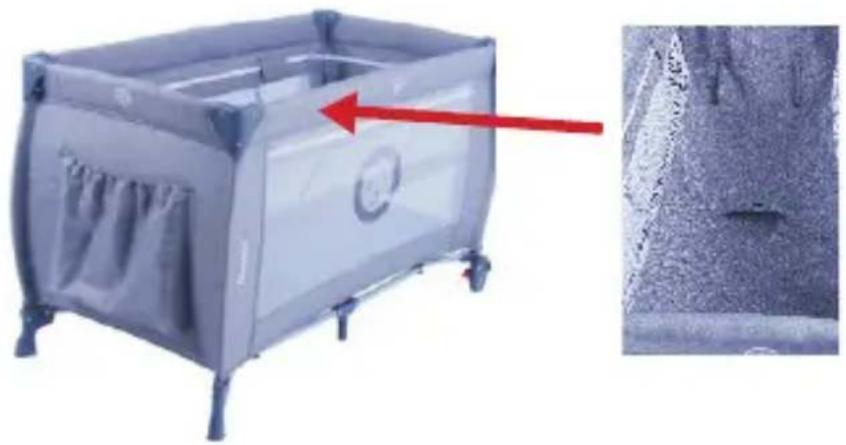

1. Pull the middle part of each top rail covered with material so that they fit into place. Start with the longer rails, and then the shorter ones.

Two gray baby crib arrangements with blue covers, one showing a red arrow indicating change (no text or symbols visible)

1. Push the middle lock until the surface is completely flat (you will hear the click sound).

Exterior view of a modern baby crib with a red arrow pointing to the interior (no text or symbols visible)

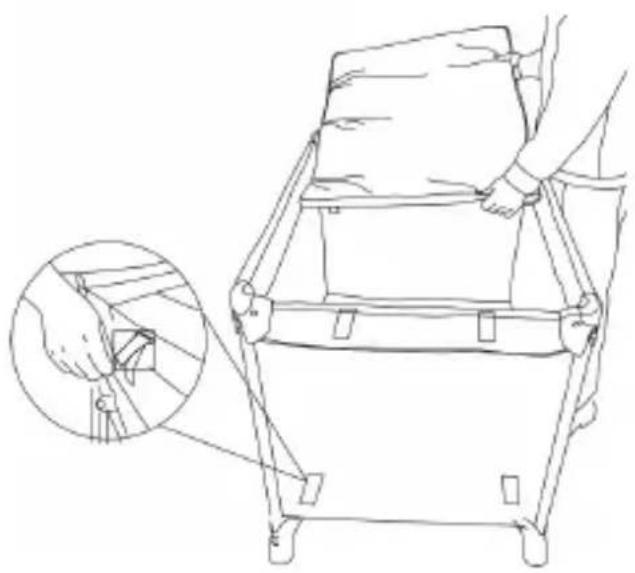

1. Place the mattress in the baby bed.

Line drawing of a mechanical device with a hand operating it, showing a close-up inset of the component (no text or symbols)

Base installation

Line drawings of three different household appliances or storage units, showing internal compartments and mounting brackets (no text or symbols)

1. The base must be attached using the zipper. There is only one way to install the base correctly. Otherwise it is impossible to fasten the zipper. Once the base is attached, cover the zipper with a Velcro pad. Slide the reinforcement tubes into the sewn handles and connect them. There are two tube types (male and female) and they must be paired properly. Place the mattress onto the tube-reinforced base.

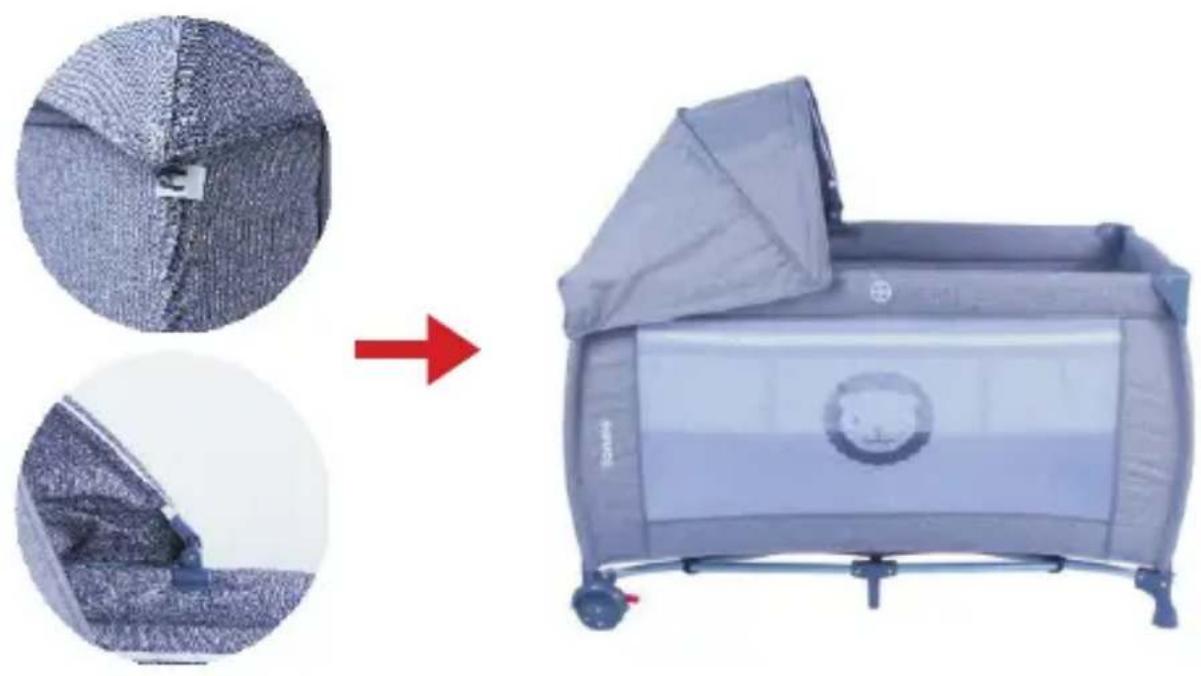

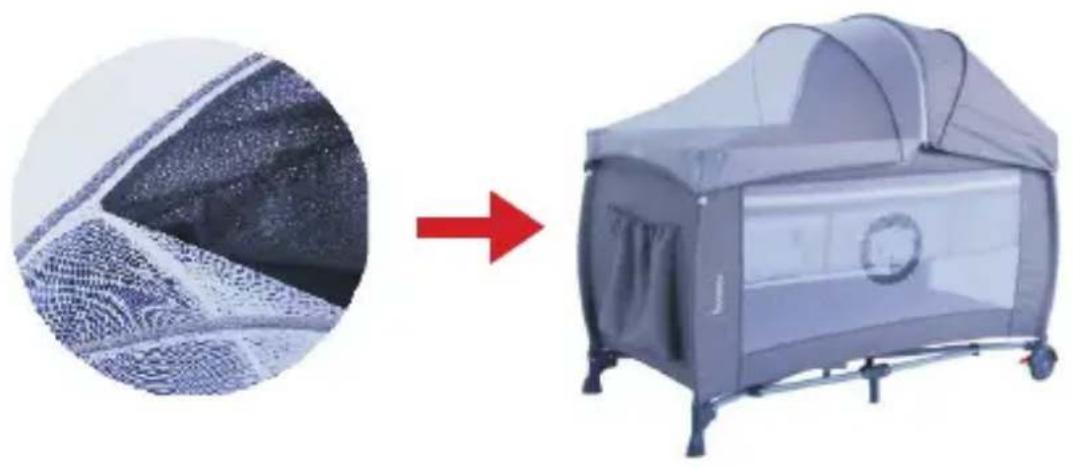

Canopy installation

1. Slide the plastic arches into the material guide of the canopy and connect them in the middle. Place the rear part of the canopy on the baby bed, then stretch the fabric and attach the canopy to the baby bed using plastic clamp holders.

Product photo showing a baby crib with mesh bedding being processed, alongside a close-up of the fabric detail (no text or symbols visible)

Product comparison image showing a textured fabric next to a transparent baby care unit with a circular vent (no text or symbols visible)

EN

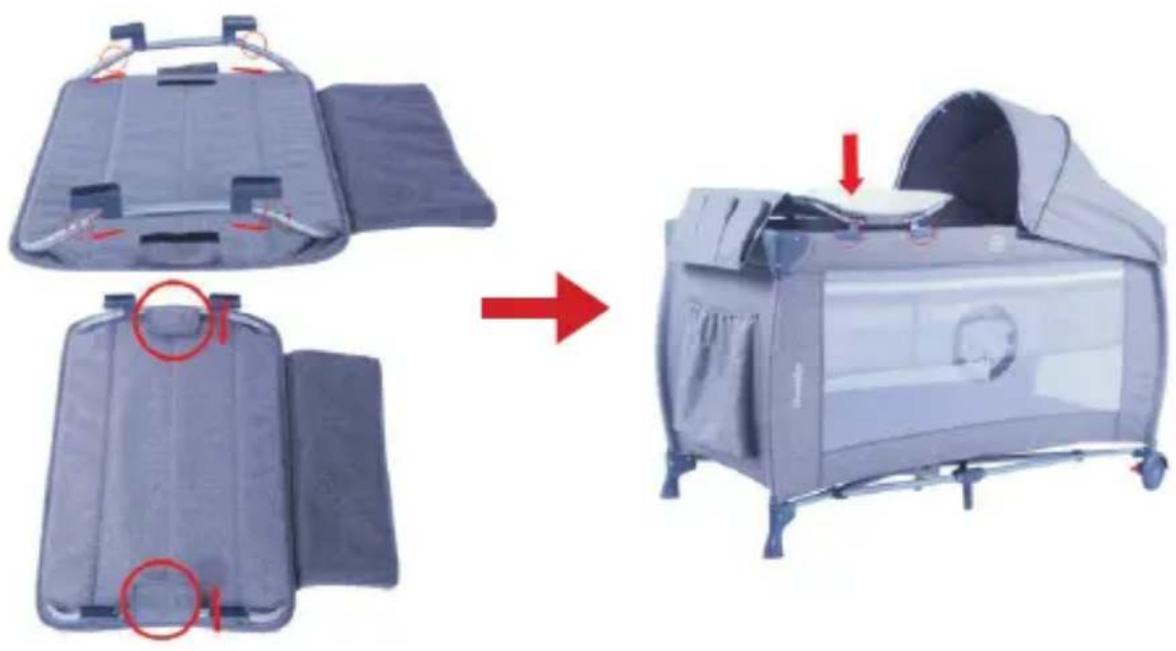

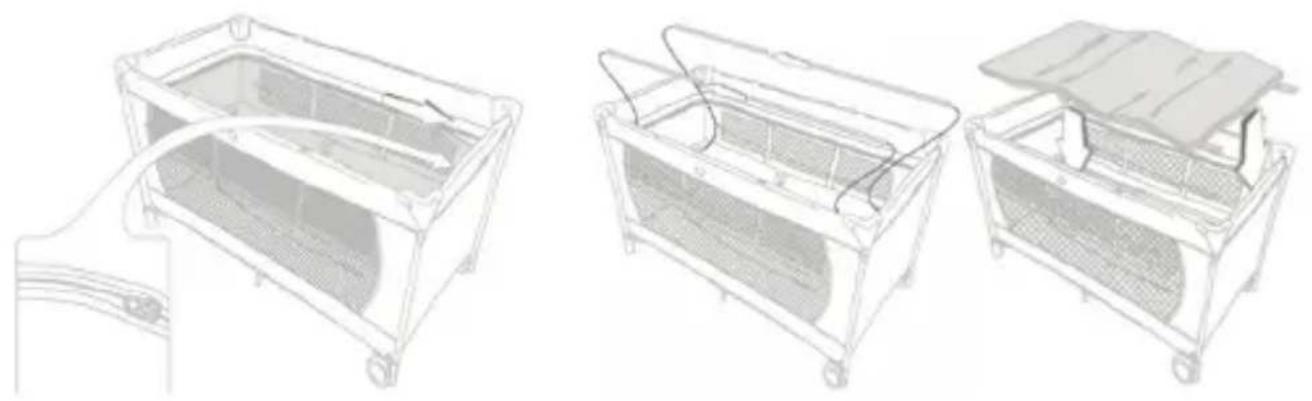

Changing table assembly instruction

1. Insert the bent tubes into the material guides of the changing table. Then, connect them using additional tubes with plastic elements. Cover the tubes with a Velcro fabric. Use the clamp holders to attach the changing table to the baby bed.

Diagram showing a car seat assembly process with red arrows indicating movement, no text or symbols present.

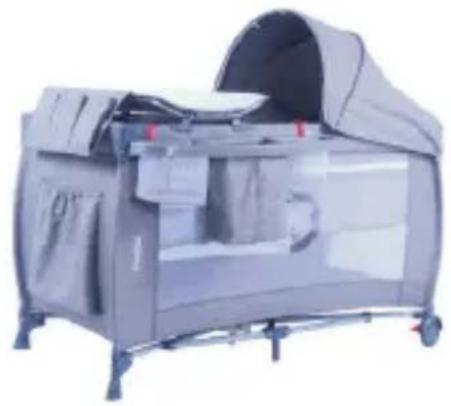

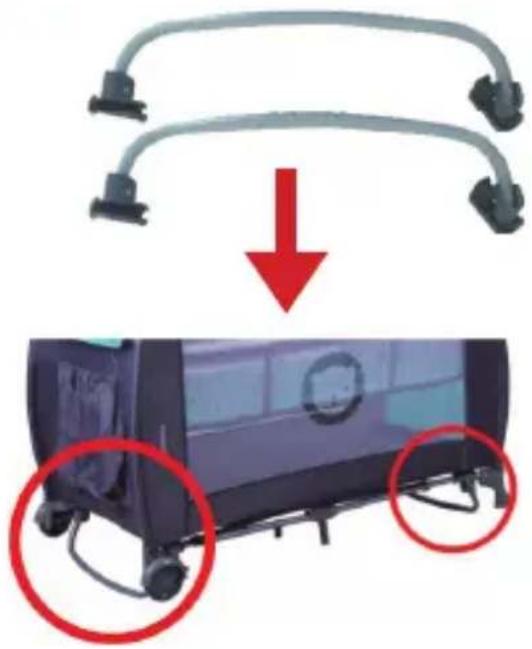

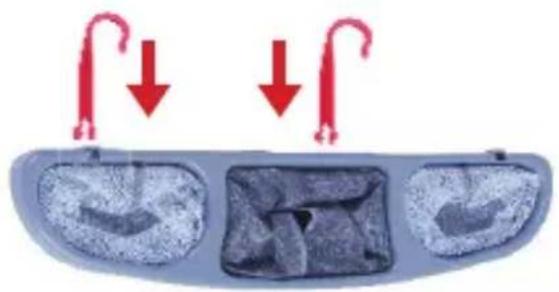

How to use rocking system

1. Connecting the left plastic hook on rocking system to the frame of bottom playpen at first, and then repeat the same method to make sure the right hook connect to the frame of right tube.

Diagram showing a car interior with two red circles highlighting the bottom section of the vehicle (no text or symbols present)

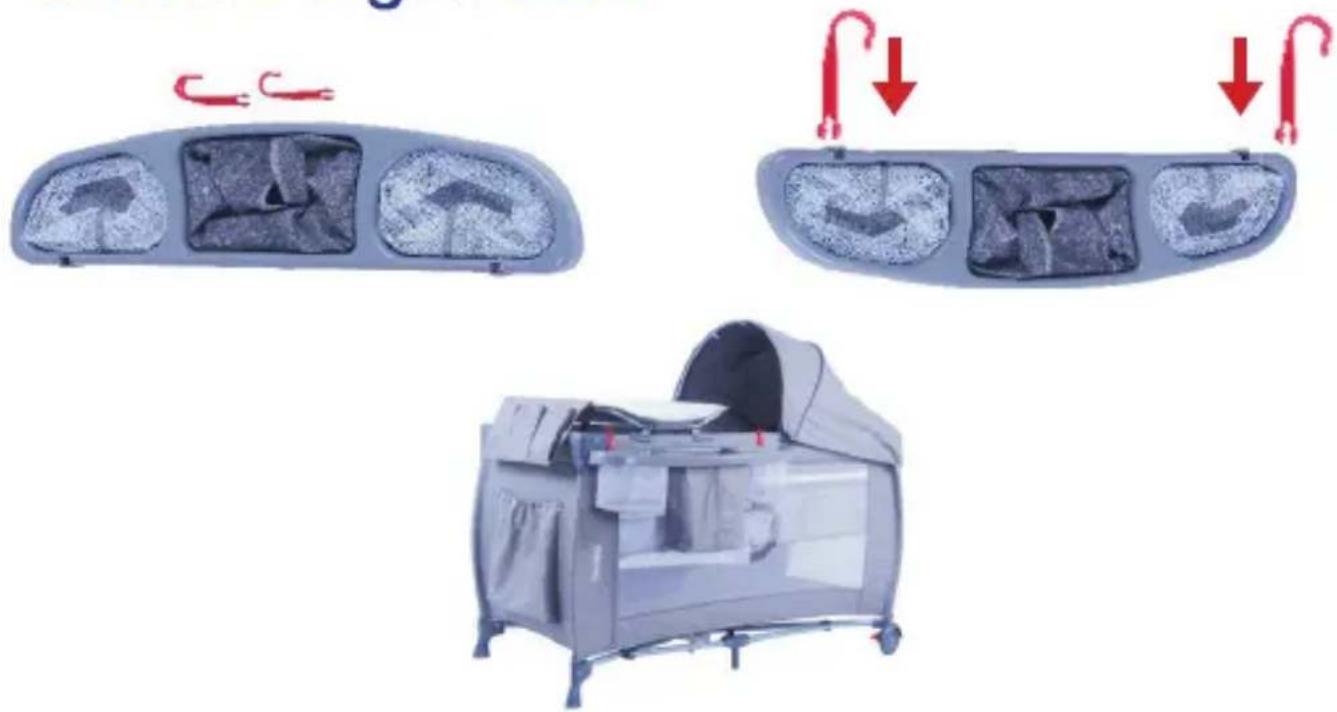

Organizer installation

Interior view of a car dashboard with three seats and a red logo (no visible text or symbols)

Diagram showing three car seats with red arrows pointing downward, no text or symbols present

Exterior view of a modern baby care kit with open lid and wheels (no text or symbols visible)

EN

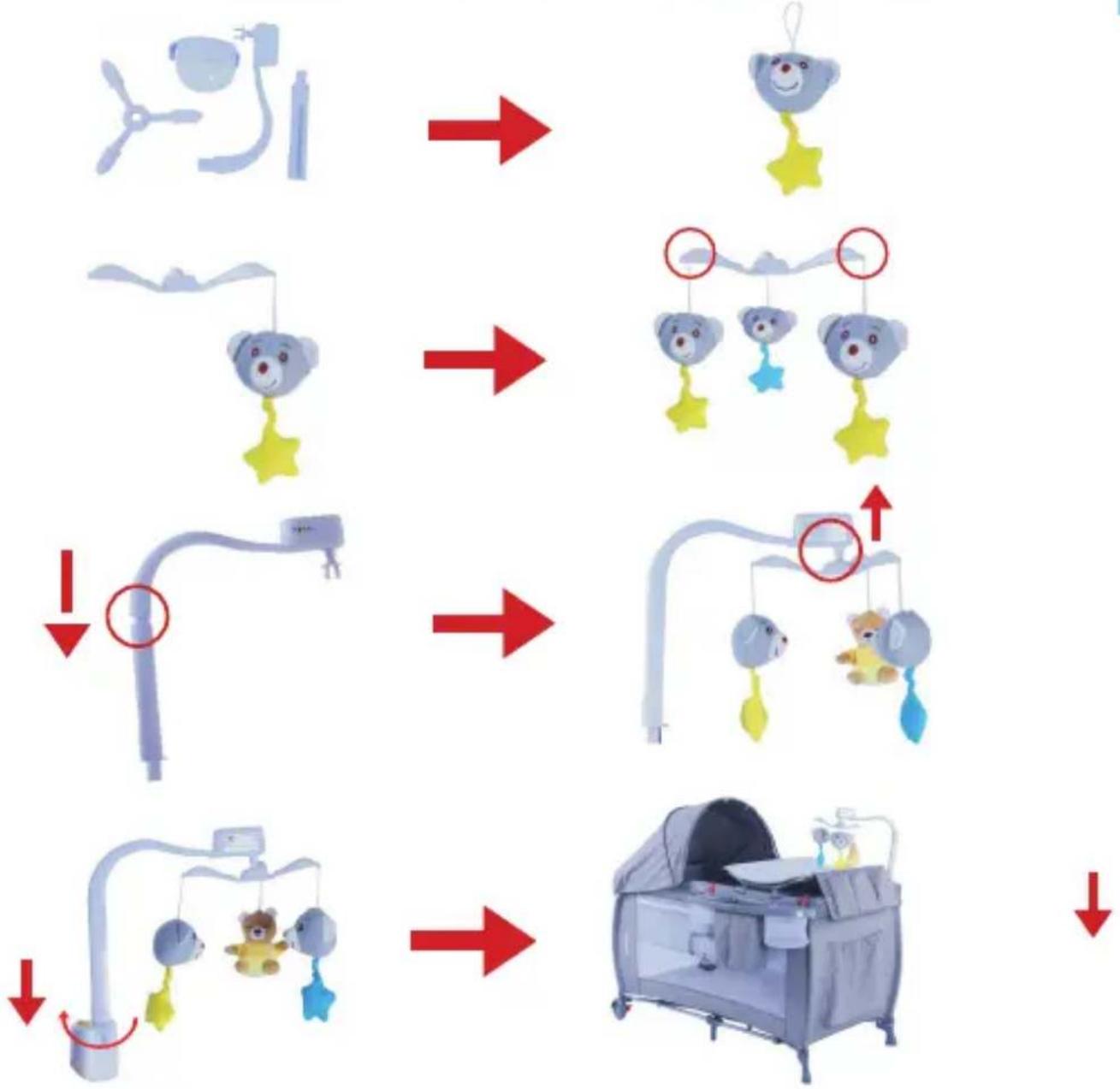

Carousel assembly

10.

• Insert the toys on the rotating plates.
- Connect the rotation plates with the main support bar.
- Insert the toy bar in the music box, and rotate the toy bar

NOTE: Only rotate the toy bar, that can make the bar into the correct position.

• Assemble the carousel onto the playpen corner.
