Product type	Gasoline electric generator
Brand	Black & Decker
Model	BD 1000i
Power supply	Gasoline (2-stroke mix 50:1)
Output voltage	230 V~ / 12 V DC
Continuous rated power (PRP)	850 W (0.85 kW)
Temporary maximum power	900 W (for 300 s)
Frequency	50 Hz
Amperage (230 V)	3.7 A
Engine type	Single-cylinder 2-stroke engine
Displacement	63 cm³
Fuel tank capacity	2.0 L
Guaranteed sound level	95 dB(A)
Protection rating	IP 23M
Starting system	Recoil starter
Outlets	1 x 230 V~ outlet (3.7 A) and 1 x 12 V DC outlet (5 A)
Main functions	Backup power for power tools and household appliances
Maintenance and cleaning	Clean the air filter and spark plug regularly; drain the fuel tank before prolonged storage
Safety	Use only outdoors; avoid contact with hot exhaust pipe; do not connect to household mains; wear hearing protection
Spare parts and repairability	Use only original parts; repairs by qualified authorized personnel
General information	24-month warranty; follow the maintenance schedule to maintain warranty

Frequently Asked Questions - BD 1000i BLACK & DECKER

What type of fuel to use for the BD 1000i generator?

Use a mixture of unleaded gasoline and special 2-stroke engine oil in a ratio of 50:1 (50 volumes of gasoline to 1 volume of oil). Mix thoroughly before filling the tank. Never use pure gasoline or a different mixture ratio.

How to start the generator?

Open the fuel valve (turn downward), set the ON/OFF switch to 'I', pull the choke lever, then pull firmly on the starter cord. After starting, push the choke lever back to its initial position after about 5 to 10 seconds.

Can I connect the generator to the household electrical network?

No, never connect the generator to the household mains. This can cause fire, property damage, and electric shock hazards. The generator is designed for independent use with devices plugged directly into its outlets.

What to do in case of generator overload?

In case of overload, the protection circuit breaker trips. Reduce the power used by unplugging some devices and ensure that the total power does not exceed the generator's maximum power (850 W continuous, 900 W temporary). Also check that no defective device is plugged in.

How to maintain the air filter?

Remove the air filter cover, take out the filter, tap it to clean it or wash it with soapy water if very dirty. Rinse with clean water, dry completely before reassembling. Never use abrasive products or gasoline. Reassemble in reverse order.

How to change the spark plug?

Disconnect the ignition cable, remove the spark plug using the provided wrench. Clean the spark plug with a copper wire brush or replace it with a new one. Check the electrode gap if necessary. Reinstall by hand tightening then using the wrench, and reconnect the cable.

Can I use the generator in rain or snow?

No, never use the generator in rain, snow, or wet conditions. This poses a risk of electric shock and damage to the generator. Use it only outdoors on a dry surface and sheltered from bad weather.

How to store the generator after use?

Drain the fuel tank using a suction pump in a well-ventilated area, no flames. Run the engine until it stops to empty the carburetor. Let it cool, remove the spark plug, pour a small amount of oil into the cylinder, pull the starter cord slowly to lubricate, then reinstall the spark plug. Store the generator in a dry, ventilated place.

What is the maximum power I can use?

The continuous rated power (PRP) is 850 W. The temporary maximum power is 900 W for a maximum duration of 300 seconds. Do not exceed these limits to avoid overload and damage.

How to charge a 12 V battery with the generator?

Use the 12 V DC outlet (5 A) on the generator. Connect the charging cables to the battery terminals respecting polarity (+ and -). The DC output is limited to 5 A and has a reset button. Caution: the no-load voltage can reach 18 V DC, use only for batteries with capacity less than 5 Ah.

USER MANUAL BD 1000i BLACK & DECKER

Mechanical component diagram showing internal gears and housing (no text or symbols)

Technical illustration of a mechanical engine component with labeled parts (no readable text or symbols)

Important!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times.

If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Explanation of the warning signs and symbols on the machine

Read and understand the safety instructions before using the generator.

During operation, toxic gases are produced e.g. carbon monoxide (Which is a colorless and odorless gas) this gas may lead to by suffocation. Only operate the generator outside to ensure adequate ventilation.

Switch the engine off and allow to cool before refuelling the generator. Fuel is extremely flammable and under certain conditions can be explosive. Only refuel the generator in well ventilated areas ensuring that naked lights, sparks and cigarettes are not present. Any spillage of fuel should be immediately cleaned up.

The exhaust gets very hot during operation. Allow the engine to cool before performing maintenance storage and refueling. Do not touch the exhaust to avoid the risk of burns and injury.

The generator must not be connected to the public power supply. In case of improper connection there is a risk of fire and damage to property including electrocution to persons using the generator and working on the public power supply.

Warning hazardous voltages are present when the generator is in use, Always switch the generator off before performing maintenance.

Wear ear protection when using the generator.

Disconnect all equipment from the socket outlets when performing maintenance or when left unattended and switched off.

Warning: the gasoline is highly volatile, flammable and explosive

Choke lever

Petrol cock

Voltmeter

1/0

ON/OFF

Alternating current (AC)

Direct current (DC)

Overload cut-out

2. General Safety Instructions

• Important: No changes may be made to the generator.
• Only original parts may be used for maintenance and accessories.
• No changes may be made to the settings of the motor or generator. The speed preset by the manufacturer is not allowed to be changed. The generator or connected equipment may be damaged.
• Repairs and adjustment work may only be carried out by authorized trained personnel.
• Important: Petrol and petrol fumes are highly combustible or explosive.
• Risk of explosion: Never operate the generator in rooms with combustible materials.
• Do not refuel or empty the tank near open

lights, fire or sparks. Do not smoke!

Important: Exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials.

• Always switch off the engine when transporting and refueling the generator.
• Make sure that when you refuel the generator, No fuel is spill on the engine or exhaust pipe.
• Place the generator in a secure, level position. Do not turn, tip or change the generator's position while it is working.

• Secure the generator against shifting and toppling during transport.

• Guard against electric danger.

• Make sure the generator is properly grounded before use.
• Never connect the generator to the power grid.
• Never operate the generator in rain or snow.
• Never touch the generator with wet hands.
• Never use faulty or damaged electrical equipment (this also applies to extension cables and plug connections)
• When working outdoors, use only extension cables that are approved for outdoor use and which are marked accordingly (H07RN).
• The overall length of the extension cables used may not exceed 50 m for 1.5 mm ^2 and 100 m for 2.5 mm.
• Important: Risk of burns. Do not touch the exhaust system or drive unit.
• The generator is driven by a combustion engine, which produces heat in the area of the exhaust (on the opposite side of the sockets) and the exhaust outlet. You should therefore keep clear of these surfaces because of risk of skin burns.
• Do not touch any mechanically driven or hot parts. Do not remove the safety guards.

- Children are to be kept away from the generator.

- Important: Danger of poisoning, do not inhale emissions.

- Never operate the generator in non-ventilated rooms. When operating the generator in rooms with good ventilation, the exhaust gases must be channeled directly outdoors through an exhaust hose.

- Place the generator at least 1m away from buildings and the equipment connected to it.

- Wear suitable ear protection when in the vicinity of the equipment.

- The values quoted in the technical data for sound power level (LWA) and sound pressure level (LWM) are emission values and not necessarily reliable workplace values. As there is a correlation between emission and emission levels, the values are not a reliable basis for deciding on any additional precautions which may be needed. Factors influencing the actual user emission level include the properties of the work area, other sound sources etc., the number of machines and other processes in the vicinity, as well as the time span in which the operator is subjected to the noise. Also, the permitted emission level can vary from country to country. Nevertheless, with this information the user is able to make a better assessment of the dangers and risks involved.

CAUTION: Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

3. Proper Use

The generator is intended to provide electric tools and light sources with electricity. When using the device with household appliances, please check their

suitability in accordance with the relevant manufacturer's instructions. In case of doubt, ask an authorized dealer of the respective appliance. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

The device is designed for applications operated with a 230 V alternating current source for 230 V.

4. Layout and items supplied (Fig. 1-3)

1. Carry handle
2. Tank cover
3. Petrol cock
4. Starter cable
5. Motor cover
6. Choke lever
7. ON/OFF switch
8. Earthing connection
9. 1x 230 V\~ socket
10. Screwdriver handle
11. Screwdriver insert
12. Spark plug wrench
13. Oil filler jug
14. Voltmeter
15. 12 V d.c. outlet

5. Technical data

Engine
Model:	1E45F
Protection type:	IP 23M
Engine:	2-stroke engine,1 cylinder
Cubic capacity:	63 cm ^3
Degree of compression:	6,9:1
Nominal speed:	3600 min ^-1
Fuel tank volume:	2,0 L

Generator

Rated voltage Urated:	1* 230 V~1x12 V d.c.
Frequency (Hz):	50 Hz
Ampere (A):	3,7 A
Nominal power PRP (kW):	0,85
Power factor:	1,0
Power class:	G1
Guaranteed acoustic power level L_wA : 95 dB(A)

6. Before putting the generator into operation

Remove the packaging material and check that all items have been supplied. Place the generator on a firm, flat surface near the electrical equipment and ensure proper ventilation.

6.1 Electrical safety:

• Electric supply cables and connected equipment must be in perfect condition.
• The generator is to be operated only with equipment whose voltage specifications conform with the generator's output voltage.
• Never connect the generator to the power supply (socket-outlet).
• Keep the cable length to the electrical equipment as short as possible.

6.2 Environmental protection

• Dispose of soiled maintenance material and operating materials at the appropriate collection point.
• Recycle packaging material, metal and plastics.

6.3 Connecting to earth

The housing is allowed to be connected to earth in order to discharge static electricity. To do this, connect one end of a cable to the earth connection on the generator (Item 8) and the other end to an external earth (for example an earthing rod).

6.4 Topping up fuel

WARNING

Switch off and ensure you are in a well ventilated area.

Use only a mixture of unleaded regular petrol and special 2-stroke engine oil in a mixing ratio of 50:1, (50 parts petrol to 1 part 2-stroke engine oil), Mix the fuel in the mixer bottle provided. Shake the container gently

and ensure thorough mix.

Important: Do not use a different mixing ration and do not use pure petrol, failure to use the correct petrol/oil mixture will cause the engine to seize.

Do not use fuel if it is more than 2-3 months old.

If you do not intend to use the machine for a lengthy period, empty the tank and refill it before you start work again.

Ensure that you do not overfill the tank and spill petrol. (If you do spill, wipe up the excess amount and wait until the vapors have evaporated – danger of ignition.) Screw the tank cover back on.

6.5 Handle assambling

Assamble the handle (1) as shown in fig. 5

7. Operation

• Check the fuel level and top it up if necessary.
• Make sure that the generator has sufficient ventilation.
• Make sure that the ignition cable is secured to the spark plug.
• Inspect the immediate vicinity of the generator.
• Disconnect any electrical equipment which may already be connected to the generator.

7.1 Starting the engine (Fig 2)

Important: Do not use any chemical starting agents such as highly volatile fuels or similar.

- Open the stop cock (Item 3) by turning it down.

• Move the ON/OFF switch (Item 7) to the "I" position.
• Pull the choke lever (Item 6).

- Start the engine with the starter cord (Item 4) by pulling the handle forcefully. If the engine does not start, pull the handle again.

Important:

Always pull the starter cable slowly until you feel the initial resistance before you then pull it quickly to start the engine. Do not allow the starter cable to whip back of its own accord.

- Push the choke lever (Item 6) back approximately 5 to 10 seconds after the engine has started.

7.2 Connecting consumers to the generator

- Connect the 230 V\~ electrical appliances to be powered to the socket (Item 4). Important: This socket is allowed to be exposed to a continuous (S1) load of 850 W and temporarily (S2) for a maximum of 300 second to a load of 900 W.

7.3 Overload cut-out

230 V socket

- Reduce the level of power to be drawn.

Important: If an overload occurs, ensure that the power drawn does not exceed the generator's maximum power output and that no defective electrical appliances are connected.

7.3.1 DC Application(option)

a) Use the supplied DC connecting cable to make connection to 12VDC powered appliance. The DC output of the generator is not treated by a precise electric circuit. Never use it to power any precise DC instrument.

b) connect between the DC output socket and the battery terminals using a charging leads. The leads shall be connected making sure of the (+) and (-)polarity.

c) reset button: Be used to the DC output outlet to ON or OFF. Push down button, DC output to ON, Be provided the DC socket with the over-current protection function.

d)12VDC 5A is rated condition, it will reach 18VDC at no-load condition, even more.

7.4 Switching off the engine

• Before you switch off the generator, allow it to run briefly with no electrical equipment connected so that it can cool down.
• Move the ON/OFF switch (Item 7) to the "0" Off position.
• Close the stop cock (Item 3).

8. Cleaning, maintenance, storage, transport and ordering of spare parts

Switch off the motor and pull the spark plug boot from the spark plug before doing any cleaning and maintenance work on the equipment.

Important: Switch off the generator immediately and contact your service station: - In the event of unusual vibrations or noise. - If the engine appears to be overloaded or misfires.

8.1 Cleaning

• Keep all safety generators, air vents and the motor housing free of dirt and dust as far as possible. Wipe the generator with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the generator

immediately each time you have finished using it.

- Clean the generator regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the generator.

8.2 Air filter (Fig 6-7)

Clean the air filter at regular intervals, and replace it if necessary. Please also read the service information.

• Remove the air filter cover (Item E).
• Remove the air filter (Item G).
• Clean the air filter by tapping it. In cases of stubborn dirt first clean with soapy water, then rinse with clear water and air-dry before reinserting. Important: Do not use abrasive cleaners or petrol to clean the air filter.
• Assemble in reverse order.

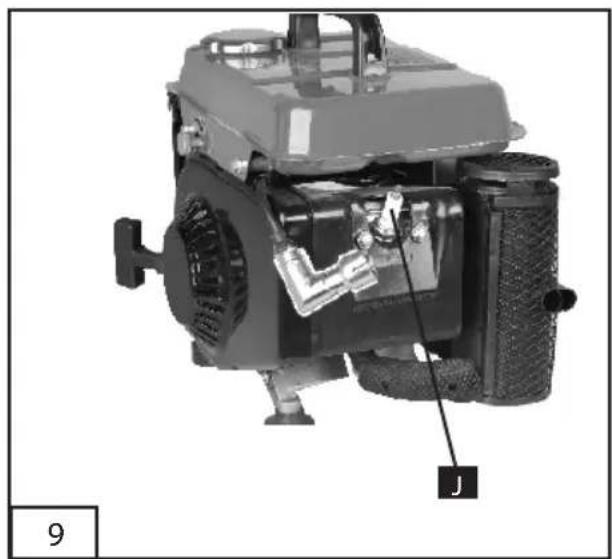

8.3 Spark plug (Fig. 8-9)

Check the spark plug for wear at regular intervals. Please also read the service information.

• Pull off the spark plug boot (Item I) by twisting it.
• Remove the spark plug (Item J) using the supplied spark plug wrench.
• Clean the spark plug with a copper wire brush or fit a new one.
• Assemble in reverse order.

8.4 Maintenance schedule

Regular service periodPerform at every indicatedmonth or operating hourinterval, whichever comesfirst.		Eachuse	Firstmonthor20 Hrs.	Every3monthsor50 Hrs.	Every6monthsor100 Hrs.	Everyyearor200 Hrs.
ITEM
Air cleaner	Check	0
	Clean			0 (1)
Spark plug	Check-adjust			0
	Replace				0
Spark arrester	Clean				0
Combustion chamber	Clean	After every 300 hrs. (2)
Fuel tank andfilter	Clean				0 (2)
Fuel tube Check		Every 2 years (Replace if necessary) (2)
Remark:(1) Service more frequently when used in dusty areas.(2) These items should be serviced by your servicing dealer, Refer to the manual for service procedures.Failure to follow this maintenance schedule could result in non-warrantable failures.

8.5 Storage

1. Empty the petrol tank using a petrol suction pump.

Important: Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause explosions and fire.

1. Start the engine and run it until the tank and fuel line are completely empty and the engine stalls.

2. Let the generator cool down.

3. Remove the spark plug and pour approx.

4. Pull the starter handle slowly several times to coat the internal parts.

5. Screw the spark plug back in.

6. Store the generator in a well-ventilated, safe place.

8.6 Transport

1. Wait until the generator has cooled down.
2. Always transport the generator in the upright position.

9. Disposal and recycling

The generator is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the

raw material system.

The generator and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Wichtig!

8.2 Luftfilter (Fig 6-7)

ON/OFF (MARCHE/ARRÊT)

Courant alternatif (CA)

Courant continu (CC)

2. General Safety Instructions

EC declaration of conformity

CE

Matrix GmbH

Postauer Str. 26

D-84109 Wörth/Isar

Germany

Fax: [phone]

E-Mail: [e-mail]

GB hereby declares the following conformity under the EU Directive and standards for the following article

EN 12601; EN55012; EN 61000-6-1;

The technical documentation is kept by our authorized representative Matrix GmbH

Postauer Str. 26

D-84109 Wörth / Isar

Germany

Wörth/Isar, den 27.01.2014

This appliance is a quality product. It was designed in compliance with current technical standards and made carefully using normal, good quality materials.

The warranty period is 24 months and commences on the date of purchase, which can be verified by the receipt, invoice or delivery note. During this warranty period all functional errors, which, despite the careful treatment described in our operating manual, are verifiably due to material aws, will be rectified by our after-sales service staff.

The warranty takes the form that defective parts will be repaired or replaced with perfect parts free of charge at our discretion. Replaced parts will become our property. Repair work or the replacement of individual parts will not extend the warranty period not will it result in a new warranty period being commenced for the appliance. No separate warranty period will commence for spare parts that may be fitted. We cannot offer a warranty for damage and defects on appliances or their parts caused by the use of excessive force, improper treatment and servicing.

This also applies for failures to comply with the operating manual and the installation or spare and accessory parts that are not included in our range of

products. In the event of interference with of modifications to the appliance by unauthorised persons, the warranty will be rendered void. Damages that are attributable to improper handling, over loading, or natural wear and tear are excluded from the guarantee.

Damages caused by the manufacturer or by a material defect will be corrected at no charge by repair or by providing spare parts.

The prerequisite is that the equipment is handed over assembled, and complete with the proof of sale and guarantee.

For a guarantee claim, only use the original packaging. That way, we can guarantee quick and smooth guarantee processing.

Please send us the appliances post-paid or request a Freeway sticker. Unfortunately we will be unable to accept appliances that are not postpaid. The warranty does not cover parts that are subject to natural wear and tear. If you wish to make a warranty claim, report faults or order spare parts or accessories, please contact the after-sales centre below:

Subject to change without prior notice.

GARANZIA

Tradepartner and aftersales office:
