Product type	Drill
Brand	Ferm
Model	HDM1023
Power supply	Mains 230 V ~ 50 Hz
Power consumption	650 W
No-load speed	0 – 3000 rpm
Chucks	Keyless chuck 1.5 – 13 mm
Max. drilling steel	13 mm
Max. drilling wood	40 mm
Hammer function	Yes, adjustable
Variable speed on/off	Yes
Reversing switch	Yes
Depth stop	Yes, adjustable
Dimensions (L x W x H)	300 x 80 x 200 mm
Weight	1.7 kg
Maintenance and cleaning	Unplug before cleaning; use a dry cloth; do not use harsh chemicals.
Safety	Wear safety goggles; do not touch the bit after use; use a grounded outlet.
Spare parts and repairability	Use only genuine Ferm parts; repair must be carried out by an authorized professional.
General information	2-year warranty; CE certification; protection class II.

Frequently Asked Questions - HDM1023 Ferm

How to change the drill bit on the HDM1023 drill?

Unplug the drill. Open the keyless chuck by turning the ring counterclockwise. Insert the bit and tighten firmly by turning clockwise.

The drill does not start, what to do?

Check that the plug is properly inserted and the fuse has not blown. Ensure the on/off switch is in position I. If the problem persists, contact an authorized service.

What is the maximum drilling capacity in steel?

The maximum drilling diameter in steel is 13 mm with the HDM1023 drill.

How to use the hammer function?

For drilling into masonry, set the hammer selector to the hammer position (hammer symbol). Use bits suitable for hammer drilling.

Can I use the drill as a screwdriver?

Yes, thanks to the reversing switch and variable speed, you can drive and remove screws. Set a low speed and use a suitable bit.

What accessories are included with the drill?

The drill comes with a keyless chuck, depth stop, additional handle, and storage case. Bits are usually sold separately.

How to clean the drill?

Unplug the appliance. Clean the housing with a dry, soft cloth. Do not use solvents or abrasive products. The ventilation slots must be kept clear.

The drill heats up abnormally, is this normal?

Slight heating during prolonged use is normal. If the drill becomes very hot to the touch or emits a burning smell, stop immediately and let it cool down. Check that the ventilation slots are not blocked.

Where to find spare parts for the HDM1023?

Original spare parts are available from authorized Ferm dealers or on the official website. Always use genuine parts.

What is the warranty of the Ferm HDM1023 drill?

The drill comes with a 2-year warranty from the date of purchase against manufacturing defects. Keep the receipt.

USER MANUAL HDM1023 Ferm

Close-up of a FERM electric drill press with black and silver components against a blue textured background (no visible text or symbols)

EN Original instructions 03
DE Übersetzung der Orginalbetriebsanleitung 06
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 10
FR Traduction de la notice originale
ES Traducción del manual original 18
PT Tradução do manual original
IT Traduzione delle istruzioni originali 26
SV Översättning av bruksanvisningl original 30
FI Alkuperäisten ohjeiden käännös 34
NO Oversatt fra orginal veiledning
DA Oversættelse af den originale brugsanvisning 41
HU Eredeti használati utasítás fordítása 44
CS Překlad původního návodu k použivání 48

SK Prevod izvirnih navodil 52
SL Preklad pôvodného návodu na použitie 56
PL Tlumaczenie instrukcji oryginalnej 59
LT Originallos instrukcijos vertimas 63
LV Instrukciju tulkojums no originalvalodas 67
ET Algupärase kasutusjuhendi tõlge 71
RO Traducere a instructiunilor originale 75
HR Prevedeno s izvornih uputa 79
SR Prevod originalnog uputstva 83
RU Перевод исходных инструкций 87
UK Переклад оригінальних інструкцій 91
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 95
BG Превод на оригиналната инструкция 100

Technical line drawing of a drill bit with directional arrows indicating motion (no text or symbols)

ROTARY HAMMER DRILL

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of European leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text correspond with the pictures at page 2.

Read this manual carefully, before using the machine. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine functions correctly. Store this manual and other enclosed documentation with the machine.

Intended use

The FBH-850KN2 is intended for drilling holes in masonry such as brick, concrete and similar materials. Furthermore, the machine can be used as a demolition hammer in combination with the SDS cold chisels provided. The machine is on no account intended for other purposes.

Not suitable for construction site usage.

Please inspect the machine and accessories for transit damage.

Contents

1. Machine information
2. Safety instructions
3. Operating
4. Maintenance

1. Machine information

Technical specifications

Voltage 230 V

Frequency 50 Hz

Power rating 850 W

Rotational speed, not loaded 800/min

Impact rate 4000/min

Max. bit diameter

Concrete ∅ 26 mm

Steel ∅ 13 mm

Wood ∅ 40 mm

Weight 4.5 kg

Lpa 83.6+3 dB(A)

Lwa 94.6+3 dB(A)

Vibration

When chiseling 17.46+1.5 m/s ^2

When hammering in concrete 20.23+1.5 m/s ^2

Product information

Fig. A+D

1. Rotary stop selection lever
2. On-off Switch
3. Main handle
4. Hammer stop selection lever
5. Carbon brush cap
6. Electric cord
7. Auxiliary handle
8. Depth gauge
9. Dust cap
10. Drill
11. Locking sleeve
    12 Grease cap

2. Safety instructions

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Wear ear and eye protection

Wear a dust mask. Working with wood, metals and other materials may produce dust that is harmful to health. Do not work with material containing asbestos

Specific safety instructions

For use of this machine/tool:

- Inspect the surface to be drilled for hidden electrical wiring, gas pipes or other obstacles (for example, using a metal detector).

• Check the following points:

- Does the appliance's voltage correspond

with the mains power supply voltage?

• Are power cords, insulation and plug in good order: sound, not loose or damaged?
  • Is there a good, firm connection at the mains socket?
• Does the drill show any sign of abnormal running, overheating or excessive sparking?
• Whenever any of the problems mentioned above appear, immediately cease using the machine and have it repaired by an expert.

- Wear ear protectors. Exposure to noise can cause hearing loss.

- Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and give the operator an electric shock.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the mains voltage is the same as on the type plate of the machine.

Class II machine – Double insulation – You don't need any earthed plug.

Replacement of power cords or plugs

Immediately dispose of old cords and plugs once they have been replaced. It is dangerous to plug a loose power cord into a mains power socket.

Use of extension leads

Only ever use approved extension leads that are suitable for the power rating of the machine. The mini mum core thickness is 1.5 mm^2 . Whenever using a reel extension lead, always fully unroll the lead.

Immediately switch off the machine when:

• Excessive sparking of the carbon brushes and verticiliosis in the collector.
• Interruption of the mains plug, mains lead or mains lead damage.
• Defect switch
• Smoke or stench of scorched isolation

3. Operating

Hammer drills require very little operator pressure. Excessive pressure on the tool can lead to unnecessary overheating of the motor, and burning of the driven tool.

Auxiliary handgrip

The auxiliary handgrip can be rotated 360° around the drill head, enabling safe and comfortable operation, for both left and right-handed users:

• Loosen the handgrip by turning it anticlockwise.
• Rotate the handgrip to the desire position.
  • Retighten the handgrip in the new position.

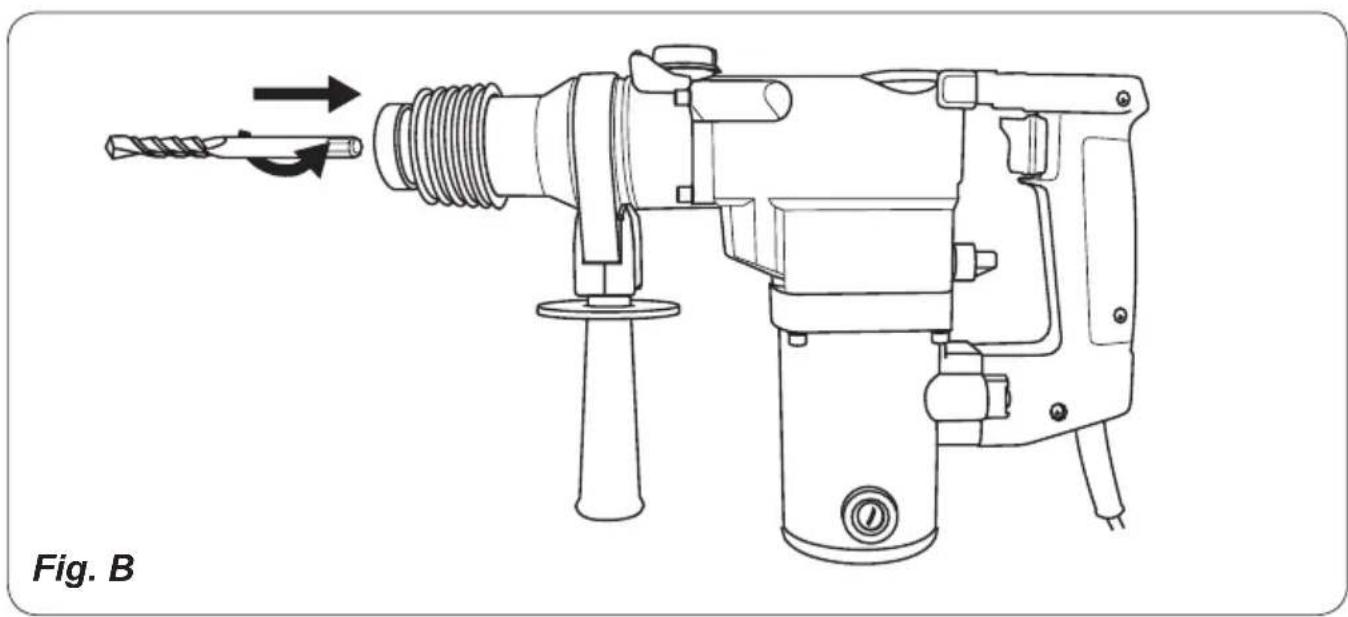

Exchanging and removing drill bits

Fig. A+B

Before exchanging bits, first remove the power plug from the wall socket.

Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.

• Lightly oil the bit shaft before inserting it into the chuck.
• Slide the locking sleeve (11) to the rear, and insert the bit into the chuck opening. Ensure that the keyway in the bit is seated properly in the chuck, by carefully turning the bit until it clicks into place. Release the locking sleeve.
• To remove the bit, slide and hold the locking sleeve to the rear.

Setting depth gauge

• Loosen the handgrip by turning it anticlockwise.
• Insert the depth gauge ruler through the hole in the auxiliary handgrip.
• Slide the ruler to the desired depth.
  • Retighten the screw firmly.

Function selection switch

Fig. D

The correct position of the selection switch for

each machine function is given in the diagram (Fig.C) on page 2.

1 = Demolition hammer/chisel

2 = Rotary hammer drill

3 = Drilling

Switching On/Off

• To start the drill, squeeze the trigger.

• To stop the drill, release the trigger.

Installing dust catcher

Fig. C

The dust catcher prevents large amounts of drilling dust entering the machine when drilling into ceilings:

• Remove the drill bit.
• Slide the dust catcher over the shaft of the drill bit.
• Place the drill bit with catcher in the drill chuck.
  • Always replace a damaged dust catcher immediately.

4. Maintenance

Take care that the machine is not connected to power whenever maintenance work on the mechanical parts is taking place.

The machines are designed to function problem-free for a long period with a minimum of maintenance. Through regular cleaning and correct treatment, you help assure a long working life for your machine.

Defects

The machine should be regularly inspected for the following possible defects, and repaired if necessary.

• Damage to power cord
- Broken on/off trigger assembly.
- Short circuiting.
• Damaged moving parts.

Trouble shooting

1. When switched on, the motor does not turn.

2. Failure in power supply.
   • Check the power supply.
   • Poor contact in the on/off trigger.
   • Repair or replace the trigger assembly.

3. Mains voltage too low.
   • Extension lead too long, or too light.

4. Damaged motor.
   • Have your machine repaired by an expert.
   • Carbon brushes worn.
5. Replace the carbon brushes

2. Motor generates excessive noise, and runs too slowly or not at all.

- Motor is overloaded due to excessive pressure or drilling depth.

- Reduce the pressure or drilling depth, reduce power.

- Damaged motor. - Have your machine repaired by an expert.

• Supply voltage too low.

- Adjust the supply voltage.

• Carbon brushes worn.

- Replace the carbon brushes

3. Overheating in the transmission case.

• Overloading of machine, or blunt drill bit • Reduce the loading, or hone the drill bit.

Replacing carbon brushes

• Regularly check the carbon brushes for wear and defects.
• Replace both carbon brushes at the same time.
  • Always replace worn-out carbon brushes.
  • Always keep the carbon brushes clean, and make sure that neither brush is obstructed.
• Open the machine to inspect/replace the carbon brushes.
• Remove and replace the carbon brushes if necessary.

Cleaning

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Lubrication

Fig. A

• Regularly grease the hammer drill shaft.
- Regularly check the grease-level inside the machine:
- Remove the grease cap (12) on top of the

machine.

• Remove also the second cap (with 4 notches)
• Now you can see the rotating parts inside the machine: there should be grease on the moving parts.
  • If necessary put some grease into the hole.
• Place the cap onto the hole and tighten it again.
  • Mount the grease cap again.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Warranty

For the conditions of warranty, please refer to the separately provided warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

BOHRHAMMER

DECLARATION OF CONFORMITY HDM1023 - ROTARY HAMMER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes měrtékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrmící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpísmí: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje įrangje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņa un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovomol,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 21/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8. juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμορφώνεται με την Οδηγία 2011/65/EE του Ευρωταικού Καινοβουλίου και του Συμβουλίου της 8ης Ιουνίου και τον περιορισμό της χρήσης ορισμένων επικίνδυνων συσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό
(BG) Ние декларираме на наша отговорност, че този продукт отговаря на съответствие с Директива 2011/65/EC на Европейския парламент и на Съвета от 8 юни 2011 г. относно ограничението на употребата на определени опасни вещества в електрическото и електронното оборудване, в съответствие следните стандарти и наредби:

EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

2006/42/EC, 2006/95/EC, 2000/14/EC, 2004/108/EC, 2012/19/EU, 2011/65/EU

Zwolle, 01-12-2014

H.G.F Rosberg

CEO Ferm B.V.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list

Position Description No.
102880	Steel ball 2
102881	Cylinder	3
102882	Feather key 4
102883	Piston	5
102884	O-ring	6
102885	Third gear 7
102886	Piston	8
102887	Connecting shaft 10
102888	Needle bearing 11
102904	Front selection lever 15
102889	Front cover 27
102890	Sleeve	29
102891	Second hammer 34
102892	Pinion gear 38
102893	Special nut 45
102894	Crank shaft	48
102896	Rotor	58
102898	Carbon brush holder	63
102899	Carbon brush set	64
102900	Carbon brush cap	65
102905	Rear selection lever	67
102897	Stator	69
102901	Switch	77
102902	Dust cover	501
102903	Depth limiter 504
102895	Auxiliary handle	505 TILL 509

Exploded view
