AD1070X - Range hood BRANDT - Free user manual and instructions

Product Type	Range Hood
Brand	Brandt
Model	AD1070X
Width	60 cm
Depth	50 cm
Height (Minimum)	60 cm
Weight	15 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	180 W
Maximum Extraction Rate	650 m³/h
Noise Level	65 dB (A)
Number of Speeds	3
Lighting	LED, 2 x 1.5 W
Control Type	Push buttons
Grease Filter	Aluminum mesh, dishwasher safe
Charcoal Filter	Optional for recirculation mode
Duct Diameter	150 mm
Installation Type	Wall-mounted, ducted or recirculating
Energy Class	A
Filter Cleaning Indicator	Yes
Spare Parts Available	Filters, LED lamps, control board

Frequently Asked Questions - AD1070X BRANDT

How do I clean the grease filters on the Brandt AD1070X?

Remove the aluminum mesh filters and wash them in warm soapy water or a dishwasher at low temperature. Ensure they are completely dry before reinstalling.

Does the AD1070X come with a charcoal filter?

No, the charcoal filter is an optional accessory needed for recirculation mode. It captures odors and should be replaced every 3-6 months.

What is the correct duct size for this range hood?

The recommended duct diameter is 150 mm. Using a smaller duct may reduce performance and increase noise.

How do I replace the LED lamps on the AD1070X?

Turn off the power, then gently pry out the old LED module and disconnect the connector. Insert the new module and secure it. Only use replacement lamps specified by Brandt.

Why is my range hood making excessive noise?

Check if the duct is blocked or if the grease filters are clogged. Ensure the hood is securely mounted. A loose motor can also cause noise; contact support if needed.

Can I install the AD1070X as a recirculating hood?

Yes, you can use it in recirculation mode by installing a charcoal filter (sold separately) and routing the exhaust back into the room.

What is the maximum extraction rate of this hood?

The maximum extraction rate is 650 m³/h at the highest speed setting.

How often should I clean the grease filters?

Clean the grease filters every 2-3 months, or more frequently if you cook heavily. A dirty filter reduces efficiency and increases noise.

Does the hood have an automatic shut-off feature?

No, the AD1070X does not have an automatic shut-off. It must be turned off manually. However, it has a thermal protection to prevent overheating.

Where can I find spare parts for the Brandt AD1070X?

Spare parts like filters, lamps, and control boards are available through authorized Brandt dealers or online spare parts stores. Check your user manual for part numbers.

USER MANUAL AD1070X BRANDT

ES	2
EN	18
FR	34
PT	50
DE	66
IT	82
HU	98
SK	114
CZ	130
PL	146
DK	162
NL	178
SV	194
PYC	210

foto 2

foto 8

foto 6

foto 4

Nota

Low
Mid
High Light

4 / MANTENIMIENTO Y LIMPIEZA DEL APARATO ES

Atención

4 / MANTENIMIENTO Y LIMPIEZA DEL APARATO ES

Atención

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning :

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

ENT

1 / NOTICES TO THE USER

• Safety recommendations 20
  • Environmental protection 21
  • Description of your appliance 22

2 / INSTALLING YOUR APPLIANCE

• Using the evacuation mode 23
• Using the recycling mode ____ 23
• Electrical connections 24
• Assembling the hood 25
• Assembling the ventilation shaft
  ° Outdoor evacuation 26
  ° Recycling 27

3 / USING YOUR APPLIANCE

• Description of control panel 28

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the fi Iter cartridges 29
• Changing the carbon filter 29
• Cleaning the outer surfaces 30
• Changing the light bulb 30
• Maintaining your appliance 31

5 / TROUBLESHOOTING 32

6 / AFTER-SALES SERVICE 33

1 / NOTICES TO THE USEREN

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.

• SAFETY RECOMMENDATIONS

— This oven was designed for use by private persons in their homes.

— This appliance is to be used by adults. Make sure that children do not touch and that they do not treat it as a toy. Make sure that they do not touch the appliance's control panel.

— When you receive the appliance, unpack or have it unpacked immediately. Give it an overall general inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form.

— Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.

— Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety.

— Repairs must only be carried out by an approved specialist.

— Always unplug the hood before cleaning it or performing other maintenance acts.

— Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gases.

— You should never “fl ambé” dishes under the hood or operate gas rings under the hood without placing cookware on them (the fl ames sucked up into the hood can damage the appliance).

— When frying food under the appliance,

you must carefully monitor the preparation at all times.

Oils and grease brought to very high temperatures can catch fire.

— Respect the recommended frequency of cleanings and fi Iter replacements. The accumulation of grease deposits may cause a fi re.

— The hood should never be used over a combustible fuel burning stove (wood, coal, etc.).

— Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety).

— With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress.

— In order to easily locate the reference information for your appliance, we recommend that you note these data on the “After-Sales Service Department and Customer Relations” page.

(This page also explains to you where to find this information on your appliance.)

- This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities, or persons lacking experience or awareness, unless using it with the help of a person responsible for their safety, or under supervision and with prior instruction in its use.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal fi Iters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER EN

• ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
- Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way,

the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

— We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective fi lm from the cartridge fi Iter before use.

1 / NOTICES TO THE USEREN

• DESCRIPTION OF YOUR APPLIANCE

2 / INSTALLING YOUR APPLIANCE EN

— The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.

— Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.

— If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.

- If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.

— Under no circumstances should the exhaust duct empty into the attic.

— Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

• USING THE EVACUATION MODE

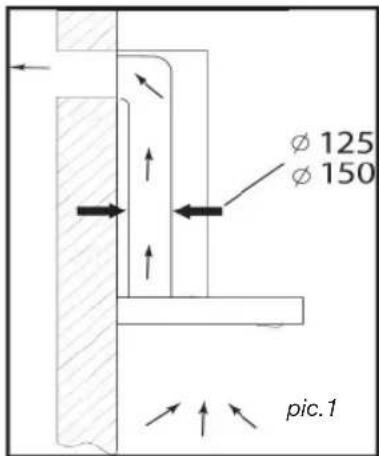

If you possess an outlet to the exterior (pic. 1)

Your hood can be connected to this outlet using a fl ue (minimum diameter ∅ mm that is enamelled, in aluminium, fl exible or made of infl ammable material). If your fl ue is less than 125 mm in diameter, you must use the recycling mode.

• USING THE RECYCLING MODE

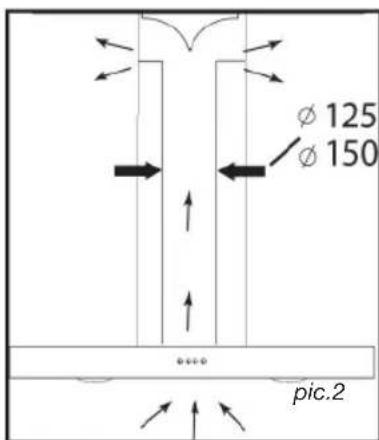

If you do not possess an outlet to the exterior (pic. 2)

All of our appliances can be used in recycling mode.

In this case, you should add an active carbon fi Iter which will keep in odours. (See Chapter 4: Changing the carbon fi Iter.)

2 / INSTALLING YOUR APPLIANCEEN

• ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The electrical connections are made before the appliance is installed in its housing.

Ensure that:

— the electrical installation has sufficient voltage,
— the electrical wires are in good condition,
— the diameter of the wires complies with the installation requirements.

Warning

This appliance is delivered with a H 05 VVF power cord that has three- 0.75mm² conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

2 / INSTALLING YOUR APPLIANCE EN

• ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm at least. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected.

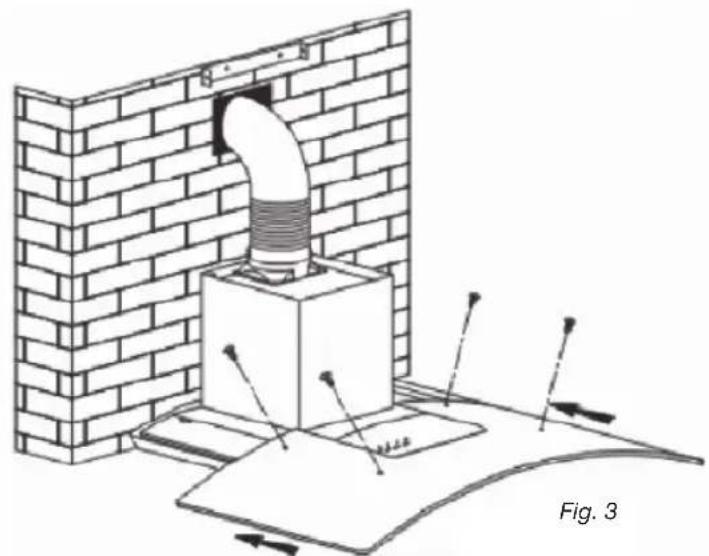

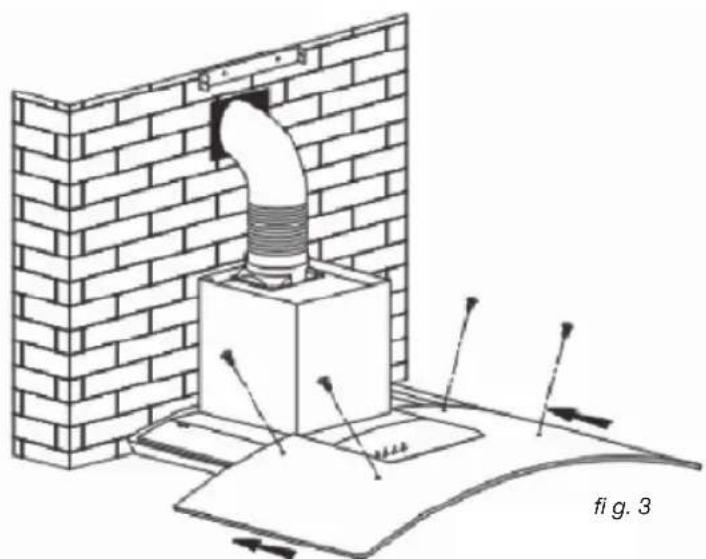

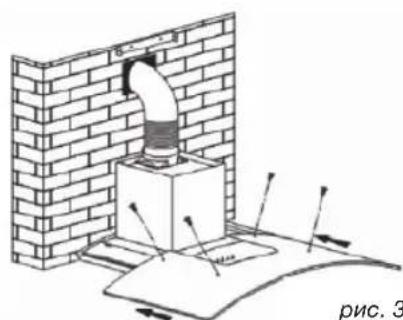

Fixing to the wall :

— Mark a vertical line on the wall centred on the cooktop.

— Mark on the wall the three holes that have to be drilled, using the supplied hood suspension hook and observing the recommended distance.

— Drill the three 8 mm diameter holes in a suitable position and insert the plugs (part A Pic. 1).

— Before fi xing the hood, mount the non-return valve on the motor outlet -Secure the hood's fi xing support, ensuring that it is perfectly level. (part A Pic. 1)

— Fix the extendable evacuation sleeve (not included) to the motor outlet without impeding the movement of the non-return valve.

— Fit and secure the body of the hood on this support with the screws provided for this purpose.

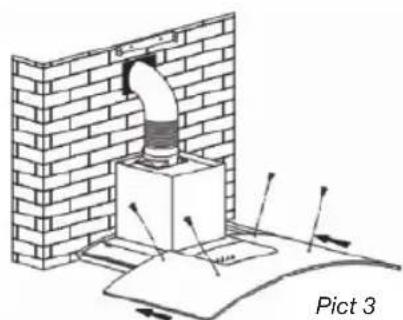

Pict 1

Gaine extensible (non fourni)

Pict 2

2 / INSTALLING YOUR APPLIANCEEN

• ASSEMBLING THE VENTILATION SHAFT

• Outdoor evacuation

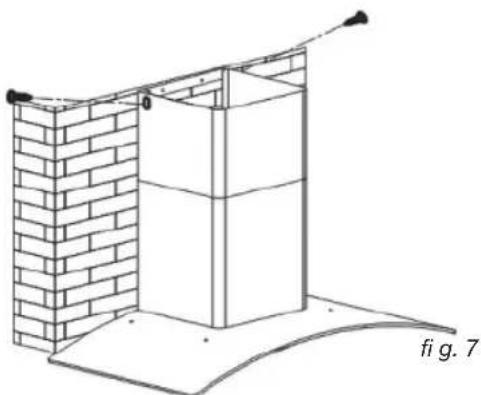

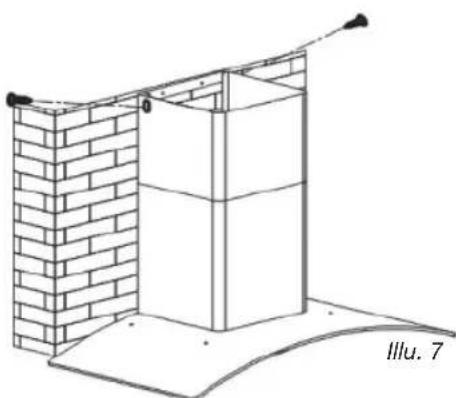

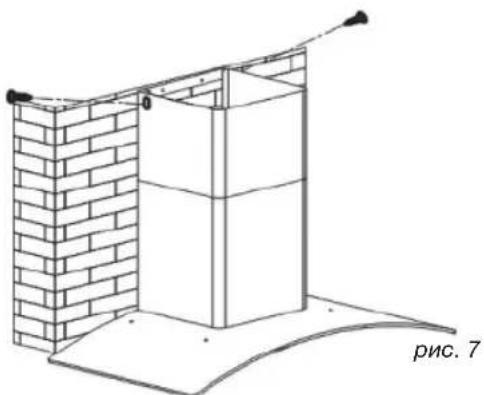

— Calculate the fi nal height for fixing the duct support U-bracket (part B Pic. 1)

— Mark the two holes accordingly

— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed on the same axis as the hood (part B Pic. 1)

— Fix the fl at bracket behind the lower duct. (part C Pic. 4).

— Place the glass on the guides. Slide the glass in and secure it with the 4 screws with rubber seal (glass safety). Tighten the screws slightly.

— Fix the two ducts to the hood.

— Connect the sleeve to the air outlet to the outside.

— Make the electrical connection to the hood using the mains supply cable.

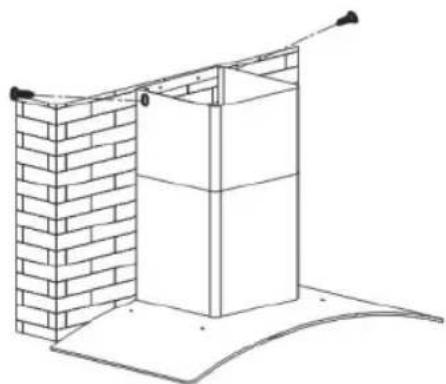

— Lift the upper duct up to the ceiling and fix it to the bracket using the screws.

2 / INSTALLING YOUR APPLIANCE EN

- Recycling

— Calculate the fi nal height for fixing the duct support U-bracket (part B Pic. 1).
— Mark the two holes.
— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed in the same axis as the hood (part B Pic. 1).
— Fix the fl at bracket behind the lower duct part C Pic. 4).
— Place the glass on the guides. Slide the glass in and secure it with the 4 screws.
— Fit the sleeve adapter on the deflector (Pic. 8).
— Connect the extendable sleeve (not included) to the defl ector (Pic. 8).
— Fit the two parts of the duct on to the hood.
— Fit the defl ector (Pic. 8) into the upper duct by the ventilation inlets (Pic. 6)
— Make the electrical connection to the hood using the mains supply cable.
— Lift the upper duct up to the ceiling and fi x it to the bracket using the two screws (Pic. 7).

Pict 8

Pict 6

Pict 4

Tip

For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter fl ue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the fl ue. In the event that the hood will be operated using outdoor evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

Warning

Do not use tools to remove the safety fi lm of hood.

3 / USING YOUR APPLIANCEEN

• TO USE YOUR COOKER HOOD

How to use the control panel.

a. Press the button "Low", the inner indicator light of switch starts shining, the motor is running at low speed. Press the button again, the motor stop.
b. Press the button "Mid", the inner indicator light of switch starts shining, the motor is running at medium speed. Press the button again, the motor stop.
c. Press the button "High", the inner indicator light of switch starts shining, the motor is running at high speed. Press the button again, the motor stop.
d. Press the button "Light", both lights start shining. Press the button again, the lights are switched off then.

Low
Mid
High Light

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and fi Iters may cause fi res. Please carefully adhere to the maintenance recommendations.

- CLEANING THE FILTER CARTRIDGES

They must be cleaned after approximately 30 hours of use or at least once a month. These fi Iters can be cleaned in a vertical position in your dishwasher.

Use a brush, hot water and mild detergent. Rinse and dry them thoroughly before returning them to the hood.

- Dismantling the fi Iter cartridge

— Turn the built-in fi lter cartridge handle.
— Tilt the fi Iter cartridge downward.

- CHANGING THE CARBON FILTER (optional)

Replace it after approximately 120 hours of use.

— Remove the fi Iter cartridge.
— Turn the carbon filter to remove it.
— Do the operation in the reverse order to put a new filter back.
— Put the fi Iter cartridges back.

4 / CARING FOR AND CLEANING YOUR APPLIANCEEN

• CLEANING THE OUTER SURFACES

To clean the outside of your hood, use soapy water, but never use abrasive creams, corrosive detergents, scrubbing sponges or brushes. Wipe down with a soft, damp cloth.

• CHANGING THE LIGHT BULB

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

Model with halogen bulb

— Remove the lighting port
— Change the halogen bulb.
— Replace the bulb by repeating these steps in reverse order.

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE WHAT	TO DO	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This fi Iter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood.In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These fi Iters can be cleaned in a vertical position in your dishwasher.(Do not allow them to touch dirty dishes or silverware.)
Activated carbon fi Iter	This fi Iter traps odours and must be changed at least once a year depending on your level of use.You should order these fi Iters from your dealer (quoting the reference shown on the identifi cation plate located inside the hood) and note the date the fi Iter was changed.

To preserve your appliance, we recommend that you use Clearit cleaning products.

Professional expertise

serving individuals

Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens.

They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

5 / TROUBLESHOOTINGEN

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is suffi cient for the quantity of smoke and vapours to be cleared.• The kitchen is suffi ciently ventilated to allow for fresh air intake.• The carbon fi Iter is not worn (hood operating in recycling mode).
The hood stopped working.	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

6 / AFTER-SALES SERVICE EN

Any maintenance on your equipment should be undertaken by :

— either your dealer,
— or another qualified mechanic who is an authorized agent for the brand appliances.
When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

FR 34

Fig. 2

2 / INSTALLATION DE VOTRE APPAREILFR

• MONTAGE DE LA CHEMINEE

2 / INSTALLATION DE VOTRE APPAREIL FR

- Recyclage

Fig. 8

Fig. 6

Fig. 4

Conseil

Low
Mid
High Light

4 / ENTRETIEN ET NETTOYAGE DE VÔTRE APPAREIL FR

Attention

4 / ENTRETIEN ET NETTOYAGE DE VÔTRE APPAREIL FR

Attention

Fig. 2

Fig. 8

Fig. 6

Fig. 4

Conselho

Baixa
Média

LuzAlta

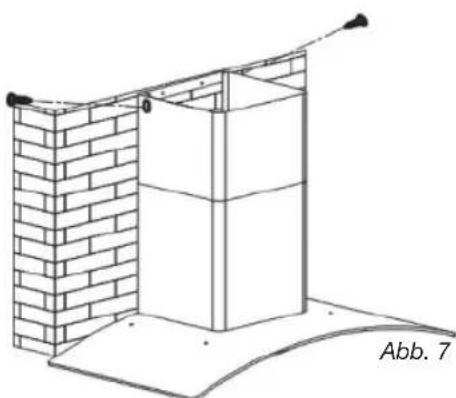

Abb. 2

2 / ANSCHLIESSEN DES GERÄTSDE

• MONTAGE DER ROHRABDECKUNG

2 / ANSCHLIESSEN DES GERÄTS DE

• Umluft

Abb. 8

Abb. 6

Abb. 4

Hinweis

Niedrig

LichtHoch

foto 2

2 / INSTALLAZIONE DEL DISPOSITIVOIT

• MONTAGGIO DELLA CANNA FUMARIA

2 / INSTALLAZIONE DEL DISPOSITIVO IT

- Riciclaggio

foto 8

foto 6

foto 4

Nota

Bassa Media
LuceAlta

4 / MANUTENZIONE E PULIZIA DEL DISPOSITIVO IT

Attenzione

4 / MANUTENZIONE E PULIZIA DEL DISPOSITIVO IT

Attenzione

1. fotó

HU 2 / A KÉSZÜLÉK ÜZEMBE HELYEZÉSE

2 / A KÉSZÜLÉK ÜZEMBE HELYEZÉSE

HU

• Keringetés

1. fotó

1. fotó

1. fotó

Tudomásul

alacsony
átlag

fénynagy

Obr. 2

SK 2 / INŠTALÁCIA PRÍSTROJA

• MONTÁŽ KOMÍNA

• Vypúštanie von

2 / INSTALÁCIA PRÍSTROJA

SK

- Recyklácia

Obr. 8

Obr. 6

Obr. 4

Rada

• VÝMENA UHLÍKOVÉHO FILTRA (možnost)

4 / ÚDRŽBA A ČISTENIE PRÍSTROJA

SK

Pozor

2 / INSTALACE PŘÍSTROJE

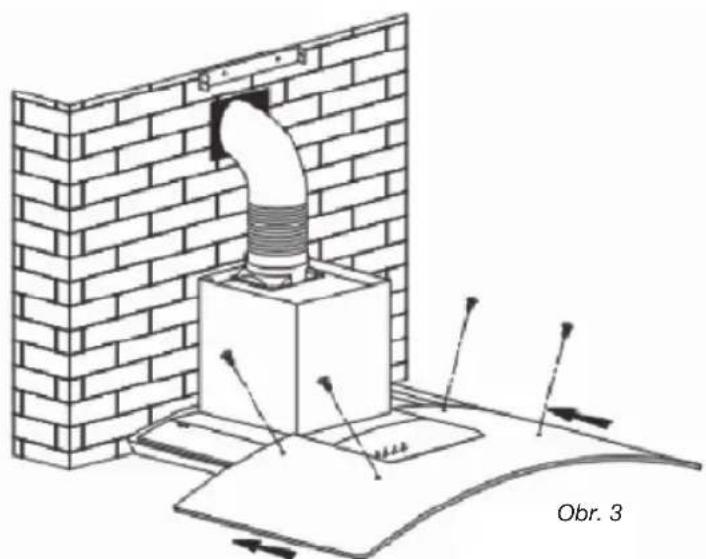

Obr. 2

CZ 2 / INSTALACE PRÍSTROJE

• MONTÁŽ KOMÍNA

• Vypouštění ven

2 / INSTALACE PRÍSTROJE

CZ

- Recyklování

Obr. 8

Obr. 6

Obr. 4

Rada

4 / ÚDRŽBA A ČIŠTĚNÍ PŘÍSTROJE

CZ

Pozor

• UŻYTKOWANIE W WERSJI WYCIĄGU

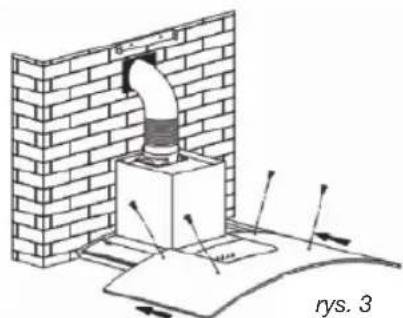

rys. 2

2 / INSTALACJA URZĄDZENIA

PL

- Tryb pochłaniacza

rys. 8

nys. 6

rys. 4

Rada

Niska
Średnia

OświetlenieWysoka

4 / KONSERWACJA I CZYSZCZENIE URZĄDZENIA

PL

Uwaga

4 / KONSERWACJA I CZYSZCZENIE URZĄDZENIA

PL

Uwaga

2 / INSTALLATION AF APPARATET

• BRUG MED RECIRKULERINGSVERSIONEN

2 / INSTALLATION AF APPARATET DK

• ELEKTRISKE TILSLUTNINGER

Illu. 2

2 / INSTALLATION AF APPARATET DK

• SAMLING AF VENTILATIONSSKAKTEN

2 / INSTALLATION AF APPARATET DK

- Recirkulering

Illu. 8

Illu. 6

Illu. 4

Råd

LysHøjMiddelLav

4 / PLEJE OG RENG∅RING AF APPARATET DK

Advarsel

- Aftagning af fi Iterelement

4 / PLEJE OG RENG∅RING AF APPARATET DK

Advarsel

2 / INSTALLATIE VAN HET APPARAATNL

afbeelding 2

2 / INSTALLATIE VAN HET APPARAATNL

• MONTAGE VAN HET AFVOERKANAAL

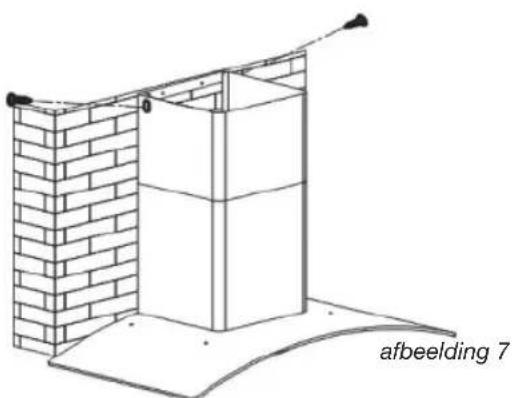

afbeelding 8

afbeelding 6

LichtHoogMidLaag

4 / ONDERHOUD EN REINIGING VAN HET APPARAAT NL

Attentie

4 / ONDERHOUD EN REINIGING VAN HET APPARAAT NL

Attentie

fig. 2

2 / INSTALLATION AV APPARATENSV

• MONTERING AV SKORSTENEN

- Utvändigt utlopp

2 / INSTALLATION AV APPARATEN SV

- Återcirkulation

fig. 8

fig. 6

fig. 4

Rekommendation

LjusHögMedelLåg

4 / UNDERHÅLL OCH RENGÖRING AV APPARATEN SV

OBS

• UTBYTE AV KOLFILTRET (alternativt)

4 / UNDERHÅLL OCH RENGÖRING AV APPARATEN SV

OBS

рис. 2

рис. 8

рис. 6

рис. 4

Совет

ПодсвВысСреднНизк
