AD996XC - Range hood BRANDT - Free user manual and instructions

Brand	Brandt
Model	AD996XC
Product Type	Range hood (built-in / wall-mounted)
Width	90 cm
Depth	50 cm
Height	Adjustable, min 65 cm to max 110 cm
Net Weight	Approx. 15 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Power	250 W
Motor Type	Single motor, 2 speeds + intensive mode
Max Airflow	650 m³/h
Noise Level (max speed)	68 dB(A)
Lighting	2 x 40 W halogen (or LED equivalent)
Controls	Electronic push buttons
Filter Type	Aluminum grease filter (washable)
Charcoal Filter (optional)	Yes, for recirculation mode
Duct Diameter	150 mm (recommended)
Installation	Wall-mounted or under cabinet
Energy Class	A+ (estimated)
Warranty	2 years

Frequently Asked Questions - AD996XC BRANDT

How to install the Brandt AD996XC range hood?

Installation must be done by a qualified professional. Ensure the hood is securely mounted to the wall or cabinet at the recommended height (65-75 cm above gas hob, 50-65 cm above electric hob). Connect the ductwork (150 mm diameter) for extraction mode, or install charcoal filters for recirculation mode. Refer to the user manual for detailed steps.

How to clean the grease filter?

Remove the aluminum grease filter and wash it with warm water and mild detergent. Alternatively, you can clean it in the dishwasher at low temperature. Ensure it is completely dry before reinstalling. Clean frequently (every 2 months or more) to maintain performance.

How to replace the charcoal filter?

Charcoal filters are needed for recirculation mode. Open the front panel, remove the old filters, and install the new ones (usually 2 filters). They should be replaced every 3-6 months depending on usage. Contact Brandt service for genuine parts.

Why is my range hood noisy?

Noise can come from a clogged filter, loose duct connections, or improper installation. Clean the grease filter and check ductwork. If noise persists, it may be normal for higher speeds. The maximum noise level for this model is 68 dB(A).

Can I use this range hood without ducting?

Yes, you can use it in recirculation mode by installing charcoal filters. The hood will filter the air and return it to the kitchen. Note that efficiency is lower than extraction mode.

How to change the light bulb?

Disconnect the hood from power. Remove the light cover (usually clipped or screwed). Replace the halogen bulb (40W max) with a similar type. For LED versions, contact service. Do not touch the new bulb with bare hands.

What is the warranty period for the AD996XC?

Brandt offers a standard 2-year warranty for the AD996XC range hood. It covers manufacturing defects. For specific terms, refer to the warranty card or contact Brandt support.

How to reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the button or combination (usually the minus and lights button) for 3-5 seconds until the indicator turns off. Consult the manual for exact procedure.

What are the dimensions of the AD996XC?

The hood is 90 cm wide, 50 cm deep, and the height is adjustable from 65 cm to 110 cm. Net weight is approximately 15 kg. Ensure your cabinet or wall space can accommodate these dimensions.

Where can I find spare parts for the AD996XC?

Spare parts such as filters, bulbs, and motor can be purchased from Brandt authorized service centers or online parts retailers. Use the model number AD996XC to ensure compatibility.

USER MANUAL AD996XC BRANDT

Family cooking together in a kitchen, with adults and children preparing food (no visible text or symbols)

BUILT-IN CATALOGUE

本公司将不断提升各种鞋之规格，以上商品资料如设计或有更改，恕不另行通知。 In order to improve our products, the above mentioned specifications and designs are subject to change without prior notice.

Gilman since 1841

A young girl in a white chef's uniform and hat holding a tray of dough, smiling at the camera (no visible text or symbols)

Brandt understands that life can get complicated, so we've created products specifically designed to:

Make Life Simple

ORIGINE FRANCE® GRANTIE

BVCert.6011825

Brandt has been granted the "Origine France Garantie" label by the Pro France association for all products made in its French manufacturing plants. This label, certified by Bureau Veritas, assures consumers that the product in question was made in France.

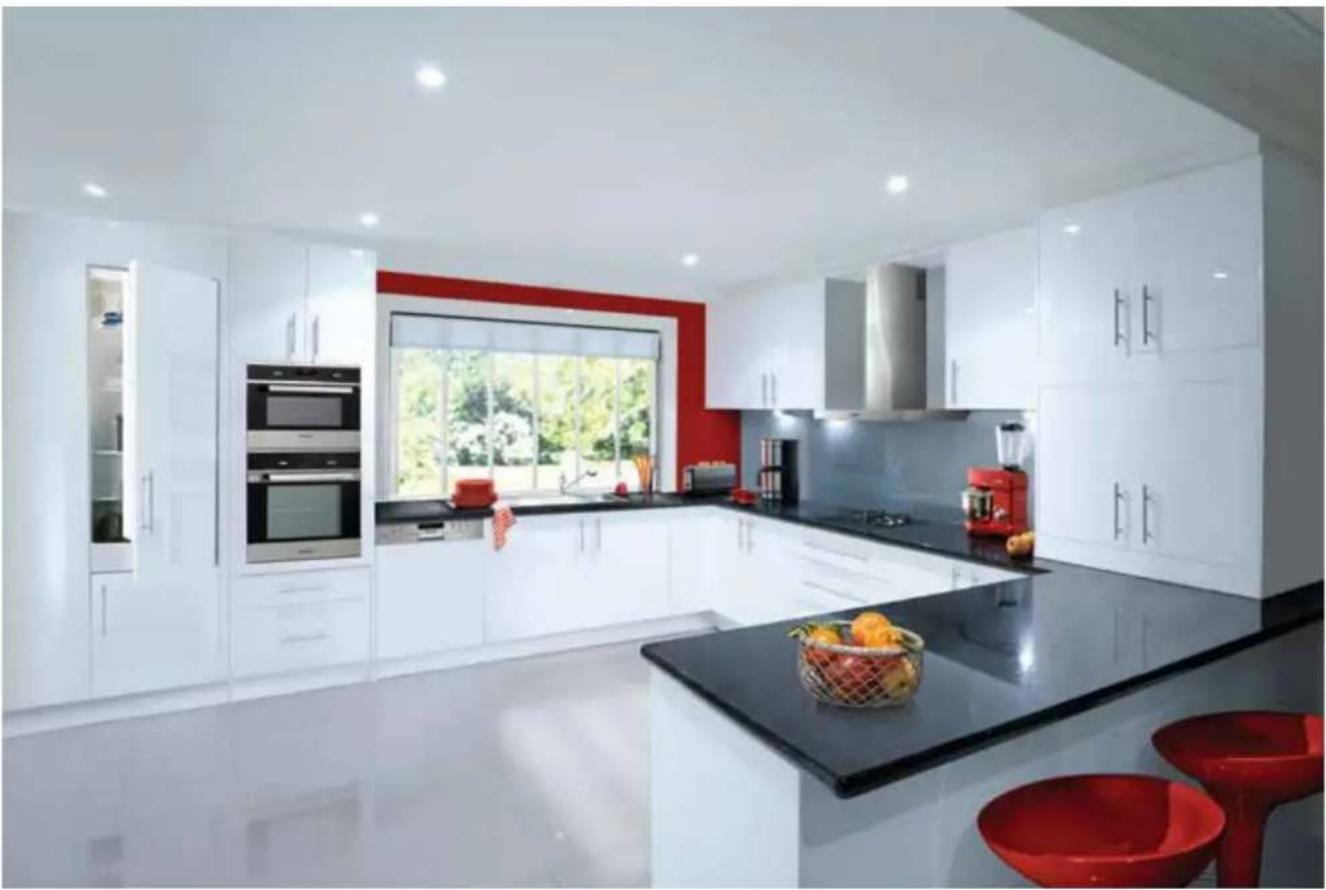

Modern white kitchen interior with glossy flooring, black countertop, and red stools (no visible text or symbols)

CONTENT

☐ OVENS 03
MICROWAVE OVENS 08
STEAM OVENS 12

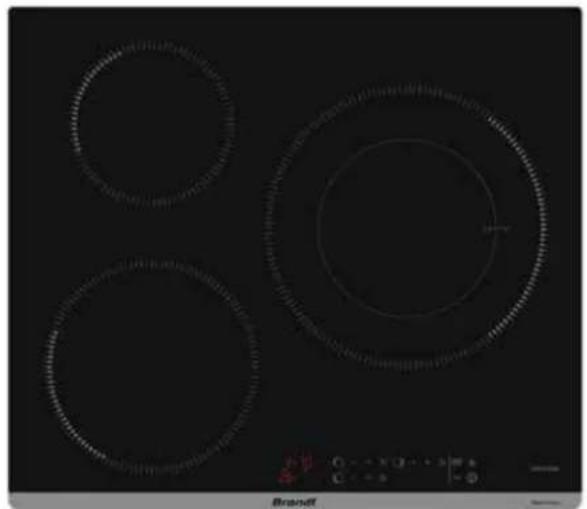

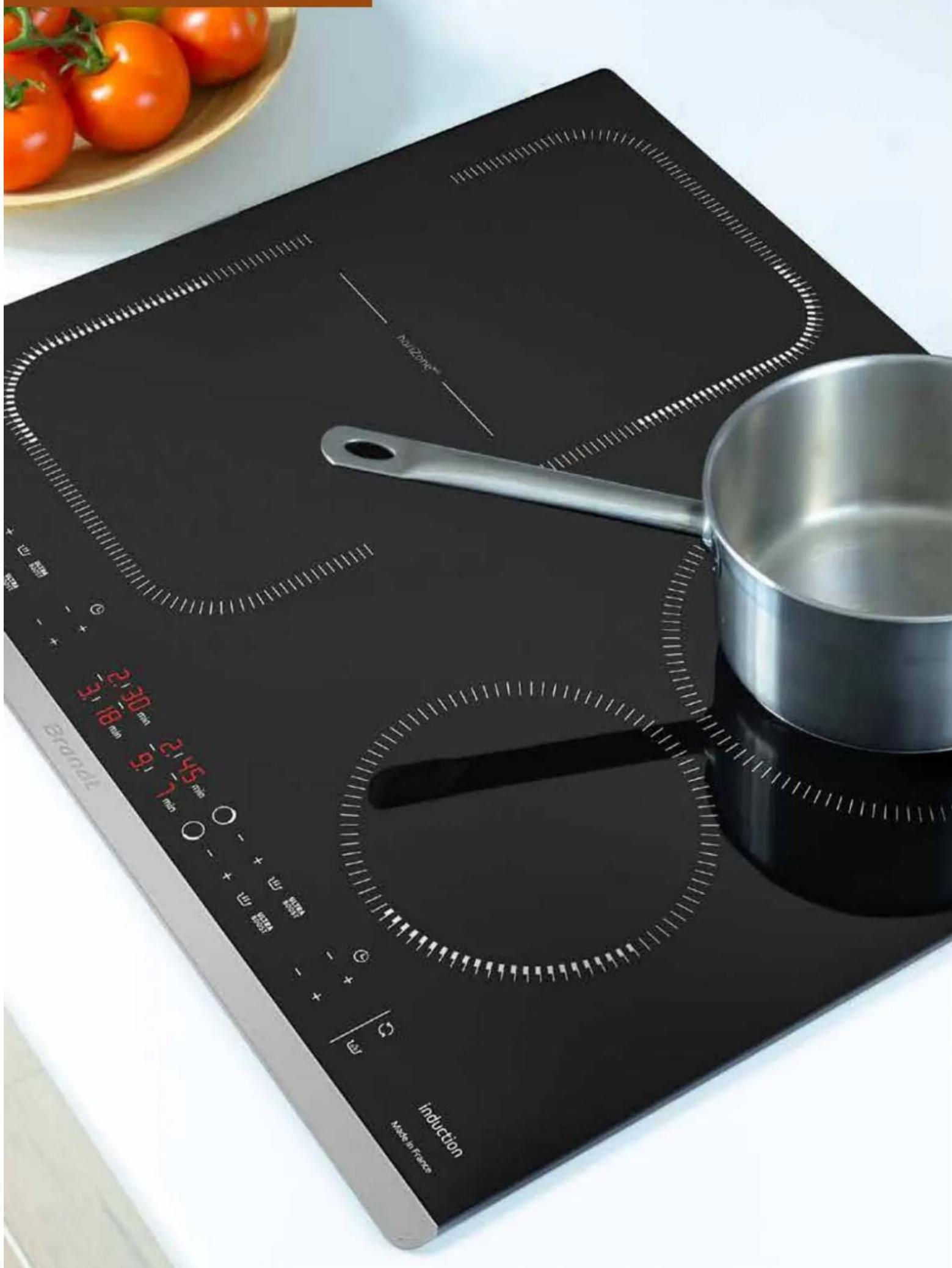

INDUCTION HOBS 14
HOODS 21

OVENS Brandt Brandt

Keep Warm

(

Easy Steam Assisted

PyroCirculating HeatAutocoTraditional

DESIGN, FUNCTIONALITY AND PERFORMANCE

UNITED AS ONE

This collection is marked by Brandt's passion for design, research and rigorous attention to detail.

Sleek and refined, the seamless melding of glass to metal and the clean, sophisticated lines thrill aesthetic sensibilities.

Exterior view of a modern kitchen oven with mounted dish (no visible text or symbols)

INTUITIVE INTERFACE

Cooking modes and programme feedback are displayed against a Full Colored TFT screen or white backlight panels selected via sensitive touch controls. Electronic programming ensures precise temperature control in every function.

Camera LCD screen displaying a photo of a roasted chicken with sound waves, no visible text or symbols on the image itself.

“OVENS RANKED A+, MADE IN FRANCE

All Brandt pyrolytic ovens are rated A+, demonstrating excellent insulation and exceptionally controlled management of heating temperatures which contributes to significant energy saving.

TASTE THE DIFFERENCE

Brandt reinvents cooking with our extensively researched heat diffusion technology, Quattro Pulse and patented grill! Injection of heated air into the cavity is accelerated for uniform temperature within the cavity to ensure that cooking quality is perfectly consistent on all levels for excellent results.

OMEGA GRILL

Enjoy perfectly uniform cooking with the Brandt exclusive Omega Grill - precisely crafted to ensure your cooks and bakes turn out beautifully every time.

Grid of golden-brown rectangular pastries arranged in 3x3 pattern on a dark tray (no text or symbols)

With Omega Grill

Grid of nine square pastries on a dark baking tray (no text or symbols)

Without Omega Grill

Three-tiered baking tray with multiple round cookies, each wrapped in red ribbon handles (no text or symbols visible)

Pure electrical circuit lines without any symbols

CLEAN & SAFE

COOL DOOR

With 4 layers of glass panes, it ensures your oven door surface is always kept cool throughout cooking and pyrolysis cleaning.

Diagram of fluid flow through a vertical channel with directional arrows and color-coded flow indicators (no text or labels)

CLEAN 39'

Ultra fast and 50% more economical, this function uses residual heat from the previous cooking cycle to pyroclean the cavity in 39 minutes flat.

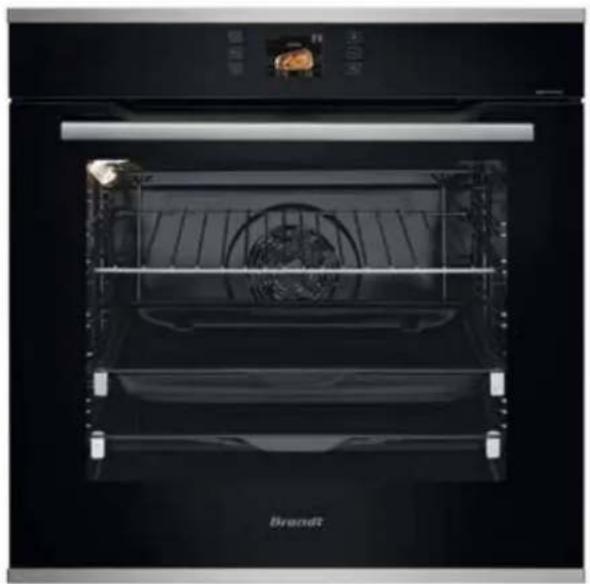

PYROLYSIS CLEANING

This is the simplest, most efficient and economical type of cleaning. At high temperatures, oven self cleans greasy build up after successive uses and restores the cavity to look as good as new.

With 3 different Pyro cleaning cycles to choose from, Brandt pyrolytic ovens give you the flexibility for your everyday cleaning needs.

Interior view of a double oven with a decorative stove and oven, no visible text or symbols on the appliance itself.

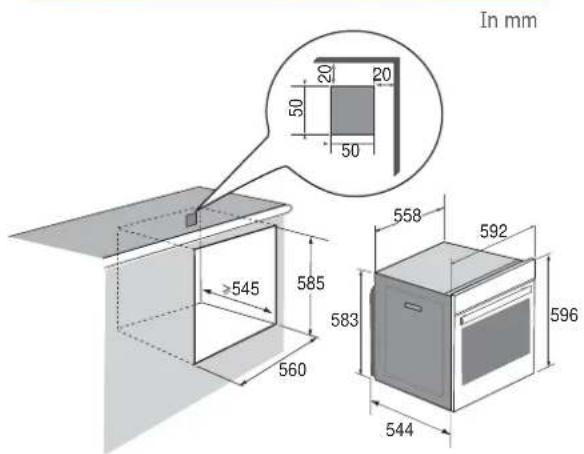

Installation Diagram BOP7568LX

In mm 50 20 20 50 545 585 583 560 558 592 596 544

BOP7568LX

60cm Multifunction+ Oven

73L with 6 Shelf Levels + Telescopic
Clean 39'
4 Cooking Modes - Expert, Recipes, Steam Assisted Recipes, Autocook
■ 3 x Pyrolytic Cleaning Programs
Autocook Program
Quattro Pulse Technology
Electronic Touch with Full Color
TFT LCD Display

RVCart 6011R25

Cooking Programs: 8(Expert), 9(Recipes), 10(Steam Assisted), 12(Autocook)
3 Quick & Easy Steam Assisted: 4(Fish), 4(Poultry), 2(White Meat)
■ Optional Functions: Smart Assist, Delay End, Demo Mode, Independent Timer
■ Safeties: Child Lock, Auto Stop, Cool Door, Door Lock During Pyrolysis
Product Dimensions (mm): H596 x W592 x D544
Built In Dimensions (mm): H585 x W560 x >D545

Autocook

Circulating Heat

Eco

Quick & Easy Steam Assister

Fan Bottom

Grill Fan

Clean 39'

White Meat

Recipes

Keep Warm

Pizza

Fish

Variable Grill

Pyro

[Non-Text]

Poultry

Traditional

Traditional Fan

AUTOCOOK

Enjoy the best of French Culinary expertise with Brandt's patented AutoCook*!

Choose your dish from one of the 12 proposed:

The oven automatically determines the temperature, ideal cooking mode and time for perfect cooking results, every time.

Simply select your dish on the control panel, insert your ingredient(s) into the oven and let your oven do the rest!

Full Colored TFT Screen

Your cooking programme is displayed on a large colored TFT screen, which provides complete ease of use on the dish selected.

*Available for selected models only.

Plate of roasted chicken with potatoes and garnish (no text or symbols visible)

Exterior view of a modern double oven with a decorative emblem on the inner pan (no visible text or symbols)

BOC7532LX

60cm Multifunction+ Oven
73L with 6 Shelf Levels
Catalytic Cleaning
Omega Grill
Quattro Pulse Technology Electronic + Knob Control
with LCD Display
Cooking Programs: 5(Expert), 8(Steam Assisted)

JVCarL 6011825

2 Quick & Easy Steam Assisted: 4(Fish), 4(Poultry)
Optional Functions: Smart Assist, Delay End, Demo Mode, Independent Timer
Safeties: Child Lock, Auto Stop
Product Dimensions (mm): H596 x W592 x D544
Built In Dimensions (mm): H585 x W560 x ≥D545

Clean

Variable Grill

Quick & Easy Steam Assisted

Circulating Heat

Grill Fan

Fish

Eco

Poultry

“CATALYSIS

Brandt self-cleaning catalytic ovens feature specialised catalytic cleaning program, to automatically degrease your oven after every usage! Grease produced during each cooking cycle is evenly spread over the face of the catalytic enamel, immediately oxidising to disappear over time. Perfect for effortless maintenance of your oven!

”

Installation Diagram BOC7532LX

In mm 50 20 20 50 585 583 560 558 592 596 544

Exterior view of a modern double oven with an open lid and control panel (no visible text or symbols)

HYDROLYSE CLEANING

EFFICIENT CLEANING IN FOUR EASY STEPS

01

STEP ONE

Either spray or fill baking tray with 300ml of water.

02

STEP TWO

Activate Hydrolyse Clean Function.

03

STEP THREE

Function is activated for 35 minutes.

04

STEP FOUR

Wipe off oven grease and fat with soft sponge.

BOH7532LX

60cm Multifunction+ Oven
73L with 6 Shelf Levels
Hydrolyse Cleaning
Omega Grill
Quattro Pulse Technology Electronic + Knob Control
with LCD Display
■ Cooking Programs: 5(Expert), 8(Steam Assisted)

HVCert. 6011825

2 Quick & Easy Steam Assisted: 4(Fish), 4(Poultry)
■ Optional Functions: Smart Assist, Delay End, Demo Mode, Independent Timer
Safeties: Child Lock, Auto Stop
Product Dimensions (mm): H596 x W592 x D544
Built In Dimensions (mm): H585 x W560 x >D545

Circulating Heat

Variable Grill

Quick & Easy Steam Assisted

Eco Grill Fan

广力云智慧零售收银系统

Fish

Hydrolyse Clean

Traditional

Poultry

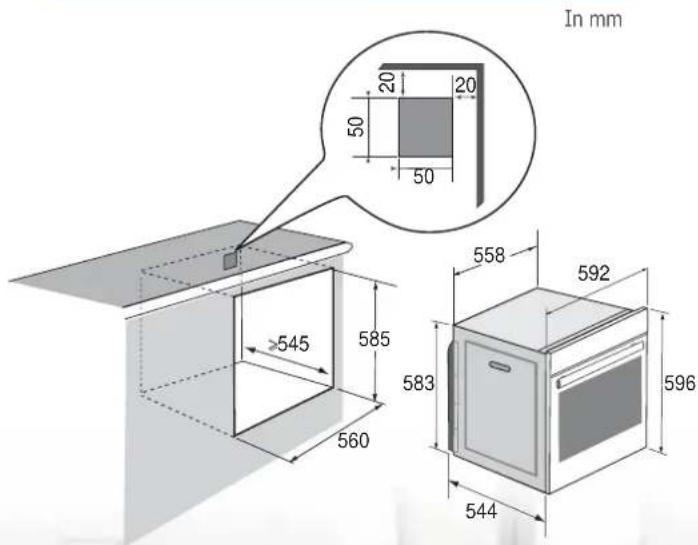

Installation Diagram BOH7532LX

In mm 50 20 20 50 50 545 585 560 558 592 583 596 544

Family of four enjoying food together in a modern kitchen setting (no visible text or symbols)

MICROWAVES

Watercolor illustration of green plant leaves against a hazy sky with soft brushstrokes (no text or symbols)

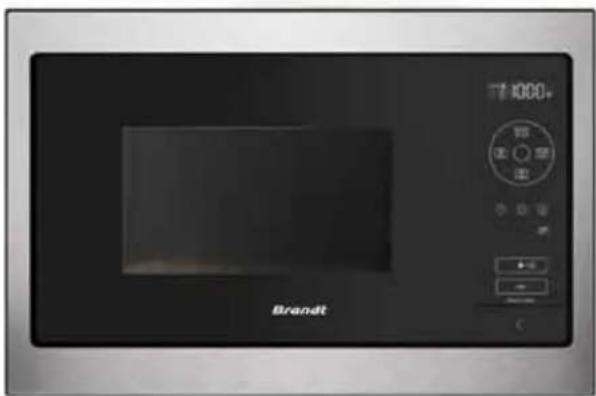

Front view of a brandt microwave oven with control panel and display (no readable text or symbols beyond branding)

Interior kitchen appliance with white fixtures and a yellow robotic hand holding a circular object, set against a diamond-patterned tiled wall (no text or symbols visible)

Two white metal wire baskets placed on wooden slabs against a wooden wall (no text or symbols visible)

BEAUTY AND UTILITY IN ONE

COMFORT

With a clean backlit display, Brandt microwaves provide clear feedback and allow for precise tuning of programmes.

MEMO ACTIVE FUNCTION

If the same function has been used during the last three cooking sessions, it will be memorized and automatically suggested at the next cooking session.

DESIGN

The Brandt microwave collection has a perfect harmony of style and substance with a full glass front, a sleek handle and clean lines to level up your kitchen's style quotient.

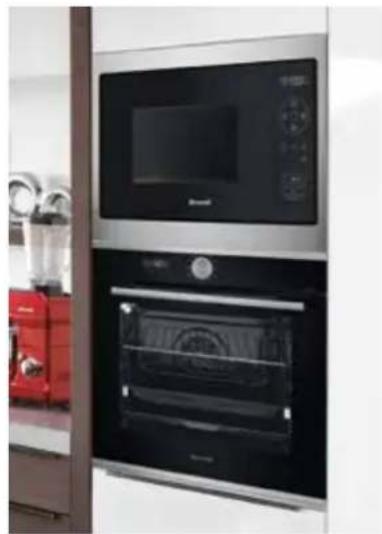

Modern kitchen appliance with two large ovens and a microwave oven, no visible text or symbols

EXEMPLARY COOKING QUALITY

CONVECTION

The rotating heat of the combi-microwave ensures you professional results every time. What's more, cooking time can even be reduced by up to 40%!

AUTO PROGRAMME: PERFECT RESULTS EVERY TIME!

The Auto Programme function allows you to cook with ease! Simply select the food type and indicate its weight: the appliance automatically recommends the appropriate cooking mode and time. The memory function also allows you to save the settings of up to 3 functions for easy cooking!

Close-up of a transparent plastic surface with red arrow indicators pointing to internal structures (no text or symbols)

QUATTRO® WAVE TECHNOLOGY

The Quattro® Wave Technology ensures optimal diffusion of the waves inside the cavity with 4 waves and a distributor. Your dishes will be thawed, cooked or reheated evenly.

EASY INSTALLATION

For easy installation, Brandt built-in microwaves have standard cut-out sizes, making it easy for you to switch it up whenever you want. Other models are supplied with mounting kits.

Close-up of a Microsoft microwave oven with control panel and display (no visible text or symbols)

Close-up of a black microwave oven with control panel and display screen (no visible text or symbols)

45cm Combi Microwave Oven
40L with 3 Shelf Levels
10 Microwave Levels
■ 3 Cooking Modes - Microwave, Combination, Traditional
■ Automatic Cooking Guide Program
Quattro® Wave Technology
Electronic Touch with LCD Display
- Keep Warm Function
■ Cooking Programs: 10(Microwave), 3(Combination), 3(Traditional)

■ Automatic Cooking Guide: 15 Dishes
Optional Functions: Smart Assist, Active Memo', MEMO, Delay End
Safeties: Keypad Lock, Turntable Stop, Auto Stop
Product Dimensions (mm): H456 x W592 x D547
Built In Dimensions (mm): H450 x W560 x >D550

1000W / 100W

Circulating Heat

Automatic Defrosting

Full Power Grill

Cooking Guide

Grill

Defrosting

Medium Power Grill

Pulsed Grill

Microwave + Fan

Memo 1/2/3 (Memory Function)

COOKING GUIDE: THE WINNING COMBINATION

WITH A BEVY OF POSITIONS, YOUR BRANDT MICROWAVE CAN MANAGE ALL TYPES OF COOKING

Equipped with cooking guide programmes that automatically calculate the duration and cooking mode of the dish you want to cook, simply select the type of food and its weight, and let your microwave oven do the rest!

15 PRE-PROGRAMMED DISHES:

You must choose a pre-programmed food from the following list:

P01: Ready-to-cook frozen food

P02: Ready-to-cook chilled food (combined function)

P03: Frozen pizza (combined function)

P04: Frozen pizza (traditional cooking)

P05: Fresh pizza

P06: Quiche

P07: Savoury tart

P08: Poultry

P09: Beef

P10: Pork

P11: Ready-to-cook chilled food (microwave)

P12: Fish

P13: Fresh fibrous vegetables

P14: Fresh vegetables

P15: Frozen vegetables

Brandt 1000+

900W / 350W

Memo 1/2/3 (Memory Function)

Defrosting Automatic Cooking

“STAINLESS STEEL CAVITY

Brandt microwaves feature a stainless steel cavity to ensure complete food hygiene. The material's light reflecting properties also allow better visibility of your dishes whilst cooking!

Close-up of a bowl of soup with a green garnish, placed on a glass stove (no visible text or symbols)

BMS7120X

38cm Solo Microwave
26L
5 Microwave Levels
■ Automatic Cooking Guide Program
Quattro® Wave Technology
Electronic Touch with LCD Display
- Keep Warm Function
■ Automatic Cooking Guide: 2(Cooking), 4(Defrosting)

JVCarL 6011825

■ Optional Functions: Smart Assist, Quick Start
■ Safeties: Keypad Lock, Turntable Stop, Auto Stop
Product Dimensions (mm): H390 x W592 x D474
Built In Dimensions (mm): H380 x W560 x >D550

Also available in BLACK / BMS7120B

Black microwave oven with control panel and display screen (no visible text or symbols)

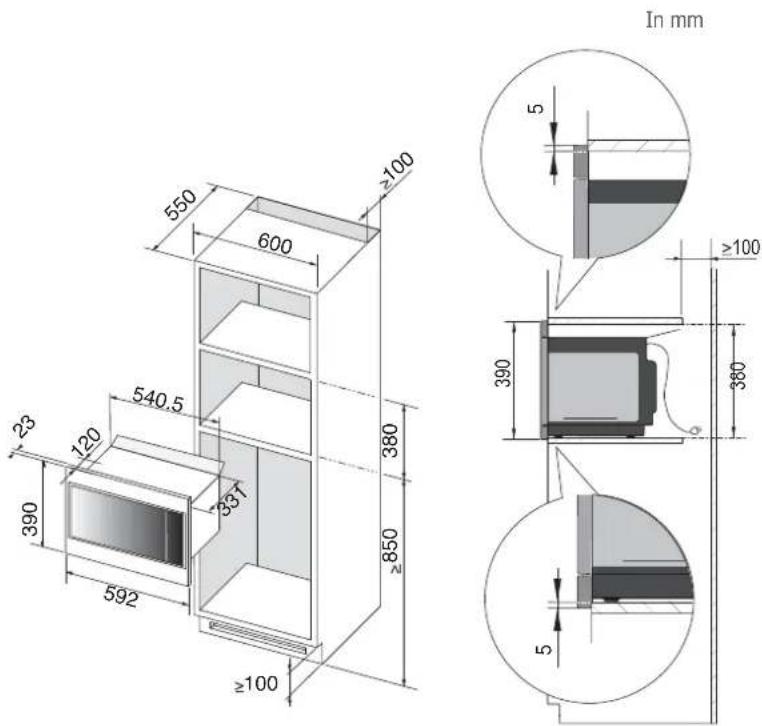

Installation Diagram BMS7120X/B

In mm 550 ≥100 600 540.5 380 390 331 ≥850 23 120 390 592 ≥100 380 390

STEAM OVEN

Front view of a Brandt oven with digital display and control panel (no visible text or symbols on main body)

Interior view of a modern kitchen or cabin with dark gray panels and a wooden stool on the right (no visible text or symbols)

Front view of a black oven with digital display and brand mark (no visible text or symbols on main subject)

BKV7132LX

45cm Steam Oven
29L with 2 Shelf Levels
1L Removable Water Tank
■ Automatic Steam Programs
■ Sterilization Program
Electronic + Knob Control with LCD Display
Stainless Steel Cavity
11 Cooking Programs
10 Temperature Settings: 55 - 100°C

BV Cost. 6011825

Optional Functions: Smart Assist, Delay End, Demo Mode, Independent Timer
Safeties: Child Lock, Auto Steam Evacuation, Auto Stop, No Water Indicator
Product Dimensions (mm): H456 x W592 x D547
Built In Dimensions (mm): H450 x W560 x >D550

Interior view of a modern kitchen appliance with a white vent and door panel (no visible text or symbols)

WATER TANK

It is so easy to install your Brandt Steam Oven! With the removable water tank, no water inlet is required! Just fill up the water tank before use.

Installation Diagram BKV7132LX

≥150 450 360 560 447 592 547 20 20 20 50 550

In mm

<70° 21.5>26 >850 <70° >550

Close-up of a metal pot containing a cooked dish with broccoli, carrots, and a white dumpling (no text or symbols visible)

STEAM OVEN

Besides steaming and defrosting, the Brandt Steam Oven is also a multi-purpose appliance that makes healthier cooking easy.

Gentle cooking without seasonings - The gentleness of steam cooking brings out natural flavours of your ingredients whilst preserving vitamins and minerals.

Reheating without compromising texture - Heating up food is quick and easy with the Brandt Steam Oven! Steam heats up your dishes without loss of moisture, rehydrating them for a flavourful meal.

Keeping warm - Your steam oven keeps your dishes warm for up to an hour after the end of the programmed timing for you to enjoy your dishes on your own time.

Defrosting without cooking - Keep your ingredients in perfect condition when your defrost with your Brandt Steam Oven. Precise and gentle steam temperature control ensures that your ingredients are defrosted without kicking off the cooking process.

Blanching ease - Preserve the texture and integrity of your ingredients when using the precise temperature control of your Brandt Steam Oven to blanch and prepare them.

INDUCTION HOBS

Modern induction cooktop with a metal bowl and a digital timer, placed on a kitchen appliance (no text or symbols visible on the main subject)

COMPLETE EXPERTISE

INDUCTION THE BEST OF COOKING

Brandt remains at the forefront of induction technology, having led the shift to induction cooking in the late 1980s. Today, Induction Hobs account for more than 60% of cooking appliance sales!

Close-up of a cracked egg being fried in a metal pan (no text or symbols visible)

A NEW ERA OF INDUCTION TECHNOLOGY

Sleek and trendy, Brandt Induction hobs have a perfect harmony of style and function with unrivalled performance and high heating capacities offered in each piece to meet all your cooking needs.

UNION OF FUNCTIONALITY AND COMFORT

PRECISE AND EFFICIENT COOKING

All induction hobs feature electronic controls for simplified usage. Touch sensitive keys and precise heating levels allow you to create perfect dishes, every time.

2,30- 2,45- 0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2,18- 9,1- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0- 0

Close-up of a black ceramic bowl containing a salad with shrimp and green vegetables (no text or symbols visible)

COOKING AIDES\*

The UltraBoost function brings you straight to maximum power. Brandt induction hobs allow you to programme your desired cooking duration and will automatically switch off induction hob at the end of the elapsed time. The Recall function allows you to pull up all the settings made (be it power level or timer) for your easy reference!

*Functions vary from models.

UltraBoost

Recall Boil

Timer

IMPECCABLE SAFETY

BRANDT'S 10 SAFETY MEASURES

All of Brandt's induction hobs are held to uncompromising safety standards to ensure the best cooking experience for you and your household.

10 SAFETY MEASURES:

■ Residual Heat Indicator to alert you when zones are still hot (after intensive use).
■ Small Object Detection to ensure small objects less than 10cm in diameter such as cutlery and cooking utensils are not heated.
Anti Overflow feature that switches the hob off when overflow spills onto control panel or when damp towel is placed over the buttons.
■ Auto-stop System which will automatically shut off the hob after if left on for overly long periods (depending on power level).
■ Key Lock Control that can be switched on when the hob is shut off or during cooking.
■ Automatic Saucepan Detection that ensures the cooking zone only operates when in contact with induction compatible cookware.
Temperature Limiter: This patented Brandt exclusive limits the temperature of the cooking zone to 300°C to prevent the risk of oil ignition.
■ Low Voltage, Connection Error and Over Tension Detection

80cm Width
4 Zones
Electronic Touch Sensitive Controls
Total Power: 7.4kW
Current: 32A
■ Boil and Recall Function
Quick Access
HoriZone Technology
9 Power Levels + UltraBoost
Quick Access
10 Safety Features
Vitroceramic Glass Top

JVCarL 6011825

40cm x 23cm - 3700W / 28cm - 3700W / 16cm - 2400W
99 Minutes Timer
Child Lock
Product Dimensions (mm): H60 x W770 x D510
Built In Dimensions (mm): W750 x D490

horizone ^tech

WELCOME TO THE INFINITE

Six overlapping circular discs arranged in a hexagonal pattern (no text or symbols visible)

Brandt showcases its expertise in induction cooking technology with the launch of horiZonetech technology. This zoneless cooking concept empowers you to push culinary creativity to the limits, heightening your cooking experience.

horizonetech boasts a true zoneless induction cooking surface, being able to accommodate all shapes and sizes of cookware - from rectangular pans to oval dishes.

1 FREE, 2 CLASSIC

An ingenious combination of horiZone with a classic cooking surface allows you to express your culinary creativity to the fullest.

LESS TIME HEATING WITH ULTRABOOST

Brandt

THE PERFECT TECHNOLOGY WHEN YOU DON'T HAVE A MINUTE TO WASTE

Brandt innovates and develops UltraBoost function to allow the induction hob to rise up to 35% faster than the classic Boost function.

Fast and powerful, this function significantly improves the boiling time by enabling you to boil 2 litres of water in 4 minutes and 30 seconds, compared to 6-7 minutes using Boost function.

MULTIPLE CONFIGURATIONS FOR EVERY NEED

Flexible and precise with its adjustable direct access and numerous power levels, horiZone also boasts high heating capacity, with power reaching up to 4000W.

Top-down view of three cooking pots with food items, no visible text or symbols

Top-down view of a cooked shrimp in a white pot (no text or symbols visible)

1 large zone for:
Several small pans at the same heat level

1 large dish

Top-down view of a cooking pan with green vegetables and a lid, placed on a dark surface (no text or symbols visible)

Top-down view of a metal pot containing a green vegetable and an orange flower, placed on a dark surface (no text or symbols visible)

2 Independent Cooking Zones:
Cooking at the front, at the back or on the 2 simultaneously, at different powers.

ECONOMICAL COOKING PRECISION COOKING

Induction is quick and economical. It only takes 4 min 40' to bring 2 litres of water to a boil and induction only consumes 225W, as compared to 8min 20' and 390W for a gas burner*.

*2.8 kW induction cooking zone and a 3.5 kW gas burner.

With induction technology, the cooking hob generates heat exclusively on contact with cookware through a phenomenon of "induced" current produced in the bottom of the cookware, which instantaneously raises its temperature. This heat is then transferred to the food, which is simmered or seared depending on your settings.

Cookware Vitroceramic Inductor Cooking Induction current Magnetic field

Installation Diagram BPI184HUB

In mm 770 510 60 490 560

Electrical circuit diagram with two circular components and a digital display (no readable text or symbols)

Installation Diagram BPI164DUB

In mm 580 510 60 490 560

BPI164DUB

60cm Width
4 Zones
Electronic Touch Sensitive Controls
Total Power: 7.4kW
Current: 32A
Boil Function
9 Power Levels + UltraBoost
HoriZone Technology
Quick Access
10 Safety Features
Vitroceramic Glass Top

BVCert.6011825

37cm x 18cm - 4000W /
16cm - 2500W /
21cm - 3600W
99 Minutes Timer
Child Lock
Product Dimensions (mm):
H60 x W580 x D510
Built In Dimensions (mm): W560 x D490

“ EVERY SECOND COUNTS

Each zone carries its own timer with a countdown of up to 99 minutes.

Cooking stops automatically at the end of programmed duration!

DUOZONE TECHNOLOGY

OPTIMIZE FLEXIBILITY

With a surface of 37x18cm, two cooking zones are assembled to offer a bigger one, inspiring you to be a tastemaker in the world of culinary arts.

This DuoZone technology can be either used in two completely autonomous zones or in a large single zone to welcome your oval or large saucepans.

Top-down view of a three-tier electric stove with circular ventricles on a dark surface (no text or symbols visible)

BPI1638KB

60cm Width
3 Zones
Electronic Touch Sensitive Controls
Total Power: 7.4kW
Current: 32A
Boil Function
■ 9 Power Levels + UltraBoost
10 Safety Features
Quick Access
Vitroceramic Glass Top

BVCert.6011825

21cm - 3600W /

16cm - 2500W /

28cm - 3600W

99 Minutes Timer

Child Lock

Product Dimensions (mm): H60 x W580 x D510

Built In Dimensions (mm): W560 x D490

Installation Diagram BPI1638KB

In mm 580 510 60 490 560

Low Power Friendly!

BPI272UBL

75cm Width
2 Zones
Electronic Touch Sensitive Controls
Total Power: 3.6kW
Current: 15A
Boil Function
■ 9 Power Levels + UltraBoost
Quick Access
10 Safety Features
Vitroceramic Glass Top

JVCarL 601;1825

21cm - 3600W /
18cm - 3600W
99 Minutes Timer
Child Lock
Product Dimensions (mm): H60 x W750 x D450
Built In Dimensions (mm): W665 x D345

Low Power Friendly!

BPI1621UB

30cm Width
2 Zones
Electronic Touch Sensitive Controls
Total Power: 3.7kW
Current: 15A
■ 9 Power Levels + UltraBoost
10 Safety Features
Quick Access
Vitroceramic Glass Top

RVCart.6011825

16cm - 2800W /
21cm - 3600W
99 Minutes Timer
Child Lock
■ Product Dimensions (mm): H60 x W288 x D510
Built In Dimensions (mm): W265 x D490

In mm 750 450 60 345 665

Installation Diagram BPI1621UBInstallation D

In mm 288 510 60 490 265

Hand cleaning a car with white ocar and a yellow brush (no text or symbols visible)

EASY MAINTENANCE

Induction leaves the surface around the cooking zone at a low temperature, which prevents spills from sticking to the hob. Just wipe it down with a sponge to make your hob shine.

HOODS

HOODS Brandt 21

A RANGE TO CATER TO ALL YOUR NEEDS

Interior view of a modern kitchen with white cabinetry, red accent wall, and large window (no visible text or symbols)

SUITABLE FOR ALL LAYOUTS AND STYLES

Brandt hoods come in a bevy of designs to suit your kitchen aesthetic. Specially designed to blend into your kitchen furnishings, Brandt hoods allow you to maximise precious kitchen space without compromising efficacy.

All Brandt hoods are customizable to evacuation or recycling mode to suit the needs of your kitchen.

FLOW AND NOISE LEVEL

Brandt supports the code of conduct promoted by the CECED ^(1) on the statements on air flow and noise level, and guarantees that all data regarding compliant with European standards ^(2) .

(1) Committee of European Manufacturers of Household Appliances

(2)EN 60704-2-13, EN 60704-3 and EN 61591

FUNCTIONALITY AND PERFORMANCE

FOR EFFICIENT REMOVAL OF ODOURS AND FUMES

Choose from 3 to 4 speed settings to suit your cooking needs. Equipped with cassette filters and activated charcoal filters, Brandt hoods ensure optimum grease filtration and odour capture. A filter saturation light (available for selected models) also alerts you when it is necessary to clean or change them.

Exterior view of a stainless steel kitchen air purifier with ventilation grilles (no text or symbols visible)

EASY USAGE

Brandt hoods make it easy to activate your needed programmes! You are guided by the electronic control system with speed display, backlit keys and soft keys for easy usage!

Close-up of a metallic kitchen appliance with a black rectangular frame and a small square mark (no visible text or symbols)

EUROPEAN ENERGY LABEL : A MARKER OF EXCELLENCE IN ENERGY CONSUMPTION AND PERFORMANCE

Brandt practices absolute transparency with every product carrying the relevant consumption labels for your easy reference.

NERGY NCE Brandt BHB6902X A* B The overall energy efficiency of the hood (EEI) : Consumption is weighed against performance Lighting effectiveness The lamp's energy consumption is marked against its level of brightness. Motor consumption of the hood 58 Oil absorption efficiency level Sound level emitted measured in dB(A).

Chose the design and hood type that better blends in with your kitchen. The Brandt's hood range presents new models that are lined up with the current design tendencies and they perfectly integrate with the other electrical appliances for your kitchen.

Three-panel image showing a stainless steel kitchen range hood, its top panel, and its front panel (no text or symbols visible)

DECORATIVE (WALL-MOUNT)

Designed for installation on the wall, Brandt decorative(wall-mount) hoods are sure to be a subtle statement piece in any kitchen.

ISLAND

Designed to be suspended from the ceiling over a central island unit, the sleek aesthetics create a stylish focal point for the kitchen.

SLIMLINE

For installation under a overhung kitchen to provide effective removal of odours and cooking fumes.

TELESCOPIC

Designed to be flush into a overhung kitchen cabinet, a Telescopic hood extends when required for the best possible performance.

SEVERAL ESSENTIAL CRITERIA

POINTS TO BE TAKEN INTO CONSIDERATION WHEN CHOOSING THE HOOD BEST SUITED TO YOUR NEEDS.

The kitchen size is not, the only factor to consider when choosing the right hood. The following rudimentary calculation will help you determine the adequate suction power for the best results.

■ MEASURE THE VOLUME OF YOUR KITCHEN

(e.g.) 4 × 3 × 3 = 36m^3

As a kitchen's ambient air is renewed 10 to 12 times per hour, multiply the volume by 10 to get adequate power (e.g. 36 × 10 = 360m^3/hr ). As per example, a 400m^3/hr evacuation hood would be ideal or sufficient.

In recycling or if your kitchen is open (and subject to air disturbances), it might be wise to opt for a slightly more powerful hood.

THE SIZE OF THE HOB

For optimal suction, the width of the hood must be the same size or larger than the hob.

COOKING HABITS

To make the right choice, take into account your use of the hood (frequency of cooking, type of dishes (light, oily), number of dishes cooked simultaneously, etc)

3m 3m 4m

HOODS: THINGS YOU NEED TO KNOW

GET RID OF ODOURS AND COOKING FUMES WITH BRANDT HOODS

Brandt hoods offer you 2 types of installation that are best suited to your needs and the constraints of your kitchen.

EXTRACTION

TWO MODES ARE AVAILABLE TO CATER TO YOUR KITCHEN NEEDS

EVACUATION

Evacuation mode is ideal because the intake air (charged with odours, steam and smoke) is pushed out. Connect your hood to an outlet to vent the vapours that pass through the cassette grease filter.

Air outflow Grease filter Air intake

non-return valve

Brandt hoods are equipped with a non-return valve, an essential accessory so that the evacuated air is not bounced back inwards by winds.

Brandt hoods are supplied with complete equipments for perfect installation in evacuation or recycling mode.

RECYCLING

If it's not possible to pipe out air, a recycling installation can clean out the air, ridding it of odours (via a charcoal filter) before diverting the clean air back into your home.

Charcoal filter Grease filter Air intake

Deflector equipments for ing mode.

Brandt hoods are equipped with a deflector, to return route air through the gills.

Exterior view of a two-panel stainless steel HVAC unit with mesh panels (no text or symbols visible)

FILTERS & MAINTENANCE

METAL GREASE FILTERS

All brandt hoods' grease filters are made of sturdy aluminum and contain a special mesh which captures and locks away the grease from cooking fumes. Once saturated, they can be easily removed and cleaned in a dishwasher or under warm soap water.

CARBON FILTERS

Carbon filters are used in recycling mode only and should be removed from any hood outside extraction. They work by drawing cooking fumes and odours into the carbon filter and neutralising the air through carbon particles before recycling clean air back into the kitchen. The carbon filters require replacement periodically, depending on frequency and type of cooking.

Exterior view of a modern kitchen tower with a flat roof and ventilation unit (no text or symbols visible)

Installation Diagram BHI1944IX

In mm 270 285 600-1180 600 900

BHI1944IX

90cm Isand Hood
Stainless Steel + Glass
Electronic Button Controls
3 Speeds
740m³/h
Sound Level: 44dBA
1 Aluminium Filters (Dishwasher Safe)
Charcoal Filter Supplied

LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Height Of Chimney (mm): 600 - 1180
Product Dimensions Without Chimney (mm): H65 x W900 x D500

BRANDT HOODS WORK SILENTLY

THE PERFECT BALANCE BETWEEN CAPACITY AND SOUND LEVEL

As shown in the bar graphs, the Brandt Silent Inside extractor hood has obtained excellent results with regard to the draught capacity and the sound level generated.

130 dBA

Silence Inside

48 dBA SOUND LEVEL

With only 48 dBA, you can hardly hear it when it is in operation.

Modern kitchen interior with white cabinetry, stainless steel shelving, and a curved concrete wall (no visible text or symbols)

Exterior view of a stainless steel kitchen air conditioner unit (no text or symbols visible)

AD658XC1

90cm Wall Mount Hood
Stainless Steel
Mechanical Controls
4 Speeds
1000m³/h
Sound Level: 48dBA
■ 3 Aluminium Filters (Dishwasher Safe)

BVCert.6011825

LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Height Of Chimney (mm): 514 - 1010
Product Dimensions Without Chimney (mm): H110 x W900 x D500

Exterior view of a black stainless steel kitchen air duct (no text or symbols visible)

AD9905B

90cm Wall Mount Hood
Black Steel
Electronic Button Controls
3 Speeds
1300m³/h
Sound Level: 48dBA
■ 1 Aluminium Filters (Dishwasher Safe)
Charcoal Filter Supplied

LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Height Of Chimney (mm): 400 - 780
Product Dimensions Without Chimney (mm): H60 x W898 x D500

Installation Diagram AD658XC1

In mm 274 271 665 mini - 1120 maxi 514 110 500 600 / 700 / 900

Installation Diagram AD9905B

386 898

In mm

340 380 400 60 500

Exterior view of a stainless steel kitchen range hood (no visible text or symbols)

BHB6902X / BHB6602X

90cm Wall Mount Hood
Stainless Steel
Mechanical Controls
850m³/h or 600m³/h
Sound Level: 59dBA
2 Aluminium Filters (Dishwasher Safe)

LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Height Of Chimney (mm): 500 - 980
Product Dimensions Without Chimney (mm): H78 x W900 x D500

Interior scene of a minimalist kitchen with wooden shelves, potted plants, and a wooden counter (no visible text or symbols)

Installation Diagram BHB6902X / BHB6602X

In mm 312 272 Ø150 500-980 500 78 500 600/900

“ PLUG AND PLAY

One person can mount this hood very easily in 3 steps.

Exterior view of a modern office building (no signage)

Step 1

Exterior view of a modern office building (no signage)

Step 2

Modern stainless steel air conditioner unit mounted on a square base (no text or symbols visible)

Step 3

Exterior view of a stainless steel brand air conditioner unit (no text or symbols visible on the appliance body)

Exterior view of a modern stainless steel air purifier unit (no visible text or symbols)

BHB1944IX

90cm Wall Mount Hood
Stainless Steel + Glass
Electronic Button Controls
3 Speeds
800m³/h
Sound Level: 43dBA
1 Aluminium Filters (Dishwasher Safe)
Charcoal Filter Supplied

LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Height Of Chimney (mm): 500 - 980
Product Dimensions Without Chimney (mm): H65 x W900 x D500

AD996XC

90cm Wall Mount Hood
■ Stainless Steel with Glass Control Panel
Electronic Touch Controls
15 Minutes Delay Timer
950m³/h
3 Speeds
Sound Level: 65dBA

■ 3 Stainless Steel Hook Filters (Dishwasher Safe)
LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Height Of Chimney (mm): 470 - 940
Product Dimensions Without Chimney (mm): H80 x W898 x D500

Installation Diagram BHB1944IX

In mm 305 273 550-1030 550 217 65 29 Φ150 500 380 500 600

Installation Diagram AD996XC

In mm 300 270 545-1010 80 500 898

Exterior view of a modern office building (no signage)

Exterior view of a modern kitchen ventilation duct (no text or symbols visible)

Exterior view of a modern air conditioner unit (no visible text or symbols)

AI1790X

90cm Semi Integrated Hood
■ Stainless Steel with Glass Control Panel
Electronic Touch Controls
15 Minutes Delay Timer
825m³/h
3 Speeds
Sound Level: 50dBA

■ 3 Aluminium Filters (Dishwasher Safe)
LED Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Product Dimensions (mm): H120 x W900 x D420
Built In Dimensions (mm): H70 x W860 x D280

AT1460X

60cm Telescopic Hood
Stainless Steel
Mechanical Controls
2 Speeds
340m³/h
Sound Level: 52dBA
2 Aluminium Filters (Dishwasher Safe)

Halogen Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Product Dimensions (mm): H180 x W600 x D435
Built In Dimensions (mm): H140 x W558 x D280

AT1490X

90cm Telescopic Hood
Stainless Steel
Mechanical Controls
2 Speeds
1000m³/h
Sound Level: 52dBA
2 Aluminium Filters (Dishwasher Safe)

Halogen Lighting
Delivered In Recycling Mode
■ Used For Extraction Or Recycling Mode
Product Dimensions (mm): H280 x W900 x D435
Built In Dimensions (mm): H240 x W858 x D280

Modern kitchen interior with stainless steel appliances, red pendant lights, and a microwave oven (no visible text or symbols)

Installation Diagram AI1790X

Technical line drawing of a cabinet with an open lid and a base, showing a 20mm measurement scale (no text or symbols)

280 860 120 898 420

Installation Diagram AT1460X

In mm 560 Ø150 20 240 280 22 43 600 155 280

Installation Diagram AT1490X

In mm 558-858 Ø150 40 140/240 180/280 43 598/898 155 280

DIRECTIONS FOR USE

BETTER USE!

FOR GREATER EFFICIENCY OF THE HOOD, QUALITY OF USE IS PARAMOUNT.

■ Turn on the hood before the beginning of the cooking.
- Do not close all interior doors during operation of the hood.
- Do not open the windows to air currents.
- Let the hood run 5 to 10 min after cooking.
- Adjust the flow depending on the cooking and the presence of grill or fryer.
- Clean grease filters.
- Change the carbon filter regularly (in the case of a recycling mode).

TELESCOPIC HOOD

Designed to be installed into upper kitchen cabinets, Telescopic hoods are almost invisible when not in use.

Simply pull out the hood to operate and retract when not in use.

TECHNICAL SPECIFICATIONS BUILT IN

COOKING

☐ Ovens 32
MICROWAVE OVENS 33
STEAM OVENS 33
INDUCTION HOBS 34
HOODS 36

TECHNICAL SPECIFICATIONS

OVENS

REFERENCES
Model	BOP7568LX	BOP7537LX	BOC7532LX	BOH7532LX
CHARACTERISTICS
Type of Oven	Pyrolytic	Pyrolytic	Catalytic	Hydrolyse
Oven Capacity	73L	73L	73L	73L
Type of Control	Electronic Touch	Electronic + Knob	Electronic + Knob	Electronic + Knob
Type of Display	Full Color TFT	LCD	LCD	LCD
Remaining Time Display	Yes	Yes	Yes	Yes
Type of Cleaning	Pyrolytic	Pyrolytic	Catalytic	Hydrolyse
Interior Lighting	Yes	Yes	Yes	Yes
WIFI	-	-	-	-
COOKING FUNCTIONS
Functions	11	7	6	6
Circulating Heat	Yes	Yes	Yes	Yes
Grill with Fan	Yes	Yes	Yes	Yes
Variable Grill	Yes	Yes	Yes	Yes
Traditional Heat	Yes	Yes	Yes	Yes
Eco	Yes	Yes	Yes	Yes
Traditional Heat with Fan	Yes	-	-	-
Bottom Heat with Fan	Yes	Yes	-	-
Bottom Heat	-	-	-	-
Keep Warm	Yes	-	-	-
Steam Assisted Programs	4(Fish), 4(Poultry), 2(White Meat)	4(Fish), 4(Poultry), 2(White Meat)	4(Fish), 4(Poultry)	4(Fish), 4(Poultry)
Cooking Guide	9 Dishes	-	-	-
Auto Cook	12 Dishes	-	-	-
Flavor Grill	-	-	-	-
Defrost	-	-	-	-
OPTIONS
Smart Boost	Yes	Yes	-	-
Smart Assist	Yes	Yes	Yes	Yes
Demo Mode	Yes	Yes	-	Yes
Independent Timer	Yes	Yes	Yes	Yes
Delay End	Yes	Yes	Yes	Yes
Sound	Yes	Yes	Yes	Yes
ACCESSORIES
45mm Drip Tray	1	1	1	1
20mm Pastry Tray	1	1	1	1
Safety Wire Rack	1	1	1	1
Adjustable Telescopic Railing	2	1	-	-
Catalytic Liners	-	-	Yes	-
STRUCTURE
Material of Door Façade	Glass with Stainless Steel panel	Glass with Stainless Steel trimming	Glass with Stainless Steel trimming	Glass with Stainless Steel trimming
SECURITIES
Door Lock	Yes	Yes	-	-
Cool Door	Yes	Yes	-	-
Ventilated Door	-	-	Yes	Yes
Soft Close	Yes	-	-	-
Child Lock	Yes	Yes	Yes	Yes
Auto Stop	Yes	Yes	Yes	Yes
CONNECTIONS
Total Power (W)	3385	3385	2650	2650
Amphere	15	15	13 / 15	13 / 15
Hertz	50 / 60	50 / 60	50 / 60	50 / 60
Plug	Without	Without	Without	Without
Cable Length (cm)	115	115	115	115
PRODUCT DIMENSIONS
Actual (H x W x D) mm	596 x 592 x 544	596 x 592 x 544	596 x 592 x 544	596 x 592 x 544
Built In (H x W x D) mm	585 x 560 x ≥545	585 x 560 x ≥545	585 x 560 x ≥545	585 x 560 x ≥545
Net Weight (kg)	36.8	36.8	32.1	32.1
Gross Weight (kg)	38.1	38.1	33.5	33.5

TECHNICAL SPECIFICATIONS

MICROWAVE OVENS

REFERENCES
Model	BKC7153LX	BMS7120X	BMS7120B
CHARACTERISTICS
Type of Microwave	Combi	Solo	Solo
Microwave Capacity	40L	26L	26L
Max. Microwave Power (W)	1000	900	900
Type of Control	Electronic Touch	Electronic Touch	Electronic Touch
Type of Display	LCD	LCD	LCD
Remaining Time Display	Yes	Yes	Yes
Interior Lighting	Yes	Yes	Yes
COOKING FUNCTIONS
Functions	10	4	4
Microwave	Yes	Yes	Yes
Circulating Heat	Yes	-	-
Grill with Fan	Yes	-	-
Variable Grill	Yes	-	-
Microwave + Circulating Heat	Yes	-	-
Microwave + High Grill	Yes	-	-
Microwave + Low Grill	Yes	-	-
Defrosting	Yes	Yes	Yes
Cooking Guide	15 Dishes	2 Dishes	2 Dishes
Defrosting Guide	3 Programs	4 Programs	4 Programs
OPTIONS
Keep Warm	Yes	-	-
Smart Assist	Yes	Yes	Yes
MEMO	Yes	-	-
Delay End	Yes	-	-
Independent Timer	Yes	Yes	Yes
Sound	Yes	Yes	Yes
Turn Table stop	Yes	Yes	Yes
ACCESSORIES
Turn Table	1	1	1
Glass Drip Tray	1	-	-
Wire Rack	-	-	-
STRUCTURE
Material of Door Façade	Glass with Stainless Steel trimming	Glass with Stainless Steel trimming	Glass with Matt Black trimming
SECURITIES
Child Lock	Yes	Yes	Yes
Auto Stop	Yes	Yes	Yes
CONNECTIONS
Amphere	15	13	13
Hertz	50	50	50
Plug	-	European	European
Cable Length (cm)	130	138	138
PRODUCT DIMENSIONS
Actual (H x W x D) mm	456 x 592 x 547	390 x 592 x 474	390 x 592 x 474
Built In (H x W x D) mm	450 x 560 x ≥550	380 x 560 x ≥550	380 x 560 x ≥550
Net Weight (kg)	38.95	20	20
Gross Weight (kg)	42.15	22	22

STEAM OVEN

REFERENCES
Model	BKV7132LX
CHARACTERISTICS
Type of Oven	Steam
Oven Capacity	29L
Type of Control	Electronic + Knob
Type of Display	LCD
Remaining Time Display	Yes
Type of Cleaning	Manual
Interior Lighting	Yes
COOKING FUNCTIONS
Functions	11
Vegetables	Yes
Fish	Yes
Meat	Yes
Shellfish	Yes
Prepared Meals	Yes
Cereals	Yes
Yogurt	Yes
Reheating	Yes
Keep Warm	Yes
Defrosting	Yes
Manual	Yes
OPTIONS
Smart Assist	Yes
Demo Mode	Yes
Independent Timer	Yes
Delay End	Yes
Sound	Yes
ACCESSORIES
Perforated Drip Tray	1
Drip Tray	1
Safety Wire Rack	1
2nd Steam Tier (KITVAPIX)	Optional (Additional Purchase)
STRUCTURE
Material of Door Façade	Glass with Stainless Steel trimming
SECURITIES
Door Lock	-
Ventilated Door	Yes
Child Lock	Yes
Water Tank Indicator	Yes
Auto Stop	Yes
CONNECTIONS
Total Power (W)	1770
Amphere	13
Hertz	50 / 60
Plug	Without
Cable Length (cm)	105
PRODUCT DIMENSIONS
Actual (H x W x D) mm	456 x 592 x 547
Built In (H x W x D) mm	450 x 560 x ≥550
Net Weight (kg)	21.55
Gross Weight (kg)	24.45

INSTALLING YOUR INDUCTION HOB BUILT-IN

Actual Width Actual Depth 64mm Air Intakes Air Outlets Built-in Depth Built-in Width 40mm 40mm 40mm 40mm

PROPER POSITIONING

Your hob should be positioned so that the plug-in unit is accessible, so you can easily switch it on and off. The distance between the edge of your appliance and the side and rear walls (or partitions) must be at least four centimeters.

Note: Please consider the size of your cookware before installation; ensure ample space allowance between hob and wall. our appliance can be easily integrated above a cabinet, and oven or a build-in-ready household appliance. You must simply ensure that the air intakes (under the hob) and air outlets (under the front of the hob) are clear and free from obstruction.

BUILDING IN

Follow the diagram above.

Glue the foam seal underneath your appliance by following the outline of the worktop upon which your appliance will rest. This will allow you to achieve a watertight seal with the worktop.

ELECTRICAL SUPPLY

Most induction hobs require up to 16-32 amps for fast and powerful heating. In the event that high amperage is not available, use the minimum of 15 amps, but note that there will be a "sharing" of power between the different zones. This is normal.

TIP

if your oven is located below your hob, the hob's thermal safety measures forbid the simultaneous use of the hob and the pyrolysis program of your oven. Your hob is equipped with an anti-overheating safety device.

This safety feature can be activated, for example, when the hob is installed over an oven that is not sufficiently insulate. If this occurs, a series of small lines appear in the control panel. In this case, we recommend that you increase the ventilation of your hob by creating an opening in the side of your cabinet (8 cm x 5 cm).

Technical drawing showing three views of a door or cabinet with dimension annotations in millimeters.

WARNING

You must ensure that the air intakes located under your hob remains clear at all times. For all type of installation, your induction hob needs proper ventilation. Do not install above a drawer or sealed unit. The hob must be able to draw air from its underneath.

Diagram of a solar panel with grid layout and directional arrows indicating orientation (no text or symbols)

TECHNICAL SPECIFICATIONS

INDUCTION HOBS

REFERENCES

Model	BPI184HUB	BPI164DUB	BPI1638KB	BPI272UBL	BPI1621UB
CHARACTERISTICS
Width	80cm	60cm	60cm	75cm	30cm
Number of Zones	4	4	3	2	2
DuoZone	-	Yes	-	-	-
HoriZone	Yes	Yes	-	-	-
Glass Material
Type of Control	Electronic Touch Sensitive	Electronic Touch Sensitive	Electronic Touch Sensitive	Electronic Touch Sensitive	Electronic Touch Sensitive
Number of Power Levels	9	9	9	9	9
UltraBoost Function	Yes	Yes	Yes	Yes	Yes
Boost Function	-	-	-	-	-
Boil Function	-	Yes	Yes	Yes	-
Quick Access Function	Yes	Yes	Yes	Yes	Yes
Timer	4 x 99mins	4 x 99mins	3 x 99mins	2 x 99mins	2 x 99mins
ZONES
Left	40cm x 23cm - 3700W	37cm x 18xm - 4000W	-	21cm - 3600W	-
Right	16cm - 2400W	-	28cm - 3600W	18cm - 3600W	-
Front Right	-	16cm - 2500W	-	-	-
Front Left	-	-	21cm - 3600W	-	-
Rear Right	-	21cm - 3600W	-	-	-
Rear Left	-	-	16cm - 2500W	-	-
Center	28cm - 3700W	-	-	-	-
Front Center	-	-	-	-	16cm - 2500W
Rear Center	-	-	-	-	21cm - 3600W
SECURITIES
Pack 10 Safety Features	Yes		Yes	Yes	Yes
CONNECTIONS
Total Power (W)	7400	7400	7400	3600	3700
Amphere	32	32	32	15	15
Hertz	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60
Plug	-	-	-	-	-
Cable Length (cm)	130	130	130	130	130
PRODUCT DIMENSIONS
Actual (H x W x D) mm	60 x 770 x 510	60 x 580 x 510	60 x 580 x 510	60 x 750 x 450	60 x 288 x 510
Built In (W x D) mm	750 x 490	560 x 490	560 x 490	665 x 345	265 x 490
Net Weight (kg)	13.35	10	10	9.5	5.6
Gross Weight (kg)	14.25	11	11	10.5	6.05

TECHNICAL SPECIFICATIONS

HOODS

REFERENCES

Model	AD658XC1	AD996XC	BHI1944IX	BHB1944IX
CHARACTERISTICS
Type of Hood	Wall Mounted	Wall Mounted	Island	Wall Mounted
Width	90cm	90cm	90cm	90cm
Aesthetic	Stainless Steel	Stainless Steel with Glass Control Panel	Stainless Steel + Glass	Stainless Steel + Glass
Type of Control	Mechanical Buttons	Electronic Touch	Electronic Buttons	Electronic Buttons
Type of Filters	Aluminium	Stainless Steel	Aluminium	Aluminium
Number of Filters	3	3	2	1
Default Mode of Installation	Recycling	Recycling	Recycling	Recycling
Extraction / Recycling mode	Yes / Yes	Yes / Yes	Yes / Yes	Yes / Yes
PERFORMANCE
Number of Motors	1	1	1	1
Number of Fans	-	-	1	1
Number of Speeds	4	3	3	3
Maximum Suction Power	1000m^3/h	950m^3/h	740m^3/h	800m^3/h
Delay Timer	-	15mins	-	-
ACCESSORIES
Charcoal Filter	3	1	2	1
Flexible Duct	-	Yes	-	-
Adaptor	Yes	Yes	Yes	Yes
Air Deflector (For Recycling)	Yes	Yes	Yes	Yes
SECURITIES
Auto Stop	Yes	Yes	Yes	Yes
CONNECTIONS
Total Power (W)	374	407	84	81
Amphere	10	10	10	10
Hertz	50 / 60	50	50	50
Plug	-	-	European	European
Cable Length (cm)	90	120	188	182
PRODUCT DIMENSIONS
Chimney Height (mm)	514 - 1010	470 - 940	600 - 1180	500 - 980
Actual without Chimney (HxWxD) mm	110 x 900 x 500	80 x 898 x 500	65 x 900 x 600	65 x 900 x 500
Built In (H x W x D) mm	-	-	-	-
Net Weight (kg)	14.5	18	31.5	20
Gross Weight (kg)	15.84	21	37.5	24

TECHNICAL SPECIFICATIONS

HOODS

REFERENCES
Model	AI1790X	AT1460X	AT1490X
CHARACTERISTICS
Type of Hood	Semi Integrated	Telescopic	Telescopic
Width	90cm	60cm	90cm
Aesthetic	Stainless Steel with Glass Control Panel
Type of Control	Electronic Touch	Electronic Touch	Electronic Touch
Type of Filters	Aluminium	Aluminium	Aluminium
Number of Filters	3	2	2
Default Mode of Installation	Recycling	Recycling	Recycling
Extraction / Recycling mode	- / Yes	Yes / Yes	Yes / Yes
PERFORMANCE
Number of Motors	3	1	1
Number of Fans	-	-	-
Number of Speeds	3	2	2
Maximum Suction Power	825m3/h	340m3/h	1000m3/h
Delay Timer	15mins	-	-
ACCESSORIES
Charcoal Filter	3	2	2
Flexible Duct	-	-	-
Adaptor	-	Yes	Yes
Air Deflector (For Recycling)	Yes	Yes	Yes
SECURITIES
Auto Stop	Yes	Yes	Yes
CONNECTIONS
Total Power (W)	257	155	400
Amphere	10	10	10
Hertz	50	50	50
Plug	-	-	-
Cable Length (cm)	130	130	130
PRODUCT DIMENSIONS
Chimney Height (mm)	-	-	-
Actual without Chimney (H x W x D) mm	120 x 900 x 420	180 x 600 x 435	280 x 900 x 435
Built In (H x W x D) mm	70 x 860 x 280	140 x 558 x 280	240 x 858 x 280
Net Weight (kg)	7	6	7
Gross Weight (kg)	8	7	8

TECHNICAL SPECIFICATIONS

HOODS

REFERENCES

Model	AD9905B	BHB6602X	BHB6902X
CHARACTERISTICS
Type of Hood	Wall Mounted	Wall Mounted	Wall Mounted
Width	90cm	60cm	90cm
Aesthetic	Black Steel	Stainless Steel	Stainless Steel
Type of Control	Electronic Buttons	Mechanical Buttons	Mechanical Buttons
Type of Filters	Aluminium	Aluminium	Aluminium
Number of Filters	1	2	2
Default Mode of Installation	Recycling	Recycling	Recycling
Extraction / Recycling mode	Yes / Yes	Yes / Yes	Yes / Yes
PERFORMANCE
Number of Motors	1	2	2
Number of Fans	1	-	-
Number of Speeds	3	3	3
Maximum Suction Power	1300m^3/h	600m^3/h	850m^3/h
Delay Timer	15mins	-	-
ACCESSORIES
Charcoal Filter	1	1	1
Flexible Duct	-	-	-
Adaptor	-	Yes	Yes
Air Deflector (For Recycling)	Yes	Yes	Yes
SECURITIES
Auto Stop	Yes	Yes	Yes
CONNECTIONS
Total Power (W)	225	194	194
Amphere	10	10	10
Hertz	50	50	50
Plug	-	European	European
Cable Length (cm)	150	200	100
PRODUCT DIMENSIONS	-
Chimney Height (mm)	400 - 780	500 - 980	500 - 980
Actual without Chimney (H x W x D) mm	H60 x W898 x D500	78 x 600 x 500	78 x 900 x 500
Built In (H x W x D) mm	-	-	-
Net Weight (kg)	23	16	17
Gross Weight (kg)	26.7	18	20
