Find the device manual for free SPBL 6000 A1 SILVERCREST in PDF.
| Product Type | Power Bank (Mobile Charger) |
| Brand | SilverCrest |
| Model | SPBL 6000 A1 |
| Battery Type | Lithium-ion |
| Battery Capacity | 6000 mAh / 21.6 Wh |
| Input (Charging Power Bank) | 5V ⎓ 2A (Micro-USB) |
| Output (Charging Devices) | 5V ⎓ 2.1A (USB Type A) |
| Dimensions (approx.) | 95 x 48 x 23 mm |
| Weight (approx.) | 130 g |
| Operating Temperature | 5°C to 35°C |
| Storage Temperature | 0°C to 45°C |
| Humidity (no condensation) | 10% - 70% |
| LED Display | Battery status indicator (approx. percentage) |
| Charging Cable Included | USB Type A to Micro-USB |
| Manual Included | Yes (English, multilingual) |
| Safety Features | Overcurrent protection, short circuit protection |
| Material | Plastic (estimated) |
| Color | Black (from images) |
| Intended Use | Charging mobile devices via USB port |
| Warranty | 3 years from date of purchase |
| Disposal | Recycle according to local regulations (WEEE) |
Frequently Asked Questions - SPBL 6000 A1 SILVERCREST
User questions about SPBL 6000 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Chargeur pour appareil mobile in PDF format for free! Find your manual SPBL 6000 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SPBL 6000 A1 by SILVERCREST.
USER MANUAL SPBL 6000 A1 SILVERCREST


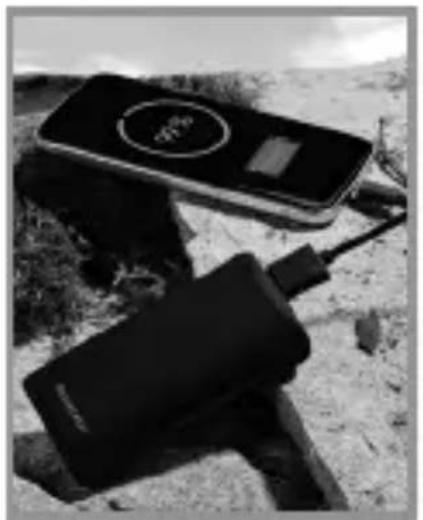

Black portable electronic device with digital display and ports, no visible text or symbols on body
GB
6.000 mAh POWER BANK
Operation and safety notes
PL
POWERBANK-6.000-mAh
GB Operation and safety notes Page 5
SEBruksanvisningoch
Warnings used and symbols......Page 6
Introduction......Page 8
Intended use ......Page 8
Trademark notice......Page 8
Scope of delivery......Page 9
Before use Page 9
Parts description......Page 9
Technical data ......Page 10
Safety notices ......Page 10
Operation and use......Page 14
Charging the power bank......Page 14
Checking the battery status......Page 15
Charging mobile devices with the
power bank......Page 15
Troubleshooting......Page 16
Cleaning and care......Page 18
Storage during non-use......Page 18
- Warnings used and symbols
| Warnings and symbols usedThese instructions for use contain the following warnings: | |
 | DANGER! This symbol, in combination with the signal word “Danger”, indicates a life-threatening situation which, if disregarded, could result in deadly injuries. |
 | WARNING! This symbol, in combination with the signal word “Warning”, indicates a dangerous situation which, if disregarded, may cause serious injuries. |
 | CAUTION! This symbol, in combination with the signal word “Caution”, indicates a hazard with a low level of risk, which, if disregarded, could result in minor or moderate injuries. |
 | ATTENTION! This symbol with the signal word “Attention” indicates possible damage to property. |
 | NOTE: This symbol with the signal word “Note” provides further useful information. |
 | WARNING! EXPLOSION HAZARD!A warning with this symbol and the words "WARNING! EXPLOSION HAZARD!" indicates a possible risk of explosion. Failure to follow such a warning can result in serious injuries or death and possible property damage. Follow the instructions in this warning to avoid danger to life, serious injury or property damage. |
 | This mandatory sign indicates to wear suitable protective gloves! Follow the instructions of this warning to avoid hand injuries caused by objects or contact with hot or chemical materials. |
 | This symbol means that the operating instructions must be observed when using the product. |
| V--- | Voltage (direct current) |
 | Watt (effective power) |
 | Maximum current available is used to optimise charging time. |
6000 mAh Power bank
- Introduction
Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
This product is an IT device which is solely intended to be used to charge mobile devices which are normally charged through a USB port. This product is not intended for commercial use. Manufacturer is not liable for damages, which result from non-Intended use.
• Trademark notice
-USB ^® is a registered trademark of USB Implementers Forum, Inc.
- The "Smart fast charge" trademark and trade name is the property of their respective owners.
- The SilverCrest trademark and trade name is the property of their respective owners.
- Any other names and products may be trademarks or registered trademarks of their respective owners.
Scope of delivery
1 6000 mAh Power bank
1 USB cable (Type A to Micro-USB)
1 Instructions for use
Before use
Note: Remove all packaging materials from the product.
☐ Please also check the content of delivery inside packaging to see if any damages. If you notice any damage or missing parts, please contact the dealer who sold this product.
Parts description
Please refer to fold out page.
1 Power bank
2 ON switch
3 Micro USB input 4 USB type A output 5 LED display
6 USB cable 7 Instruction manual
• Technical data
Built-in rechargeable
battery:3.6V
==/6000mAh
21.6 Wh (Lithium-ion)
Input voltage / current: 5V = 2A
Output voltage / current: 5V = 2.1A
Minimal output current: approx. 55 mA
Operating temperature: 5 °C–35 °C
Storage temperature: 0 °C–45 °C
Humidity
(no condensation): 10%-70%
Dimensions: approx. 95 x 48 x 23 mm
Weight: approx. 130 g
Safety notices
Please familiarise yourself with all instructions for use and Safety notices before using the product for the first time. When passing this product on to third parties, please be sure to include all documentation.
- Check the product for visible external damage before use. Do not use the product if damaged or dropped.
This product may be used by children age 8 years and up, as well as by persons with physical, sensory or mental impairments or lacking experience and/or knowledge, provided they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.
DANGER Packaging materials are not a toy. Keep all packaging materials out of the reach of children. Suffocation hazard!
■ Always use the product on flat and smooth surface. The product could be damaged if it falls.
- Do not expose the product to direct sunlight or high temperatures. It may otherwise overheat and be damaged beyond repair.
- Do not operate the product near heat sources such as radiators or other devices producing heat.
- Do not operate the product near open flames e.g. candles.
The product is not designed for use in rooms with high temperatures or humidity (i.e. bathrooms) or those in which a great amount of dust is generated.
■ No foreign objects penetrate the device.
- Do not expose the product to extremely high temperatures. This applies in particular if you are thinking about storing the product in your car. Over a prolonged period of time, the car and the glove compartment could become extremely hot. Remove electric and electronic devices from the car.
- Do not use the product immediately after it has brought from a cold room to a warm room. Allow the product to acclimatise before you switch it on.
DANGER Never open the product casing. This product has no internal parts requiring maintenance.
- Do not independently convert or modify the product.
- Repairs to the product must be performed by authorised specialised companies or customer service. Improper repairs may place the user in considerable danger. They will also void the warranty.
Do not expose the product to dripping water or splashing water and do not place containers filled with liquids such as vases or open drinks on top of or beside the product.
Immediately switch the product off and remove the charging cable from the product if you smell burning or see smoke. Have the product examined by a qualified technician before using it again.
If you use a USB power supply, the socket used must always be easily accessible so that the USB power supply can be quickly removed from the socket in the case of emergency. Please also refer to the manufacturer's instruction manual.
WARNING! EXPLOSION HAZARD!
Improper handling of Lithium-ion batteries can result in fire, explosions, hazardous substances leaking, or other dangerous situations! Do not throw the product into the fire, as this could lead to the built-in battery exploding.
- Observe the usage restrictions and prohibitions of use for battery-operated products in situations which may be hazardous such as at petrol stations, airports, hospitals, etc.
WARNING During charging process, please be noticed that the product must not be covered. Otherwise the product can be heated.
• Operation and use
Charging the power bank
Because of this power bank high current consumption, never use a notebook or PC USB port to charge the power bank.
Only use a suitable USB power adapter for charging this power bank (5 V=, min. 2 A; not supplied).
The built-in rechargeable battery must be fully charged before using the product.
☐ To charge the power bank only use power supplies with an output voltage of 5 V and an output current of at least 2 A.
Connect the USB cable with the Micro-USB input port 3 of the power bank 1.
Connect the other end of the USB cable (USB Type A) to a USB power supply (not included in the scope of delivery) (see fig. C).
☐ The current battery status is shown by LED display 5 during the charging process.
* This is approx percentage of power bank capacity but not actual measurement.
WARNING Do not connect any device to be charged to power bank as long as the power bank is charging. Remove the charging cable from the power bank when it is fully charged.
Checking the battery status
You can check the battery status on the LED display 5 of power bank anytime.
The current battery status is shown on the display 5 for about 30 seconds. The display then goes out and the user has to lightly press the ON switch 2 to switch the display back on.
* This is approx percentage of power bank capacity but not actual measurement.
Charging mobile devices with the power bank
☐ Connect the USB cable 6 or the original charging cable of the device to be charged to powerbank USB outputs 4.
☐ And then connect micro-USB port of the USB cable 6 to the micro-USB input of device to be charged. The charging process will start automatically.
In case if the charging process does not begin immediately, press the ON switch 2 lightly to begin the charging process. The current battery status of the power bank 1 is displayed during the charging process by the LED display 5.
To end the charging process, disconnect the USB charging cable from the mobile device and the power bank 1. The power bank will switch off and the LED display 5 will switch off after approx. 30 seconds.
- Troubleshooting
● = Problem
● = Cause
O = Solution
- The power bank 1 is not being charged.
It may be that the power bank is not connected properly.
○ Check that it is connected.
In order to charge the power bank, a power supply with 5 V and at least 2 A has to be used.
A connected device is not being charged.
The battery is drained.
○ Charge the battery.
The device is not connected.
Check that it is connected. Lightly press the ON switch 2 to begin the charging process.
The current consumption of the connected device might be too low.
- Check with your connected device manual and see if your connected device current consumption comply with this product.
The power bank 1 does not react when the button is pressed or when a device is connected, even though the battery is charged.
The power consumption of the connected devices is too high. Therefore, the internal overcurrent protection device was activated.
○ Disconnect the device you would like to charge from the powerbank and use an appropriate charging device for charging.
- Cleaning and care
This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.
■ Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair.
Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product.
☐ n ^2 clean the product with a slightly damp cloth and mild washing-up liquid.
- Storage during non-use
Store the product in a dry, dust-free location, protected from direct sunlight.
If the product is not used for a long time, the built-in battery should be fully charged to prolong its operating life. Regularly charge the built-in battery if you do not use the product for a long period of time. This is necessary to preserve the battery.
- Disposal
Packaging:
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Product:
Contact your municipality for information on how to dispose of your worn-out product.
directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.
This disposal is free of charge to you.
Protect the environment and dispose of properly.
The built-in rechargeable battery cannot be removed for disposal.
Return the product completely to a collection site for used electronics.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE
