Product Type	Qi Wireless Charger
Brand	SilverCrest
Model	SDQWC A1
Dimensions	approx. 180 × 85 × 8 mm
Weight	approx. 130 g
Input Power	5 V / 3 A or 9 V / 3 A
Wireless Output (per pad)	5 W (standard) or up to 10 W (with 9V)
Maximum Total Power	20 W
Number of Charging Pads	2
Wireless Charging Distance	≤ 5 mm
Length of Supplied USB Cable	approx. 1 m
Operating Temperature	5 - 35 °C
Storage Temperature	0 - 45 °C
Allowable Humidity	10 - 70 % (non-condensing)
Frequency Band	108 - 165 kHz
Emitted RF Power (H-field)	-7.69 dBµA/m at 10 m
LED Indicators	White (standby), Blue (charging), Blue flashing (fault), Green (fully charged)
Warranty	3 years
Cleaning	Slightly damp cloth with mild dish soap
Package Contents	Charger, USB cable, instruction manual
Safety	Do not cover, do not use near water or heat, do not repair yourself

Frequently Asked Questions - SDQWC A1 SILVERCREST

How do I charge my device with the SilverCrest SDQWC A1?

Plug the supplied USB cable into a power adapter (not included) and into the charger. Place your Qi-compatible device on one of the charging pads. The blue LED indicates that charging is active.

Which devices can I charge with this charger?

All mobile devices compatible with Qi wireless charging technology. Non-Qi devices cannot be charged.

What do the LED indicators mean?

White: standby or initialization. Blue: charging in progress. Blue flashing: fault (foreign object, overheating). Green: battery full.

Can I charge two devices at the same time?

Yes, the charger has two Qi charging pads. You can charge two compatible devices simultaneously, with a maximum power of 10 W each (if 9V power supply is used).

What to do if charging does not start?

Check that the device is centered on the charging pad, that it is Qi-compatible, that no metal objects are interfering, and remove thick cases. Try a different power adapter.

How to clean the charger?

Unplug it. Use a slightly damp cloth with a little mild dish soap. Avoid abrasive products and do not let moisture enter.

Is it safe to use this charger with a case or cover?

Thin cases (≤ 5 mm) compatible with Qi are usually fine. Thick, metallic, or magnetic cases may block charging. Remove the case if necessary.

What is the warranty period and how to activate it?

The warranty is 3 years from the date of purchase. Keep the receipt. In case of defect, contact customer service (tel. [phone] in France) before returning the product.

Can I use a power bank or computer as a power source?

No, the charger requires a powerful power adapter. A power bank or computer USB port does not provide enough current and could damage both devices.

How to dispose of the charger at end of life?

Do not dispose of it with household waste. Take it to a collection point for electronic waste (WEEE) or a recycling center. The packaging is recyclable.

USER MANUAL SDQWC A1 SILVERCREST

KABELLOSES QI-LADEGERÄT/ WIRELESS QI CHARGER/ CHARGEUR SANS FIL QI SDQWC A1

DE AT CH

KABELLOSES QI- LADEGERÄT

WIRELESS QI CHARGER Operation and Safety Notes

FR BE

CHARGEUR SANS FIL QI

DRAADLOZE QI- OPLADER

Operation and Safety Notes Page 26

FR / BE

Diagram of a plug-in connector with an arrow indicating insertion or disassembly (no text or symbols present)

Technical line drawing of a mechanical component with two pins and a separate plate (no text or symbols)

Diagram of two smartphones with crosshair indicators, connected by a cable (no text or symbols)

Symbol of a trash bin with no text or numbers present

Warnings and symbols used .... Page 27

Introduction Page 29

Intended use...... Page 29

Trademark notices...... Page 30

Safety notes...... Page 30

Description of parts ...... Page 33

Technical data Page 34

Scope of delivery ...... Page 35

Before use ...... Page 35

Operation...... Page 35

Troubleshooting...... Page 39

Storage when not in use ...... Page 40

Cleaning Page 40

Disposal...... Page 41

Simplified EU declaration of conformity...... Page 42

Warrenty and service...... Page 42

Warranty Page 42

Warranty claim procedure...... Page 43

Service Page 44

Warnings and symbols usedThese instructions for use contain the following symbols and warnings:
	DANGER! This symbol with the signal word “DANGER” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
	WARNING! This symbol with the signal word “WARNING” indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.
	CAUTION! This symbol with the signal word “CAUTION” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
	ATTENTION! This symbol with the signal word" ATTENTION" indicates a potential property damage, if not avoided, could result in property damage.
	NOTE: This symbol with the signal word "NOTE" provides additional useful information.
	Direct current
	"Qi" and the Qi logo mark are trademark of the Wireless Power Consortium (WPC).
	This symbol means that the operating instructions must be observed before using the product.

WIRELESS QI CHARGER

●Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The WIRELESS QI CHARGER (hereinafter referred to as the „Product“) is an information electronics device. This product is only for charging mobile devices that use Qi technology. Other devices cannot be charged with the product. The product is intended for private use only and not for commercial use. The manufacturer accepts no liability for damage resulting from unauthorised modifications or improper use.

●Trademark notices

■ ^® is USB Registered trademark of USB Implementers Forum, Inc.
■ "Qi" and the Qi logo mark are trademark of the Wireless Power Consortium (WPC).
The SilverCrest trademark and trade name is the property of their respective owners.
■ Any other names and products are trademarks or registered trademarks of their respective owners.

Safetynotes

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER! RISK OF SUFFOCATION!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The product is not a toy.

ATTENTION! Damage to property

- Check the product before every use! Discontinue use if any damage to the product or the connection cable is detected!

This product does not contain any parts which can be serviced by the user.

- Keep the product away from moisture, drippir and splash water!

Do not place burning candles or other open fi on or next to the product.

If you notice smoke or unusual noise or odour immediately disconnect the USB connection.

■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!

- Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

- Do not throw the product into fire and do not expose to high temperatures.

■ Never open the product. It has no internal parts requiring maintenance.

The product must not be covered during operation, no foreign objects may be introduced into the product, no foreign objects may lie on the Qi charging surface during operation.

The product must not be charged at a PC or notebook due to the high power consumption.

ATTENTION! Radio interference

- Do not use the product on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.

- Keep the product at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.

■ The radio waves transmitted could cause interference in hearing aids.

■ Never use the product near flammable gases or potentially explosives areas (e.g. paint shops), as the radio waves emitted can cause explosions and fire.

The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM.

The user of the product is solely responsible for rectifying malfunctions caused by unauthorized changes to the product and the replacement of such modified products.

●Description of parts

Please refer to the fold out page.

1 Qi Charging area 1

2 LED indicator 1

3 LED indicator 2

4 Qi Charging area 2

5 USB type C input socket

6 USB type A plug

7 USB charging cable

8 USB type C plug

9 Instructions for use

●Technical data

Dimensions: approx.

180 × 85 × 8 ~mm

Weight: approx. 130 g

Operating temperature: 5 - 35 °C

Storage temperature: 0 - 45 °C

Humidity(no condensation): 10 - 70 %

USB charging cable length: approx. 1 m

Input: 5 V ——/3 A

Output: 5 W (each)

Total power: 10 W max.

OR

Input: 9 V ——/3 A

Output: up to 10 W (each)

Total power: 20 W max.

Frequency band: 108-165 kHz

Transmitted maximum radio

frequency power (H-field): -7.69 dBuA/m at 10m distance

Wireless charging distance: ≤ 5 mm

The specification and design may be changed without notification.

- Scope of delivery

1 Wireless Qi charger
1 USB charging cable
1 Instructions for use

●Before use

NOTE:

■ Before use, verify the package contents are complete and undamaged!
All parts have to be unpacked and the packaging material has to be removed completely.
If you notice any damage or missing parts, contact the dealer who sold this product.

Operation

ATTENTION! The product must not be charged at a PC or notebook due to the high- wer consumption.

NOTE:

The product only supports devices with Qi wireless technology.

Charge your device

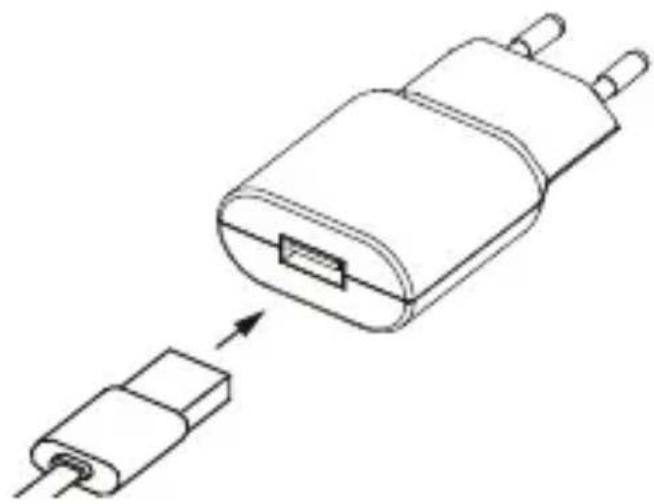

1. Plug the USB type A plug 6 of the USB charging cable 7 into the USB port on a suitable USB adapter (not included) and plug the USB type C plug 8 into USB type C input socket 4 of the product.

Diagram of a plug-in connector being inserted into a terminal block (no text or symbols present)

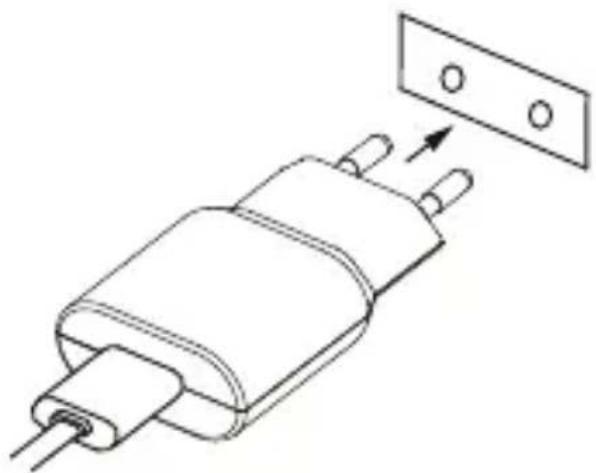

1. Plug the USB adapter (not included) into an easily accessible mains socket.

Technical line drawing of a mechanical component with two pins and a separate plate (no text or symbols)

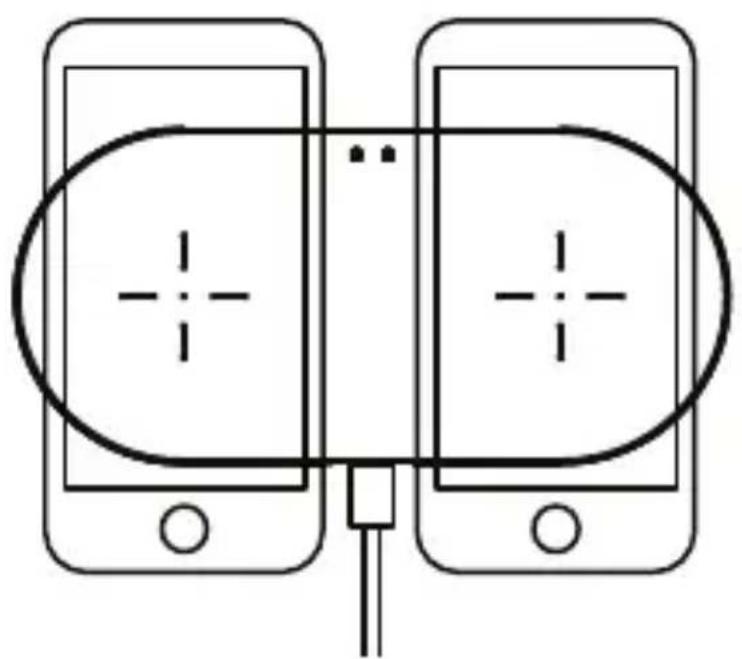

1. Place the mobile device on the Qi charging surface 1 or 2. Make sure the center of the device is aligned over the center of the Qi charging surface. Charging will begin on contact. The LED indicator 1 lights up blue when charging is active on Qi charging surface 1. The LED indicator 2 lights up blue when charging is active on Qi charging surface 2.

You can charge up to two Qi enabled mobile devices at the same time. Place your mobile devices on the Qi charging surfaces as shown in the sketch, the maximum wireless charging power is 10 W each.

Diagram of two smartphones with crosshair indicators, connected by a cable (no text or symbols)

Protective covers that protect the mobile device may interfere with the charging process. In this case, the mobile device must be removed from the protective cover.

NOTE:

The user may not see LEDs during the charging process depending on the used mobile device.

LED indicators 2 / 3 status

The product has two LEDs that indicates its operational status:

LED indicator Status
White light Starting process	(Boot phase) / Standby
LED off Off
Blue light Charging
Blue light flashing Fault condition
Green light Full Charge

●Troubleshooting

What should I do if the LED indicator of the product is not lit during starting process (Boot phase)?

• Check the USB cable connection between US adapter (not included) and the product. The USB cable must be firmly connected.
• Check the connection between the mains sock and the USB adapter (not included).
  ■ Alternatively, the user must try another mains socket.

What should I do if the mobile device does not get charging?

• Check that the mobile device have Qi wireless charging technology.
• Check the mobile device is placed horizontally on the center position of the charging pad.
• Check that no foreign object blocking the charging.
• Check whether the mobile device is removed from the protective cover.

What should I do if the LED indicator flashes blue?

This indicates a fault condition occurred.

■ Disconnect the USB connection immediately.
- Check that no foreign object blocking the charging.
- Let the product cool down for a while and try to use it again.

●Storage when not in use

Store the product in a dry interior, away from direct sunlight, preferably in its original packaging.

●Cleaning

☐ This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.
☐ Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair.
☐ Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product.
☐ Only clean the product with a slightly damp cloth and mild washing-up liquid.

●Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to Directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately. an be obtained from your local authority.

●Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product WIRELESS QI CHARGER HG05314A / HG05314B, is in compliance with Directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

●Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

Diagram of a plug-in connector with an arrow indicating insertion or disassembly (no text or symbols present)

Diagram of a plug with three pins and a separate plate, showing no text or symbols

Diagram of two smartphones connected by a cable, showing front and back views with crosshair indicators (no text or symbols)

Symbol of a trash bin with no text or numbers present

DRAADLOZE QI-OPLADER

Inleiding

Diagram of a plug-in connector with an arrow indicating insertion or disassembly (no text or symbols present)

Technical line drawing of a mechanical component with two pins and a separate plate (no text or symbols)

Diagram of two smartphones with crosshair indicators, connected by a cable (no text or symbols)

Symbol of a trash bin crossed with a horizontal line, representing waste or discharge (no text or numbers present)

Diagram of a plug-in connector with an arrow indicating insertion or disassembly (no text or symbols present)

Diagram of a mechanical component with two pins and a separate plate, showing an arrow indicating direction (no text or symbols present)

Diagram of two smartphones connected by a device, showing front and side views with crosshair indicators (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Diagram of a plug-in connector being inserted into a terminal block (no text or symbols present)

Diagram of a battery with three leads and a separate plate, showing no text or symbols

Diagram of two smartphones with crosshair indicators, connected by a cable (no text or symbols)

Symbol of a trash bin with crossed and unshaded sections, no text or numbers present

Diagram of a plug-in connector being inserted into a terminal block (no text or symbols present)

Diagram of a plug with two pins and a separate plate, showing an arrow pointing to one pin (no text or symbols present)

Diagram of two smartphones connected by a cable, showing crosshair indicators (no text or symbols)

Symbol of a trash bin with no text or numbers present
