IAN 102743 - Chargeur pour appareil mobile SILVERCREST - Free user manual and instructions

Product type	Charger for mobile device
Brand	SilverCrest
Model	IAN 102743
Dimensions (approximate)	5 x 3 x 2 cm
Weight (approximate)	50 g
Input power	100-240 V ~ 50/60 Hz
Output voltage	5 V DC
Output current	1 A (or 2 A depending on model)
Main functions	Charging battery of mobile devices
Care and cleaning	Wipe with a dry, soft cloth. Do not use liquids.
Safety	Do not expose to moisture, do not open, use only with compatible devices.
Spare parts and repairability	Not available separately. In case of malfunction, contact after-sales service.
General information	Mains charger for smartphones, tablets and other USB devices.

Frequently Asked Questions - IAN 102743 SILVERCREST

What type of USB port does this charger use?

This charger is equipped with a standard USB-A port to connect your charging cable.

Can I charge a tablet with this charger?

Yes, provided the tablet accepts charging at 5V/1A (or 2A depending on the model). Some tablets require higher current, charging may be slower.

Is the charger compatible with iPhones and Android phones?

Yes, it works with any device that charges via USB, including iPhones (with Lightning cable) and Android phones (with micro-USB or USB-C cable).

Is it safe to leave the charger plugged in permanently?

It is recommended to unplug the charger when not in use to save energy and avoid any overheating.

What to do if the charger heats up abnormally?

Immediately unplug the charger and stop using it. Excessive heat may indicate an internal defect. Contact after-sales service.

Can I use it abroad with a different voltage?

Yes, it accepts 100-240V input, so it is compatible with most worldwide electrical networks. You may need a plug adapter.

Is the charger protected against short circuits?

Yes, it has built-in protections against overloads, short circuits, and overvoltages.

How to clean the charger?

Use a dry, soft cloth to wipe the surface. Never use liquids or abrasive products.

Where can I find a detailed manual?

The manual is available for free download in PDF format on the website notice-facile.com for model IAN 102743.

What to do if the charger stops working?

First check the cable and the device. If the problem persists, the charger may be defective. Contact SilverCrest after-sales service.

USER MANUAL IAN 102743 SILVERCREST

Color palette bar with grayscale shades and a central target symbol (no text or labels)

SILVERCREST

USB CHARGER

GB IE

USBCHARGER

Operation and Safety Notes

FI

USB-LATURI

Color palette bar with grayscale shades and a central target symbol (no text or labels)

GB/IE Operation and

Safety Notes Page 4

FIKäyttö-ja

Color palette bar and a crosshair symbol on a white background (no text or labels)

Z31306A Z31306A-W

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Intended use......Page 5

Description of parts......Page 5

Technical Data.....Page 5

Scope of delivery......Page 6

Safety notes......Page 6

Start-up ......Page 7

Cleaning and Care......Page 8

Warranty......Page 9

4 GB/IE

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

USB Charger

- Intended use

The USB-adapter is used for the provision of power to electrical appliances equipped with a USB-plug for that purpose, and which have a maximum rating of 1200 mA. The device can be used in a normal car socket that provides the rating given under "Technical Data". The product is not intended for commercial use. The manufacturer is not liable for any damages caused by any use other than for the intended purpose.

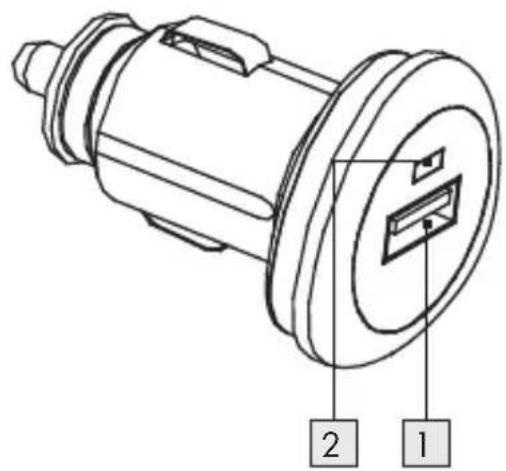

• Description of parts

1 USB-socket
2 Control lamp

- Technical Data

Input voltage: 12/24V

Output voltage: 5V

Max. output current: 1200 mA

5 GB/IE

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Operating

temperature: 0–35 °C

- Scope of delivery

1 USB Charger
1 Set of operating instructions

Safety notes

PLEASE READ THE INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE!

• Check the product for damage before use. Never use a damaged product.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance

6 GB/IE

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

shall not be made by children without supervision.

■ Suitable for indoor use only.
Do not expose the device to direct sunlight or moisture.
Only plug the appliance into sockets that are easily accessible, so that you can unplug it easily in case of an emergency.

- Start-up

ATTENTION! RISK OF OVERHEATING! Only connect the USB-adaptor to appliances which do not require more than 1200 mA (= 1.2 A).

☐ Plug the USB-adapter into a correctly installed car socket. The control lamp 2 shows that the USB-adapter receives current.

Connect the appliance that should be charged with the USB-adapter by plugging its USB-plug into the USB-socket 1.

Note: While using the USB-adapter, you can either run the vehicle engine or leave it switched off.

Attention: Do not switch the ignition on or off during the

7 GB/IE

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

charging process, as this can lead to differences or peaks in the power supply.

☐ Disconnect the charged appliance from the USB-adapter after charging, by unplugging the USB-plug from the USB-socket.
☐ Unplug the adapter from the socket.

- Cleaning and Care

□ Always unplug the USB-charger from the socket before cleaning!
☐ Use a dry, soft and lint-free cloth for cleaning and care.

- Disposal

The packaging is made from environmentally friendly materials, which may be disposed through your local recycling facilities.

Contact your local authorities for information on how to dispose of the product at the end of product life.

8 GB/IE

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Never dispose of the product in your regular household waste!

Dispose of the device / article at an authorised disposal centre or at your local council disposal facility.

Observe the applicable regulations. In case of doubt, please contact your waste disposal centre.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

9 GB/IE

Color palette bar and a crosshair symbol on a gray background (no text or labels)

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

10 GB/IE

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

USB-laturi

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a white background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

USB-laddare

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Drifttemperatur: 0–35 °C

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

USB-oplader

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Utilisation conforme......Page 33

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Chargeur USB

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Correct

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

USB-lader

- Correct gebruik

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Max.

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Afvoer

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Bestimmungs-

gemäße

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Max.

Color palette bar and a crosshair symbol on a textured surface (no text or labels)

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

- Entsorgung

Color palette bar and a crosshair symbol on a gradient background (no text or labels)

Color palette bar and a geometric diagram with no text or symbols

OWIM GmbH & Co. KG

Stiftsbergstraße 1

D-74167 Neckarsulm

Model-No.: Z31306A, Z31306A-W

Version: 10/2014

Last Information Update

Tietojen tila · Informationsstatus

Tilstand af information · Version des
