Product type	Foldable solar charger
Brand	SilverCrest
Model	SLS 13 A1
Input power	approx. 13.2 W (solar panel)
Output voltage	5.0 V +/- 5%
Max. output current	2 A (total on both ports)
Number of USB ports	2
Dimensions (unfolded)	approx. 275 x 190 x 38 mm
Weight (without accessory)	approx. 670 g
Operating temperature	5 °C to 45 °C
Operating humidity	85% RH max. (non-condensing)
Storage temperature	-5 °C to 50 °C
Solar cells	Foldable, with hanging eyelets
Protective case	Yes, with hook-and-loop closure
Main functions	Charging mobile devices (smartphones, MP3 players, cameras) via solar energy; simultaneous charging of two devices
Care and cleaning	Clean with a dry, clean cloth; do not use corrosive liquids
Safety	Do not expose to water, heat sources, magnetic fields; do not open the housing; keep out of reach of children
Spare parts and repairability	No spare parts available; repair only by authorized technical service
Warranty	3 years (according to conditions)
General information	Non-commercial personal use; not suitable for tropical regions; declaration of conformity available on request

Frequently Asked Questions - SLS 13 A1 SILVERCREST

How do I charge my device with the solar panel?

Place the solar panel facing the sun, connect your device to one of the USB ports using its charging cable. Charging starts automatically if there is sufficient sunlight.

Can I charge two devices at the same time?

Yes, you can connect two devices simultaneously, provided the total current does not exceed 2 A.

Which devices are compatible?

All devices requiring a maximum charging current of 2 A, such as smartphones, tablets, MP3 players, digital cameras. Check your device's manual to verify.

Can I use the charger indoors?

Yes, but the output power will be reduced due to window filtering. For optimal performance, use it outdoors with direct sunlight.

What should I do if my device does not charge?

Check the panel's orientation to the sun, the cable connection, and that your device is compatible (max current 2 A). Solar intensity may be insufficient.

How to clean the solar panel?

Use a clean, dry cloth. Never use corrosive liquids or water. Do not attempt to open the housing.

Where to store the charger when not in use?

Fold the panel, close it with the hook-and-loop fastener, and store it in a cool, dry place (temperature between -5 °C and 50 °C).

Can the charger overheat?

Avoid exposing it to temperatures above 45 °C, especially in a car behind the windshield. Do not cover the panel during use.

What is the product warranty?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects (excluding normal wear). Keep the receipt.

Can I repair the charger myself?

No, any attempt to open it voids the warranty. In case of problems, contact the technical service at the numbers indicated in the manual.

USER MANUAL SLS 13 A1 SILVERCREST

Black rectangular electronic device with grid panels, no visible text or symbols on the device itself.

Last Information Update

12/2013.1041-NO:515 3A1-122013-

FR

User manual and service information

IAN 273691

IAN 273691

FR

Français....2

Deutsch 13

English....24

Table des matières

Simple line drawing of an open book with the letter B above it (no text or symbols on the book itself)

A Panneau solaire SilverCrest SLS 13 A1

Close-up of a black electronic device casing with two ports and two white arrows pointing to them (no text or symbols visible)

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Cher client, chère cliente,

Close-up of a black electronic device with two ports and two white arrows pointing to them (no text or symbols visible)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Safety instructions.... 26

Maintenance / cleaning 28

Copyright 28

Overview of the controls 29

Prior to use.... 29

Charging with the solar panel (A) 29

First use.... 30

Compatible devices 30

Charging external devices.... 30

Troubleshooting 31

Storage when not in use.... 31

Environmental and disposal information.... 31

Conformity information.... 32

Warranty and servicing advice 33

Trademarks

USB is a registered trademark.

Other names and products may be the trademarks or registered trademarks of their respective owners.

Introduction

Thank you for purchasing a SilverCrest SLS 13 A1 solar panel. The solar panel (A) is able to convert sunlight into electric power. Thus you can charge, for example, a mobile phone, an MP3 player or a digital camera without a socket while on the move. The solar panel (A) allows you to charge two devices at the same time.

Intended use

This solar panel is an information technology device and is used to charge batteries in mobile phones, MP3 players, digital cameras or other battery-operated devices. For this purpose, the solar panel (A) converts sunlight into electric power and conducts this voltage to connected devices. The device may only be used privately and not for industrial or commercial purposes. Furthermore, the device may not be used in tropical climates. The manufacturer does not accept any liability for any resulting damage or faults in the event of unauthorised modifications to the device. Only use accessories specified by the manufacturer. Please observe the regulations and laws in the country of use.

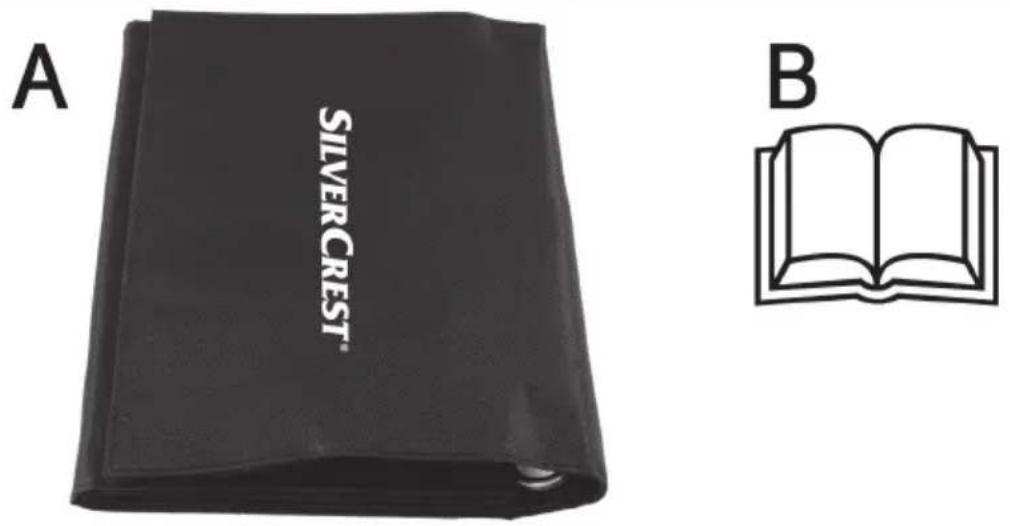

Supplied items

A SilverCrest SLS 13 A1 solar panel
B These operating instructions (symbolic representation)

Technical data

Input power of solar panel (A) approx. 13.2W
Output voltage/current 5.0V +/-	5%, 2A
Dimensions (W x H x D) approx. 275 x 190 x 38mm
Weight (without accessories) approx. 670g
Operating temperature 5°C to 45°C
Operating air humidity max. 85% rel. humidity (non-condensing)
Permissible storage conditions -5°C to +50°C, max. 85% rel. humidity (non-condensing)

The charging time of connected devices depends very much on the sunlight (intensity). This is influenced, for example, by the season, clouds or location.

The technical data and design may be changed without notification.

Safety instructions

Before using this device for the first time, please read the following instructions carefully and take note of the safety warnings, even if you are familiar with the use of electronic devices. Store these instructions in a safe place for future reference. If you sell or pass on the device to someone else, be sure to always include these instructions as they are an integral part of the device.

DANGER! This symbol in conjunction with the "danger" note indicates an imminent dangerous situation which, if not prevented, could result in serious injury or even death.

This symbol indicates other important information on the topic.

Operating environment

The device is not designed for use in environments with high humidity (e.g. bathrooms) or in extremely dusty conditions. Operating temperatures and operating air humidity: 5^ C to +45^ C, max. 85% rel. humidity. If you use it inside a car, particularly behind the windscreen, note that temperatures well above +45^ C can be reached.

DANGER! Ensure that

• no direct heat sources (e.g. heating) can affect the device
• the device is not exposed to bright artificial light
• any contact with splashed and dripping water and corrosive liquids is avoided and the device is not operated in the vicinity of water. In particular, the device should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks, on or near the device)
• the device is not in the immediate vicinity of magnetic fields (e.g. speakers)
• no fire sources (e.g. burning candles) are placed on or near the device
• no foreign objects penetrate the device
• the device is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the device has reached ambient temperature before use

- the device is never subjected to excessive shocks and vibrations

- the device is not covered.

If the aforementioned instructions are not observed, it poses a risk to your health or the device could be damaged.

DANGER! Children and persons with disabilities

Electrical devices do not belong in the hands of children. Persons with limited physical, sensory or mental abilities should also only use electrical devices appropriately. Never allow children or persons with disabilities to use electrical devices unsupervised, unless they have been instructed accordingly or are supervised by a person responsible for their safety. Children must always be

supervised to ensure that they do not play with this device. Small parts can be fatal if swallowed. Always keep plastic packaging out of reach.

DANGER! It poses a suffocation risk.

DANGER! Cables

Always handle the cables by the connector and do not pull on the cables themselves. Never place furniture or other heavy objects on the cables and take care that the cables are not kinked, especially near the plug and connection sockets. Never tie a knot in a cable and do not tie cables together. Ensure that all cables are placed so that no one can trip over them and they do not cause an obstruction.

Maintenance / cleaning

It is necessary to repair the device if it has been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture. Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, disconnect all cable connections immediately. In such cases, the device should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Only use a clean, dry cloth for cleaning and never use any corrosive liquids. Never try to open the housing of the device. This would void your warranty.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing.

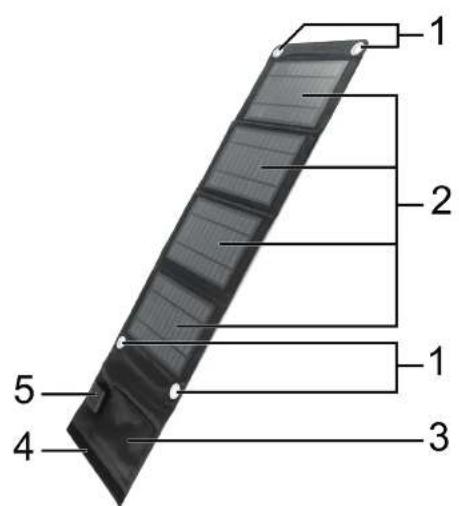

Overview of the controls

An illustration of the controls with the relevant reference numbers can be found on the fold-out inside cover of these instructions. You can leave this cover page folded out while reading further sections of these instructions. Thus you always keep a reference to the relevant control in sight.

1 Eyelets
2 Solar cells
3 Pouch
4 Velcro fastener
5 USB ports (for connecting to charging devices)

Prior to use

Remove the solar panel (A) and the accessories from the packaging.

You can now unfold the solar panel (A) and align it with the sun. You have the following options:

• Hang the solar panel (A) vertically. Use two eyelets (1) that are close to each other.
• Hang the solar panel (A) horizontally. Use two eyelets (1) that are distant from each other, but not the diagonally opposite eyelets (1).
• Place the solar panel (A) on a flat surface.

Always ensure that the solar cells (2) are faced towards the sun.

Avoid the overheating of devices to be charged by direct sunlight:

• If the device is in the pouch (3), close it so that it is facing away from the sun.
• If you charge a device which is not in the pouch (3), place it in a shaded area or cover it.

If you are not using the solar panel, fold it up and close it with the Velcro fastener (4). The solar cells (2) are thus protected against mechanical impact and the solar panel can be easily transported.

Charging with the solar panel (A)

Please note that the output power that can be generated by the solar panel when used indoors is reduced due to the filter effect of glass panes.

Note that the maximum ambient temperature of +45^ must not be exceeded. You must pay particular attention to this point when using the solar panel inside a motor vehicle.

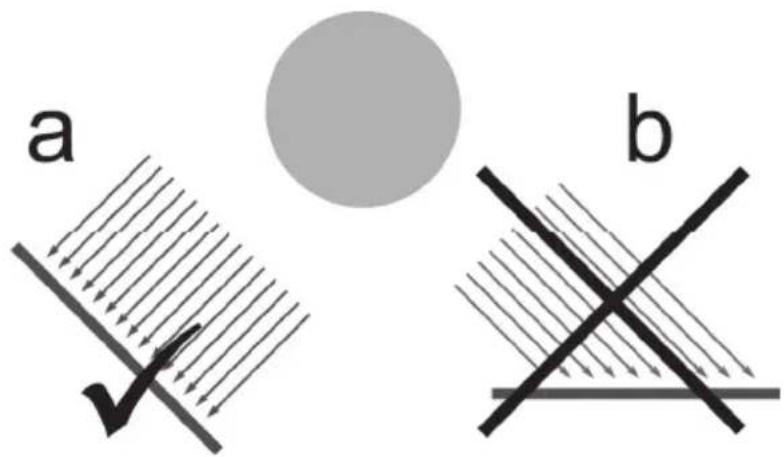

Make sure that the solar panel (A) is aligned optimally with the sun and receives sufficient sunlight. Optimal efficiency is achieved when the sun's rays hit the solar cells (2) at an angle that is as vertical as possible (figure a). The solar panel is less efficient if the sun's rays hit the solar cells (2) at a flatter angle (figure b).

First use

Compatible devices

The solar panel (A) can be used to charge end devices which require a charging current of 2A at most.

Before charging, check the suitability of your end device based on its technical data (operating instructions).

Charging external devices

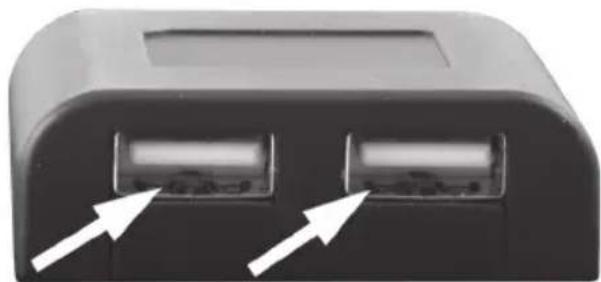

Connect the charging cable of your end device to one of the two USB ports (5) of the solar panel (A) and to your device.

Close-up of a black electronic device component with two ports and directional arrows indicating flow or movement (no text or symbols)

You can put your device into the pouch (3) while charging. This is especially useful if the solar panel (A) is hung vertically because the opening of the pouch (3) is always facing upwards in this case and your device cannot fall out. This is not guaranteed if the solar panel is hung horizontally or is laid on a flat surface.

The charging process starts as soon as the connection has been established and sufficient sunlight is available.

You can charge two devices at the same time if the required charging current of both devices does not exceed 2A in total.

You can interrupt the charging process at any time by disconnecting your device from the solar panel (A). When your device is fully charged, disconnect it from the solar panel (A).

Troubleshooting

A connected end device is not charged.

• There is not enough sunlight available. Align the solar panel (A) better with respect to the sun.
• If there is no connection to the device, check the connection.
• Your connected device does not comply with the specifications. Check this fact using the operating instructions of your device.

Storage when not in use

If you will not be using the solar panel (A) for a prolonged period, fold it up and close it with the Velcro fastener (4). Store the device in a dry, cool location.

Environmental and disposal information

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

When this symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The correct disposal of old devices in this manner will prevent environmental pollution and human health hazards. For further information about proper disposal, contact your local authorities, waste disposal office or the shop where you bought the device.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Conformity information

This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC as well as the RoHS Directive 2011/65/EU.

The complete EU Declaration of Conformity is available on request at:

[e-mail]

Warranty and servicing advice

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: 020 - 70 49 04 03

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 02 - 20 09 025

E-Mail: [e-mail]

IAN: 273691
