Product Type	Wall mount for monitors/TVs
Brand	Marquant
Model	929-070
Maximum Load	30 kg (66 lbs)
VESA Compatibility	Compatible with standard VESA patterns using M4 and M5 screws (75x75mm, 100x100mm, etc.)
Material	Steel, plastic decor pieces
Color	Black (typical)
Tilt Adjustment	+20° / -20°
Swivel Adjustment	180°
Installation Surfaces	Wood stud, concrete, brick wall
Included Parts	Wall plate, adapters, screws (M4×14, M5×14), washers, concrete anchors, decor pieces
Required Tools	Drill, screwdriver, level, pencil
Indoor/Outdoor	Indoor use only
Maintenance	Check installation every 3 months
Safety	Do not exceed max load; install by qualified personnel; tighten screws firmly but not too hard
Spare Parts Availability	Contact dealer or Jula service department
Manual Languages	EN, SV, NO, PL

Frequently Asked Questions - 929-070 Marquant

What is the maximum weight this wall mount can hold?

The maximum load is 30 kg (66 lbs). Do not exceed this limit to avoid risk of injury or damage.

What VESA patterns are compatible?

The mount includes M4 and M5 screws and washers, supporting standard VESA patterns such as 75x75mm, 100x100mm, and other sizes up to the load limit.

Can I install this mount on a brick wall?

Yes, the mount can be installed on concrete or brick walls. Use the supplied concrete anchors and drill into bricks or concrete blocks, not mortar joints. Ensure the wall is at least 35 mm thick.

How do I adjust the monitor angle after installation?

The mount allows +20°/-20° tilt and 180° swivel. Loosen the adjustment knob, position the monitor, then tighten the knob securely.

What tools are required for installation?

You will need a drill, screwdriver, level, and pencil. A stud finder is recommended for wood stud installation.

How do I manage cables with this mount?

The mount includes decor pieces that snap onto the wall plate and arm bracket. Cut a corner off the decor piece for cables, pull the cables through the opening, then snap the pieces in place.

Is the mount suitable for outdoor use?

No, the product is designed for indoor use only. Outdoor installation may cause personal injury or damage.

How often should I check the mount for safety?

Inspect the installation at least every 3 months to ensure the bracket remains secure. Contact your dealer if you notice any issues.

What should I do if parts are missing or damaged?

Contact your dealer immediately. Do not install the mount without all parts listed in the manual.

Can I install this mount alone?

It is recommended to have another person assist or use a mechanical lifting device to lift and position the monitor safely.

USER MANUAL 929-070 Marquant

Installation Instructions for Wall Bracket

929-070

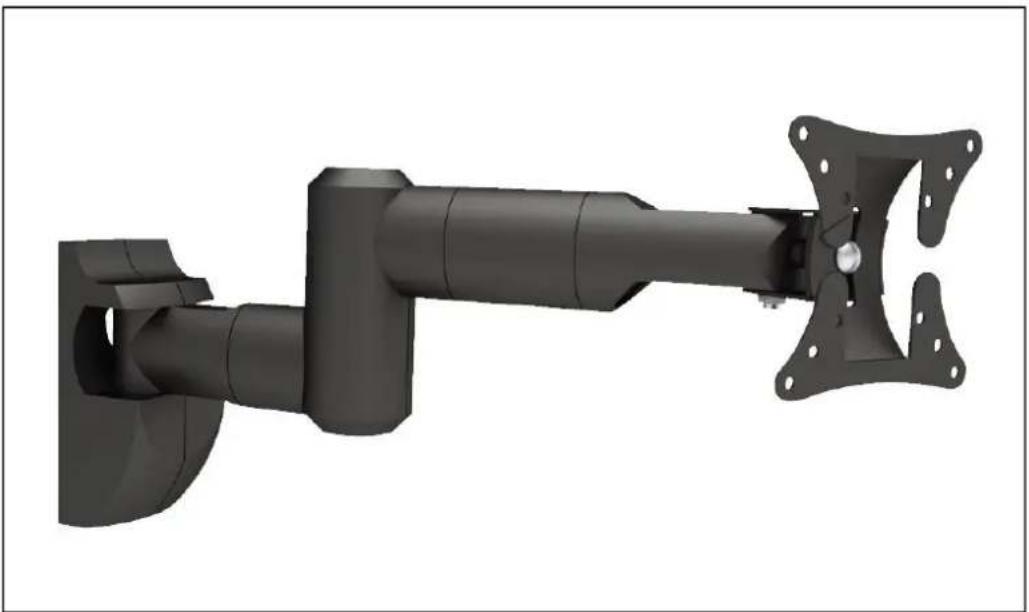

3D rendering of a mechanical assembly with cylindrical components and mounting flanges (no text or symbols visible)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SVENSKA 4

SÄKERHETSANVISNINGAR 4

BESKRIVNING 4

Delar 5
Paket M....5
Paket W 5

MONTERING 6

Deler 12
Pakke M....12
Pakke W....12

MONTERING....13

SAFETY INSTRUCTIONS....25

DESCRIPTION 25

Parts 26

Package M 26

Package W....26

INSTALLATION 27

Installation on wooden stud in wall 27

Installation on concrete or brick wall 28

Fitting the adapters 28

Cables, leads and decor pieces.... 29

Mounting the monitor 30

Adjusting 31

MAINTENANCE 31

SÄKERHETSANVISNINGAR

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Delar

Five different types of office supplies and tools: front panel, electronic device, flatboard, pen, and power tool (no text or symbols visible)

Technical line drawing of a mechanical assembly with mounting bracket and handle (no text or symbols)

Märk ut monteringshålens placering

Förborra hålen

Technical line drawing of a mechanical device with cutaway views and a pair of scissors (no text or symbols)

Mechanical assembly diagram showing a mounted device with directional arrows indicating motion, mounted on a brick wall (no text or symbols present)

Technical line drawing of a mechanical device mounted on a brick wall, with no visible text or symbols.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Deler

Five grayscale product icons: door panel, electronic device, flat blade, pencil, and power tool (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Marker monteringshullenes plassering

Forhåndsbor hullene

Technical line drawing of a mechanical clamp or bracket assembly with scissors, showing internal components and part views (no text or symbols)

Mechanical assembly diagram showing a mounted device with directional arrows indicating movement, set against a brick wall background (no text or symbols)

Technical line drawing of a mechanical device mounted on a brick wall, with no visible text or symbols.

Knepp dekorstykkene fast på veggplaten og armfestet.

Montering av skjerm

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Części

Five different types of office supplies and tools: front panel, electronic device, flatboard, pen, and power tool (no text or symbols visible)

Technical line drawing of a mechanical latch assembly with mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with scissors, showing internal components and part views (no text or symbols)

Mechanical assembly diagram showing a mounted device with directional arrows indicating movement, set against a brick wall background (no text or symbols)

Technical line drawing of a mechanical device mounted on a brick wall, no text or symbols present

Read the Installation Instructions carefully before use.

Contact your dealer if you have any questions.

WARNING: Do not exceed the permitted maximum load (max. 30 kg) – risk of serious personal injury and/or material damage.

WARNING:

• Read all the instructions and safety instructions carefully before installation. Contact your dealer if you have any questions.
• The product must only be installed by qualified personnel.
• Check that the wall can support the weight of the bracket and the appliance it is to hold.
• Screw the screws into the middle of any studs.
• Ask another person to help, or use a mechanical lifting device to lift and position the equipment.
• Tighten the screws firmly, but not too hard – risk of material damage.
• The product is only intended for indoor use. Using it outdoors can cause personal injury and/or material damage.

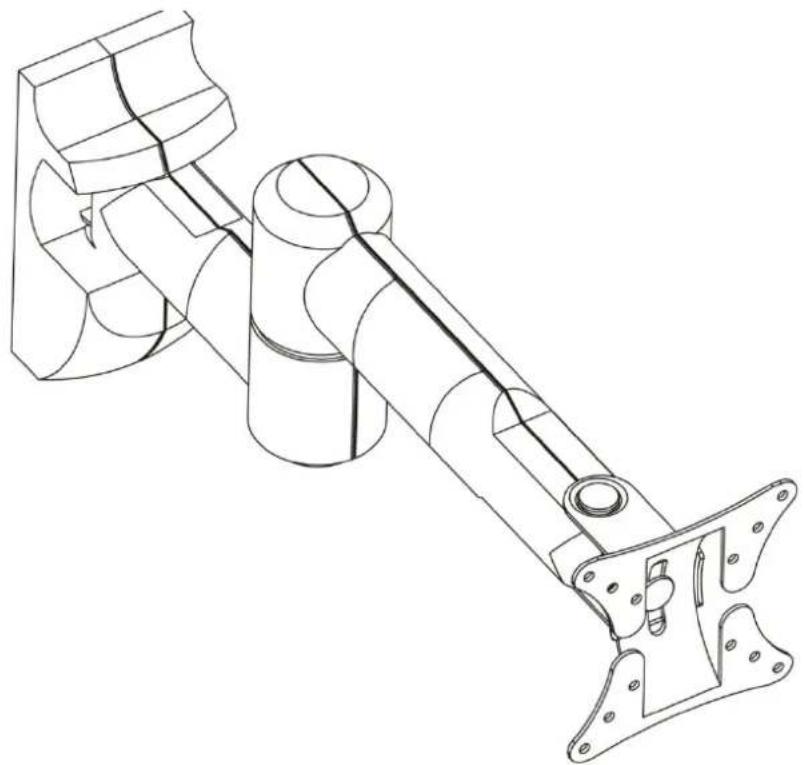

DESCRIPTION

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Parts

IMPORTANT: Check that you have all the parts in the list. Contact your dealer if any parts are missing or damaged.

Package M

M4 × 14 (4) M-A

M5 × 14 (4) M-B

Washer D5 (4) M-C

Package W

ST6.3 x 55 (6) W-A

Concrete anchor (6) W-B

Washer D6 (6) W-C

INSTALLATION

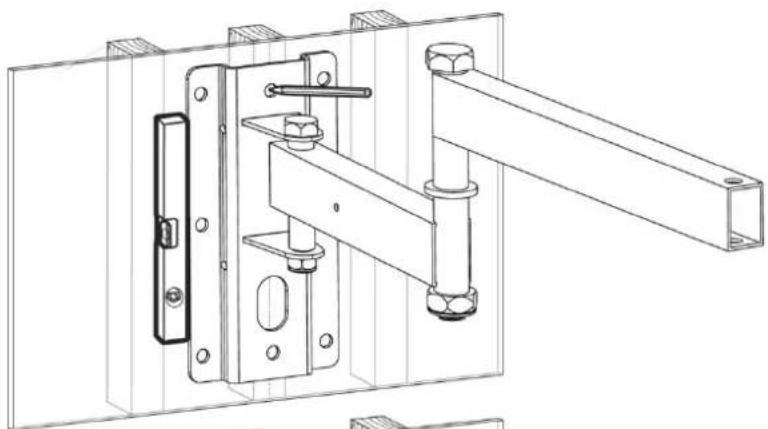

Installation on wooden stud in wall

Five different types of office supplies and tools: front panel, electronic device, flatboard, pen, and power tool (no text or symbols visible)

Technical line drawing of a mechanical latch assembly with mounting bracket (no text or symbols)

Mark out the position of the holes

Predrill the holes

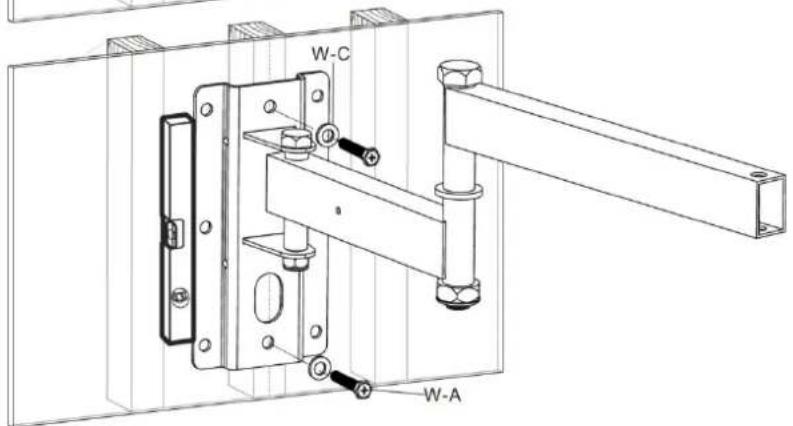

Screw the wall plate to the wall.

WARNING:

• Fasten the screws in the middle of the studs.
• Make sure to use suitable parts for the installation.
• Check that the wall can support the weight of the bracket and the appliance it is to hold.

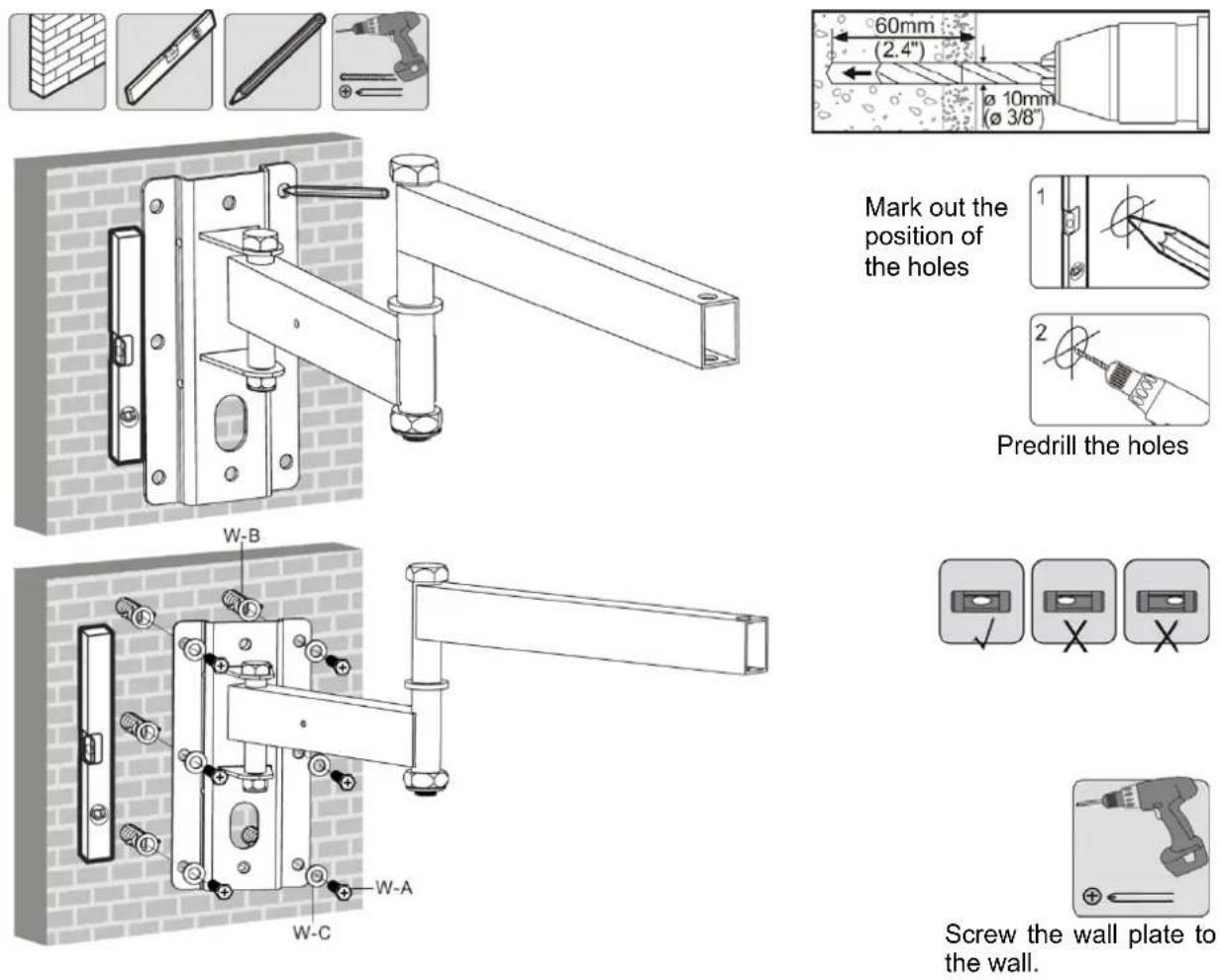

Installation on concrete or brick wall

Mark out the position of the holes
Predrill the holes
Screw the wall plate to the wall.

WARNING:

• Check that the concrete is at least 35 mm thick to accommodate the concrete anchors. Do not drill into mortar joints. Drill into the bricks or concrete blocks, preferably at least 25 mm from the edge. Drill at low speed, not with the hammer drill function, otherwise this could produce a large hole in the other side of the wall if the drill breaks through.
• Check that the wall can support the weight of the bracket and the appliance it is to hold.

Fitting the adapters

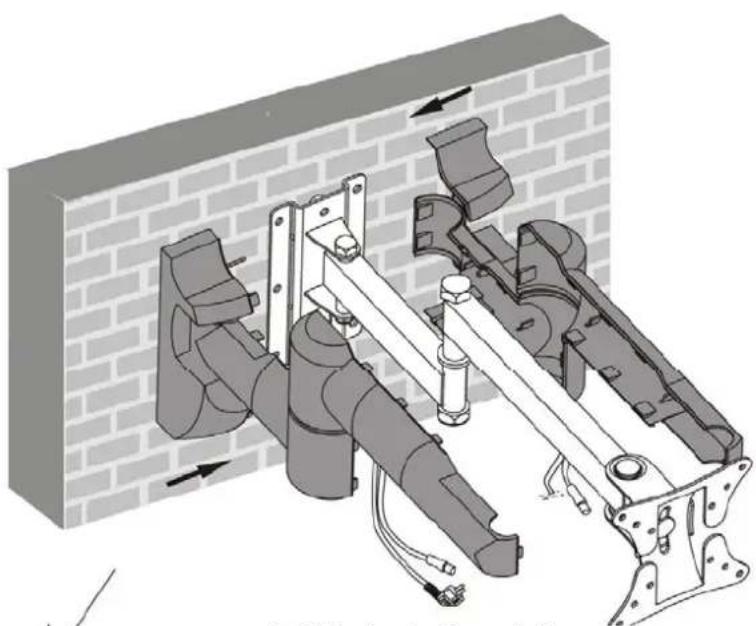

Cables, leads and decor pieces

Technical line drawing of a mechanical clamp or bracket assembly with scissors, showing internal components and part views (no text or symbols)

Cut off the corner from the decor piece for the leads and cables.

Mechanical assembly diagram showing a mounted device with bolts and wiring, mounted on a brick wall (no text or symbols visible)

Pull the leads through the opening.

Snap the decor pieces onto the wall plate and arm bracket.

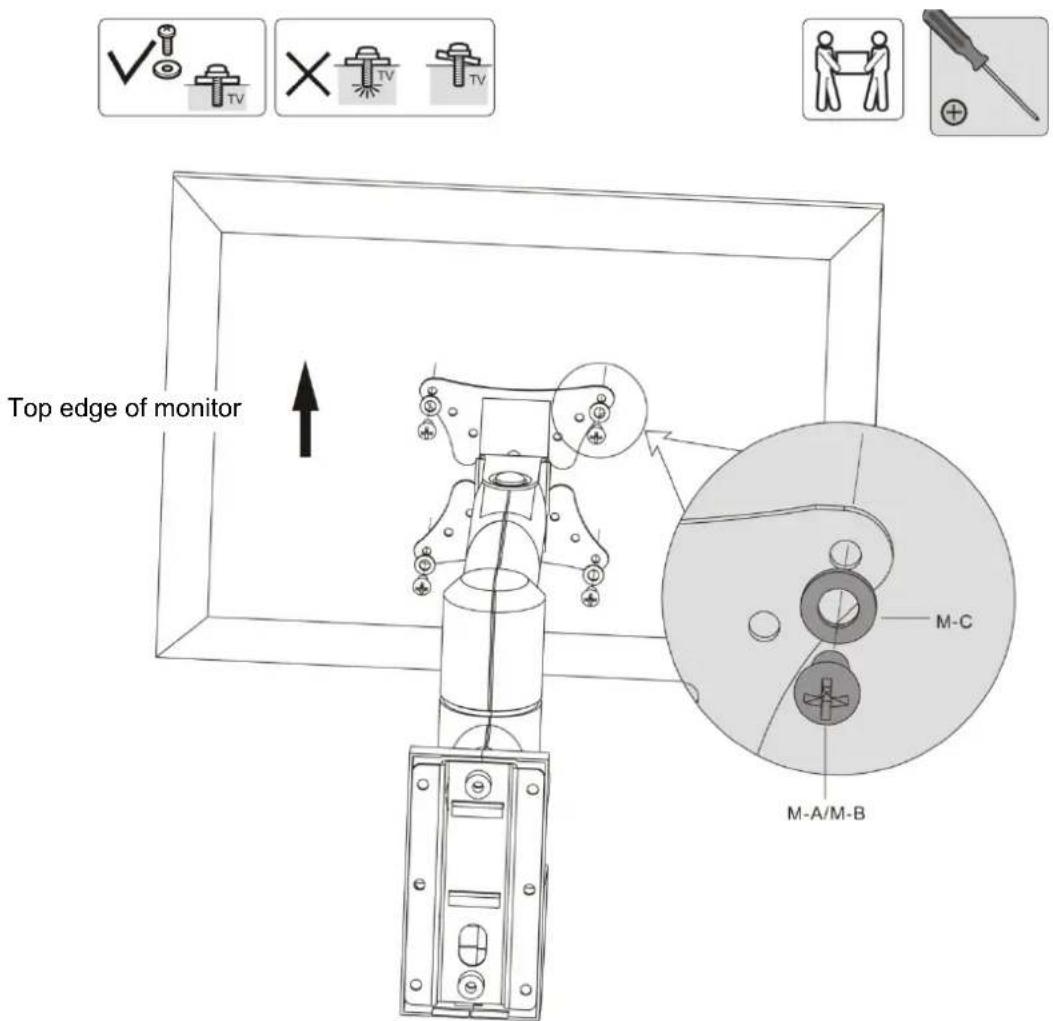

Mounting the monitor

• Lift the monitor and align the hole to the hole in the bracket.
• Mount by tightening the screws.

WARNING: Tighten the screws firmly, but do not overtighten.

Adjusting

Adjust the monitor to the required angle and tighten the knob to set the angle.

MAINTENANCE

• Check at least every 3 months that the bracket is properly installed.
• Contact your dealer if you have any questions.

Jula reserves the right to make changes. In the event of problems, please contact our service department.
