Product Type	Wall Mount
Brand	Marquant
Model	003-125
Compatible Screen Sizes	32" to 65"
Dimensions (W x H x D)	400 x 250 x 30 mm
Weight	2.5 kg
Max Load Capacity	50 kg
Material	Steel
Color	Black
VESA Compatibility	200x200, 300x300, 400x400 mm
Distance from Wall	30 mm
Installation Type	Fixed wall mount
Included Hardware	Screws, wall anchors, spacers
Cleaning Instructions	Wipe with a soft dry cloth
Safety Warning	Do not exceed maximum load; ensure proper wall anchoring

Frequently Asked Questions - 003-125 Marquant

What is the VESA pattern of the Marquant 003-125 wall mount?

The Marquant 003-125 supports VESA patterns 200x200 mm, 300x300 mm, and 400x400 mm. Common for most flat-screen TVs.

What is the maximum weight capacity of this wall mount?

The maximum load capacity is 50 kg, which accommodates most TVs up to 65 inches.

What screen sizes are compatible with the Marquant 003-125?

It is compatible with TVs ranging from 32 inches to 65 inches, depending on weight and VESA pattern.

Is the Marquant 003-125 easy to install?

Yes, it comes with a user manual and all necessary hardware. Basic DIY skills and tools (screwdriver, drill, level) are required.

What tools are needed for installation?

You will need a screwdriver, power drill, stud finder, and a level. All mounting hardware is included.

Does the Marquant 003-125 tilt or swivel?

No, this is a fixed wall mount. It keeps the TV flat against the wall without tilting or swiveling.

Can I install the mount on a concrete wall?

Yes, but you must use the provided wall anchors and ensure they are suitable for concrete. A hammer drill may be needed.

Is the Marquant 003-125 compatible with curved TVs?

Yes, as long as the TV has a VESA pattern within the supported range (200x200 to 400x400 mm). The mount's flat face may not conform to the curve, but it is safe.

How far does the TV sit from the wall?

The mount keeps the TV approximately 30 mm from the wall, providing a slim profile.

What is the warranty period for the Marquant 003-125?

Marquant offers a 1-year warranty against manufacturing defects. Register the product online for support.

USER MANUAL 003-125 Marquant

Black metal TV cable support with two vertical connectors and mounting holes (no text or symbols)

SE VÄGGFÄSTE

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

2a

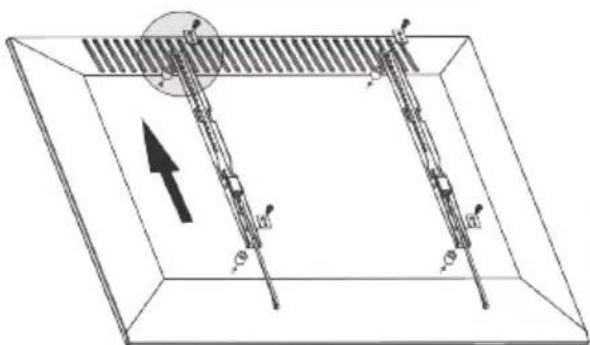

Pure technical diagram of a mechanical assembly inside a transparent enclosure, showing internal components and an arrow indicating direction (no text or symbols)

2b

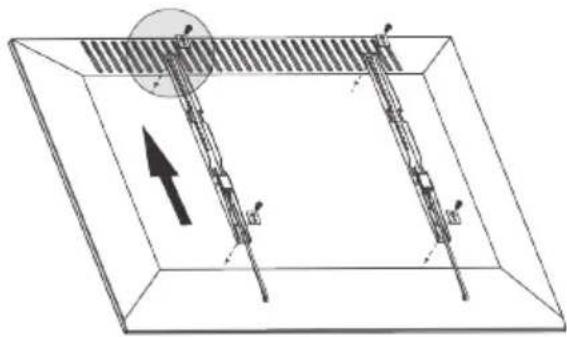

Pure technical diagram of a mechanical assembly inside a transparent enclosure, showing no text, numbers, or symbols.

3

Diagram showing a mechanical assembly process: before and after transformation, with no visible text or symbols.

SÄKERHETSANVISNINGAR

WARNING!

• Hanging up products heavier than the specified weight will make the wall bracket instable and can result in the risk of personal injury.
• The bracket must be mounted according to instructions. Incorrect installation can result in serious personal injury and/or material damage.
• Check that all the parts on the list are included. Contact the manufacturer if any parts are missing or damaged.
• Read these instructions carefully before installation and assembly. Contact the manufacturer if you have any questions.
• Safety equipment and the correct tools must be used. The product must only be installed by persons who have have the requisite competence and experience.
• The product is intended to be hung up on wooden stud walls, solid concrete walls, or brick walls.
• Check that the wall can support the weight of the bracket and the appliance.
• Use the supplied screws, and DO NOT OVERTIGHTEN.
• The product contains small parts that can result in a risk of suffocation if swallowed. Keep small parts out of the reach of children.
• The product is only intended for indoor use. Using it outdoors can result in personal injury and/or material damage.

TECHNICAL DATA

Max weight 75 kg

For TV size 60-100 inch

MAINTENANCE

Check at least every three months that the bracket is correctly installed.
