| Type of product | Wall mount bracket for flat-panel monitors/TVs |
| Brand | Marquant |
| Model | 929-079 |
| Max load | 30 kg (66 lbs) |
| VESA compatibility | Up to 400x400 mm (estimated) with adapters for M4 and M5 screws |
| Tilt range | +20° / -20° |
| Swivel range | 180° rotation left/right |
| Wall compatibility | Wooden studs, concrete, brick (minimum 35 mm thickness) |
| Included screws (Package M) | M4x14 (4), M5x14 (4), Washer D5 (4) |
| Included screws (Package W) | ST6.3x55 (6), Concrete anchors (6), Washer D6 (6) |
| Drilling requirements (wood studs) | 55 mm spacing, Ø 4.5 mm pilot holes |
| Drilling requirements (concrete/brick) | 60 mm spacing, Ø 10 mm holes for anchors |
| Material | Steel (painted black) |
| Indoor use only | Yes |
| Maintenance | Check every 3 months for secure installation |
| Care instructions | Wipe with dry cloth; do not use abrasive cleaners |
| Safety warnings | Do not exceed max load; install by qualified personnel; use appropriate anchors |
| Package contents | Wall plate, arm bracket, screws, anchors, washers, decor pieces |
Frequently Asked Questions - 929-079 Marquant
User questions about 929-079 Marquant
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wall mount in PDF format for free! Find your manual 929-079 - Marquant and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 929-079 by Marquant.
USER MANUAL 929-079 Marquant
Installation Instructions for Wall Bracket
929-079
NO Bruksanvisning i original
EN Operating instructions in original
SVENSKA 4
SÄKERHETSANVISNINGAR 4
BESKRIVNING 4
Delar 5
Paket M....5
Paket W 5
MONTERING 6
Deler 12
Pakke M....12
Pakke W....12
MONTERING....13
SAFETY INSTRUCTIONS....25
DESCRIPTION 25
Parts 26
Package M 26
Package W....26
INSTALLATION 27
Installation on wooden stud in wall 27
Installation on concrete or brick wall 28
Fitting the adapters 28
Cables, leads and decor pieces.... 29
Mounting the monitor 30
Adjusting 31
MAINTENANCE 31
SÄKERHETSANVISNINGAR



Förborra hålen


Förborra hålen
Technical illustration of a mechanical assembly with mounting brackets and wiring, mounted on a brick wall (no text or symbols)natural_image
Technical line drawing of a mechanical device mounted on a brick wall, with no visible text or symbols.natural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsDeler

Forhåndsbor hullene
monteringshullenes
plassering


Forhåndsbor hullene
Technical illustration of a mechanical assembly with mounting brackets and wiring, mounted on a brick wall (no text or symbols)natural_image
Technical line drawing of a mechanical device mounted on a brick wall, with no visible text or symbols.Knepp dekorstykkene fast på veggplaten og armfestet.
Montering av skjerm
Mechanical assembly diagram showing a bracket mounted on a brick wall with directional arrows indicating motion (no text or symbols present)natural_image
Technical line drawing of a mechanical device mounted on a brick wall, with no visible text or symbols.Read the Installation Instructions carefully before use.
Contact your dealer if you have any questions.
WARNING: Do not exceed the permitted maximum load (max. 30 kg) – risk of serious personal injury and/or material damage.
WARNING:
- Read all the instructions and safety instructions carefully before installation. Contact your dealer if you have any questions.
- The product must only be installed by qualified personnel.
- Check that the wall can support the weight of the bracket and the appliance it is to hold.
- Screw the screws into the middle of any studs.
- Ask another person to help, or use a mechanical lifting device to lift and position the equipment.
- Tighten the screws firmly, but not too hard – risk of material damage.
- The product is only intended for indoor use. Using it outdoors can cause personal injury and/or material damage.
DESCRIPTION
IMPORTANT: Check that you have all the parts in the list. Contact your dealer if any parts are missing or damaged.

Package M

M4 x 14 (4)
M-A

M5 x 14 (4)
M-B

Washer D5 (4)
M-C
Package W

ST6.3 x 55 (6)
W-A

Concrete anchor (6)
W-B

Washer D6 (6)
W-C
INSTALLATION

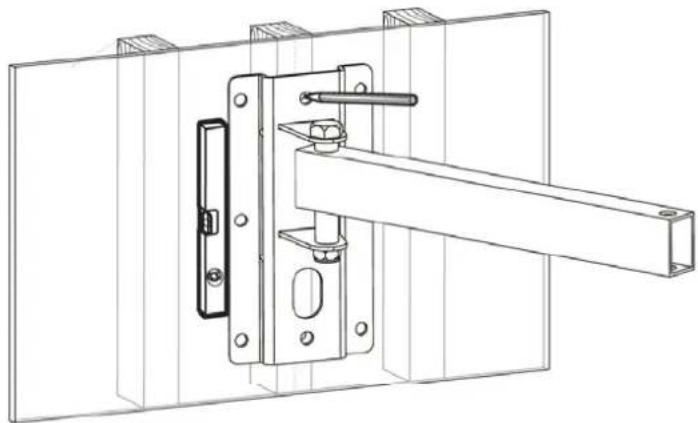

Installation on wooden stud in wall
Mark out the position of the holes



Predrill the holes

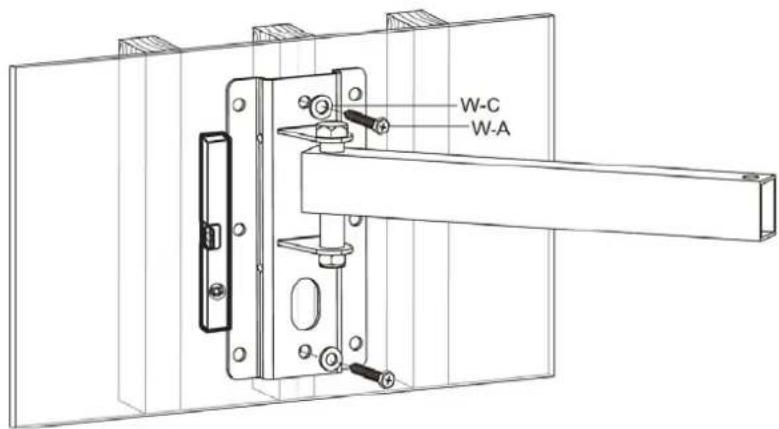

Screw the wall plate to the wall.
WARNING:
- Fasten the screws in the middle of the studs.
- Make sure to use suitable parts for the installation.
- Check that the wall can support the weight of the bracket and the appliance it is to hold.

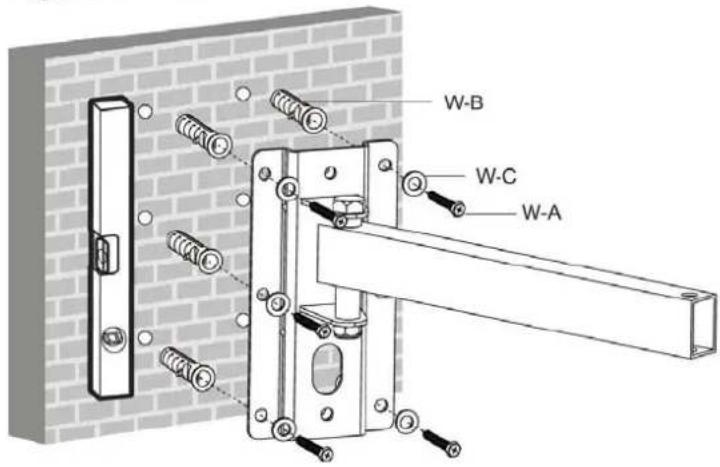

Installation on concrete or brick wall


Predrill the holes



Screw the wall plate to the wall.
WARNING:
- Check that the concrete is at least 35 mm thick to accommodate the concrete anchors. Do not drill into mortar joints. Drill into the bricks or concrete blocks, preferably at least 25 mm from the edge. Drill at low speed, not with the hammer drill function, otherwise this could produce a large hole in the other side of the wall if the drill breaks through.
- Check that the wall can support the weight of the bracket and the appliance it is to hold.
Fitting the adapters

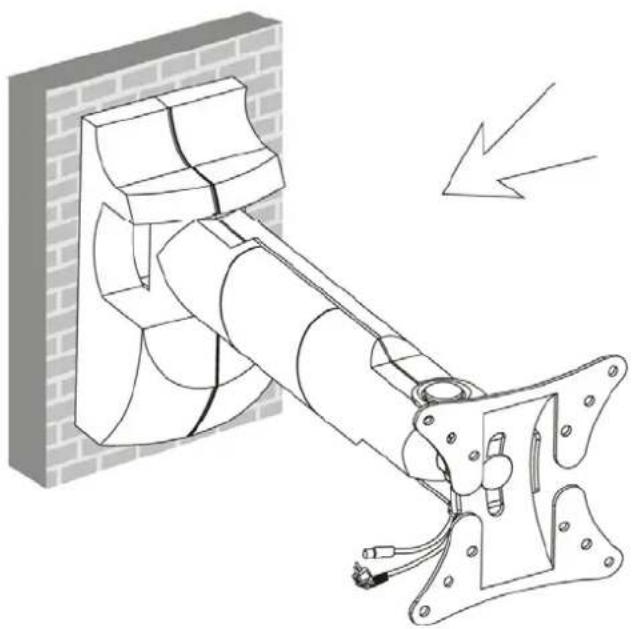

Cables, leads and decor pieces
Mounting the monitor

- Lift the monitor and align the hole to the hole in the bracket.
- Mount by tightening the screws.
WARNING: Tighten the screws firmly, but do not overtighten.
Adjusting

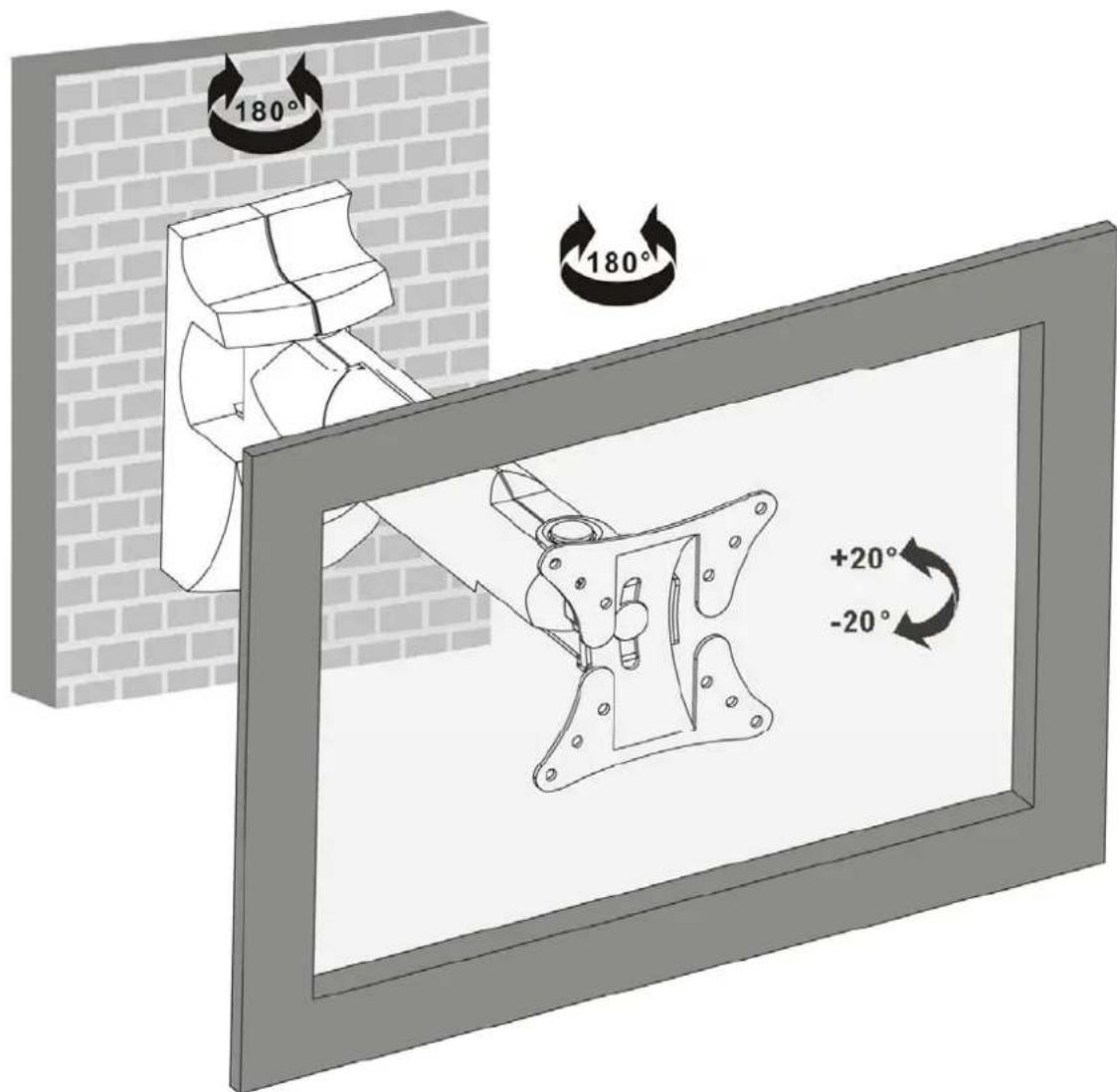

Adjust the monitor to the required angle and tighten the knob to set the angle.
