USER MANUAL 101D PLATINUM ARCHOS

Congratulations for the purchase of an ARCHOS device!

This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device,

• You can consult the frequently asked questions on our website:

go to http://faq.archos.com/

• You can send us a message on Facebook:

go to www.facebook.com/ARCHOS

• You can contact our After-sales department:

go to www.archos.com, click Support > After-sales support >

• You can consult the declaration of conformity:

go to www.archos.com, click Support > Downloads >

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

ARCHOS 101d Platinum

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

Getting Started

Charging

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.

2. Press the Power button to turn on the device.

3. You can use your ARCHOS whilst it charges.

4. Let your device charge completely the first time you use it.
5. Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

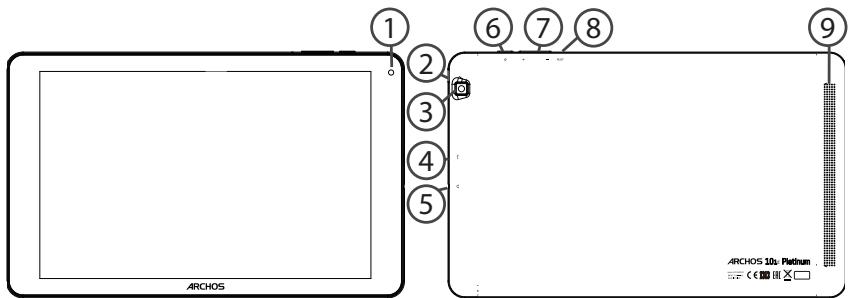

Description of the device

①Webcam
Notch
③ Camera

Micro-USB port
⑤ Headphone jack
⑥ ON/OFF button

Volume buttons
Reset button
9 Loudspeaker

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Language
• WiFi connection
• Date & time
• Your name
• Location service options
• 3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

WARNING: Make sure that you are in a WiFi zone.

You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.
   Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

Connecting to WiFi using WPS

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Select the Menu button, then Advanced.
6. Select WPS Push Button.
7. Press the WiFi Protected Setup button on your router. It may be called "WPS" or contain a symbol:

Wi-Fi

Add network

Saved networks

Refresh

Advanced

Wi-Fi Direct

WPS Push Button

WPS Pin Entry

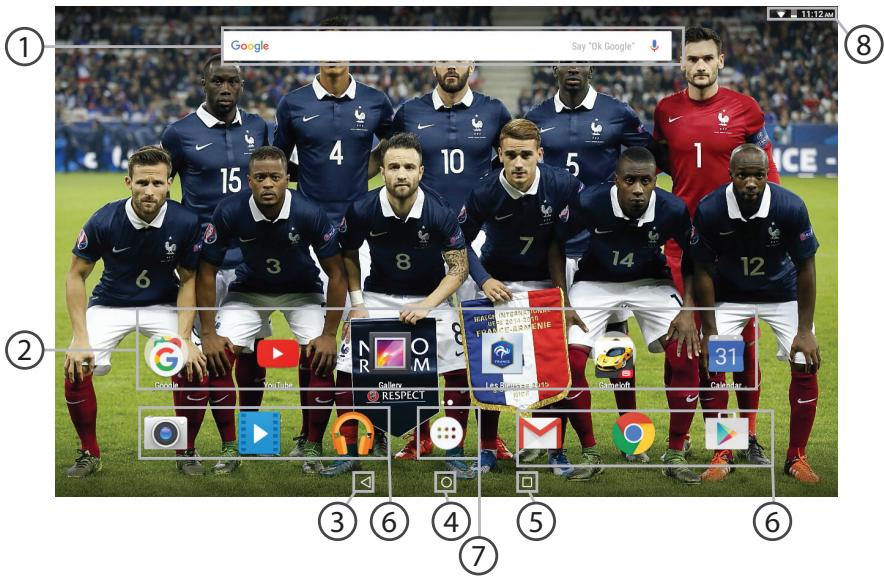

The Android™ Interface

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search.
2 AndroidTM apps shortcuts
Touch to start an application.
③ Back button
(4) Home button
(5) Recent apps buttons
6 Permanent Android™ apps shortcuts

Touch to start an application

7 All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

The status bar

Displays notifications and quick settings

The Android™ Interface

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

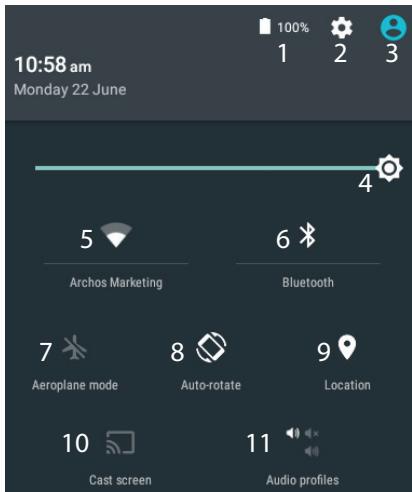

The Quick settings

1 Percentage of battery remaining
2 To access all your settings.
3 Current user*
4 To adjust the screen brightness.
5 To turn on/off your WiFi connection.
6 To turn on/off your Bluetooth connection.
7 To activate/deactivate all wireless connections, especially when flying.
8 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
9 Location services
10 To mirror your Android device to the TV so you can enjoy your great content exactly as you see it on your mobile device.
11 To select a notification type

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Swipe left or right: to close an app.

Scroll up or down: to view other recent apps

Getting familiar with Android™

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

Bienvenue

Felicitations, you venez d'acquerir un apparéil ARCHOS!

go to www.archos.com, click Support > After-sales support >

support [After Sales] >

①Webcam
②Inkeeping
③ Camera

WiFi-networkverbinding

Verbinding makes met WiFi via WPS

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

Szybka konfiguracja

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	None	Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http:// www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC101DPLV3.pdf
