Copper 101 - Tablet ARCHOS - Free user manual and instructions

Product type	Tablet
Brand	ARCHOS
Model	Copper 101
Power supply	Rechargeable lithium-ion battery, mains charger included (5V)
Screen	Capacitive touch screen, 10.1 inches (estimated)
Wireless connectivity	WiFi 802.11 b/g/n, Bluetooth
Connectors	Power connector, 3.5mm audio jack, micro-USB port (charge/data), mini-HDMI (optional)
Sensors	Front webcam, microphone, accelerometer (auto-rotation)
Operating system	Android (version unspecified)
Main functions	Web browsing, Android apps, multimedia playback, camera, quick settings
Security	Screen lock by pattern, PIN code or password
Physical buttons	Volume +/-, ON/OFF, reset button (Reset)
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Box contents	ARCHOS 101 COBALT tablet, USB cable, charger, warranty guide

Frequently Asked Questions - Copper 101 ARCHOS

How to charge the tablet battery?

Plug the provided power cable into the tablet's power connector and then into a wall outlet. The charging indicator is red while charging and green when the battery is fully charged. Use only the provided charger.

How to turn the tablet on or off?

Press the ON/OFF button to turn on the device. To turn off, hold the ON/OFF button until the shutdown menu appears.

How to connect to a WiFi network?

Pull down the status bar, enable WiFi by switching the toggle to ON. Select your network from the list, enter the password if required, and check Show password to verify.

What to do if the tablet becomes unresponsive?

Press the ON/OFF button for 10 seconds or use the Reset button with a pointed object (paperclip) to force a restart.

How to restore factory settings?

Turn off the tablet. Hold the Volume + button while plugging in the charger. When the Android robot appears, release Volume+. Press ON/OFF, then once on Volume +. Navigate with the volume buttons and confirm with ON/OFF: select Wipe data/factory reset, then Yes -- delete all user data, then Reboot system now.

How to extend battery life?

Lower the screen brightness via quick settings and disable wireless connections (WiFi, Bluetooth) when not in use.

How to access quick settings?

Pull down the status bar from the top of the screen. You will find icons to adjust brightness, enable/disable WiFi, Bluetooth, Airplane mode, and auto-rotation.

How to move an icon on the home screen?

Press and hold the icon until alignment lines appear, then drag it to the desired location and release.

How to uninstall an application?

Open the All apps screen, press and hold the app icon, then drag it to the top of the screen and drop it on the Uninstall icon.

How to lock the screen with a code?

Go to Settings > Security > Screen lock. Choose between Pattern, PIN, or Password. Once set, the screen will lock automatically after a period of inactivity.

USER MANUAL Copper 101 ARCHOS

Package contents. 2
Getting started. 3
Description of the device. 4
Connecting to a WiFi network. 6
The AndroidTM interface. 8
Getting familiar with AndroidTM 12
Troubleshooting. 14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

ARCHOS 101 COBALT

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

Getting Started

Charging

1. Connect the supplied power cable to the ARCHOS and to a wall outlet.

The ARCHOS device will start charging.

The charging indicator light is red while the battery is charging.

It will turn green when the battery is fully charged.

1. Press the ON/OFF button to turn on the device.

-You can use your ARCHOS whilst it charges.
- Let your device charge completely the first time you use it.
-Use only the supplied charger.

TIPS:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

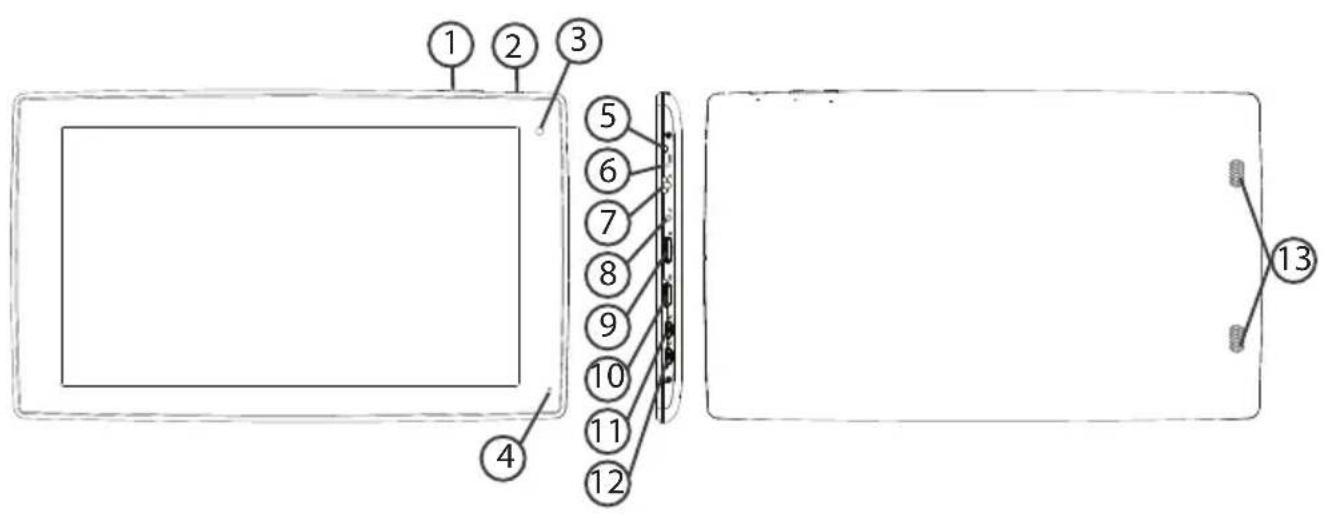

Description of the device

Volume buttons
ON/OFF button
③ Webcam
4 Microphone
Charging indicator
⑥ Reset button
⑦ Headphone jack
8 Power connector

TIPS

With optional Mini-HDMI to HDMI cable
2Connect a keyboard, a mouse or a mass storage USB device using the optional USB host adapter

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

① Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

② Pull the blue line down to display the status dashboard.

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

④ Slide the WiFi switch to "ON" positon.

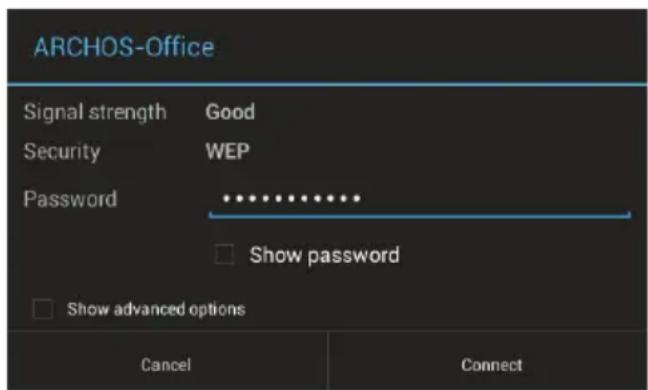

The ARCHOS will scan for Wifi networks in range. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

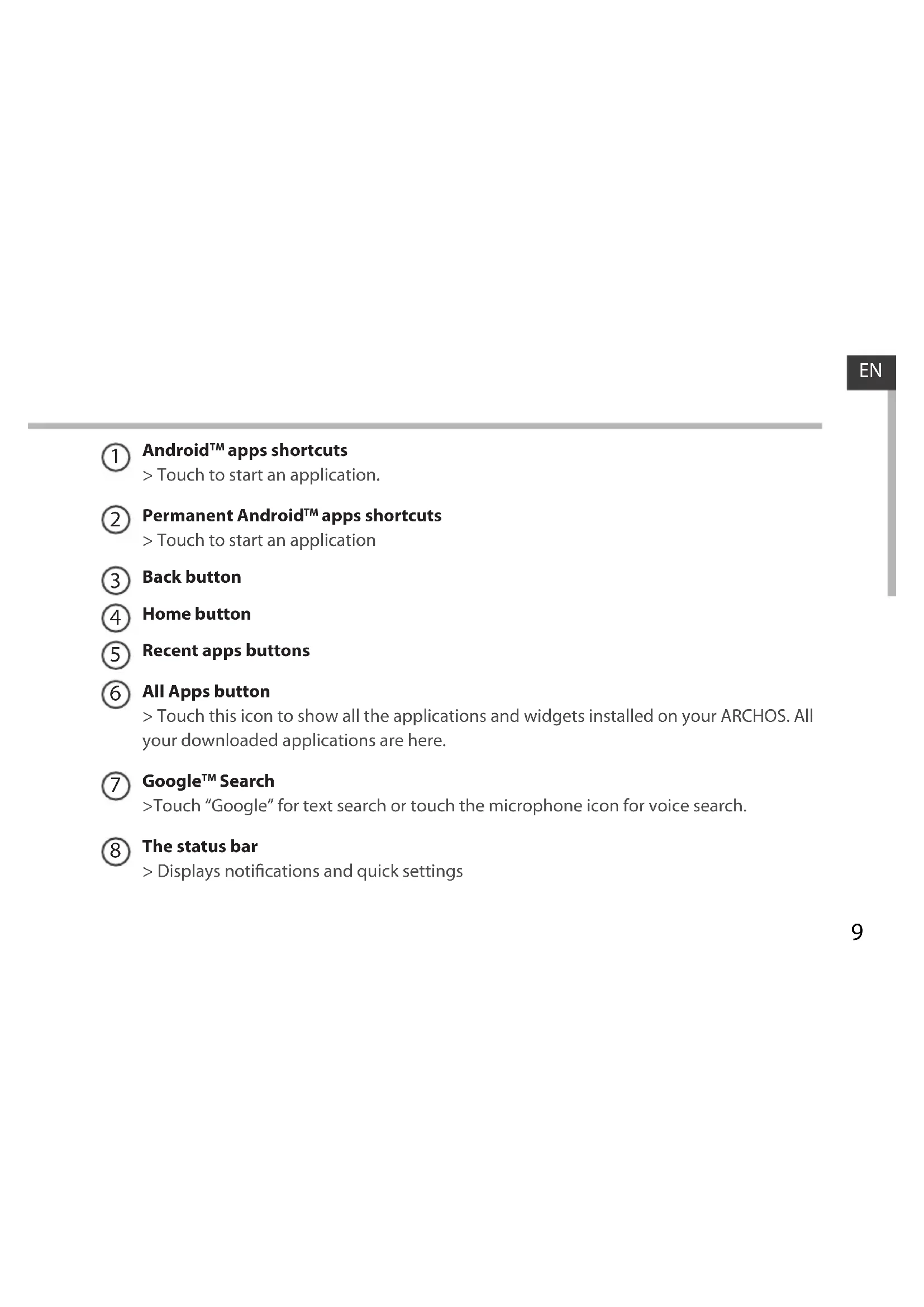

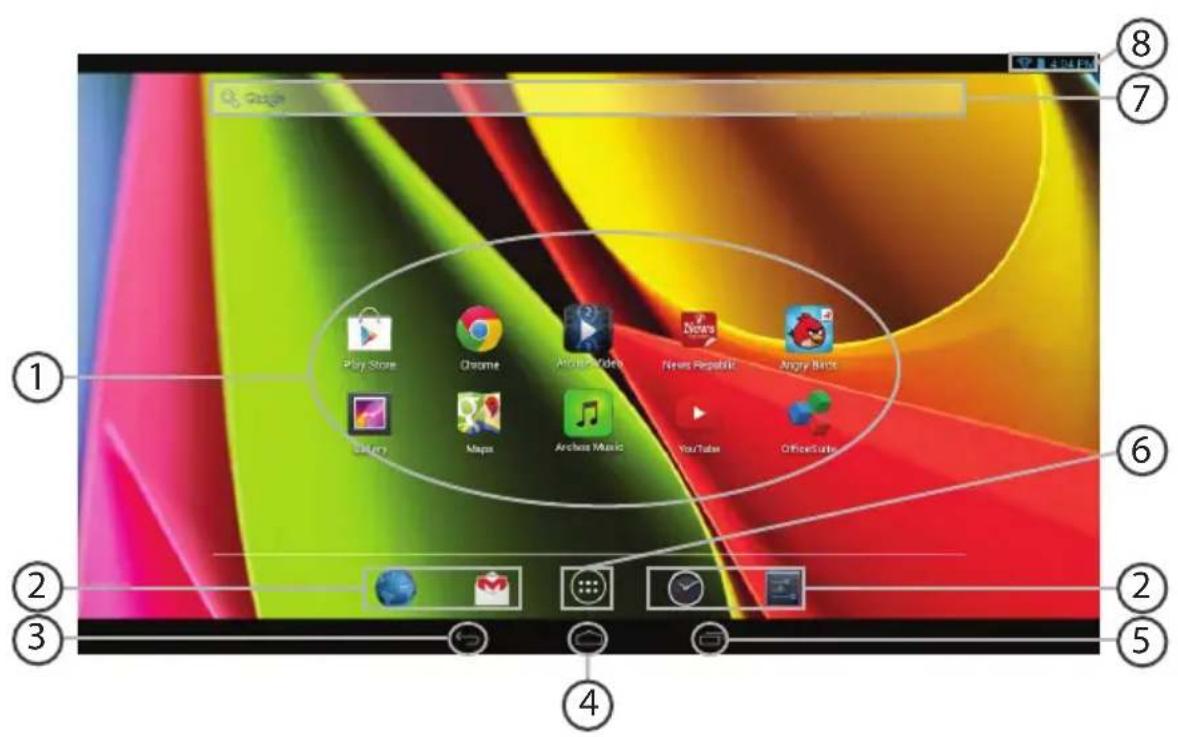

The Android™ Interface

1 AndroidTM apps shortcuts

Touch to start an application.
2 Permanent AndroidTM apps shortcuts
Touch to start an application
3 Back button
Home button
⑤ Recent apps buttons
6 All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search.

The status bar

Displays notifications and quick settings

The Android™ Interface

3:18 The Quick settings

1 Current user(1)
2 To adjust the screen brightness.
3 To access all your settings.
4 To turn on/off your WiFi connection.
5 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
6 Percentage of battery remaining
7 To activate/deactivate all wireless connections, especially when flying.
8 To turn on/off your Bluetooth connection.
9 To enable wireless display(2)

(1)New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.
(2) You can share movies, YouTube videos, and anything that's on your screen on an HDTV. You need to connect a wireless display adapter to any HDMI-enabled TV to mirror what's on your screen quickly and easily.

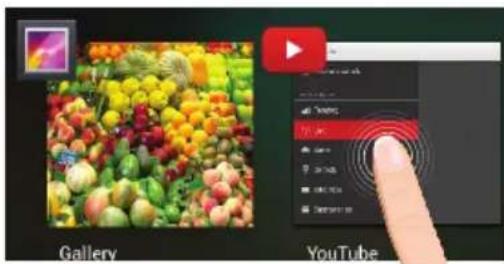

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

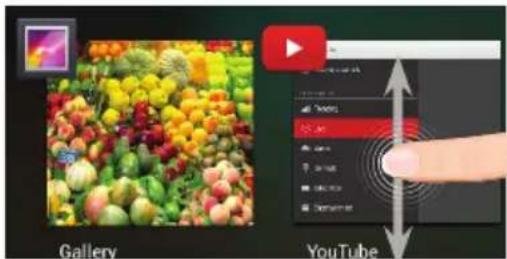

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the "All Apps" icon on your home screen. Touch "Widgets" at the top of the screen. From the main Widget screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

If you want to restore your product (forgotten password? erase all your settings?) :

1. While holding Volume+, connect the supplied power cable to the ARCHOS and to a wall outlet.
2. Once the green robot ANDROID is displayed, release the volume+ button.
3. Press and hold the ON/OFF button and press once the volume+ button.
   The Android system recovery is displayed.
4. Use the Volume buttons to scroll and the ON/OFF button to validate.
   -Select "Wipe data/factory reset" and validate.
   -Select "Yes -- delete all user data" and validate.
   -Select "Reboot system now" and validate.

Table des matieres

WiFi-networkverbinding

KpaTKoe pyKOBoDCTBO TapaHTnN INHCTpyKcNn no 6e3OpacHOCTN

Ka6eIb USB

3apnHoe yctpoiCTBO

Hauano pa60tbl

3apka

1.Поdkлочип prnilaraemь ka6eь nb nTuHnЯ КустpoиCTby ARCHOSИ K po3etke.
YcTpoNCTBO ARCHOS BKJIIOUHTCn HaHHeT 3apJxKaTbCn.
INHdkaTOp 3apRkN ropnt KpaChbIM npn 3apRkke 6atapen.
3TO cTaHeT 3eIeHbIM, KOrda 6aTapey nonHoCTbIO 3apJxKeHa.
2. Haxmte KhoNky nTuHnry, yTo6bl BkJIOuTb yCTpoIcTBO.
- Bbl Mojke Te Nolb3ObaTbcra yctpoiCTBOM ARCHOS BO BpeMa 3apAkn.
-Nepeid nepBbIM nCnOJb3OBaHne yCTpoIcTBo DOnJXHO NOnHOCTbIO 3apAINTbcra.
- Pa3pewaetc nCnoB3OBaTb TOnbKO 3apAHOE yctpoiCTBO N3 KOMnIeKTA NOCTaBKn.

COBET:

3apeinctpnpyTe cBoe n3dene, yTo6bl nonuatab 6cnykBaHne B 60JIee nOJHom o6beMe.

Pp np a60Te c KOMnbIePo mpeuIte no CbInke www.archos.com/register.

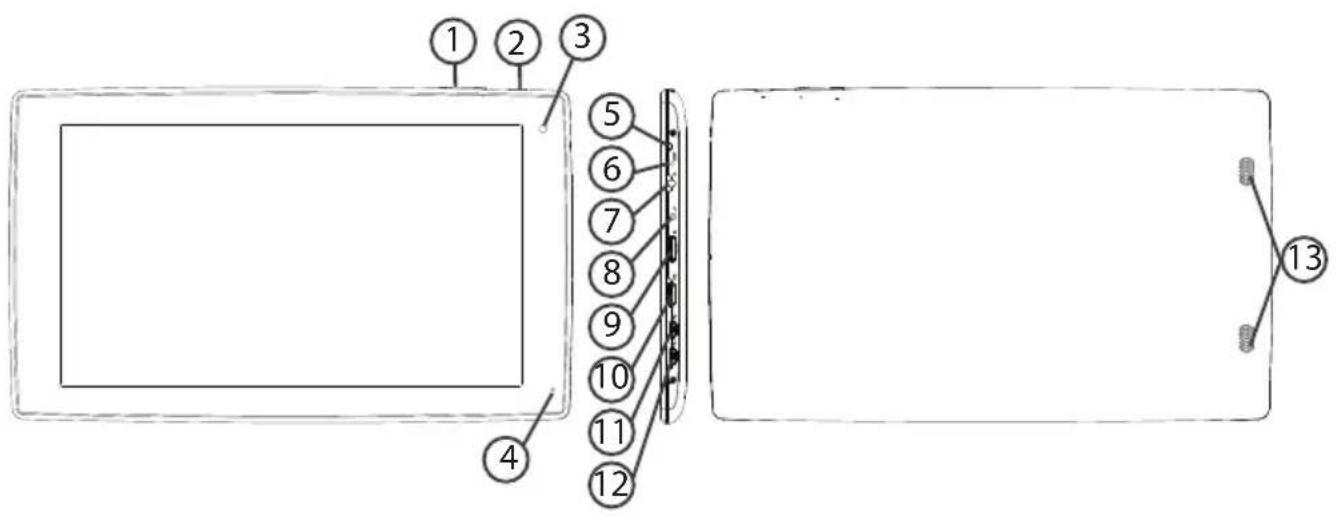

Описней устюйства

1 Khonkn peynipOBkn rpoKocn
Khonka BKJI/BblKJI
3 Be6-kaMepa
MnKpoΦOH
5 INHДИКaTOp 3apЯДКИ
6 Khonka annapaTHoro c6poca
7 Pa3bEm nna HayuHnKOB
8 Pa3bem nHTaHnA

9 Cnot dna Kaptb Micro-SD
10 Mini-HDMI BnIeObIxOdy(1)
11 Tnopt Micro-USB(2)
12 Nopt Micro-USB
13 INHaMnKOB

COBET:

(1)COnIIOHOHaJIbHbIM nepexOndHbIM Ka6eIem Mini-HDMI - HDMI. (2)BbI TaKKe MoXeTe NODKnIOuHTb KlaBnaTpy, Mblb Hnn USB Mass Storage yCTpoiCTBO, c NOMoUbIO dONoHNHeIbHorO aadnTepa xocTa USB

Ecn yctpoNCTBO He BKnIOucaTc:

1.3apraIte yctpoiCTBO.
2. HaxmTe Ha KhoNky BKJI/BblKJI u ydepxnBaIte B TeueHne 10 ckyHd.

EcnBbXOTnTe npoDnTb cpoK pa6oTb 6aTapen:

YMeHbWnteApKoCTb 3KpaHa N BbIKIouHte 6ecnpOBdHbIe CoeINHe Hn He nCNoJIb3yOTcra.

Ecn yctpoiCTBO fYHKUHOHpye TcNtKOM MeIeHHO:

3aKpOte Bce npINOxKeHn, KOToPbIe B daHHbIM MOMHT He nCNoJIb3yOTcR.

Ecn npHnMaembI cnHaJ Wi-Fi cnHsKOM cna6:

Y6eIITecb, YTO He HaxoIITecb cIIuKOM daleko ot y3la doctyna Wi-Fi.

06HOBNTe BCTpoEHHyIO MKNpONporpaMMy yCTpoiCTBa:

http://www.archos.com/support.

C6pocbTe n NOBTOPO H BBeUNTe npaMeTpbl coeDInHeHn.

06paTnTeCb K npoBaIepy cetn Wi-Fi.

EcnxOTnTe BOCCTaHOBnTb COCTOHNHe n3dennna (3a6bln napoIb? CtepeTb BCE HAcTpOKn?:

1. YdepknBaIte KhoNky yBeIuYeHn rPOMKocTn + n IoDknIOUHTe npunaraembI Ka6eIb NITAHnK yCTpoiCTBy ARCHOS n K po3eTke.
2. OTo6paKaetc3eIeHbI po6oT Android. Otnyctnte KhoNky rPOMKocTn+.
   3.ydepxnBaTe KhoNky BkJI/BblKNI HaXmTe Ha KhoNky rpoMkoCTn+.

OTo6paKaaeTcBocCTaHOBHeHne cntEmbl Android.

1. PpokpyuBaHne OcyueCTBJIaETcKHOKNaMn peRyIINPOBKn rPOMKOCTN, NOITBepKJdeHne - KHOKN BKNIOUeHn N BbIKIOUeHn.

2. Bыберпге pyнкт "Wipe data/factory reset" [Стенидддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳н], noДТВерпгп.

3. Bыберпe "Yes -- delete all user data" [Дa, удалпь польбова teьскne данье ] И подтверпи. -Выберпe "Reboot system now" [Перетаурзntb систу] И подтверпи.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction ReasonRemark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited

to 10mW e.i.r.p.

within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply

(not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera

within a radius of 20km from the centre of Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.
