Product Type	Touchscreen Tablet
Brand	ARCHOS
Model	Magnus Plus 101
Screen Size	10.1 inches (estimated)
Operating System	Android
Processor	Not specified
RAM	Not specified
Internal Storage Capacity	Fusionable storage with micro-SD card
WiFi Connectivity	WiFi 802.11 b/g/n (estimated)
Bluetooth	Not specified
Ports	1x micro-USB, 1x mini-HDMI, 1x 3.5 mm audio jack, 1x micro-SD card reader
Front Camera	Webcam (front)
Rear Camera	Camera (rear)
Speaker	Built-in speaker
Microphone	Built-in microphone
Power Supply	USB mains charger included
Battery	Rechargeable lithium-ion (battery life not specified)
Box Contents	Tablet, quick start guide, warranty guide, USB cable, charger
Main Features	Fusion Storage (internal memory and micro-SD fusion), setup assistant, quick settings, screen security
Care and Cleaning	Clean with a soft, dry cloth; avoid liquids
Security	Screen lock by pattern, PIN or password
General Information	User manual available in French at notice-facile.com

Frequently Asked Questions - Magnus Plus 101 ARCHOS

How to turn on the tablet for the first time?

Connect the charger, press the ON/OFF button. The setup assistant guides you through initial configuration: language, date/time, WiFi, location and apps.

How to connect to a WiFi network?

Swipe down the status bar, enable WiFi, then select your network. Enter the password if necessary. Check 'Show password' to verify your input.

How to lock the tablet screen?

Go to Settings > Security > Screen lock. Choose between pattern, PIN code or password. The screen will lock automatically after each sleep.

What to do if the tablet is unresponsive?

Press the ON/OFF button for 10 seconds to force a restart. If it doesn't turn on, charge it for at least 10 minutes before trying again.

How to extend battery life?

Lower screen brightness, disable WiFi and Bluetooth if unused, and close inactive apps.

How to use the Fusion Storage feature?

Insert a micro-SD card. The tablet automatically offers to fuse the storages. Accept and restart. To disable, go to Settings > ARCHOS Fusion Storage.

How to take a screenshot?

Press simultaneously the ON/OFF button and the Volume down button (or Volume up depending on configuration). The image is saved in the gallery.

How to transfer files from a computer?

Connect the tablet to the computer via USB cable. On the tablet, authorize file transfer. The computer recognizes a storage device.

WiFi reception is weak, what to do?

Move closer to the WiFi hotspot, update the software via www.archos.com/support, reset WiFi settings or contact your internet provider.

Where to find the full manual in French?

The PDF manual is available for free at notice-facile.com. You can also contact ARCHOS support for a translated version.

USER MANUAL Magnus Plus 101 ARCHOS

Package contents. 2 Getting started. 3 Description of the device. 4 Through the wizard. 6 Connecting to a WiFi network.. 7 The AndroidTM interface. 8 Getting familiar with AndroidTM 12 Troubleshooting. 14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

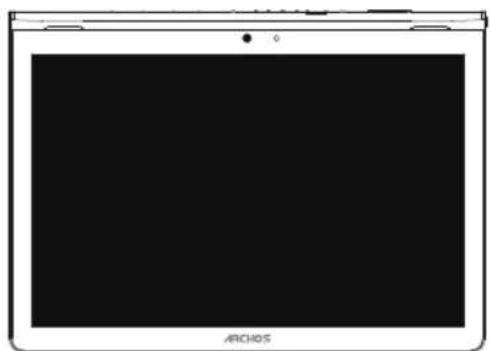

Package Content

ARCHOS 101 Magnus Plus

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

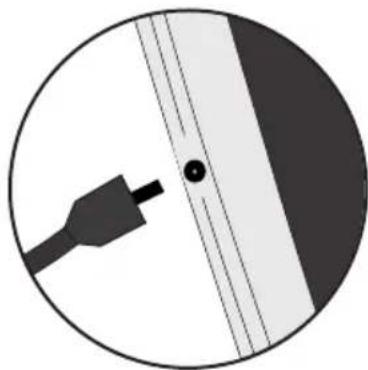

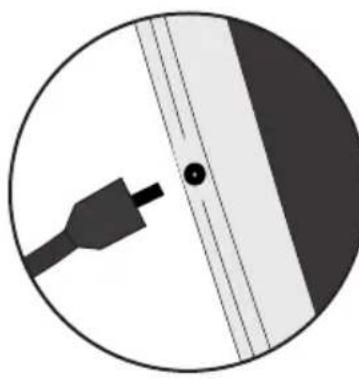

Charging

1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.

The charging indicator light is on when the battery is charging.

-You can use your ARCHOS whilst it charges. - Let your device charge completely the first time you use it. -Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

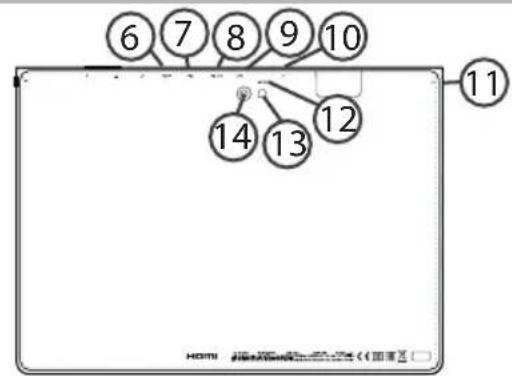

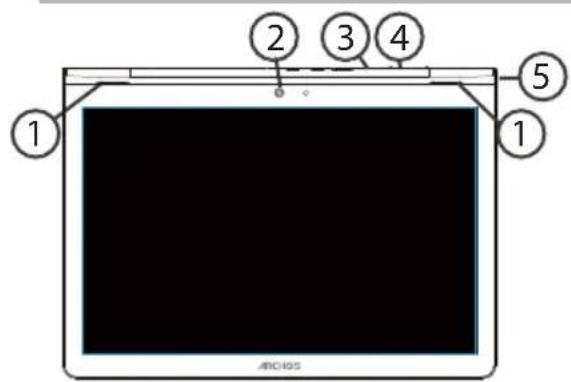

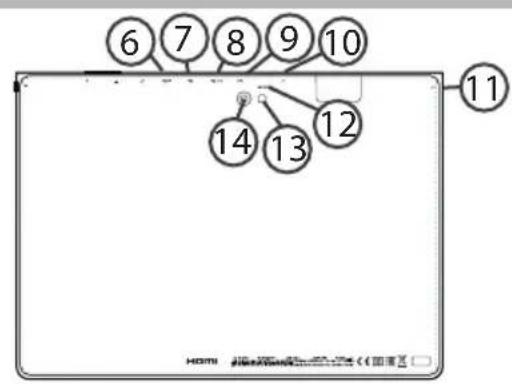

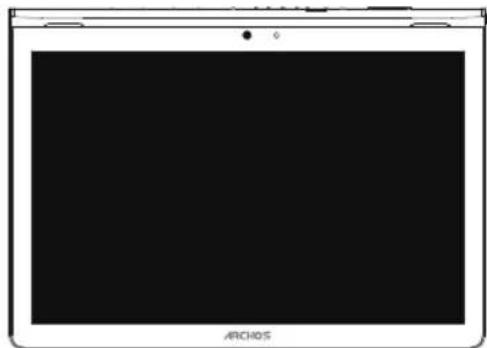

Description of the device

1 Loudspeaker

6 Mini-HDMI video output(1)

11 Headphone jack

2 Front camera

Micro-USB port

12 Reset button

Volume buttons

Micro-USB host port(2)

13 Flash light

4 Power connector

9 Microphone

Back camera

ON/OFF button

Micro-SD card slot

(1) With optional Mini-HDMI to HDMI cable. (2) Connect a keyboard, a mouse, or a mass storage USB device using the optional USB host adapter.

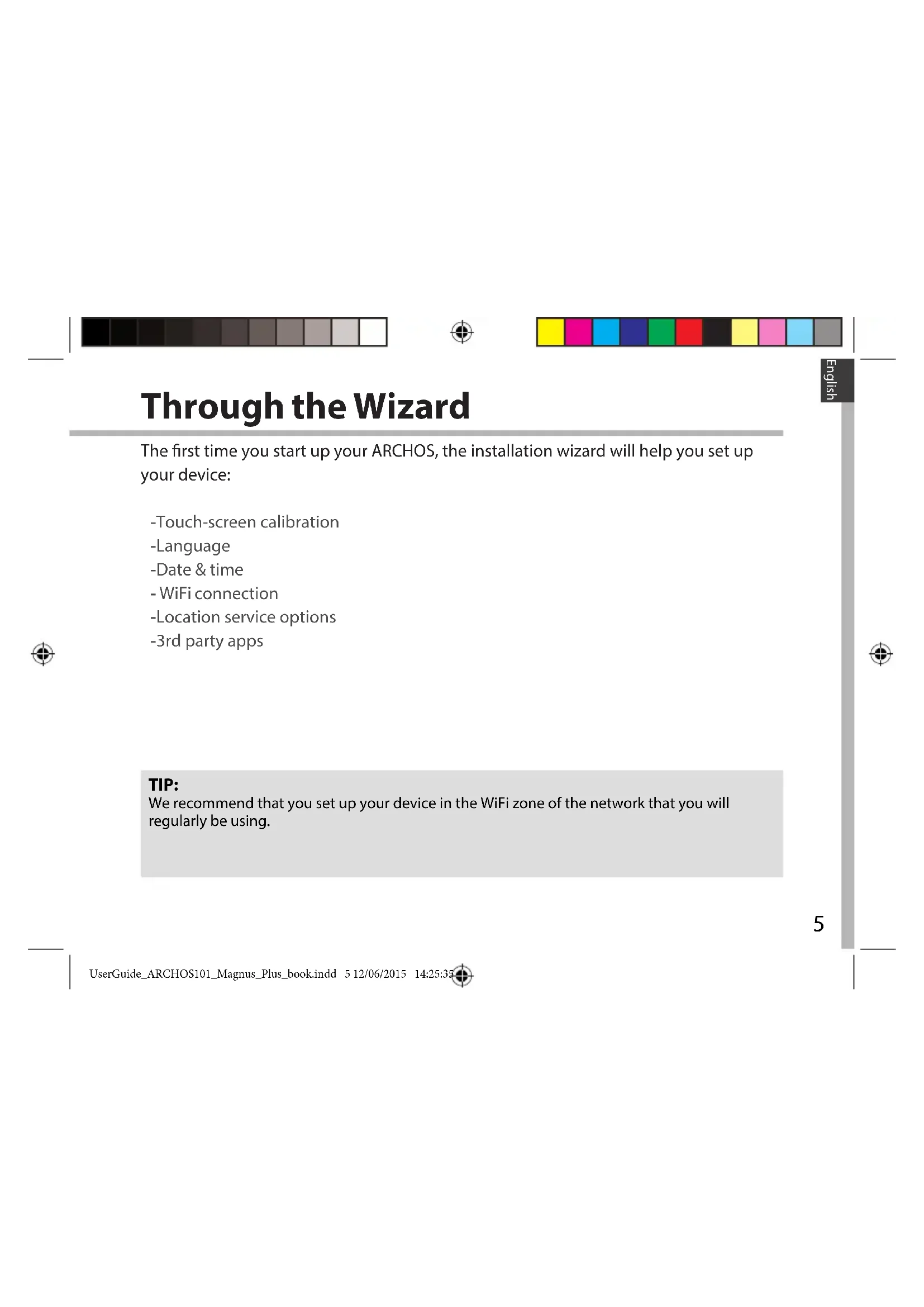

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

- Touch-screen calibration - Language - Date & time - WiFi connection - Location service options - 3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

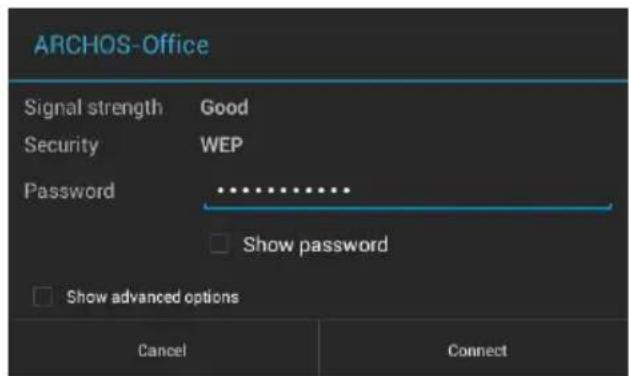

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

Pull the blue line down to display the status dashboard.

Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

④ Slide the WiFi switch to "ON" position.

The ARCHOS will scan for WiFi networks in range. Touch the name of the network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

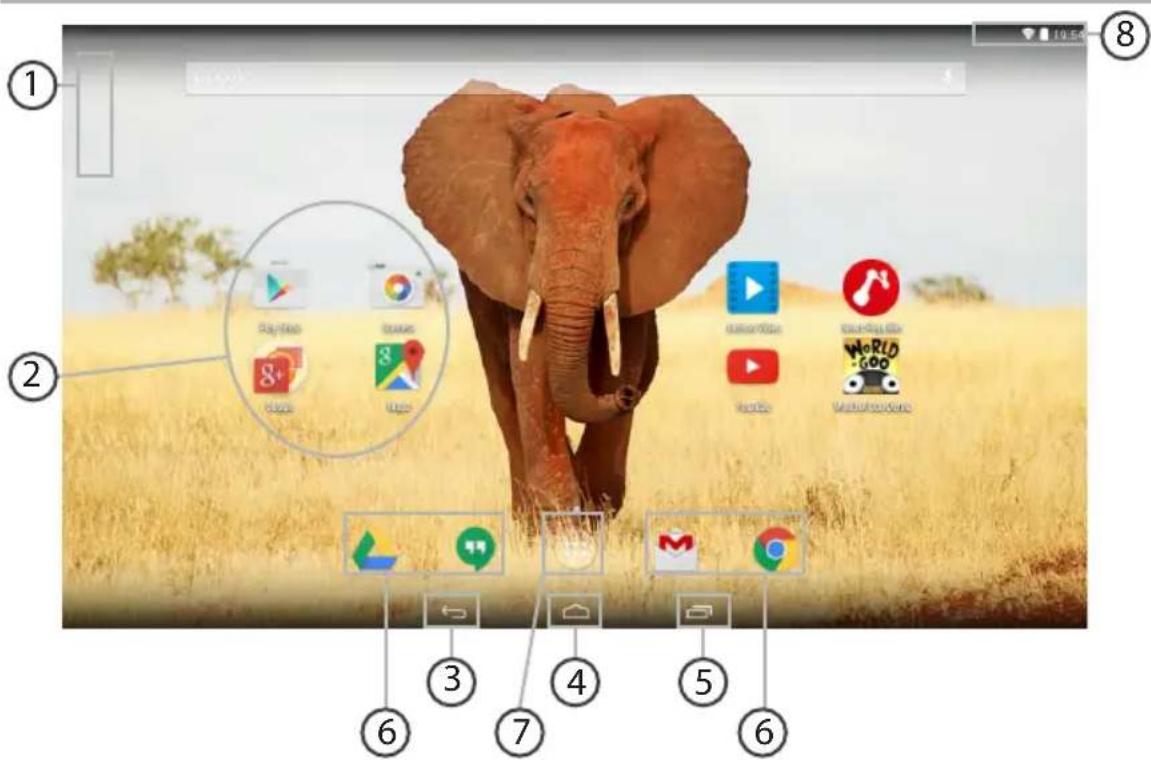

The Android™ Interface

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search.

2 AndroidTM apps shortcuts

Touch to start an application.

Back button

Home button

⑤ Recent apps buttons

6 Permanent Android™ apps shortcuts

Touch to start an application

All Apps button

Touch this icon to show all the applications and widgets installed on your

ARCHOS. All your downloaded applications are here.

The status bar

Displays notifications and quick settings

The Android™ Interface

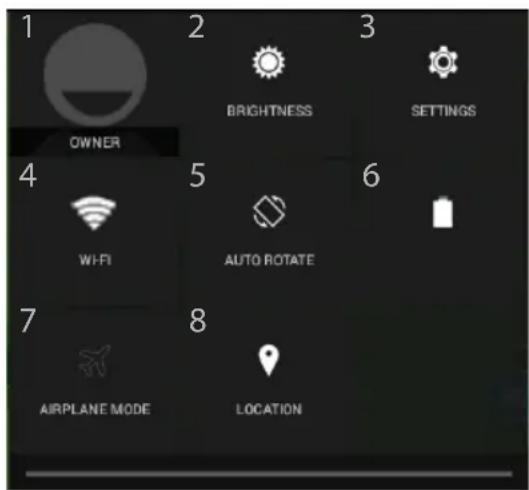

The Quick settings

1 Current user 2 To adjust the screen brightness. 3 To access all your settings. 4 To turn on/off your WiFi connection. 5 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 6 Percentage of battery remaining 7 To activate/deactivate all wireless connections, especially when flying. 8 Location services

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

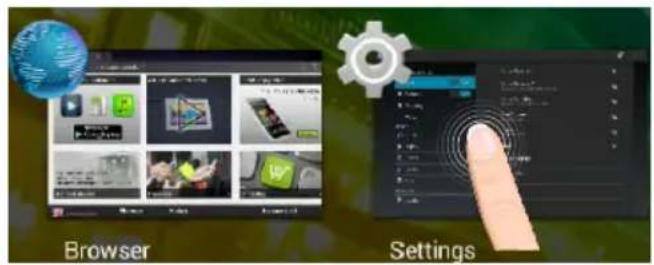

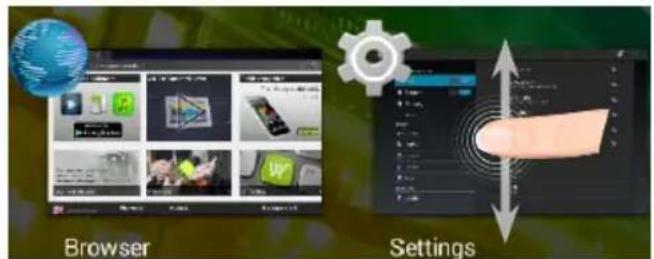

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

ARCHOS Fusion Storage

Setting up Fusion Storage

1. Insert a micro-SD card into the device's micro-SD card slot. Make sure to insert the card in the correct direction. Your device will automatically detect the micro-SD card and offer to merge the internal storage with the micro-SD card.
2. Select "OK".
3. Select "OK" in the Optimizing storage window to confirm your choice.

Archos Fusion Storage

A new SD card has been detected. You can enable Archos Fusion Storage to increase your storage. Enable? (reboot required)

Not now.

OK

Optimizing storage

Archos can optimize the already used storage to free up some space for installing apps. No data will be lost. Optimize?

Cancel

OK

12

The device will reboot.

• When the device restarts, you are informed that the ARCHOS Fusion storage is active. A notification is displayed in the status bar.
• Select the Settings app, then ARCHOS Fusion Storage. The merged storage is displayed.

Disabling fusion storage

1. Select the Settings app.
2. In the Settings app, select ARCHOS Fusion Storage.
3. When the ARCHOS Fusion Storage is active, select "Disable ARCHOS Fusion Storage" and confirm.

Your device will reboot in order to apply the changes.

OPTIONS

Disable Archos Fusion Storage

Get back to the initial configuration

Tip:

We recommend you to turn off the device before inserting the micro-SD card.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

14

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

Table of contents

8 Micro-USB host port(2)

13 Flash

A new SD card has been detected.

You can enable Archos Fusion Storage to increase your storage.

Enable? (reboot required)

Not now.

OK

Archos can optimize the already used storage to free some space for installing apps.

No data will be lost.

Optimize?

Cancel

OK

Return to the initial configuration

Tip:

A new SD card has been detected.

You can enable Archos Fusion Storage to increase your storage.

Enable? (reboot required)

Not now.

OK

Archos can optimize the already used storage to free up some space for installing apps.

No data will be lost.

Optimize?

Cancel

OK

Return to the initial configuration

Tip:

A new SD card has been detected. You can enable Archos Fusion Storage to increase your storage. Enable? (reboot required)

Not now.

OK

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize?

Cancel

OK

Get back to the initial configuration

Tip:

A new SD card has been detected. You can enable Archos Fusion Storage so as to increase your storage. Enable? (reboot required)

Not now

OK

Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize?

Cancel

OK

Get back to the initial configuration

Tip:

WiFi network connection

Get back to the initial configuration

Tip:

A new SD card has been detected. You can enable Archos Fusion Storage so as to increase your storage. Enable? (reboot required)

Not now.

OK

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize?

Cancel

OK

Get back to the initial configuration

Tip:

Declaration of Conformity: http://www.archos.com/products/declaration_conformity.html

Package contents

ARCHOS 101 Magnus Plus

Quick start guide

SAFETY INSTRUCTIONS

USB cable

Charging device

114

Getting started

Charging

1. Charge your device by connecting the cable to the plug and the plug to the socket. The ARCHOS device will start charging.
2. Press the power button to turn on the device. During battery charging, the charging indicator lights up. -You can use your ARCHOS device while charging. -For first use, fully charge the device. -Only use the charging device from the package.

If your device is completely discharged, it must be charged for at least 10 minutes before the charging battery icon can be displayed.

TIP:

Register your product to receive service in a broader scope. When working with a computer, go to the link www.archos.com/register.

Device description

1 Speaker

⑥ Mini-HDMI video output (1)

Headphone jack

2 Camera

7 Micro-USB port

12 Reset button

3 Volume buttons

8 Micro-USB port (2)

130

4 Power connector

Microphone

14 Camera

Power button

A new SD card has been detected. You can enable Archos Fusion Storage so as to increase your storage. Enable? (reboot required)

Not now.

OK

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize?

Cancel

OK

The device will restart.

- During the device restart, a message will appear stating that

the ARCHOS combined storage has been activated.

- The status bar will display a notification.

• Select the Settings program, then ARCHOS Fusion Storage.

The combined storage is displayed.

ARCHOS combined storage

1. Select the Settings program.
2. In the Settings program, select ARCHOS Fusion Storage.
3. If the ARCHOS Fusion Storage program was activated, select Disable ARCHOS Fusion Storage and confirm.

The device will restart to apply the changes.

OPTIONS

Disable Archos Fusion Storage

Get back to the initial configuration

Before inserting the micro-SD card, it is recommended to turn off the device.

Getting to know Android™

Extended home screen:

Navigate between the different panels of the home screen by swiping left and right.

If the device is running too slowly:

Close all applications that are not currently in use.

If the Wi-Fi signal is too weak:

Make sure you are not too far from the Wi-Fi access point.

Update the device's built-in firmware: http://www.arnovatech.com/support.

Reset and re-enter the connection parameters.

Contact your Wi-Fi network provider.

128

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

A new SD card has been detected.

You can enable Archos Fusion Storage so as to increase your storage.

Enable? (reboot required)

Not now.

OK

Archos can optimize the already used storage so as to free some space for installing apps.

No data will be lost.

Optimize?

Cancel

OK

Get back to the initial configuration

Tip:

A new SD card has been detected. You can enable Archos Fusion Storage so as to increase your storage. Enable? (reboot required)

Not now.

OK

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize?

Cancel

OK

Get back to the initial configuration

Tip:

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason Remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited

to 10 mW e.i.r.p.

within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz

band has been ongoing in recent years to allow

current relaxed regulation. Full implementation

planned 2012

Italy None If used outside of own premises, general

authorization is required.

Luxembourg None General authorization required for network and

service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical

aera within a radius of 20km from the centre of

Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access the "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of the Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of the GNU General Public License, Version 2 at the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium. This offer is valid to anyone in receipt of this information.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

C€1313

162
