Product type	Touchscreen tablet
Brand	Archos
Model	70 Neon Plus
Screen	7 inches, capacitive touchscreen
Operating system	Android
Power	Rechargeable battery, USB 5V charger included
Connectivity	WiFi 802.11 b/g/n, Bluetooth
Expandable storage	microSD card reader
Special feature	Archos Fusion Storage (merges internal memory and microSD)
Setup wizard	Language, WiFi, date, location settings
Quick settings	Access from status bar
Box contents	Quick start guide, warranty guide, USB cable, charger
Care	Clean with a dry, soft cloth
Safety	Use only the provided charger
Repairability	Reset button accessible with a pointed object (paperclip)

Frequently Asked Questions - 70 Neon Plus ARCHOS

How to charge the battery of my Archos 70 Neon Plus tablet?

Connect the power cable to your tablet via the power connector. Use only the provided charger. For first use, charge the battery fully.

How to turn on the tablet?

Press the On/Off button on the device. If the battery is completely drained, let it charge for at least 10 minutes before attempting to turn it on.

How to set up WiFi on the Archos 70 Neon Plus?

Pull down the status bar, tap it again to access quick settings, select the WiFi icon to enable, then choose your network and enter the password.

What is ARCHOS Fusion Storage?

It's a feature that allows merging the tablet's internal memory with a microSD card to obtain unified storage space. To activate it, insert a microSD card and follow the on-screen instructions.

How to insert a microSD card?

Turn off your tablet, then insert the microSD card into the designated slot (③ on the diagram) respecting the orientation. The device automatically detects the card and offers to activate Fusion Storage.

How to uninstall an application?

From the 'All apps' screen, press and hold the application icon, then drag it to the top of the screen and drop it on the 'Uninstall' icon.

What to do if my tablet is unresponsive?

Press the ON/OFF button for 10 seconds or use the Reset button with a pointed object (like a paperclip). This forces a restart.

How to increase battery life?

Decrease screen brightness and disable wireless connections (WiFi, Bluetooth) when not in use.

How to update the tablet's software?

Visit www.archos.com/support to download software updates.

Where to find the declaration of conformity?

Check the declaration of conformity at http://www.archos.com/products/declaration_conformity.html.

USER MANUAL 70 Neon Plus ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....5

Connecting to a WiFi network....6

The Android ^TM interface....8

ARCHOS Fusion Storage....12

Getting familiar with Android™....14

Troubleshooting....16

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Content

ARCHOS 70 Neon +

QSG booklet

Warranty, legal & safety booklet

USB cable Charger

Getting Started

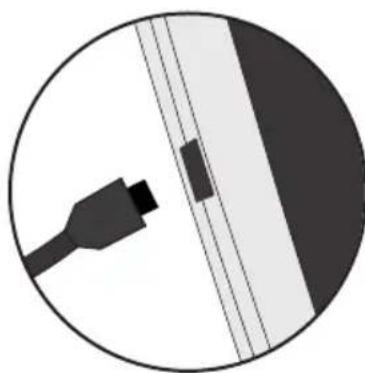

Charging

1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
2. Press the Power button to turn on the device. -You can use your ARCHOS whilst it charges. -Let your device charge completely the first time you use it. -Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

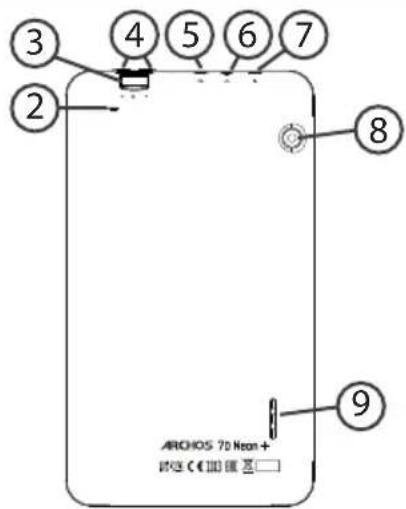

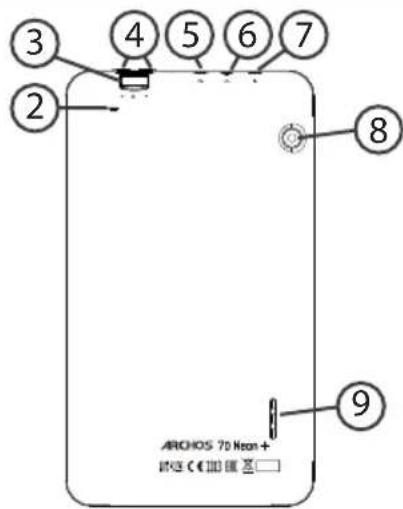

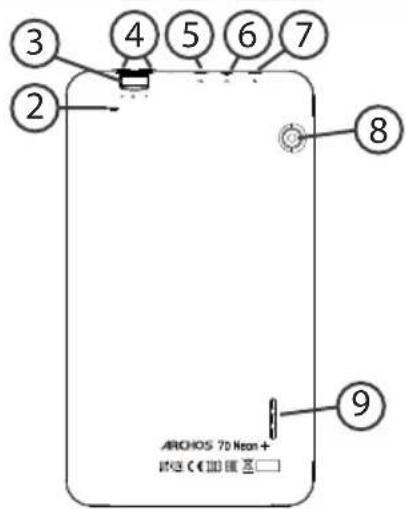

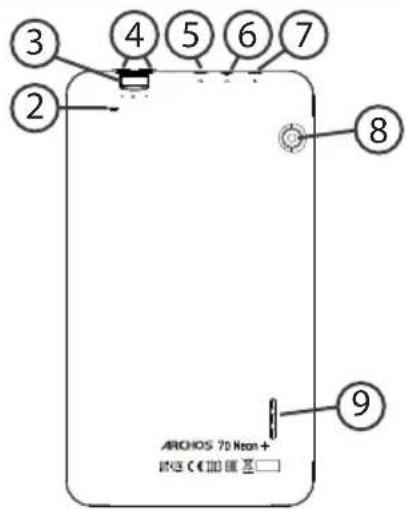

Description of the device

① Webcam

④ Volume buttons

⑦ ON/OFF button

② Hardware reset

⑤ Micro-USB port

⑧ Camera

③ Micro-SD card slot

⑥ Headphone jack

⑨ Loudspeaker

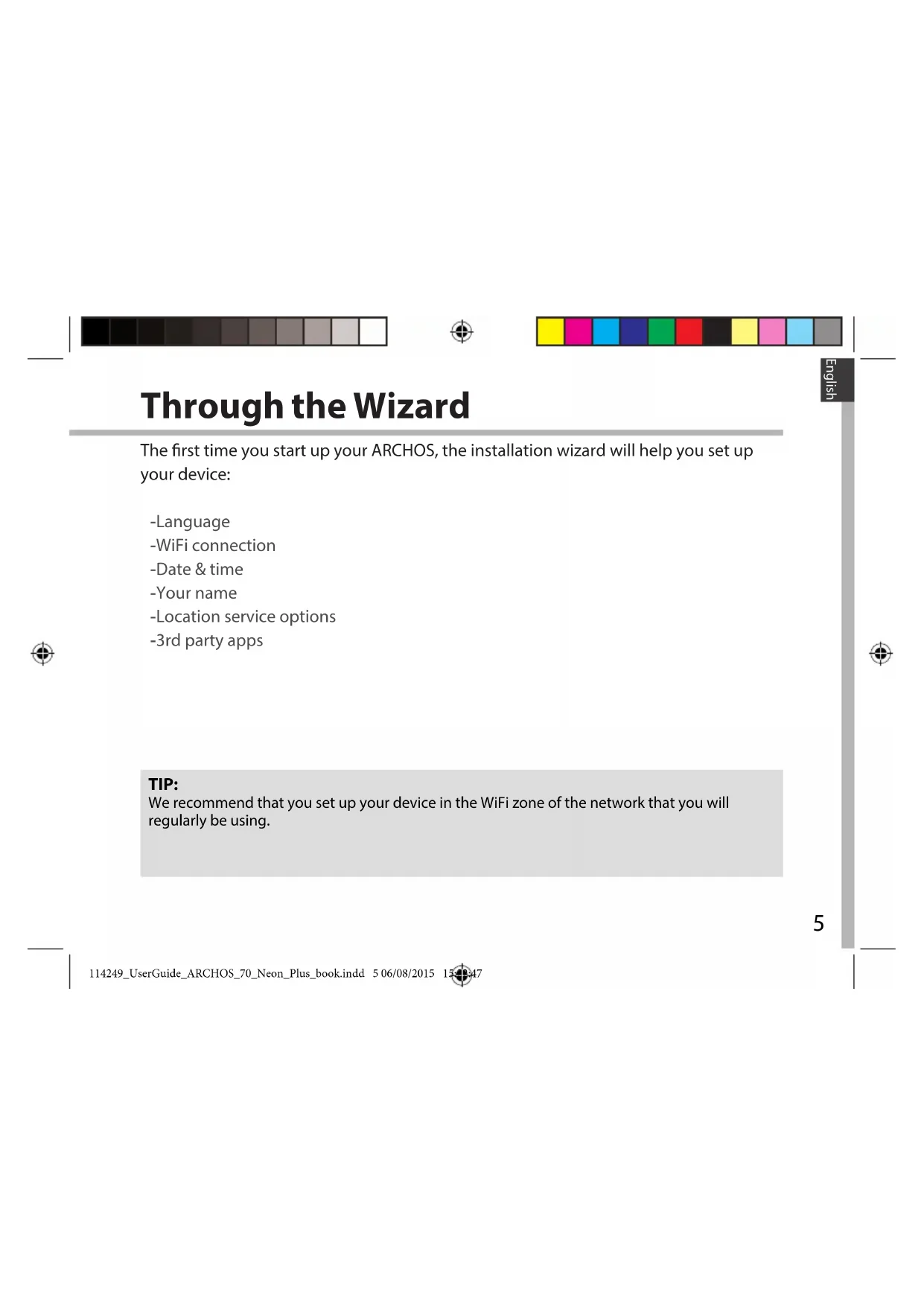

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

-Language -WiFi connection -Date & time -Your name - Location service options -3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

WARNING: Make sure that you are in a WiFi zone.

You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.

1. Touch the name of the network you want to connect to. Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

- When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.

- To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

Connecting to WiFi using WPS

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection.
4. Select "WiFi" below the WiFi icon.
5. Select the Menu button, then Advanced.
6. Select WPS Push Button.
7. Press the WiFi Protected Setup button on your router. It may be called "WPS" or contain a symbol:

Wi-Fi

Add network

Saved networks

Refresh

Advanced

Wi-Fi Direct

WPS Push Button

WPS Pin Entry

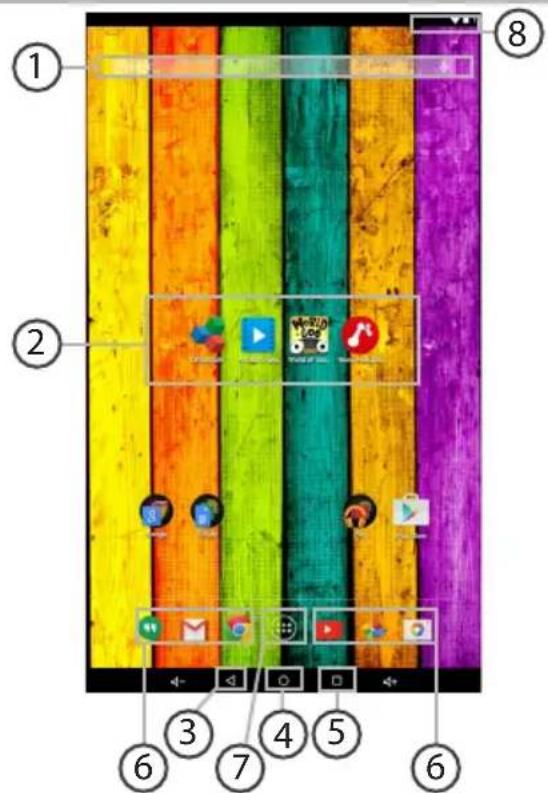

The Android™ Interface

8

① Google™ Search Touch "Google" for text search or touch the microphone icon for voice search. ② Android™ apps shortcuts Touch to start an application. ③ Back button ④ Home button ⑤ Recent apps buttons ⑥ Permanent Android™ apps shortcuts Touch to start an application ⑦ All Apps button Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. ⑧ The status bar Displays notifications and quick settings

Touch "Google" for text search or touch the microphone icon for voice search. ② Android™ apps shortcuts: Touch to start an application. ③ Back button ④ Home button ⑤ Recent apps buttons ⑥ Permanent Android™ apps shortcuts: Touch to start an application. ⑦ All Apps button: Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. ⑧ The status bar: Displays notifications and quick settings.

The Android™ Interface

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

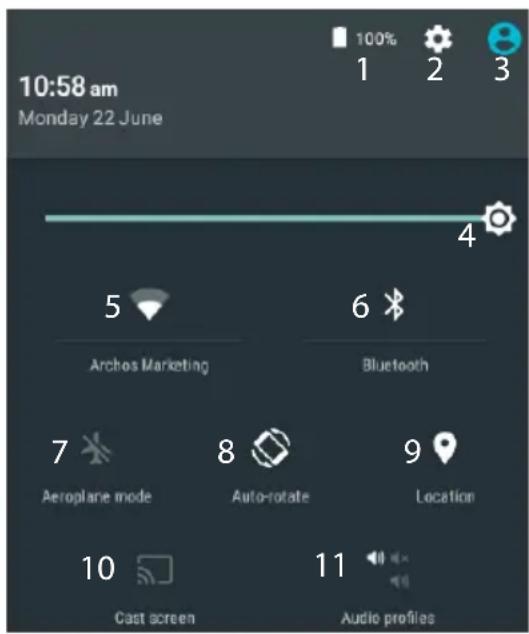

The Quick settings

1 Percentage of battery remaining 2 To access all your settings. 3 Current user 4 To adjust the screen brightness. 5 To turn on/off your WiFi connection. 6 To turn on/off your Bluetooth connection. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 9 Location services

10 To mirror your Android device to the TV so you can enjoy your great content exactly as you see it on your mobile device.

11 To select a notification type

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Swipe left or right: to close an app.

Scroll up or down: to view other recent apps

ARCHOS Fusion Storage

Setting up fusion storage

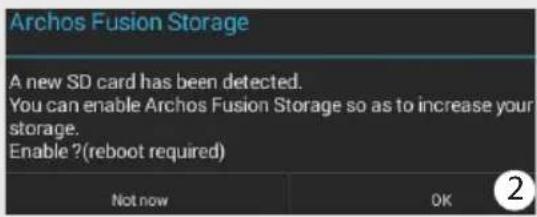

1. Insert a micro-SD card in the device's micro-SD card slot. Make sure to insert the card in the right direction.

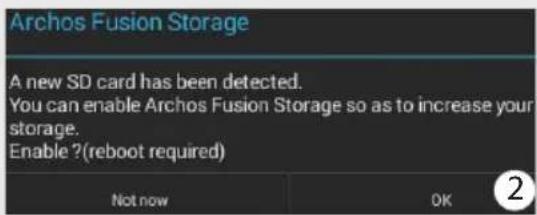

Your device will detect the micro-SD card automatically and offers you to merge the internal storage with the micro-SD card.

1. Select "OK".

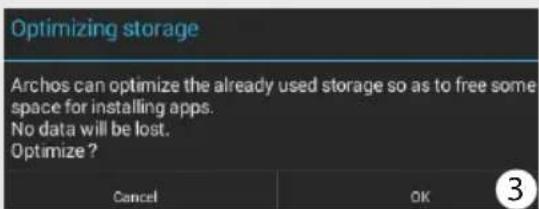

2. Select "OK" in the Optimizing storage window to confirm your choice.

The device will reboot.

• When the device restarts, you are informed that the ARCHOS Fusion storage is active. -In the status bar, a notification is displayed.
• Select the Settings app, then ARCHOS Fusion Storage. The merged storage is displayed.

Disabling fusion storage

1. Select the Settings app.
2. In the Settings app, select ARCHOS Fusion Storage.
3. When the ARCHOS Fusion Storage is active, select "Disable ARCHOS Fusion Storage" and confirm.

Your device will reboot in order to apply the changes.

OPTIONS

Disable Archos Fusion Storage

Get back to the initial configuration

Tip:

We recommend you to turn off the device before inserting the micro-SD card.

Getting familiar with Android™

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

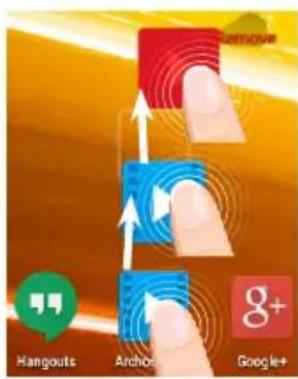

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

Table of contents

ARCHOS 70 Neon +

① Webcam

④ Volume buttons

⑦ ON/OFF button

② RESET button

⑤ Micro-USB port

⑧ Camera

TIPS:

24

:52

① Google™ Search

:52

Get back to the initial configuration

Tip:

ARCHOS 70 Neon +

User manual

① Webcam

40

:54

① Google™ Search

AirBox GamePSD 2 (Ibboxing) 1 year ago! (2015) Airbnb

Archos Fusion Storage

A new SD card has been detected.

You can enable Archos Fusion Storage so as to increase your storage.

Enable ?(reboot required)

Not now

2

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps.

No data will be lost.

Optimize?

Cancel

OK

3

2:55

Get back to the initial configuration

Tip:

ARCHOS 70 Neon +

User Guide

① Webcam

① Google™ Search

Arches GamePad 2 Unboxing Hindiya Pigata (pty- 2007) (1996)

Arches GamePart 2 Unboxing Involve: 1 year ago: 30% World

Archae GamePad 2 Unboving System 3 years ago - DNT, Hervis

Changing the background:

ARCHOS 70 Neon +

User Guide

72

① Google™ Search

Airbox Course-Soft 21 Release Release Liquid Light - 200V Airbox

Arthur SamePast 2 Unboxing Swindoo 1. Swindoo: Get away

(2) Fund Product Description

Archex Game2 (Jobboxing)

(4) This Shareholders' Meeting

Archos Fusion Storage

A new SD card has been detected. You can enable Archos Fusion Storage so as to increase your storage. Enable ?(reboot required)

Not now

2

Optimizing storage

Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize ?

Cancel

OK

3

02

Get back to the initial configuration

Tip:

ARCHOS 70 Neon +

① Webcam

④ Volume buttons

⑦ Power button

② Reset button

⑤ Micro USB port

⑧ Camera

③ Micro-SD card reader

TIPS:

① Google™ Search

Restore to factory settings

Tip:

ARCHOS 70 Neon +

User Guide

Connect to Wi-Fi network via WPS

104

① Google™ Search

ARCHOS 70 Neon +

Quick Start Guide

120

① Google™ Search

(4) Purpose of the issue

Changing the wallpaper:

Widgets:

ARCHOS 70 Neon +

① Front camera

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

Quick setup

Return to the initial configuration

Tip:

Deleting an item:

Changing the wallpaper:

ARCHOS 70 Neon +

152

① Google™ search

Get back to the initial configuration

Tip:

Remove element:

ARCHOS 70 Neon +

User manual

Warranty card

Entertainment your way

Warranty certificate

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited

to 10 mW e.i.r.p.

within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz

band has been ongoing in recent years to allow

current relaxed regulation. Full implementation

planned 2012

Italy None If used outside of own premises, general

authorization is required.

Luxembourg None General authorization required for network and

service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical

aera within a radius of 20 km from the centre of

Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium. This offer is valid to anyone in receipt of this information.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

C€1313
