ZHP613 - Kitchen hood ZANUSSI - Free user manual and instructions

Brand	ZANUSSI
Model	ZHP613
Product Type	Kitchen Hood
Installation Type	External Evacuation or Recirculation
Electrical Supply	220-240 V ~ 50/60 Hz
Extraction Power	3 speeds (minimum, medium, maximum)
Lighting	Incandescent bulbs 40 W or halogen 20 W
Grease Filters	Self-supporting metal, dishwasher safe
Charcoal Filter	Anti-odor, replaceable (not washable)
Minimum Safety Distance (cooking)	650 mm
Air Outlet Diameter	120 mm minimum
Control Type	Mechanical switches (light, motor, speeds)
Hood Material	Stainless steel (estimated)
Noise Level	Variable depending on speed
Recommended Installation Height	650 mm above cooking surface
Weight	Approximately 10 kg (estimated)
Dimensions (approx)	Width 600 mm, Depth 500 mm, Height 150 mm
Usage	Domestic use only
Maintenance	Clean metal filters every 2 months; replace charcoal filter every 3-4 months
Repairability Index	Not specified
Provided Accessories	Drilling template, screws, directional grid, closing profile

Frequently Asked Questions - ZHP613 ZANUSSI

What is the minimum installation height for the ZANUSSI ZHP613 hood?

The minimum safety distance between the cooking surface and the hood must be at least 650 mm. Check the specific instructions in the manual for models allowing a lower height.

How to clean the grease filters of the hood?

The self-supporting metal filters can be washed in the dishwasher approximately every 2 months. Remove them one by one using the hooks, wash without bending, dry before reinstalling with the handle facing outward.

How often should the charcoal filter be replaced?

The anti-odor charcoal filter cannot be washed and must be replaced every 3 to 4 months, or more often with intensive use. First remove the grease filters, then the charcoal filter by operating the hooks.

How to change a light bulb in the ZHP613 hood?

For 40W incandescent bulbs: remove the metal filters, unscrew the bulb and replace with an identical one. For 20W halogen bulbs: remove the two screws fixing the lighting support, extract the lamp and replace it, then reassemble the support.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode. You need to drill a 125 mm hole in the top shelf, connect a 120 mm hose, fix the provided directional grid and ensure the charcoal filters are in place.

What to do if the hood does not turn on?

First check the electrical connection and the bipolar switch. Make sure the plug is fully inserted and the circuit breaker has not tripped. If the problem persists, consult the manual or contact a professional.

Can the hood be installed above a gas cooktop?

Yes, but the safety distance of 650 mm must be respected. Additionally, with gas appliances, ensure sufficient room ventilation and never leave open flames extending beyond the containers.

What types of light bulbs are suitable for the hood?

Two types: incandescent bulb 40W (max) or halogen bulb 20W. Always use bulbs with the same characteristics to avoid any risk.

How to download the manual for the ZANUSSI ZHP613 hood?

You can download the manual for free in PDF format on the site notice-facile.com by selecting the desired language. The manual contains 40 pages covering installation, use and maintenance.

What to do if the grease filters have changed color?

A discoloration of the metal filter surface is normal over time and does not affect its efficiency. Continue to clean them regularly.

USER MANUAL ZHP613 ZANUSSI

INSTALLATION, USE AND MAINTENANCE HANDBOOK

MANUEL D'INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN

RECOMMENDATIONS AND SUGGESTIONS 10

CHARACTERISTICS 11

INSTALLATION 12

USE 14

MAINTENANCE 15

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS 17

CHARACTERISTIQUES 18

INSTALLATION 19

UTILISATION 21

ENTRETIEN 22

INHALTSVERZEICHNIS

DE

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

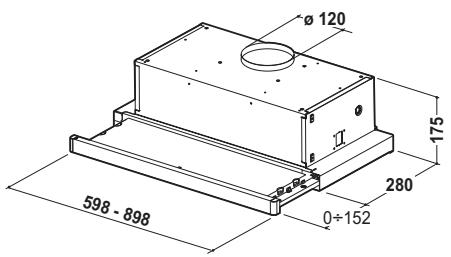

Dimensions

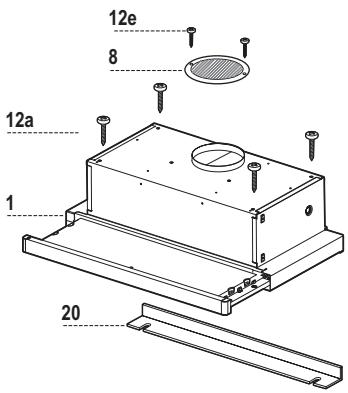

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
8	1	Directional Air Outlet grille
20	1	Closing element
Ref.	Q.ty	Installation Components
12a	4	Screws 4,2 x 44,4
12e	2	Screws 2,9 x 9,5
Q.ty		Documentation
1		Instruction Manual

Drilling the Support surface and Fitting the Hood

SCREW FITTING

• The hood support surface must be 135mm above the bottom surface of the wall units.
• Drill the support with a 4,5mm drill bit, using the drilling template provided.
• Cut a hole 125mm in size on the support surface, using the drilling template provided.
  Fix using the 4 screws 12a (4,2 x 44,4) provided.

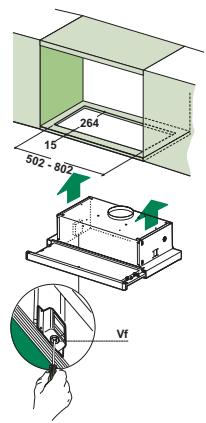

SNAP-ON FITTING

• The hood can be installed either directly on the bottom surface of the wall units using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath the hood.

CLOSING ELEMENT

• The space between the edge of the hood and the rear wall can be closed by applying the element 20 provided, using the screws supplied for this purpose.

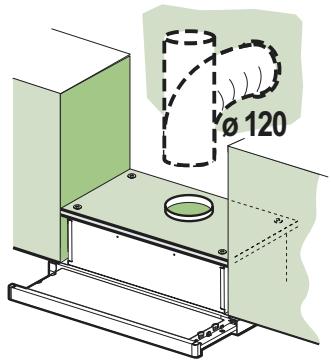

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 120 mm, the choice of which is left to the installer.

Fix the pipe in position using sufficient pipe clamps (not supplied).
- Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125mm in any shelf that may be positioned over the hood.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120mm .
  Fix the pipe in position using sufficient pipe clamps (not supplied).
  Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.

Control panel

L Light Switches the lighting system on and off.
M Motor Switches the extractor motor on and off.
V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

L Light Switches the lighting system on and off.
M Motor Switches the extractor motor on and off.
V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

Grease filters

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
  Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

Charcoal filter (Recycling version)

REPLACING CHARCOAL FILTERS

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.
  Pull out the sliding suction panel.
• Remove the grease filters.
• Remove the saturated carbon filter by releasing the fixing hooks
• Replace the grease filters.
• Close the sliding suction panel.

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Replace the Support, fixing it in place with the two screws removed as above.
