SC2550C - Steam cleaner KARCHER - Free user manual and instructions

Product type	Steam cleaner
Brand	KARCHER
Model	SC2550C
Dimensions (L x W x H)	350 x 280 x 270 mm
Weight (without accessories)	4.1 kg
Supply voltage	220-240 V ~ 50/60 Hz
Heating power	1500 W
Max. operating pressure	0.32 MPa
Water tank capacity	0.8 l
Boiler capacity	0.5 l
Continuous steam output	40 g/min
Max steam output	100 g/min
Heating time	6 minutes
Protection degree	IPX4
Protection class	I
Steam output setting	3 positions (max, reduced, child safety)
Included accessories	Steam gun, jet nozzle, turbo brush, round brush (5x), manual nozzle, sponge cover, microfiber cloth, extension tubes (2x), floor nozzle, floor cloths (2x)
Boiler maintenance	Rinse after 10 refills, descale according to water hardness
Safety devices	Manostat, boiler thermostat, safety thermostat, maintenance lock with pressure relief valve
Intended use	Domestic steam cleaning without detergent

Frequently Asked Questions - SC2550C KARCHER

What type of water to use in the tank?

Use tap water. You can mix up to 50% distilled water with 50% tap water. Do not use condensation water, rainwater, pure distilled water, or detergents or additives.

How to descale the boiler?

Descale the boiler with KÄRCHER descaling sticks (ref. 6.295-206). Follow the dosing instructions on the package. Let it act for about 8 hours, then rinse thoroughly with cold water.

What to do if steam does not come out?

First check the water level in the tank. If the red indicator flashes, fill with water up to the MAX mark. If the red indicator stays on, the overheating protection has triggered: turn off the device, fill the tank, and turn it back on.

How to clean floors with the steam cleaner?

Sweep or vacuum the floor first. Attach the floor cloth to the floor nozzle (open the clips, insert the ends of the cloth, close). Work slowly on dirty surfaces so that the steam can act.

Can I use the steam cleaner on parquet floors?

Do not use the appliance on parquet or unsealed wooden floors. For varnished or painted surfaces, apply steam to a cloth first to avoid damage.

How to adjust the steam output?

Use the steam output selector on the gun: front position = max output, middle = reduced, rear = no steam (child safety). Operate the steam lever.

What to do if the steam lever is blocked?

Check that the steam output selector is not in the rear position (child safety). Push it forward to unlock the lever.

How to store the appliance after use?

Turn off, unplug, and empty the tank. Store the accessories in the holders: round brush in the small holder, manual nozzle and jet nozzle on the tubes, tubes in the large holder, floor nozzle in the storage holder. Wrap the hose around the tubes and hang the gun in the floor nozzle.

Can I clean windows with steam?

Yes, use the manual nozzle with the soft cover. In winter, first warm the window with a light steam pass to avoid thermal shock. Then wipe with a squeegee or dry cloth.

How to wash the floor cloths and covers?

Wash them in the machine at 60 °C without fabric softener to maintain their absorbency. They are suitable for tumble drying.

USER MANUAL SC2550C KARCHER

Line drawing of a vacuum cleaner with attached cable, no text or symbols present

Deutsch 5

English 14

Français 23

Italiano 33

Nederlands 42

Español 51

Português 61

Dansk 70

Norsk 79

Svenska 88

Suomi 97

Ελληνικά 106

Türkçe 115

Русский 124

Magyar 134

Čeština 143

Slovenščina 152

Polski 161

Românește 171

Slovenčina 180

Hrvatski 189

Srpski 198

Български 207

Eesti 216

Latviešu 225

Lietuviškai 234

Українська 243

Қазақша 253

Register and win! www.kaercher.com/register-and-win

EAC

59664090 05/14

DE Kurzanleitung	SV Snabbguide	RO Instructiuni pe scurt
EN Quick reference	FI Pikaohje	SK Krátky návod
FR Instructions abrégées	EL Σύντομες οδηγίε	HR Krakte upute
IT In sintesi	TR Kısa Kullanım Talimati	SR Kratko uputstvo
NL Korte handleiding	RU Краткое руководство	BG Кратко упътване
ES Descripción breve	HU Rövid bevezetés	ET Lühijuhend
PT Instruções resumidas	CS Stručný návod	LV Îsa lietošanas instrukcija
DA Kort brugsanvisning	SL Kratko navodilo	LT Trumpa instrukcija
NO Kortveiledning	PL Skrócona instrukcja obsługi	UK Стислий посібник

Illustration of an open book with a grid layout and an arrow indicating rotation (no text or symbols)

Technical line drawing of a vacuum cleaner assembly (G) and its internal components (H), no text or symbols present.

Inhalt

General information	EN	5
Safety instructions	EN	6
Description of the Appliance	EN	7
Quick Reference	EN	8
Operation	EN	8
How to Use the Accessories	EN	9
Maintenance and care	EN	11
Troubleshooting	EN	12
Technical specifications	EN	12
Special accessories	EN	13

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

Use the steam cleaner only for private households.

The appliance is intended to be used with steam and can be used with the appropriate accessories as described in these operating instructions. You will not need any detergent. Please adhere to the safety instructions.

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but ge for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Symbols on the machine

Steam

CAUTION - Danger of scalding

CAUTION – Please read the operating instructions!

Symbols in the operating instructions

⚠️ Danger

Immediate danger that can cause severe injury or even death.

⚠ Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase. (See address on the reverse)

Safety instructions

Danger

■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
■ Never use the appliance in pools containing water.
■ The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
■ Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the maintenance lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
■ Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
■ Never touch the mains plug and the socket with wet hands.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
■ The maintenance lock must not be opened during operation.

⚠ Warning

■ The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
■ Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm^2 .
■ The connection between power cord and extension cable must not lie in water.
If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
■ The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This appliance is not intended for use by persons with limited physical, sensoric or mental capacities or lack of experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or if they received precise instructions on the use of this appliance.
Children must only use this appliance if they are older than 8 and if they are supervised by a person responsible for their safety or if they are instructed on the use of the appliance by such person.
■ Never leave the appliance unattended when it is in operation.
■ Be very careful while cleaning tiled walls with sockets.

Caution

■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
■ Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.

■ The appliance must not be carried during cleaning.
■ The appliance must provide of a stable ground.
■ Use and store the unit only in accordance with the specifications in the description and/or figure.
■ The steam switch must not be locked during the operation.
■ Protect the appliance from rain. Do not store outside.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Boiler thermostat

If, in case of a malfunction, there is no water in the boiler, the temperature in the boiler rises. The boiler thermostat turns off the heating. Once the boiler is filled, normal operation can continue.

Safety thermostat

The safety thermostat turns off the appliance if the boiler thermostat and the pressure controller fails and the appliance overheats in case of a malfunction. Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.

Maintenance lock

The maintenance lock acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.

If the pressure controller is defect and the steam pressure in the boiler rises, the pressure control valve, and steam is emitted through the maintenance lock to the outside.

Please contact your local KÄRCHER customer service before you put the appliance into operation again.

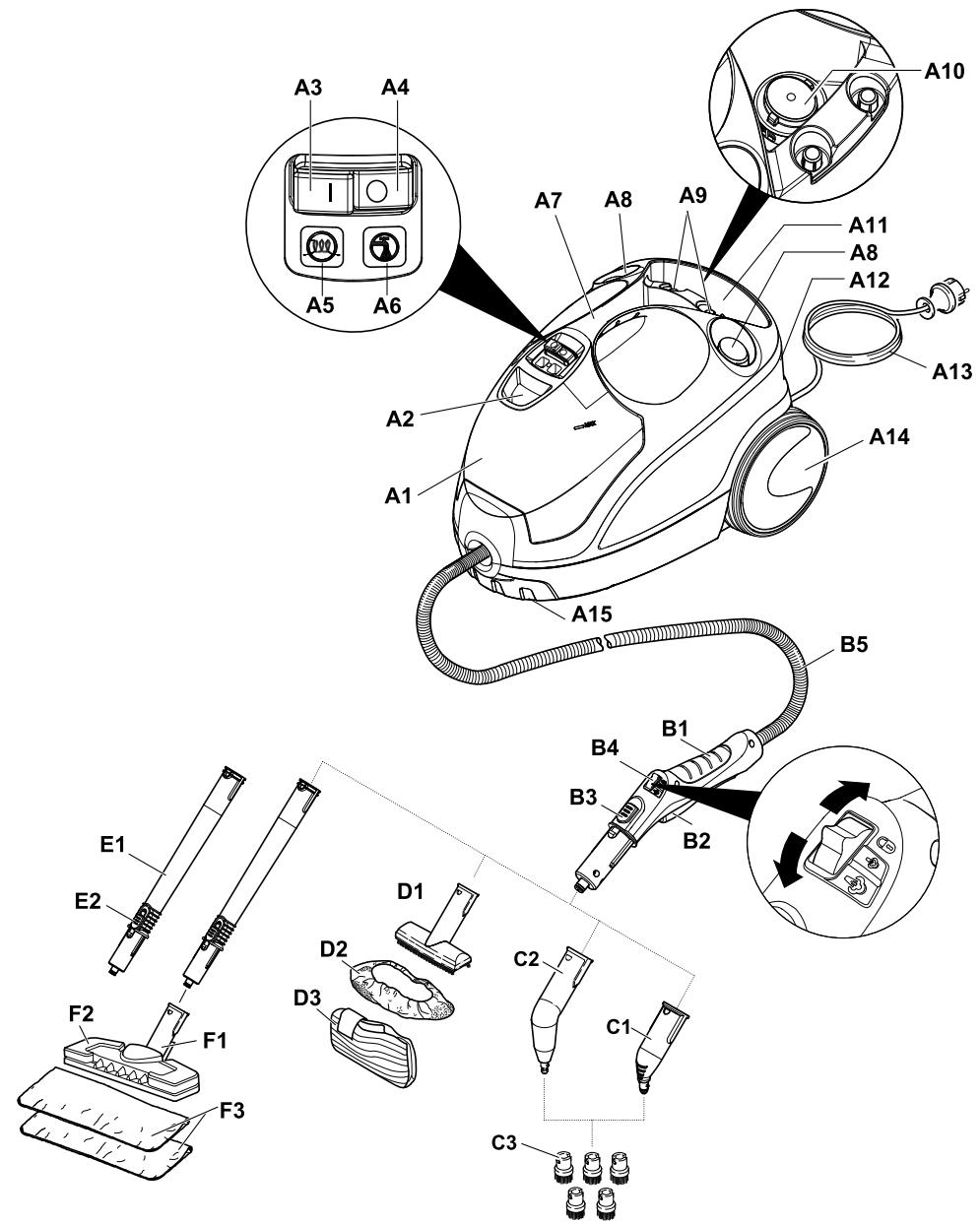

Description of the Appliance

→ Illustrations on fold-out page 4!

A1 Water reservoir
A2 Fill the water reservoir
A3 Switch - ON
A4 Switch - OFF
A5 Indicator lamp - heating (GREEN)
A6 Indicator lamp "water shortage" (RED)
A7 Carrying handle
A8 Holder for accessories
A9 Holder for accessories
A10 Maintenance lock
A11 Storage for mains connection cable
A12 Storage holder for floor nozzle
A13 Mains cable with mains plug
A14 Running wheels (2 ea.)
A15 Steering roller
B1 Steam gun
B2 Steam lever
B3 Unlocking button
B4 Selector switch for the steam volume (with child protection)
B5 Steam hose
C1 Detail nozzle
C2 Steam turbo brush
C3 Round brush (5x)
D1 Hand nozzle
D2 Terry cloth cover
D3 Microfibre abrasive cover
E1 Extension tubes (two tubes)
E2 Unlocking button
F1 Floor nozzle
F2 Retaining clip
F3 Terry floor cloth (2x)

Quick Reference

→ Illustrations on Page 2

1 Fill the water reservoir up to the "MAX" marking.

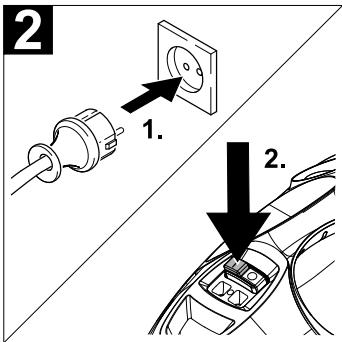

2 Plug in the main plug. Turn on the appliance.

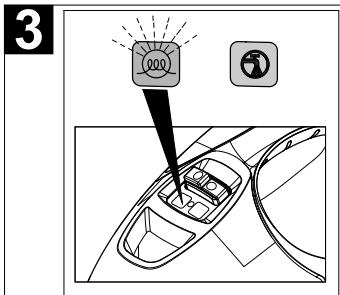

3 Indicator lamp "heating on" is blinking (green)

Wait until the indicator lamp (heater) lights up permanently.

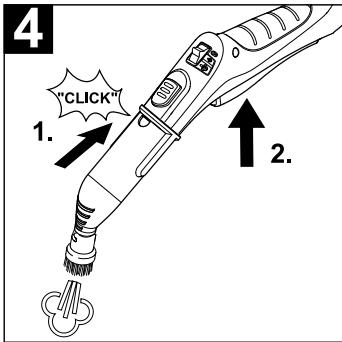

4 Connect the accessories to the steam gun.

The steam cleaner is ready to use.

Operation

→ Illustrations on fold-out page 3!

Attaching the Accessories

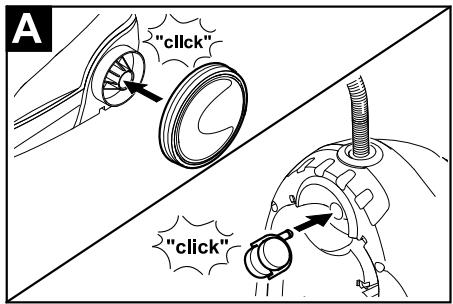

→ Illustration A

Insert steering roller and transport wheels and lock them.

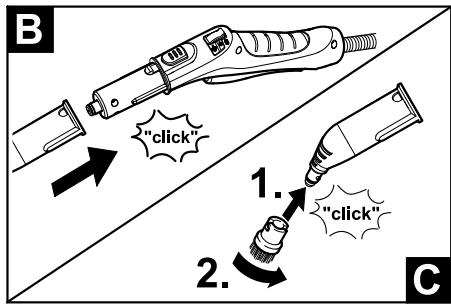

→ Illustration B + C

Connect the required accessories (see Chapter "How to use the accessories") to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the un-locking button of the steam gun locks into place.

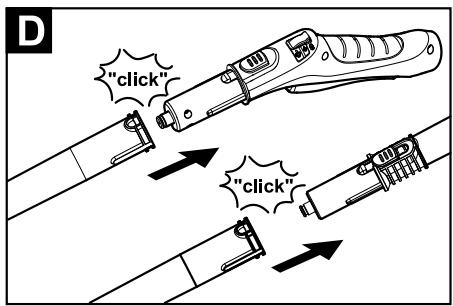

→ Illustration D

Use the extension tubes if necessary. To do so, connect one or both extension tubes to the steam gun. Insert the required accessories on the free end of the extension tube.

Removing the Accessories

⚠️ Danger

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!

→ Move the selector switch for the steam volume back (steam lever locked).

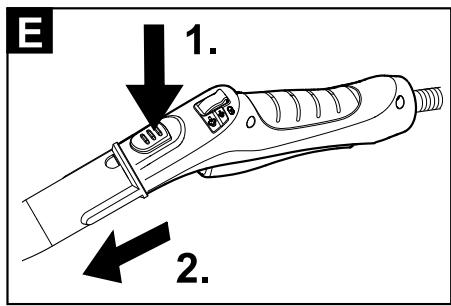

→ Illustration E

To detach the accessory parts, press the unlocking button and pull the items apart.

Filling the Water Reservoir

The water reservoir may be refilled at any time.

Caution

Do not use condensation water from the drier!

Do not fill with detergent or other additives (for example fragrances)!

Do not use pure distilled water! Max. 50% distilled water and 50% tap water.

Do not use collected rain water!

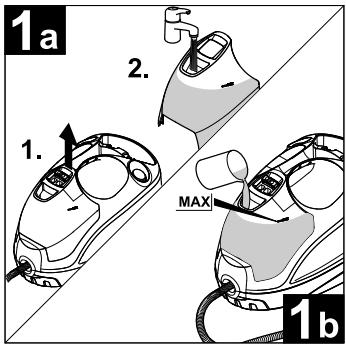

→ Illustration 1

You can remove the water reservoir to fill it or you can fill it directly on the appliance.

Take off water reservoir

→ Pull the water reservoir straight up.
→ Fill the water reservoir up to the "MAX" marking while positioned vertically under the water tap.
→ Insert the water reservoir and press downwards until it arrests.

Directly on the appliance

→ Pour water from a container into the funnel inlet. Fill up to the "MAX" marking.

Turning on the Appliance

→ Place the unit securely on a firm surface.
→ Insert the mains plug into a socket.
→ Press the ON switch to turn on the appliance.

Note: If there is no or not enough water in the steam boiler, the water pump starts and supplies water from the reservoir into the steam boiler. The filling process may take several minutes.

→ Wait until the indicator lamp (heater) lights up permanently.

The steam cleaner is ready to use.

Refilling Water

In case of water shortage, the indicator lamp "water shortage" glows red in the water reservoir and a signal can be heard.

→ Fill the water reservoir up to the "MAX" marking.

Note: The water pump tries to fill the steam boiler in short intervals. If the filling process is successful, the red indicator lamp goes off.

Adjusting the Steam Quantity

Use the selector switch for the steam volume to regulate the discharged steam. The selector switch has three positions:

Maximum steam volume

Reduced steam volume

No steam - child protection

Note: In this lever position, the steam lever cannot be used.

→ Set selector switch to the required steam volume.
→ While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.

Turning Off the Appliance

→ Press the OFF switch to turn off the appliance.
→ Disconnect the mains plug from the socket.
→ Empty the residual water from the water reservoir.

Storing the Appliance

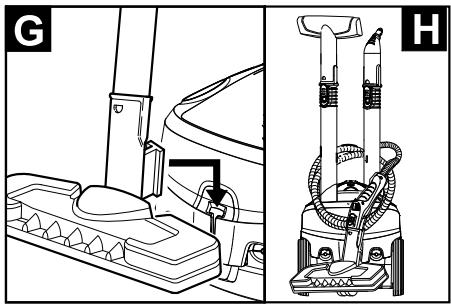

Illustrations G - H

→ Insert the round brush into a small holder for accessories.
→ Insert the manual nozzle and detail nozzle onto each extension pipe.
→ Put the extension pipes into the large accessory compartments.
→ Hook the floor nozzle into the parking position.
→ Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.
→ Stow away the mains cable in the accessory holder for the mains cable.

How to Use the Accessories

Important application instructions

Cleaning floor surfaces

It is recommended to sweep or vacuum the floor prior to using the steam cleaner. This way, the floor is already cleared of dirt/loose particles prior to the wet cleaning.

Refreshing textiles

Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam at first, then let dry and then check for colour or shape changes.

Cleaning of Coated or Lacquered Surfaces

When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, parquet; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it.

Caution

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.

Cleaning of Glass

In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.

Then clean the window surface with the hand nozzle and attachment. Use a squeegee to remove the water or wipe the surfaces dry.

Caution

Do not direct steam onto the sealed locations of the window frame to prevent damage.

Steam gun

You can use the steam gun without any additional accessories, e.g.:

• to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20 cm.
• to remove dust from plants. Here, keep a distance of 20-40 cm.
• for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

Detail nozzle

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy lime scale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.

Round brush

The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.

Caution

Not suited for the cleaning of sensitive surfaces.

→ Illustration ©

Attach the round brush to the detail nozzle.

Steam turbo brush

The steam turbo brush is set swinging by the emitted steam and is suited ideally for the easy cleaning of extreme dirt at places in the kitchen and the bathroom that are difficult to access.

Caution

Using the turbo steam brush for longer periods can lead to circulation problems in the hand caused by hands (finger cramps, cold fingers). Please take a break if that happens.

It is not possible to specify a generally valid operation time, since this depends on several factors:

– Proneness to blood circulation deficiencies (cold, numb fingers).
– A firm grip impedes blood circulation.
- Continuous operation is worse than an operation interrupted by pauses.
In case of regular, long-term operation of the turbo steam brush and in case of repeated occurrence of the symptoms (e.g. cold, numb fingers) please consult a physician.

Hand nozzle

Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls and mirrors.

Microfibre abrasive cover

Pull up the microfibre abrasive cover over the hand nozzle.

Especially well-suited for removing calcium and soap residues in the bath-room (for e.g shower cabins, tiled walls).

Can be washed at 60 °C ; please do not use any fabric softener. Not suitable for drier.

Floor nozzle

Suited for all washable walls and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.

Note: Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam cleaned. However, these will disappear with repeated cleaning procedures.

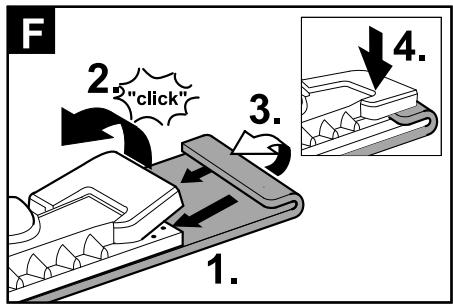

→ Illustration F

Attach the floor cloth to the floor nozzle.

1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

Parking the floor nozzle

→ Illustration G

During work breaks, hook the floor nozzle into the parking holder.

Maintenance and care

⚠️ Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Rinsing the steam boiler

Rinse the steam cleaner boiler at the latest after 10 boiler fillings.

→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir.
→ Remove the accessories from the accessory compartments.

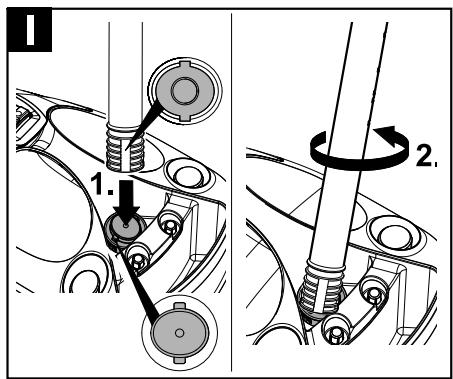

Illustration I

→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.

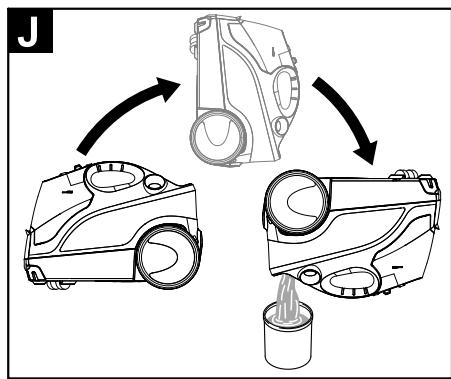

→ Completely empty the steam boiler to remove existing water (see Fig. J).

Descaling the Steam Boiler

As limes cale builds up on the boiler walls, we recommend to de scale the boiler in the following intervals (RF = reservoir fillings):

Degree of hard-ness		° dH	mmol/l	RF
I	soft	0-7	0-1,3	100
II	medium	7-14	1,3-2,5	90
III	hard	14-21	2,5-3,8	75
IV	very hard	>21	>3,8	50

Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.

→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir.
→ Remove the accessories from the accessory compartments.

Illustration I

→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Completely empty the steam boiler to remove existing water (see Fig. J).

⚠ Warning

Only use products approved by KÄRCHER to exclude any damages of the appliance.

→ User the KÄRCHER decalcifier sticks (order no. 6.295-206) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descaling solution can have an aggressive effect on delicate surfaces.

→ Pour the descaling solution into the boiler and allow it to react for approximately 8 hours.

⚠ Warning

Do not screw the maintenance lock onto the appliance during the decalcifying.

Do not use the steam cleaner as long as there is decalcifying agent in the boiler.

→ Completely empty the descaling solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
→ Completely empty the steam boiler to remove existing water (see Fig. J).
→ Allow the storage compartment for the mains cable to dry.
→ Screw the maintenance lock in using the extension pipe.
→ Fill water reservoir (see page 8).
→ The steam cleaner is ready to use.

Care of the Accessories

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.

→ You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ C. Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

⚠️ Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified

→ Descale the steam boiler.

No steam

Indicator lamp - "water shortage" blinks red and signal sounds

No water in the water reservoir.

→ Fill the water reservoir up to the "MAX" marking.

Indicator lamp "water shortage" glows red

No water in the steam boiler. Overheating protection of the pump was triggered.

→ Turn off the appliance.
→ Fill the water reservoir
→ Turn on the appliance.

Water reservoir has not been inserted properly or is calcified.

→ Remove the water reservoir and rinse it.
→ Insert the water reservoir and press downwards until it arrests.

Steam lever cannot be pressed anymore

Steam switch is secured with the lock / child-proof lock.

→ Move the selector switch for the steam volume to the front.

High water output

Steam boiler is decalcified

→ Descale the steam boiler.

Technical specifications

Power connection
Voltage	220-240 V1~50/60 Hz
Protection class	IPX4
Protective class	I
Performance data
Heating output	1500 W
Operating pressure max.	0,32 MPa
Heating time	6 Minutes
Steam volume
Continuous steaming	40 g/min
Steam push max.	100 g/min
Filling quantity
Water reservoir	0,8 l
Boiler capacity	0,5 l
Dimensions
Weight (without accessories)	4,1 kg
Length	350 mm
Width	280 mm
Height	270 mm

Subject to technical modifications!

Special accessories

Order number

Microfibre cloth set, bath 2.863-171

2 soft floor cloths made of plush velour, 1 abrasive cover for the hand nozzle, 1 polishing cloth for the mirrors and fixtures

Microfibre cloth set, kitchen 2.863-172

2 soft floor cloths made of plush velour, 1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces

Microfibre cloth set, soft floor 2.863-173

2 soft floor cloths made of velvet velour

Microfibre cloth set, soft cover2.863-174

2 soft covers made of plush velour

Terry-cloth rags 6.369-357

5 floor cloths made of cotton

Terry-cloth covers 6.370-990

5 covers made of cotton

Round brush kit 2.863-058

4 round brushes for the detail nozzle

Round brush kit with brass bristles 2.863-061

Removal of especially stubborn dirt ideal for insensitive surfaces.

Round brush with scraper 2.863-140

Round brush with two rows of heat-resistant bristles and a scraper. Not suitable for sensitive surfaces.

Power nozzle and extension 2.884-282

For the cleaning of difficult to access areas (such as corners) with increased cleaning power.

Turbo steam brush 2.863-159

For cleaning tasks where you would usually have to scrub.

Textile care nozzle 4.130-390

For freshening up clothes and textiles.

Wallpaper remover 2.863-062

To remove wallpaper and glue residue.

Decalcifying sticks (9 pieces) 6.295-206

Contenu

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Geen water in de watertank.

→ Watertank vullen tot marking "MAX". Controlelampje - te weinig water brandt rood

Geen water in stoomketel. Beveiliging te- gen oververhitting van de pomp is in wer- king gezet.

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Symboler på maskinen

Damp

ADVARSEL – Forbrenningsfare

OBS – Les bruksanvisningen!

Symboler i bruksanvisningen

⚠️ Fare

For en umiddelbar truende fare som kan føre til store personskader eller til død.

Advarsel

→ Still valgbryteren for dampmengden for-over.

Stort vannutløp

Kalkavleiringer i dampkjelen

→ Avkalk dampkjelen.

Tekniske data

Strømtilkobling

Spenning	220-240 V1~50/60 Hz
Beskyttelsesklasse	IPX4
Beskyttelsesklasse	I
Effektspesifikasjoner
Varmeeffekt	1500 W
Maks. driftstrykk	0,32 MPa
Oppvarmingstid	6 Minutter
Dampvolum
Permanent damping	40 g/min
Damptrinn maks.	100 g/min
Fyllingsmengde
Vanntank	0,8 l
Dampkjele	0,5 l
Mål
Vekt (uten tilbehør)	4,1 kg
Lengde	350 mm
Bredde	280 mm
Høyde	270 mm

Det tas forbehold om tekniske endringer!

Tilleggsutstyr

Bestillingsnummer

www.kaercher.com/REACH

Symboler på maskinen

Ånga

www.kaercher.com/REACH

www.kaercher.com/REACH

Σύμβολα στη συσκευή

Ατμός

www.kaercher.com/REACH

Cihazdaki semboller

Buhar

www.kaercher.com/REACH

www.kaercher.com/REACH

Symboly na zařízení

Pára

www.kaercher.com/REACH

Simboli na napravi

Para

POZOR - nevarnost opeklin

POZOR – Preberite navodilo za uporabo!

www.kaercher.com/REACH

Mult stimate client,

www.kaercher.com/REACH

Simboluri pe aparat

Abur

www.kaercher.com/REACH

www.kaercher.com/REACH

Simboli na aparatu

Para

www.kaercher.com/REACH

Simboli na aparatu

Para

PAŽNJA - Opasnost od opekotina

PAŽNJA - pročitajte uputstvo za rad!

Simboli u uputstvu za rad

⚠️ Opasnost

Ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠ Upozorenje

Ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

Oprez

Ukazuje na eventualno opasnu situaciju koja može dovesti do lakših telesnih povreda ili izazvati materijalnu štetu.

Obim isporuke

Sadržaj isporuke Vašeg uređaja je prikazan na ambalaži. Pre vađenja uređaja iz ambalaže proverite da li je sadržaj potpun.

Ako pribor nedostaje ili je došlo do oštećenja prilikom transporta, molimo da o tome obavestite svog prodavca.

Rezervni delovi

Upotrebljavajte samo originalne rezervne delove firme KÄRCHER. Pregled rezervnih delova naći ćete na kraju ovog uputstva za rad.

Garancija

U svakoj zemlji važe garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na uređaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najbližoj ovlašćenoj servisnoj službi. (Adresu ćete naći na poleđini)

Sigurnosne napomene

⚠️ Opasnost

■ Zabranjen je rad u područjima ugroženim eksplozijom.
■ Prilikom upotrebe uređaja u opasnim područjima treba poštovati odgovarajuće sigurnosne propise.
■ Uređaj nemojte koristiti u bazenima u kojima ima vode.
■ Uređaj se ne sme koristiti za čišćenje električnih aparata i uređaja kao što su npr. klasične i mikrotalasne pećnice, aspiratori, televizori, lampe, fenovi za kosu, električne grejalice i slično.
■ Pre upotrebe proverite da li su uređaj i pribor u ispravnom stanju. Ako stanje nije besprekorno, ne sme se upotrebljavati. Posebno proverite priključni strujni kabl, zatvarač za izvođenje radova održavanja i parno crevo.
Oštećen strujni priključni kabl odmah dajte na zamenu ovlašćenoj servisnoj službi/električaru.
Oštećeno parno crevo odmah zamenite. Sme se upotrebljavati samo parno crevo kojeg je preporučio proizvođač (kataloški broj vidi u spisku rezervnih delova).
■ Mrežni utikač in utičnicu nikada ne dodirujte vlažnim rukama.
■ Parom ne čistite predmete koji sadrže materije štetne po zdravlje (npr. azbest).
■ Mlaz pare na maloj udaljenosti nikada ne dodirujte rukom niti usmeravajte prema ljudima ili životinjama (opasnost od opekotina).
■ Zatvarač za izvođenje radova održavanja se tokom rada ne sme otvarati.

⚠ Upozorenje

A5 Zeleni indikator grejača

A6 Crveni indikator nedostatka vode

A7 Ručka za nošenje

A8 Držač pribora

A9 Držač pribora

A10 Zatvarač za izvođenje radova održavanja

www.kaercher.com/REACH

Символи на уреда

Пара

www.kaercher.com/REACH

Lisavarustuse monteerimine

→ Joonis A

www.kaercher.com/REACH

Simboli uz ierīces

Tvaiks

www.kaercher.com/REACH

www.kaercher.com/REACH

Знаки на приладі

Пара

www.kaercher.com/REACH

Icon of a gear and wrench inside a square frame (no text or symbols)

http://www.kaercher.com/dealersearch

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
