Product Type	Microwave oven with grill
Brand	Wilfa
Model	EG1.820 S
Power Supply	230V ~ 50Hz, 1280W
Microwave Output Power	800W
Grill Heater Power	1100W
Operating Frequency	2,450 MHz
Oven Capacity	20 litres
Outside Dimensions (W x D x H)	470 x 377 x 282 mm
Oven Cavity Dimensions (W x D x H)	315 x 330 x 195 mm
Weight	Approx. 16 kg
Cooking Functions	Microwave, Grill, Combination, Auto Defrost
Control Type	Digital display with push buttons
Child Safety Lock	Yes
Door Safety Lock System	Yes
Installation Clearances	8 cm sides, 10 cm rear, 30 cm top
Included Accessories	Glass tray, roller ring, grill rack
Cleaning	Wipe with damp cloth and mild detergent; wash glass tray and roller ring regularly
Spare Parts / Repairability	Contact authorized service agent for repairs
Warranty	Refer to manufacturer or dealer

Frequently Asked Questions - EG1.820 S WILFA

How do I set the cooking time on the Wilfa EG1.820 S microwave?

Press the time buttons (10 Min, 1 Min, 10 Sec) to set the desired time. Then press START/RESET to begin cooking. Maximum time is 30 minutes for microwave mode.

How do I use the auto defrost function?

Press MICRO/GRILL until DEF appears. Set the weight using 1 Min (1.0 kg) and 10 Sec (0.1 kg) buttons. Maximum weight is 2 kg. Press START/RESET to start defrosting automatically.

How do I use the grill function?

Press MICRO/GRILL to cycle through modes: G-1 (85% grill), G-2 (50% grill), C-1 (combination: 55% micro + 45% grill), C-2 (30% micro + 70% grill). Set time (max 60 min) and press START/RESET. For grill only, the oven pauses halfway to turn food.

How do I activate the child lock?

Press and hold the 1 Min and 10 Sec buttons simultaneously for 2 seconds. The child lock disables all buttons. To unlock, repeat the same action for 2 seconds.

What should I do if the microwave does not start?

Check the following: ensure the oven is plugged in securely, the door is fully closed (safety interlocks), and the timer is set. Also check for a blown fuse or tripped circuit breaker. If none work, contact an authorized service agent.

Can I use metal utensils in this microwave?

No. Do not use metal pans, dishes with metal handles, or metal trim. Only use microwave-safe utensils. Metal can cause arcing and damage the oven.

How should I clean the microwave oven?

Unplug the oven. Wipe the interior with a damp cloth and mild detergent. Clean the glass tray and roller ring with warm soapy water or in a dishwasher. Do not let water seep into vents. For odors, microwave a bowl of water with lemon juice for 5 minutes.

What is the maximum cooking time for microwave mode?

The maximum time for microwave cooking is 30 minutes. For grill or combination modes, the maximum is 60 minutes.

How do I use the combination cooking mode?

Press MICRO/GRILL until C-1 (55% microwave + 45% grill) or C-2 (30% microwave + 70% grill) appears. Set the cooking time (max 60 min) and press START/RESET. Suitable for foods that need browning and heating.

What should I do if the microwave causes radio or TV interference?

Clean the door and sealing surfaces. Move the radio/TV further away. Use a properly installed antenna for better reception. These steps can reduce or eliminate interference.

USER MANUAL EG1.820 S WILFA

Modern microwave oven with digital display and control panel (no visible text or symbols on main body)

MIKROB∅LGEOVN: MODELL EG1.820 S

MIKROVÅGSUGN: MODELL: EG1.820 S

MIKROAALTOUUNI MALLI: EG1.820 S

MICROWAVE MODELL: EG1.820 S

SPESIFIKASJONER:

Strømforbruk: 230 V\~50 Hz, 1280 W

Effekt: 800 W

Grillvarmer: 1100 W

Driftsfrekvens: 2 450 MHz

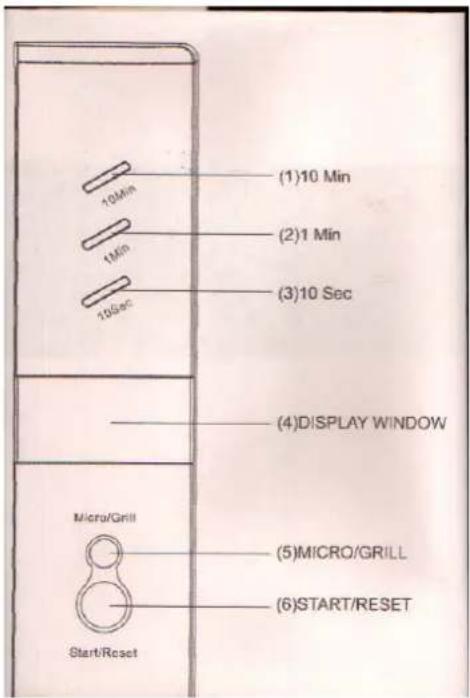

KONTROLPANEL

ANVENDELSE

1. ENKEL TILBEREDNING

Power consumption: 230V\~50Hz,1280W

Output: 800W

Grill Heater: 1100W

Operating Frequency: 2,450MHz

Outside Dimensions: 470mm(W) X 377mm(D) X 282mm(H)

Oven Cavity Dimensions: 315mm(W) X 330mm(D) X 195mm(H)

Oven Capacity: 20litres

Uncrated Weight: Approx. 16 kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power does not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity
7. If any of the above are visible, DO NOT use the oven.
8. This Microwave Oven weighs 16 kg and must be placed on a horizontal surface strong enough to support this weight.
9. The oven must be placed away from high temperature and steam.
10. DO NOT place anything on top of the oven.
11. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.
12. DO NOT remove the turn -table drive shaft.
13. As with any appliance, close supervision is necessary when used by children.

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

- The oven must have sufficient air flow. Keep 10 cm space at back; 8 cm at both sides and 30cms from top of the oven. Don't remove oven's feet, do not block air events of the oven.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
9. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN Do not use metal pans or dishes with metal handles.
   Do not use anything with metal trim.
   Do not use paper covered wire twist-ties on plastic bags.

Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

Do not use conventional meat or candy thermometers.

There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.

2. Do not attempt to deep-fry foods in this oven.

3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

4. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

5. Food containing a mixture of fat and water, e.g. stock, should stand for 30–60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

6. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

7. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering

the top and handles of the utensil. Potholders may be needed to handle the utensil.

1. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

(b) Remove wire twist-ties from bags before placing bag in oven.

(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

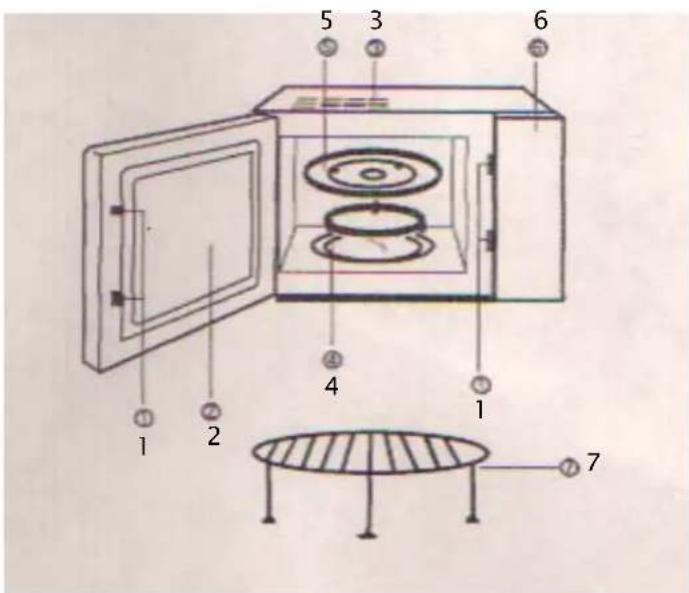

FEATURE DIAGRAM

(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Grill rack

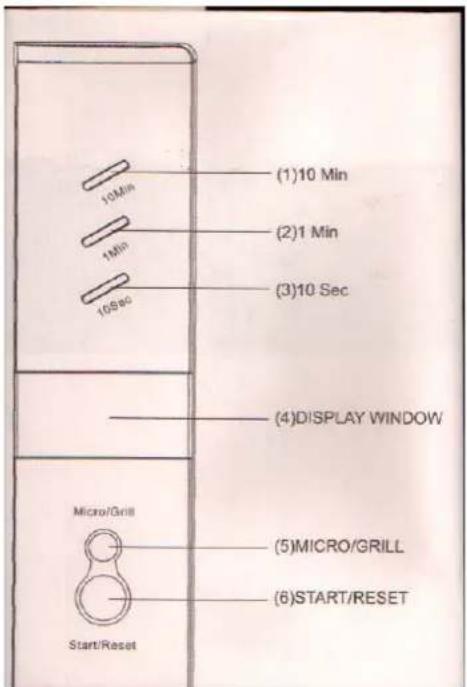

CONTROL PANEL

You only need press "START/RESET" to start cooking for 1 min with 100 % microwave power. Each press means increasing one minute cooking time, the maximum time is 30 min. After cooking finished you will sound five beeps for remind.

(A) Fast cooking method
(For example: Select 100% power to cook foods for 5 minutes.)
a) Set the time "5:00"
b) Press "START/RESET" button

(B) Control by hand

(For example: Select 70% power to cook foods for 10 minutes)

a) Press "MICRO/GRILL" button to select 70% power.
b) Press time button to set cooking time "10:00"
c) Press "START/RESET" button.

You can press "MICRO/GRILL" button to select power.

Step	Display	Micro
1	P10	100
2	P7	70
3	P5	50
4	P3	30
5	P1	10

3. AUTO DEFROST FUNCTION

You need to press "1Min" (1.0kg) and "10Sec" (0.1kg) according to the weight of the food. The oven can select defrosting programme and auto start defrosting.

For example: defrost 0.4kg frozen foods

1) Press "MICRO/GRILL" to choose defrost function, display "DEF".
2) Set weight "0.4kg" by pressing "1Min" and "10Sec" buttons.
3).Press "START/RESET" button.

Remark: the maximum weight is 2kgs.

4. GRILL/COMBINATION COOKING FUNCTION

This function has four modes, you can choose the favourite mode by pressing the "MICRO/GRILL" button.

(The maximum time is 60 minutes)

Mode 1: 85% grill power, display "G-1".

Mode 2: 50% grill power, display "G-2".

Mode 3: Combination cook I (55% micro+45% grill) display "C-1".

Mode 4: Combination cooking II (30% microwave+ 70% grill) display "C-2".

In grill operation (exclusive combination grill), the procedure will pause automatically and sound two beeps to remind you to turn over the food at the half of cooking time. Close the oven door after you turn over the food, then press "START/RESET", cooking will continue; If you do not want to turn over the food, the oven will continue cooking automatically after one minute pause.

5. START AND RESET

1) Open door status

Press "START/RESET" button to cancel setting or cooking program.

Press "START/RESET" button to start cooking after setting cooking programme.

Press "START/RESET" button to continue cooking when the cooking is in pause status.

Press "START/RESET" button to stop working when the microwave oven is operating.

6. CHILDREN SAFETY LOCK

To activate the Child Lock, press "1Min" and "10Sec" buttons at the same time for 2 seconds. After that press any button is useless. If press "1Min" and "10Sec" button at the same time for 2 seconds again it will unlock this function.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.

3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.

5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels.

When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
