E800-20W - Microwave WILFA - Free user manual and instructions

Brand	Wilfa
Model	E800-20W
Product Type	Microwave Oven
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1270 W
Rated Output Power (Microwave)	800 W
Oven Capacity	20 L
Turntable Diameter	245 mm
External Dimensions (W x D x H)	453 x 369 x 258 mm
Net Weight	Approx. 9.94 kg
Control Type	Digital keypad and rotary knob
Display	LED digital display
Color	White
Microwave Power Levels	10%, 30%, 50%, 80%, 100%
Clock Setting	Yes, 24-hour format
Child Lock	Yes, press STOP/CLEAR for 3 seconds
Defrost Function	By weight (100-2000 g) or by time
Auto Menus	8 presets: Reheat, Vegetables, Fish, Meat, Pasta, Potatoes, Pizza, Soup
Multi-Stage Cooking	Up to 2 stages (defrost first)
Pre-set Function	Delayed start with clock
Fast Cooking	Add 30 seconds at 100% power
Accessories Included	Glass tray, turntable ring assembly, instruction manual
Minimum Clearance (Sides)	7.5 cm (3.0 inches) one side open
Minimum Clearance (Top)	30 cm (12 inches)
Cleaning Instructions	Clean with damp cloth; do not use abrasive cleaners
Safety Features	Door interlocks, child lock, auto shut-off
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - E800-20W WILFA

How do I set the clock on the Wilfa E800-20W microwave?

When powered, the oven displays '0:00'. Press CLOCK/PRE-SET. The hour figures flash. Turn the dial to set hours (0-23). Press CLOCK/PRE-SET again; minute figures flash. Turn dial to set minutes (0-59). Press CLOCK/PRE-SET to confirm. The colon will flash.

How do I activate the child lock?

In standby mode, press and hold STOP/CLEAR for 3 seconds. A long beep sounds and the lock indicator appears on the display. To cancel, press and hold STOP/CLEAR again for 3 seconds.

What materials are safe to use in this microwave?

Use microwave-safe utensils. Avoid metal, aluminum foil, and containers with metal handles. You can test a utensil by placing it with 250 ml water in a microwave-safe container and heating on high for 1 minute. If the utensil becomes hot, do not use it.

How do I defrost food by weight?

Press W.T./TIME DEFROST once to display 'dEF1'. Turn the dial to select the food weight (100-2000 g). Press START/+30SEC./CONFIRM to start defrosting.

Why does the microwave oven light dim during cooking?

This is normal. In low power microwave cooking, the oven light may become dim to conserve energy. It does not affect cooking performance.

Can I use the microwave without any food inside?

No. Operating the microwave empty is dangerous and can damage the appliance. Always ensure there is food or at least a cup of water inside when heating.

How do I clean the microwave interior?

Unplug the microwave. Wipe the interior with a slightly damp cloth. For stubborn residues, use mild soapy water. Do not use abrasive cleaners. Clean the door seals and frame carefully.

What should I do if the turntable makes noise?

The noise may be due to dirt under the roller rest or turntable. Clean the glass tray, turntable ring assembly, and oven bottom with a damp cloth. Ensure parts are properly re-installed.

How do I set a delayed start (pre-set function)?

First set the clock. Then program the cooking (microwave power and time) without pressing START. Press CLOCK/PRE-SET; set the desired start time (hours then minutes). Press START/+30SEC./CONFIRM to confirm. The oven will start automatically at that time.

What auto menus are available?

There are 8 auto menus: A-1 Reheat, A-2 Vegetables, A-3 Fish, A-4 Meat, A-5 Pasta, A-6 Potatoes, A-7 Pizza, A-8 Soup. Turn the dial to select, then choose the weight and press START.

USER MANUAL E800-20W WILFA

White microwave oven with digital display and control buttons (no visible text or symbols on main body)

Bølge 800 LED

Microwave oven

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

Ugit officia porem et ent,inctorem resent volorumqui bearum corestota et ut am

quo magnihitae

E800-20W

Mikrobølgeovn

Spesifikasjoner 3

VIKTIGE SIKKERHETSINSTRUKSJONER ....4

KJ∅KKENUTSTYR 7

Kokekartest ....7

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of an electrical outlet plug with two leads (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

The image contains only background horizontal lines, which are stylistic or background elements. According to Rule 2, such lines must be ignored by the OCR result. Therefore, the correct OCR output is empty.

(no text)

Mikroaaltouuni

Tekniset tiedot ....3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifications ....3

IMPORTANT SAFETY INSTRUCTIONS ....4

UTENSILS 7

Utensil test: 7

Turntable installation 9

Installation .... 10

OPERATION INSTRUCTIONS ....11

Pre-set function ....13

Lock-out function for children 13

Inquiry function 15

Specification 15

Troubleshooting 15

INSTRUCTION MANUAL

MODEL: E800-20W

Read these instructions carefully before using your microwave oven, and store them carefully.

If you follow the instructions, your oven will provide you with many years of good service.

STORE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1 Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
2 Do not place any object between the oven front face and the door or allow dirt or cleaner residue to accumulate on sealing surfaces.

ADDENDUM

If the apparatus is not kept in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model: E800-20W
Rated Voltage: 230V~50Hz
Rated Input Power (Microwave): 1270W
Rated Output Power (Microwave): 800W
Oven Capacity: 20 L
Turntable Diameter:	245mm
External Dimensions: 453mm X 369mm X 258mm
Net Weight: Approx. 9.94kg

WARNING:

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

IMPORTANT SAFETY INSTRUCTIONS

1 Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2 Warning: It is hazardous for anyone other than a trained person to remove a cover which gives protection against exposure to microwave energy.
3 Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4 Warning: When the appliance is operated in combination mode, children should only use the oven under adult supervision due to the temperatures generated (only for grill series).
5 Only use utensils suitable for use in microwave ovens.
6 The oven should be cleaned regularly and any food deposits should be removed.
7 Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8 When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9 If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10 Do not overcook food.
11 Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12 Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13 Install or locate this oven only in accordance with the installation instructions provided.
14 Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15 Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed for heating. It is not designed for industrial or laboratory use.
16 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17 Do not store or use this appliance outdoors.

18 Do not use this oven near water, in a damp basement or near a swimming pool.
19 The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20 Do not let the cord hang over the edge of the table or counter.
21 Failure to keep the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22 The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23 Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24 The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25 Children should be supervised to ensure that they do not play with the appliance.
26 The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27 Appliances are not intended to be operated by means of an external timer or separate remote-control system.
28 The door or the outer surface may get hot when the appliance is operating.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard. Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after use with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service engineer if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1 A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2 If a long cord set or extension cord is used:

- The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

- The extension cord must be a grounding type 3-wire cord.

- The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

UTENSILS

See the instructions on "Materials that can be used in microwave ovens or to be avoided in microwave ovens." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question by following the procedure below.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Utensil test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

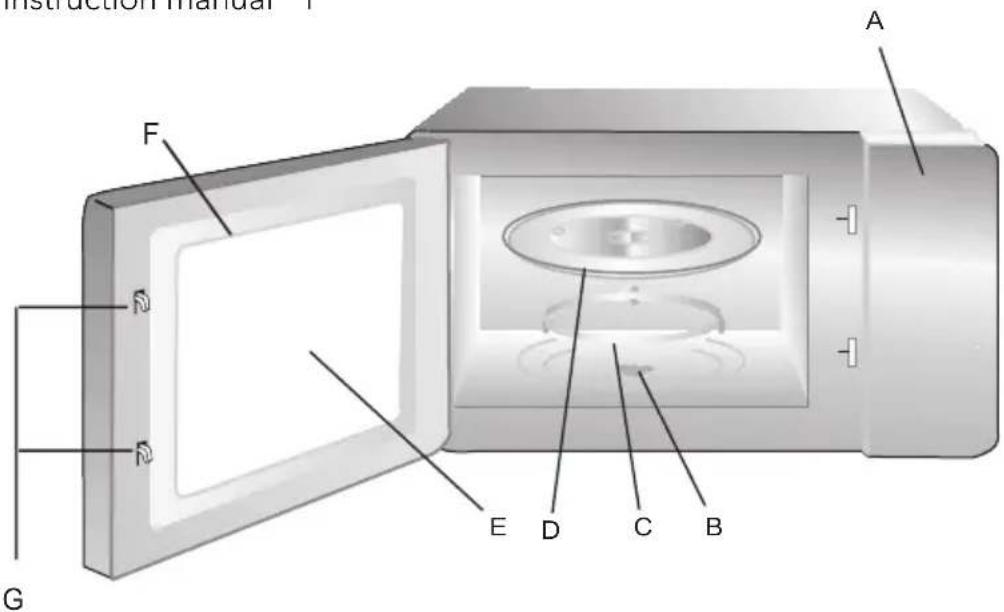

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

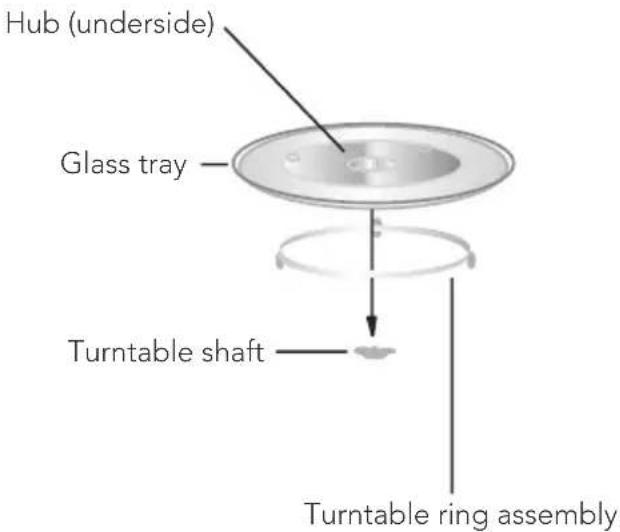

Turntable installation

■ Never place the glass tray upside down. The movement of the glass tray should never be restricted.
■ Both the glass tray and turntable ring assembly must always be used during cooking.
■ All food and food containers must always be placed on the glass tray for cooking.
If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet:

Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown mica cover that is attached to the oven cavity to protect the magnetron.

WARNING Do not install oven over a range cooktop or other heat- producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty may be void.

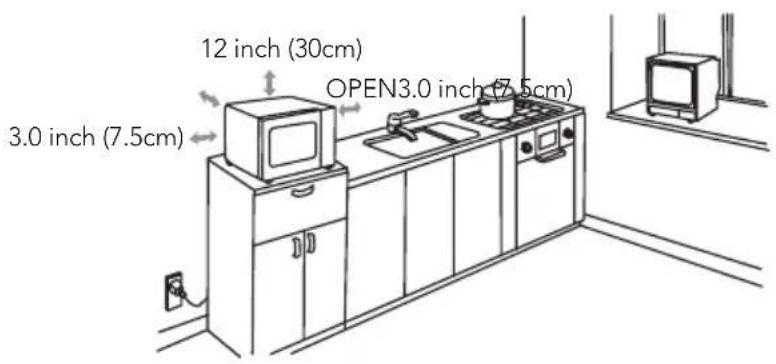

Installation

1 Select a level surface that provides enough open space for the inlet and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

• Leave a minimum clearance of 12 inches (30cm) above the oven.
• Do not remove the legs from the bottom of the oven.
• Blocking the inlet and/or outlet openings can damage the oven.
• Place the oven as far away from radios and TV as possible. Operation of the microwave oven may cause interference to your radio or TV reception.

2 Plug your oven into a standard household outlet. Be sure the voltage and the frequency are the same as the voltage and the frequency on the rating label.

OPERATION INSTRUCTIONS

This microwave oven uses modern electronic control to adjust cooking parameters to better meet your needs for cooking.

Clock Setting

When the microwave oven is connected to the power, the oven will display "0:00", buzzer will ring once.

1 Press "CLOCK/PRE-SET", the hour figures will flash;
2 Turn " 🔍 " to adjust the hour figures, the input time should be within 0-23.
3 Press "CLOCK/PRE-SET", the minute figures will flash.
4 Turn " [icon] " to adjust the minute figures, the input time should be within 0-59.
5 Press "CLOCK/PRE-SET" to finish clock setting. ":" will flash.

Note: 1. If the clock is not set, it would not function when powered.

1. During the process of clock setting, if you press "STOP/CLEAR", the oven will go back to the previous status automatically.

Microwave Cooking

1 Press the "MICROWAVE" key once, and "P100" will be displayed.
2 Press "MICROWAVE" for times or turn " " to select the microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will be displayed in order.
3 Press "START/+30SEC./CONFIRM" to confirm.
4 Turn " [icon] " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5 Press " START/+30SEC./CONFIRM " to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follows:

0 - 1 min : 5 seconds
1 - 5 min : 10 seconds
5 - 10 min : 30 seconds
10 - 30 min : 1 minute
30 - 95 min : 5 minutes

Microwave Power Chart

Microwave Power	100% 80% 50%	30% 10%
Display P100 P80 P	50 P30 P10

Fast Cooking

In standby, press the "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key will increase the time by 30 seconds. The maximum cooking time is 95 minutes.
■ During the microwave cooking and timed defrost process, press "START/+30SEC./CONFIRM" to increase the cooking time.
In auto menu and weight defrost mode, the cooking time cannot be increased by pressing "START/+30SEC./CONFIRM"
In standby, turn " " left to choose the cooking time directly. After choosing the time, press "START/+30SEC./CONFIRM" to start cooking. The microwave power is 100%

Defrost By Weight

■ Press "W.T./TIME DEFROST" once, the screen will display "dEF1".
■ Turn "to select the food weight. The weight range is 100-2000g.
■ Press "START/+30 SEC./CONFIRM" key to start defrosting.

Defrost By Time

■ Press "W.T./TIME DEFROST" twice, the screen will display "dEF2".
■ Turn " to select the cooking time. The maximum cooking time is 95 minutes.
■ Press the "START/+30 SEC./CONFIRM" key to start defrosting.

Multi-Stage Cooking

A maximum of two stages can be set. If one stage is defrosting, it should be the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage stages.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes, the steps are as follows:

■ Press "W.T./TIME DEFROST" twice, the screen will display "dEF2";

■ Turn "W" to adjust the defrost time of 5 minutes;

■ Press "MICROWAVE" once;

■ Turn "to choose 80% microwave power until "P80" is displayed;

■ Press "START/+30SEC./CONFIRM" to confirm;

■ Turn " to adjust the cooking time of 7 minutes;

■ Press "START/+30SEC./CONFIRM" to start cooking.

Pre-set function

■ Set the clock first. (Consult the instructions for clock setting.)

■ Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes.

- Press "MICROWAVE" once;

- Turn " [icon] " to choose 80% microwave power until "P80" is displayed;

- Press "START/+30SEC./CONFIRM" to confirm;

- Turn " 🔍 " to adjust the cooking time of 7 minutes; After the above steps, please do not press " START/+30SEC./CONFIRM ". Then do as follows:

■ Press "CLOCK/PRE-SET". The hour figures will flash;

■ Turn "1" to adjust the hour figures, the input time should be within 0-23.

■ Press "CLOCK/PRE-SET", the minute figures will flash.

■ Turn " to adjust the minute figures, the input time should be within 0-59.

Press " START/+30SEC./CONFIRM " to finish setting. ":" will light up, buzzer will ring twice when the time is finished, then cooking will start automatically.

Note: clock must be set first. Otherwise, the pre-set function will not work.

Lock-out function for children

Lock: In standby, press "STOP/CLEAR" for 3 seconds, there will then be a long "beep" denoting that the child-lock state has been entered and the screen will display the locked indicator. Cancelling the lock: In locked state, press "STOP/CLEAR" for 3 seconds, there will then be a long "beep" denoting that the lock has been released.

Auto Menu

In standby, turn "A-1" to the right to choose the menu from "A-1" to "A-8";
■ Press "START/+30SEC./CONFIRM" to confirm the menu you have chosen; 3) Turn " 🔍 " to choose the food weight;
■ Press "START/+30SEC./CONFIRM" to start cooking;
■ After cooking has finished, the buzzer sounds five times.

Auto Menu

Menu Weight (g) Display Power
A-1REHEAT	200 200 100%
	400 400
	600 600
A-2VEGETABLES	200 200 100%
	300 300
	400 400
A-3FISH	250 250 80%
	350 350
	450 450
A-4MEAT	250 250 100%
	350 350
	450 450
A-5PASTA	50 (with 450 ml water)	50 80%
	100 (with 800 ml water)	100
A-6POTATOES	200 200 100%
	400 400
	600 600
A-7PIZZA	200 200 100%
	400 400
A-8SOUP	200 200 80%
	400 400

Inquiry function

• When the microwave is cooking, press "MICROWAVE" and the current power level will be displayed for 2-3 seconds.
  In pre-set mode, press "CLOCK/PRE-SET" to inquire about the time delay for starting cooking.

■ The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.

■ During cooking mode, press "CLOCK/PRE-SET" to check the current time. It will be displayed for 2-3 seconds.

Specification

■ The buzzer will sound once when turning the knob at the beginning;
■ "START/+30SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking;
■ Once the cooking programme has been set, "START/+30SEC./CONFIRM" must not be pressed for 1 minute. The current time will be displayed. The setting will be cancelled.
■ The buzzer sounds once by efficient press, in efficient press press will be no response.
■ The buzzer will sound five times to notify you when cooking is finished.

Troubleshooting

Normal
Microwave oven interfering with TV reception	Radio and TV reception may be interfered with when the microwave oven is operating. This is similar to the interference from small electrical appliances, like mixers, vacuum cleaners, and electric fans and is quite normal.
Dim oven light In low power microwave cooking, the oven light may become dim. This is normal.
Steam accumulating on door, hot air coming out of vents	During cooking, steam may come out of the food. Most will escape though the vents but some may accumulate on cool places like the oven door. This is normal.
Oven starts accidentally with no food in it.	It is forbidden to run the unit without any food inside. This is very dangerous.

Normal
Problem Possible Cause	Remedy
Oven cannot be started. 1.	Power cord not plugged in tightly.	Unplug. Then plug in again after 10 seconds.
	2. Fuse blos or circuit breaker activated.	Replace fuse or reset circuit breaker (repaired by professional personnel from our company)
	3. Problem with outlet. Test outlet with other electrical appliances.
Oven does not heat. 4. Door not closed properly.		Close door properly.
Glass turntable makes noise when microwave oven operates	5. Roller rest and oven bottom dirty.	Refer to "Maintenance of Microwave" for cleaning dirty parts.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

According to the Waste of Electrical and Electronic Equipment (WEEE) Directive, WEEE should be collected and treated separately. If at any time in the future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected and processed separately. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point if available.

AS WILFA

Industriveien 25

Postboks 146

1483 Skytta, Norway

Tel: [phone]

Fax: [phone]
