Product Type	Microwave Oven
Model	WMO-D20L800S
Brand	Wilfa
Capacity	20 liters
Power Supply	230-240 V, 50 Hz
Power Consumption	1200 W
Microwave Output Power	800 W
Control Type	Digital with rotary dial and touch buttons
Display	LED digital display
Cooking Functions	Microwave cooking, Auto Cook (8 presets), Weight Defrost, Quick Start, Multi-Stage Cooking, Preset (delayed start)
Power Levels	6 levels (100%, 80%, 60%, 40%, 20%, 0%)
Timer	Up to 95 minutes for microwave cooking
Clock	12/24 hour digital clock
Child Lock	Yes, press and hold STOP/CANCEL for 3 seconds
Door Safety Lock System	Yes, prevents operation when door is open
Turntable	Glass tray with roller ring
Interior Light	Yes, dims at low power
Installation Clearance	Side: 5 cm, Top: 20 cm, Back: 10 cm
Cleaning	Wipe interior and exterior with damp cloth; glass tray and roller ring dishwasher safe
Safety Certifications	Grounding plug, WEEE compliant
Dimensions (Approx.)	44 x 35 x 26 cm
Weight (Approx.)	10 kg

Frequently Asked Questions - Essential Micro WMO-D20L800S WILFA

How do I set the clock on the Wilfa Essential Micro WMO-D20L800S?

In standby mode, press the CLOCK button repeatedly to select 12 or 24-hour format. Turn the WEIGHT/TIME dial to set the hour, press CLOCK again, then turn the dial to set the minutes. Press CLOCK to confirm.

How do I activate the child lock?

Press and hold the STOP/CANCEL button for 3 seconds until the lock indicator appears on the display. To cancel, press and hold again for 3 seconds until the indicator disappears.

What utensils are safe to use in this microwave?

Use heat-resistant glass, ceramics, and microwave-safe plastic. Avoid metal, aluminum foil, and non-heat-resistant glass. Recycled paper may contain metal fragments and should not be used.

How do I defrost food using the weight defrost function?

Press WEIGHT DEFROST, then turn the WEIGHT/TIME dial to enter the food weight (100-1800 g). Press START/QUICK START. The oven will pause and beep to remind you to turn the food over; press START/QUICK START to resume.

What does 'Auto Cook' do and how do I use it?

Auto Cook lets you cook common foods like milk/coffee, rice, spaghetti, potatoes, fish, popcorn, pizza, and reheating. Press AUTO COOK repeatedly to select the food code, then turn the dial to set the weight (or servings for some items). Press START/QUICK START to begin.

Can I program the microwave to start cooking at a later time?

Yes, use the PRESET function. First set a cooking program (e.g., microwave cooking), then press PRESET, set the desired start time using the dial, and press PRESET again to confirm. Note that Weight Defrost and Quick Start cannot be preset.

Why does the microwave make noise from the turntable?

Noise may occur if the roller ring or oven bottom is dirty. Clean the roller ring and the bottom of the oven with mild detergent. The roller ring can be washed in the dishwasher.

What should I do if the oven does not heat?

Ensure the door is properly closed. Check that the power cord is plugged in tightly and the outlet is working. If the fuse blows, replace it or reset the circuit breaker (contact a professional). If the display shows two beeps, the control panel may not be set correctly; clear and reprogram.

Is it safe to run the microwave empty?

No, never operate the microwave without food inside. It can damage the oven and is dangerous. Always ensure there is food or a microwave-safe container with liquid or food inside when operating.

What are the required clearances for installation?

Leave a minimum clearance of 5 cm on both sides, 20 cm above the oven, and 10 cm at the back. Do not block the inlet or outlet openings. The oven must not be installed in a cabinet or built-in.

USER MANUAL Essential Micro WMO-D20L800S WILFA

Exterior view of a white microwave oven with control panel and power settings (no text or symbols on main body)

Wilfa Essential Micro

Microwave oven

Bruksanvisning

Bruksanvisning

Operating Instructions

WMO-D20L800S

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

VIKTIGE SIKKERHETSINSTRUKSJONER....5

Installasjon....10

Produktoversikt....10

Line drawing of a plug with two leads (no text or symbols)

Barnesikring (Child Lock)

Line drawing of a black electrical outlet plug with three leads (no text or symbols)

Line drawing of a plug with two leads and a terminal socket (no text or symbols)

Line drawing of a standard electrical outlet plug (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS......5

Installation....10

Product overview....10

Cooking principles and tips for better result ....11

Utensils guide 11

Operation....12

Troubleshooting....17

Technical data....18

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:
• Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Warning: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• Only use utensils that are suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits should be removed.
• Read and follow the specific: "Precautions to avoid possible exposure to excessive microwave energy".
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and

similar may lead to risk of injury, ignition or fire.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
  • Install or locate this oven only in accordance with the installation instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed for heating. It is not designed for industrial or laboratory use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a damp basement or near a swimming pool.
• The temperature of accessible surfaces may be

high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

- Do not let the cord hang over the edge of the table or counter.

- Failure to keep the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.

- Keep the appliance and its cord out of reach of children aged less than 8 years.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is designed for domestic household and is not intended for commercial use.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow dirt or cleaner residue to accumulate on sealing surfaces.

Details for cleaning door seals, cavities and adjacent parts.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

See below in chapter CLEANING for how to clean.

CLEANING

If the apparatus is not kept in a good state of cleanliness, its surface could become degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Be sure to unplug the appliance from the power supply.

- Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

- Do not place any object between the oven front face and the door or allow dirt or cleaner residue to accumulate on sealing surfaces.

- The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

- Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

- Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

• If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
• The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
• The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
• Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

TWO-ROUND-PIN PLUG

Warning: Electric Shock Hazard. Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Line drawing of a plug with two leads (no text or symbols)

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service engineer if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

If a long cord set or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
• The extension cord must be a grounding type 3-wire cord.
• The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

INSTALLATION

NOTE: This device may in no circumstances be installed in a cabinet or built-in into a wall space.

For correct operation, the oven must have sufficient airflow.

• Leave a minimum clearance of 5 cm at both sides.
• Leave a minimum clearance of 20 cm above the oven.
• Leave a minimum clearance of 10 cm at the back of the oven.

- Do not remove the legs from the bottom of the oven.

- Blocking the inlet and/or outlet openings can damage the oven.

- Place the oven as far away from radios and TV as possible. Operation of the microwave oven may cause interference to your radio or TV reception.

Plug your oven into a standard household outlet. Be sure the voltage and the frequency are the same as the voltage and the frequency on the rating label.

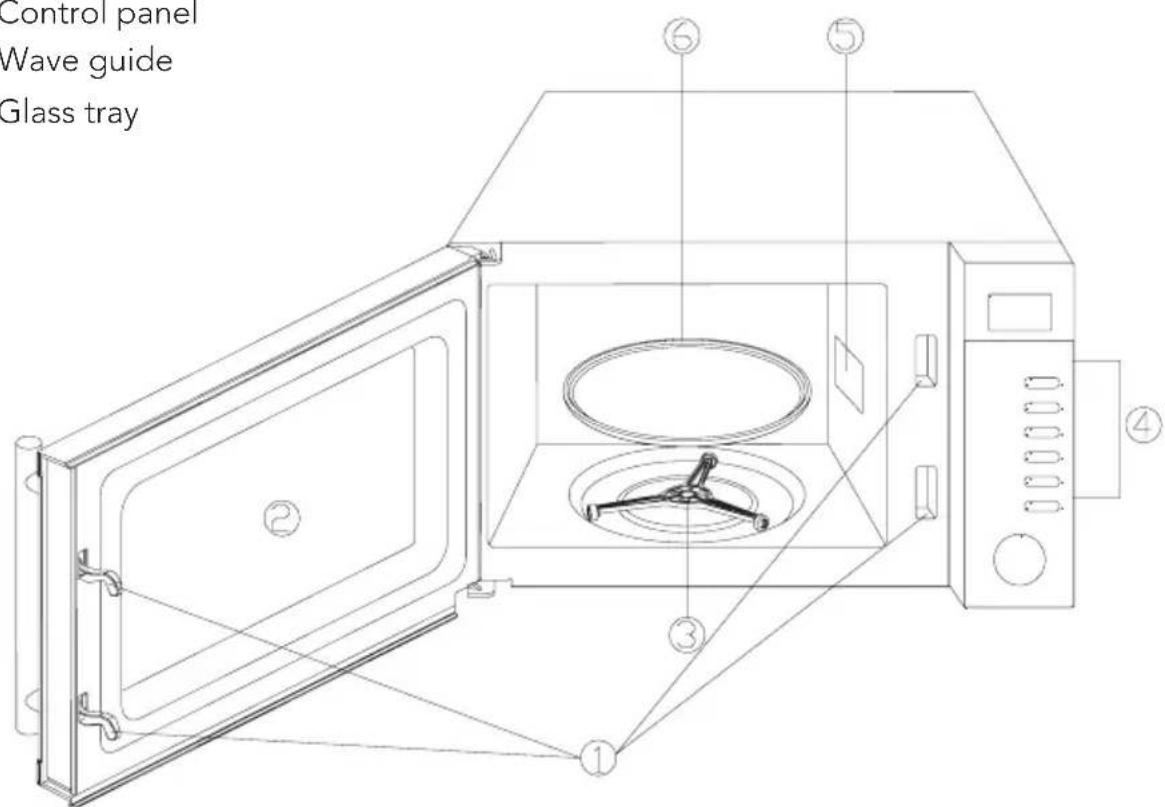

PRODUCT OVERVIEW

① Door Safety Lock System
② Oven Window
③ Turntable support
④ Control panel
⑤ Wave guide
⑥ Glass tray

COOKING PRINCIPLES AND TIPS FOR BETTER RESULT

• Arrange food carefully. Distribute the food even on the plate.
• Monitor the cooking time. Cook for the shortest amount of time indicated and add more if needed. Food severely overcooked can smoke or ignite.
• Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
• Turn food over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

UTENSILS GUIDE

• The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
• Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
• Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
• Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
• Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54 cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils:

Cookware Microwave
Heat-Resistant Glass Yes
Non Heat-Resistant Glass No
Heat-Resistant Ceramics Yes
Microwave-Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers No

OPERATION

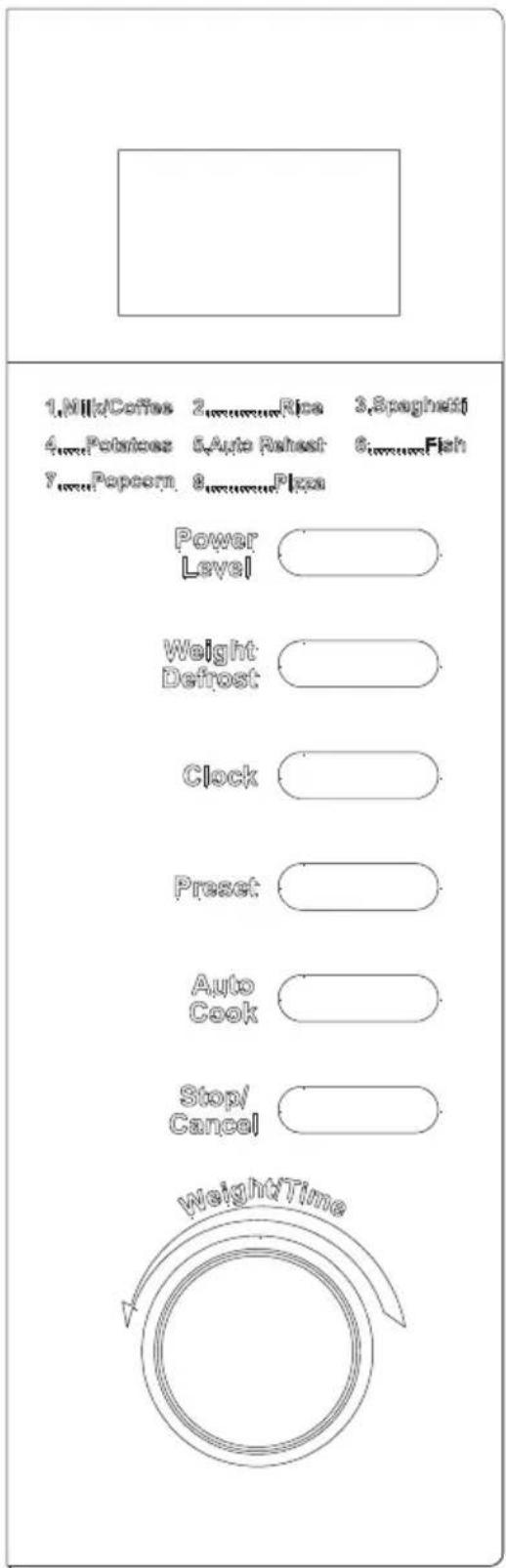

Control panel

MENU ACTION SCREEN

Cooking time, power, action indicators, and clock time are displayed.

POWER LEVEL

Touch this button a number of times to set microwave cooking power level.

WEIGHT DEFROST

Touch to defrost food by weight.

CLOCK

Touch this button to set clock.

PRESET

Touch to set a preset cooking program.

AUTO COOK

Press for instant settings to cook popular food.

STOP/CANCEL

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether. It is also used for setting child lock.

WEIGHT/TIME

Rotate the dial to input clock time, cooking time or to enter food weight.

START/QUICK START

Touch to start a cooking program. Simply touch it a number of times to set cooking time and the oven will cook immediately at full power level.

How to set the oven controls

Beeps during oven settings

ONE BEEP: Oven accepts the entry.

TWO BEEPS: Oven does not accept the entry.

Check and try again.

Setting digital clock

Suppose you want to set the oven clock time to 8:30.

1. In standby mode, press the CLOCK button repeatedly to set the clock in 12 or 24 hour cycle.
2. Turn the WEIGHT/TIME dial to indicate the hour digit 8.
3. Press the CLOCK button once.
4. Turn the WEIGHT/TIME dial to indicate the minute digits until the screen shows 8:30.
5. Press CLOCK once to confirm the setting.

Note: You can press the CLOCK button once to check clock time during cooking.

Microwave cooking

For microwave cooking, the longest cooking time is 95 minutes; you can select power level by pressing POWER LEVEL button repeatedly:

Display Cooking power
100 100%
80 80%
60 60%
40 40%
20 20%
00 0%

For example, suppose you want to cook for 5 minute at 60% of microwave power.

1. Press STOP/CANCEL button.
2. Press the POWER LEVEL button repeatedly to select power level.
3. Turn the WEIGHT/TIME dial to show 5:00.
4. Press the START/QUICK START button.

Note:

- You can check the cooking power when cooking is in progress by pressing the POWER LEVEL button.

- After the cooking/defrosting time elapses, the oven will signal and "End" will show up on the screen, press the STOP/CANCEL button or open the oven door to clear before setting another function. (Available for the following cooking functions.)

Quick start

This feature allows you to start the oven quickly. The longest cooking time is 10 minutes. In standby mode, press the START/QUICK START button in quick succession to set the cooking time, the oven starts working at full power level immediately. You can extend the cooking time during cooking process by pressing START/QUICK START.

Weight defrost

The oven allows defrosting food based on the weight you entered. The time and the defrosting power are adjusted automatically once the weight is programmed. The food weights range from 100 g to 1800 g. Suppose you want to defrost 600 g of shrimps.

1. Press STOP/CANCEL button.
2. Press WEIGHT DEFROST button once.
3. Turn WEIGHT/TIME to enter weight 600g.

4. Press the START/QUICK START button.

5. Place the shrimps to be defrosted into the oven and close the door.

Note: During defrosting process, the system will pause and signal to remind you to turn over the food, after that, press START/QUICK START to resume.

Preset

Preset function allows the oven to start up in a later time. Suppose now the clock running at 9:00, and you want the oven to start cooking at 11:30.

1. Set a cooking program.
2. Press the PRESET button.
3. Rotate the WEIGHT/TIME dial to enter hour digit 11.
4. Press the PRESET button.
5. Rotate the WEIGHT/TIME dial to enter minute digit 30.
6. Press PRESET button to confirm.

Note:

• After has been set the function, you can check the preset time by pressing PRESET button. To cancel the feature, touch PRESET and then STOP/CANCEL.
• When it reaches the preset time, beeps can be heard to signal the preset cooking program begins.
• Weight defrost and Quick start functions cannot be preset.

Note: Use preset function with supervision.

Multi Stage cooking

Your oven can be programmed for up to 2 automatic cooking sequences.

Suppose you want to set the following cooking program. Suppose you want set the following cooking program:

1st stage: Cook for 5 minutes at 100%;

2nd stage: Cook for 10 minutes at 60%.

Steps:

1. Touch POWER LEVEL pad and select power level 100%
2. Turn the WEIGHT/TIME wheel until the cooking time corresponds to 5 minutes.
3. Touch POWER LEVEL pad and select power level 60%
4. Turn the WEIGHT/TIME wheel until the cooking time corresponds to 10 minutes.
5. Press START/QUICK START.

Note:

• Quick Start and Weight Defrost cannot be set in the multistage cooking mode. Auto Cook could be only set on the first stage.
• The respective lights will turn on to indicate which stage the oven is operating in. After total time has elapsed, beeps will sound.

Auto cook

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food. You may need to turn food over at the middle of cooking time to obtain uniform cooking. For example: to cook 400 g of fish.

1. Press STOP/CANCEL button.
2. Press AUTO COOK button repeatedly to select corresponding food code.
3. Rotate the WEIGHT/TIME dial to indicate a weight of 400 g.
4. Press the START/QUICK START button.

Auto Cook Menu

Code Food/cooking mode 1. For milk	/coffee, potato, parameters are not food weight but number of servings.
01 Milk/coffee (200 ml/cup)
02 Rice (g)	2. For popcorn, there is only one choice.3. For spaghetti, add boiled water before cooking.4. The result of auto cook depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.5. The longest time of cooking the popcorn (99 g) is 3 minutes 20 seconds.
03 Spaghetti (g)
04 Potato (230 g/unit)
05 Auto Reheat (g)
06 Fish (g)
07 Popcorn (99 g)
08 Pizza (g)

Child lock

Use to prevent unsupervised operation of the oven by little children. The child lock indicator will show up on display screen, and the oven cannot be operated while the Child Lock is set.

To set: In standby or preset mode, press and hold the STOP/CANCEL button for 3 seconds, a beep sounds and lock indicator lights. In the locked mode, all buttons are disabled.

To cancel: Press and hold the STOP/CANCEL button for 3 seconds until lock indicator on display goes off.

TROUBLESHOOTING

Before you contact any service agent please make sure that you have read and checked possible causes stated in the information below.

Normal
Microwave oven interfering with TV reception	Radio and TV reception may be interfered with when microwave oven operating. It is similar to the interference from small electrical appliances, like mixers, vacuums cleaners, and electric fans and is quite normal.
Dim oven light In low power microwave cooking, the oven light may become dim. This is normal.
Steam accumulating on door, hot air coming out of vents	During cooking, steam may come out of food. Most will escape through the vents but some may accumulate on cool places like the oven door. This is normal.
Oven starts accidentally with no food in.	It is forbidden to run the unit without any food inside. This is very dangerous.

Problem Possible Cause	Remedy
Oven fails to operate.	Power cord not plugged in tightly.	Unplug. Then plug in again after 10 seconds.
	Fuse blows or circuit breaker activated.	Replace fuse or reset circuit breaker (must be repaired by a professional service agent)
	Not responding only double beeps.	Ensure that the control panel is correctly programmed and that the timer is set.
	Problem with outlet. Test outlet with other electrical appliances.
Oven does not heat.	Door not closed properly. Close door properly.
Glass turntable makes noise when microwave oven operates	Roller rest and oven bottom are dirty.	Refer to “Maintenance of Microwave” for cleaning dirty parts.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

TECHNICAL DATA

Model:

WMO-D20L800S

Power Supply: 230-240 V, 50 Hz

Power Consumption: 1200 W

Output: 800 W

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
