Product Type	Wireless headphones with hybrid ANC
Brand	Sencor
Model	SEP Pannion
Bluetooth Version	5.3
Bluetooth Range	10 meters
Audio Codec Support	A2DP, AVRCP, HFP, HSP
Driver Diameter	40 mm
Frequency Response	20 Hz – 20 kHz
Impedance	32 Ω ±15%
Sensitivity	106 dB ±3 dB
Active Noise Cancellation	Yes, hybrid ANC (up to 20 dB reduction)
Battery Capacity	500 mAh, Lithium-ion
Charging Time	3 hours
Playback Time (ANC on)	28 hours
Playback Time (ANC off)	38 hours
Standby Time	200 hours
Weight	181 g
Charging Port	USB-C
Auxiliary Input	3.5 mm jack
Microphone	Built-in with ENC
Multi-Device Connection	Yes, up to 2 devices simultaneously
Controls	Physical buttons: power, volume, ANC, playback/call
LED Indicators	Status and charging indicators
Included Accessories	USB-C charging cable, user manual

Frequently Asked Questions - SEP Pannion SENCOR

How do I pair the headphones with my phone?

Turn on the headphones by pressing and holding the power button. On your phone, enable Bluetooth and search for 'SEP PANNION ANC'. Select it to pair. If prompted for a PIN, enter '0000'.

How do I turn on Active Noise Cancellation (ANC)?

Press the ANC button on the left earcup. A voice prompt will confirm the mode change. Press again to turn off ANC.

How long does the battery last?

With ANC on, you get up to 28 hours of playtime. With ANC off, up to 38 hours. Standby time is around 200 hours.

Can I use the headphones while charging?

Yes, you can use the headphones while charging via USB-C. However, we recommend charging them fully before first use for optimal battery life.

How do I connect to two devices at once?

The headphones support multipoint Bluetooth. Pair with the first device, then put the headphones into pairing mode again and connect the second device. Audio will switch automatically based on activity.

What does the LED indicator mean?

Red solid: charging. Off: fully charged or AUX connected. Blue and red blinking: pairing mode. Blue intermittent: connected. Blue solid: fully charged.

Can I use a wired connection?

Yes, use the included 3.5 mm audio cable to connect to devices without Bluetooth. Note that when the cable is plugged in, the headphones turn off and the buttons will not work.

How do I clean the headphones?

Wipe with a soft, dry cloth. Do not use liquids or abrasive cleaners. Avoid getting moisture into the earcups or charging port.

What should I do if the headphones don't turn on?

Make sure they are charged. Connect to a USB-C charger and wait a few minutes, then try turning on. If still unresponsive, contact an authorized service center.

Are the headphones water-resistant?

No, they are not water-resistant. Avoid exposure to rain or splashes. Do not immerse in water, as this will void the warranty.

USER MANUAL SEP Pannion SENCOR

Line drawing of a pair of outdoor headphones with earbuds and buttons (no text or symbols)

USER'S MANUAL Wireless headphones with hybrid ANC technology

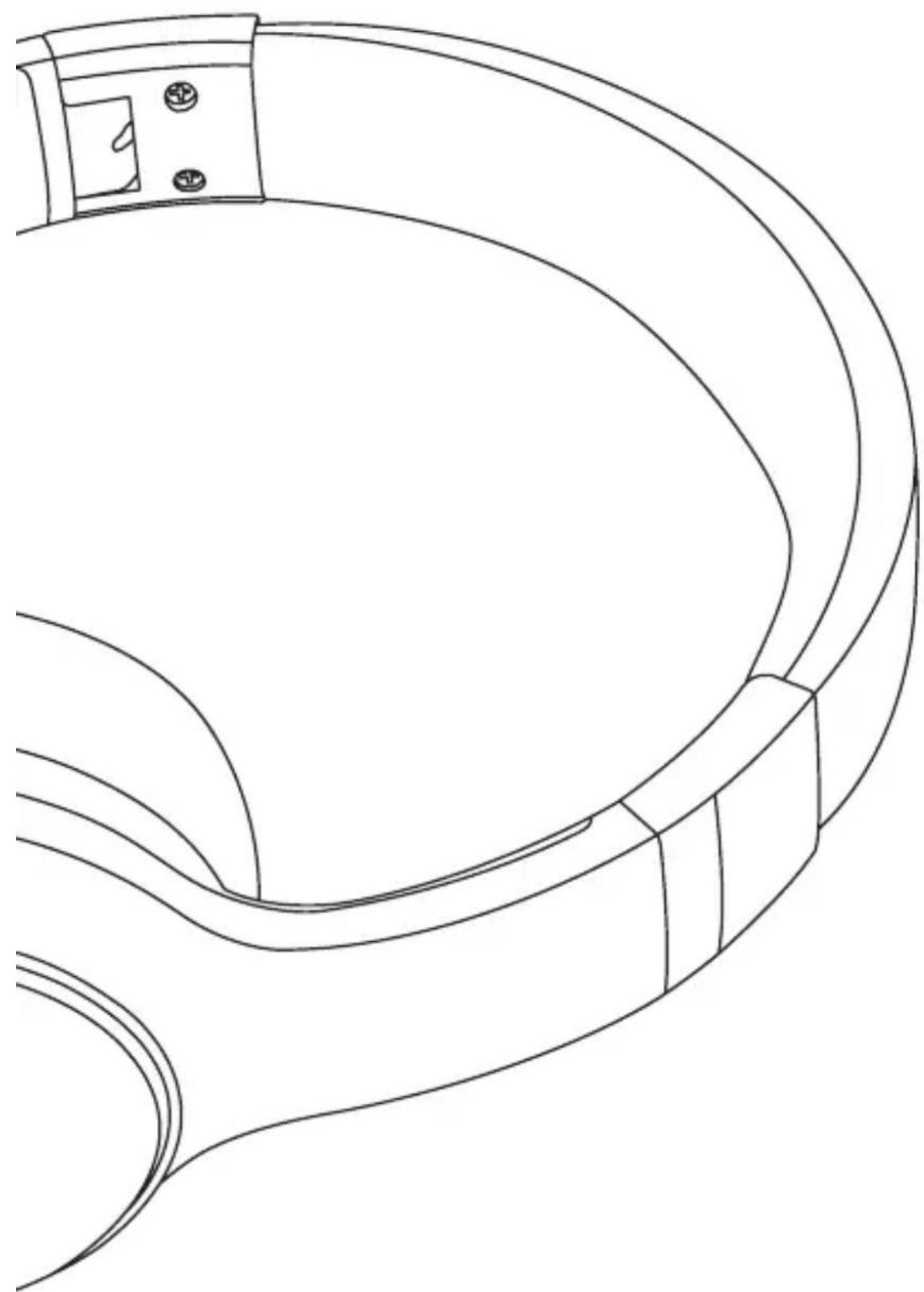

Technical line drawing of a curved mechanical component with mounting holes (no text or symbols)

1. Supply content

1× BT Headphones
1× User's manual
1× USB-C charging cable

2. BT headphones and controls description

|1| LED ANC function indicator
|2 | ANC button (short press)
|3| Volume up button (short press) - go to the next track (long press)
|4| Volume down button (short press) - go to the previous track (long press)
|5| "ON/OFF" button (long press) - PLAY/PAUSE (short press) - answer/end call (short press) - call rejection (long press)

|6| LED headphones status indicator
|7 | USB-C charging connector input
|8| AUX-IN input
|9| Microphone
ILI Left audio channel
IRI Right audio channel

3. Putting into operation

Before first use, be sure to read the safety instructions contained in this user's manual carefully.

Before first use, start charging the headphones to the maximum level.

Turning on the headphones – press and hold the power button in the default position and wait for the headphones to greet you.

Turning off the headphones – press and hold the power button in the default position and wait for the headphones to announce the shutdown.

Note: To prevent damage to your hearing, always keep the volume level of your device to a minimum before connecting BT headphones to your mobile device.

Note: The BT headphones will turn off after a longer period of inactivity unless they are paired to another device.

4. Bluetooth

The headphones are equipped with a two-channel BT module. This means that it is

possible to have headphones connected to two devices at the same time. The audio signal will come from the last connected device until there is a state change in the other device (for example, an incoming call). The audio signal source used will then be replaced by a second audio signal source. You cannot operate both audio signals simultaneously.

To pair the BT headphones with your mobile device, do the following:

Turn on the BT speaker and search for its Bluetooth name "SEP PANNION ANC" on the device to which you wish to pair and start the pairing process. If you are requested to enter a pairing code while your device and the BT headphones are pairing, use the following code: "0000".

To cancel the pairing process, disconnect the BT headphones from your mobile device (cancel the Bluetooth pairing).

Note: To ensure a stable Bluetooth connection, make sure that the distance between the BT headphones and your paired device is kept within 10 meters. Depending on ambient interference, in some cases it may be necessary to maintain a shorter distance between the BT headphones and the paired device.

5. Audio AUX IN

The headphones are equipped with a 3.5mm jack. Your device can be connected to BT headphones using an audio cable. First connect the audio connector to your appliance and then into the socket in the BT headphones. When the audio cable is connected, the headphones will automatically turn off While the audio cable is connected, the device control functions will not be available.

Notice: Before connecting your device to the BT headphones, ensure that the output signal from your device is at its minimum level (minimum output volume). This will prevent the BT headphones from damage.

6. Ambient Noise Cancellation (ANC)

The ANC function suppresses ambient noise. To switch the mode on or off, press the ANC button on the left headphone. The mode change will be notified by an appropriate message.

Note: If you are in an unfamiliar environment, do not use the ANC function to avoid injury. More power is consumed when listening to music and the ANC function is switched on.

7. LED Indicator

Red solid LED – charging process

No LED indication – charging process completed, AUX-IN connected

Blue and red blinking LED – the headphones are ready for pairing

Blue intermittent LED – headphones are connected

Blue solid LED – headphones are fully charged

8. Charging

A fully charged battery provides power for several hours of operation at normal volume levels. A high volume consumes more battery power; therefore, we recommend listening at normal volume levels. Charging of the BT headphones will be indicated by a red LED.

The LED is off during the charging process to indicate a fully charged battery.

Caution: For charging, use only the original accessories supplied with the appliance. To maximize battery life, it is advisable to start charging the battery only after a low battery condition (10–20%) has been reported. Charge continuously until fully charged. If the battery life is already very short, it is exhausted and we recommend you contact an authorised service centre for more information.

Tip: A low battery is first reported at 20% and then at 10%. We recommend that you start charging to full level at the first sign of a low battery.

Recommendation: If your headphones are not to be used for an extended period of time, we recommend to fully charge the batteries once every two to three months.

Specification:

• Bluetooth Version 5.3
  • Maximum Transmitter Power 100 mW @ 2.4–2.4835 GHz
  • Support Profile: a2dp/avctp/avdtp/avrcp/hfp/spp/smp/att/gap/gatt/rfcomm/sdp/l2cap
  • Working time: 28 Hours (BT+ANC) 38 Hours (Bluetooth)
  • Standby time: 200 Hours
• Charging time: 3 Hours
• Battery capacity: 500 mAh
  • Product weight: 181 g
• Noise reduction: 20 ± 3 dB
  • ANC Frequency: 20-600 Hz
• Impedance: 32 ± 15%
• Speaker size: 40 mm
  • Frequency response: 20-20 kHz
• Sensitivity: 106 ± 3 dB
• Bluetooth chipset: JL7006
• Bluetooth range: 2.402GHz-2.480 GHz
  • Working Distance: 10 Meters
• Aux Cable: Yes
• Charging Cable: USB-C
• Feature: ANC+ENC

Safety Notice:

Please observe the rules of the Country or Region which you are in while driving.

Do not disassemble or modify the headset at any reason, otherwise, It may damage or burn the headset.

If there is any quality problem, please send headset to authorized service center for repairing.

Please keep the equipment along with all the accessories out of the reach of children and pets.

Extreme temperatures will cause the device deformation, reduce the charging capacity and shorten the working life.

Please do not immerse the earphone into water. Guarantee will be lost if damage is caused by immersed into water.

It will damage your hearing if you listen with high volume for a long time. It is recommended that only use the lowest volume which is necessary for speaking and listening to music.

Instructions and information regarding the disposal of used packaging materials

Dispose of packaging material at a public waste disposal site.

Disposal of used electrical and electronic appliances

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This appliance complies with EU rules and regulations regarding electromagnetic and electrical safety. Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

Hereby, FAST ČR, a.s. declares that the radio equipment type SEP PANNION is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.sencor.eu

1. Obsah balení

Manufacturer: FAST CR, a.s.

U Sanitasu 1621

25101 Ricany

Czech Republic
