HS 12.0 C2 - Uncategorized SILVERCREST - Free user manual and instructions

Product Type	Hand-held car vacuum cleaner
Model	HS 12.0 C2
Brand	SilverCrest
Power Supply	12 V DC (via vehicle cigarette lighter socket)
Power Consumption	120 W
Protection Class	III (SELV)
Included Accessories	Extension hose, small brush, crevice tool, operating instructions
Dust Container Capacity	Approx. 0.5 L (estimated)
Filter Type	Washable dust filter (bayonet fitting)
Main Functions	Vacuum cleaning dry surfaces, suction of dry materials
Cleaning and Maintenance	Empty dust container after use; rinse filter in cold water; clean housing with soft dry cloth
Safety Features	Unplug before cleaning; SELV supply; keep away from moisture; do not open device
Warranty	3 years from date of purchase
Intended Use	Private household use, car interior cleaning
Not Suitable For	Wet surfaces, people, animals, commercial use

Frequently Asked Questions - HS 12.0 C2 SILVERCREST

What voltage does the SilverCrest HS 12.0 C2 vacuum cleaner use?

The vacuum cleaner operates on 12 V DC and is powered by plugging into a vehicle's cigarette lighter socket.

How do I clean the dust filter?

Remove the dust container, take out the filter, detach it from the end seal by twisting anticlockwise, rinse thoroughly in cold water, let both parts dry completely, then reattach the filter to the seal.

Can I use the vacuum on wet surfaces?

No, the vacuum is designed only for dry surfaces. Using it on wet surfaces can damage the device and pose an electric shock risk.

What attachments are included?

The package includes an extension hose, a small brush for loosening stubborn dirt, and a crevice tool for narrow spaces.

How do I switch the vacuum on and off?

Plug the 12 V plug into the socket. Push the ON/OFF switch forward to I for on, and back to 0 for off. Unplug after use.

How do I empty the dust container?

Press the unlocking button, remove the dust container, empty it completely, and clean the filter before reattaching. Ensure the filter is in place before use.

Is the vacuum suitable for commercial use?

No, the device is intended for private household use only and not for commercial or professional applications.

What should I do if the suction power drops?

Empty the dust container and clean the filter. Blockages in the front nozzle can also reduce suction, so ensure it is free of obstructions.

What is the warranty period?

The SilverCrest HS 12.0 C2 comes with a 3-year warranty from the date of purchase. Keep your receipt as proof.

Can I use the vacuum while the car engine is off?

Yes, but for long periods it is recommended to run the engine to avoid draining the car battery. The vacuum draws power directly from the 12 V socket.

USER MANUAL HS 12.0 C2 SILVERCREST

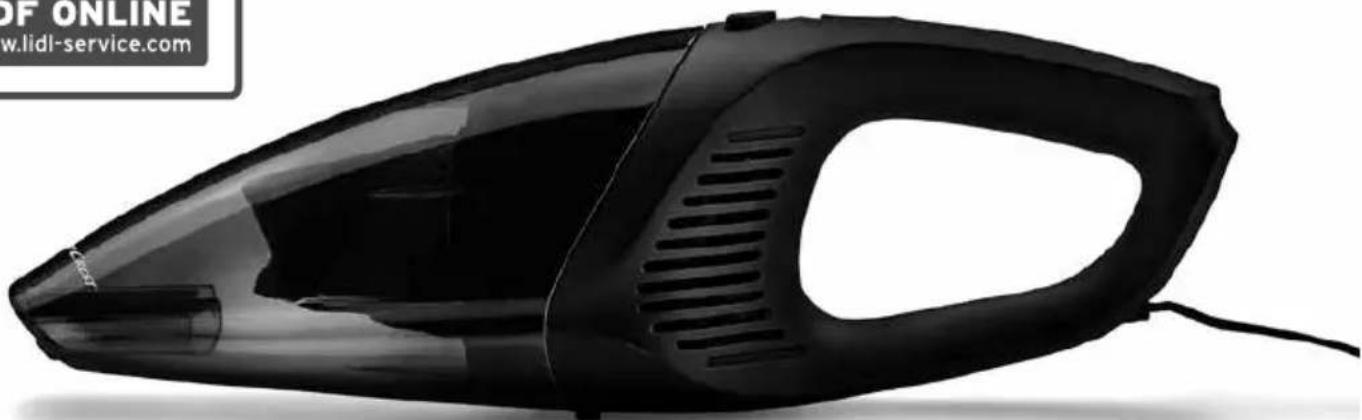

Black handwash cleaning device with visible grille and handle (no text or symbols)

HAND-HELD CAR VACUUM CLEANER HS 12.0 C2

GB CY

HAND-HELD CAR VACUUM CLEANER

Operating instructions

RS

USISIVAČ ZA AUTO

Uputstvo za upotrebu

BG

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

HR

Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na osnovu toga sa svim funkcijama uređaja.

RS

Pre čitanja rasklopite stranu sa slikama te se upoznajte sa svim funkcijama uređaja.

RO

GB/CY Operating instructions Page 1

HR Upute za upotrebu Stranica 7

RS Uputstvo za upotrebu Strana 13

RO Instructiuni de utilizare Pagina 21

Introduction

Introduction 2

Proper use 2

Included items 2

Parts list 2

Technical information 2

Safety 3

Safety advice 3

Operation 4

Before first use 4

Fitting and removing attachments 4

Switching On/Off 4

Servicing and cleaning 4

Disposal 5

Disposal of the appliance. 5

Disposal of the packaging 5

KompernassHandelsGmbHwarranty....5

Service 6

Importer 6

The following icons / symbols are used in this instruction manual:
	Read instruction manual!		Watts (Effective power)
	Observe caution and safety notes!		Never leave children unsupervised with the packaging materials or the device.
	Direct current (Type of current and voltage)		Dispose packaging and appliance in an environmentally-friendly way!
	Protection class III (Protection through extra low voltage)

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for

use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Proper use

The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on people or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

Included items

1 Hand-held car vacuum cleaner
1 Extension hose
1 Small brush
1 Crevice tool
1 Operating instructions

Parts list

① Unlocking button
② ON/OFF switch
③ 12 V plug
4 Front nozzle
5 Extension hose
6 Small brush
⑦ Crevice tool
8 Dust container
9 Dust filter
10 Housing

Technical information

Power supply: 12 V ---

Power: 120

Protection class: III / (Protection through extra low voltage)

W

Safety

Safety advice

This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and instructions will help you to avoid risk to life, accidents and damage to property. Therefore you must read carefully through the following information concerning safety and proper use.

RISK OF LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials or the device. There is a risk of suffocation and loss of life from electric shock. Children often underestimate the dangers associated with electrical devices. Always keep children away from the device.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks.

Children should not be allowed to play with the appliance.

Cleaning and user maintenance should not be performed by children without supervision.

- Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

■ Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12 V socket. Keep the lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock.

■ Damage to the device, mains lead or plug presents a risk of loss of life from electric shock. Frequently check the condition of the device, mains lead and plug.

■ Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately.

WARNING!

▶ Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist.

When not in use always ensure that electrical devices are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical devices are dangerous when they are used by inexperienced people.

■ The appliance should only be supplied with SELV (safety extra-low voltage) according to the labelling on the appliance.

If the connecting cable or plug of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.

Operation

Before first use

Take all the parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmentally friendly manner.
◆ Fully unwind the lead attached to the 12 V plug.

NOTE

▶ Always make sure that the dust filte ^9 is installed before you use the device.

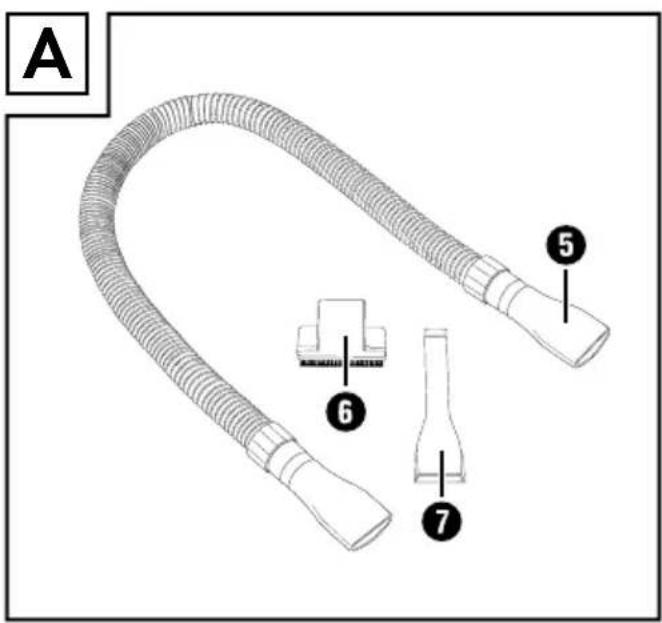

Fitting and removing attachments

Extension hose 5

♦ Insert the smaller end of the extension hose 5 snugly into the front nozzle 4

Insert the desired attachment ⑥, ⑦ snugly into the extension hose ⑤

Small brush 6:

This accessory has hard bristles and is very suitable for initially loosening and then vacuuming up stubborn dirt, e.g. from the upholstery or footwell.

◆ Insert the small brush 6 snugly into the front nozzle 4

Crevice tool 7

Use this attachment to get into narrow, difficult-to-access places.

♦ Insert the crevice too snugly into the front nozzle 4

Removing attachments:

- Simply pull the attachment off the front nozzle ④ or the extension hose ⑤

Switching On / Off

• Insert the 12 V plug into the 12 V socket / cigarette lighter socket of the vehicle.
  To switch the device on, press the ON / OFF switch ② forwards into the I position.
  To switch the device off, press the ON / OFF switch ② back into the 0 position.
  ◆ Pull the 12 V plug3 out of the 12 V socket after use.

NOTE

▶ If you going to vacuum for a long period, we recommend that you carry out the cleaning with the engine running.

Servicing and cleaning

The device requires no maintenance.

CAUTION

Before you clean the device itself, pull the 12V plug 3 out of the 12 V socket, otherwise there Is a risk of electric shock

- Clean all the housing with a soft, dry cloth. Never use liquids or cleaning agents, as they may damage the device.

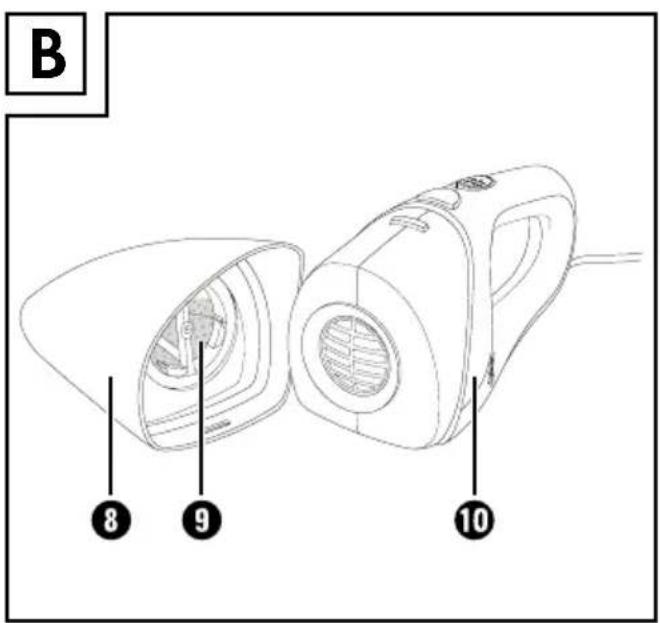

For the best possible performance, you should empty the dust container 8 immediately after use and when the suction power drops.

◆ Press the unlocking button 1 and take the dust container 8 out of the housing 10

Take out the dust filter 9. You will be able to clean the dust filter better if you detach it from the end seal. To do this, hold the end seal firmly and twist the filter off carefully anticlockwise (bayonet fitting). Rinse out the dust filter 9 thoroughly in cold water and allow both parts (filter and end seal) to dry completely. Attach the filter back on to the end seal.

◆ Empty the dust container completely.

- Carefully replace the dust filte ⑨ back into the dust container ⑧. Never use the vacuum cleaner without the dust filter ⑨ in place.

- Attach the dust container, ^8 carefully back on to the housing ^16 and ensure the two parts engage.

CAUTION

The front nozzle must be free and unobstructed at all times. Blockages can lead to overheating and damage to the motor.

Disposal

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary.

The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

KompernassHandels GmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 452696_2310 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 452696_2310.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

CY ServiceCyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN 452696_2310

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
