Turox - Child car seat Caretero - Free user manual and instructions

Product Type	Child car seat
Brand	Caretero
Model	Turox
Weight	Approximately 5 kg (11 lbs)
Dimensions (H x W x D)	65 cm x 45 cm x 40 cm (25.6 x 17.7 x 15.7 inches)
Age Group	Group 1/2/3 (9 months - 12 years)
Weight Range	9 - 36 kg (20 - 79 lbs)
Installation Method	Seat belt and ISOFIX compatible
Harness Type	5-point harness
Recline Positions	3 recline positions
Side Impact Protection	Integrated side impact protection system
Adjustable Headrest	Yes, height adjustable
Cover Material	Breathable fabric, removable and washable
Cleaning Instructions	Hand wash cover at 30°C; do not bleach or tumble dry
Safety Standards	ECE R44/04 approved
Power Source	None (not electronic)
Spare Parts Availability	Contact Caretero customer service
Manual Included	Yes, user manual provided

Frequently Asked Questions - Turox Caretero

What is the weight range for the Caretero Turox car seat?

The Caretero Turox is suitable for children weighing between 9 and 36 kg (approximately 20 to 79 lbs), covering Groups 1, 2, and 3.

Can the Caretero Turox be installed using ISOFIX?

Yes, the Caretero Turox is ISOFIX compatible and can also be installed using the vehicle's seat belt.

How do I clean the cover of the Caretero Turox?

The cover is removable and should be hand washed at 30°C. Do not use bleach or tumble dry. Air dry only.

What is the harness type for this car seat?

The Caretero Turox features a 5-point harness for secure restraint of your child.

Is the headrest adjustable?

Yes, the headrest is height adjustable to accommodate your child's growth.

What safety standards does the Caretero Turox meet?

The seat is approved according to ECE R44/04 safety standards.

How many recline positions does it have?

The Caretero Turox offers 3 recline positions for passenger comfort.

Can I use this car seat for a newborn?

No, the Caretero Turox is designed for children from 9 months onwards (Groups 1-3). Newborns require a Group 0+ seat.

Does the seat have side impact protection?

Yes, it includes an integrated side impact protection system for enhanced safety.

Where can I find spare parts for the Caretero Turox?

For spare parts, please contact Caretero customer service directly. They will assist with replacements.

USER MANUAL Turox Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Line drawing of a modern massage chair with multiple blades and seat, set against a solid blue background (no text or symbols)

TUROX

CARETERO

TUROX

Thank you for choosing the Caretero TUROX car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

Simple 3D diagram of a triangular object with a blue dot and number 19 at the base (no text or symbols on the object itself)

EN: Notice: The infant cushion protects your child. It needs to be used up to size of 75 cm.

EN: DO NOT place reat facing child seat on front seat with active airbag, DEATH OR SERIOUS INJURY can occur

Diagram of a medical device with a green arrow indicating a point of interest, no text or symbols present

Diagram of a car seatbelt with a green component inserted, showing airflow direction (no text or symbols)

Line drawing of a car seat with a blue arrow indicating direction (no text or symbols)

EN: Pull away support leg from seat bottom. For more leg space adjust anti-rebound bar at incline position.

EN: Install ISOFIX connectors. Install support leg.

Illustration of a baby car seat with blue arrows indicating seatbelting (no text or symbols)

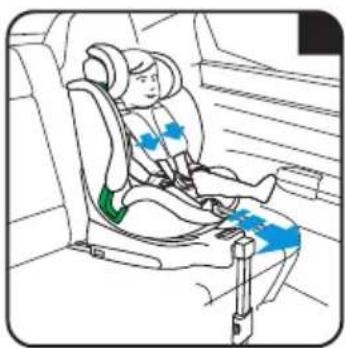

EN: Have your child sit down in the child seat. Adjust headrest in proper height, adjust harness and lock buckle and tighten harness.

EN: IMPORTANT - DO NOT use a forward-facing seat before your child is 15 months old.

Diagram of a car seat with highlighted seat area and motion arrows indicating rotation (no text or symbols)

Line drawing of a seated car seat with a blue arrow indicating motion or force (no text or symbols)

EN: Pull away support leg from seat bottom, adjust anti-rebound bar at upright position. Rotate seat to forward facing. Place seat in the direction facing to the travel. Install ISOFIX connectors. Install support leg.

Line drawing of a child seated in a car seat, with no visible text or symbols

EN: Have your child sit down in the child seat. Adjust headrest in proper height, adjust harness and lock buckle and tighten harness.

EN: Remove harness when use for child stature 100-150cm. Make sure support leg stored at seat bottom, adjust anti-rebound bar at upright position.

EN: Rotate seat to forward facing. Place seat in the direction facing to the travel.

EN: There are two option to install:

• Only use vehicle 3 point belt or
• Use vehicle 3 point belt + ISOFIX connectors.

CAUTION! Both option do not use support leg.

EN: Have your child sit down in the child seat. Adjust headrest in proper height. Pull out the vehicle seat belt and guide it in front of your child to the vehicle seat buckle. Engage the buckle tongue in the vehicle seat buckle.

Caution! The vehicle seat belt buckle must not be positioned in the lower belt guide.

Place the diagonal seat belt section and lap belt section on the side of the vehicle seat belt buckle in the lower belt guide.

Place the lap belt section on the other side of the childseat in the lower belt guide.

Caution! The lap belt section must be lie as low as possible over your child's hips on both sides.

Diagram showing a green tool interacting with a curved, layered structure (no text or symbols)

EN: For the child stature 100-150cm installation, this seat also can use vehicle belt only. It has been tested and homologated also. If you want only use vehicle belt installation, just skip the ISOFIX connector relative content.

EN: Guide the diagonal seat belt section into the belt holder and it is not twisted.

Press red button until buckle latches comes out from the buckle.

Lock buckle

Guide the two buckle latches together, putting them into the harness buckle house. Buckle locked when sounds click.

Notice: buckle can not lock only by putting one latch.

DE:

Schnalle öffnen

Pull the adjuster strap until the harness lies flat and is close against your child's body.

Notice: Make sure the space between the child and the shoulder harness is about the thickness of one hand.

Loosen harness

Press the center adjuster and at the same time pull both shoulder belts forwards. Do not pull on the shoulder pads

DE:

Gurtzeug festziehen

EN: When installed by 5-point harness, the headrest must be adjusted so that the shoulder belts are at the same level as your child's shoulders.

CAUTION! The shoulder belts must not run behind the back of the child or at ear height or above the ears.

EN: When installed by 3-point vehicle belt, the headrest must be adjusted so that there is a space two fingers wide between the headrest and your child's shoulders. Make sure the diagonal seat belt section is on child's shoulder but not on neck.

Illustration of a hand using a tool to adjust or install a car seatbelt, with an inset showing the same component (no text or symbols present)

EN: First loosen the harness. Squeezing headrest height adjuster at the same time slide headrest to shoulder height in accordance with the height of the child

Illustration of a car seat with blue arrows indicating motion or movement (no text or symbols)

EN: Seat has five recline positions. For rearward facing, only use most reclined position. For forward facing can use all five positions. Except most upright position, other positions may not fit in all approved vehicles.

Pull recline lever at the same time incline seat to intend position.

Illustration of a car seatbelt with blue arrows indicating movement, no text or symbols present

EN: The anti-rebound bar has two positions reclined and upright. Forward facing only use upright position. Rotating child safety seat lateral facing - pull up anti-rebound bar button then adjust the position of anti-rebound bar.

Line drawing of a car seat with a green seat and blue seatbelt (no text or symbols)

40-105 cm 76-150 cm

Line drawing of a car seat with a green seat highlighted (no text or symbols)

Line drawing of a car seat with adjustable armrest and seat cover (no text or symbols)

Skierowany w bok/Lateral facing /Seitliche Ausrichtung Dla wygody siedzenia dziecka. Nie wolno używać podczas jazdy /For child sit convenience. Forbidden to use when driving / Zum bequemen Sitzen für Kinder. Die Benutzung während der Fahrt ist verboten.

Illustration of a hand holding a tool with a green arrow and blue arrow indicating direction (no text or symbols)

Illustration of a hand adjusting a car seatbelt with a blue arrow indicating rotation (no text or symbols)

EN: Pull rotation button at the same time rotate seat to intend direction.

Simple diagram with a checkmark, blue left-pointing arrow, and a folded paper or bracket (no text or symbols)

EN: If your vehicle is not equipped with the ISOFIX insert guides as standard, clip the two insert guides which are included with the seat with the cut-out facing upwards onto the two ISOFIX attachment points of your vehicle.

Illustration of a hand holding a small object with a blue arrow pointing to it, no text or symbols present

Diagram of a car seat with a green accent marking and a blue arrow indicating direction (no text or symbols)

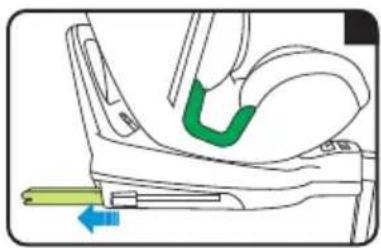

EN: On both sides of the seat squeeze the ISOFIX button and pull out ISOFIX connectors in longest position.

Illustration of a hand using a device to lift a seat, with blue arrows indicating motion direction (no text or symbols)

EN: Slide the two ISOFIX connectors firmly into the insert guides until the ISOFIC connectors engage with a clicking noise on both sides. The ISOFIX button must turn green on both sides.

CAUTION! The ISOFIX connectors are only correctly engaged if both of the ISOFIX buttons are green.

Push the child seat towards the backrest applying firm, even pressure on both sides. Shake the child safety seat to make sure it is safely attached and re-check the green safety buttons to make sure that both of them are completely green.

Illustration of a person seated in a chair with a hand holding the seat, showing a blue directional arrow indicating movement (no text or symbols present)

Diagram of a hand holding a green tool with a blue arrow indicating force or movement (no text or symbols present)

EN: Push the child seat towards the backrest applying firm. At the same time squeeze ISOFIX button and pull back ISOFIX connectors.

Diagram of a car seatbelt mechanism with a magnified inset showing internal components (no text or labels)

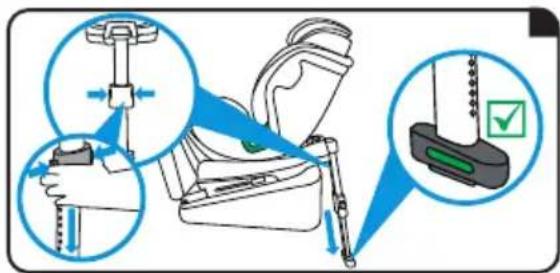

EN: Pull the support leg away from the bottom of the seat until fully extended. Push both adjustment buttons and pull out the support leg until it rests firmly on the floor of the vehicle. Make sure the indicator on the support leg must turn green, the bottom of the seat does not lift up from the surface of the vehicle seat and two adjustment buttons must engaged.

Line drawing of a mechanical assembly or procedure (no text or symbols present)

Diagram of a medical device with a magnified view of internal anatomy (no text or labels)

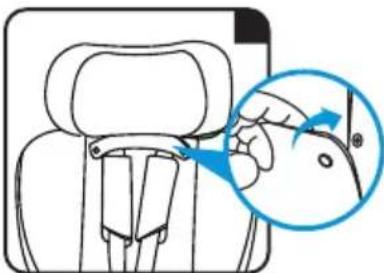

EN: Loosen the press studs on the backrest and fold the upper half of the cover upwards and the lower half downwards. Loosen the 5-point harness on the child seat as far as possible. Then open the buckle.

Diagram of a mechanical device with blue arrows indicating motion or force direction (no text or symbols)

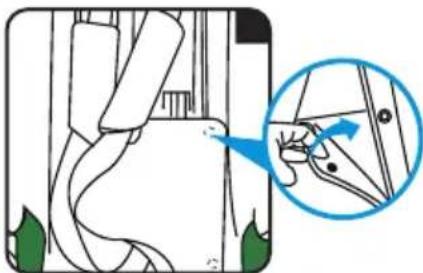

EN: Open the two shoulder pads by the velcro fasteners on the side. Push the velcro strip of the two opened shoulder pads under the backrest cover and attach it to the fleece strip provided.

Line drawing of a car seatbelt buckle being adjusted for a hand (no text or symbols)

EN: Insert the buckle tongues in the recess provided on the inside of the backrest.

Diagram showing a mechanical component with a magnified inset highlighting a specific section (no text or symbols present)

EN: Open seat cover and fold the cover forwards, pull the harnessbuckle out of the cover.

Line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

EN: Stow the harness buckle in the recess provided.

Illustration of a car seat with a magnified inset showing a person's seat (no text or symbols)

EN: Close the two press studs and recovery seat cover.

EN: Re-fitting the harness: Simply follow the steps in the opposite order.

Make sure the belt is not twisted

EN: This seat has been tested and a approved to offer optimum side protection without side impact shield. The side impact shield is optional for extra side protection, when used may not fit in all approved vehicles.

The side impact shield should install at the side which close to vehicle door.

EN: Insert clip on side impact shield onto seat side wing where marked with two dents. Pull out the hook by pressing the button on side impact shield and hooking into hole on seat side wing.

To remove - press the button then unhook from seat side wing, slide out side impact shield from seat side wing.

Diagram of a car seatbelt seat with a magnified inset showing hand positioning and blue arrows indicating movement (no text or symbols)

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

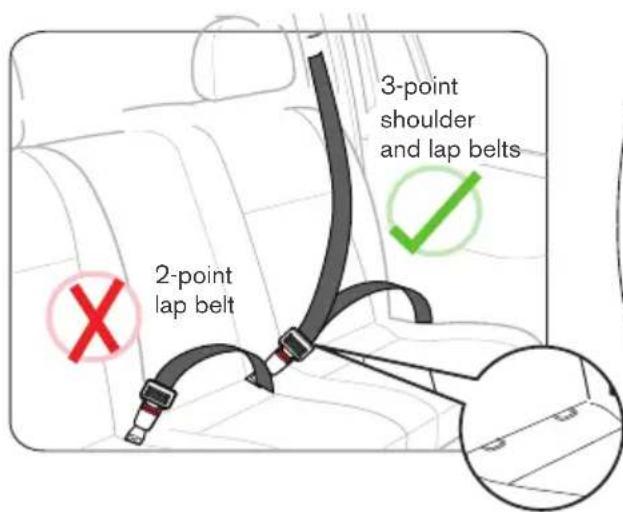

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 40 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

- The shoulder belt pads are important in keeping the child safe. Please use them at all times.

- While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.

- In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).

- Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

- Please use the Caretero Turox seat only to secure your child in the car.

- The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.

- It is forbidden to use the car seat as a chair or a toy.

- During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.

- Please remember to recycle the seat properly when it won't be used anymore.

- Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).

- Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.

- It is forbidden to lubricate any parts of the seat.

- Check if the car seat is installed properly before each trip.

- Do not use or transport the car seat when it is not properly installed in the car.

- Do not use other fixing points other than those described in this manual and marked on the car seat itself.

- Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.

- Never leave the child in the car seat unattended.

- Make sure that the child enters and exits the car on the sidewalk side of the street.

- Protect the car seat against sunlight while it's not in use.

- The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.

- The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.

- Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.

- When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).

- Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

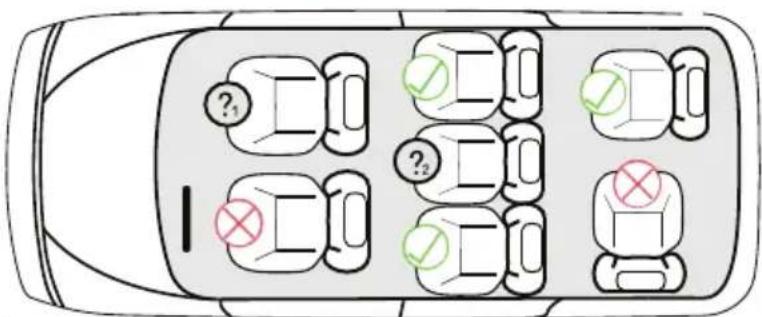

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing No
On car seats equipped with ISOFIX(found between the seating and backrest ofa car seat) and 3-point car safety belts	Yes ^1)

Regulations obligatory in the territory of a given country must be obeyed.

^1) In case of presence of a frontal airbag - move the passenger car seat as far back as possible.

Proper placement

Forbidden placement

Installation of the child seat is not recommended if the passenger seat airbag is active.

Installation of the child seat is FORBIDDEN if the passenger seat is equipped with a 2-point seat belt only.

5

CLEANING AND MAINTENANCE

Remember to ONLY use the original upholstery for the Caretero TUROX seat, as it is an integral part of the seat and plays an important role in its proper functioning.

The upholstery may be removed for washing (hand wash or machine wash - delicate fabrics programme, max 30°C).

Do not tumble dry. Use only mild detergents.

Plastic parts of the seat may be cleaned with a damp cloth with addition of soap.

Never use strong detergenst such as bleaches etc.

Never iron the upholstery.

The cover can be removed and washed. Please observe the instruction on the washing label of the cover.

Diagram of a car seatbelt with a magnified inset showing the hand and seat (no text or symbols)

Loosen the press studs at the back of the headrest and remove the cover of headrest.

Illustration of a hand holding a tool near a vehicle, with a magnified inset showing the tool's tip (no text or symbols present)

Loosen the press studs and unzip at the back of seat cover. Pull forward and remove seat cover.

Re-fitting simply follow the steps in the opposite order.

Diagram of a car seatbelt with a magnified inset showing hand positioning (no text or symbols)

Illustration of a hand holding a small object with a blue arrow pointing to it, showing no text or symbols.

Learn more about brand Caretero. Scan the code QR.

DISTRIBUTOR:

IKS 2 - Children's Goods Distribution Centre 9 Rybnicka Street, 43-190 Mikolow, Poland [phone] e-mail: [e-mail], www.caretero.pl
