Securo - Child car seat Caretero - Free user manual and instructions

Product Type	Child Car Seat
Brand	Caretero
Model	Securo
Weight Group	Group 1/2/3 (9-36 kg)
Installation Method	Seat Belt (3-point) and ISOFIX (optional)
Orientation	Forward-facing (Group 1) and forward-facing (Group 2/3)
Dimensions (H x W x D)	Approx. 62 x 44 x 38 cm
Weight	Approx. 5.5 kg
Material	Polypropylene shell, polyester cover
Safety Standard	ECE R44/04
Side Impact Protection	Integrated headrest with side wings
Harness Type	5-point harness (removable for Group 2/3 use with vehicle belt)
Adjustable Headrest	Yes, 7 positions
Recline Positions	3 positions
Cover Removal	Removable and machine washable (30°C)
Cleaning	Hand wash cover or machine wash gentle cycle; air dry
Spare Parts Availability	Contact Caretero customer service for covers, harness, buckle
Expiration Date	6 years from manufacture date
Manufacturing Date	See label under seat
Warranty	2 years

Frequently Asked Questions - Securo Caretero

How do I install the Caretero Securo car seat using the seat belt?

For Group 1 (9-18 kg), thread the vehicle lap belt through the belt guides on the seat, ensuring no twists. For Group 2/3 (15-36 kg), remove the harness and use the vehicle's 3-point belt directly over the child, routing it through the red guides.

What is the weight and height limit for the Caretero Securo?

The seat is approved for children weighing 9 to 36 kg (approx. 1 to 12 years). Height limits: minimum 75 cm, maximum 150 cm. Always follow the weight and height limits on the seat label.

Can I use the Caretero Securo rear-facing?

No, the Securo is designed only for forward-facing use. For rear-facing, consider other models like the Caretero Rondo.

How do I clean the Caretero Securo cover?

Remove the cover by unbuttoning and unhooking it from the shell. Machine wash on gentle cycle at 30°C (86°F) with mild detergent. Do not bleach, tumble dry, or iron. Air dry only.

What is the expiration date of the Caretero Securo?

The seat expires 6 years from the date of manufacture, which is printed on a label under the seat. Do not use after expiration due to material degradation.

Can I replace the harness or buckle if damaged?

Yes, replacement parts are available. Contact Caretero customer service or an authorized dealer. Do not use the seat with a damaged harness or buckle.

Does the Caretero Securo have ISOFIX connectors?

Some versions include ISOFIX connectors for easier installation. Check your seat's label or manual. If present, the ISOFIX is optional and can be used together with the top tether.

How do I adjust the headrest on the Securo?

Pull the headrest adjustment lever at the top of the seat, then slide the headrest up or down to the desired height. The headrest should be just above the child's shoulders.

Can the Caretero Securo be used on airplanes?

Yes, the seat is certified for aircraft use. Install it in the forward-facing seat using the aircraft seat belt. Check with the airline for approval.

What should I do if my child is uncomfortable in the seat?

Ensure the harness is not too tight and that the crotch strap is in the correct slot. Adjust the recline position to a more upright or more laid-back angle. Check that the headrest is at the right height.

USER MANUAL Securo Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Line drawing of a car seat assembly with no text or symbols

CARETERO

Thank you for choosing the Caretero SECURO car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

Line drawing of a car seat assembly with a hand adjusting the seat (no text or symbols)

Illustration of a car seat assembly with a hand inserting a clip, showing no text or symbols.

Line drawing of a car seat assembly with no text or symbols

Three abstract 3D shapes: a bent pipe, a green left-pointing arrow with three vertical lines, and a gray bracket-like shape (no text or symbols)

TYŁEM DO KIERUNKU JAZDY + ISOFIX + 5-PUNKTO-WE PASY

REAR FACING + ISOFIX + 5-POINT BELTS

RÜCKWÄRTSGERICHTET + ISOFIX + 5-PUNKT-GURTE

PL

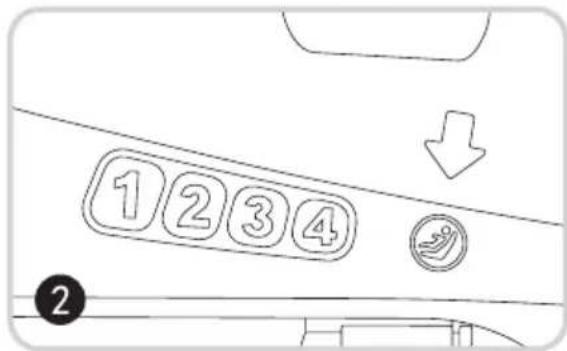

Pull the lever to adjust the inclination of the seat.

The seat can be rotated at any degree of inclination.

Pull the lever to rotate the seat.

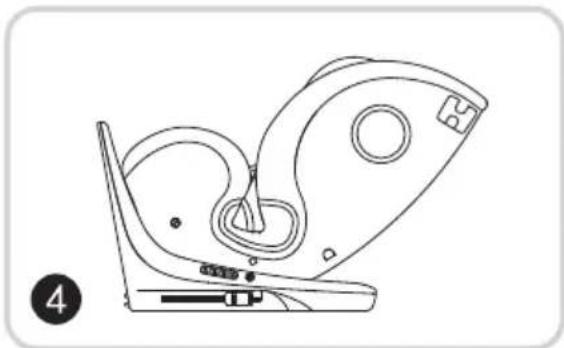

Turn the seat so that it faces rearward facing.

Connect the ISOFIX guide to the anchor in the car's backrest.

DE

Line drawing of a hand pressing down on a car seat, with green arrows indicating direction (no text or symbols)

PL

Line drawing of a car seatbelt device with a hand holding the seatbelt and a green arrow indicating left motion (no text or symbols)

EN

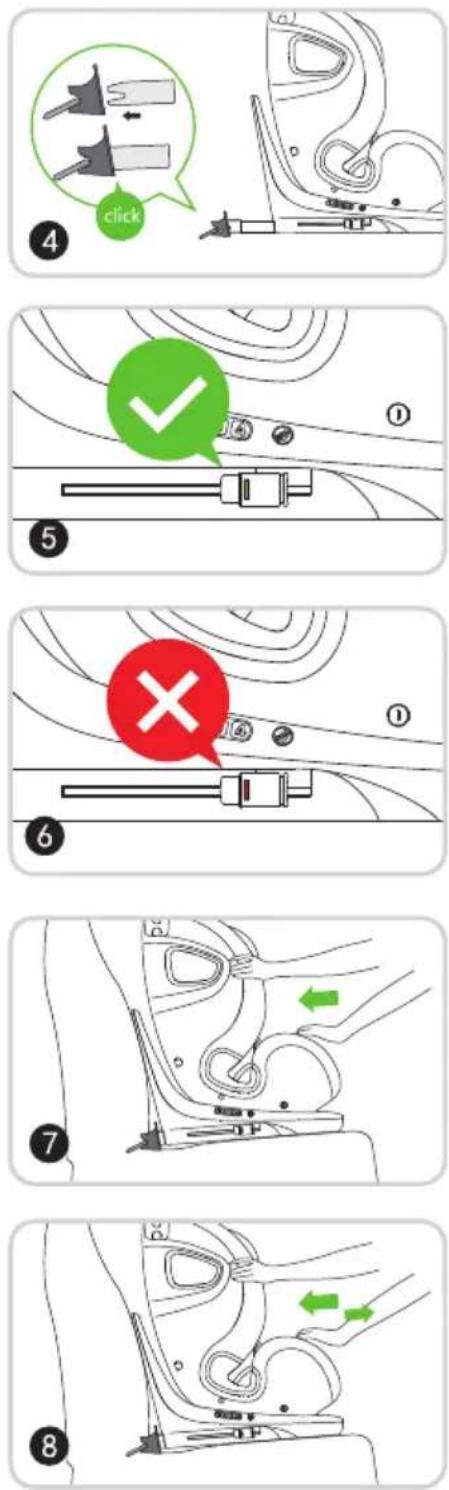

Pull out the ISOFIX rails on both sides of the seat.

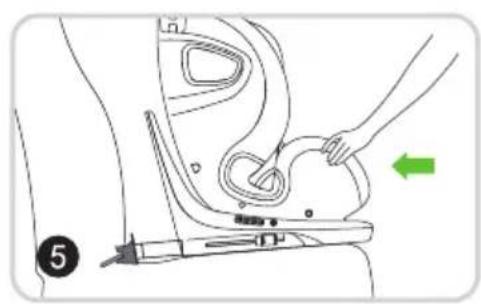

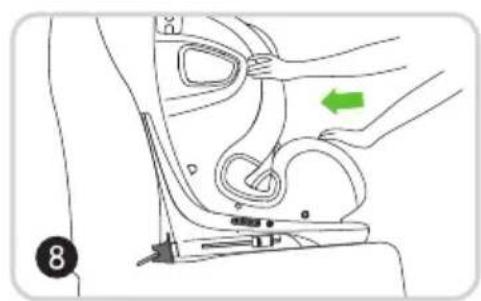

When pushing the seat, install the ISOFIX on the backrest.

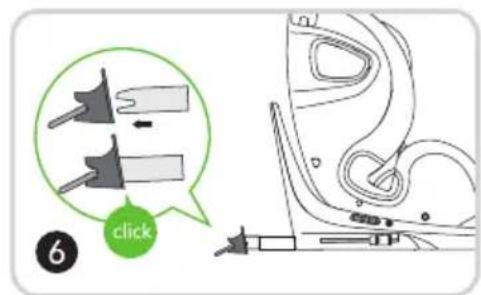

A "click" indicates that the ISOFIX is engaged.

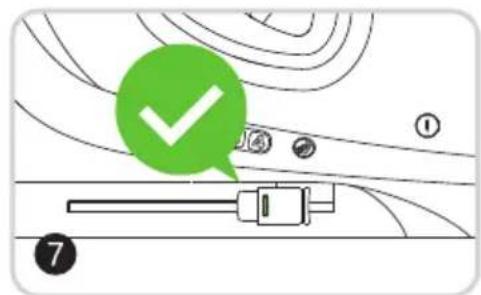

Make sure the ISOFIX indicator is green on both sides.

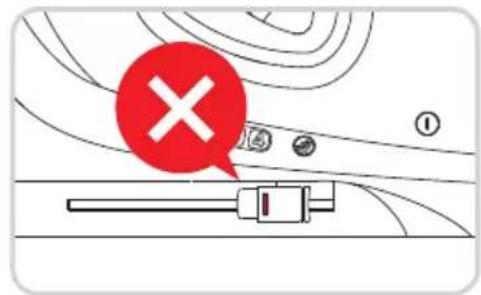

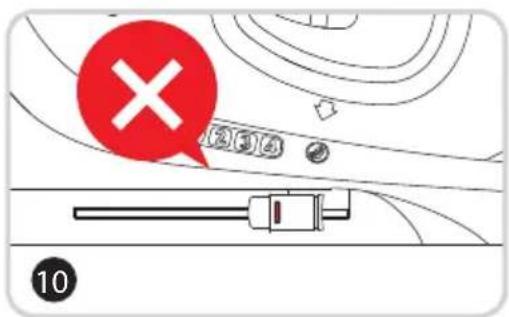

If the indicator is red, you must re-attach the ISOFIX.

DE

Line drawing of a car seat assembly with a hand adjusting the seat (no text or symbols)

Line drawing of a car seatbelt with arrows indicating movement or force (no text or symbols)

Diagram of a medical or surgical procedure with a tool interacting with a curved anatomical structure (no text or labels)

Icon depicting a person relaxing in a chair with an anchor symbol (no text or numbers)

PL

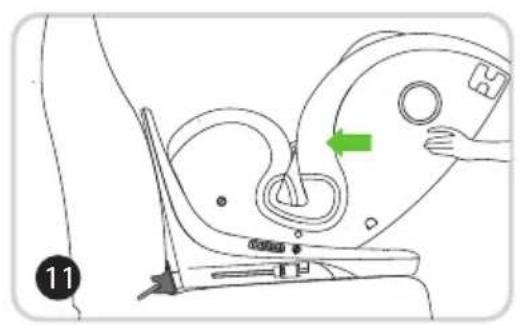

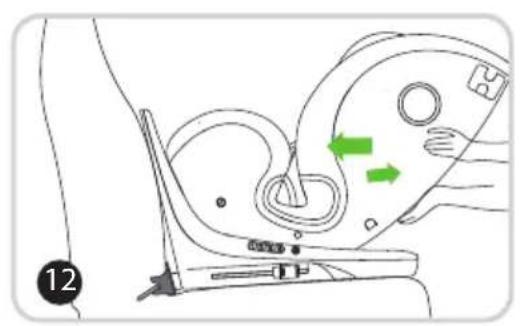

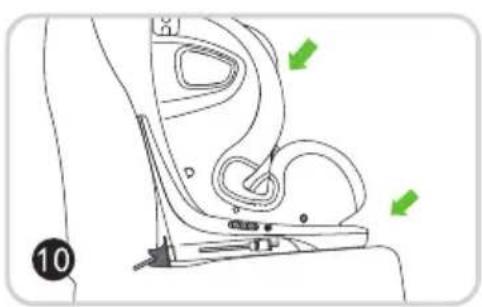

Push the seat towards the backrest so that it fits snugly. Shake the seat to make sure it is firmly attached.

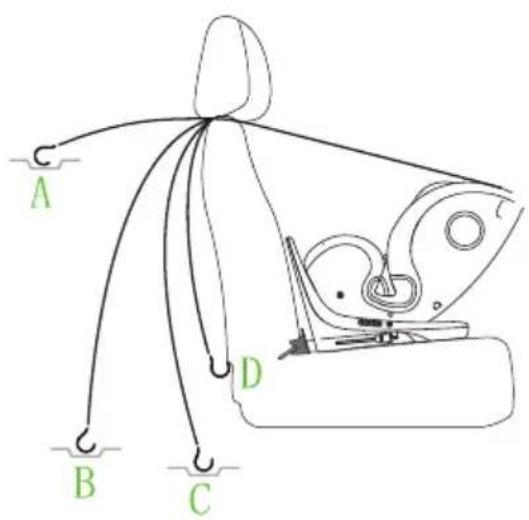

Possible Top-tether attachment points:

A. shelf behind the rear seat

B. trunk floor

C. under the chair

D. on the backrest

The Top-tether belt will strengthen the stability of the seat while driving.

Not all car models have the ability to attach Top-tether (even those equipped with ISOFIX), please check the details in the vehicle manual.

DE

To extend the Top-tether belt, use the button on the buckle and pull the belt.

Pass the belt through the guides on the back of the seat.

Mount the Top-tether where possible.

Make sure the belt is not tangled or twisted.

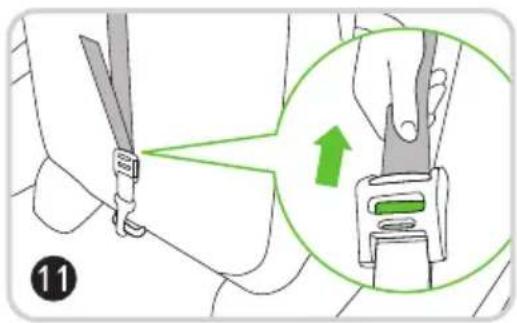

Tighten the belt to tighten it.

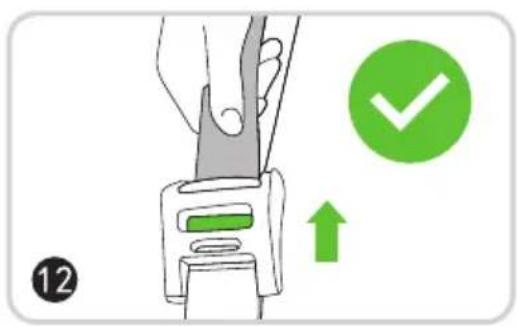

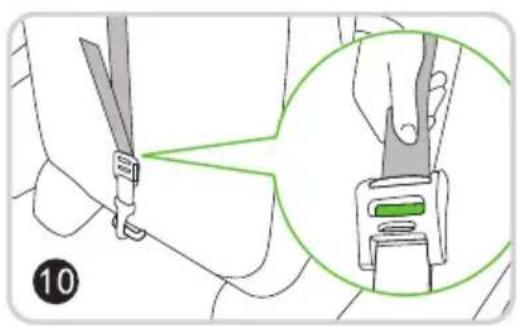

The green color on the buckle indicates correct tension.

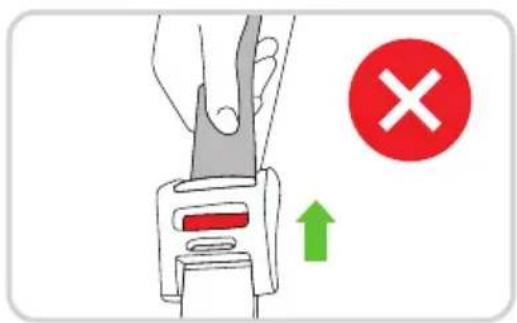

Red indicates that the belt needs to be tightened or attached to another accessible point.

DE

Diagram of a sewing machine's side panel showing green arrows indicating measurement or adjustment points (no text or symbols present)

Illustration of hands adjusting a mechanical component with a green arrow indicating a downward motion (no text or symbols present)

Illustration of a car seatbelt with hands adjusting the seatbelt and arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a car seat with an upward arrow (no text or symbols)

PL

Make sure the seat is properly installed.

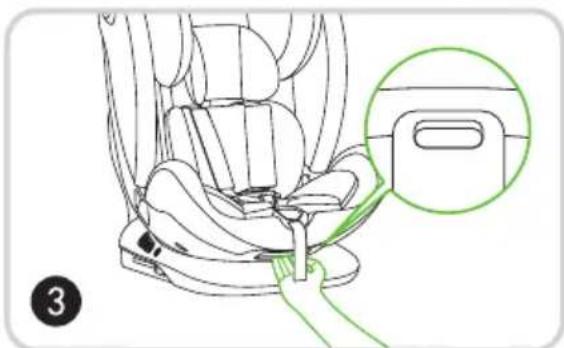

Press the strap adjustment button.

At the same time, pull the shoulder straps.

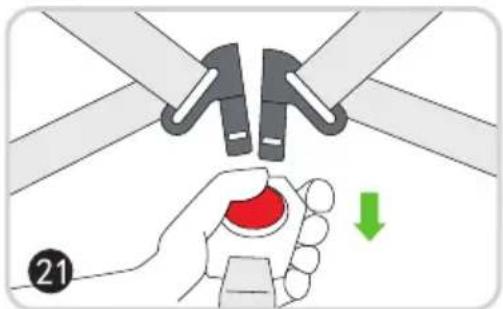

Press the red button to unfasten the 5-point harness.

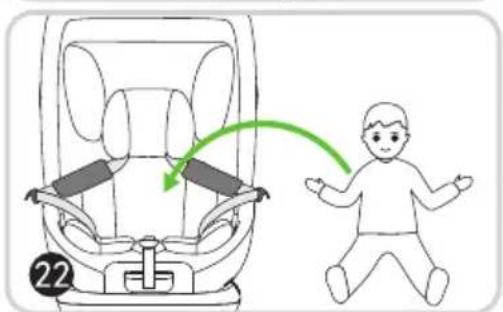

Place the child in the seat.

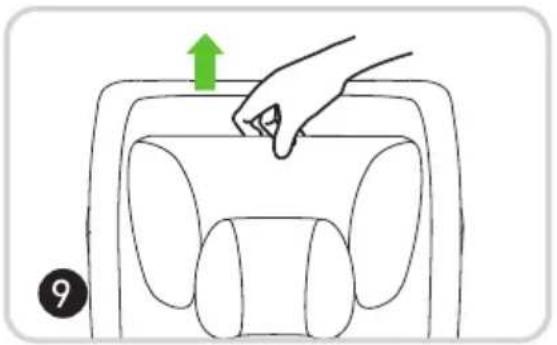

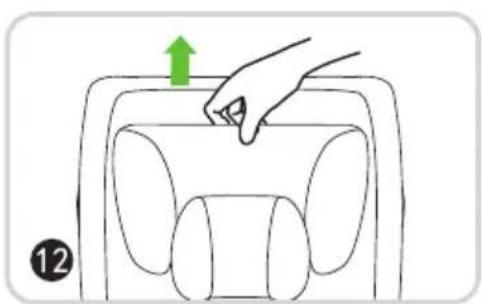

Adjust the height of the headrest by pulling or pressing on the headrest ring.

DE

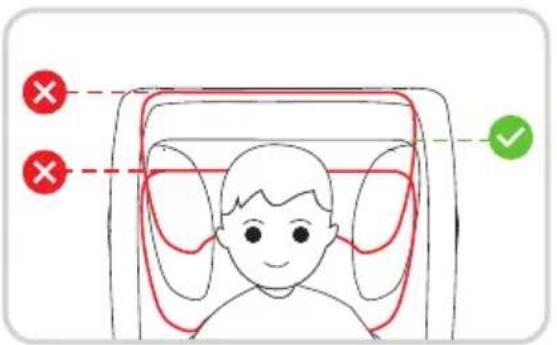

The height of the headrest must correspond to the height of the child.

It cannot be too low or too high because it will not ensure full security.

To fasten the belts, connect the metal hooks and insert them together into the buckle.

Pull the strap to tighten it around the child.

Make sure there is space between the child's body and the straps to fit a hand. The straps must not be too loose or too tight.

ATTENTION:

For children of height:

40 - 75 cm - use both the reducing pad (A) and the hip pad (B)

76 - 80 cm - reducer insert (A) must be used

DE

Line drawing of a mechanical device with no visible text or symbols

PRZODEM DO KIERUNKU JAZDY + ISOFIX + 5-PUNKTOWE PASY FORWARD FACING + ISOFIX + 5-POINT BELTS NACH VORWÄRTS GERICHTET + ISOFIX + 5-PUNKT-GURTE

Three mechanical component icons: a bent bracket, a green left-pointing arrow, and a gray bracket with a zigzag line (no text or symbols)

PL

Illustration of a hand holding a car seatbelt with green directional arrows indicating movement (no text or symbols)

EN

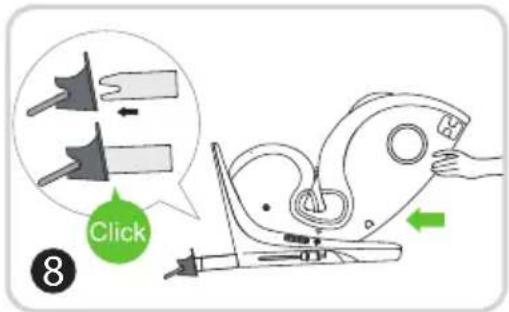

Connect the ISOFIX guides to the anchor in the car. Pull the ISOFIX out of the seat as far as possible on both sides. Holding the seat in place, secure it in the car.

DE

Illustration of a person adjusting a car seatbelt with a hand and green arrow indicating motion (no text or symbols)

PL

"Click" means the ISOFIX engages with the anchors. Make sure the IFOSIX indicators are green on both sides. If the indicator is red, try again to install correctly. In this installation method, the backrest can be set in the following positions: 1, 2, 3, 4. Push the seat towards the backrest so that it fits snugly. Shake the installed seat to make sure it is properly attached.

DE

Diagram of a medical or surgical procedure with a tool interacting with a curved surface (no text or symbols present)

Simple icon of a person sitting in a chair with a curved arrow indicating motion or pressure (no text or symbols)

PL

Possible Top-tether attachment points:

A. shelf behind the rear seat

B. trunk floor

C. under the chair

D. on the backrest

The Top-tether belt will strengthen the stability of the seat while driving.

Not all car models have the ability to attach Top-tether (even those equipped with ISOFIX), please check the details in the vehicle manual.

DE

Illustration of a hand using a tool to adjust a device with green arrows indicating motion (no text or symbols)

Illustration of a hand securing a seatbelt with a magnified inset showing the green belt (no text or symbols)

PL

To extend the Top-Tether, press the button on the drawstring and pull the belt. Attach the Top-Tether hook at the desired point, making sure it is not twisted or tangled. Pull the belt tight. Green color on the indicator indicates the correct hook. If the indicator is red, tighten the seat belt tighter.

DE

Make sure the seat is mounted stably. Press the 5-point belt loosening button while pulling the shoulder parts of the belts. Press the red button on the seat belt buckle to unfasten it. Open the belts to the sides and place the child in the seat. Adjust the headrest height.

DE

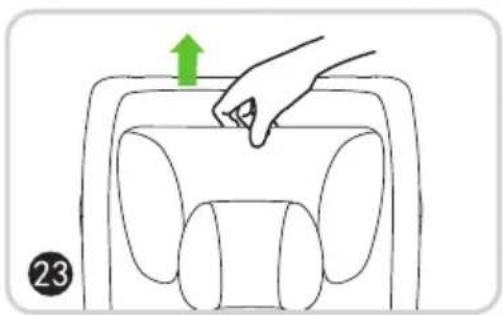

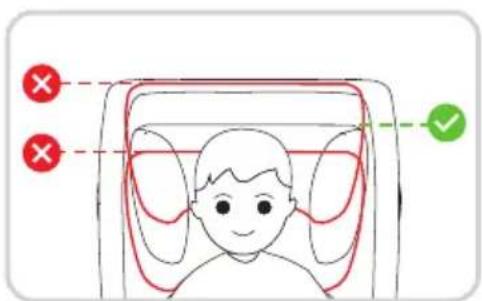

Make sure the headrest fits your child correctly. Incorrect adjustment is dangerous, the headrest cannot be too low or too high behind the child's head. Connect the clasps of the shoulder straps together and place them in the buckle to fasten the belt. Pull the belt to tighten it on your child. Make sure there is space between the child's body and the belts to accommodate a hand. The belts cannot be too loose or too tight.

ATTENTION!

Children with a height of 76-80 cm should use a reducing cushion.

DE

PRZODEM DO KIERUNKU JAZDY + 3-PUNKTOWE PASY

FORWARD FACING + 3-POINT SEATBELTS

NACH VORNE GERICHTET + 3-PUNKT-SICHERHE-ITSGURTE

Line drawing of a car interior with a green arrow indicating direction (no text or symbols)

PL

Illustration showing two hands holding a tool, with green arrows indicating direction of movement (no text or symbols)

EN

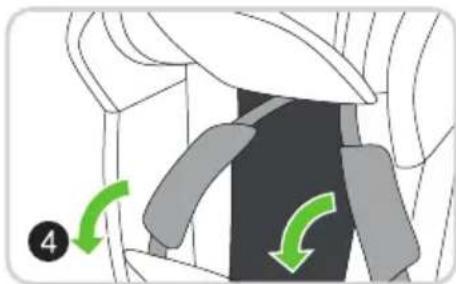

Unfasten the 5-point seat belts. Lift the flap on the inside of the seat. Press the 5-point belt tension button and pull the shoulder parts of the belts. Unfasten another flap inside the seat and hide the seat belts there. Place the buckle into the seat opening.

Diagram of a mechanical component with green arrows indicating motion or rotation (no text or symbols)

DE

Diagram of a mechanical component with two vertical bars and a numbered label (5), no readable text or symbols present.

Illustration of a black and gray brake lever with a red head and a blue handle, partially covered by coiled wires (no text or symbols)

Line drawing of a car comfort seat with two side views (no text or symbols)

Line drawing of a child seated in a car seat, no text or symbols present

Illustration of a hand pressing down on a car seat with an upward arrow (no text or symbols)

PL

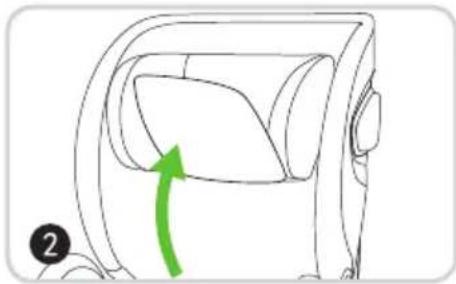

Close the flaps on the backrest. In this type of installation, the seat does not require additional inserts. Set the backrest tilt to position 1. Place your child in the seat. Adjust the headrest height according to the child. Incorrect adjustment is dangerous, the headrest cannot be too low or too high behind the child's head.

DE

Illustration of a child seated in a car seat with a green belt, showing a close-up inset of the seatbelt detail (no text or symbols present)

Line drawing of a mechanical component with a green tool inserted, no text or symbols present

PL

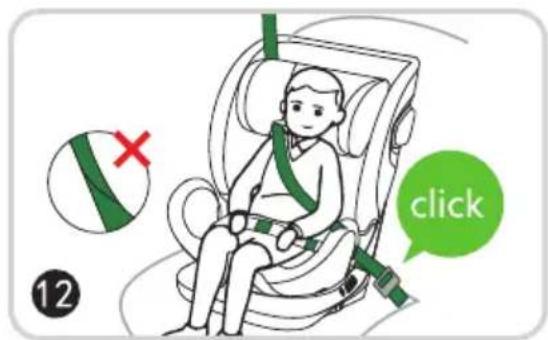

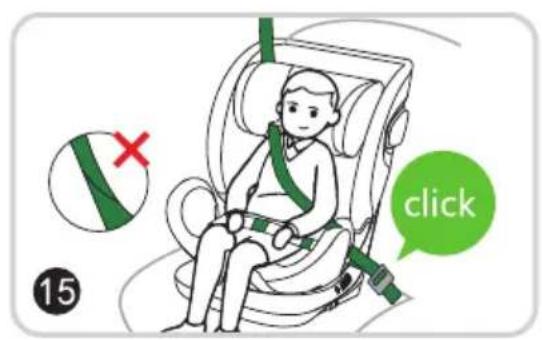

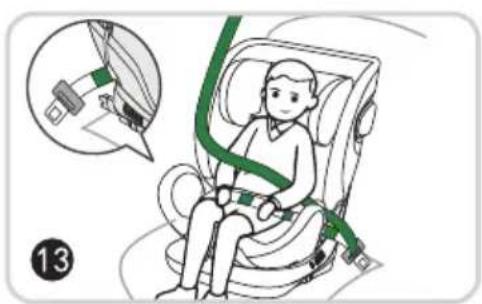

Pass the 3-point harness through the guide. Make sure the belt is positioned correctly on the child's pelvis. Weave the upper part of the belt through the guide behind the headrest. Fasten the seat belt and tighten it properly. Make sure the belt is not tangled or twisted.

DE

Store the 5-point seat belts according to the instructions in chapter 4. Set the backrest inclination to position 1. Connect the ISOFIX guides to the anchor in the car's backrest.

DE

Line drawing of a car seatbelt with green arrows indicating adjustment (no text or symbols)

Illustration of a person using a cable device to lift a seatbelt, with a green arrow indicating motion direction (no text or symbols)

Line drawing of a car seatbelt mechanism with hand placement and green arrow indicating direction (no text or symbols)

PL

Pull the ISOFIX out of the seat as far as possible on both sides. Holding the seat in place, secure it in the car. "Click" means the ISOFIX engages with the anchors. Make sure the IFOSIX indicators are green on both sides. If the indicator is red, try again to install correctly. Push the seat towards the backrest so that it fits snugly.

DE

Diagram of a car seatbelt mechanism with green arrows indicating motion direction (no text or symbols)

Line drawing of a car seatbelt mechanism with green arrows indicating motion direction (no text or symbols)

Line drawing of a child seated in a car seat, no text or symbols present

Line drawing of a hand pressing down on a car seat with an upward arrow (no text or symbols)

Illustration of a child seated in a car seat with a green belt, showing a close-up inset of the seat (no text or symbols present)

PL

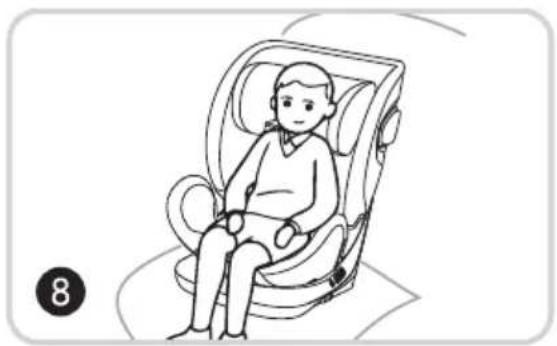

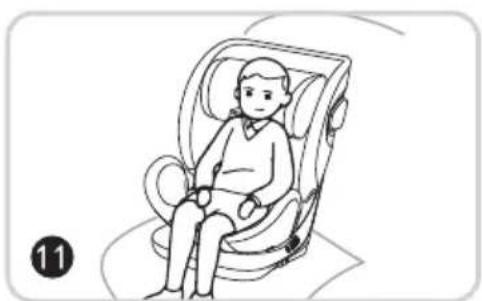

Shake the installed seat to make sure it is properly attached. Make sure the ISOFIX hook is correctly installed. Place your child in the car seat. Adjust the headrest height according to the child. Incorrect adjustment is dangerous, the headrest cannot be too low or too high behind the child's head. Pass the 3-point harness through the guide. Make sure the belt is positioned correctly on the child's pelvis.

DE

Line drawing of a device with a green tool inserted, no text or symbols present

PL

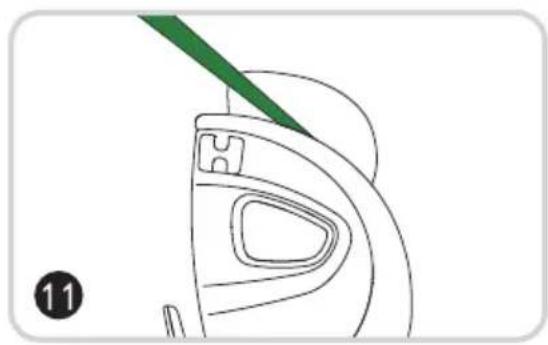

Place the upper part of the belt through the guide behind the headrest. Fasten the seat belt and tighten it properly. Make sure the belt is not tangled or twisted.

DE

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

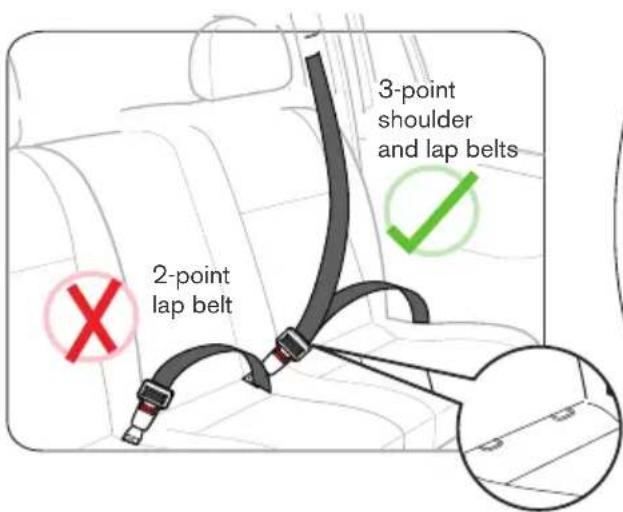

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 40 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

• The shoulder belt pads are important in keeping the child safe. Please use them at all times.
• While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.
• In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).
• Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

• Please use the Caretero Securo seat only to secure your child in the car.
• The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.
• It is forbidden to use the car seat as a chair or a toy.
• During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.

- Please remember to recycle the seat properly when it won't be used anymore.

- Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).

- Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.

- It is forbidden to lubricate any parts of the seat.

- Check if the car seat is installed properly before each trip.

- Do not use or transport the car seat when it is not properly installed in the car.

- Do not use other fixing points other than those described in this manual and marked on the car seat itself.

- Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.

- Never leave the child in the car seat unattended.

- Make sure that the child enters and exits the car on the sidewalk side of the street.

- Protect the car seat against sunlight while it's not in use.

- The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.

- The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.

- Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.

- When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).

- Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
  • The child seat is always secured, even when there is no child in the seat.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing No
On car seats equipped with ISOFIX (found between the seating and backrest of a car seat) and 3-point car safety belts	Yes ^1)

Regulations obligatory in the territory of a given country must be obeyed.

^1) In case of presence of a frontal airbag - move the passenger car seat as far back as possible.

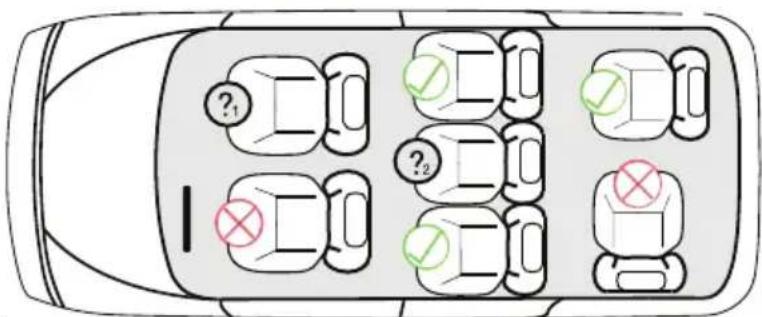

Proper placement

Forbidden placement

Installation of the child seat is not recommended if the passenger seat airbag is active.

Installation of the child seat is FORBIDDEN if the passenger seat is equipped with a 2-point seat belt only.

6

CLEANING AND MAINTENANCE

Remember to ONLY use the original upholstery for the Caretero Securo seat, as it is an integral part of the seat and plays an important role in its proper functioning.

The upholstery may be removed for washing (hand wash or machine wash - delicate fabrics programme, max 30°C).

Do not tumble dry. Use only mild detergents.

Plastic parts of the seat may be cleaned with a damp cloth with addition of soap.

Never use strong detergenst such as bleaches etc.

Never iron the upholstery.

Learn more about brand Caretero.

Scan the code QR.

DISTRIBUTOR:

IKS 2 - Children's Goods Distribution Centre 9 Rybnicka Street, 43-190 Mikolow, Poland [phone]

e-mail: [e-mail], www.caretero.pl
