Product Type	Child Car Seat (i-Size)
Brand	Caretero
Model	Cosy i-Size
Approval	ECE R129 (i-Size)
Height Range	76 cm – 150 cm
Age Range	Approx. 15 months – 12 years
Weight Range (approximate)	Up to 36 kg
Installation	Forward-facing using vehicle 3-point seat belt
Harness Type	5-point safety harness (for 76–105 cm); vehicle belt only (100–150 cm)
Headrest Adjustment	13 positions, adjustable via handle on back
Seat Cushion	Removable; required for 76–87 cm, removed above 87 cm
Car Seat Belt Routing	Diagonal belt through back belt guide; lap belt under armrest
Safety Features	Energy-absorbing materials, side protection, audible click confirmation
Cleaning	Wipe plastic parts with wet cloth; cover can be removed for washing (hand wash recommended)
Spare Parts	Only use manufacturer-approved covers and parts
Repair	Do not use after an accident; contact manufacturer for repairs
Storage	Store in a safe, dry place away from direct sunlight and heavy objects
Manufacturer	IKS 2 MUCHA SP. J., 9 Rybnicka Street, 43-190 Mikolow, Poland
Contact	[e-mail] | www.caretero.pl

Frequently Asked Questions - Cosy i-Size Caretero

What height groups does the Caretero Cosy i-Size cover?

The seat covers children from 76 cm to 150 cm (approximately 15 months to 12 years). It is divided into three stages: 76–87 cm (with seat cushion and 5-point harness), 87–105 cm (5-point harness, no cushion), and 100–150 cm (using the vehicle's 3-point belt).

How do I install the car seat with the vehicle seat belt?

First, ensure the seat is forward-facing. For children 76–105 cm, use the 5-point harness. Route the diagonal belt through the back belt guide and behind the shoulder straps, then under the armrest. Insert the belt end into the buckle until you hear a click. Ensure the belt is tight and not twisted.

When should I remove the seat cushion?

The seat cushion is required for children with a height of 76–87 cm. Remove it once the child reaches 87 cm to ensure proper fit and safety.

How do I adjust the headrest?

Locate the adjustment handle on the back of the headrest. Squeeze and pull up to raise, or squeeze and push down to lower. There are 13 positions; the child's head should be in the middle of the headrest. For 76–105 cm, the button should be horizontal; for 100–150 cm, turn it vertical.

Can I use this seat with an airbag?

No. Never install this car seat on a passenger seat equipped with an active airbag. It can be extremely dangerous and lead to serious injury.

How do I clean the car seat?

Use a wet towel to clean the plastic body. The fabric cover can be removed and washed by hand (follow care instructions). Avoid corrosive substances and direct sunlight to prevent damage.

What should I do if the seat has been in an accident?

Do not use the child car seat if it has been involved in an accident, even if it looks undamaged. Replace it immediately, as hidden structural damage may compromise safety.

Is the seat rear-facing?

No, the Caretero Cosy i-Size is designed for forward-facing use only. The manual and illustrations show installation in a forward-facing position.

How do I hide the 5-point harness when transitioning to the vehicle belt?

For children 100–150 cm, you need to hide the 5-point harness. Refer to section 3.5.5 in the manual: open the covers, tuck the buckle pieces and straps behind the designated covers, and secure them out of the way.

Where can I find spare parts or additional support?

Contact the manufacturer via email at [e-mail] or visit www.caretero.pl. Only use covers and parts approved by Caretero to maintain safety.

USER MANUAL Cosy i-Size Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Top-down line drawing of a car seat assembly (no text or symbols)

Cosy

CARETERO

Cosy

Thank you for choosing the Caretero Cosy car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

EN. Please read the entire instruction manual thoroughly before using the child car seat. Improper installation can endanger the life of your child. This car seat is approved by ECE R129 rule. Under no circumstances should the seat be installed on a passenger seat equipped with an airbag. This can be very dangerous. It is most important that the seat belt is correctly routed. Never make unauthorized alterations or additions to the product. Never use the child car seat if it has been in an accident, or if it has become badly worn. Do not leave your children in the seat unattended at any time. Child car seat parts may become hot in direct sunlight. Cover with a sheet to prevent this. Ensure that all other passengers' luggage and loose objects are properly secured. Never use the child car seat without cover. Only covers approved by manufacturer can be used. The child car seat must be secured when not in use. Store this child car seat in a safe place when it is not being used. Avoid placing heavy objects on it. Most accidents occur on short trips. So do not be tempted to avoid using the seat simply because you are not travelling very far. Keep plastic bag away from your child as it could cause suffocation. Do not expose the child seat to any corrosive substances. Use a wet towel to clean the plastic body of the child seat. Make sure the child car seat belt is adjusted to a suitable position and ensure the belt is not twisted. Please ensure the lap belt is worn low down across the pelvis. Do not use this product second hand as you never know its history. The user shall be informed that the rigid items and plastic parts of an Enhanced Child Restraint System shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.

Prawidłowo Correct Korrekt

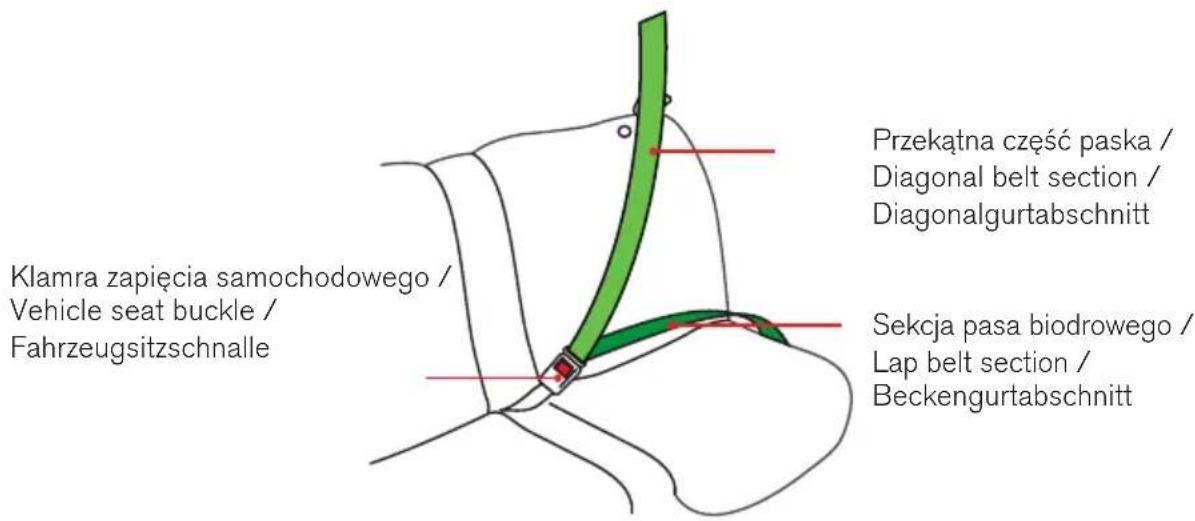

EN. This car seat is suitable for conventional use in all cars equipped with 3 point seat belts that are fitted in accordance with European standard (ECE-16 or equivalent standard).

suit / pasuje / es passt

Technical line drawing of a vehicle front panel with no visible text or symbols

Prowadnica pasa tylnego / Back belt guide / Rückengurtführung

Shoulder belt hole / Otwór na pasek naramienny / Schultergurtloch

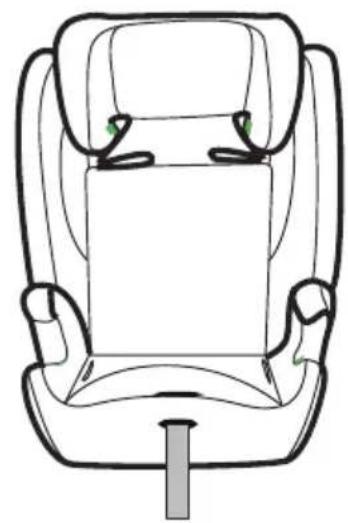

2.3. Point vehicle belt / Pas punktowy pojazdu / Punkt Fahrzeugspur

Mechanical assembly diagram showing a piston-cranked joint with red directional arrows indicating movement (no text or symbols)

Mechanical component diagram showing a piston-like structure with a red arrow indicating downward motion (no text or symbols)

Pic. 3

Line drawing of a car seat with seats and seatbelt (no text or symbols)

Pic. 4

1. Insert the buckle ends into the buckle as shown in Pic. 3.

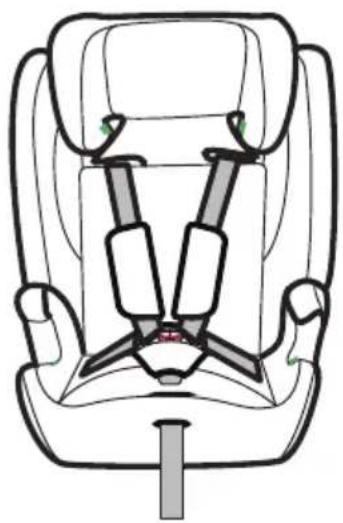

2. Assembled seat Pic. 4.

Illustration of a car seat with pink seats and black straps (no text or symbols)

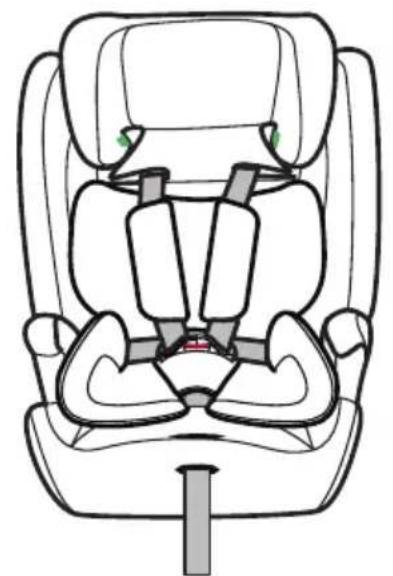

Height: 76 cm-87 cm approx. 15 months up to 2 years Use a adult safety-belt and 5-point seat belt (need a seat cushion)

Line drawing of a car seat with straps and seatbelt (no text or symbols)

Height: 87 cm-105 cm approx. 2 up to 4 years Use a adult safety-belt and 5-point seat belt (no seat cushion needed)

Line drawing of a car comfort seat with no text or symbols

Height: 100 cm -150 cm approx. 4 up to 12 years Use the 3-point seat belt in the vehicle

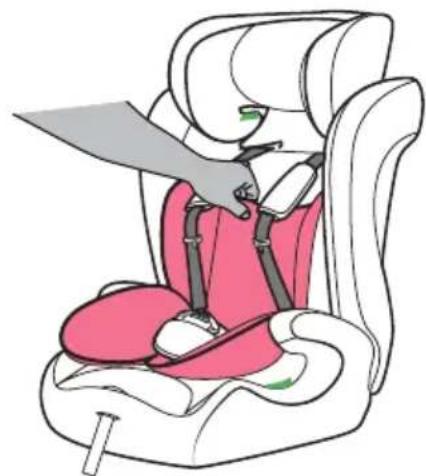

3.3. Zdejmowanie poduszki siedziska / Removal of seat cushion / Entfernen des Sitzkissens

EN. 1. Unlock the 5-point safety buckle. 2. To loosen the harness straps, with one hand press the harness adjustment button and with the another hand pull the harness straps forward. 3. Pull out the seat cushion.

Illustration of a child wearing a pink car seatbelt and holding a white object, with no text or symbols present.

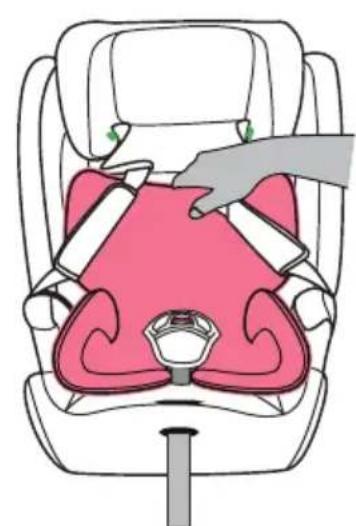

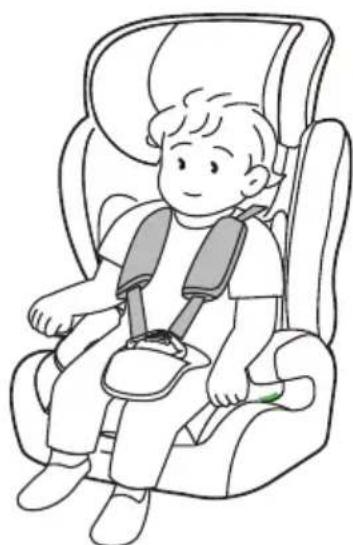

3.4. Montaż poduszki siedziska / Seat cushion installation / Einbau des Sitzkissens

EN. 1. Unlock the 5-point safety buckle. 2. To loosen the harness straps, with one hand press the harness adjustment button and with the another hand pull the harness straps forward. 3. Pull the seat belt and shoulder pads to the armrests on both sides, put the seat cushion on the seat, and ensure that the seat belt buckle is on the seat cushion. 4. Put the seat belt and shoulder pads back on the inside of the seat cushion, close the five-point seat belt.

Illustration of a car seat with a hand adjusting the seat area (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component (no text or symbols visible)

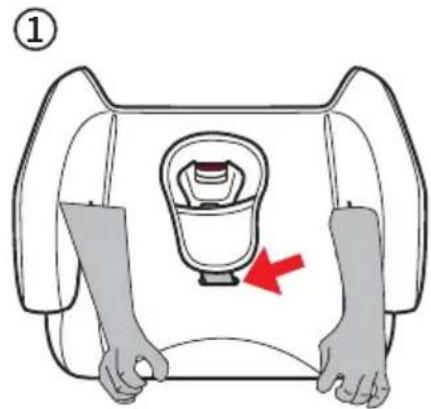

EN. Press the red button down, to unlock. (as shown on the left)

EN. 1. Unlock the 5-point safety buckle. 2. To loosen the harness straps, with one hand press the harness adjustment button and with the another hand pull the harness straps forward. 3. Put the seat belt and shoulder pads to the armrests on both sides. 4. Place your child in the child seat. Then adjust the headrest height according to your child. With the headrest adjustment switch in the horizontal position, squeeze and pull/push the handle behind the headrest upwards or downwards to the desired location. Make Sure the headrest is locked into a position.

Line drawing of a child wearing a seatbelt and holding a green badge, seated in a car seat (no text or symbols)

3.5.3 Zapinanie 5-punktowego pasa bezpieczeństwa / Closing the 5-point seat belt / Anlegen des 5-Punkt-Sicherheitsgurtes

Pic. 5

Diagram of a mechanical assembly with no visible text or symbols

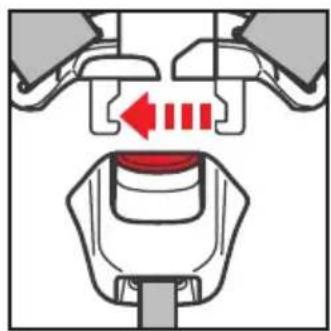

EN. Combine the two buckle pieces together as shown as Pic. 5.

EN. Insert the buckle ends into the buckle as shown in Pic. 6.

Diagram of a mechanical component with two arms and a central highlighted section (no text or symbols)

EN. A "click" sound is heard to indicate the installation is in place.

EN. Place the shoulder straps onto your child and secure the buckle pieces into the buckle. You will hear and audible click when it secured. To tighten the harness straps, pull the harness adjuster strap at the base of the seat until the straps are sitting close to your child chest. Please ensure you do not over tighten them.

Illustration of a child in a car seat being lifted by a hand, with red and green arrows indicating pressure points (no text or symbols)

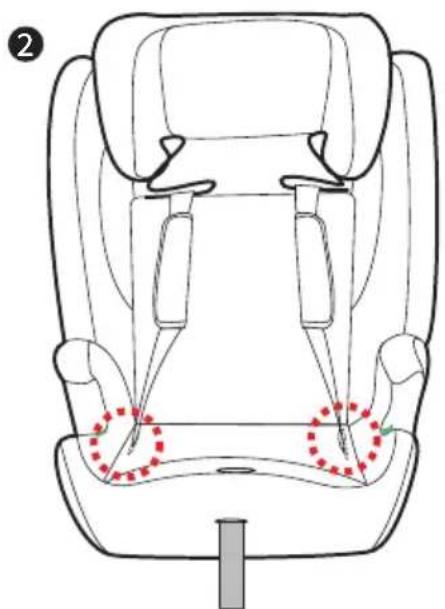

EN. 1. To remove the shoulder belt, open the hook and loop on the shoulder belts. ① 2. Put the shoulder belt behind the ① and ② covers.

EN. 3. open the ③ covers, put the two buckle pieces through the cover, then insert the two buckle pieces into the base as shown. ②

Line drawing of a car seat with red dotted lines indicating seat positions (no text or symbols)

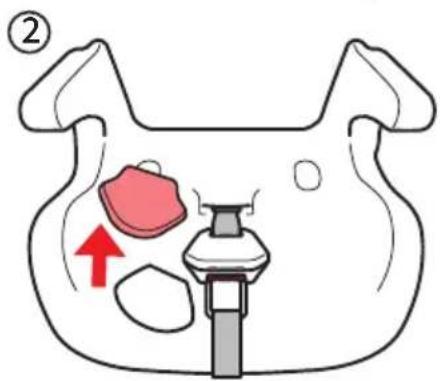

EN. 5. Pull the cover up from the front of the seat, take out the EPE in the hole of the base. Pass the 5-point safety buckle together with pad through the cover of the base. Put the buckle and pad in the hole. Fasten the snap buttons again.

EN. In order to adjust the headrest height there is an adjustment handle on the back of the headrest. Squeeze and pull this up to lift headrest up, or squeeze and push the handle down to lower the headrest.

Diagram of a bicycle seat with hand pressing down and red arrows indicating force or movement (no text or symbols)

EN. Please ensure that the seat head is locked.

Technical line drawing of a mechanical device with no visible text or symbols

EN. For 76-105cm child the headrest button should be in the horizontal position as show.

Technical line drawing of a mechanical component with no visible text or symbols

EN. For 100-150cm child please turn the button into the vertical position.

Illustration of a person wearing a helmet and holding a device (no text or symbols visible)

Illustration of a person sitting with a medical device, showing body positioning and a green checkmark (no text or symbols)

Illustration of a person sitting with a medical device attached, showing no text or symbols

za wysoko too high zu hoch

EN. Please make sure the shoulder straps position is a little higher than the child's shoulder height.

EN. Headrest can be adjusted 13 positions, please make sure the child head is in the middle position of the headrest, top shoulder straps position need a little higher than shoulder height before using baby car seat, which can provide effective protection in case of collision.

EN. Child height at 76-87 cm must use a seat cushion, and children over 87cm must remove the seat cushion.

EN. The diagonal belt goes through behind the plastic of headrest.

EN. 1. For child height at 76-105 cm, the safety seat must be used with adult safety belt and 5-point seat belt. 2. Unlock the 5-point safety buckle, pull out the seat cushion. Pull the headrest up. 3. Open the ① and ② covers, feed the diagonal belt through the back belt guide, through behind the shoulder straps and over the armrest.

EN. 4. Open the ③ cover. The belt runs under the armrest, through the base slot, Secure the belt end into the buckle until you hear it click.

EN. Please make sure the car seat belt is tight and not twisted.

EN. 5. To loosen the harness straps, with one hand press the harness adjustment button and with the another hand pull the harness straps forward.

EN. 6. Place your child in the child seat. Then adjust the headrest height according to your child. With the headrest adjustment switch in the horizontal position, squeeze and pull/push the handle behind the headrest upwards or downwards to the desired location. Make Sure the headrest is locked into a position, you will hear a click when it locks into place. Place the shoulder straps onto your child and secure the buckle pieces into the buckle, you will hear an audible click when its secured. To tighten the harness straps, pull the harness adjuster strap at the base of the seat until the straps are sitting close to your child chest. Please ensure you do not over tighten them. As shown in Pic. 10.

EN. You will need to hide the 5 point safety harness first. To hide the 5 point safety harness, please refer to 3.5.5 Hide 5-point seat belts.

EN. Place your child in the seat. Adjust the headrest by squeezing and pulling the headrest handle up into the desired position. Take the adult seat belt, feed the diagonal belt through the shoulder belt guide as shown. Pull the belt across the child as shown and then take both the diagonal and lap belt and pull it under the armrest, then insert the belt end into the buckle until you hear an audible click. Make sure the car seat belt is not twisted.

EN. The headrest adjustment button needs to be in the vertical position as shown in Pic. 9
