Product Type	Child car seat (height-based, 40-150 cm)
Brand	Caretero
Model	Kamptos
Height Range	40-150 cm (rear-facing: 40-105 cm; forward-facing: 76-150 cm)
Installation Methods	ISOFIX + support leg + 3-point vehicle belt; also usable with 3-point belt only
Orientation	Rearward-facing (40-105 cm) and forward-facing (76-150 cm)
Rotation	360° swivel (only when support leg is attached)
Recline Positions	5 positions (all allowed rear-facing; forward-facing limited to positions 1-4 for 100-150 cm)
Headrest Adjustment	Yes, adjustable to fit child's head height
Harness System	5-point harness with tension adjustment button and shoulder belt guides
Side Impact Protection	Yes, side impact protectors included
Reducing Insert	Included for smaller children (recommended up to 40-105 cm)
Seat Belt Covers	Included (shoulder belt pads)
Safety Standard	ECE R129/03 (i-Size) certified
Upholstery Care	Removable; hand or machine wash (delicate, max 30°C); do not tumble dry; use mild detergents
Other Cleaning	Plastic parts: wipe with damp cloth and mild soap; no bleach or strong detergents
Warranty Note	Any modification voids warranty; only manufacturer may alter the seat

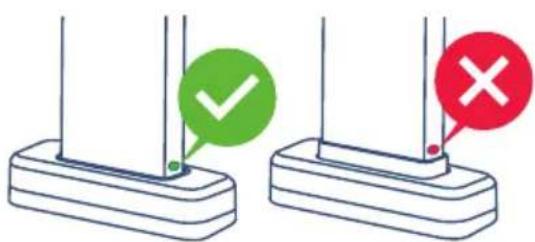

Indicator Lights	Green on ISOFIX and support leg indicates correct installation; red indicates incorrect
Storage	Instruction manual storage compartment in the seat
Compatibility	Vehicles with 3-point belts according to ECE Reg. No. 16; ISOFIX anchors required for ISOFIX installation

Frequently Asked Questions - Kamptos Caretero

How do I install the Caretero Kamptos using ISOFIX?

First, unfold the support leg and place the seat in the car. Press the button on the ISOFIX guides and extend them until the red indicator is visible. Push the seat so that the ISOFIX connectors click onto the car's ISOFIX anchors. A click and green indicator confirm correct installation. Then extend the support leg until it rests firmly on the car floor, ensuring the leg indicator turns green.

Can I use the seat on the front passenger seat with an airbag?

It is not recommended. If a frontal airbag is present, move the passenger seat as far back as possible. For rear-facing installation, the airbag must be deactivated. Always check your vehicle manual.

How do I switch from rear-facing to forward-facing?

Use the rotation lever to turn the seat. The seat only rotates when the support leg is attached. Loosen the harness, place your child, adjust headrest, fasten buckle, tighten harness, then rotate the seat to the desired direction. Ensure the seat locks into position before driving.

How do I adjust the headrest correctly?

Adjust the headrest so that the shoulder straps are at or slightly above the child's shoulders. The headrest should support the child's head comfortably. Refer to the height markings or adjust until the straps align with the shoulders.

What is the correct way to tighten the harness?

Place your child in the seat, fasten the buckle, then pull the tension belt (located at the front) to tighten. The harness should be snug: you should be able to fit one open hand between the belt and your child's chest without pressure. Do not overtighten.

How do I clean the upholstery?<br/>

Remove the upholstery and wash it by hand or on a delicate machine cycle at max 30°C. Use mild detergent. Do not tumble dry. For plastic parts, wipe with a damp cloth and mild soap. Never use bleach or iron the upholstery.

What should I do if the car seat has been involved in an accident?

After an accident (even at speeds above 10 km/h), the seat may be damaged without visible signs. It must be replaced. Do not continue to use it. Dispose of the seat properly (recycle).

What is the height and weight limit for the seat?

The seat is suitable for children from 40 cm to 150 cm tall. Weight limit is not specified but corresponds to typical children up to 36 kg. Rear-facing usage is allowed from 40 to 105 cm; forward-facing from 76 to 150 cm.

Can I use the seat without the ISOFIX system?

Yes, the seat can be installed using only the vehicle's 3-point seat belt. Ensure the belt passes through all appropriate guides and is tightly secured. However, ISOFIX is recommended for added stability.

How many recline positions are available and which are allowed?

There are 5 recline positions. For rear-facing (40-105 cm), all 5 positions are allowed. For forward-facing (76-105 cm), all 5 are allowed. For forward-facing (100-150 cm), only positions 1, 2, 3, and 4 are allowed. Use the tilt lever to adjust.

USER MANUAL Kamptos Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Thank you for choosing the Caretero KAMPTOS car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

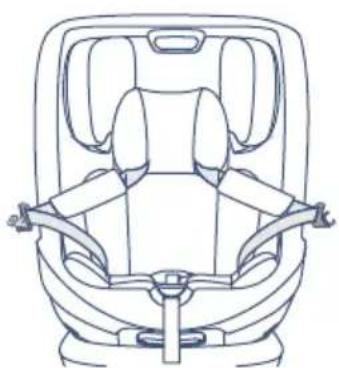

1. regulacja zagłówka / headrest adjustment / Kopfstützenverstellung
2. tapicerka / upholstery / Polster
3. zagłówek/ headrest / Kopfstütze
4. prowadnica pasa ramiennego / shoulder belt guide / Schultergurtführung
5. wkładka reduckyjna / reducing insert / Reduziereinsatz
6. nakładka na pasy fotelika / seat belt cover / Sicherheitsgurtabdeckung
7. pasy fotelika / seat belts / Sicherheitsgurte
8. prowadnica pasa biodrowego / waist belt guide / Hüftgurtführung
9. system obrotu 360 / 360 rotation system / 360-Grad-Rotationssystem
10. przycisk naciągu pasów fotelika / seat belt tension button / Taste für die Spannung des Sicherheitsgurts
11. pas napinający / tension belt / Spanngurt
12. dźwignia pochylania fotelika / seat tilt lever / Sitzneigungshebel
13. regulacja nogi fotelika / seat leg adjustment / Sitzbeinverstellung

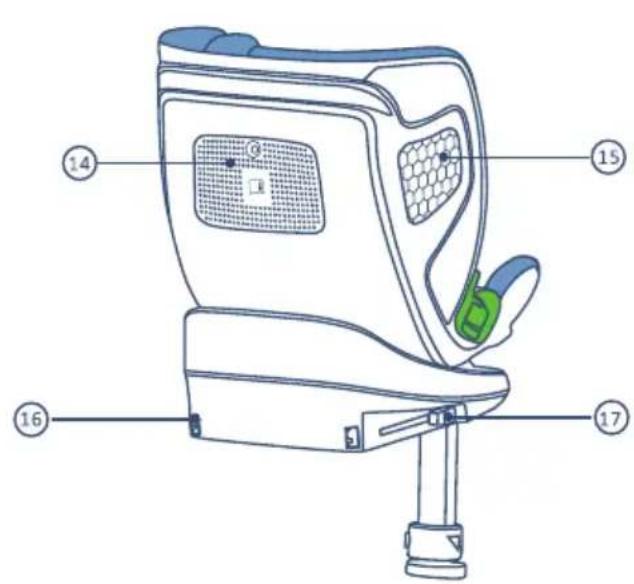

14. schowek na instrukcję / instruction storage / Anweisungsspeicher
15. ochraniacz na boczne uderzenia / side impact protector / Seitenaufprallschutz
16. łącznik ISOFIX / ISOFIX connector / ISOFIX-Anschluss
17. przycisk zwalniania ISOFIX / ISOFIX release button / ISOFIX-Entriegelungsknopf

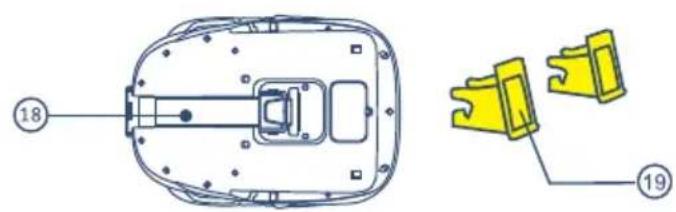

18. noga fotelika / seat leg / Sitzbein
19. nakładni prowadzące na ISOFIX / guide rails to ISOFIX / Führungsschienen an ISOFIX

A

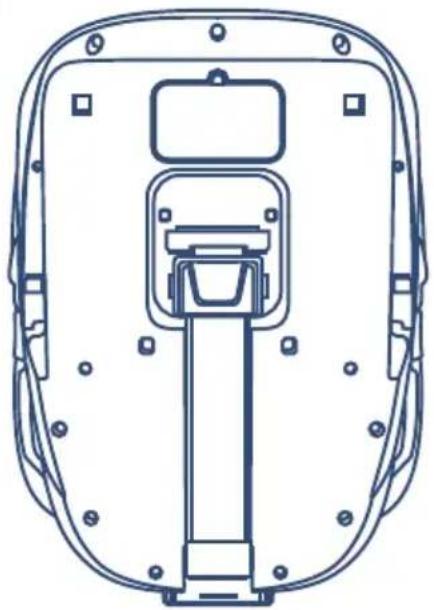

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

PL

Pull the leg out of the seat base (A). When the leg is at a 45^ angle (B), pull the leg to extend (C) allowing a better fit to the vehicle.

DE

Line drawing of a car seat with a red curved arrow indicating rotation (no text or symbols)

C

Diagram of a car interior showing hand positioning and movement arrows (no text or labels)

ATTENTION! The seat only rotates when the support leg is attached.

Line drawing of a car seat assembly with a red curved arrow indicating rotation (no text or symbols)

PL

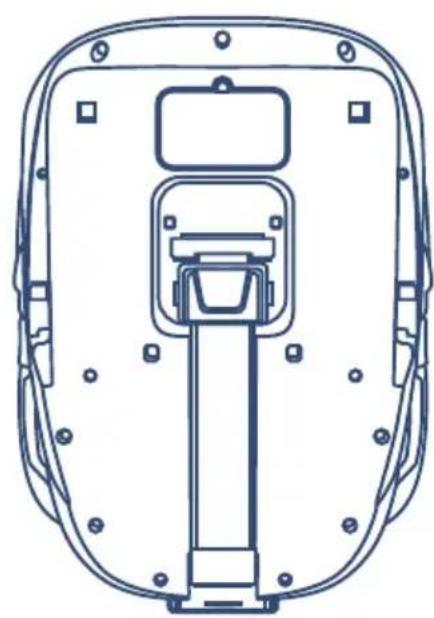

To hide the leg, set it so that it is inclined at an angle of 45^ (A) and slide it into the seat (B). Fold the leg and hide it in the base of the seat (C).

DE

Anatomical illustration of a car's internal structure with a close-up view showing internal components (no text or labels)

C

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

PL

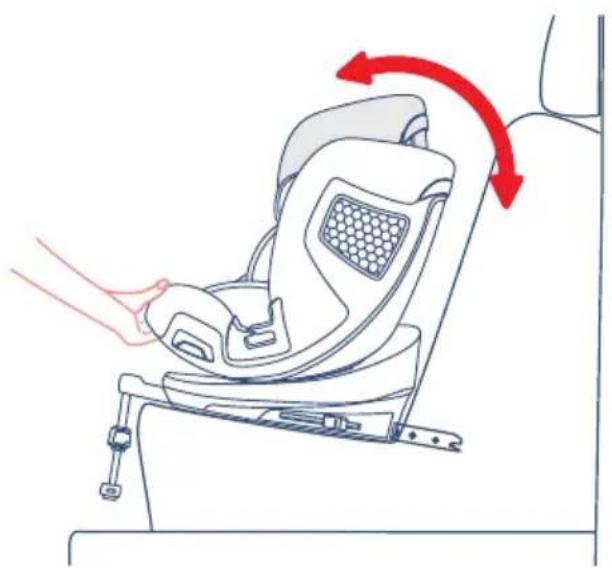

The seat can be set in 5 reclining positions. To change its position, use the recline lever located on the front of the seat and push or pull the seat to the desired position. A "click" means the seat is correctly positioned.

DE

Line drawing of a car seatbelt device with hand adjusting seat, showing red motion indicator (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat, showing red arrows indicating rotation (no text or symbols present)

PL

DOZWOLONE POZYCJE POCHYLENIA PRZY MONTAŻU TYŁEM

ALLOWED TILT POSITIONS FOR REAR MOUNTING

Children 40-105 cm tall can ride in a rear-facing car seat in all 5 reclining positions.

ALLOWED TILT POSITIONS FOR FRONT MOUNTING

Children 76-105 cm tall can ride in a forward-facing car seat in all 5 recline positions.

Children 100-150 cm tall can ride in a forward-facing car seat in recline positions 1, 2, 3 and 4.

DE

ZULÄSSIGE NEIGUNGSPOSITIONEN FÜR DIE HINTERE MONTAGE

PL

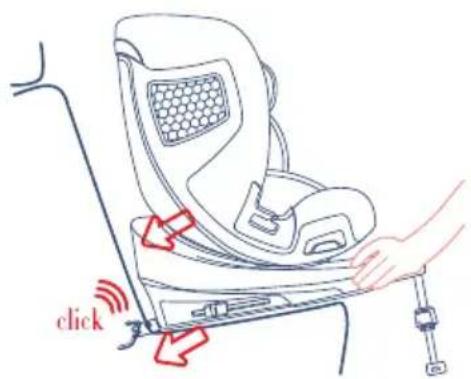

Unfold the supporting leg and place the car seat in the car according to the instructions in chapter 2. Press the button on the ISOFIX guides, extend the guides on both sides so that the red ISOFIX indicator is visible. Press down on the seat by installing the ISOFIX anchors on the anchors located in the car's backrest. A click means correct installation.

DE

Line drawing of a car seat with hand adjusting seatbelt, showing red arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a base with red arrows indicating direction and an inset close-up of a component (no text or symbols)

PL

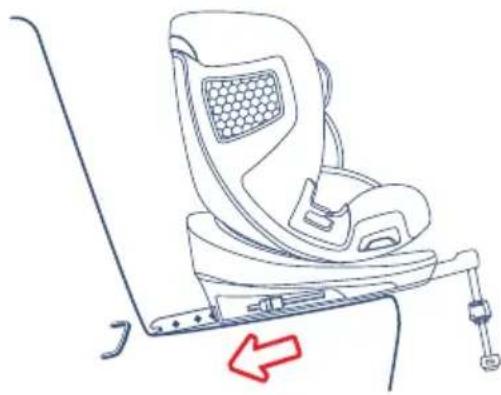

Push the car seat against the backrest of the car. Grasp the car seat and check if the car seat is properly installed by shaking it. The green color on the ISOFIX indicator indicates correct installation of the hooks. If the indicator is red, reconnect the ISOFIX.

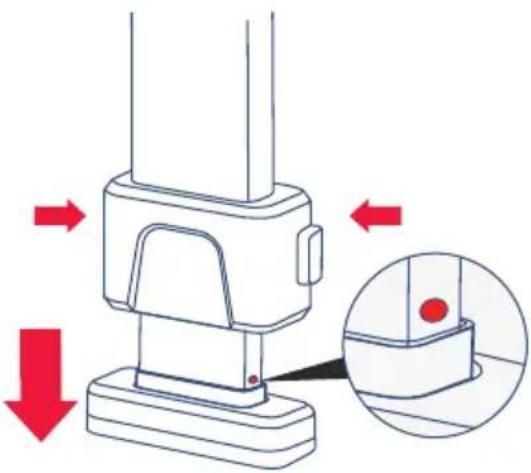

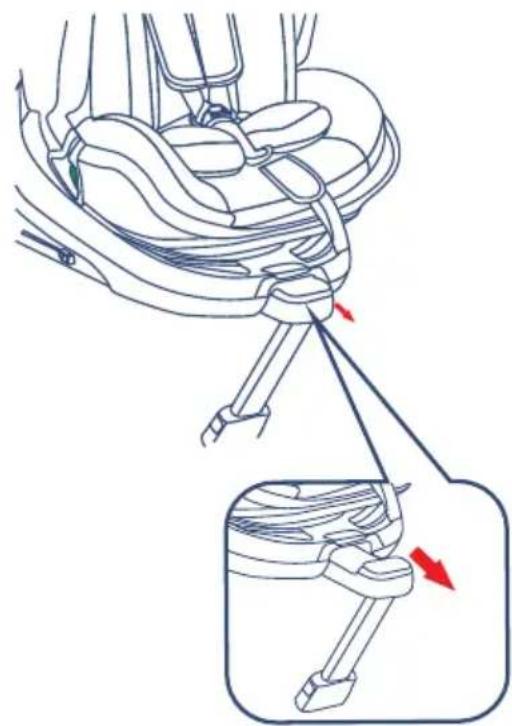

Press the button on the supporting leg of the seat to extend it. Extend your leg so that it rests on the floor of the car. A green color on the leg indicator indicates correct assembly. If the indicator is red, reposition the support leg.

DE

PL

Use the car seat swivel lever to turn it around and position the car seat facing the car door.

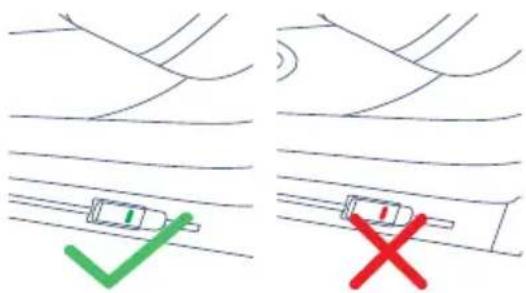

ATTENTION! Before each car trip, make sure that the car seat is securely fastened after turning and set in the right direction. Do not move the vehicle until the car seat is in a forward or rearward facing position.

Loosen the seat belts by pressing the belt tension button and pulling the shoulder belts. Open the buckle by pressing the red button, then unfold the straps to the sides.

DE

Pure diagram of a mechanical device without any text, numbers, or symbols

Diagram showing three mechanical components with red arrows indicating motion or force direction (no text or symbols)

Line drawing of a car seat with rear seats and seatbelt (no text or symbols)

PL

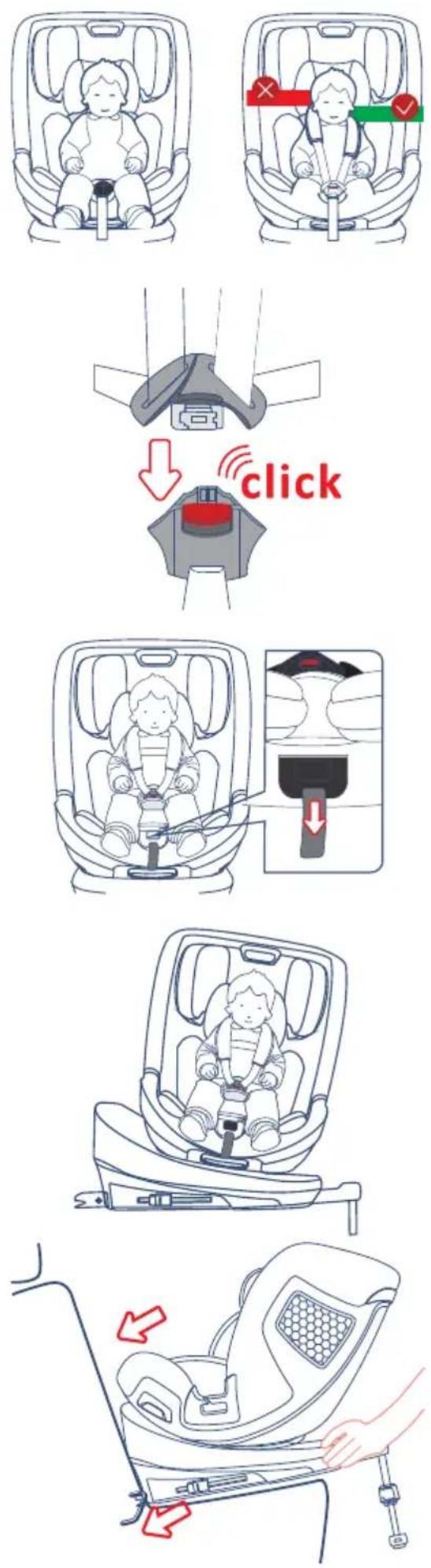

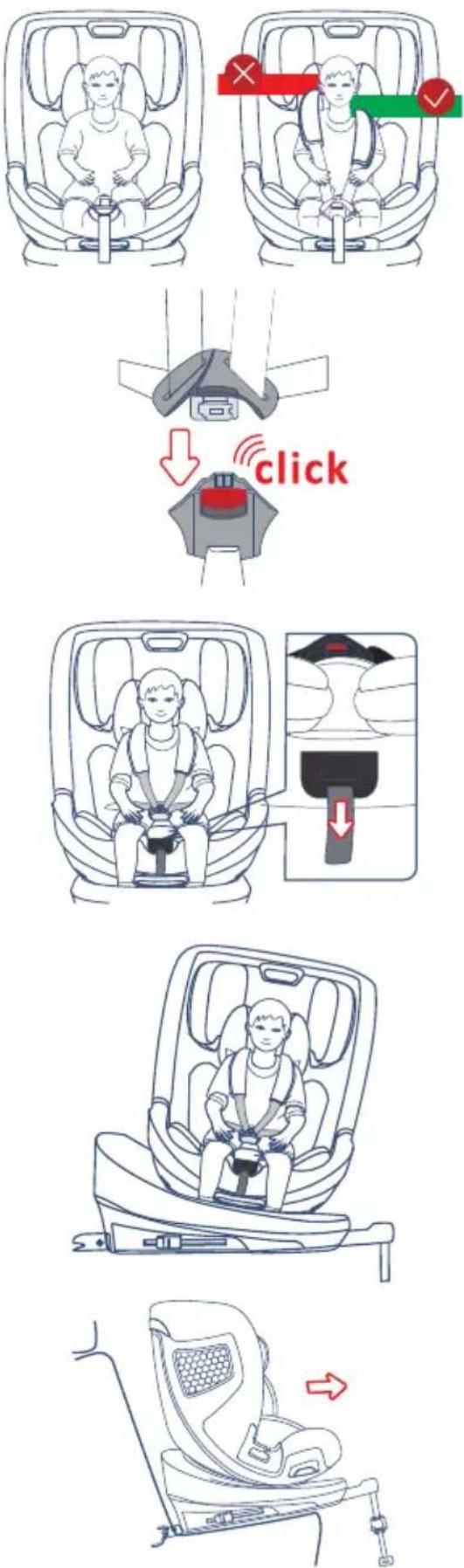

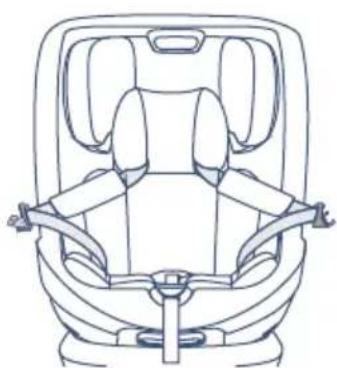

Place the child in the seat. Adjust the height of the headrest so that it fits the child's head - it can not be too high or too low, the reference is the straps that should be at the height of the child's shoulders or slightly higher. Connect the parts of the belt buckle together and insert them into the crotch part of the buckle. Pulling the tension belt, tighten the seat belts so that they are not too loose or too tight. The correct tension can be determined by placing an open hand between the belt and the child's chest - it should fit without pressure. Pulling the turning lever, turn the seat backwards to the direction of travel.

DE

Line drawing of a car seat assembly with a hand adjusting the seat, showing no text or symbols.

Line drawing of a car seat assembly with a red arrow indicating a specific seat (no text or symbols present)

PL

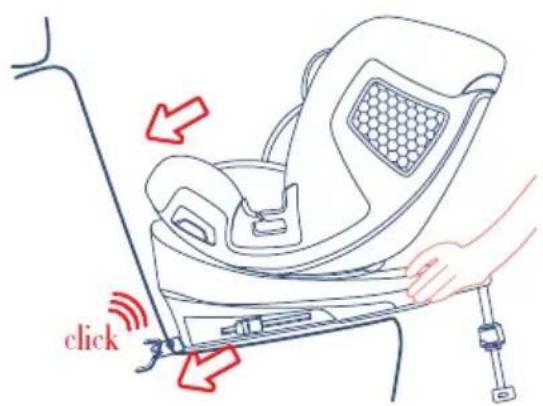

Unfold the supporting leg and place the car seat in the car according to the instructions in chapter 2. Press the button on the ISOFIX guides, extend the guides on both sides so that the red ISOFIX indicator is visible. Press down on the seat by installing the ISOFIX anchors on the anchors located in the car's backrest. A click means correct installation.

DE

Push the car seat against the backrest of the car. Grasp the car seat and check if the car seat is properly installed by shaking it. The green color on the ISOFIX indicator indicates correct installation of the hooks. If the indicator is red, reconnect the ISOFIX.

Press the button on the supporting leg of the seat to extend it. Extend your leg so that it rests on the floor of the car. A green color on the leg indicator indicates correct assembly. If the indicator is red, reposition the support leg.

DE

PL

Use the car seat swivel lever to turn it around and position the car seat facing the car door.

ATTENTION! Before each car trip, make sure that the car seat is securely fastened after turning and set in the right direction. Do not move the vehicle until the car seat is in a forward or rearward facing position.

Loosen the seat belts by pressing the belt tension button and pulling the shoulder belts. Open the buckle by pressing the red button, then unfold the straps to the sides.

DE

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram of mechanical components with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with adjustable arms and seat compartments (no text or symbols)

PL

Place the child in the seat. Adjust the height of the headrest so that it fits the child's head - it can not be too high or too low, the reference is the straps that should be at the height of the child's shoulders or slightly higher. Connect the parts of the belt buckle together and insert them into the crotch part of the buckle. Pulling the tension belt, tighten the seat belts so that they are not too loose or too tight. The correct tension can be determined by placing an open hand between the belt and the child's chest - it should fit without pressure. Pulling the rotation lever, turn the seat forward facing.

DE

PL

Unfold the supporting leg and place the car seat in the car according to the instructions in chapter 2. Press the button on the ISOFIX guides, extend the guides on both sides so that the red ISOFIX indicator is visible. Press down on the seat by installing the ISOFIX anchors on the anchors located in the car's backrest. A click means correct installation. Push the car seat against the backrest of the car. Grasp the car seat and check if the car seat is properly installed by shaking it. The green color on the ISOFIX indicator indicates correct installation of the hooks. If the indicator is red, reconnect the ISOFIX.

DE

Adjust the height of the headrest so that it fits your child's head. Pass the car belt through the guides. Place the child in the car seat and pass the car belt over the child's chest. Fasten the car seat belt and make sure that the belts are threaded through all guides and that the belts are not twisted or tangled. Make sure the belts are properly fastened and tightened.

DE

7

WSKAZÓWKI BEZPIECZEŃSTWA

PONIŻSZE INSTRUKCJE OBSŁUGI SĄ WAŻNE.

PRZED UŻYTKOWANIEM NALEŻY PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ I ZACHOWAĆ JĄ NA PRZYSZŁOŚĆ. BEZPIECZEŃSTWO DZIECKA MOŻE BYĆ ZAGROŻONE, JEŚLI ZALECENIA NINIEJSZEJ INSTRUKCJI NIE BĘDA STOSOWANE.

?1

7 SAFETY INSTRUCTIONS

THE INSTRUCTIONS BELOW ARE IMPORTANT.

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

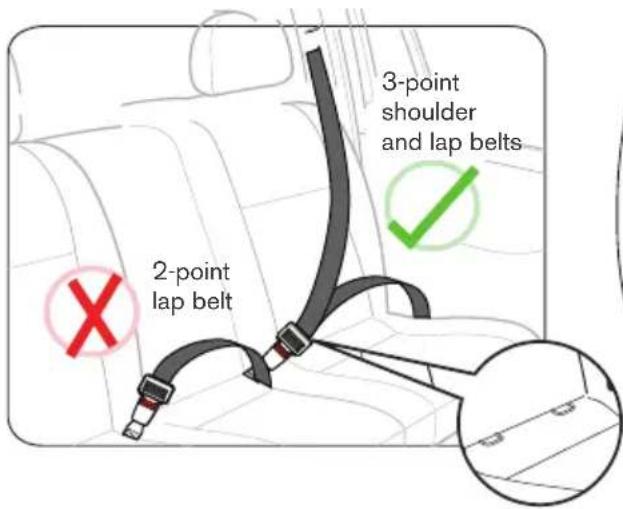

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 40 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

• The shoulder belt pads are important in keeping the child safe. Please use them at all times.
• While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.
• In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).
• Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

• Please use the Caretero KAMPTOS seat only to secure your child in the car.
• The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.
• It is forbidden to use the car seat as a chair or a toy.
• During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.
• Please remember to recycle the seat properly when it won't be used anymore.
• Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).
• Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.
• It is forbidden to lubricate any parts of the seat.
• Check if the car seat is installed properly before each trip.
• Do not use or transport the car seat when it is not properly installed in the car.
• Do not use other fixing points other than those described in this manual and marked on the car seat itself.
• Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.
• Never leave the child in the car seat unattended.
• Make sure that the child enters and exits the car on the sidewalk side of the street.
• Protect the car seat against sunlight while it's not in use.
• The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.
• The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.
• Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.
• When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).
• Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

This car seat has been designed, tested and certified according to the European Norm for baby car seats (ECE R 129/03). The evaluation mark E (in a circle) and the certificate number are located on an orange sticker placed on the seat shell.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

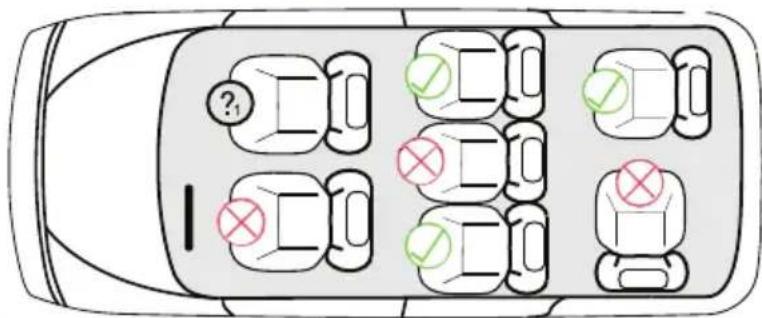

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing Yes
On car seats equipped with ISOFIX (found between the seating and backrest of a car seat) and 3-point car safety belts	Yes ^1)

Regulations obligatory in the territory of a given country must be obeyed.

^1) In case of presence of a frontal airbag - move the passenger car seat as far back as possible.

Proper placement

Forbidden placement

Installation of the child seat is not recommended if the passenger seat airbag is active.

8 CLEANING AND MAINTENANCE

Remember to ONLY use the original upholstery for the Caretero KAMPTOS seat, as it is an integral part of the seat and plays an important role in its proper functioning.

The upholstery may be removed for washing (hand wash or machine wash - delicate fabrics programme, max 30°C).

Do not tumble dry. Use only mild detergents.

Plastic parts of the seat may be cleaned with a damp cloth with addition of soap.

Never use strong detergenst such as bleaches etc.

Never iron the upholstery.

Learn more about brand Caretero.

Scan the code QR.

DISTRIBUTOR:

IKS 2 - Children's Goods Distribution Centre

9 Rybnicka Street, 43-190 Mikolow, Poland

[phone]

e-mail: [e-mail], www.caretero.pl

IKS 2 - Children's Goods Distribution Centre

9 Rybnicka Str., 43-190 Mikolow, Polen

[phone]

e-mail: [e-mail], www.caretero.pl
