Product Type	Child Car Seat
Brand	Caretero
Model	Comfi i-Size
Suitable for	Children from 40 to 150 cm height (approx. birth to 12 years)
Installation Orientation	Forward-facing only
Safety Features	5-point harness, ISOFIX connectors, supporting leg, headrest adjustment, side impact protection
Harness Type	5-point harness with shoulder pads and buckle pads
Recline Positions	5 positions
Cleaning	Removable cover; hand wash or machine wash delicate at 30°C; do not tumble dry, iron, or use bleach
Materials	Plastic parts, fabric cover
Certifications	i-Size (UN R129) compliant; suitable for vehicles with 3-point seat belts meeting ECE R16
Spare Parts & Repairability	Use only original upholstery; contact manufacturer for repairs; modifications void warranty
Manufacturer	IKS 2 - Children's Goods Distribution Centre, 9 Rybnicka Street, 43-190 Mikolow, Poland
Warranty	Warranty voided if modifications are made; details not specified in manual

Frequently Asked Questions - Comfi i-Size Caretero

Can I install this seat rearward-facing?

No, the Caretero Comfi i-Size is designed for forward-facing installation only. Rearward-facing is not permitted.

What is the minimum height and age for forward-facing use?

The seat can be used forward-facing for children from 40 cm height. However, it is recommended to wait until your child is at least 15 months old before using forward-facing.

How do I install the seat using ISOFIX?

First, extend the ISOFIX connectors. Then push them into the vehicle's ISOFIX anchor points until you hear a click. Ensure both ISOFIX indicators turn green. Finally, push the seat firmly into the vehicle seat.

Do I need to use the supporting leg?

Yes, when using ISOFIX installation, you must also use the supporting leg for children up to 100 cm. For children 100-150 cm, the supporting leg must not be used when using the vehicle seat belt only.

How do I adjust the harness?

To tighten, pull the adjuster strap until the harness lies flat and snug. To loosen, press the center adjuster and pull both shoulder belts forward. Ensure about one finger space between the child and the harness.

How do I adjust the headrest?

Squeeze the headrest height adjustment handle and slide the headrest to the appropriate height. For harness use, harness straps should be at or slightly above your child's shoulders. For vehicle belt use, leave a two-finger gap between headrest and shoulders.

How do I clean the seat cover?

Remove the cover and wash it in a delicate machine wash at 30°C or hand wash. Do not tumble dry, iron, or use bleach. Only use mild detergents.

How do I remove the cover?

Loosen the shoulder straps, open the buckle by pressing the red button, remove the infant cushion and buckle pad, then detach the headrest and seat covers. Reinstallation is the reverse with straps not twisted.

Can I use the seat without the 5-point harness for older children?

Yes, for children between 100-150 cm, you can use the vehicle 3-point belt only. In that case, stow the 5-point harness in its storage compartment and pass the vehicle belt through the guides. The supporting leg must not be used in this configuration.

What should I do after a car accident?

If the car was involved in an accident at speeds over 10 km/h, the seat may be damaged even without visible signs. Replace the seat with a new one and dispose of the old seat properly. Always check for damage after any impact.

USER MANUAL Comfi i-Size Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Line drawing of a car seat with no text or symbols

Comfi

CARETERO

Comfi

Thank you for choosing the Caretero COMFI car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

A. Uchwyt regulacji wysokości zagłówka / Headrest height adjustment handle / Kopfstützen-höhenverstellung
B. Zagłówek / Headrest / Kopfstütze
C. Pas uprzęży / Harness belt / Gurtzeug
D. Poduszka dla noworodka / Infant cushion / Kissen für Neugeborene
E. Nakładki na klamrę / Buckle pads / Schnallenpolster
F. Przycisk klamry / Buckle button / Schnallenknopf
G. Pasek regulacyjny / Adjustment belt / Verstellriemen
H. Wskaźnik przycisku obrotu / Rotation button indicator / Indikator für Drehknopf
I. Dźwignia regulacji pochylenia / Angle adjustment handle / Liegeverstellhebel
J. Klamra / Buckle / Schnalle
K. Naramienniki / Shoulder pads / Schulterpolster
L. Prowadnica pasa / Belt guide / Gürtelhalterung
M. Dźwignia obrotu fotelika / Rotation adjustment handle / Griff zur Einstellung der Drehung

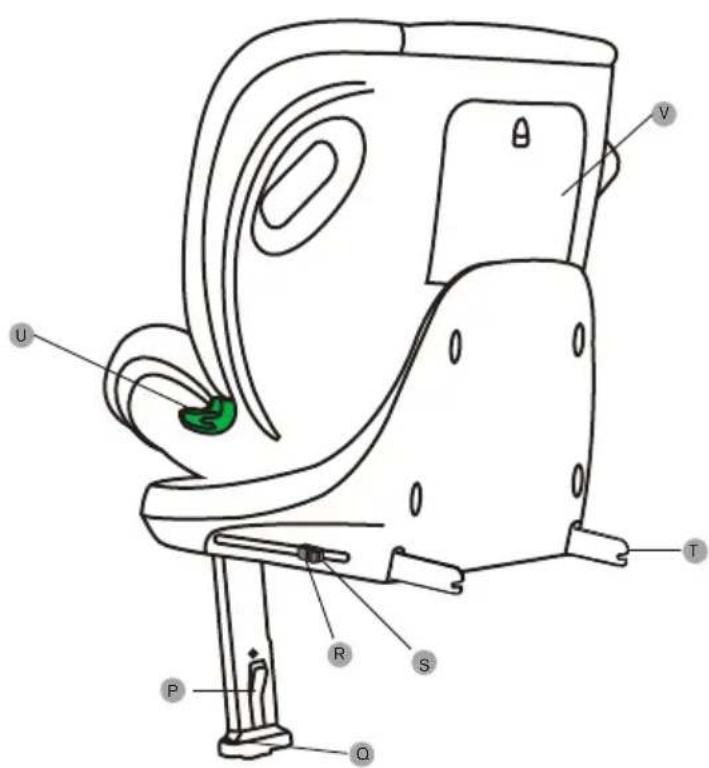

N. Wspornik / Supporting leg / Halterung
O. Przycisk wysunięcia wspornika / Support leg expansion button / Knopf zum Auswerfen der Halterung
P. Przycisk regulacji wspornika / Supporting leg adjustment button / Taste zur Einstellung der Halterung
Q. Wskaznik blokady wspornika / Supporting leg indicator / Anzeige für die Verriegelung der Halterung
R. Przycisk ISOFIX / ISOFIX button / ISOFIX-Taste
S. Przycisk zwolnienia ISOFIX / ISOFIX release button / ISOFIX-Entriegelungstaste
T. Złącze ISOFIX / ISOFIX attachment / ISOFIX- -Anschluss
U. Prowadnica pasa / Belt guide / Gürtelhalterung
V. Schowek na instrukcję / Instruction storage box / Fach für Betriebsanleitung

EN: Notice: The infant cushion protects your child. It needs to be used up to the size of 75 cm.

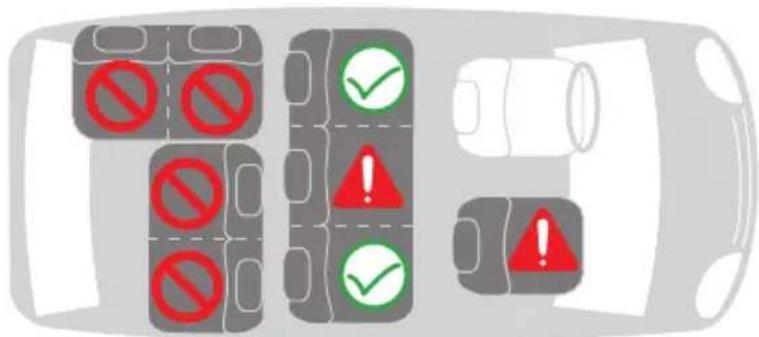

EN: DO NOT place forward facing child seat on front seat with an active airbag, DEATH OR SERIOUS INJURY can occur

Line drawing of a car seat with a backrest seat and seatbelt (no text or symbols)

EN: When installing the child safety seat in the rear facing configuration, please refer to the instructions in section 3.5 to rotate the seat, then follow method 3.6 to install the seat using ISOFIX connectors and finally refer to 3.8 to secure the seat with the supporting leg.

Illustration of a baby car seat with blue arrows indicating seatbelting (no text or symbols)

EN: Have your child sit down in the child seat. Adjust the headrest to the proper height, adjust the harness, lock the buckle and tighten the harness.

EN: IMPORTANT - DO NOT use a forward-facing seat before your child is 15 months old.

Line drawing of a car seat with no text or symbols

EN: Rotate the safety seat to the forward facing position referring to the 3.5 method. Follow the 3.6 method to secure the child car seat by ISOFIX. Then, follow the instructions in point 3.8 to secure the child safety seat using the supporting leg. To ensure that the child is properly secured in the seat, follow steps 3.2.

EN: To secure the seat in this way, it is necessary to stow the 5-point harness in its storage compartment. To do this, follow section 3.7.2. After this step, follow section 3.6 to attach the seat with ISOFIX connectors. The next step is to adjust the recline, as described in Section 3.4.

After completing all the previous steps, ask your child to sit in the seat, then adjust the headrest to the appropriate height. Next, pass the car seat belt in front of the child to the car seat lock and fasten the belt in the lock. Place the diagonal section of the seat belt and the lap section of the seat belt on the side of the vehicle's seat belt lock into the lower belt guide in the child seat, then place the lap section of the seat belt on the other side of the child seat into the lower belt guide. Finally, pass the diagonal section of the seat belt through the upper belt guide in the seat.

Caution! The vehicle seat belt buckle must not be positioned in the lower belt guide.

Caution! The lap belt section must be lie as low as possible over your child's hips on both sides.

Caution! Guide the diagonal section of the seatbelt in a way such it is not twisted.

EN: For the child's height between 100-150cm, this seat can also use only the vehicle seatbelt. It has also been tested and homologated in this configuration. If you want to use the vehicle belt only installation, simply skip the ISOFIX connector related content.

Line drawing of a baby car seat with a red X symbol indicating no text or symbols on the chair itself.

Line drawing of a car seat with a green checkmark below (no text or symbols on the diagram itself)

EN: WARNING: The child seat configured for a child between 100 and 150cm must not use the supporting leg!

PL:

Otwieranie klamry

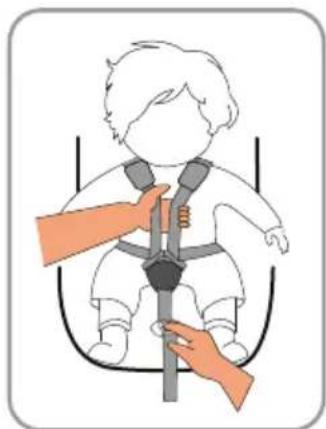

Press the red button until buckle latches come out from the buckle.

Locking the buckle

Guide the two buckle latches together, putting them into the harness buckle. The buckle is locked when you hear a click.

Notice: The buckle will not lock after inserting only one latch.

DE:

Schnalle öffnen

Illustration of a child wearing a seatbelt with a hand adjusting the seat (no text or symbols)

Illustration of a baby wearing a seatbelt with two hands adjusting the seat (no text or symbols)

PL:

Napinanie szelek

Tightening the harness

Pull the adjuster strap until the harness lies flat and snug against your child's body.

Notice: Make sure the space between the child and the shoulder harness is about the thickness of one hand.

Loosening the harness

Press the center adjuster and at the same time pull both shoulder belts forwards. Do not pull on the shoulder pads.

DE:

Gurtzeug festziehen

EN: When installed by 5-point harness, the headrest must be adjusted so that the shoulder belts are at the same level as your child's shoulders.

CAUTION! The shoulder belts must not run behind the back of the child or at ear height or above the ears.

EN: When installed by 3-point vehicle belt, the headrest must be adjusted so that there is a space two fingers wide between the headrest and your child's shoulders. Make sure the diagonal seat belt section is on child's shoulder but not on neck.

Diagram of a car seat with an orange object on top and a gray arrow indicating upward motion (no text or symbols)

EN: First loosen the harness. Squeezing headrest height adjuster at the same time slide headrest to shoulder height in accordance with the height of the child.

Illustration of a baby car seat with a hand placed on the seat, showing the seat being held (no text or symbols present)

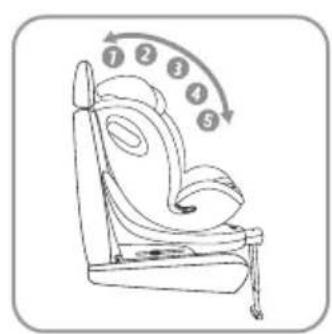

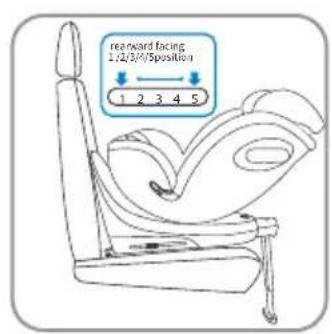

EN: The seat has five recline positions. For forward facing, other positions, except for the most upright position, may not fit in all approved vehicles.

Pull the recline lever and set the seat to the intended position.

EN: Take the supporting leg out of the storage at the bottom of the base, then press the rotation button and rotate the seat.

EN: If your vehicle is not equipped with the ISOFIX insert guides as standard, clip the two insert guides which are included with the seat with the cut-out facing upwards onto the two ISOFIX attachment points of your vehicle.

EN: On both sides of the seat squeeze the ISOFIX button and pull out ISOFIX connectors to their longest position.

EN: Slide the two ISOFIX connectors firmly into the insert guides until the ISOFIX connectors engage with a clicking noise on both sides. The ISOFIX button must turn green on both sides.

CAUTION! The ISOFIX connectors are only correctly engaged if both of the ISOFIX buttons are green.

Push the child seat towards the backrest applying firm, even pressure on both sides. Shake the child safety seat to make sure it is safely attached and re-check the green safety buttons to make sure that both of them are completely green.

Illustration of a robot holding a device with a lock icon and red buttons, no text or symbols present

EN: Push the child seat towards the backrest applying firm pressure. At the same time squeeze ISOFIX button and pull back ISOFIX connectors.

Illustration of a child seated in a car seat with straps and seatbelt (no text or symbols)

EN: Release the safety belt to the loosest position, then unlock the buckle and place it on both sides of the seat.

Line drawing of a child wearing a seatbelt and harness, seated in a car seat (no text or symbols)

EN: Insert the left and right latches into the buckle until you hear a "click" sound, indicating that the buckle is fastened. Press the belt adjustment button and tighten the shoulder strap, while ensuring that the child's shoulders are comfortable (a finger space should fit between the seat belt and the child).

Illustration of a person using a yellow tool to clean or adjust a car seat (no text or symbols visible)

EN: Elongate the harness to it's longest position.

Illustration showing a hand holding a sheet of paper and a close-up of a mechanical component inside a container (no text or symbols)

EN: Open the manual storage cover.

Illustration of hands holding a tool with a curved tool, no text or symbols present

EN: Release the shoulder straps from the clip and pull them out.

Illustration of a car seatbelt buckle being lifted by two hands, showing red grip and blue directional arrows (no text or symbols)

EN: Pull out the adjusting strap and release the two shoulder straps from the three-way connector.

Illustration of a car seat with accessories and two plastic models (no text or symbols)

EN: Remove shoulder pads, buckle cover and infant cushion from the seat.

Illustration of a hand using a yellow safety harness to lift a seatbelt (no text or symbols)

EN: Pass the buckle through the hole in the cloth cover.

Illustration of a car seatbelt with red arrows indicating seat movement, accompanied by an inset showing a close-up of the seat (no text or symbols present)

EN: Open the buttons of the seat cloth cover as shown. Insert the latches into the buckle, then open the buckle cover at the bottom of the seat, place the buckle in, and finally close the cover.

Line drawing of a car comfort seat with seat, cushion, and seat (no text or symbols)

EN: Tidy up the cloth cover.

EN: Simply follow the steps in the opposite order. Ensure that the belt is not twisted.

Mechanical component diagram showing a lever mechanism with a red arrow indicating motion direction (no text or symbols)

EN: Tilt the child seat to access the supporting leg storage, after which take the supporting leg out of it's storage.

Illustration of hands using a tool to adjust or install a car interior panel (no text or symbols visible)

EN: Pull the supporting leg in your direction.

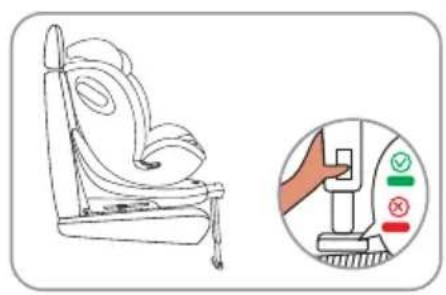

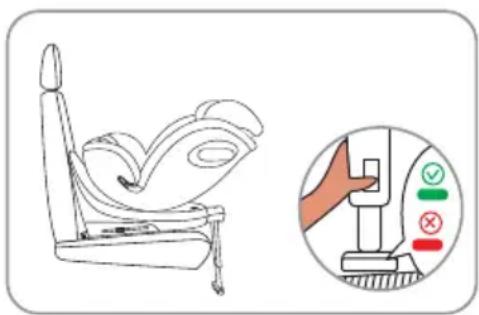

EN: Elongate the supporting leg to the point where it touches the car's floor, after which make sure that the supporting leg indicator is showing green.

Line drawing of a baby car seat with a red prohibition symbol (no text or labels)

Line drawing of a car seat with a green checkmark (no text or symbols on the diagram itself)

EN: WARNING: The child seat configured for a child between 100 and 150cm must not use the supporting leg!

Line drawing of a car seat with a belt buckle and seatbelt (no text or symbols)

Illustration of a hand holding a tool, with an inset showing a medical device (no text or symbols present)

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

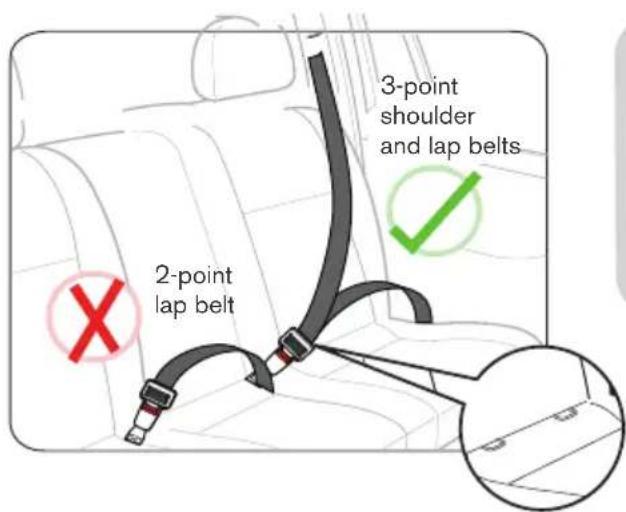

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 40 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

- The shoulder belt pads are important in keeping the child safe. Please use them at all times.

- While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.

- In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).

- Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

- Please use the Caretero COMFI seat only to secure your child in the car.

- The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.

- It is forbidden to use the car seat as a chair or a toy.

- During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.

- Please remember to recycle the seat properly when it won't be used anymore.

- Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).

- Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.

- It is forbidden to lubricate any parts of the seat.

- Check if the car seat is installed properly before each trip.

- Do not use or transport the car seat when it is not properly installed in the car.

- Do not use other fixing points other than those described in this manual and marked on the car seat itself.

- Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.

- Never leave the child in the car seat unattended.

- Make sure that the child enters and exits the car on the sidewalk side of the street.

- Protect the car seat against sunlight while it's not in use.

- The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.

- The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.

- Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.

- When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).

- Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing No
On car seats equipped with ISOFIX(found between the seating and backrest ofa car seat) and 3-point car safety belts	Yes ^1)

Regulations obligatory in the territory of a given country must be obeyed.

^1) In case of presence of a frontal airbag - move the passenger car seat as far back as possible.

Proper placement

Forbidden placement

Installation of the child seat is not recommended if the passenger seat airbag is active.

Installation of the child seat is FORBIDDEN if the passenger seat is equipped with a 2-point seat belt only.

5

CLEANING AND MAINTENANCE

Remember to ONLY use the original upholstery for the Caretero COMFI seat, as it is an integral part of the seat and plays an important role in its proper functioning.

The upholstery may be removed for washing (hand wash or machine wash - delicate fabrics programme, max 30°C). Do not tumble dry. Use only mild detergents.

Plastic parts of the seat may be cleaned with a damp cloth with addition of soap.

Never use strong detergenst such as bleaches etc.

Never iron the upholstery.

The cover can be removed and washed. Please observe the instruction on the washing label of the cover.

Removing the cover

Line drawing of a car seat with a belt buckle and seatbelt (no text or symbols)

1. Loosen the shoulder straps (01)
2. Press the red button (A) on the buckle to open it (03)
3. Take out the infant cushion (02) and buckle cover (04)
4. Remove the headrest cover and seat cover from the seat

Installing the cover

Line drawing of a hand holding a tool, with an inset showing a magnified view of a device (no text or symbols)

1. Adjust the headrest to the highest position
2. Install the headrest and seat cover
3. Install the newborn pillow
4. Install the buckle cover

Line drawing of a car seat with labeled buttons (no text or symbols beyond numbers)

Illustration of a hand holding a tool, with an inset showing a magnified view of a device (no text or symbols present)

Learn more about brand Caretero.

Scan the code QR.

PRODUCER:

IKS 2 - Children's Goods Distribution Centre

9 Rybnicka Street, 43-190 Mikolow, Poland

[phone]

e-mail: [e-mail], www.caretero.pl

IKS 2 - Children's Goods Distribution Centre

9 Rybnicka Str., 43-190 Mikolow, Polen

[phone]

e-mail: [e-mail], www.caretero.pl
