Product Type	Child Car Seat (Booster Seat with Backrest)
Model	Falcon i-Size
Brand	Caretero
Height Range	76 - 150 cm
Age Range (approx.)	15 months - 12 years
Weight of Seat (approx.)	5.5 kg
Dimensions (H x W x D approx.)	65 x 45 x 40 cm
Safety Standard	UN Regulation No. 129/03 (i-Size)
Installation Method	Forward-facing with 3-point car seatbelt (belted) or ISOFIX anchors
Child Restraint System	5-point harness (for 76-105 cm), car seatbelt with guides (for 100-150 cm)
Headrest Adjustment	Adjustable headrest with button on back
Harness Adjustment	Adjustable shoulder strap height and harness tension via "PRESS" button
Side Impact Protection	Integrated side wings
Seat Cover Material	Textile cover (removable and washable)
Cleaning Instructions	Hand wash cover at 30°C with mild detergent; plastic parts clean with damp cloth; belts with lukewarm soapy water
Airbag Warning	Do not install on front passenger seat with active airbag
Compatible Vehicles	Fitted with approved 3-point safety belts (ECE R16 or comparable)
Warranty	Manufacturer warranty; modifications void warranty
Manufacturer	IKS 2 MUCHA SP. J., 9 Rybnicka Street, 43-190 Mikolow, Poland
Country of Origin	Poland

Frequently Asked Questions - Falcon i-Size Caretero

What is the height range for the Caretero Falcon i-Size?

The seat is suitable for children from 76 cm to 150 cm tall (approximately 15 months to 12 years).

Can I install this seat using ISOFIX?

Yes, the seat can be installed using ISOFIX anchors along with the 3-point car seatbelt. See the manual for detailed instructions.

How do I adjust the harness height?

Loosen the harness straps, turn the seat facing you, remove the shoulder straps from the connector, move them to the appropriate hole for the child's height, and reattach.

What cleaning methods are recommended?

Hand wash the cover at 30°C with mild detergent. Plastic parts can be wiped with a damp cloth. Belts and shoulder pads can be cleaned with lukewarm soapy water. Do not use solvents.

Is the Falcon i-Size forward-facing only?

Yes, it is designed for forward-facing installation only, using a 3-point car seatbelt or with ISOFIX anchors.

What safety standards does this seat meet?

It is approved according to UN Regulation No. 129/03 (i-Size) for children 76-150 cm.

Can I install the seat on the front passenger seat?

Only if the front airbag is deactivated. Never install on a seat with an active airbag.

How do I secure a child for the 100-125 cm height range?

Remove the 5-point harness, adjust the headrest, pull the car seatbelt to its longest, route the shoulder belt through the guide in the headrest, and fasten. Ensure the lap belt is under the armrests.

What should I do after a car accident?

Damage may not be visible. The seat should be replaced and scrapped properly. Have it checked by a professional.

Can I use the seat without the cover?

No, the cover is an integral part of the seat for safety and proper function. Always use it.

USER MANUAL Falcon i-Size Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Abstract blue and white logo with curved lines inside a circle (no text or symbols)

I-SIZE

White line drawing of a car seat with straps and seats, set against a solid blue background (no text or symbols)

CARETERO

FALCON I-SIZE

Abstract black-and-white geometric logo with interlocking curved lines inside a circle (no text or symbols)

Thank you for choosing the Caretero FALCON I-SIZE car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

EN The shoulder part of the harness should be positioned as close to the child's shoulders as possible, but the holes should not be underneath them.

EN To adjust the harness height, loosen the harness straps as much as possible, then turn the seat so that it is facing you and remove the shoulder straps from the connector, then move them to the appropriate hole for the child's height and secure them in the connector.

EN To loosen the harness, hold the "PRESS" button located on the back of the seat base and pull the harness towards you. To tighten the harness, hold the "PRESS" button and pull the adjustment strap.

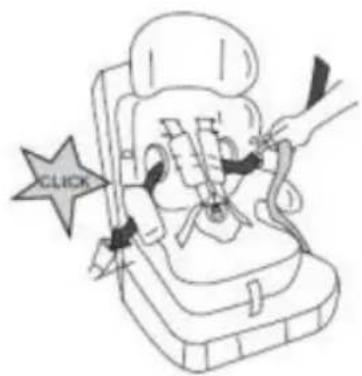

EN To fasten the buckle, place its two metal parts together and press into the latch until you hear a "click". To check if the buckle is fastened correctly, pull on the harness. To unfasten it, press the red button on the latch.

Three circular illustrations showing a baby wearing a seatbelt, illustrating the procedure to lift the seatbelt from using a device (no text or symbols present)

EN The child's head should always rest in the center of the headrest. To adjust it, hold the adjustment button located on the back of the headrest and move the headrest in the appropriate direction.

2

PL MONTAŻ FOTELIKA / EN SEAT INSTALATION / DE MONTAGE DES SITZES

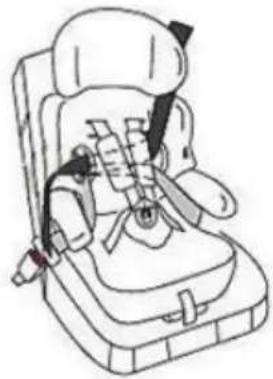

2.1 76 - 105 cm

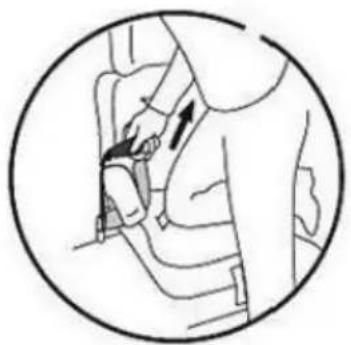

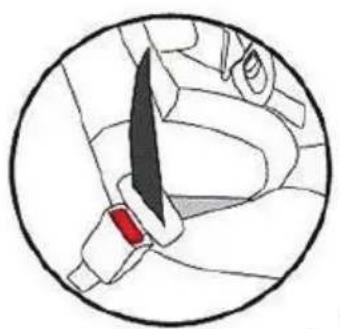

EN Install the seat in the car using the seat belt. To do this, pull the seat belt to its longest position, then feed the buckle through the holes in the seat backrest, making sure that the lap part of the belt is routed under the seat armrests, then snap the buckle into the car seat belt buckle.

Line drawing of a car seat with a hand adjusting the seatbelt (no text or symbols)

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

EN Check that the seat is properly secured by pulling on the belt.

Illustration of a car seatbelt switch mechanism with hands adjusting the seat (no text or symbols present)

Diagram of a car seatbelt with a black clip and red belt, enclosed in a circular frame (no text or symbols)

Line drawing of a person's seatbelt with a belt shift indicator (no text or symbols)

EN To properly secure your child in the seat, adjust the height of the shoulder straps and headrest to the child's height, then put the straps on the child, fasten the buckle and tighten the adjustment belt until the straps fit tightly to the child's body without causing discomfort.

2.2 100 - 125 cm

EN To install a seat for a child between 100 and 125 cm tall, you must remove the five-point seat belts from the seat. To do this, loosen the belts as much as possible, then turn the seat so that its back is facing you. Then remove the belts from the connector and pull them towards the seat, as shown in the pictures.

EN To properly secure your child in the seat, adjust the headrest to the child's height, then pull the seat belt to its longest position, run the shoulder part through the guide in the headrest of the seat and fasten it, making sure that the hip part is under the armrests of the seat and the whole thing is not twisted.

2.3 125 - 150 cm

EN To install the seat for a child between 125 and 150 cm tall, the backrest must be removed from the seat. To do this, remove the five-point seat belts from the seat (shown in point 1.2) and then unfold the backrest until it lies flat with the seat, then slide it out.

Diagram showing a mechanical assembly with a downward arrow indicating a process (no text or symbols present)

EN To properly secure your child in the seat, place the child in the seat and fasten the seat belt, making sure that the lap section of the belt is under the seat armrests and the entire belt is not twisted.

Illustration showing a child seated in a chair with a red diagonal line indicating pressure or force (no text or symbols present)

PONIŻSZE INSTRUKCJE OBSŁUGI SĄ WAŻNE.

PRZED UŻYTKOWANIEM NALEŻY PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ I ZACHOWAĆ JĄ NA PRZYSZŁOŚĆ. BEZPIECZEŃSTWO DZIECKA MOŻE BYĆ ZAGROŻONE, JEŚLI ZALECENIA NINIEJSZEJ INSTRUKCJI NIE BĘDA STOSOWANE.

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 76 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

- The shoulder belt pads are important in keeping the child safe. Please use them at all times.

- While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.

- In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).

- Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

- Please use the Caretero FALCON I-SIZE seat only to secure your child in the car.

- The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.

- It is forbidden to use the car seat as a chair or a toy.

- During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.

- Please remember to recycle the seat properly when it won't be used anymore.

- Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).

- Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.

- It is forbidden to lubricate any parts of the seat.

- Check if the car seat is installed properly before each trip.

- Do not use or transport the car seat when it is not properly installed in the car.

- Do not use other fixing points other than those described in this manual and marked on the car seat itself.

- Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.

- Never leave the child in the car seat unattended.

- Make sure that the child enters and exits the car on the sidewalk side of the street.

- Protect the car seat against sunlight while it's not in use.

- The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.

- The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.

- Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.

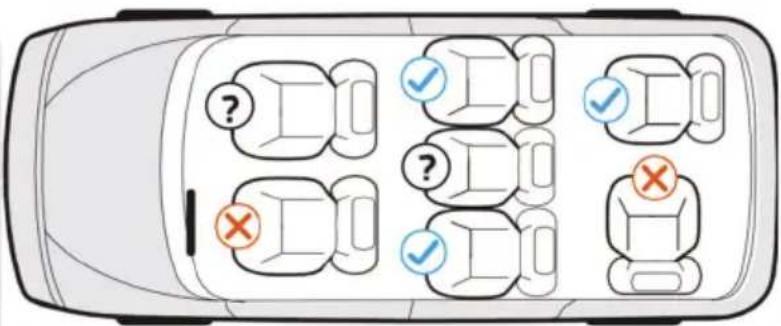

- When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).

- Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

DANGER! In case of any modifications done to the car seat, the warranty will become void.

Only the manufacturer may apply any changes to the car seat.

DANGER! Please comply with safety regulations present in your car manual.

This product is approved according to UN Regulation No. 129/03, suitable for children with a size of 76-150 cm. The size range for which this device is intended is:

ORIENTATION INSTALL CATEGORY CLASS RANGE
FRONT	76-105CM	3 POINT SEATBELT	UNIVERSAL BELTED	INTEGRAL
FRONT	100-125CM	3 POINT SEATBELT	I-SIZE BOOSTER SEAT	NON INTEGRAL
FRONT	125-150CM	3 POINT SEATBELT	UNIVERSAL BOOSTER SEAT	NON INTEGRAL

"Universal Belted" using a seat with a backrest that is secured using the car's three-point seat belts. The children are then secured in the seat using the child seat belts.

"i-size Booster Seat" using a seat with a backrest that removes its own belts. The child seat and child are secured using the car's three-point seat belts.

"Universal Booster Seat" using a seat without a backrest that removes its own belts. The child seat and child are secured using the car's three-point seat belts.

Don't mount the seat on the passenger seat with an active airbag.

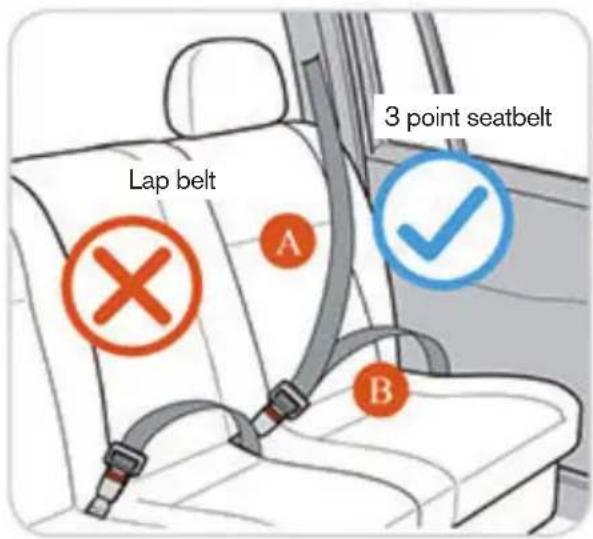

Install is only possible if the seat is equipped with a 3 point seatbelt.

4

EN

CLEANING AND MAINTENANCE

Remember to use only the original Caretero FALCON I-SIZE cover (upholstery), as it is an integral part of the seat and plays an important role in its proper functioning.

• It is forbidden to use the child seat without a cover

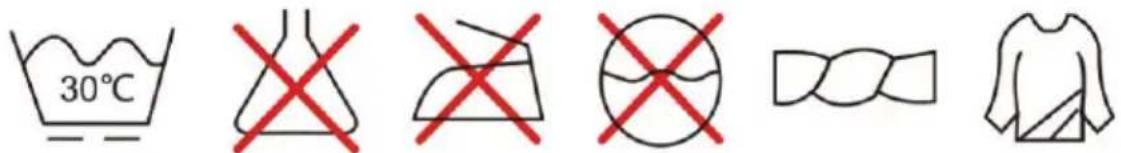

• It is recommended to hand wash the cover in water with a mild detergent (at a temperature of up to 30^ )
• Plastic elements can be cleaned using soapy water (it is forbidden to use aggressive cleaning agents, e.g. solvents)
  • The belts can be cleaned using lukewarm soapy water
  • The shoulder pads can be cleaned using lukewarm soapy water
  • The plastic parts of the seat should be cleaned with a damp cloth
• Do not use strong detergents to clean the plastic elements of the seat, as this may lead to degradation and damage to these elements

Learn more about brand Caretero.

Scan the code QR.

MANUFACTURER:

IKS 2 MUCHA SP. J.

9 Rybnicka Street, 43-190 Mikolow, Poland

[phone]

e-mail: [e-mail], www.caretero.pl
