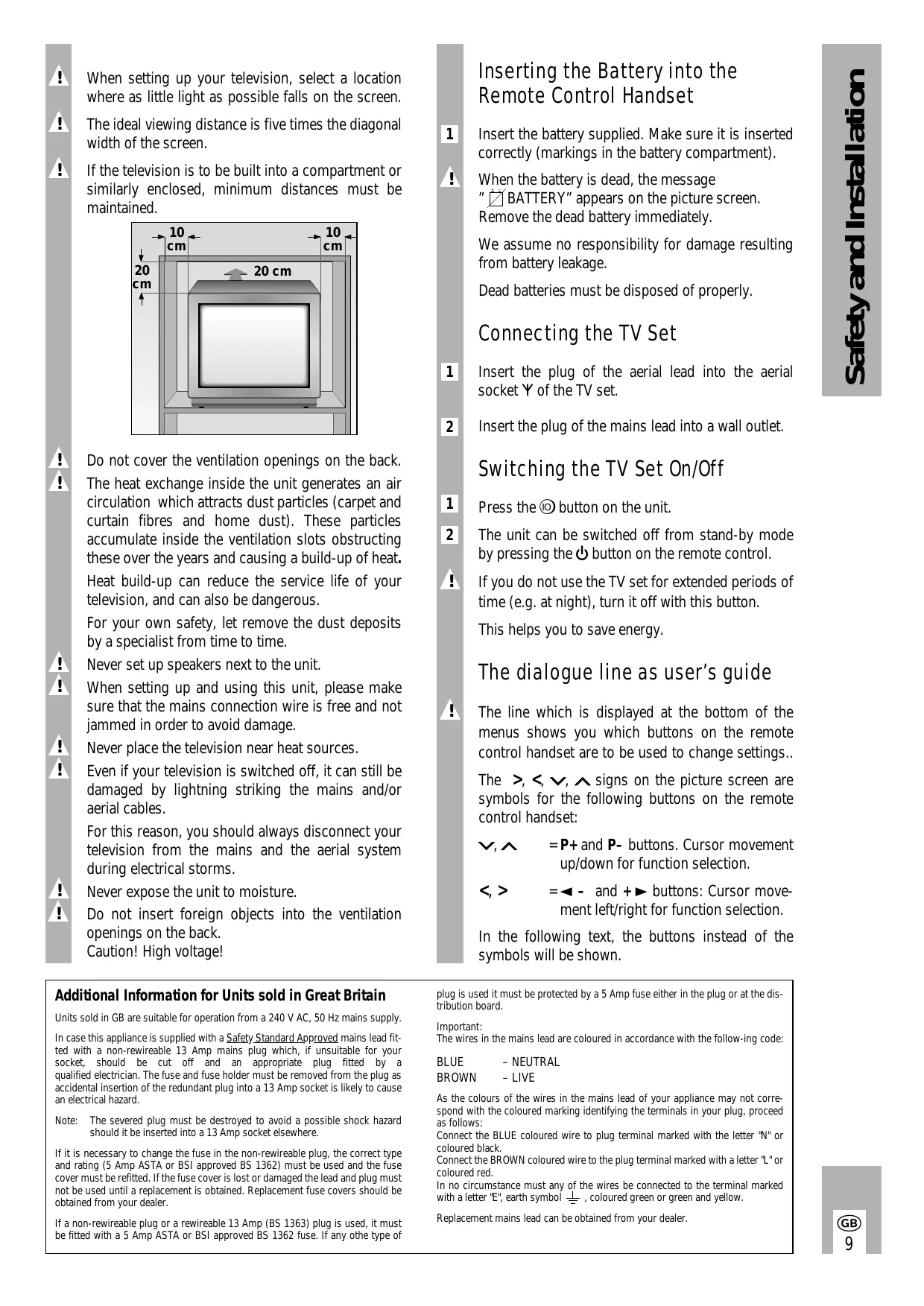

When setting up your television, select a location where as little light as possible falls on the screen. The ideal viewing distance is five times the diagonal width of the screen. If the television is to be built into a compartment or similarly enclosed, minimum distances must be maintained.

Insert the battery supplied. Make sure it is inserted correctly (markings in the battery compartment). When the battery is dead, the message ” BATTERY” appears on the picture screen. Remove the dead battery immediately. We assume no responsibility for damage resulting from battery leakage.

Dead batteries must be disposed of properly.

Connecting the TV Set

Do not cover the ventilation openings on the back. The heat exchange inside the unit generates an air circulation which attracts dust particles (carpet and curtain fibres and home dust). These particles accumulate inside the ventilation slots obstructing these over the years and causing a build-up of heat. Heat build-up can reduce the service life of your television, and can also be dangerous. For your own safety, let remove the dust deposits by a specialist from time to time. Never set up speakers next to the unit. When setting up and using this unit, please make sure that the mains connection wire is free and not jammed in order to avoid damage. Never place the television near heat sources. Even if your television is switched off, it can still be damaged by lightning striking the mains and/or aerial cables. For this reason, you should always disconnect your television from the mains and the aerial system during electrical storms. Never expose the unit to moisture. Do not insert foreign objects into the ventilation openings on the back. Caution! High voltage!

Additional Information for Units sold in Great Britain Units sold in GB are suitable for operation from a 240 V AC, 50 Hz mains supply. In case this appliance is supplied with a Safety Standard Approved mains lead fitted with a non-rewireable 13 Amp mains plug which, if unsuitable for your socket, should be cut off and an appropriate plug fitted by a qualified electrician. The fuse and fuse holder must be removed from the plug as accidental insertion of the redundant plug into a 13 Amp socket is likely to cause an electrical hazard. Note:

The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

If it is necessary to change the fuse in the non-rewireable plug, the correct type and rating (5 Amp ASTA or BSI approved BS 1362) must be used and the fuse cover must be refitted. If the fuse cover is lost or damaged the lead and plug must not be used until a replacement is obtained. Replacement fuse covers should be obtained from your dealer. If a non-rewireable plug or a rewireable 13 Amp (BS 1363) plug is used, it must be fitted with a 5 Amp ASTA or BSI approved BS 1362 fuse. If any othe type of

Insert the plug of the aerial lead into the aerial socket É of the TV set.

Insert the plug of the mains lead into a wall outlet.

Safety and Installation

Switching the TV Set On/Off 1

The unit can be switched off from stand-by mode by pressing the Ǽ button on the remote control.

¢ button on the unit.

IO If you do not use the TV set for extended periods of time (e.g. at night), turn it off with this button. This helps you to save energy.

The dialogue line as user’s guide The line which is displayed at the bottom of the menus shows you which buttons on the remote control handset are to be used to change settings..

The >, <, , signs on the picture screen are symbols for the following buttons on the remote control handset:

= P+ and P– buttons. Cursor movement up/down for function selection. = ņ – and + ŀ buttons: Cursor movement left/right for function selection.

In the following text, the buttons instead of the symbols will be shown. plug is used it must be protected by a 5 Amp fuse either in the plug or at the distribution board. Important: The wires in the mains lead are coloured in accordance with the follow-ing code:

– LIVE As the colours of the wires in the mains lead of your appliance may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: Connect the BLUE coloured wire to plug terminal marked with the letter "N" or coloured black. Connect the BROWN coloured wire to the plug terminal marked with a letter "L" or coloured red. In no circumstance must any of the wires be connected to the terminal marked with a letter "E", earth symbol , coloured green or green and yellow. Replacement mains lead can be obtained from your dealer.

Programme Position Allocation

The Automatic Tuning System ATS This automatic tuning system scans the entire reception range and automatically stores the channels found in memory.

Direct Channel Entry

For this, you need to know the channel numbers of the TV prgrammes.

If you have already assigned the programmes to the programme positons with the help of the ATS function, this procedure is not required.

Switch the TV set on from standby with one of the buttons 1 ... 9.

Press for approximately 4 seconds on the P/C button to display the ATS menu.

Press the OK-button to start the search function.

The search can last longer than one minute. When it has stopped, setting of the TV set is completed.

If you do not like the order in which the programmes are stored on the programme positions, you can change this according to your preferences.

Select programme position 2.

Press the P/C button. The programme menu is displayed.

Under ”PR”, enter the new programme position number 05 as two digits with the buttons 1 ... 9.

Press the OK-button to terminate the adjustment.

Example: you wish to move the programme stored on position 2 to position 5. 1

Attention – this is not possible in the AV position.

Changing the Programme Order

Hold down P+ or P- to start the channel search. This stops at each programme being received. "DEC" If an encrypted prgramme is allocated to the programme position and a corresponding decoder connected, select ”ON”.

If fine tuning should be necessary after programme allocating, then press P+ or P- until the best picture and sound quality is obtained.

Press OK to store the modified settings. The programme data of the next programme position is displayed. Press Ǻ to return to the television picture. If the channel number 00 is entered with P+ or Pon one programme position, all following programme positions can no longer be selected.

0/AV Select programme position (– P + on set) and switch the TV set on from standby or select AV position.

P+ : switch on from standby with last selected programme position. Move cursor up or down.

OK Modify and activate various functions. Press OK-button twice: optimum setting.

left and to the right.

P Teletext: current page number + 10 pages.

VIDEO AUX Time on/off. Teletext: current page number + 1 Colour contrast.

Teletext: current page number – 1

Switch to standby and switch on with last selected programme position.

The Remote Control Handset

SAT TXT Teletext ɫ TV mode Teletext: next hundreds page.

v +/– Brightness. SAT Satellite receiver remote control (press and hold down SAT button).

Teletext: call up dialogue line.

P/C Call up programme data. Keep pressed for 4 seconds: call up ATS.

Every changed value is stored after 8 seconds automatically or when switching to standby. This television was tested with maximum contrast. It is advisable to turn down the contrast to offer you the best picture quality depending on lighting conditions or on the location where your TV is set up. If you wish to have the programme position number permanently displayed, press the Ǻ button. To supress the display, press the again.

Remote Control of a Video Recorder The remote control handset of your television enables also remote control of Grundig video recorders. Your specialized dealer can tell you which video recorders are suited for this. Press and hold down the VIDEO button. This switches the remote control handset into the video recorder mode. Then press the desired function button. The following table shows you which buttons are to be used for the different recorder functions. ĵķ (Numeric button 1) ĶŁ (Numeric button 2) ( – i button) n ( i + button) ĵĵ (Numeric button 7) ŁŁ (Numeric button 8) II ( – v button) ı ( v + button) Ľ (Numeric button 4) Ń (Numeric button 5)

= Reverse picture search = Forward picture search = Start recording = Stop = Fast rewind = Fast forward wind = Pause = Start playback = Programme position – = Programme position +

Adjusting the Sound, Teletext

Select pages directly with the 1…9 buttons.

ķʄ ķX After any adjustment, the Audio menu can be exited by pressing the Ǻ button.

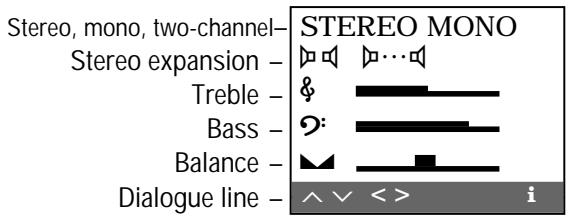

Stereo, Mono and Two-channel Sound Broadcasts If your television receives two-channel sound transmissions, for example, when a film is broadcast in the original sound track on sound channel 2 (DUAL B) and the synchronized version is broadcast on sound channel 1 (DUAL A), you can select the desired channel. 1

Press P+ or P- to select the first menu line.

Press ņ –, + channel.

= Bypass waiting times (actual mode).

= Stop page Select the functions with the ņ – or + ŀ button and call them up with the OK-button. The functions 1, 3, 4, and 5 can also be selected without calling up the dialogue line:

If a stereo broadcast is received, the set switches automatically to stereo sound. 3

The mono setting can be stored separately for every programme position by pressing the OK-button.

i button. Directly call up subpage: press the – i button.

Indication of the sound mode

Stop page: press the ņ – button.

If the stereo sound is poor (weak signal), press ņ –, + ŀ to switch to mono.

Enlarge character height: press the +

Selecting Pages by Means of the Cursor (Page Catching) i.e. without entering the page numbers. Move the cursor to the desired Teletext page in an overview page (pages containing three-digit page numbers). Using this function, you need not type in the threedigit page numbers.

This function improves the acoustic pattern during stereo broadcasts and improves the sound of mono broadcasts.

= Enlarge character height

to select the desired sound

Each time the station changes the sound transmission mode (e.g. from mono to stereo), the mode is displayed for approx. 4 seconds. This indication takes also place when changing the programme, however only if the mode differs from the mono mode.

Press the P+ or P- button. "Page Catching" is displayed on the top screen border. A light spot (cursor) is flashing on the first or last page number of the overview page.

Use the P+ or P- button to select the corresponding menu line. Adjust with the ņ – or + ŀ button (the set stereo expansion is retained even when changing the programme position).

Use the P+ or P- button to move the cursor to the desired page number.

The settings of these functions can be corrected as required.

Use the P+ or P- button to select the corresponding menu line.

Adjust with the P+ or P- button.

The page appears on the picture screen.

Floftext With Floftext the coloured buttons provide access to the subjects indicated in the dialogue line.

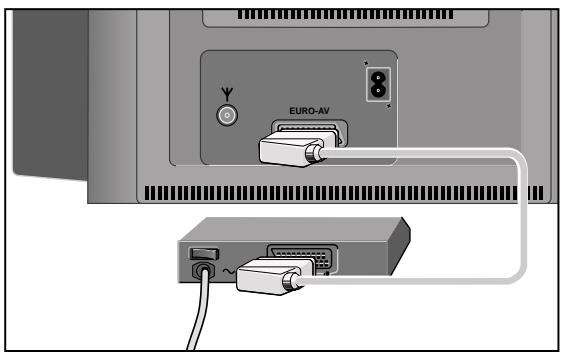

Connecting a Descrambler (Decoder) or an External Unit (Video Recorder)

EURO-AV EURO-AV AUDIO EURO-AV

Connect the video recorder or satellite receiver with an AV lead to the AV socket.

Some providers which offer their programmes via the cable TV system ”scramble” the picture and sound signals so that you need a pay-TV decoder (descrambler) if you wish to receive these programmes in a normal way.

Operating the Video Recorder

Connect the decoder/video recorder to the EUROAV socket.

Press the 0 AV button. Until AV1 is indicated. Start playback on the video recorder. The video playback is visible on the TV set.

Decoder: Select the programme position on which the encrypted programme is received.

You can also connect an S-VHS video recorder

Video recorder: Select the programme position on which you wish to see the video playback.

For this, the AV socket must be switched to S-VIDEO. 1

Press the P/C button.

Press the P+ or P- button to select ON. A programme position prepared for decoder operation can be recognized at a fullstop appearing after the P when changing the programme position.

Connecting a Headphone

Connection Possibilities

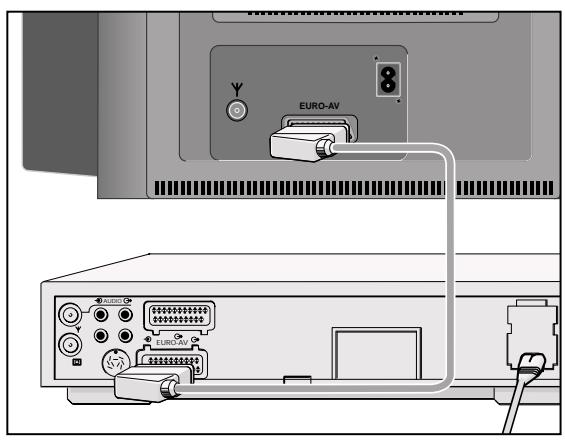

Connecting a Video Recorder or Satellite Receiver

Press OK to store the setting.

Press Ǻ to exit the menu.

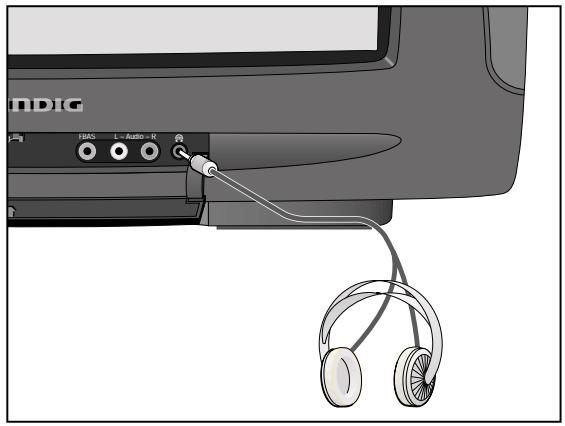

Connect the headphone (3.5 mm ø jack) with the socket (the speakers of the TV set ar switched off).

Adjusting the Headphone Volume 1

Adjust with the ņ –, + ŀ buttons.

Connection Possibilities

Connecting a Camcorder (VHS, Video 8)

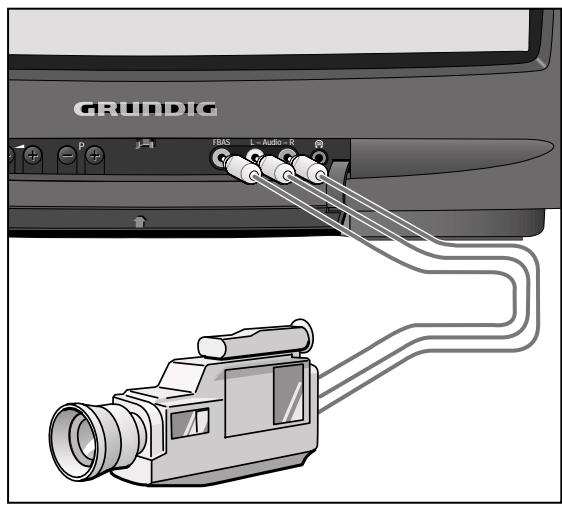

Connection Connecting the video signal Connect the VIDEO IN socket with the corresponding video socket on the camcorder.

Connecting the audio signal Connect the L AUDIO IN R sockets with the audio sockets on the camcorder. For mono playback, connect the L AUDIO IN socket with the corresponding audio socket on the camcorder.

Operating the Camcorder 1

Use the 0 AV button to select AV 2. Start playback on the camcorder. The video playback is visible on the TV set. (It is not possible to copy to the Euro-AV socket!)

Mains voltage: 220 – 240V, 50/60Hz (power supply control range 165 … 265 V) This unit may only be operated with the power supply cable set which has been supplied. It prevents interference from the mains, and is considered an obligatory component of this unit.

For a replacement, contact the nearest customer service center and order only the power supply cable set with the following designation: GWN 9.22/article number 8290.991-316.

approx. 70 W Standby: 9 W Channel coverage:

C01 … C99 Special channels S01 … S41

Sound output: 2 x 8 W music power (2 x 4 W sine power) This unit conforms to VDE safety regulations and directives of the Deutsche Bundespost (German Federal Post Office; see certification mark on the type sticker on the rear of the unit), as well as all relevant ordinances governing X-ray emissions. The picture tube, which emits X-rays, is sufficiently shielded and therefore represents no danger. Accelerating voltage is max. 29kV with a mean beam current of 1,0mA.

Pin Assignment of EURO-AV Socket If you want to connect other devices to your television (for example, a computer or amplifier), your dealer can provide you with a normed standard connection by means of the following table: Pin 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

Unauthorized tampering with the unit, in particular making adjustments to the high voltage system, or installing a different picture tube, can considerably increase X-ray emissions. Units so altered no longer conform to applicable safety regulations and may not be operated.

Subject to alterations. E. and O.E.

Printed in Austria 0
