KAM26PDAH - Air-conditioner GORENJE - Free user manual and instructions
Find the device manual for free KAM26PDAH GORENJE in PDF.
| Product Type | Split Air Conditioner |
| Brand | Gorenje |
| Model | KAM26PDAH |
| Cooling Capacity | 2.6 kW (9000 BTU/h) |
| Heating Capacity | 2.8 kW (9600 BTU/h) |
| Energy Efficiency (SEER) | 6.1 |
| Power Supply | 220-240 V ~ 50 Hz |
| Indoor Unit Dimensions (WxHxD) | 77 x 28 x 20 cm |
| Indoor Unit Weight | 9.5 kg |
| Outdoor Unit Dimensions (WxHxD) | 70 x 50 x 25 cm |
| Outdoor Unit Weight | 25 kg |
| Refrigerant | R32 |
| Operating Modes | Cool, Heat, Fan, Dehumidify, Auto |
| Fan Speeds | 3 (Low, Medium, High) + Auto |
| Timer | 24-hour on/off timer |
| Sleep Mode | Yes |
| Swing (Vertical/Horizontal) | Yes / Yes |
| Noise Level Indoor (Low/High) | 25 dB / 40 dB |
| Noise Level Outdoor | 50 dB |
| Filter Type | Washable mesh filter |
| Filter Cleaning Interval | Every 2 weeks |
| Safety Features | Overheat protection, Self-diagnosis, Child lock (remote control) |
| Included Accessories | Remote control, batteries, mounting kit |
| Repairability (Spare parts availability) | Filters, remote control, main PCB, fan motor |
Frequently Asked Questions - KAM26PDAH GORENJE
User questions about KAM26PDAH GORENJE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air-conditioner in PDF format for free! Find your manual KAM26PDAH - GORENJE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KAM26PDAH by GORENJE.
USER MANUAL KAM26PDAH GORENJE

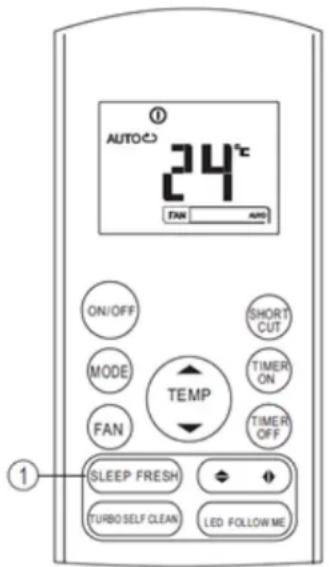

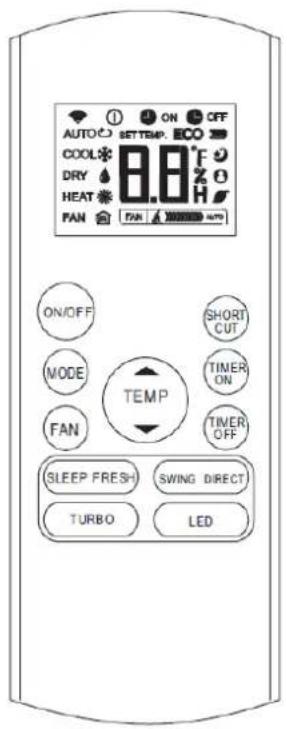

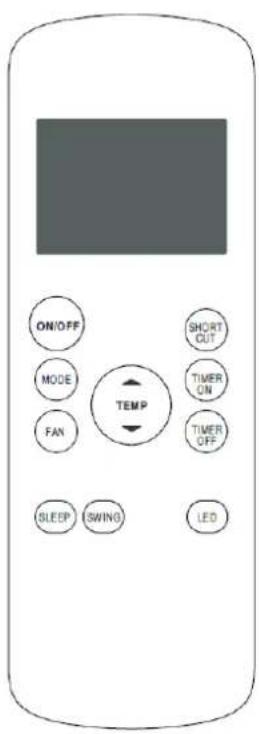

RG57A2/BGEF
(FRESH button is not available)

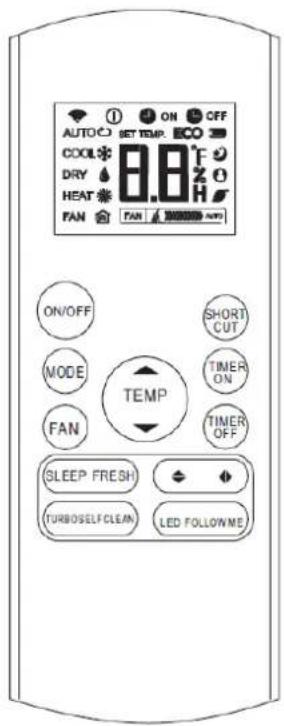

RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE

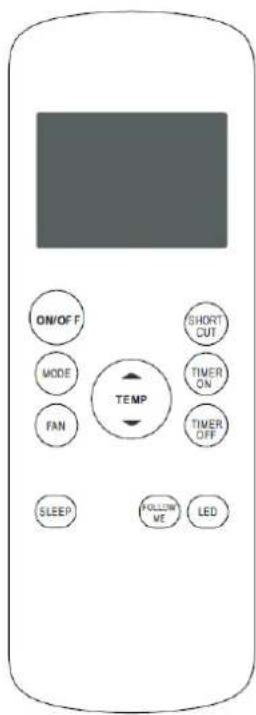

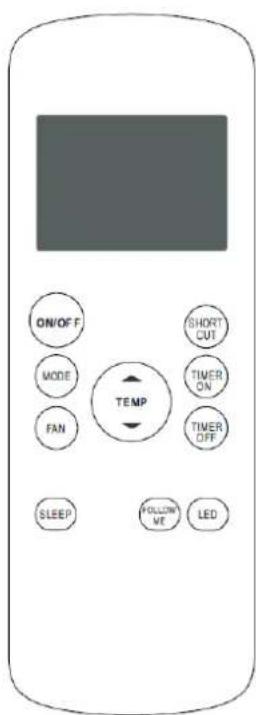

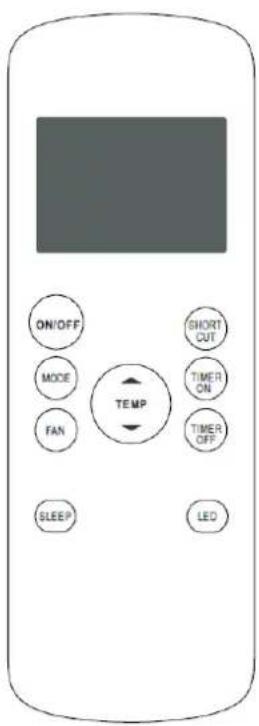

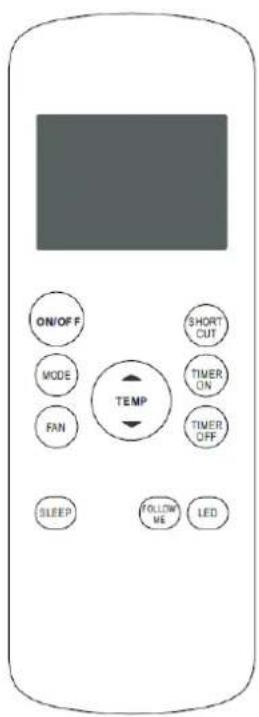

KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
ECO
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
Low speed
Medium speed
High speed
Auto fan speed
▲ OPOMBA
Primer nastavitve časovnega programa VKLOP
Primer nastavitve časovnega programa VKLOP in IZKLOP
Primer:
Klimatsko napravo želite izključiti čez 2 uri in jo ponovno vključiti čez 10 ur.
- Pritisnite tipko TIMER OFF.
- Ponovno pritisnite tipko TIMER OFF in nastavite '2:0h'.
- Pritisnite tipko TIMER ON.
-
Ponovno pritisnite tipko TIMER ON in nastavite '10:0h'.
-
Po 3 sekundah se na zaslonu daljinskega upravljalnika prikaže nastavljena temperatura. Ikona TIMER ON OFF ostane vidna, funkcija je vključena.
▲OPOMBA
NOČNI REŽIM (SLEEP):
Pritisk tipke bo vključil NOČNI REŽIM.
- Please read this owner's manual before operation.
- Save this manual in a safe place for future reference.
Contents
Remote controller specifications....3
Performance features ....3
Features of the remote controller buttons ....4
Indicators on display 6
Operating the remote controller 7
Handling the remote controller
Us the remote controller within 8m distance from the appliance, pointing it towards the receiver. Reception i confirmed by a beep.
CAUTION!
- The air conditioner will not operate if curtains doors or other materials block the signal from the remote controller to the indoor unit.
- Prevent any liquid from falling in to the remote controller. Do not expose remote controller to direct sunlight or heat.
- If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Block the sunlight from falling on the receiver.
- If other electrical appliances react to the remote controller consult your local dealer.
Remote controller specifications
| Model | |
| KASxxDCINVF02/3/4 | RG57A3/BGEF;RG57A2/BGEF;RG57B/BGE;RG57D/BGE |
| KASxxFT | RG57A3/BGEF;RG57A2/BGEF;RG57B/BGE;RG57D/BGE |
| KAMxxPHH(PDAH/G) | RG57H(B)/BG(C)E;RG57H1(B)/BG(C)E;RG57H2(B)/BG(C)EF;RG57H3(B)/BG(C)EF;RG57H1(B)/BG(C)E-M;RG57H(B)/BG(C)EU1 |
| Rated voltage | 3,0 V / Alkaline dry batteries AAA,LR03 x 2) |
| Lowest voltage of the CPU emitting signal | 2,0 V |
| Transition distance | 8 m (at voltage 3,0 V = 11 m) |
| Environment | -5°C ÷ 60 °C |
Performance features
- Operating Mode: AUTO, COOL, DRY, HEAT (Cooling only model without) and FAN.
- Timer Setting Function in 24 hours.
- Indoor Setting Temperature Range: 17 C\~30 C.
- Full function of LCD (Liquid Crystal Display)
NOTE
- Button design might be slightly different from the actual one you have purchased depending on individual models.
- If indoor unit does not support specific feature than your unit cannot perform it.

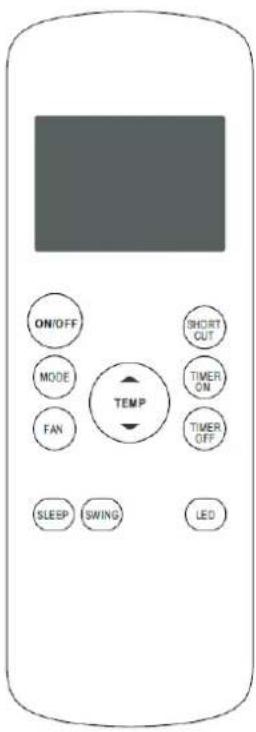

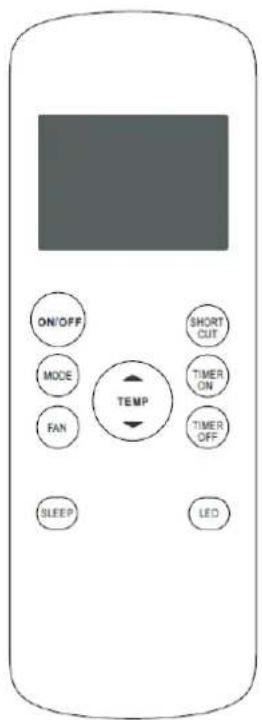

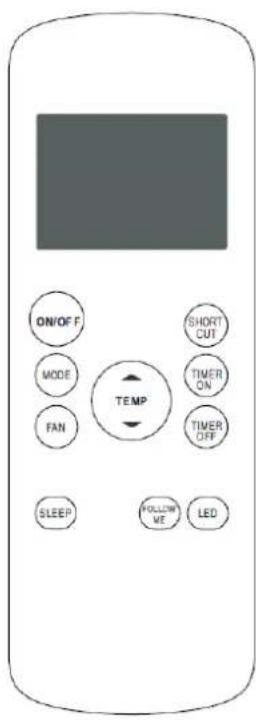

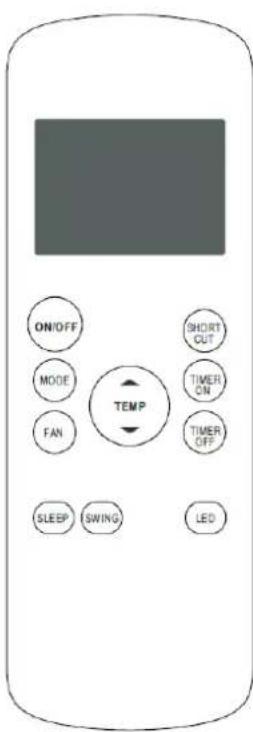

KASxxDCINVF02/3/4
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE

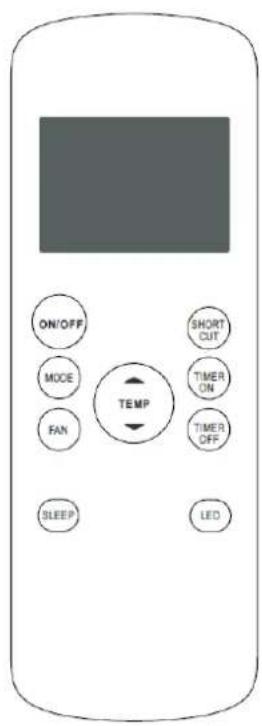

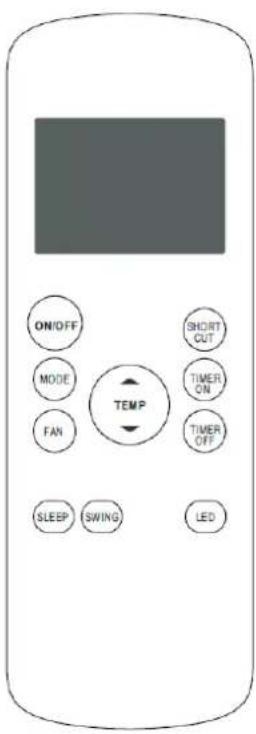

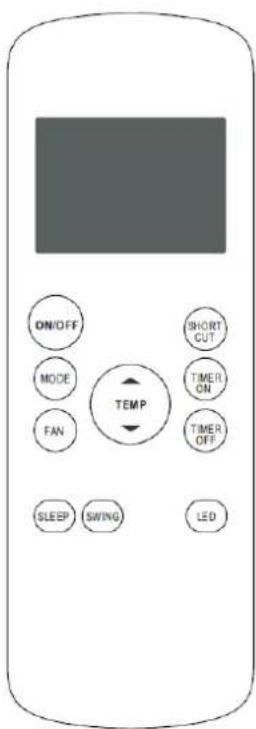

KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE

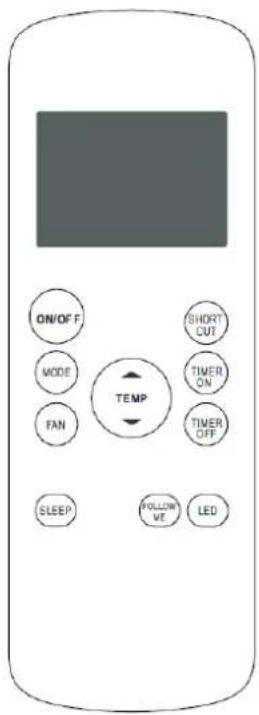

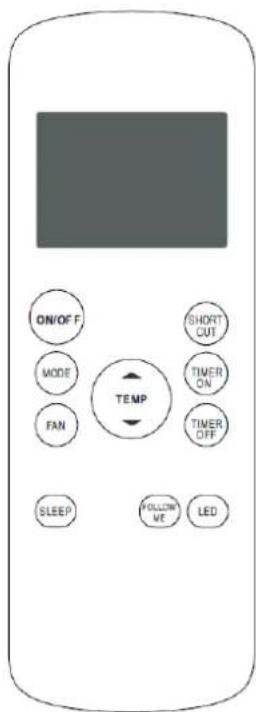

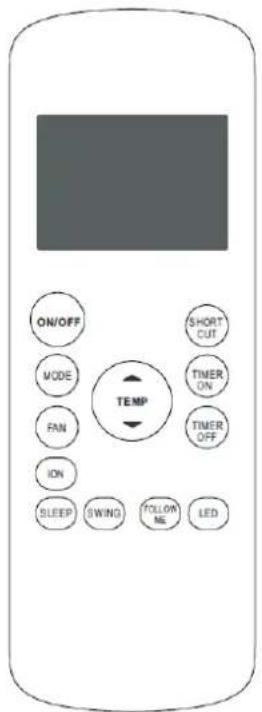

KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF

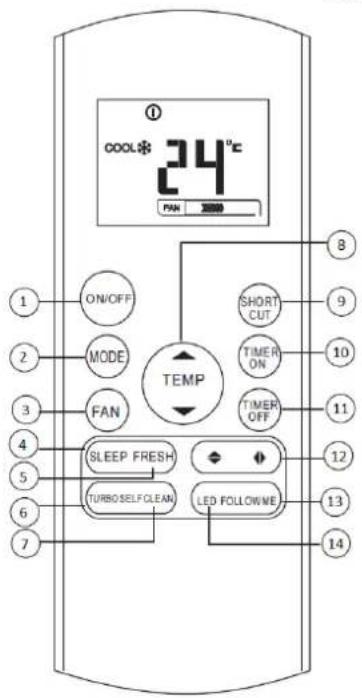

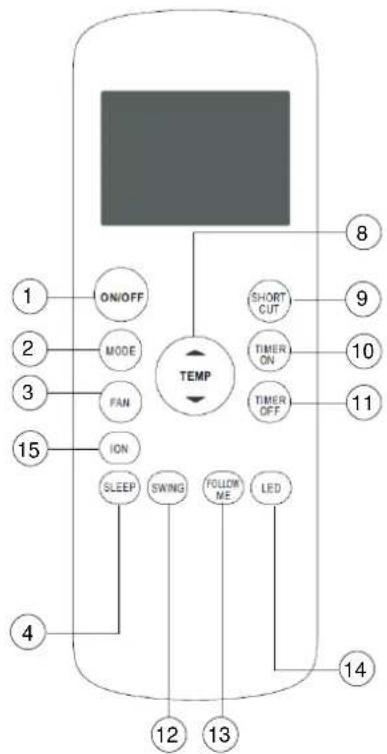

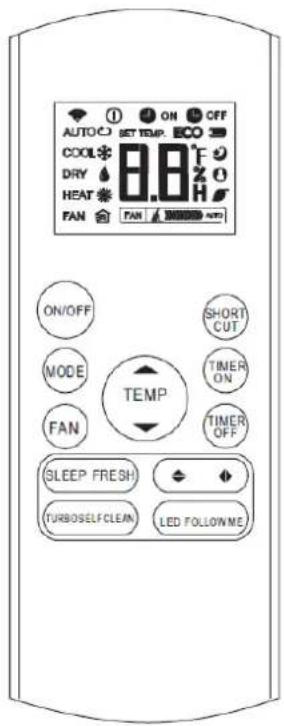

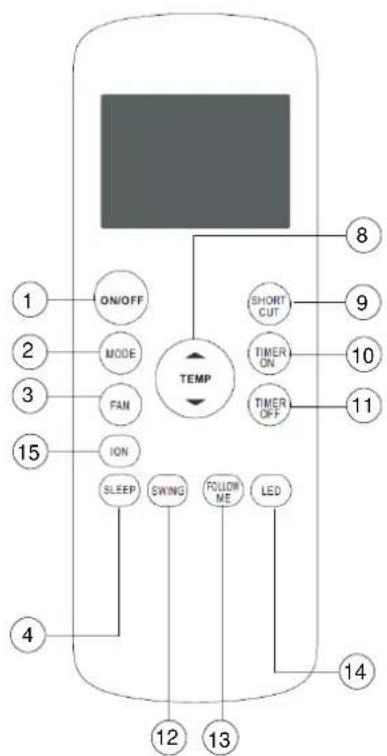

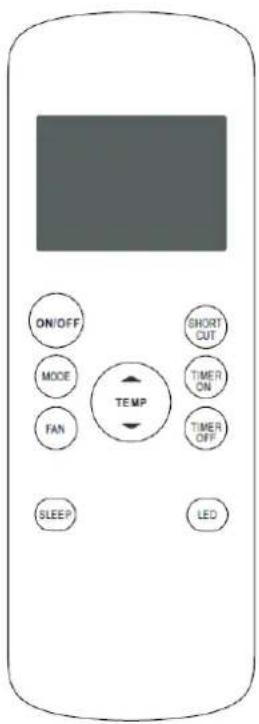

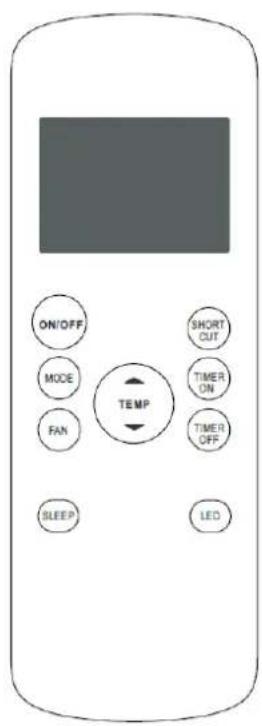

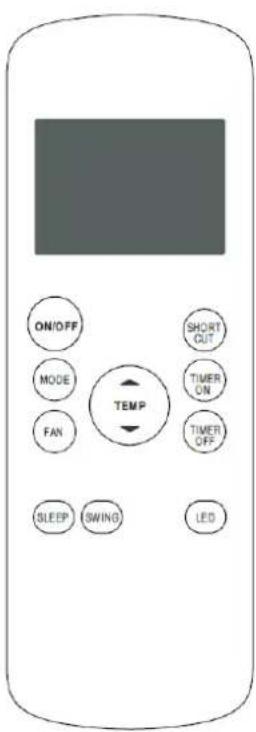

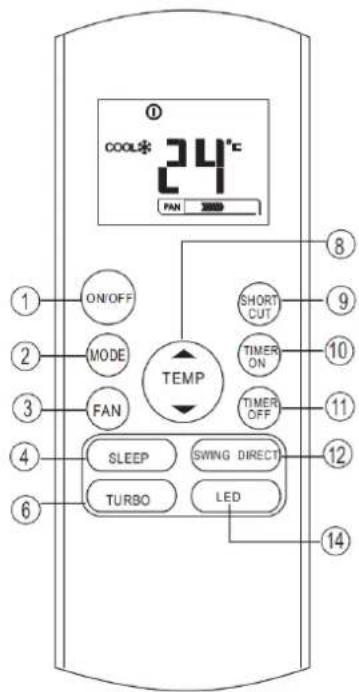

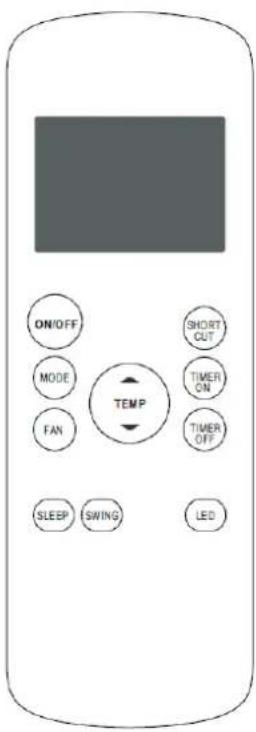

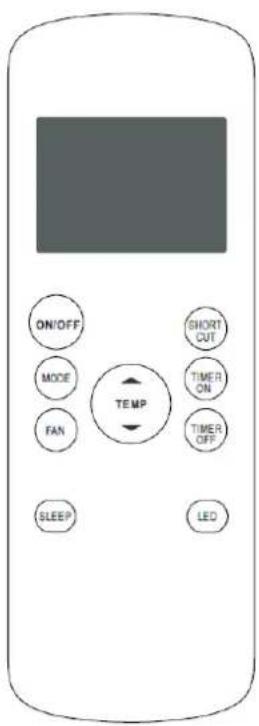

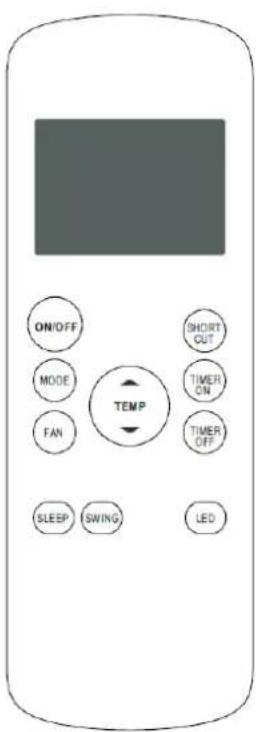

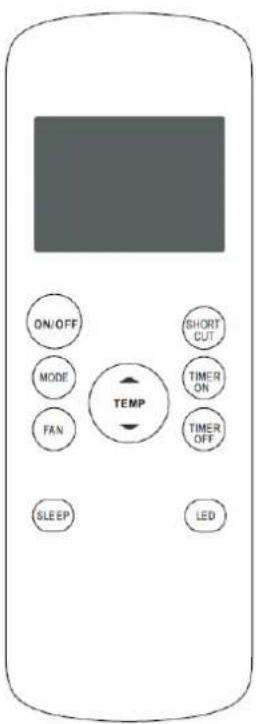

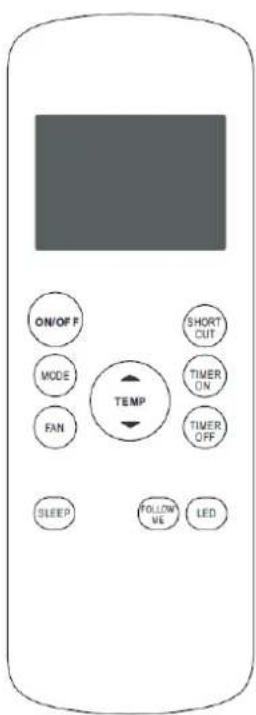

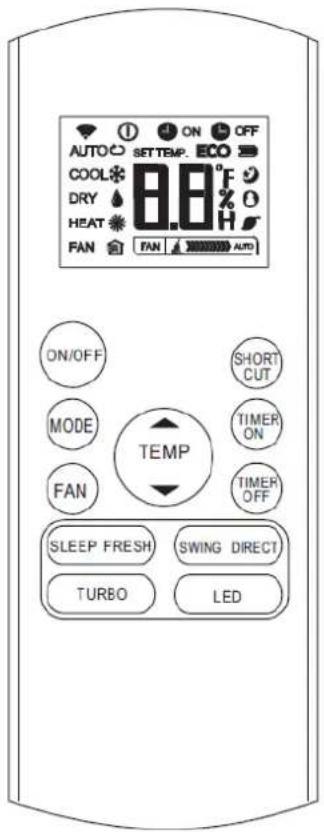

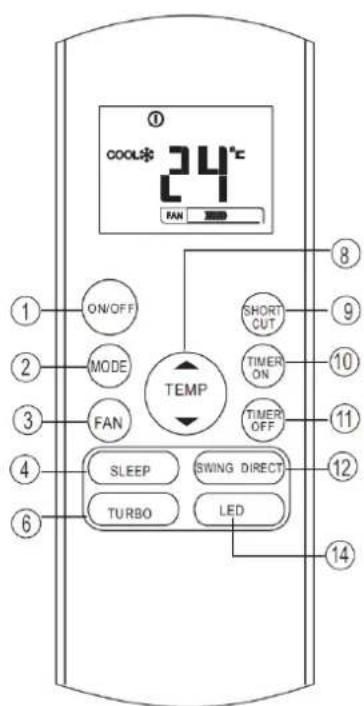

Features of the remote controller buttons
KAMxxPHH(PDAH/G)
KASxxFT
KASxxDCINVF02/3/4
- ON/OFF Button: Push this button to start operation, push the button again to stop operation.
- MODE Selection Button: Each time the button is pressed, the operation mode is shifted.
- FAN SPEED Indicator: Press the FAN SPEED button to select the desired fan speed setting (Auto-Low-Med-High).
- SLEEP: Active / disable Sleep function.
- FRESH: Activate / disable lonizer.
- TURBO button: Active / disable TURBO function.
- SELF CLEAN button: Active / disable SELF CLEAN function
- UP button (▲ / +): Push this button to increase the indoor temperature setting or to increase hour on the timer setting. DOWN button (▼ / -): Push this button to decrease the indoor temperature setting or to decrease hour on the timer setting.
- SHORTCUT Button: Used to restore the current settings or resume previous settings. On the first time connecting to the power, if you push the button, the unit will operate on AUTO mode, 26°C, and fan speed is Auto.Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature(if activated). If pushed for more than 2 seconds, the system will automatically restore the current operation settings
- TIMER ON Button: Press this button to initiate the auto-on time sequence. Each press will increase the auto-timed setting in 30 minutes increments. When the setting time displays 10:00, each press will increase the auto-timed setting 60 minutes increments. To cancel the auto-timed program, simply adjust the auto-on time to 0:00.
- TIMER OFF Button: Press this button to initiate the auto-off time sequence. Each press will increase the auto-timed setting in 30 minutes increments. When the setting time displays 10:00, each press will increase the auto-timed setting 60 minutes increments. To cancel the auto-timed program, simply adjust the auto-off time to 0:00.
- Horizontal swing button: Used to stop or start horizontal louver movement and set the desired up / down air flow direction. The louver changes angle of 6^ for every press. If keep pushing for more than 2 seconds, the horizontal louver swing feature is activated.
- FOLLOW ME Button: Push this button to activate / disable FOLLOW ME function.
- LED Button: Push this button to activate / disable display on the indoor unit.
- ION Button: Push to active the lonizer which will help to remove pollen and impurities from the air.

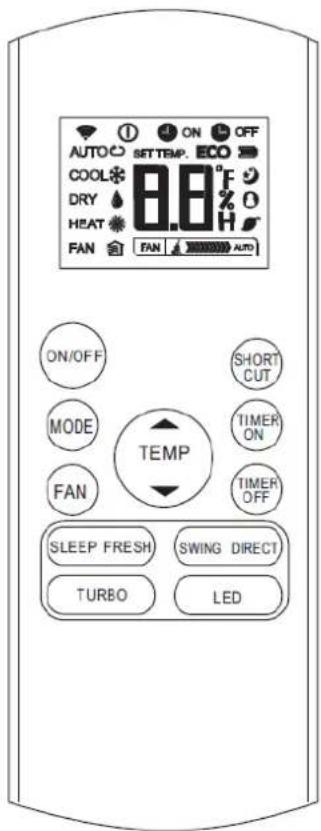

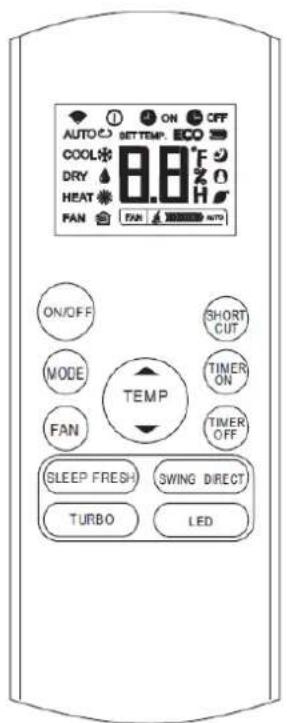

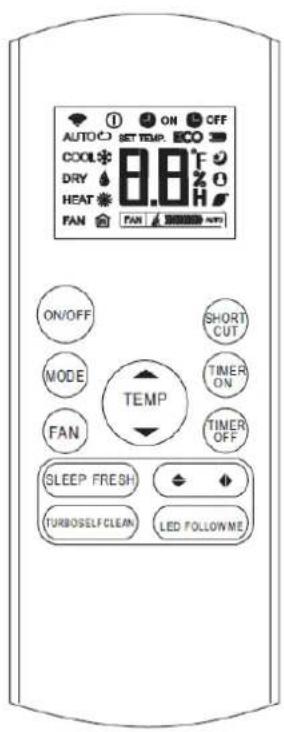

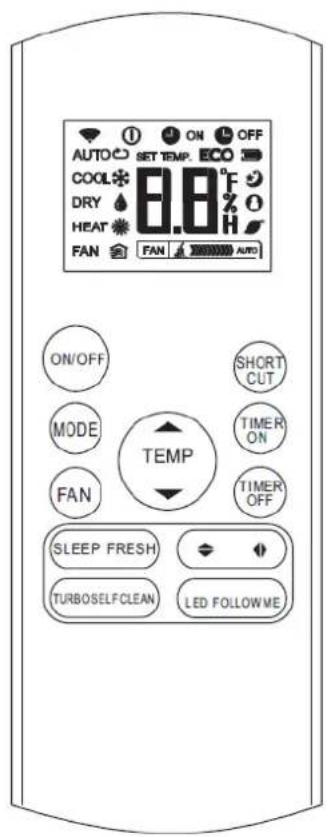

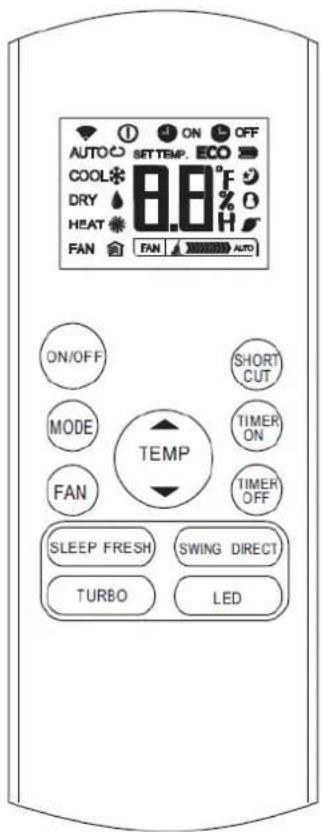

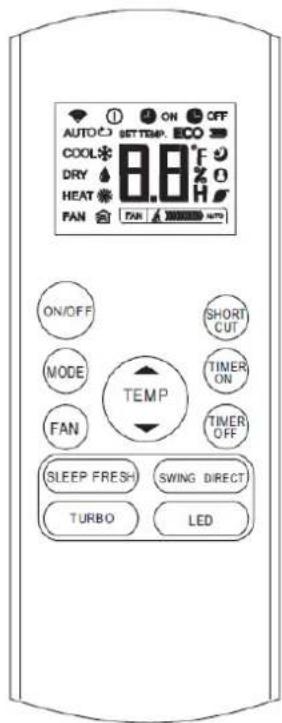

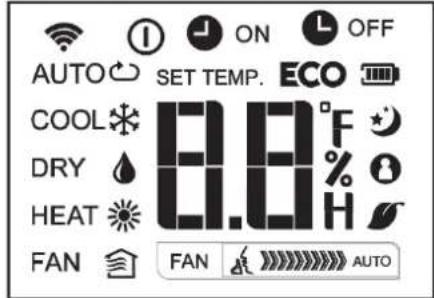

Indicators on display
TRANSMISSION Indicator:
This indicator flashes one time when remote controller transmits signals to the indoor unit. ON/OFF Indicator: This symbol appears when the unit is turned on
DIGITAL DISPLAY area: This area will show the set temperature and, if in the TIMER mode, will show the ON and OFF settings of the TIMER.
FOLLOW ME indicator: When pressing FOLLOWME button in COOL or HEAT mode, the remote sensing function is activated and this indicator displays.
Mode display (FAN)

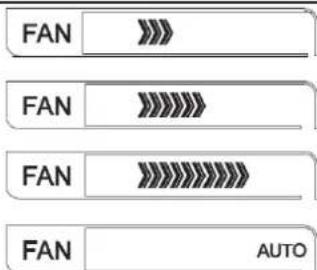

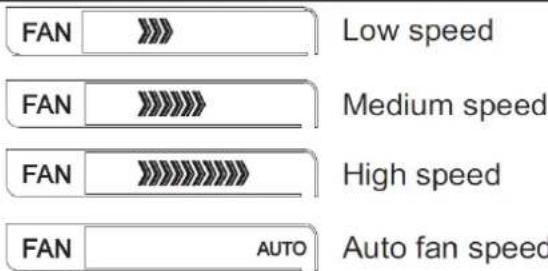

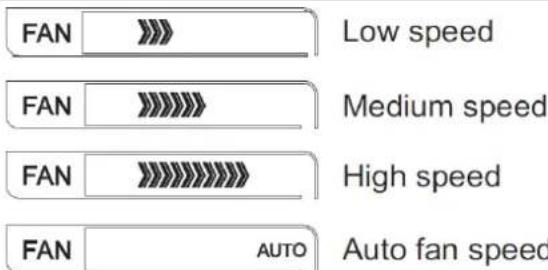

Fan speed display: Displays selected fan speed.
OPERATION MODE Indicator: When press the MODE button, it shows the current operating mode – AUTO, COOL, DRY,HEAT, FAN.
Mode display
Displayed when data transmitted.
ECO Not available for this unit
ON Displayed when TIMER ON time is set.
OFF Displayed when TIMER OFF time is set.
8.8°F Show set temperature or room temperature, or time under TIMER setting.
★ Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
NOTE
All indicators shown in the figure are for the purpose of clear presentation. During the actual operation only the relative function, signs are shown.
Operating the remote controller

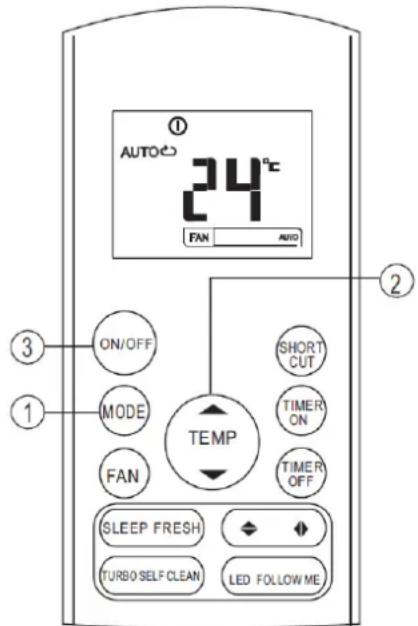

AUTO operation
Switch on the power and the OPERATION indication lamp on the display panel of the indoor unit starts flashing.
- Use the MODE button to select AUTO.
- Push the TEMP button to set the desired room temperature. Temperature can be set between 17^ C and 30^ C.
- Push the ON/OFF button to start the air conditioner.
NOTE
In the AUTO mode, the air conditioner can logically choose the mode of COOL, FAN and HEAT by sensing the difference between the actual ambient room temperature and the set temperature on the remote controller. In the AUTO mode you cannot switch the fan speed. It is automatically controlled. If the AUTO mode is not comfortable for you, the desired mode can be selected manually.
COOL/HEAT (Cooling only model without) and FAN operation
Ensure that unit is plugged in and power is available.
- Press the MODE button to select COOL, HEAT or FAN mode.
- Press the UP / DOWN buttons to set the desired temperatures within range of 17 to 30°C.
- Push the FAN SPEED to select the FAN mode of AUTO, HIGH, MED or LOW.
- Push the ON/OFF button to start the air conditioner.
NOTE
The FAN mode cannot be used to control the temperature. While in this mode, only steps 1, 3 and 4 may be performed.

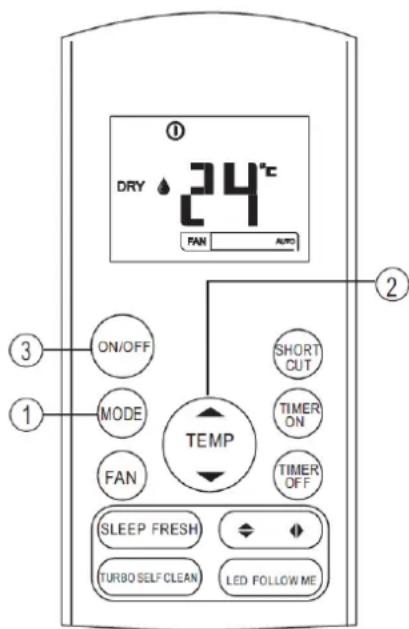

DRY operation
Ensure that unit is plugged in and power is available.
- Push the MODE button to select DRY.
- Push the TEMP button to set the desired temperature from 17^ C to 30^ C.
- Push the ON/OFF button to start the air conditioner.
▲NOTE
In dehumidifying mode, you cannot switch the fan speed. It is automatically controlled.
Adjusting air flow direction
Use SWING buttons to adjust desired airflow direction.
- The louver changes angle of 6^ for every press. If keep pushing for more than 2 seconds, the horizontal louver swing feature is activated.
- The louver changes angle of 6^ for every press. If keep pushing for more than 2 seconds, the vertical louver swing feature is activated.
NOTE
When the horizontal / vertical louver position would affect the cooling or heating effect of the air conditioner, it would automatically change moving direction.
TIMER operation
Push TIMER ON button to set the auto-on time and TIMER OFF button to set the auto-off time.
TIMER ON:
- Push the TIMER ON button, then the remote controller shows TIMER ON, the last set time for the starting operation and the signal "h" will be shown on the DIGITAL DISPLAY area. You are now ready to reset the time to START the operation.
- Push the TIMER ON button again to set desired unit start time.
- After setting the TIMER ON, there will be a one-half second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "h" disappears and the set temperature will re-appear on the digital display.
TIMER OFF:
- Push the TIMER OFF button and the remote controller will show TIMER OFF, the last set time for the stopping operation and the signal "h" will be shown on the DIGITAL DISPLAY area. You are now ready to reset the time of the STOP operation.
- Push the TIMER OFF button again to set the time you want to stop the operation.
- After setting the TIMER OFF, there will be a one-half second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "h" disappears and the set temperature will re-appear on the digital display.
NOTE
Setting times are limited to 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 in 24 hours.

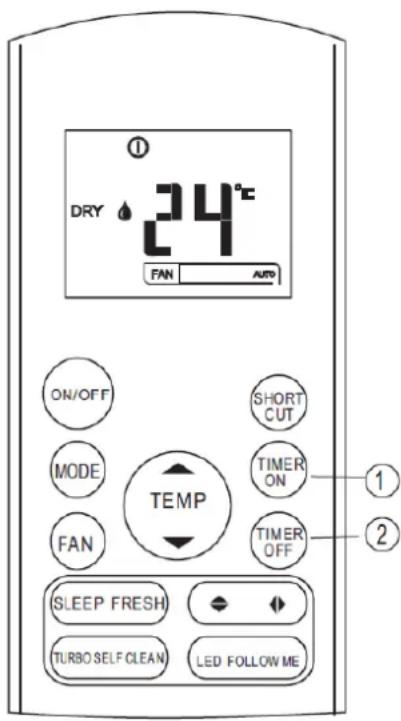

Example of TIMER setting
TIMER ON feature is useful for you when you want the unit to turn on automatically before you return home. Air conditioner will automatically start operating at the set time.
Example:
How to start the air conditioner in 6 hours.
- Press the TIMER ON button, the last setting of starting operation time and the signal 'h' will show on the display area.
- Press the TIMER ON button to display '6:0h' on the TIMER ON display.
- Wait for 3 seconds and the digital display will show the temperature again TIMER ON indicator remains on and this function is activated.

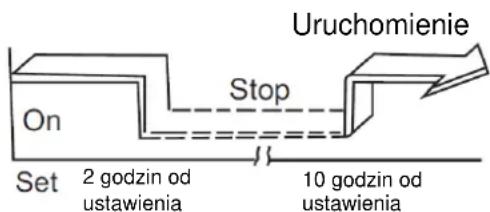

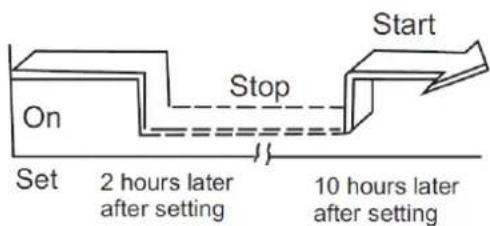

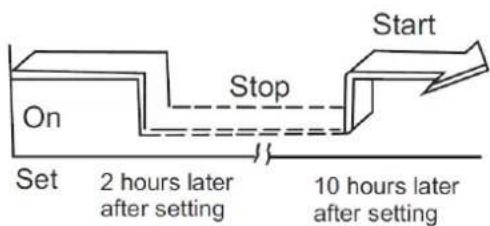

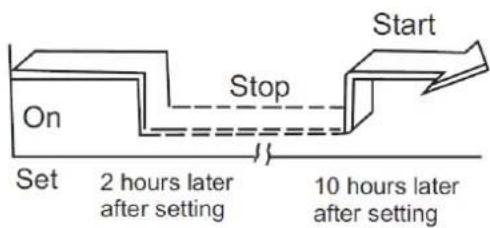

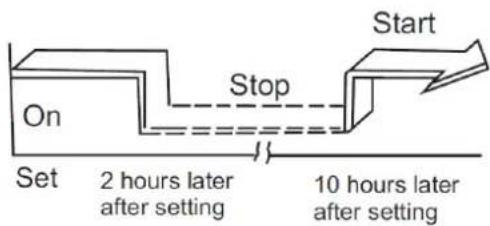

Example of combined TIMER setting
Example:
To stop the air conditioner in 2 hours and start it again in 10 hours.
- Press the TIMER OFF button.
- Press the TIMER OFF button again and set '2:0h'.
- Press the TIMER ON button.
- Press the TIMER ON button again and set '10:0h'.
- Wait for 3 seconds and the digital display will show the temperature again.
TIMER ON OFF indicator remains on and this function is activated.

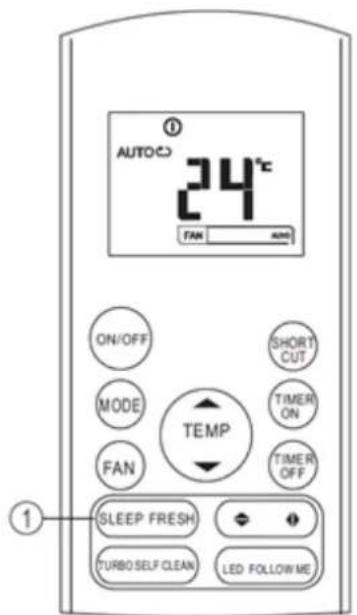

SLEEP:
Press on this button activates / disables SLEEP function.
Sleep function enables the unit to automatically increase (cooling) or decrease (heating) temperature for 1°C per hour for first 2 hours and then hold it steady for 5 hours. After 7 hours unit will strop operation.
NOTE
SLEEP function is only available in COOLING, HEATING and AUTO mode.
Insert / replace batteries
In the remote controller are two dry alkaline batteries AAA(LR03x2).
-
Press the cover of the batteries, remove it, insert the batteries in accordance to the + / - signs and put back the plastic cover.
-
Replace used batteries in the same order.
NOTE
- When replacing the batteries do not use two different pieces. This can effect on the performance of the remote controller.
- If you plan not to use the remote controller for a longer period of time remove the batteries. Otherwise leaking of the batteries can damage the remote controller.
- Average life expectancy of the batteries is 6 months at normal use.
- Replace the batteries when you do not hear beeping sound from the indoor unit when pressing buttons on the remote controller.
- Dispose used batteries in to the special container.
HRVATSKI
RG57
UPUTE ZA UPORABU
DALJINSKI UPRAVLJAČ
- Prije prve uporabe najprije pozorno pročitajte ove upute za uporabu.
- Pohranite upute za buduću uporabu.
Kazalo
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
① Displayed when remote controller is ON.
Battery display(low battery detection)
ECO Not available for this unit
ON Displayed when TIMER ON time is set.
OFF Displayed when TIMER OFF time is set.
8.8°F Show set temperature or room temperature, or time under TIMER setting.
★ Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
NAPOMENA
Primjer podešavanja vremenskoga programa UKLJUČENO i ISKLJUČENO
Primjer:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN
Low speed
FAN
Medium speed
FAN
High speed
FAN
AUTO
Auto fan speed
⚠️НАПОМЕНА
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
ECO
Not available for this unit
ON
Displayed when TIMER ON time is set.
OFF
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN
Low speed
FAN
Medium speed
FAN
High speed
FAN AUTO
Auto fan speed
NAPOMENA
Primjer:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN
Low speed
FAN
Medium speed
FAN
High speed
FAN AUTO
Auto fan speed
НАПОМЕНА
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
ECO
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN
Low speed
FAN
Medium speed
FAN
High speed
FAN AUTO
Auto fan speed
NAPOMENA
NAPOMENA
Vrijeme podešavanja jest relativno vrijeme. Dakle, podešeno je vrijeme utemeljeno na zakašnjenju stvarnoga vremena.
NOĆNI NAČIN RADA:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
ECO
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN
Low speed
FAN
Medium speed
FAN
High speed
FAN
AUTO
Auto fan speed
Приклад:
Приклад:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
Low speed
Medium speed
High speed
Auto fan speed
⚠️ ПРИМЕЧАНИЕ
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Caracteristicile tastelor telecomenzii
KAMxxPHH(PDAH/G)
KASxxDCINVF02/3/4
KASxxFT
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
Low speed
Medium speed
High speed
Auto fan speed
NOTĂ
Timpii setați sunt limitați la 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 din 24 de ore.
Exemplu:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
ECO
Not available for this unit
ON
Displayed when TIMER ON time is set.
OFF
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
Low speed
Medium speed
High speed
Auto fan speed
ECKEPTY
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
① Displayed when remote controller is ON.
Battery display(low battery detection)
ECO Not available for this unit
ON Displayed when TIMER ON time is set.
OFF Displayed when TIMER OFF time is set.
8.8°F Show set temperature or room temperature, or time under TIMER setting.
★ Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN >> Low speed
FAN Medium speed
FAN High speed
FAN AUTO Auto fan speed
POZNÁMKA
Časy nastavenia sú obmedzené na 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 v 24 hodinách.

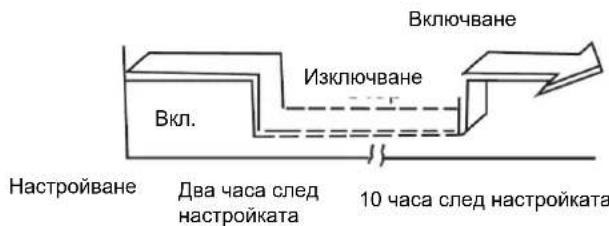

Príklad:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
Not available for this unit
ON Displayed when TIMER ON time is set.
OFF Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting.
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
FAN
Low speed
FAN
Medium speed
FAN
High speed
FAN AUTO
Auto fan speed
POZNÁMKA
Časy nastavenia sú obmedzené na 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 v 24 hodinách.
Príklad:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KASxxFT
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
KAMxxPHH(PDAH/G)
RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Példa:
RG57A2/BGEF
(FRESH button is not available)
RG57A3/BGEF
(Бутонът Fresh не работи.)
RG57B/BGE
(FRESH button is not available)
RG57D/BGE
(Бутонът Fresh не работи.)
KASxxFT
RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H2(B)/BG(C)EF
RG57H3(B)/BG(C)EF
Displayed when data transmitted.
Displayed when remote controller is ON.
Battery display(low battery detection)
Not available for this unit
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Show set temperature or room temperature, or time under TIMER setting
Displayed in Sleep Mode operation.
Indicated that the air conditioner is operating in Follow me mode
Not available for this unit
Not available for this unit
Ниска скорост
Средна скорост
Висока скорост
Автоматична скорост
ЗАБЕЛЕЖКА:
