Alu S Air - Stroller Emmaljunga - Free user manual and instructions

Product Type	3-in-1 stroller system (carrycot, Ergo seat, Flat seat)
Brand	Emmaljunga
Model	Alu S Air
Child Weight Capacity	Up to 22 kg (max 4 years)
Carrycot Usage	Birth to 6 months, max 9 kg
Seat Unit Usage	From 6 months (child can sit unaided), up to 22 kg
Safety Standards	EN 1888-1:2018, EN 1888-2:2018, EN 1466:2014
Chassis Material	Aluminum
Handlebar Material	Leatherette
Adjustable Comfort System	3-position tilt adjustment on chassis (Low, Medium, High)
Handle Height Adjustment	Yes, via gray buttons on handle
Front Wheels	Swivel with 360° rotation, lockable straight
Rear Wheels	Fixed, air-filled tyres
Brake Type	Parking brake (foot pedal) on rear wheels
Harness Type	5-point harness with magnetic buckle
Shopping Tray Capacity	Max 5 kg, place heavy items centrally
Compatible Accessories	Raincover, insect net, apron, footmuff, car seat adapter, Toddler Roller
Folding	Yes, with secondary locking mechanism
Washing Instructions	Hand wash fabrics with mild soap, drip dry; wipe harness with damp cloth
Maintenance	Regular lubrication of brake, wheels, and joints; inspect tyres and hardware
Service Intervals	6, 12, 24, 36 months (by authorized retailer)

Frequently Asked Questions - Alu S Air Emmaljunga

How do I attach the carrycot to the chassis?

Engage the parking brake, lift the carrycot by the handle, and place it onto the chassis frame. Press down until you hear a click on both sides. Always check that it is securely locked.

How do I fold the chassis?

Ensure the brake is engaged, remove the seat/carrycot, empty the shopping basket, set the Adjustable Comfort System to the highest position, and set front wheels to swivel. Press the buttons on the main locks, pull them upwards, lift the secondary locking device, and fold the handle forward.

How should I clean the fabric parts?

Remove fabric from chassis. Hand wash in lukewarm water with mild liquid soap. Rinse thoroughly and drip dry completely before reassembly. Do not machine wash. Wipe nylon straps and plastic parts with a damp cloth only.

What is the maximum child weight for the seat unit?

The seat unit is suitable for children up to 22 kg or 4 years, whichever comes first. The child must be able to sit unaided (usually from 6 months).

Can I use this stroller for jogging or skating?

No, this product is not suitable for running or skating. It is designed for walking only.

How do I adjust the 5-point harness height?

Remove the hood and shoulder pads. Open the zipper under the seat and unfasten press studs. Pull the back plate out, reposition the shoulder straps to the desired slots in the plate, reinsert into fabric, and reassemble. Ensure all fastenings are secure.

Is the stroller compatible with car seats?

Yes, the chassis is compatible with an approved car seat adapter (sold separately). The seat unit itself is not a car seat.

How do I engage the parking brake?

Push the brake pedal located on the rear axle all the way down with your foot. To release, lift the pedal up. Always engage when stationary.

What is the Adjustable Comfort System?

It allows you to adjust the angle of the carrycot or seat unit on the chassis to three positions (Low, Medium, High). Pull the grey tab outwards, twist the knob to the desired number (1-3) on both sides, ensuring they match.

How do I remove the seat unit from the chassis?

Engage the brake. Pull both grey handles on the sides of the seat unit upwards simultaneously, then lift the seat unit off the chassis. Never leave a child in the seat during removal.

USER MANUAL Alu S Air Emmaljunga

INSTRUCTION & SERVICE MANUAL

ALU S

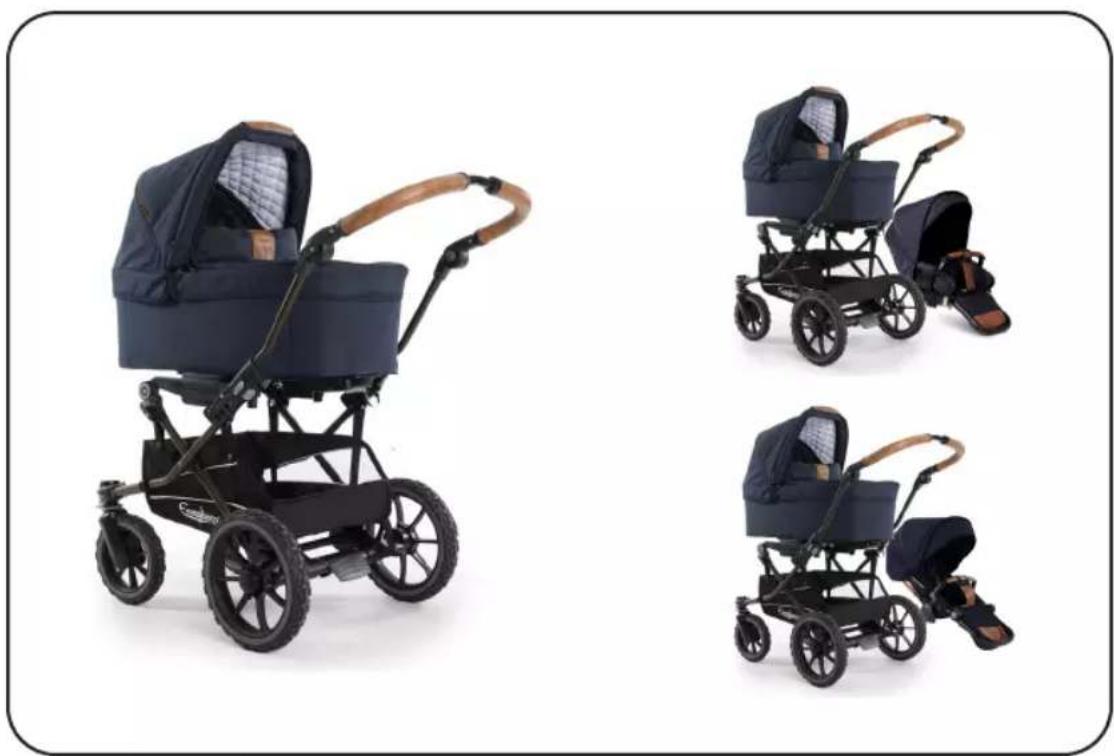

Four different baby strollers with different designs and accessories, shown from different angles (no text or symbols visible)

EN: IMPORTANT INFORMATION- READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS. This product complies with EN 1888-1:2018, EN1888-2:2018, EN 1466:2014. Sales or marketing of the product outside the EU, EFTA countries is not allowed. Please visit www.emmaljunga.com for the latest version of this manual before using the product.

1. Instruction Box:
2. Instruction manual
3. Rear wheels x 2
4. Swivel wheels x 2
5. Tray/Basket

6. Folded chassis

7.

8.

9.

10.

11.

Box: Carrycot 3.0

1. Carrycot/Hood
2. Apron for Carrycot
3. Mattress

2.

1.

Box: Ergo 3.0

1. Seat Unit Fram
2. Seat Unit Fabrics with Fabrics incl. 5-point harness
3. Hood
4. Bumper Bar

5. Seat adjustment bar

6.

7.

8.

9.

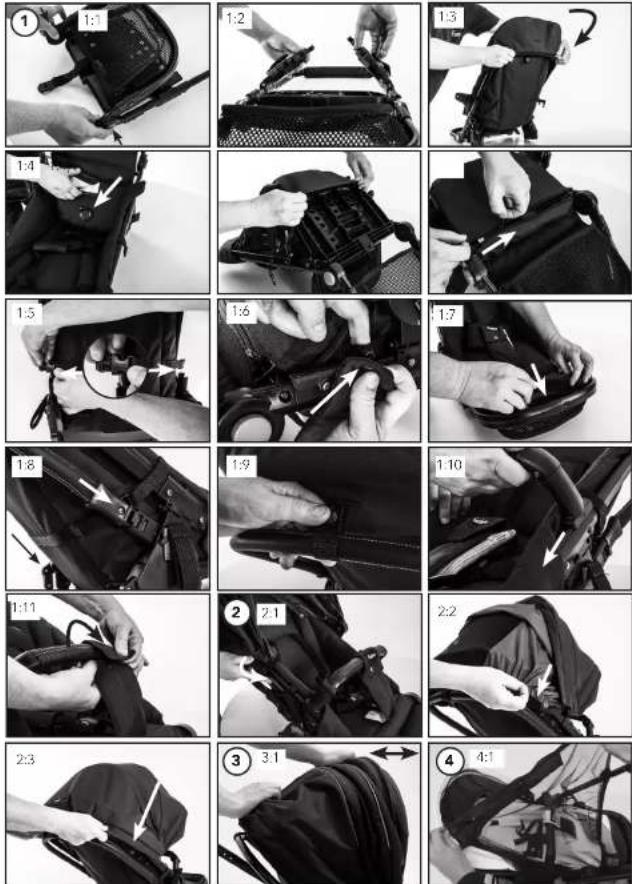

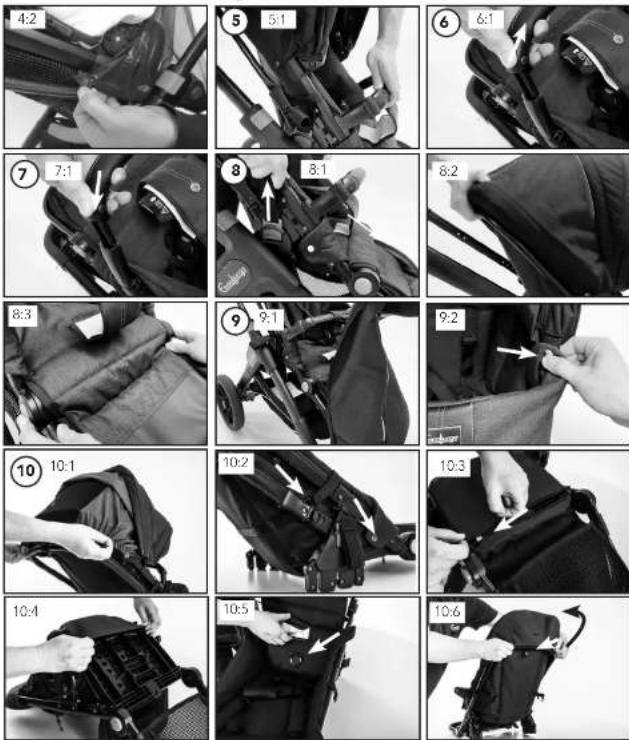

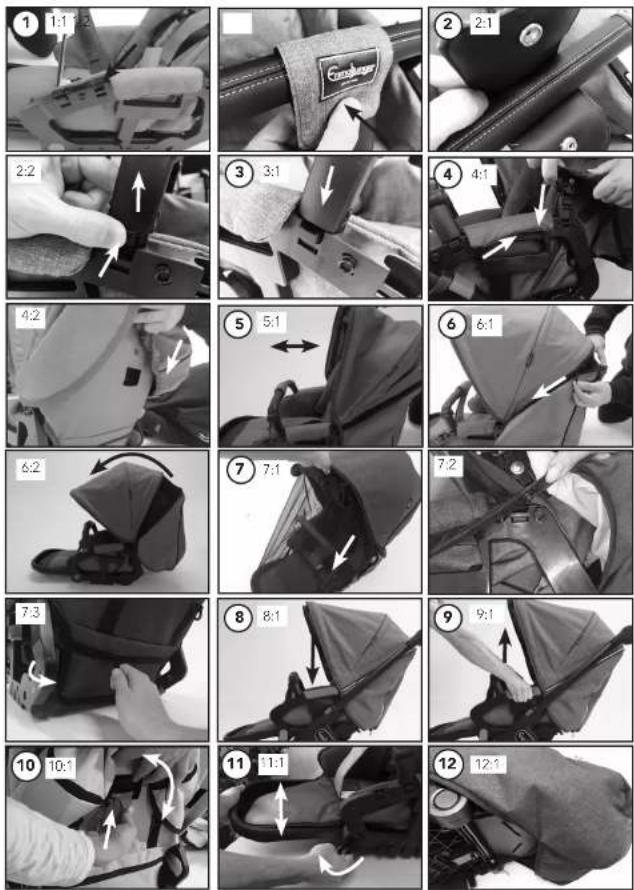

Box: Flat 3.0

1. Flat Seat Unit with Seat Unit Fabrics incl. 5-point harness
2. Hood

3. Bumper Bar

4.

5.
   3.

Chassis ALU S Chassis ALU S

Carrycot

Seat Unit Ergo

9Alu 5 V1.18 Al

Seat Unit Ergo

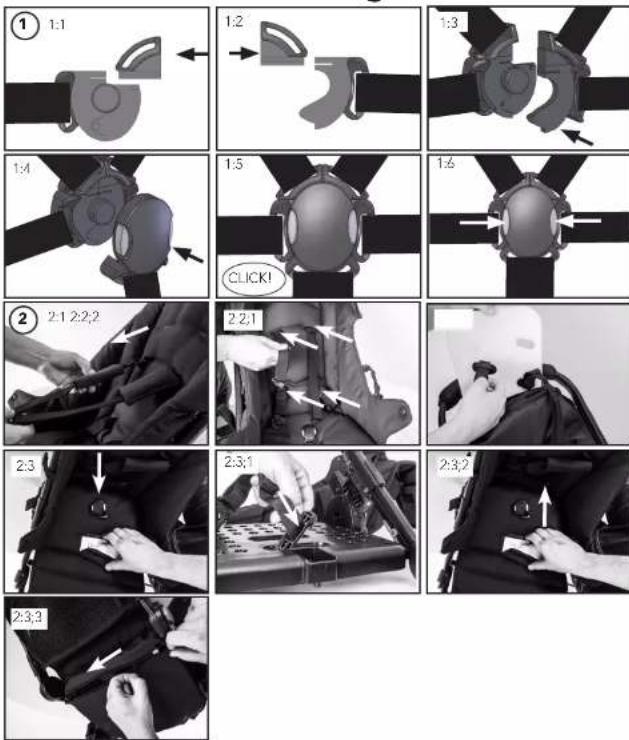

5-Point Harness (Ergo)

Seat Unit Flat

Seat Unit Flat

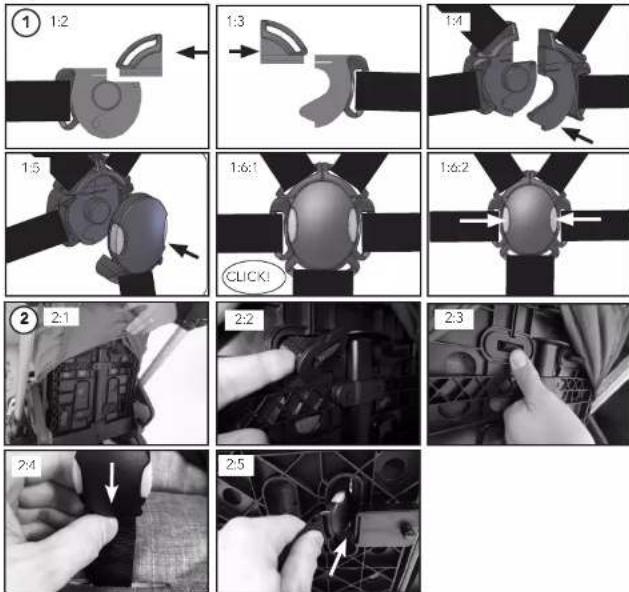

5-Point Harness (Flat)

VIKTIG SÄKERHETSINFORMATION

ALLMÄNNA SKÖTSELRÅD 28

IMPORTANT SAFETY INFORMATION

EN

IMPORTANT — READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE

Your child's safety may be affected if you don't follow these instructions.

WARNING

• Never leave the child unattended
- Ensure that all the locking devices are engaged before use
- To avoid injury ensure that the child is kept away when unfolding and folding this product
- Do not let the child play with this product
- Use a harness as soon as the child can sit unaided
• This seat unit is not suitable for children under 6 months
• Always use the restraint system
- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use
• This product is not suitable for running or skating

Warning sentences according to EN1888 1:2018, EN1888 2:2018

WARNING

• A child's safety is your responsibility.
• Children should be harnessed in at all times and should never be left unattended.
• The child should be clear of moving parts while making adjustments.
  • This vehicle requires regular maintenance by the user.
• Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage or break this vehicle.
• Read the instructions.
• Keep away from fire.

33ALU S V1.1

IMPORTANT SAFETY INFORMATION

WARNING

- Never use this product on a stand.

• This product is only suitable for a child who cannot sit up unaided.
• Only use on a firm, horizontal level and dry surface.
• Do not let other children play unattended near the carry cot.
• Do not use if any part of the carry cot is broken, torn or missing.
• Use only replacement parts supplied or approved by the manufacturer.
• Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carrycot.
• The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.
• Before carrying or lifting the carry cot place the backrest in the flat position.
• When using the carry cot make sure that the head of the child never is lower than the body of the child.
• Do not add another mattress on top of the mattress provided.
• Make sure that the adjustable handle is in carrying position before carrying the carrycot.

Warning sentences according to EN 1466:2014, Carrycot.

IMPORTANT INFORMATION - COMPATIBILITY

EN

WARNING

If you need to identify this product there is a sticker showing the model name and serial number placed on the chassis / Seat / Carrycot

CHASSIS

• Compatible with: Ergo Seat ^3,3 , Flat Seat ^3,0 , Carrycot ^3,0 . Carseat adapter, ALU S Toddler roller.
• This vehicle is only suitable for the transport of one (1) child with a maximal weight of 22 kg or 4 years whichever comes first. Only use the pram for the number of children it is intended for.
• The shopping tray has a maximum weight limit of 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is unevenly distributed.

SEAT

- Compatible with: ALU S, NXT90 ^3.0 chassis, NXT60 ^3.0 chassis, NXT Twin ^3.0 chassis

- The seat-unit is not suitable for children under 6 months, maximal weight of 22 kg or 4 years whichever comes first. Don't use the seat-unit until your child can sit unaided.

CARRYCOT

• Compatible with: ALU S, NXT90 ^3.0 chassis, NXT60 ^3.0 chassis, NXT Twin ^3.0 chassis.
• The carrycot / pram body (accessory) can only be used for the transportation of one child from 0 to 6 months. This carrycot is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg.

ACCESSORIES

• Please use only one authorised accessory at a time.
• Toddler Roller: The maximum weight for one child using the Toddler Roller accessory on the pram/stroller is 20 kg.
  • NXT Sidebag: Max load 2 kg.
• Changing bag: Max load 2 kg.

IMPORTANT SAFETY INFORMATION

WARNING

- If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.

- Do not modify this product as it may compromise the safety of your child.

- The manufacturer is NOT liable for any modifications to the product.

- Do not place objects on the hood. Never use the pram without the hood.

- Do not carry extra children or bags on this stroller.

- The pram/stroller is intended for transportation only. Never use the pram as a bed for your child.

- Do not stand or sit on the footrest. The footrest must only be used as a

- support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.

- Any load that is placed on the pram/stroller (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.

- Do not place any additional mattresses in the bassinet. Only use the original Emmaljunga mattress that is included with the product.

- Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.

• The seat unit or carvcot must NOT be used as a car seat.

- For car seats used in conjunction with a chassis, this pram does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable place such as a cot or a bed.

- Never pull a pram/pushchair with swivel front wheels behind you. The pram/pushchair might self turn which can lead to a safety risk if you are not cautious and attentive.

- Never use the pram/stroller to go upstairs or downstairs with your child in the stroller, as you may suddenly lose control of the stroller or your child may fall out. Always remove your child from the stroller before using the stroller on stairs. Use of the stroller on stairs with a child inside could also damage the stroller.

- Never use the pram/stroller on escalators.

- Do not use this product in strong winds or thunderstorms.

- Please note that train or underground stations may cause sudden high pressure changes in the air (wind or vacuum). Never place this product near any rails.

- without having both hands on the handle as the braking device alone may not be sufficient to keep your stroller safely in place.

- Do not cross rails when the child is placed in the stroller or the prambody. Wheels may get stuck!

- When transporting on public transport (bus, underground, train etc.) it is not enough to use the pram's parking brake only. The pram can be exposed to conditions (abrupt braking, turns and bumps in the road surface, acceleration etc.) that it has not been tested for according to the current standard EN1888. Follow the recommendations and instructions regarding the safe anchorage of prams during transport that public transport operators are obliged to supply.

- WARNING Never use the seat if parts of the 5-point belt are missing or if the belt is damaged.

- WARNING The 5-point harness contains magnets or magnetic components. Magnets that attract each other or a metallic object in the human body can cause serious injury or death. Seek medical advice immediately if magnets are swallowed or inhaled.

IMPORTANT SAFETY INFORMATION

EN

WARNING

- Medical devices such as implanted pacemakers and defibrillators might contain sensors that respond to magnets and radios when in close contact. To avoid any potential interactions with these devices, keep a safe distance away from your device (more than 15 cm apart). But consult with your physician and your device manufacturer for specific guidelines.

- This product should not be used as a medical treatment device. This product is designed and built according to the standard EN1888/EN1466. If your child has special medical needs in connection with transportation you should consult your doctor.

Parking /Folding / Storage

• Always apply the brakes whenever the pram/stroller is stationary.

- The brake should always be engaged when you lift your child in and out of the pram.

- Never park the pram on a hill or an uneven surface.

• Always remove the child before you fold the pram.

• Make sure children are clear of any moving parts if you adjust the pram/stroller.

- Store the pram/stroller out of children's reach when not in use.

- Tyres can when in contact with PVC-flooring or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Care, Maintenance, Spare parts

- Follow the care and maintenance instructions.

- Never use the product if a part is faulty or damaged.

- Check that all zips and poppers are securely fastened before use.

- Only use original replacement parts supplied or approved by the manufacturer.

- Accessories or spare parts that the manufacturer has not approved must not be used.

- Air tyres might contain controlled amounts of PAH polyaromatic hydrocarbons. Handle the tyres with care, and only allow professionals to repair or change tyres or inner tubes. Never let children play with the pram/stroller or the tyres.

General

The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram. It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories on how they should be used, even if the person(s) in question will only use them for a short time. Ensure that all users have the necessary physical capabilities and experience to operate this vehicle.

Table of Contents 1/2

ALU S

Table of Contents 2/2

EN

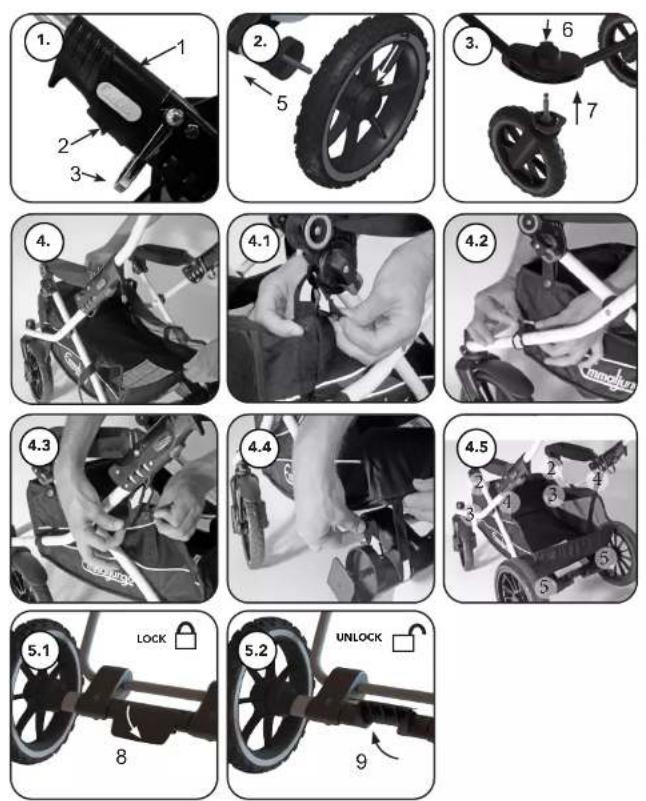

1.1 Apply the brake on the chassis. To unfold the chassis, pull the handle upwards, whilst holding down the side of the chassis. Always make sure that the main locking device (1) and the button (2) on both sides clicks into the locked position. The safety catch (3) (secondary locking mechanism) is activated to prevent unintentional folding if the chassis locks are not locked into position.

WARNING

- Make sure that children are kept away from moving parts when assembling the pram, otherwise they might be at risk of injury. - Make sure, before you use the pram that both chassis locks are in the locked position.

2) ASSEMBLY OF THE REAR WHEELS Remove the plastic protection from the axles. Save them for future use. Press the button (4) on the rear wheel. Push the Rear wheel on the axle shaft all the way (5).

WARNING

- Check that the wheels are firmly fixed and can not be pulled from the chassis. Repeat on both sides. - Avoid driving over sharp objects or surfaces eg. glass or the tyre can be punctured

3) ATTACHING THE FRONT WHEELS TO THE CHASSIS. Depress the release button (6) and push the front wheel in place (7).

WARNING

- Before use, always make sure that the front wheels are correct mounted to the chassis.

4) ATTACH THE SHOPPING TRAY 4.1 - 4.5 Attach the shopping tray to the chassis according to the pictures.

5) ENGAGING THE PARKING DEVICE Engage the parking device by pushing the brake pedal (8) all the way down with your foot. 5.1 Disengage the parking device by lifting the pedal (9) up with your foot.

WARNING

- Never leave the vehicle without first engaging the parking device. - The brake should always be engaged when you lift your child in and out of the stroller/pram. - Avoid uphill or downhill parking. - Make sure that the brake pin engages into the cogs when the vehicle is parked.

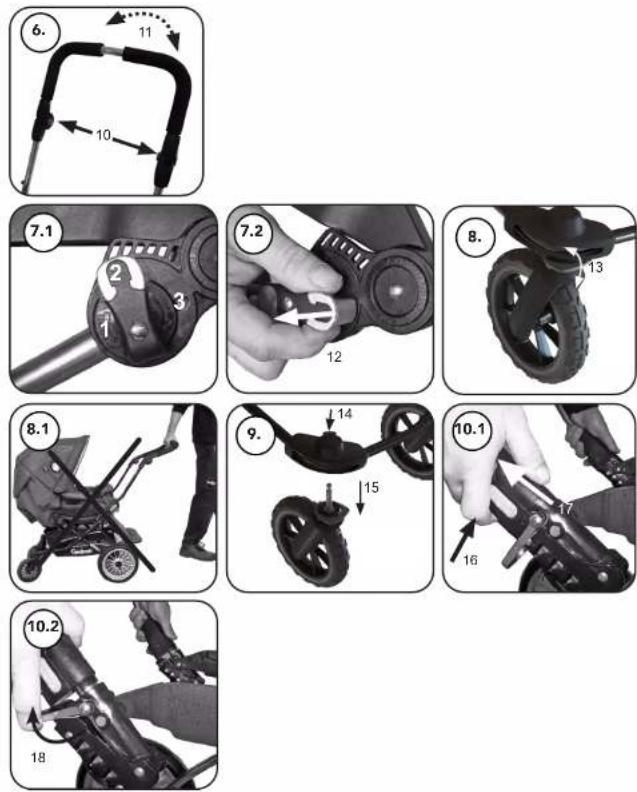

6) HOW TO ADJUST THE HEIGHT OF THE HANDLE

Adjust the height by pressing the gray buttons on the inside of the handle (10). Keep the buttons pressed in while you adjust the handle to the required position (11).

7) EMMALJUNGA ADJUSTABLE COMFORT SYSTEM

To maximize the comfort for the child you can adjust the angle on the pram body/seat unit.

7.1 How to use the Adjustable Comfort

System

The Adjustable Comfort System on the chassis enables you to adjust the angle on the pram body/soat unit. The angle may be adjusted into three different positions.

1. Low
2. Medium
3. High

7.2 Adjust the angle by pulling the grey tab (12) outwards and twist the knob until the grey button locks into the desired position: 1, 2 or 3. Repeat on the other side of the chassis - make sure the knobs are in the same positions on both sides of the chassis.

IMPORTANT

- Adjust the tilt when the chassis is folded to avoid unnecessary wearing of the mechanism.

WARNING

- Remove the child from the pram before adjusting the angle. - The angle must be in the same position on both sides of the chassis to avoid the risk of damaging the pram.

8) THE FRONT WHEEL CAN BE FIXED OR SWIVEL 360 DEGREES.

The wheels are fixed by pressing the locking ring (13) down when the wheels are positioned straight forward. The wheels can rotate freely 360 degrees by pulling the locking ring up.

WARNING

8,1) Never pull a pram with swivel front wheels behind you. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

9) REMOVING FRONT WHEELS FROM THE CHASSIS

Depress the release button (14) and pull out the front wheel (15).

10) FOLDING THE CHASSIS

Start by making sure that the brake is engaged. Take off the carrycot or the seat unit. Make sure that the shopping basket is empty before folding the chassis

When folding: Make sure the Adjustable Comfort System is set in the highest position to avoid pressure marks on the rear wheels while the chassis is in the folded position. Ensure the front wheels are in the swivel position by pulling the locking rings up.

Fold the chassis by first pressing in the buttons (16) at the same time and pull the two main locking devices, one on each side upwards (17) Lift the secondary locking device (18) and fold the handle forward.

If you want to make the chassis more compact, you can remove the wheels. This can be done both before or after you fold the chassis.

WARNING

- There must not be a child in the pram when it is folded or unfolded. - Avoid having children in the vicinity when the pram is folded or unfolded. - Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

CARRYCOT

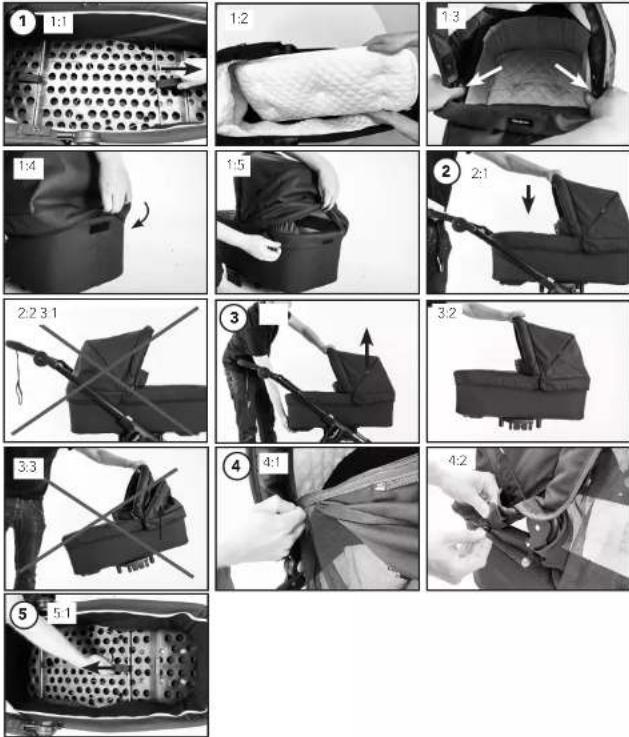

1) ASSEMBLY OF THE CARRYCOT

1:1 To erect the carrycot pull the bar using the easy pull handle along the bottom of the carrycot towards the plastic stops. Repeat both in the foot end and the head end.

WARNING Make sure the metal bars are firmly attached to the carycot frame before the carycot is erected. If the metal bars are not in place, the fabric may be damaged.

WARNING Before using the carycot ensure that the the carycot frame is held firmly in place.

1.2 Remove the mattress from the plastic bag (discard safely)

WARNING Do not use additional mattresses in the carrycot. Use only the Emmaljunga original mattress that comes with the pram. WARNING Risk of suffocation. Do not let children play with plastic bags.

1.3 Press both buttons on the inside of the hood and pull it up. Attach the apron using the velcro straps on each side of the carrycot. The hood can be folded up and down in the desired position by pressing both buttons on the inside of the hood.

1.4 The hood is attached to the carrycot with velcro strips.

1.5 For ventilation, open up the Velcro strap on the hood. You can fasten the hood in place by folding under and securing it with the press stud on the inside of the hood. The ventilation and UV/Insect net on the back of the hood is now visible. (only on certain models)

2) ATTACH THE CARRYCOT

2:1 Put on the brake. Lift the carrycot with the handle and place it onto the frame. Press down so that the carrycot locks into place you will hear a "click" on both sides. WARNING Always check that the carrycot is properly attached in the locked position on both sides.

2:2 WARNING Never use the carrycot in the position with the hood placed towards the handlebar (see picture). The hood on the carrycot should always be placed away from the handlebar

3) REMOVE THE CARRYCOT

3:1 Put on the brake. Under the carycot base, push in the button and pull the handle towards you. Lift the carycot upwards.

WARNING Always check that the carycot is properly secured in the locked position on both sides.

3:2 WARNING Always use the carrycot lifting handle as illustrated. This is very important! WARNING Never leave the carrycot near the stairs, on the top of a table or in places where it can fall off.

WARNING Do not use the carycot as a cradle outdoors or on uneven surfaces. WARNING Do not use the carycot as a bod for your child. 3:3 WARNING Never lift the carycot with the lifting handle as illustrated. This is very important!

4) INSECT NET (ACCESSORY)

4:1 Attach the Insect net using the zip on the edge of the hood.

4:2 To secure the insect not fasten the press stud to the inside of the hood (See picture). Repeat on the other side.

5) FOLDING THE CARRYCOT

5.1 Remove the mattress. Pull the bar using the easy pull handle along the bottom of the carrycot. Repeat both in the foot end and the head end.

SEAT UNIT ERGO

1. ASSEMBLY AND USE OF THE SEAT UNIT 1.1 Seat Frame Press both buttons on the sides of the footrest to unfold.

1.2 Fold out both seat attachments.

1.3 Place the seat fabric cover over the top edge of the seat frame.

14-14.2 Thread the harness strap through the seat fabric and then place the seat fabric around the seat plate. Close the zipper underneath the seat.

1.5 Position the safety straps around the frame and click into the buckle on the back of the backrest. Repeat on the left and right side of the frame.

1.6 Fasten the press studs that secure the fabrics to the frame on both sides.

1.7 Fasten the Velcro straps onto the footrest.

1.8 Click the back rest adjustment handle into the bracket on both sides.

1.9 Thread the strap through the hole in the fabric and fasten around the back rest adjustment handle with the press stud.

1.10 Insert the bumper bar into the brackets on both sides of the seat unit.

1.11 Fasten the crotch strap around the bumper bar.

WARNING It is important that the seat unit fabric is always fitted correctly.

WARNING Never use this product without fully assembling the seat unit fabrics onto the frame first.

WARNING The bumper bar should always be assembled when in use.

WARNING Always check that the bumper bar is correctly assembled before use.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

2) ASSEMBLY/USE OF THE HOOD

2.1 Attach the hood onto the seat frame tubes at both sides.

WARNING Pinch point - Danger of trapping. Please note: If the hood moves up and down on the seat frame tube this can cause scratches. Ensure the seat frame tube is free from dust and dirt.

2.2 Pull the inner fabric over the top of the seat

frame and secure with the higher press stud. Repeat for the left and right sides. 2.3 Full the outer fabric over the top of the seat frame and secure with the lower press stud. Repeat for the left and right sides (The centre press stud is for use with the optional footmuff/accessories only).

WARNING Ensure that children are kept away from all moving parts of the prism to avoid risk of injury.

WARNING The hood should always be fitted when the pram is in use.

WARNING Never carry the stroller or the seat unit by the hood.

3) ADJUST THE HOOD

3.1 Pull the hood gently forward or backward to the desired position

For ventilation, roll the fabric flap inwards on

the back of the hood. The UV/insect net is now visible.

4) INSECT NET (DELIVERY WITH CHASSIS)

4.1 Attach the Insect net using the zipper on the hood. Pull the elasticated band of the insect net completely over the front foot area. The net is delivered with the chassis.

4.2 Use the press studs to secure the insect net elasticated band onto the seat unit. Repeat on the other side.

5) ASSEMBLY OF THE SEAT UNIT ON THE CHASSIS

5.1 Click the seat unit into the chassis, making sure it clicks in properly and securely. The seat unit can be attached in the direction of travel or against the direction of travel.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

WARNING Always check that the seat unit is properly fixed firmly to the chassis before the pram is used.

6) OPEN THE BUMPER BAR

6.1 Unfasten the crotch strap. Press the button on the inside of the bumper bar and open.

7.1 Click the bumper bar into the bracket until you hear a "click".

Fasten the crotch strap around the bumper bar.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

WARNING The bumper bar should always be assembled when in use.

ALU S V1.1

WARNING Always check that the bumper bar is correctly assembled before use.

8) REMOVING THE SEAT UNIT FROM THE CHASSIS

9.1 Pull both handles upwards and lift the seat unit off the chassis.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

WARNING Never leave a child in the seat unit when removing the seat unit.

8.2 The seat unit can be adjusted into different positions, lift the handle at the back of the seat unit up and adjust to desired position.

WARNING Always check that the seat unit is in one of the positions by pushing it back until it locks into place.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

8.3 Press both of the buttons on each side of the frame to adjust the footrest.

Please Note! Maximum weight on the footrest is 3kg.

WARNING Never let your child stand on the footrest.

9) ASSEMBLY OF THE APRON (ACCESSORIES) 9.1 Pull the apron over the footrest.

9.2 Fasten the apron with the press stud on the inside of the hood. Fasten the press studs at the back of the apron to the back of the seat unit.

IMPORTANT! The hood cannot be folded down when the apron is permanently attached to the hood.

Open the zip in the middle of the apron when taking your child in or out of the pram.

10) REMOVAL OF THE SEAT UNIT FABRIC

10.1 Release the push buttons from the hood, remove the hood from the seat frame,

WARNING The hood must always be assembled when the pram is in use.

10.2 Unbutton the buttons and buckles on each side.

10.3 - 10.4 open the zipper located under the seat, remove the fabric from the seat plate.

10.5 Thread all seat belts through the holes. 10.6 Remove the push button around the

10.8 Remove the push button around the folding handle and remove the fabric from the seat frame.

11.1. Assemble the rain cover by placing it over the hood and pull over the carrycot or the seat unit.

11.2. The rain cover has a large window at the top opening that you can open and close with the Velcro fasteners.

11.3. Make sure that the side ventilation windows are always open and free so that ventilation is ensured. Always use rain protection when it is raining or snowing. If the stroller is wet, try to dry it first before using the rain cover. Let the rain cover dry properly before putting it back in its pocket.

5-POINT HARNESS (ERGO)

1) BUCKLE THE CHILD

1.1 Place the 5 harness straps in front of the child so that the child is not sitting on them.

1.2 Assemble the left shoulder and waist straps by sliding the upper left buckle into the lower left buckle until it clicks into place.

1.3 Assemble the right shoulder and hip straps by sliding the upper right buckle into the lower right buckle until it clicks into place.

1.4 Click the right buckle over the left buckle until they are held together as a unit. It is very important that they sit together properly and that they cannot be pulled apart.

1.5 Lock the harness with the harness lock on the crotch strap with a "" CLICK "",

WARNING Always check that the belt is properly closed by pulling on it.

1.6 Adjust the harness using the sliding adjusters (3) on the shoulder and hip belts so that the bolt fits snugly on the child's body. To release the shoulder and waist straps, press in the buttons on the sides of the harness lock

WARNING Always fasten the child in with the harness when the child is sitting in the stroller. Check that all buckles are correctly fastened and that the harness is securely assembled in the stroller.

WARNING Never use the seat if parts of the 5 point harness are missing or if the harness is damaged. Always check that the harness is properly closed.

WARNING The 5-point harness contains magnets or magnetic components. Magnets that attract each other or a metallic object in the human body can cause serious injury or death.

43ALU S V1.142

Seek medical advice immediately if magnets are swallowed or inhaled.

WARNING Medical devices such as implanted pacemakers and defibrillators might contain sensors that respond to magnets and radios when in close contact. To avoid any potential interactions with these devices, keep the harness a safe distance away from your device (more than 15 cm apart). But consult with your physician and your device manufacturer for specific guidelines.

2) CHANGE POSITION OF THE HARNESS

2.1 Shoulder straps, Remove the hood. Remove the shoulder pads. Push the shoulder and hip straps through the holes in the seat cover.

2.2 Open the zipper underneath the seat.Open the press studs that secure the seat fabric over the frame. Open the press stud that holds the adjustment handle.Pull the back plate out of the fabric and place the shoulder straps in the desired position in the back plate.Insert the shoulder straps into the seat fabric in the same position.Slide the back plate back into the seat cover.

2.3 - 13.3.3 The Crotch Strap

Pass the crotch strap through the seat cover and the seat plate. Then mount the crotch strap in the desired position in the seat plate and pass the crotch strap in the same position through the fabric. Close the zipper at the bottom of the seat. Close the press studs firmly over the frame on both sides. Thread the strap through the hole in the fabric and secure it around the adjustment handle with the press stud.

Put the shoulder pads onto the shoulder straps.

WARNING Before you use the pram again always check that the seat unit fabric is secure and that all zips are securely and properly fastened

WARNING It is important that the seat unit fabric is always correctly fitted

WARNING Never use the pram without making sure the seat unit fabric is correctly assembled on the frame first.

SEAT UNIT FLAT

1) ASSEMBLY AND USE OF THE SEAT UNIT

1.1 The seat unit is delivered fully assembled. Only the bumper bar and the hood need to be assembled. Insert the bumper bar into the brackets on both sides of the seat until you hear a click.

1. 2 Fasten the crotch strap around the bumper bar.

WARNING The bumper bar should always be

fitted when using the seat unit.

WARNING Always check that the bumper bar is correctly attached to the seat unit before use.

2) OPEN THE BUMPER BAR

2.1 Unfasten the crotch strap

2.2 Press the button on the inside of the bumper bar to open

WARNING The bumper bar should always be fitted when using the seat unit. WARNING Always check that the bumper bar is correctly attached to the seat unit before use.

3) CLOSE THE BUMPER BAR

3.1 Click the bumper bar into the bracket until you hear a "click".

3.2 Fasten the crotch strap around the bumper bar.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

WARNING The bumper bar should always be fitted when using the seat unit.

WARNING Always check that the bumper bar is correctly attached to the seat unit before use. WARNING Never carry the seat unit/stroller by the bumper bar.

4) ASSEMBLY / USE OF THE HOOD

4.1 Insert the hood in both sides of the seat until you hear a click.

4.2 Secure the back of the hood by using the 3 velcro strips.

You can click Emmaljunga's footmuff (accessory) into place using the eyelets/D-rings behind the backrest.

WARNING Ensure that children are kept away from all moving parts of the stroller to avoid risk of injury.

WARNING Never carry the seat unit/stroller by the hood.

5) ADJUST THE HOOD

5.1 Pull the hood gently forward or backward to the desired position.

6) EXTENDING THE HOOD

6.1 To extend the hood to protect the child from weather you can open the zip on the hood.

6.2 Pull the hood forward and the hood extends. There is a ventilation and UV/insect net built in the back of the hood (only on certain models).

WARNING The hood should always be assembled when the stroller is in use.

IMPORTANT! The hood cannot be folded down when the optional apron is attached to the hood.

ALU S V1.1

7) INSECT NET (DELIVERY WITH CHASSIS)

7.1 Attach the Insect net using the zipper on the hood. Pull the elasticated band of the insect net completely over the front foot area. The Insect net is delivered with the chassis.

7.2 Use the press stud to secure the elasticated band of the insect net onto the seat unit. Repeat on the other side.

7.3 Storage pocket for the Insect net.

8) ATTACH THE SEAT UNIT ON THE CHAS-

\1\

8.1 Click the seat unit into the chassis, make sure it clicks in properly and securely on both sides. The seat unit can be attached in the direction of travel or against the direction of travel.

WARNING Ensure that children are kept away from all moving parts of the pram to avoid risk of injury.

WARNING Always check that the seat unit is securely fixed to the chassis before the pram is used.

WARNING Hold the carrying handles until the seat unit is in place.

9) REMOVAL OF THE SEAT UNIT FROM THE CHASSIS

9.1 Pull both handles on the sides upwards and lift the seat unit off the chassis.

WARNING Ensure that children are kept away from all moving parts of the stroller to avoid risk of injury.

WARNING Never leave a child in the seat unit when removing/attaching the seat unit.

The back rest of the seat-unit can be adjusted into various positions.

Adjust the back rest by squeezing the plastic adjuster together on the back of the seat unit and recline the back rest gently to the desired position. To adjust the back rest into upright position pull the back rest forward. Open the zippers on both sides of the hood before you put the backrest in the full lying position.

WARNING Ensure that children are kept away from all moving parts of the stroller to avoid risk of injury.

11 ADJUST THE FOOTREST

Pull the grey handle on either left or right side of the footrest to adjust it.

Please Note! Maximum weight on the footrest is 3kg.

WARNING Never let your child stand on the footrest.

WARNING Ensure that children are kept away from all moving parts of the stroller to avoid risk of injury.

12 ASSEMBLY OF THE APRON (ACCESSORIES)

12.1 Pull the apron over the footrest. 12.2 Fasten the apron with the press studs on the inside of the hood and on the seat frame.

IMPORTANT! The hood cannot be folded down when the apron is attached to the hood. 12.3 Open the zip in the middle of the apron when taking your child in or out of the pram.

13 RAINCOVER (ACCESSORIES)

13.1 Assemble the rain cover by placing it over the hood and pull over the carrycot or the seat unit.

13.2. The rain cover has a large window at the top opening that you can open and close with the Velcro fasteners.

13.3. Make sure that the side ventilation windows are always open and free so that ventilation is ensured. Always use rain protection when it is raining or snowing. If the stroller is wet, try to dry it first before using the rain cover. Let the rain cover dry properly before putting it back in its pocket.

14) ASSEMBLY OF THE SEAT UNIT FABRIC

1. 1 Place the seat unit fabric in the seat unit. Thread the shoulder straps through the fabric

2. 2 Thread the crotch strap through the seat fabric (see illustration).

14.3 Thread the waist straps through the seat unit fabric. 14.4 Fasten all of the press studs on the seat unit.

1. 5 There are a total of 13 press studs. 5 press studs on each side and 3 on the back.

2. 6 Attach the crotch strap by positioning it around the bumper bar and secure it by fastening the press stud.

3. 7 Attach the hood into the frame

4. 8 Attach the hood in place using the velcro strips attached to the seat unit fabric.

WARNING It is important that the fabric is always correctly fitted. The seat unit should never be used without fully fitting the seat unit fabric.

WARNING Before you use the stroller, check that the seat fabric is secure and that all the zips

45ALU S V1.144

and press studs are firmly and correctly in place. WARNING It is important that the seat unit fabric is always assembled correctly. WARNING Never use this product without fully assembling the seat unit fabrics onto the frame first.

15) REMOVAL OF THE SEAT UNIT FABRIC 16.1 Press the buttons on both sides of the hood and remove the hood from the seat unit. 15.2 Open the press studs on the seat unit and on the footrest. 15.3 I take out the harness straps through the holes in the fabric. 15.4 Take out the crouch strap completely from the fabric remove the seat unit. WARNING The hood must always be assembled when the pram is in use.

5-POINT HARNESS (FLAT)

1) BUCKLE THE CHILD

Adjust the 5-Point Harness 1.1 Place the 5 harness straps in front of the child so that the child is not sitting on them.

1.2 Assemble the left shoulder and waist straps by sliding the upper left buckle into the lower left buckle until it clicks into place.

1.3 Assemble the right shoulder and hip straps by sliding the upper right buckle into the lower right buckle until it clicks into place.

1.4 Click the right buckle over the left buckle until they are held together as a unit. It is very important that they sit together properly and that they cannot be pulled apart.

1.5 Lock the harness with the harness lock on the crotch strap with a "CLICK" WARNING Always check that the belt is properly closed by pulling on it.

1.6 Adjust the harness using the sliding adjusters (3) on the shoulder and hip belts so that the belt fits snugly on the child's body.

WARNING Always fasten the child in with the harness when the child is sitting in the stroller. Check that all buckles are correctly fastened and that the harness is securely assembled in the stroller.

2) CHANGE POSITION OF THE HARNESS 2.1 Remove the seat unit fabric as described under point 15.

Shoulder straps 2.2. Unfaston the shoulder strap attachments from the rest of the harness.

2.3. Pull the shoulder straps backwards through the back part of the seat and reinsert them into the other opening to the front. 2.4 Refasten the shoulder strap fastener to the harness waist strap. Repeat this step on the other side. The Crotch Strap 2.5 Unfasten the crotch strap attachment from the rest of the harness and guide the crotch strap down through the seat plate.

2.6. Insert the strap through the other opening and refasten the harness. Reassemble the cover as described under point 14.

IMPORTANT Ensure that the shoulder straps and crotch straps are correctly fastened.

WARNING Before you use the pram again always check that the seat unit fabric is secure and that all press studs are securely and properly fastened.

WARNING It is important that the seat unit fabric is always correctly fitted

WARNING Never use the pram without making sure the seat unit fabric is correctly assembled on the frame first.

CARE & MAINTENANCE

GENERAL CARE AND MAINTENANCE

INSTRUCTIONS

• Never expose your pram to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your pram in cold and/or damp places.
• Should the chassis become wet, dry it off promptly. Make sure vehicle is completely dry before storing
• If the pram is used near the ocean or salted roads, spray the chassis with a hose, and dry.
• Be careful during transportation and storage as the surface of the chassis is fragile. Scratches that arise after the sole are not a justifiable complaint.

ROUTINE INSPECTION

- Regularly clean the chassis and metal parts of the vehicle, dry oil and lubricate thereafter all joints. WARNING! Do not lubricate the telescopic bar. Spokes and rims on all wheels should frequently be washed in hot water and wiped off with a dry cloth. When the pram is used during the winter time, cleaning of the pram should be done

ALU S V1.1

at least once a week. Lack of maintenance could cause rust.

- Clean the shafts (clean axles with a cloth).

IMPORTANT INFORMATION LEATHERETTE

• Never use disinfectant liquid or Hand Saniliser gel on the Leatherette handle bar as it may cause permanent stains and damage to the Leatherette surface.
  • Make sure Leatherette is kept clean by washing with mild soap and water. Always dry your hands after disinfecting or sanitising before touching the handle bar.
• Never use Velcro straps (eg changing bags, organisers) on Leatherette handle bars as this can damage the surface.

Air Wheels

• If you need to inflate the tyre, use an air pump with an adaptor for a car.
• For air pressure see marking on the tyre. Please neglect possible travel direction marks on the tires.
• The tyres are assembled in the factory. Any balancing problems can be easily adjusted by releasing the air and setting the tyres correctly on the rim and inflating to the correct pressure.
• With ozone and UV radiation the tyres may have small cracks. It does not affect handling and safety, and is not a complaint basis.

WARNING

Tyros can when in contact with PVC flooring or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Check that:

• all chassis locking devices, seat unit and carryout are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken.
• all plastic parts are not cracked or broken.
• the wheel bearings are in a good condition.
• all 7ips and velcro straps are securely fastened.
• all elastic straps are in a good condition.
• the brake works.
• the tyre air pressure is correct (see marking on tyre).
• check regularly for damage to the chassis, carrycot and seat unit.

PLEASE NOTE

• When in need of servicing with original parts and other technical issues that require a professional evaluation, Always get in touch with the store where you purchased your product.
  • The product you have chosen follows the

guarantee regulations.

- The parking brake consists of moving parts and requires regular maintenance to function correctly.

• To ensure effective functioning always make sure that the parking brake is well lubricated

- Immediately remove sand, snow, ice and dirt from any moving part of the braking system.

- Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the pram brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.

- If you use your Emmaljunga pram/stroller eg. on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

WASHING INSTRUCTIONS

Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with lukewarm water. Use mild liquid soap as detergent. Cleansing it thoroughly. Drip dry the fully extended hood.

Seat fabric and 5-point harness:

Remove the seat fabric from the chassis and remove the wooden seat board from the seat unit fabrics. Hand wash seat fabrics in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. Only wipe the nylon straps and plastic parts clean with a damp cloth. Do not hand wash. Make sure the harness is dry before reassembly.

Mattress

We recommend hand washing, drip dry

Carrycot:

Remove hood and mattress. Wipe the exterior fabric and the interior nonwoven material, clean with a damp cloth. Do not hand wash. Dry the pram body in its fully extended position.

47ALU S V1.146

General Information

Ironing: If any fabric part needs to be ironed, always use a 100 % cotton cloth in-between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 %) polyester and the interior fabrics on gentle heat (110°C on the iron).

Make sure all parts are completely dry before reassembly. Check all seams, edges and zips

You may apply a material protector on the exterior fabric after washing. Always apply before reassembly.

WARNING

Do not place your child/children in the stroller for at least 24 hours after applying a material protector. Reassemble after washing

WARNING

Make sure all parts are assembled correctly according to the instructions in this manual.

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which

the service has been carried out. Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements.

In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

6 month service

6

Date, stamp

Customer name, signature

24 month service

24

Date, stamp

Customer name, signature Custom

12 month service

12

Date, stamp

Customer name, signature

36 month service

Date, stamp

36

ture

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

Chassis

□1 pc Folded chassis
□ 1 pc Tray/Basket
7 pc Swivel wheels
□2 pc Wheels
□ 1 pc Instruction manual

Seat unit Ergo

□ 1 pc Seat unit Ergo with seat unit fabrics
incl 5-point harness
□ 1 pc Hood
□ 1 pc Bumper Bar

Carrycot

□1 or Carvocet
□1 pc Apron for carvocot
□1 pc Mattress

Seat unit Flat

☐ 1 pc Seat unit Flat with seat unit fabrics incl
5-point harness
1 pc Hood
□ 1 pc Bumper Bar

2. Check the functions of the chassis/seat unit/carrycot:

□ Check that the chassis locks on both sides.
☐ Check that the safety catch/safety buttons function correctly by folding the prism and checking that the safety catch/safety buttons are activated to prevent accidental folding.
☐ Check that the seat unit/carrycot clicks securely on to the chassis and that it looks on both sides.
□ Check the harness function on the seat unit by locking and unlocking the harness.
☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
☐ Check that the Emmaljunga Adjustable Comfort System - adjustable suspension function can be secured into the three positions on both sides of the chassis.
□ Check that the back rest can be adjusted and locked into each position.
☐ Check that the footrest on the seat unit can be adjusted and locked into each position.

3. Wheels and brakes:

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
□ Check that the parking device locks both rear wheels when engaged

4. Overall inspection of the product:

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all press studs and zips on the seat fabrics and the tray/basket are correctly and securely attached
☐ Make sure that there are no other visible differences on the chassis, seat fabrics, tray/basket and wheels.

ALU S V1.1

Emmaljunga

Service Protocol

EN

Service

Chassis/seat unit/carrycot function

• Check that the chassis locks on both sides.
• Check that the safety catch/safety buttons function correctly by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.
• Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.
• Check the harness function on the seat unit by locking and unlocking the harness.
• Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
• Check that the Emmaljunga Adjustable Comfort System - adjustable suspension function can be secured into the three positions on both sides of the chassis.
• Check that the back rest can be adjusted and locked into each position.
• Check that the footrest on the seat unit can be adjusted and locked into each position.

Wheels and brakes

Attach the wheels and make sure that the wheels lock into position.

Check that the parking device locks both rear wheels when engaged.

Visual overview

Check that all rivets, screws and nuts are securely fastened.

Check that all press studs and zips on the seat fabrics and the tray/basket are correctly and securely attached. Check for any other visible deviations on the chassis, fabrics, tray/basket and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

6 mo	12 mo	24 mo	36 mo

51ALU S V1.150

PLEJE OG VEDLIGEHOLD

ALMINDELIGE PLEJERÅD 107
REGELMAESSIG EFTERSYN 107
VIGTIG INFORMATION KUNSTLÆDER.... 107
VASKERÅD 108

ALU S

1) SLÄ STELLET OP

PLEJE OG VEDLIGEHOLD

ALMINDELIGE PLEJERÅD

Grid of empty rectangular boxes arranged in 5x5 rows and 5x5 columns (no text or symbols)

Hjul og brems

Sjekk at hjulene kan tas av og på samt låser på akslingene.

Sjekk at bremsen láser begge bakhjulene.

Generelt tilsyn

Sjekk at alle nagler- og skruer ser korrekt sammensatt ut.

• pidur on tookorras

Grid of empty rectangular boxes arranged in 4 rows and 5 columns (no text or symbols)

PLEIE OG VEDLIKEHOLD

GENERELLE PLEIERÄD 185

JEVNLIG TILSYN 185

VIKTIG INFORMASJON KUNSTSKINN 185

VASKERÁD: 185

ALU S V1.1

ALU S

1) OPPSLÅING AV UNDERSTELLET

Start med å bremse vognen. Slå opp handtaket

mens du holder imot på understellets side Pars på at bago undvartellåsens (1) op

Pass par at begge understenslasene (1) knappene (2) klikker inn i låst posision.

PLEIE OG VEDLIKEHOLD

GENERELLE PLEIERÅD

1) MONTÁŽ PRENOSNEJ VANIČKY

TAGHRIF IMPORTANTI DWAR IS-SIGURTÀ

Dan il-prodott jikkonforma ma' EN 1888-1:2018, EN1888-2:2018, EN 1466:2014. Il-bejgh jew il-kummerçjalizzazzjoni tal-prodott barra mill-UE u l-pajjizi tal-EFTA mhuwiex permess. Jekk jogħgbok żur www.emmaljunga.com ghall-aktar verzjoni ricenti ta' dan il-manwal qabel ma tuża

l-prodott. IMPORTANTI - AQRA L-ISTRUZZJONIJIET TAJJEB QABEL TUZA U ZOMMHOM GHAL REFERENCEZA FUTURA. Is-sigurtà tat-tifel/tifla tieghek tista' tiqi affettwata jekk ma ssegwix dawn l-istruzzjonijiet. DEJJEM AQRA FLIMKIEN MAL-MANWAL KORRISPONDENTI (Chassis, Carrycot, Sedil, Aécessorji)

TWISSIJA

• Qatt thalli t-tfal wahedhom
- Žgura ruħek li l-apparati li jinqaflu jkunu mdahħlin f'posthom qabel tużahom
- Biex tevita xi korriment zgura ruhek li t-tfal ma jkunux hdejk meta tiftah u titwi dan il-prodott
• Thallix lit-tfal jilagħbu b'dan il-prodott
- Uza ć-ćinga appena t-tfal jibdew joqogħdu bilqiegħda waħedhom
- Dan it-tip ta' siggu m'hux addattat biex joqoghdu tfal taht is-6 xhur
- Dejjem uża s-sistema ta' trażzin
- Icckkja li l-apparati li jinqaflu jkunu mdahhlin sewwa wara li tkun poggejthom f'posthom fil-pramm jew f'xi tip ta' siggu ghat-tfal
• Dan il-prodott m'hux tajjeb ghall-giri jew ghalliskejzjar Twissija skont EN1888-2:2018

TWISSIJA

• Inti responsabbli ghas-sigurtà tat-tifel/tifla.
• It-tfal ghandhom ikunu marbutin kull hin u qatt m'ghandhom jithallew wahedhom minghajr supervizjoni.
• lt-tifel/tifla m'ghandhomx ikunu f'pożizzjoni li jinqabdu f'partijiet li waqt li jsiru l-agğustamenti.
• Il-vettura tehtieg manutenzjoni regolari mill-utent.
• It-taghbija žejda, it-tiwi skorrett u l-užu ta' accessorji mhux approvati jistghu jikkawzaw hsara lit-tifel/tfal

ML

261ALU S V1.126

tieghek u/jew jaghmlu l-ħsara lill-vettura jew ikkissruha.

WAZNE INFORMACJE O WADZE & O PRZYSTOSOWANIU

Aerial view of a large industrial complex surrounded by autumn-colored trees and roads, with no visible text or signage.

Made in Emmaljunga / Sweden

© 2022 Emmaljunga Barnvagnsfabrik AB

Kronobergsvägen 14

282 68 Vittsjö

www.emmaljunga.com
