Product Type	Bread maker
Model	BM900ND
Brand	Gorenje
Rated Voltage	220-240 V ~ 50 Hz
Power Consumption	Not specified (typical 600-800 W)
Loaf Sizes	700 g or 1000 g
Number of Programs	12 (Basic, Whole Wheat, French, Quick, Sweet, Cake, Jam, Dough, Ultra Fast, Bake, Dessert, Home Made)
Crust Color Settings	Light, Medium, Dark
Delay Timer	Up to 13 hours
Keep Warm Function	Up to 60 minutes (except Quick, Jam, Dough, Ultra Fast)
Display	LCD with time and program indication
Viewing Window	Yes
Interior Light	Yes (1 minute auto-off)
Non-Stick Baking Tray	Yes (square shape)
Kneading Blade	Yes, removable
Measuring Cup and Spoon	Included
Hook for Blade Removal	Included
Ingredient Dispenser	Yes (automatic add-in tray)
Cleaning	Wipe with damp cloth; non-stick coating; lid removable
Safety Features	Overheat protection (HHH/LLL warning), automatic stop on error
Noise Level	Lc < 68 dB(A)
Dimensions (approx.)	Not specified (typical bread maker: 30 x 25 x 35 cm)
Weight (approx.)	Not specified (typical ~5 kg)
Spare Parts	Kneading blade, baking tray, measuring set available via service
Repair	Consult authorized expert; do not repair yourself
Environmental Compliance	WEEE directive 2002/96/EC

Frequently Asked Questions - BM900ND GORENJE

What should I do before first use?

Clean the baking tray and chamber with a damp cloth. Run the Bake program empty for about 10 minutes, then let it cool and clean again. Grease the kneading blade slightly.

What is the correct order for adding ingredients?

First add liquids (water, milk, etc.), then sugar, salt, and flour. Make a small well in the flour and add yeast or baking powder last. Ensure yeast does not touch liquid or salt.

How do I set the delay timer?

Select the program, crust color, and loaf size. Press the Time button to set the delay (including baking time). Maximum delay is 13 hours. Then press and hold Start/Stop for 3 seconds to activate. The display will count down.

Can I change the crust color?

Yes, use the Color button to select Light, Medium, or Dark. This option is available for programs: Basic, Whole Wheat, French, Quick, Sweet, Cake, Bake, Dessert, and Home Made.

How do I select the loaf size?

Press the Loaf button to toggle between 700 g and 1000 g. This option is active for Basic, Whole Wheat, French, and Sweet programs.

What does the HHH or LLL display mean?

HHH indicates the inside temperature is too high. Stop the program, let it cool for 10-20 minutes. LLL means too low; select the Bake program to raise the temperature. If E E0 or E E1 appears, the temperature sensor may be faulty; contact service.

How do I clean the bread maker?

Unplug and let cool. Wipe the baking tray and chamber with a damp cloth. Do not use abrasive cleaners. The lid can be removed for cleaning. Soak the kneading blade in water if stuck.

What happens if there is a power failure?

The machine has a memory function: if power resumes within 10 minutes, the program continues automatically. If longer, you need to restart with fresh ingredients.

How should I store homemade bread?

Store in a plastic bag or bread basket at room temperature for up to 3 days. For longer storage, seal in a plastic bag and refrigerate (up to 10 days). Homemade bread has a shorter shelf life than store-bought.

Can I use the delay function with perishable ingredients?

No, avoid using eggs, fresh milk, fruits, or onions when using the delay timer to prevent spoilage. Use dry or shelf-stable ingredients only.

USER MANUAL BM900ND GORENJE

Modern kitchen air fryer with digital display and control panel (no visible text or symbols)

BM 900 ND

Simple line drawing of a container with liquid inside, no text or symbols present

Kvas ali pecilni prašek

Suhe sestavine (moka, sladkor...)

Voda ali druga tekočina

1. Na vrhu kupa moke s prstom naredite majhno vdolbino in vanjo dodajte kvas. Pazite, da ne pride v stik s tekočino ali s soljo.

VELIČINA ŠTRUCE (loaf)

Pritisnite ovu tipku za odabir veličine štruce kruha od 700 ili 1000 grama. Imajte na umu da ukupno trajanje spravljanja kruha može varirati ovisno o veličini štruce. Gumb je aktivan samo za slijedeće programe pečenja: OSNOVNI, INTEGRALNI, FRANCUSKI i SLATKI kruh.

ODGODA (time)

1. Poklopac
2. Kuka
3. Merica
4. Kašičica za mjerenje
5. Kvadratna posuda za hleb
6. Ručka
7. Prozorčić
8. Kontrolna tabla
9. Posuda za hleb
10. Kućište
11. Lopatica za mešanje
12. Posuda za sastojke

OPIS KONTROLNE TABLE

Simple line drawing of a container with liquid and a small object inside, no text or symbols present

kvasac ili prašak (soda)

suvi sastojci

Important safeguards:

Before first use, please read the instruction manual carefully.

1. Before using the electrical machine, always follow basic precautions.
2. Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
3. The machine is intended for commercial use!
4. Before use, check if the voltage of wall outlet corresponds to the one shown on the rating plate.
5. Always switch off the machine, remove the plug from the socket whenever the machine is not in use, when attaching accessory parts, cleaning the machine or whenever a disturbance occurs.
6. In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the machine. Consequently, when selecting the location for your machine, do so in such a way that children do not have access to the machine. Ensure that the cable does not hang down.
7. Check the machine and the cable regularly for damage. If there is damage of any kind, do not use the machine.
8. Do not repair the machine by yourself, rather consult an authorized expert.
9. Do not use the machine with a damaged outlet. Have it replaced with equivalent plug from the manufacturer, our customer service department or a similar qualified person.
10. Keep the machine and the cable away from heat, direct sunlight, moisture, sharp edges, etc...
11. Never leave the machine unsupervised! When you do not use it, even if this is only for a moment, switch the machine off.
12. Use only original accessories.
13. Do not use the machine outdoors.
14. Do not place the machine in water or other liquid. Do not use the machine with wet or moist hands.
15. Should the machine become moist or wet, remove the plug off the socket immediately. Do not reach into the water.
16. Use the machine only for the intended purpose on the rating label of the machine.
17. Do not touch any of the moving or spinning parts of the machine.
18. Do not touch hot surfaces. Use handles or knobs.
19. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
20. Children should be supervised, so they do not play with the appliance.
21. When you remove the tray, be careful that you do not damage it.
22. Do not insert metal foils or other materials into the appliance. This can provide a higher risk for a fire or short circuit.
23. Never cover the appliance with a towel or any other material. Heat and steam must be able to come out. A fire can be caused if it is covered by, or comes in contact with combustible material.
24. Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
25. Noise level: Lc < 68 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Using the machine for the first time:

Check the baking tray and clean the rest of the baking chamber. Do not use sharp objects and do not rub! Tray is non-stick coated. Grease it and bake empty for about 10 minutes. Clean it again. Place the kneading bar on the axle in the baking area. Air the room if any unwanted smell appears.

Electrical connection:

The machine must only be connected to a correctly installed 220-240V, 50Hz safety socket.

As soon as you plug the bread maker into the socket, you will hear a beep and "3:00" will appear in the display after a short time. The two dots between the "3" and "00" won't flash constantly.

The machine is now ready to operate and is automatically set to program "1" (normal position), but did not started yet.

FUNCTIONS & OPERATION

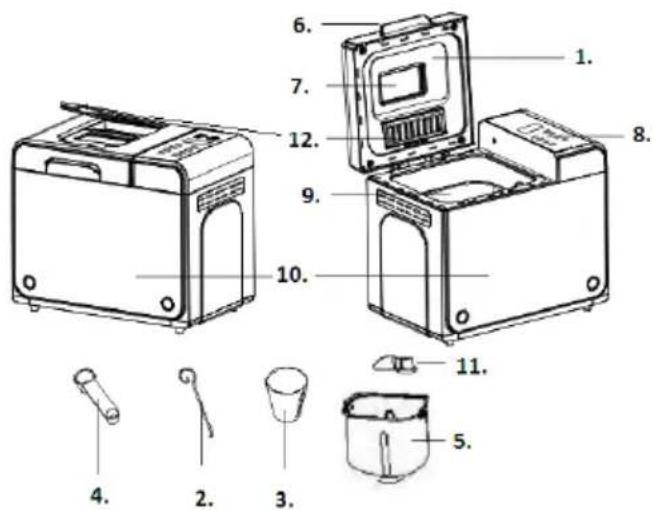

Know your bread maker

1. Lid
2. Hook
3. Measuring cup
4. Measuring spoon
5. Square baking tray
6. Handle
7. View window
8. Control panel
9. Bread baking tray
10. Housing
11. Kneading baking tray
12. Ingredient pan

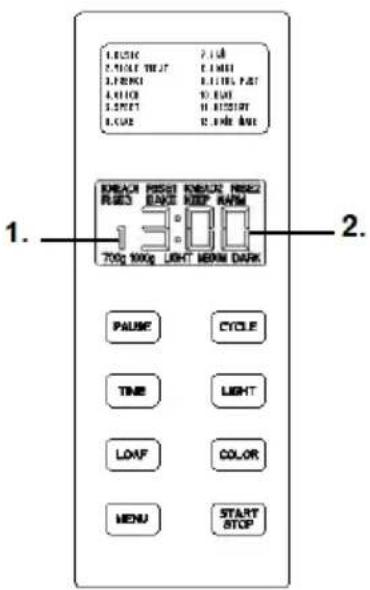

INTRODUCTION OF CONTROL PANEL

(The silkscreen is subject to change without prior notice.)

1. The chosen program.
2. The operation time for each program

Start/stop

Use the button to start and stop the select baking program.

To start a program, press the "START/STOP" button and hold it for approx. 3 seconds. You will hear short beep and the two dots in the time display will begin to flash. After the program starts, only SART/STOP, LIGHT LAMP and PAUSE buttons remain active.

To stop the program, press the "START/STOP" button and hold it for approx. 3 seconds, then you will hear a beep, which means that the program has been stopped.

Menu

It is used to set different programs. Every time you press MENU button, the program will change (followed by a short beep). Press the button continuously and 12 menus will appear on the LCD display. Select your desired program. The functions of 12 menus are explained below.

1. Basic: kneading, rising and baking normal bread. You may also add ingredients to increase flavour.
2. Whole wheat: kneading, rising and baking of whole wheat bread. It is not recommended to use the delay function as this can produce poor results.
3. French: kneading, rising and baking with a longer rise time. The bread baked in this menu will have a crisper crust and loose texture.
4. Quick: kneading, rising and baking loaf with a longer time. The bread baked in this menu will have a crisper crust.
5. Sweet: kneading, rise and baking sweet bread. You may also add ingredients to add flavour.
6. Cake: kneading, rising and baking, rising with soda or baking powder.
7. Jam: cooking jams and marmalades. Fruit or vegetables must be chopped before putting it into the baking tray.
8. Dough: kneading and rising, but without baking. Remove the dough and make bread rolls, pizza, steamed bread, etc.
9. Ultra fast: kneading, rising and baking loaf in a short time. The result is a dense texture.
10. Bake: only baking, no kneading and rising. Also used for increasing the baking time on selected settings.
11. Dessert: kneading, rising and baking dessert.
12. Home made: this program allows you to set programs manually (kneading, rising, baking, keep warm).

The time range of each program as following:

KNEAD1: 6-14 minutes

RISE1: 20-60 minutes

KNEAD2: 5-20 minutes

RISE2: 5-120 minutes

RISE3: 0-120 minutes

BAKE: 0-80 minutes

KEEP WARM: 0-60 minutes

Under the menu of Home Made,

a) With MENU button choose program HOME MADE. You will hear a short beep after each next press.
b) Press CYCLE button once, KNEAD1 will appear on LCD, then press TIME button to adjust the minutes, and press CYCLE again to confirm.
c) Press CYCLE button for the next step, RISE1 will appear on LCD, then press TIME button to adjust the time. By holding TIME, the number will increase rapidly. Press CYCLE button to confirm.
d) In such way set the remaining steps. When you set all steps, press START/STOP button to exit the setting.
e) Press START/STOP button again to activate the operation.

Note: the setting can be memorized and can be used for in next use.

Colour

With the button you can select LIGHT, MEDIUM or DARK colour for the crust. You will hear a short beep after each press. This button is used only for the programs BASIC, WHOLE-WHEAT, FRENCH, QUICK, SWEET, CAKE, BAKE, DESSERT and HOMEMADE.

Loaf

Press this button to select the weight of the bread: 700g or 1000g, baking time depends on it. You will hear a short beep after each press. This button is used only for the programs BASIC, WHOLE-WHEAT, FRENCH, SWEET.

Time

If you do not start working immediately, you can use the TIME button to set the delay time. Set the delay function:

1. Select your menu, colour, loaf size.
2. Set the delay time by pressing TIME button. The delay time should include the baking time of chosen menu. Suppose it is 8:30PM now and you want the bread to be baked at 7:00Am the next day, so the delay time is 10 hours and 30 minutes. Press TIME button continuously until 10:30 appears on the display. The leap of each press is 10 minutes. Press and hold the TIME button for 0.5s, the time will advance rapidly at a rate of 60min/s. The maximum delay time is 13 hours.
3. Press the STOP/START button and hold it for approx. 3 seconds to activate this delay program. You will see the dots flashing and LCD will start to count down the remaining time.

Note:

1. This button can not be used for the programs QUICK, JAM, ULTRA FAST and BAKE.
2. Do not use any perishable ingredients such as eggs, fresh milk, fruits and onions in the day menu.

Pause

After starting up, press PAUSE button at any time and hold it for approx. 3 seconds. The operation will be paused, but the setting will be memorized and remaining time will flash on the LCD. By pressing and holding PAUSE button for approx. 3 seconds again, the program will continue.

Note: in the lock mode, you must cancel lock before operating the PAUSE key.

Light

In order to view the baking process, press the LIGHT button. The light will switch off automatically after 1 minute. Pressing the button again within 1 minute, will enable you to switch the light off manually.

KEEP WARM

Bread is automatically kept warm for 1 hour after baking. If you would like to take the bread out during keep warm, cancel the program off by pressing the START/STOP button. Programs QUICK, JAM, DOUGH and ULTRA FAST do not have keep-warm function.

MEMORY

If the power supply has been interrupted during the course of making bread, the process of making bread will continue automatically within 10 minutes, even without pressing START/STOP button. If the interruption time takes longer 10 minutes, baking process must be restarted. Put new ingredients into the bread maker. If the interruption happened before dough rising, press START/STOP for new beginning.

ENVIRONMENT

The appliance may work well in a wide range of temperature, but there may be a difference in loaf size. The loaf will be bigger in a very warm and smaller in a very cold room. The temperature should be from of 15 °C to 34 °C .

WARNING DISPLAY:

1. If the display shows "HHH" after pressing the START/STOP button, it means the temperature inside is still too high (followed by continuous beep sounds. Stop the program. Press the START/STOP button to return to the default setting of the appliance and stop the sound. Open the lid and let the machine cool down for 10 to 20 minutes.
2. If the display shows "LLL" after pressing the START/STOP button (except the programs JAM and BAKE), it means the temperature inside is too low (followed by continuous beep sounds). Press the START/STOP button to return to the default setting of the machine and stop the sound. Then select the BAKE program and make the temperature inside the chamber increase rapidly.
3. If the display shows "E E0" or "E E1" after pressing START/STOP button, it means that the temperature does not work (followed by continuous beep sounds). Press the START/STOP button to stop the sound. Please go to the nearest authorized expert.

BEFORE THE FIRST USE

1. Please check whether all parts and accessories are complete and free of damage.
2. Clean all the parts according to the section "Cleaning and Maintenance". Do not rub!
3. Set the bread maker on BAKE mode and bake empty for about 10 minutes. Then let it cool down and clean all the detached parts again.
4. Dry all parts thoroughly and assemble them, the appliance is ready for using.

HOW TO MAKE BREAD

1. Place the baking tray in position, then turn it in clockwise until it clicks in correct position. Fix the kneading blade onto the drive shaft. For easier removal of blades at the end, oil them with butter.
2. Place ingredients into the baking tray. It is recommended first to put water or other liquid in the tray, then sugar, salt and flour. As the last ingredient always add baking powder or yeast.

Simple line drawing of a container with liquid inside, no text or symbols present

Yeast or soda

Dry ingredients

Water or liquid

Note: the maximum quantities of the flour and yeast which may be used refer to the recipe.

1. Make a small hole into the flour with finger, put in yeast and make sure it does not come into contact with the liquid or salt.

Note: the maximum quantity of flour and yeast is 600g and 3 teaspoons. It is suggested never exceed the specific quantity, otherwise the excessive rising will make the bread overflow.

1. For the programs of BASIC, WHOLE WHEAT, FRENCH, SWEET, CAKE and HOME-MADE, put the fruit ingredients into the ingredient tray and then close the ingredient tray cover.

Note: During operation, the ingredient tray cover will automatically open and the ingredients will pour into the baking tray.

1. Close the lid gently and plug the power cord into a wall outlet.

2. Press the MENU button until your desired program is selected.

3. Press the COLOR button to select the desired crust colour.

4. Press the LOAF button to select the desired size (700g or 1000g).
5. Set the delay time by pressing TIME button. If you want the bread maker to start working immediately, skip this step.
6. Press the START/STOP button and hold it for approx. 3 seconds to start working.
7. Once the process is completed, you will hear 10 beeps and the LCD will go back to the default setting of the appliance. Press the START/STOP button and hold it for approx. 3 seconds to stop the process and take out the bread. Open the lid, put on kitchen gloves, turn the baking tray anticlockwise and take out the tray.

Note: the baking tray and bread may be very hot! Always handle with care.

1. Let the baking tray cool down before removing the bread. Then use non-stick spoon to gently loose the sides of the bread from the tray.
2. Turn baking tray upside down onto a wire cooling rack or clean cooking surface and gently shake until bread falls out.
3. Let the bread cool for about 20 minutes before slicing it. It is recommended to slice bread with electric cutter. Do not use fruit knife or kitchen knife, otherwise the bread will fall to pieces.
4. If you are out of the room or did not press START/STOP button at the end of operation, the bread will be kept warm automatically for 1 hour.
5. When the bread maker is not in use or operation is complete, unplug the power cord.

Note: Before slicing the loaf, use the hook to remove out the kneading blades, hidden on the bottom of loaf. The loaf is hot, so never use your hands to remove the kneading blades.

Note: If you did not eat the whole bread, we advise you to store the rest in plastic bag or bread basket. Bread can be stored for about 3 days on room temperature. For longer storage, pack it in sealed plastic bag and then place it into the refrigerator. Bread is consumable max 10 days. Storage time for homemade bread is shorter than time for bread in market.

SPECIAL INSTRUCTIONS

1. For Quick preparing of small bread, rolls..

Prepare then with baking powder or baking soda. We suggest that you put all liquid to the bottom of baking tray and dry ingredients on top. Be alert during the mixing, dry ingredients may gather in the corners of the tray. Mix the ingredients well.

2. Quick program

The bread maker can bake loaf within 1 hour 38 minutes with QUICK function. For this program you need hot water (48 °C – 50 °C). Because the water temperature is very critical for baking, measure it with thermometer. If the temperature is to low, the bread will not rise to expected size. If the water temperature is too high, the fungus in the yeast will be killed before rising, which also affects the baking performance.

CLEANING AND MAINTENNANCE

Disconnect the appliance from the power and let it cool down before you start to clean it.

1. baking tray: Rub inside and outside with a wet cloth. Do not use any sharp or abrasive agents.
2. kneading bar: If the kneading bar is difficult to remove from the axle, soak the baking tray in water.
3. lid and window: The lid can be removed for cleaning. Clean the lid and appliance inside and outside with a wet cloth.

This appliance conforms the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Environment

Do not throw away the appliance with the normal household waste at the end of its life. Hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

RO

KEEP WARM MELEGEN TARTÁS:0-60 perc

KEEP WARM: 0-60 мин.

Меню домашен хляб,

Simple line drawing of a container with liquid inside, no text or symbols present

Дріжджі або сода

Сухі інгредієнти

KEEP WARM (UDRŽIAVANIE TEPLA): 0-60 minút

Pod ponukou Home Made,

a) Jedenkrát sa dotknite tlačidla CYCLE, na LCD displeji sa objaví KNEAD1, potom sa dotknite tlačidla TIME na nastavenie minút, a dotknite sa tlačidla CYCLE na potvrdenie času pre tento krok;

VÝDRŽ TEPLOTY: 0–60 minut

Program Home Made (domácí)

Simple line drawing of a container with liquid and a small object inside, no text or symbols present

Дрожжи или сода

Сухие ингредиенты
