USER MANUAL Xenon C 122 ECG

Three black ECG audio synthesizer units with digital display and control knobs (no visible text or symbols on devices)

XENON C 122

CD MIKROSYSTÉM

NÁVOD K OBSLUZE

CD MIKROSYSTÉM

NÁVOD NA OBSLUHU

MINIWIEŻA CD

INSTRUKCJA OBSŁUGI

CD MIKRO HIFI RENDSZER

HASZNÁLATI ÚTMUTATÓ

CD-MIKROSYSTEM

BEDIENUNGSANLEITUNG

CD MICROSYSTEM

INSTRUCTION MANUAL

CZ

SK

PL

HU

DE

EN

OBSAH

BEZPEČNOSTNÍ UPOZORNĚNÍ 3

VLASTNOSTI 4

POPIS 4

ZAPOJENÍ......5

DÁLKOVÉ OVLÁDÁNÍ......6

ZÁKLADNÍ REPRODUKCE 6

ŘEŠENÍ POTÍŽÍ......8

TECHNICKÉ ÚDAJE 9

BEZPEČNOSTNÍ UPOZORNĚNÍ

POHLED SHORA:

Technical line drawing of a rectangular electronic device with a circular component and mounting ports (no text or symbols)

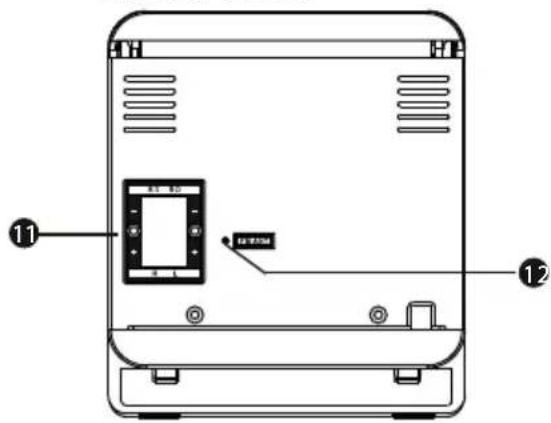

ZADNÍ PANEL:

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical battery with internal compartments (no text or symbols)

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Poznámka:

ZADNÝ PANEL:

POHL'AD ZHORA:

Technical line drawing of a rectangular electronic device with circular top and side ports (no text or symbols)

1. HLASITOST +
2. PREDCHÁDZAJÚCI
3. STANDBY (zapnutie/vypnutie)
4. DISPLEJ
5. PLAY (prehrávanie/pauza)
6. NASLEDUJÚCI
7. HLASITOST -
8. SOURCE (zdroj signálu)
9. VSTUP AUX IN
10. VSTUP USB
11. REPRODUKTOROVÉ SVORKY
12. KONEKTOR FM ANTÉNY
13. PUSH (otvorenie CD priehradky)

ZAPOJENIE

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical battery with internal compartments (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Poznámka:

WIDOK Z GÓRY:

Technical line drawing of a rectangular electronic device with a circular component and two ports (no text or symbols)

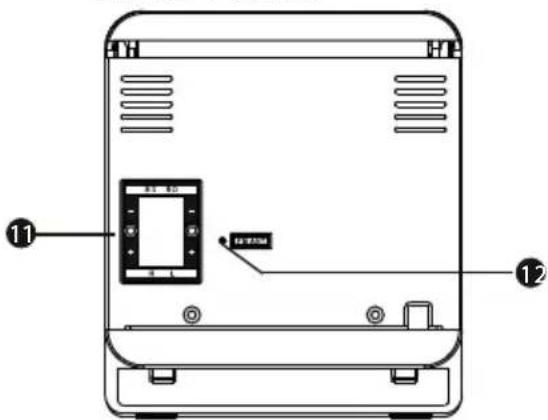

PANEL TYLNY:

Wyjście na głośniki

Używanie pilota

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a cylindrical device with internal components (no text or symbols)

Simple line drawing of a door handle with an arrow indicating direction (no text or symbols)

Uwaga:

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical device with internal components, no text or symbols present

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Megjegyzés:

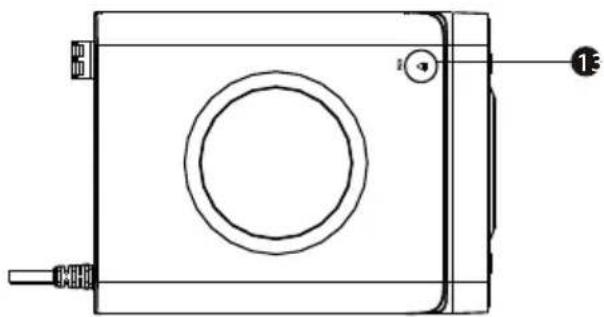

OBENANSICHT:

Technical line drawing of a rectangular electronic device with a circular top and two ports (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical battery with internal compartments (no text or symbols)

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Anmerkung:

SAFETY INFORMATION....41

FEATURES 42

DESCRIPTION....42

CONNECTION 43

REMOTE CONTROL....44

BASIC PLAYBACK 44

TROUBLESHOOTING....46

TECHNICAL SPECIFICATIONS....47

SAFETY INFORMATION

Read carefully and keep for future use!

• Read this guide thoroughly before connecting and using the device. Keep the manual for future reference.
• Do not open the device box. There are no elements inside that can be configured by the user. Have a qualified service technician perform repairs on the device.
• Turn the equipment off when you are not using it. If you do not plan on using the device for a longer period of time, turn it off and unplug the device. (The plug enabling the complete disconnection from the power network should be easy to access.)
• Do not place the system in areas exposed to heat sources or direct sunlight.
• Do not place the system in areas exposed to moistness or rain.
• The device should not be exposed to dripping or splashing water and objects containing liquids should not be placed upon it, for example vases.
• Place the device on a horizontal, flat and solid surface with good ventilation. Do not cover the air vents. Doing so may damage the device by overheating.
• Use a soft and clean towel to clean the outer surface. Do not use chemicals or cleaning detergents for cleaning the device.
• This document is only an guide for using the device and is not considered an authoritative criterion for configuration.
• Use only accessories recommended by the manufacturer.

WARNING:

Do not expose batteries to excessive temperatures, e.g. direct sunlight, fire etc.

ATTENTION:

Danger of explosion if the batteries are replaced improperly. Batteries shall only be replaced with the same type.

The lightning symbol warns the user about dangerous voltage inside the device box, which could cause injury by shock upon coming into contact with the internal elements of the device.

The exclamation mark symbol warns the user about vital information in the manual.

To reduce the risk of fire or electric shock, do not remove the cover of the device. a qualified service technician perform repairs on the device.

This symbol represents that the device is classified under the class 1 laser equipment group. Harmful radiation may result in the laser ray coming into direct contact with the human body.

FEATURES

Thank you for purchasing this device. Read this guide thoroughly before connecting and using the device. Keep the manual for future reference.

• Compatible with CD, CD-R, CD-RW, MP3 etc.
• USB slot for playing media from a USB memory disk.
• All functions can be controlled using a remote controller.
• FM Stereo radio.

Package contents:

Operating manual Remote controller

DESCRIPTION

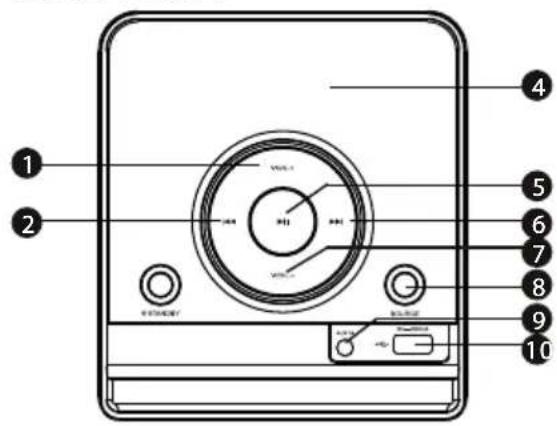

FRONT PANEL:

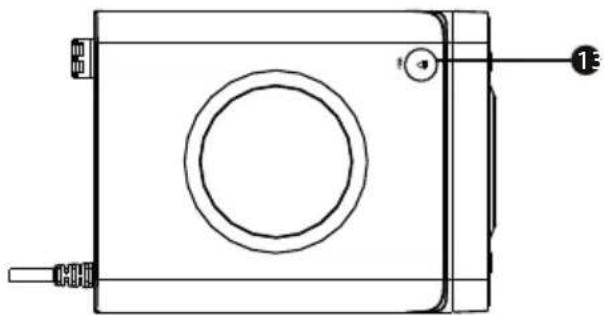

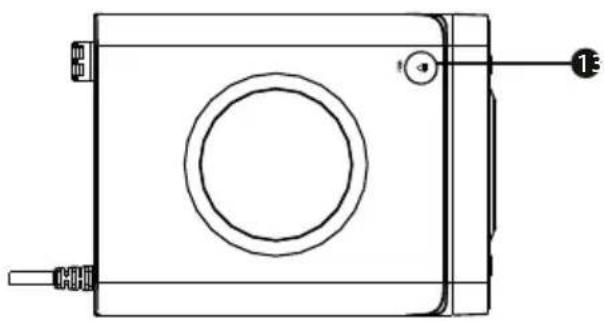

VIEW FROM ABOVE:

Technical line drawing of a rectangular electronic device with a circular top and side ports (no text or symbols)

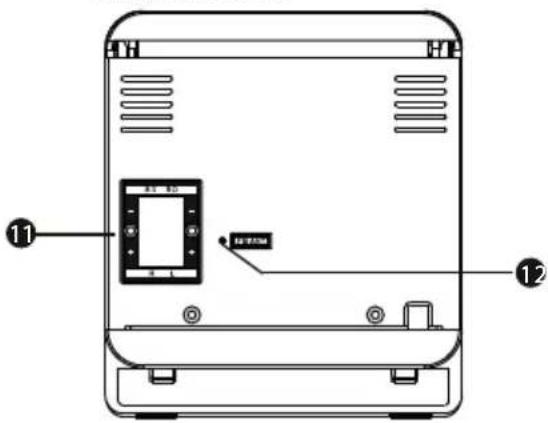

BACK PANEL:

1. VOLUME +
2. PREVIOUS
3. STANDBY (ON/OFF)
4. DISPLAY
5. PLAY (play/pause)
6. NEXT
7. VOLUME -
8. SOURCE
9. AUX IN
10. USB PORT
11. SPEAKER TERMINALS
12. FM ANTENNA CONNECTOR
13. PUSH (opens the CD tray)

CONNECTION

Speakers output

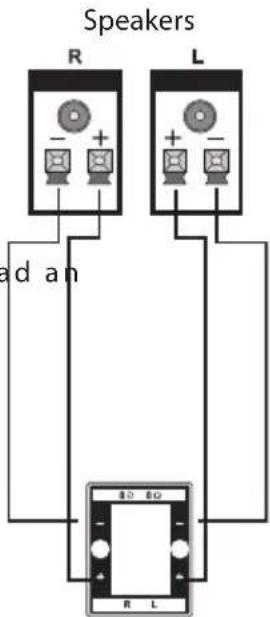

Plug the speakers into the respective speaker terminals using audio cables (white to +, red to -).

AUX IN

This device is equipped with an input which can be used to lead an analog stereo audio signal to the device from external systems, such as VCD or CD players, video cameras or MP3 players etc.

Using an audio cable, connect the terminals of the external player to the AUX IN input of this device.

You can listen to music from the connected external source by pressing the SOURCE on the device or remote controller.

Speakers output

Using the remote controller

Insert batteries into the remote controller. Direct the controller towards the remote controller sensor on the head panel. The remote controller operates with a reach of 8 metres under a maximum angle of 30 degrees horizontally.

Inserting the batteries

1. Remove the cover of the battery compartment on the back side of the remote controller.

2. Insert two AAA/1.5 V batteries into the battery compartment. Make sure the battery polarity correct, marked + and - on the inside of the battery compartment with symbols.

3. Return the cover to its place.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical battery with internal components (no text or symbols)

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Note:

• If you do not plan to use the remote controller for a longer period of time, take the batteries out.
• Do not combine old and new batteries or different types of batteries.
• Dead batteries can leak and damage the remote controller.
• Do not expose batteries to excessive heat, e.g. direct sunlight, fi re etc.
• Be considerate towards the environment and dispose of old batteries according to local valid regulations.

EN

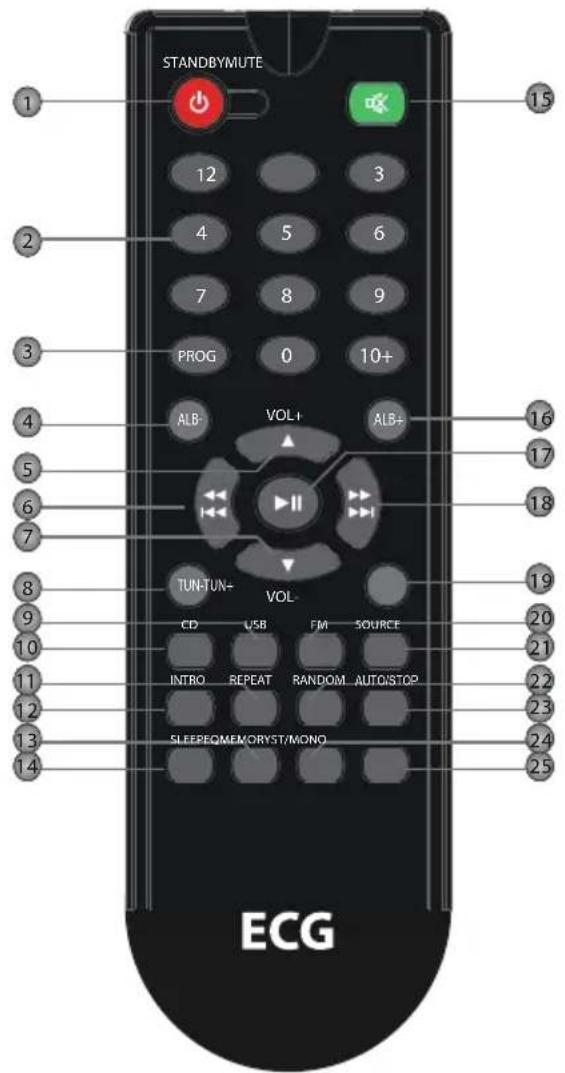

REMOTE CONTROL

1. STANDBY (ON/OFF)

2. NUMERICAL BUTTONS

3. PROGRAM

4. ALB-

5. VOLUME+

6. BACK / PREVIOUS

7. VOLUME-

8. TUNING -

9. USB

10. CD

11. REPE AT

12. INTRO

13. EQ

14. SLEEP (timer switch)

15. MUTE

16. ALB+

17. PLAY/PAUSE

18. FORWARD / NEXT

19. TUNING +

20. FM

21. SOURCE

22. RANDOM

23. AUTO / STOP

24. MEMORY

25. ST/MONO

BASIC PLAYBACK

CD control

AUTO/STOP

Press to stop playback.

Press to pause playback. Press again to resume playback.

Press to skip to next chapter/track.

Hold to skip forward quickly.

Press to return to previous chapter/track.

Hold to skip back quickly.

VOL+

Press VOLUME+ to increase the volume.

VOL-

Press VOLUME- to decrease the volume.

PROGRAM

With playback stopped, insert a CD and press PROGRAM to enter programming mode.

Select a track directly using the numerical buttons or use / and press PROGRAM

again to confirm the selection. Press 🏠 to begin program playback.

MUTE

Press to temporarily mute sound. Press again to restore sound.

RANDOM

Press to start random playback.

REPEAT

Switch between repeat playback functions with each press of the button.

SLEEP

Press again to set the sleep timer or select SLEEP OFF to cancel the automatic shutdown function. The device will automatically turn off after the time set lapses. Press STANDBY to restart the device.

INTRO

Pressing this button will play the first 10 seconds of each track on the disk.

EQ

Pressing this button switches equalizer modes.

ALB +/-

Pressing this button skips between directories containing tracks, only for MP3.

FM radio control

The following buttons are used to operate the FM radio. Press SOURCE to select FM radio mode.

ST/MONO

Press to switch between Mono and Stereo modes of FM reception.

TUN +/-

• TUN+: press to fi ne tune the frequency (up).
• TUN-: press to fi ne tune the frequency (down).
• Hold TUN+/- to continuously browse up/down through frequencies.

MEMORY

After tuning a new station, press MEMORY and select the preset number under which you wish to store the station. Confirm by pressing MEMORY again.

EN

Preset stations can be selected via numerical buttons.

For example, pressing 2 will select preset 2. To tune preset 15, first press 10+ and then 1 and 5.

Press to skip to next preset.

Press to skip to previous preset.

NOTE: In FM radio mode, buttons VOLUME+/-, MUTE are also active. For more information see "CD control".

TROUBLESHOOTING

Before bringing the device to the repair centre, please check the following table.

Symptom Cause Correction
No power • The power supply is not properly connected to the socket.		• Check the proper connection of the power supply.
SoundNo sound or distorted sound.	• Audio cables are not connected properly.• The volume is set to min. • Increase the• The sound is muted.	• Connect the audio cables properly.volume.• Press MUTE on the controller to activate the sound.• Press PLAY/PAUSE.
Cannot play disk	• The disk is inserted improperly.• The parent lock classification coded on the disk is higher than the parent lock level set on the device.• The disk is not compatible with this device.• The disk is contaminated.	• Make sure the disk is inserted with the label facing upward.• Change the parent lock settings.Clean the disk
After connecting a USB device, the device stops working	• The connected USB device most likely is a certified type.	• The device does not play uncertified USB devices. In case the player stops working, turn it off , unplug the power cord from the socket and remove the USB device. Plug the power cord back in. The device should work normally.
The buttons on the device do not work	• The device is experiencing interference caused by static electricity etc.	• Turn the device off and unplug from the socket. Plug the power cord back in and turn on the device.
Symptom Cause Correction
The remote controller does not work	There are no batteries in the remote controller.The batteries are dead.The remote controller is not directed at the remote controller sensor.The remote controller is outside of its operating range.The device is turned off .	Insert two AAA/1.5 V batteries.Replace the batteries with a new set.Make sure the remote controller is directed at the remote controller sensor.Make sure the remote controller is close enough to the device.Turn the device off and unplug from the socket. Turn the device back on.

TECHNICAL SPECIFICATIONS

Power AC ~100–240 V, 50/60 Hz
Power input 20 W
Standby power input <1 W
Operating conditions	Temperature -10 °C ~	+35 °C
	Relative humidity 5 % ~	90 %
CD	Frequency characteristic 20	Hz ~ 20 kHz
	S/N ratio (fi Iter A) >80 dB	(1 kHz)
	Dynamic range ≥70 dB	(1 kHz)
	Distortion and noise	≤-60 dB (1 kHz)
	Fluctuation	Under measurable level
Tuner	FM band range	87,5 ~ 108 MHz
Power output (max.)		2.5 W × 2
Frequency characteristic		±1.5 dB (20 Hz ~ 20 kHz)

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Changes in text and technical parameters reserved.

08/05

EN

www.ecg.cz
