Muti WRK2500 - Food processor Eldom - Free user manual and instructions

Product Type	Food Processor
Brand	Eldom
Model	Muti WRK2500
Dimensions (H x W x D)	40 cm x 25 cm x 30 cm
Weight	4.5 kg
Power Rating	1000 W
Bowl Capacity	2.5 L
Main Functions	Chopping, Slicing, Shredding, Blending, Dough Kneading
Speed Settings	Variable speed with pulse function
Material	Plastic body, Stainless steel blades
Safety Features	Safety lock system, Non-slip feet
Cleaning	Detachable parts are dishwasher safe
Accessories Included	Chopping blade, Slicing disc, Shredding disc, Dough hook, Blending attachment
Spare Parts Availability	Replacement blades and discs available
Warranty	2 years manufacturer warranty
Power Cord Length	1.2 m
Country of Origin	Poland

Frequently Asked Questions - Muti WRK2500 Eldom

How do I assemble the food processor?

Place the bowl on the motor unit, align the handle with the lock mark, and twist clockwise until it clicks. Attach the desired disc or blade, then secure the lid by aligning the arrows and turning until locked.

Can I blend hot liquids in the Muti WRK2500?

No, the bowl is not designed for hot liquids. Allow ingredients to cool below 60°C before processing to avoid warping or leaking.

How do I clean the food processor?

Detach all removable parts (bowl, lid, discs, blades). Wash them with warm soapy water or in the dishwasher (top rack). Wipe the motor base with a damp cloth. Do not submerge the base in water.

What is the maximum operating time?

Do not run the motor continuously for more than 2 minutes. Allow it to cool for at least 10 minutes between uses to prevent overheating.

My food processor stops suddenly during use. What should I do?

This may be due to overload. Unplug the unit, remove some ingredients, and let it cool for 15 minutes. Check that the safety lock is engaged properly.

Can I grind coffee or spices in this machine?

It is not recommended. The food processor is designed for chopping vegetables, kneading dough, and blending soft foods. Hard spices or coffee beans may damage the blades or motor.

How do I replace the blades?

Hold the metal stem at the bottom of the bowl and twist the blade counterclockwise to remove. Attach the new blade by aligning the notch and twisting clockwise until tight. Always unplug before handling blades.

Is the bowl microwave safe?

No, the bowl is not microwave safe. Use only for processing food with the food processor.

What is the warranty period?

Eldom provides a 2-year warranty from the date of purchase covering manufacturing defects. Retain your receipt as proof of purchase.

Where can I find spare parts?

Spare parts such as blades, discs, and bowls can be ordered through Eldom's official website or authorized service centers. Use the model number WRK2500 when ordering.

USER MANUAL Muti WRK2500 Eldom

White kitchen appliance with a blender and bowl, labeled 'Planetary Masterchef' (no additional text or symbols visible)

_

| _

一

1

/EN/ Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

Close-up of a mechanical assembly showing a spring-loaded component and a rotating base (no text or symbols visible)

3D rendering of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols visible)

Close-up of a transparent plastic toilet with handle and lid, partially covered in a white bowl (no text or symbols visible)

WSKAZÓWKI BEZPIECZEŃSTWA

IMPORTANT. When using an electrical appliance, always observe the basic safety principles to reduce the risk of fire, electric shock, or injury, including:

- Before using the appliance for the first time, please read carefully these Instructions for Use.

- The appliance should be connected to sockets compliant with current parameters given on the casing.

- The appliance must always be disconnected before cleaning and maintenance as well as in case of malfunction or after operation.

- The appliance should be disconnected by pulling the plug, not the power cord.

- Do not use in the open air.

- Do not touch the appliance with wet or moist hands or feet.

- The appliance must not be immersed in or sprinkled with water.

- Keep out of children's and animals' reach.

- In no case do press the release button for whisks and dough hooks during the operation.

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

- When in operation, do not leave the appliance unattended.

- Do not exceed the maximum time of continuous operation of the appliance.

- Before switching the appliance on, make sure all its elements are installed correctly.

- Do not switch the appliance on without any products.

- Do not raise the mixer head (4) while operation.

• Do not use the appliance, if the knife is damaged.
• Do not sharpen blades. Replace them, if they do not cut properly or if they are worn out.
• Do not touch the knife when the appliance is in operation. When the appliance is unplugged, wait until the knife stops revolving before touching it.
• Use only with the originally included accessories.
• The power cord and the whole appliance should be regularly checked for damage. Do not switch the appliance on, if any damage has been found.
• Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.
• The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
• Remove and safely dispose of the packaging materials and the labels before first using the appliance
• To eliminate the risk of small children's choking, remove and safely dispose of the protective cover on the appliance's power plug.
• Do not place the appliance near benches or table edges when it is operating. Make sure that the surfaces are even, clean and free from water and other substances. Vibration during operation can
• cause the appliance to move.
• Do not use the appliance on a draining board
  • Take special care when taking out food from the bowl, making sure that the motor and flat beater, whisk, or dough hook have completely stopped. Make sure that the rotational-speed knob is

• in the "0" position, and remove the power plug from the wall socket, before unlocking the mixer head and placing it in the raised position (vertical). The flat beater, whisk, or dough hook should

• be removed from the mixer head before taking out the food from the bowl.

• Before changing accessories, leaving the appliance unattended, cleaning, or approaching moving parts, switch off the appliance and disconnect it from the power supply.
• Always make sure that the rotational speed knob is in the "0" position, and remove the plug from the power socket, before attempting to move the appliance before assembling or disassembling it when not in use, and cleaning or storing it.
• Make sure that the mixer head is locked in the closed (horizontal) position when not in use, and before storage.
• Always remove the flat beater, whisk, or dough hook from the appliance before cleaning.
• Do not place any of the following materials inside the unit: Paper, cardboard, plastic and the like.
• Do not turn the device on when the container is not properly placed on the casing of the engine or when the lid with measure is not properly placed.
• Always place your hand on top of the blender when you are operating the device.
• Before taking the container out from the casing of the engine or before raising the lid, turn the device off (switch in the position "0") and wait until the blade will completely stop. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Oversized foods or metal utensils must not be inserted in the appliance as they may cause a fire or risk of electrical shock.
• Do not put any part of the appliance in a microwave oven.
• Do not leave the appliance unattended when in use. Children should be supervised to ensure that they do not play with the appliance.
• Do not use the appliance for purposes other than those described in the instructions manual, to avoid injury resulting from misuse.
• Completely stretch the power cord before use.

- The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

CAUTION:

BEFORE INSTALLING THE ATTACHMENTS, MAKE SURE THAT THE ROTATIONAL-SPEED KNOB IS IN THE "0" POSITION, AND THE POWER CORD IS DISCONNECTED FROM THE POWER SOCKET.

INSTRUCTIONS MANUAL FOR SPECIAL-CORDS SET

The appliance is equipped with a short power cord to reduce the risk of its getting tangled up or people's tripping over a longer cord.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

EN

OPERATING INSTRUCTION PLANETARY MIXER WITH BLENDER WRK2500

GENERAL DESCRIPTION

1. Base
2. Power switch with speed control
3. Lock button
4. Base arm
5. Blender seat
6. Head
7. Bowl
8. Mixing attachment
9. Kneading attachment
10. Beater attachment
11. Lid with an opening
12. Stopper with a measuring cup
13. Blender lid
14. Blender container
15. Backlight

TECHNICAL DATA

• power: 600 W
• MBP - motor block power: 1200 W
• supply voltage: 220-240 V \~50 Hz
• max. time of continuous operation: MIXER - 10 minutes, BLENDER - 3 minutes
• idle time before recommencing operation: MIXER - 30 minutes, BLENDER - 20 minutes.
• bowl capacity 5 litres

Recommended speed of operation for various attachments - fot. 1.

BEFORE USE

Before starting the food processor for the first time: read this instruction

• make sure that no components are damaged
• clean the parts that come into contact with food
• place the device on a flat, hard and stable surface

• PLANETARY MIXER

INSTALLATION

• make sure that the device is disconnected from the mains, and the selector switch (2) is set to "0"
• make sure that the blender seat (5) is covered.
• press the lock button (3) and swing out the base arm (4) until it locks
• place the bowl (7) on the base (1) in its intended place and lock the bowl by turning it right
• fix one of the attachments (8,9,10) into the head (6). by inserting the attachment in the head and locking it by turning it left fot. 2
• press the button (3) and lower the base arm (4)

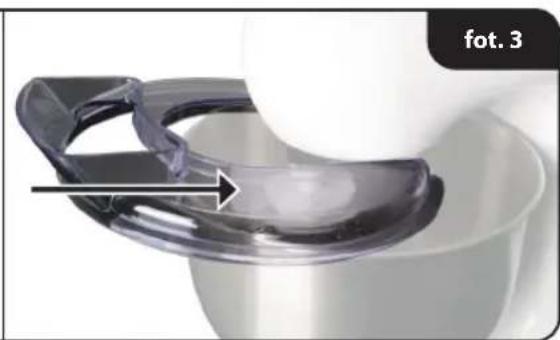

• place the cover (11) by sliding it onto the bowl (5) fot. 3

HOW TO USE

• before starting the device, make sure that all the components are properly installed
• connect the device to the mains
• to start the food processor use the selector switch (2). To choose one of 8 different speeds of operation change the position of the selector switch (2).
• the device is equipped with the "slow start" function – it reaches the desired speed after a few seconds.
• to activate pulsed operation turn the selector switch (2) in position "P". Releasing the selector switch automatically returns it to position "0".
• the ingredients may be added both before mounting the bowl on the base, and during the operation of the device via the opening in the cover (11)

NOTE:

Choose the speed adequate for the type of the attachment fot. 1

The speed should be also adjusted to the consistency of the processed ingredients.

After use carry out the following:

• set the selector switch (2) in position "0" and wait until the attachment stops moving
• remove the cover (11)
• swing out the base arm (4) by pressing the lock button (3)

Exercise caution when opening the base arm (4). It is recommended to hold it from top so as not to open it too rapidly

• remove the attachment by turning it right
• unlock the bowl (7) by turning it left and remove it from the base (1)

NOTE

The device will not start if the base arm (4) is not lowered and locked.

The device will also not start if the selector switch (4) is not set to "0" when the arm (4) is being lowered. To start the device in this case, after releasing the arm, turn the selector switch (2) to "0", and then select the speed.

If the base arm (4) is raised during the operation, the device will stop. To resume the operation of the device, lower the arm (4), turn the selector switch (2) to "0", and then select the speed.

NOTE

Do not exceed the maximum time of continuous operation of the device. Any failure to comply with the above, as well as any failure to keep the device idle for the required time may irreparably damage the engine and render the warranty void.

If the device blocks during operation, before cleaning, disconnect it from the mains and wait until the attachment stops moving.

If the device slows down during mixing or whisking, stop the operation and thin the mixed or whisked product. To prevent the ingredients from flowing out of the bowl during mixing, do not fill the bowl above 2/3 of its volume.

Place the device on a flat, hard and stable surface.

- BLENDER

Installation

• place the appliance on a flat, hard, and stable surface,
• make sure that the appliance is disconnected from the mains, and the power switch (2) is set to the "0" position,
• lock the base arm (4) in the horizontal position,

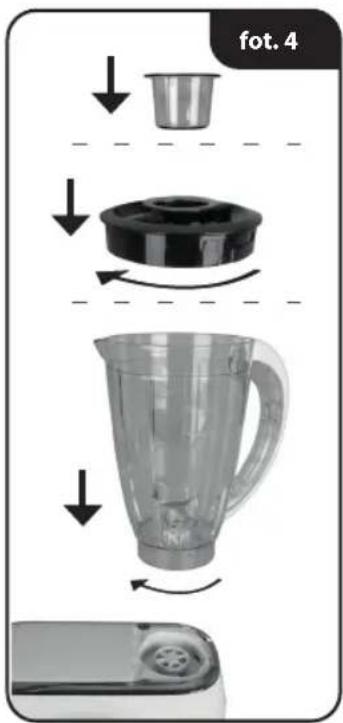

• remove the cover from the seat (5) and install the blender container (14) in it - fig. IV,

CAUTION

The appliance will not switch on if the blender container (14) and the blender lid (13) are not properly fitted.

The appliance will not switch on if the base arm (4) is not lowered and locked.

OPERATION

- place food products in the container (14) - DO NOT EXCEED the maximum level, CAUTION

Do not switch on the appliance if there is no liquid (e.g., water, juice, etc.) in the container (12).

• put the blender lid (13) on the container (14) and lock it by turning it to the right,
• insert the stopper (12) into the lid (13),
• the appliance starts when the speed has been selected with the switch (2); by changing its position the user can set 8 different speeds,
• pulse operation is activated through rotating and holding the switch (2) in the "P" position. Releasing the switch results in an automatic return to the "0" position.
• the products can be added both before installing the container (14) in the seat as well as during appliance operation using a special opening in the lid (13),

CAUTION

Observe the continuous operation time of the appliance. Excessive operation time and lack of sufficient breaks can lead to irreversible motor damage and loss of warranty. In case the appliance is blocked during operation, before cleaning, disconnect it from the mains and wait until the installed blade has stopped.

- the maximum continuous operation time is 3 minutes. If this time is exceeded, switch off the appliance immediately and wait at least 20 minutes before using it again.

After use:

• set the power switch (2) to the "0" position and wait until the blade stops,
• remove the container (14) from the seat (5) by turning it to the left,
• remove the stopper (12) from the lid (13),
• remove the lid (13) from the container (14) by turning it to the left,

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions into the glass jar one by
  • one instead of placing a large quantity all at once.
• If you are processing solid ingredients, cut them into small pieces (2-3cm) first.
  • Always place your hand on top of the blender when you are operating the device.
• Be careful when processing hot liquids.
• For stirring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to
• prevent the blades from becoming stuck.

• CLEANING AND MAINTENANCE

Before cleaning, disconnect the device from the mains.

The device is easiest to clean immediately after use. The bowl (7), lid (11), and attachments (8, 9, 10) are the only dishwasher safe elements. Make sure that they are located away from the heater. The maximum temperature is 50^ C.

The blender (14), blender lid (13) and the stopper (12) ARE NOT dishwasher safe.

Clean the base (1) and the base arm (4) with a damp cloth. Never immerse the base (1) nor the base arm (4) in water nor rinse them with running water. These elements should be cleaned with a damp cloth or towel.
