| Product Type | Cordless Screwdriver |
| Model Number | DFT085F |
| Brand | Makita |
| Rated Voltage | 14.4 V DC |
| Fastening Torque (Hard Joint) | 3 - 8 N·m |
| Fastening Torque (Soft Joint) | 3 - 8 N·m |
| No Load Speed | 150 - 900 min⁻¹ |
| Dimensions (L x W x H) with BL1415 Battery | 190 mm x 72 mm x 237 mm |
| Dimensions (L x W x H) with BL1430 Battery | 190 mm x 72 mm x 254 mm |
| Net Weight | 1.3 - 1.8 kg |
| Battery Cartridge (Compatible) | BL1415, BL1415N, BL1415NA, BL1430, BL1430A, BL1430B, BL1440, BL1450, BL1460A, BL1460B |
| Charger (Compatible) | DC18RC, DC18RD, DC18SD, DC18SE, DC18SF |
| Intended Use | Screw driving in wood, metal and plastic |
| Sound Pressure Level | 70 dB(A) or less (K=3 dB(A)) |
| Vibration Emission (Screwdriving without impact) | 2.5 m/s² or less (K=1.5 m/s²) |
| Protection Features | Overload, overheat, overdischarge protection; auto-stop on fastening completion |
| LED Indicator Functions | Battery capacity, fastening completion, alarms for low battery, maintenance, etc. |
| Reversing Switch | Clockwise/counterclockwise rotation with neutral lock |
| Adjustable Fastening Torque | Yes, via adjust grip (optional accessory) |
| Adjustable No-Load Speed and Rotation Angle | Yes, via PC software and USB connection |
| Front Lamp | LED lamp illuminates when switch trigger is pulled |
| Battery Capacity Indicator (BL1460A) | 4-level LED indicator with check button |
| Maintenance Alarm | Preset screw count triggers yellow LED; resettable via software |
Frequently Asked Questions - DFT085F MAKITA
User questions about DFT085F MAKITA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Metal Lathe in PDF format for free! Find your manual DFT085F - MAKITA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DFT085F by MAKITA.
USER MANUAL DFT085F MAKITA
bar
| Range (%) | |---| | 70%-100% | | 50%-70% | | 35%-50% | | 20%-35% | | 0%-20% |
SPECIFICATIONS
| Model: DFT085F DFT127F | |||
| Fastening torque Hard joint 3 - 8 | N·m 5 - 12 N·m | ||
| Soft joint 3 - 8 N·m 5 - 12 N·m | |||
| No load speed 150 - 900 min | -1 | 100 - 600 min^-1 | |
| Dimensions (L x W x H) with BL1 | 415 battery 190 mm x 72 mm x 237 mm | ||
| with BL1430 battery 190 mm x 72 mm x 254 mm | |||
| Rated voltage D.C. 14.4 V | |||
| Standard battery cartridge BL1415, BL1415N, BL1415NA, BL1430, BL1430A, BL1430B,BL1440, BL1450, BL1460A, BL1460B | |||
| Charger DC18RC, DC18RD, DC18SD, DC18SE, DC18SF | |||
| Net weight 1.3 - 1.8 kg | |||
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
- The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination, according to EPTA-Procedure 01/2014, are shown in the table.
Intended use
The tool is intended for screw driving in wood, metal and plastic.
Noise
The typical A-weighted noise level determined according to EN62841:
Model DFT085F
Sound pressure level ( L_pA ): 70 dB(A) or less Uncertainty (K): 3 dB(A)
Model DFT127F
Sound pressure level ( L_pA ): 70 dB(A) or less Uncertainty (K): 3 dB(A)
The noise level under working may exceed 80 dB (A).
WARNING: Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) determined according to EN62841:
Model DFT085F
Work mode: screwdriving without impact Vibration emission ( a_h ): 2.5 m/s ^2 or less Uncertainty (K): 1.5 m/s ^2
Model DFT127F
Work mode: screwdriving without impact Vibration emission ( a_h ): 2.5 m/s ^2 or less Uncertainty (K): 1.5 m/s ^2
NOTE: The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
NOTE: The declared vibration emission value may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the oil is used.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as times when the tool is switched off and when it is meaning idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions led below may result in electric shock, fire and/orious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Cordless screwdriver safety warnings
- Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
- Hold the tool firmly.
- Keep hands away from rotating parts.
- Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
- Always secure workpiece in a vise or similar hold-down device.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.
MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.
Important safety instructions for battery cartridge
- Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
- Do not disassemble battery cartridge.
- If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
- If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
- Do not short the battery cartridge:
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow, overheating, possible burns and even a breakdown.
6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed.
For preparation of the item being shipped, consulting an expert for hazardous material is required.
Please also observe possibly more detailed national regulations.
Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.
- Follow your local regulations relating to disposal of battery.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.
Tips for maintaining maximum battery life
- Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
- Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
- Charge the battery cartridge with room temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.
- Charge the battery cartridge if you do not use it for a long period (more than six months).
FUNCTIONAL DESCRIPTION
⚠️CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.
Installing or removing battery cartridge
⚠️CAUTION: Always switch off the tool before installing or removing of the battery cartridge.
⚠️CAUTION: Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

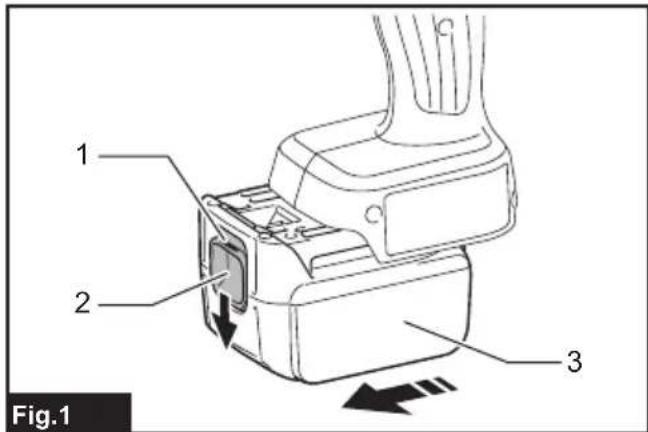

▶ Fig.1: 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.
⚠CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
⚠️CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.
Checking the remaining battery capacity (BL1460A)

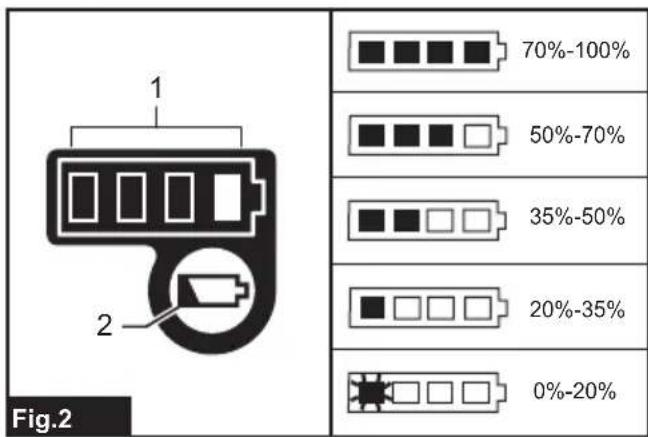

▶ Fig.2: 1. Indicator lamps 2. Check button
NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.
When charging
When the charging begins, the first (far left) indicating lamp begins to flicker. Then, as charging proceeds, the other lamps light, one after the other, to indicate the battery capacity.
NOTE: If the indicator lamp does not turn on or flicker when charging, the battery may be faulty. In this case, ask your local service center.
When using
When the tool is switched on, the lamps will light to indicate the remaining battery capacity. When the tool is switched off, the light goes out after approx. 5 seconds. When pushing the check button with the tool switched off, the indicator lamps turn on for approx. 5 seconds to show battery capacity.
If the orange lamp flickers, the tool stops because of little remaining battery capacity (Auto-stop mechanism). Charge the battery cartridge or use a charged battery cartridge at this time.
When the tool is used with the battery that has not been used for a long time and is switched on, no lamps may light up. The tool stops because of little remaining battery capacity at this time. Charge the battery properly.
Tool / battery protection system
The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions:
Overload protection
When the tool/battery is operated in a manner that causes it to draw an abnormally high current, the tool stops automatically. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.
Overheat protection
When the tool/battery is overheated, the tool stops automatically. In this situation, let the tool/battery cool before turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery.
Switch action
WARNING: Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

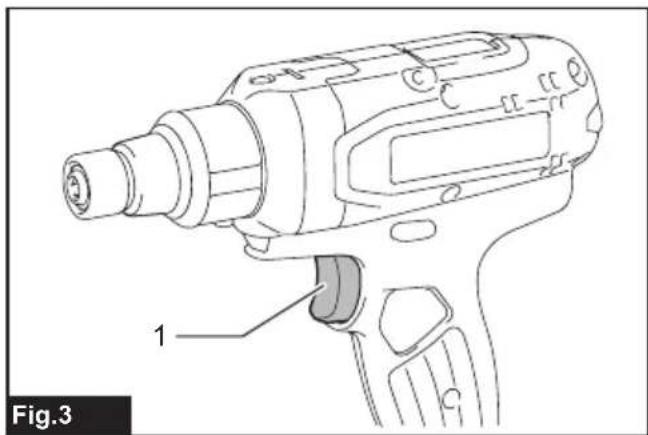

▶ Fig.3: 1. Switch trigger
NOTE: For approximately one second after fastening, the tool does not work even with the switch pulled.
Lighting up the front lamp

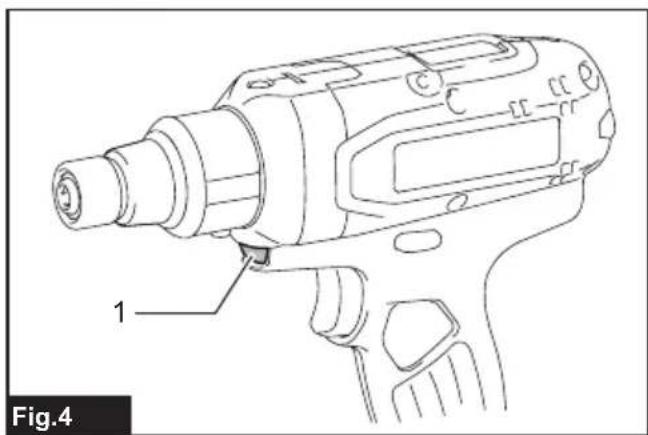

▶ Fig.4: 1. Lamp
⚠️ CAUTION: Do not look in the light or see the source of light directly.
Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out approximately 10 seconds after releasing the switch trigger.
NOTE: Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.
Reversing switch action

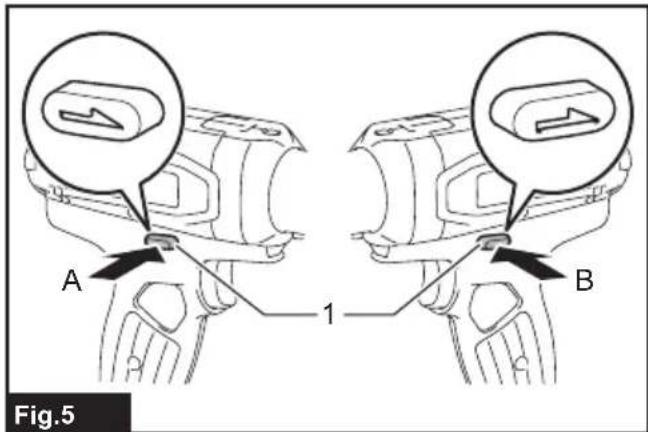

▶ Fig.5: 1. Reversing switch lever
⚠️CAUTION: Always check the direction of rotation before operation.
CAUTION: Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
⚠️CAUTION: When not operating the tool, always set the reversing switch lever to the neutral position.
This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.
When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.
LED indicator / Beeper

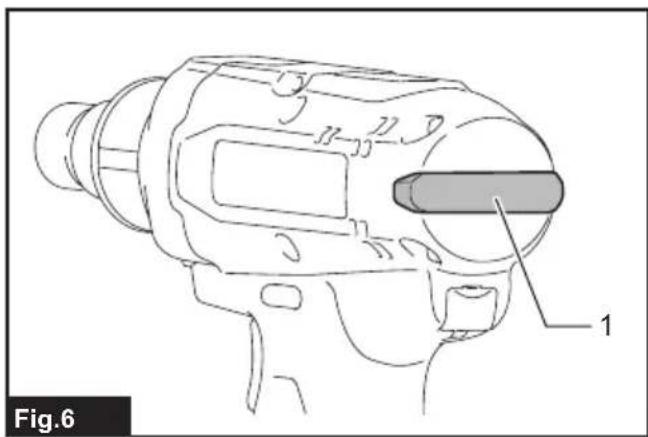

▶ Fig.6: 1. LED indicator
LED indicator / Beeper on the tool shows the following functions.
| Function Status of the tool Status of the LED indicator/beeper Action to be taken | ||||
| Auto-stop with fastening completion | The preset fastening torque has been achieved and the tool has stopped. | Lights up in green for approximately one second. | - | - |
| Alarm against insufficient fastening | The preset fastening torque has not been achieved, because the switch trigger has released before completing the fastening. | Lights up in red. A long beep Retighten the screw. | ||
| Alarm for low battery capacity | The battery power became low and it is time to replace the battery cartridge. | Flickers in red slowly. A series of long beeps Replace the battery with fully charged one. | ||
| Auto-stop with low remaining battery capacity | The battery power is almost used up and the tool stopped. | Lights up in red. A long beep Replace the battery with fully charged one. | ||
| Check of the LED indicator, light and beeper operation | When the battery cartridge is installed, the tool checks for its LED indicator, light and beeper. | Lights up first in green, next red. (And then the light comes on.) | A series of very short beeps | - |
| Anti-reset of controller The battery voltage dropped abnormally for some reason, and the tool stopped. | Flickers in red and green alternatively. | A series of short beeps Replace the battery with fully charged one. | ||
| Overheat protection Tool's controller heated up abnormally and the tool stopped. | Flickers in red quickly. A series of short beeps Remove the battery cartridge immediately and cool the tool down. | |||
| Detection of switch trigger operation when installing battery | When the battery cartridge is installed with the switch trigger pulled, the tool stops to avoid unintentional start. | Flickers in red and green alternatively. | A series of short beeps Release the switch trigger. | |
| Motor failure detection | Motor failure has been detected. At this time, tool does not work. | Flickers in red and green alternatively. | A series of short beeps Ask your local Makita Service Center for repair. | |
| Double-hitting detection | When the operator starts to re-fasten an already-fastened screw, the tool detect it and stops. | Lights up in red. A long beep | - | |
| Maintenance alarm | A maintenance time has come according to your preset number of screws driven. | Flickers in yellow. | - | Reset the alarm with the application software. |
| Alarm for unavailable data communication (with the tool in connection with PC) | Data cannot be exchanged between the tool and PC in spite of the connection. | Flickers in yellow. | - | Restart the application software and re-connect the USB cable. |
| Indication that data communication is available (with the tool in connection with PC) | The tool is connected to PC and data communication is available. | Flickers in green. | -- | |
Adjusting the fastening torque
When you wish to drive machine screws, hex bolts, etc. with the predetermined torque, adjust the fastening torque as follows.
- First remove the battery cartridge from the tool.
- Loosen and remove the screw that secures ring.
- Rotate the ring in the front of the tool by hand so that a hole can be seen below the ring.
- Install the battery cartridge in place. Pull the switch trigger and release it so that the adjust ring rotates and the hole becomes visible. And then remove the battery cartridge.

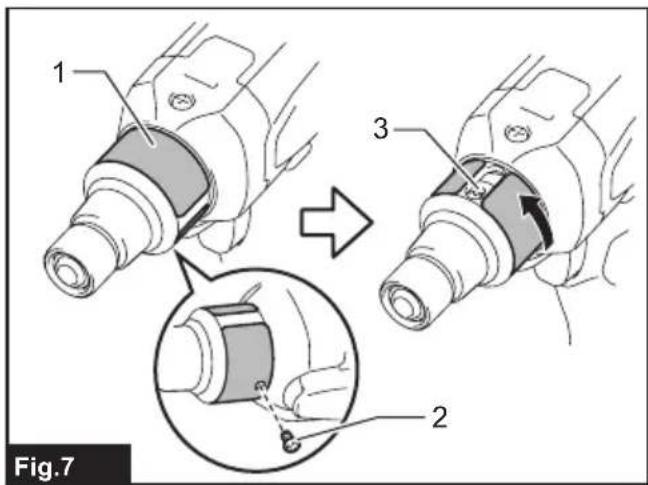

▶ Fig.7: 1. Ring 2. Screw 3. Hole
-
Use an optional adjust grip to adjust the fastening torque. Insert the pin of the adjust grip into the hole in the front of the tool. And then, turn the adjust grip clockwise to set a greater fastening torque, and counterclockwise to set a smaller fastening torque.
-
Align the yellow line with your desired number on the fastening torque scale.

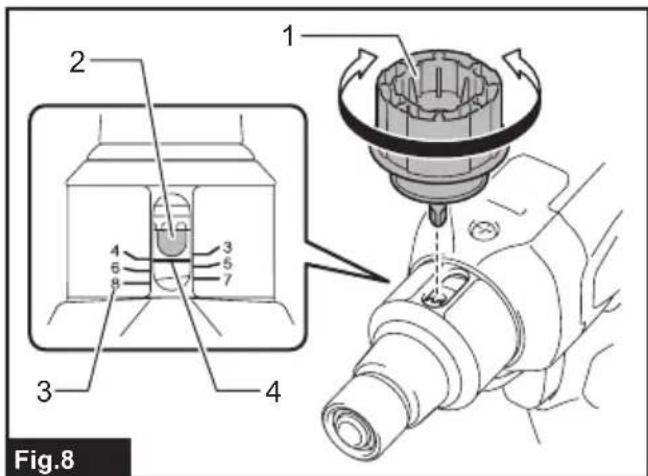

▶ Fig.8: 1. Adjust grip 2. Hole for adjust grip 3. Scale 4. Yellow line
-
Insert the battery cartridge and be sure that a fastening torque has been set up by using a fastening torque tester.
-
Rotate the ring in front of the tool and then tighten the screw to secure the ring.
NOTE: Numbers on the fastening torque scale is a guideline to set up your desired fastening torque.
Adjusting no-load speed and revolution angle etc.
You can adjust the no-load speed, number of turn, etc. of the tool with your computer. Install the application software in your computer and connect it to the tool with an USB cable.

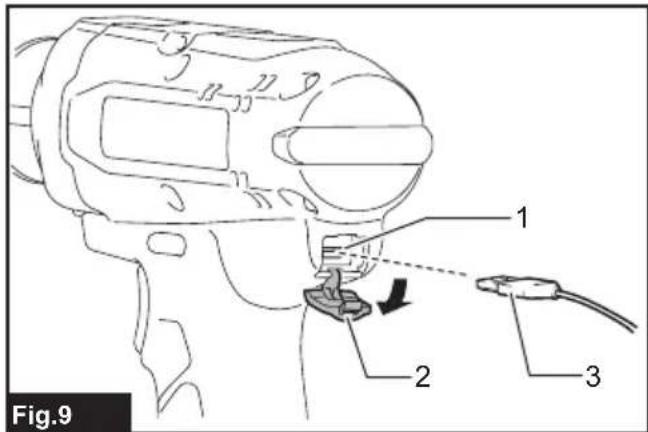

▶ Fig.9: 1. USB port 2. USB cover 3. USB cable
NOTICE: Make sure that the USB cover closed when fastening.
NOTE: For the application software, please contact Makita sales representative.
ASSEMBLY
⚠️CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.
Installing or removing driver bit/socket bit

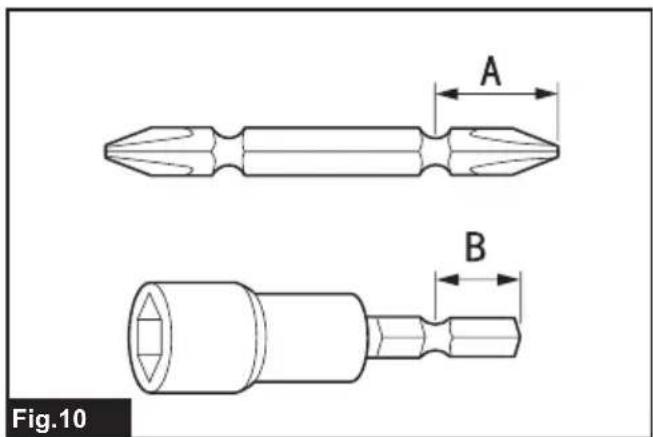

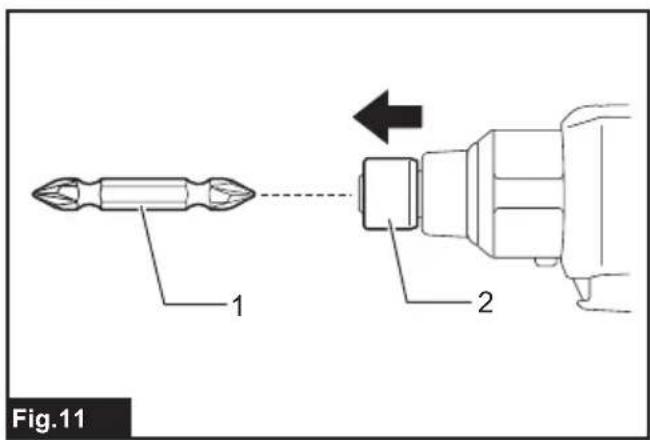

▶ Fig.10
Use only driver bit/socket bit that has inserting portion shown in the figure. Do not use any other driver bit/socket bit.
For tool with shallow driver bit hole
| A=12mmB=9mm | Use only these type of driver bit. Follow the procedure 1. (Note) Bit-piece is not necessary. |
For tool with deep driver bit hole
| A=17mmB=14mm | To install these types of driver bits, follow the procedure 1. |
| A=12mmB=9mm | To install these types of driver bits, follow the procedure 2.(Note) Bit-piece is necessary for installing the bit. |
▶ Fig.11: 1. Driver bit 2. Sleeve
To install the driver bit, pull the sleeve in the direction of the arrow and insert the driver bit into the sleeve as far as it will go.
Then release the sleeve to secure the driver bit.
To remove the driver bit, pull the sleeve in the direction of the arrow and pull the driver bit out.
NOTE: If the driver bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the driver bit will not be secured. In this case, try re-inserting the bit according to the instructions above.
NOTE: When it is difficult to insert the driver bit, pull the sleeve and insert it into the sleeve as far as it will go.
NOTE: After inserting the driver bit, make sure that it is firmly secured. If it comes out, do not use it.
Installing hook
Optional accessory
The hook is useful to hang the tool. Install the hook to the holes on the tool body.

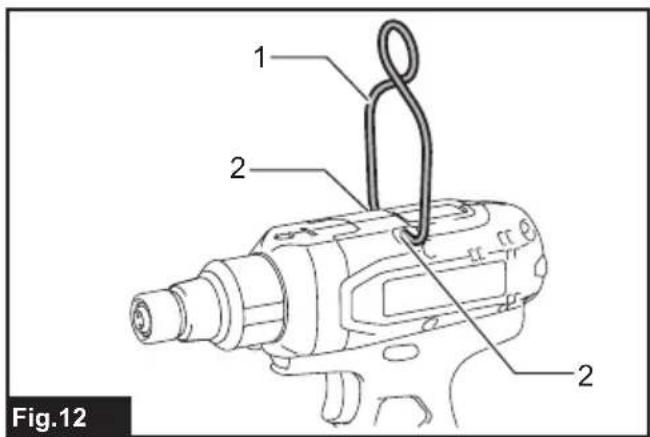

▶ Fig.12: 1. Hook 2. Hole
OPERATION
Screwdriving operation
⚠️ CAUTION: Make sure that the bit is inserted straight in the screw head, or the screw and/or bit may be damaged.
Place the point of the driver bit in the screw head and apply pressure to the tool. Then switch the tool on. When the clutch cuts in, the motor will stop automatically. Then release the switch trigger.

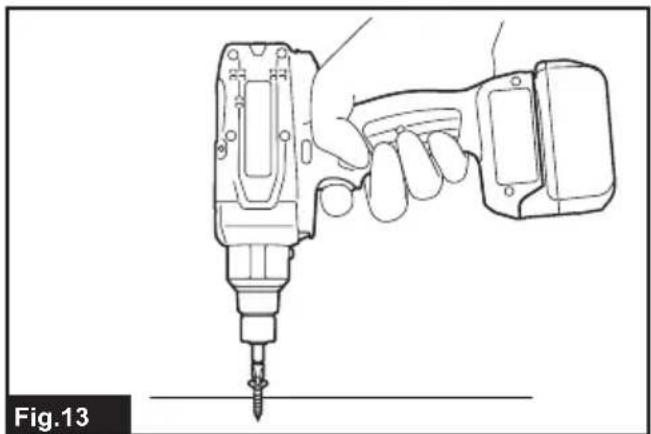

▶ Fig.13
Limits of fastening capacity
Use the tool within the limits of fastening capacity. If you use the tool beyond the limits, the clutch does not work. And the tool cannot deliver enough fastening torque.
For model DFT085F
line

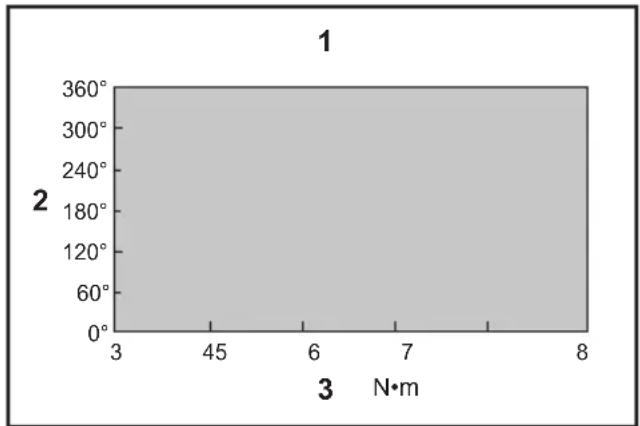

| X (N·m) | Y (°) | | ------- | ----- | | 3 | 360 | | 45 | 360 | | 6 | 360 | | 7 | 360 | | 8 | 360 |- Range of fastening capacity 2. Rotation angle
- Torque
For model DFT127F
line
| x | y | | ---- | ----- | | 5 | 360° | | 6 | 360° | | 7 | 360° | | 8 | 360° | | 9 | 360° | | 10 | 360° | | 11 | 360° | | 12 | 360° |- Range of fastening capacity 2. Rotation angle
- Torque
NOTE: The rotation angle is the angle from the point that the bolt is tightened in 50% of desired torque to the point that the bolt is tightened in 100% torque.
NOTE: Use of a cold battery cartridge may give warning for battery capacity by LED indicator and beeper and stop the tool immediately, even if it is fully charged. In this case, the fastening capacity may be inferior to the specification on this manual.
MAINTENANCE
⚠️CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
- Adjust grip
• Protector (Yellow, Blue, Red, Clear) - Hook
- Ring (Yellow, Blue, Red)
- Makita genuine battery and charger
NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.
SPECIFICATIONER
| Modell: DFT085F DFT127F | |||
| Ätdragningsmoment Hård fog 3 - | 8 N•m 5 - 12 N•m | ||
| Mjuk fog 3 - 8 N•m 5 - 12 N•m | |||
| Hastighet utan belastning 150 - 900 min | -1 | 100 - 600 min^-1 | |
| Dimensioner (L x B x H) med BL | 1415-batteri 190 mm x 72 mm x 237 mm | ||
| med BL1430-batteri 190 mm x 72 mm x 254 mm | |||
| Märkspänning 14,4 V likström | |||
| Standardbatterikassett BL1415, BL1415N, BL1415NA, BL1430, BL1430A, BL1430B,BL1440, BL1450, BL1460A, BL1460B | |||
| Laddare DC18RC, DC18RD, DC18SD, DC18SE, DC18SF | |||
| Nettovikt 1,3 - 1,8 kg | |||
▶ Fig.6: 1. LED-indikator
▶ Fig.11: 1. Skruvbits 2. Hylsa
area
| X-axis (N·m) | Y-axis (degrees) | |---|---| | 5 | 0° | | 6 | 360° | | 7 | 360° | | 8 | 360° | | 9 | 360° | | 10 | 360° | | 11 | 360° | | 12 | 360° | The chart displays a single data series with no variation or trend. The label '1' appears in the top-left corner.▶ Fig.7: 1. Ring 2. Skrue 3. Hull
▶ Pav.12: 1. Kablys 2. Anga
NAUDOJIMAS
Sraigto sukimas
line
| X (N·m) | Y (degrees) | | ------- | ----------- | | 3 | 360° | | 45 | 360° | | 6 | 360° | | 7 | 360° | | 8 | 360° |
- Intended use
- Noise
- Model DFT085F
- Model DFT127F
- Vibration
- EC Declaration of Conformity
- For European countries only
- SAFETY WARNINGS
- General power tool safety warnings
- Save all warnings and instructions for future reference.
- Cordless screwdriver safety warnings
- SAVE THESE INSTRUCTIONS.
- Important safety instructions for battery cartridge
- Tips for maintaining maximum battery life
- FUNCTIONAL DESCRIPTION
- Installing or removing battery cartridge
- Checking the remaining battery capacity (BL1460A)
- When charging
- When using
- Tool / battery protection system
- Overload protection
- Overheat protection
- Overdischarge protection
- Switch action
- Lighting up the front lamp
- Reversing switch action
- LED indicator / Beeper
- Adjusting the fastening torque
- Adjusting no-load speed and revolution angle etc.
- ASSEMBLY
- Installing or removing driver bit/socket bit
- Installing hook
- Optional accessory
- OPERATION
- Screwdriving operation
- Limits of fastening capacity
- MAINTENANCE
- OPTIONAL ACCESSORIES
- NAUDOJIMAS
- Sraigto sukimas
Brand : MAKITA
Model : DFT085F
Category : Metal Lathe
