Product Type	Cordless Impact Driver
Model	BTD064Z
Brand	Makita
Overall Length	144 mm
Net Weight (with BL1430A)	1.3 kg
Rated Voltage	14.4 V DC
No Load Speed	0 - 2,500 min⁻¹
Impacts per Minute	0 - 3,500 min⁻¹
Maximum Capacity (Machine Screw)	4 mm - 8 mm
Maximum Capacity (Standard Bolt)	5 mm - 12 mm
Maximum Capacity (High Tensile Bolt)	5 mm - 10 mm
Battery Cartridge	BL1430A / BL1415NA (14.4 V Li-ion)
Charger	Makita genuine charger (not included)
Sound Pressure Level (LpA)	91 dB(A)
Sound Power Level (LWA)	102 dB(A)
Vibration Emission (ah)	7.0 m/s²
Auto-Stop Setting	Presettable number of impacts (0-99)
Reversing Switch	Yes, with neutral position
LED Lamp	Yes, auto-off after 10 seconds
Battery Protection System	Auto-stop on low charge and overload
Maintenance	Replace carbon brushes when worn to limit mark
Accessories Included	Phillips bit, socket bit, bit piece (may vary by country)

Frequently Asked Questions - BTD064Z MAKITA

What type of battery does the Makita BTD064Z use?

The BTD064Z uses 14.4 V Li-ion battery cartridges, specifically models BL1430A or BL1415NA. Always use genuine Makita batteries for safety and performance.

How do I set the auto-stop number of impacts?

Pull the switch trigger and release it. Then press the indication button for about 3 seconds while pulling the trigger again. The display will blink, allowing you to adjust the first and second digits. Confirm by pulling the trigger while pressing the button. Refer to the manual for detailed steps.

What is the maximum fastening torque of the BTD064Z?

The torque varies by application. For example, with an M10 bolt, typical torque reaches about 60 N·m after 58 impacts (preset 25). For precise needs, always perform a test fastening. Torque also depends on battery level and bit type.

How do I change the direction of rotation?

Use the reversing switch lever located above the trigger. Depress from side A for clockwise rotation (tightening) and side B for counterclockwise (loosening). Set to neutral position when not in use to prevent accidental starts.

Can I use the tool while the battery is charging?

No, you cannot use the tool while charging the battery. Always remove the battery cartridge before charging. Use only the specified Makita charger.

How do I know when to replace the carbon brushes?

Check the carbon brushes periodically. When they wear down to the limit mark (about 6 mm length), replace both brushes at the same time with identical Makita parts to maintain motor performance and safety.

What should I do if the tool stops suddenly?

The tool has an auto-stop mechanism. If the battery is low, recharge it. If overloaded, release the trigger and remove the cause. For BL1415NA, overheat protection may stop the tool; let it cool down before restarting.

Is it safe to use the tool outdoors?

The tool is designed for indoor and outdoor use, but avoid rain or wet conditions. When operating outdoors, use an extension cord suitable for outdoor use if applicable. Always follow general power tool safety warnings.

What lubricant should I use for maintenance?

No regular lubrication is required. For cleaning, never use gasoline, benzine, thinner, or alcohol. Use a dry cloth to wipe the tool. For service, always consult a Makita authorized center.

Where can I find replacement parts or accessories?

Visit your local Makita Service Center or the official Makita website. Recommended accessories include Phillips bits, socket bits, bit pieces, battery protectors, and genuine batteries (BL1430A/BL1415NA). Use only Makita parts for safety.

USER MANUAL BTD064Z MAKITA

Cordless Impact Driver

BTD044

BTD064

BTD104

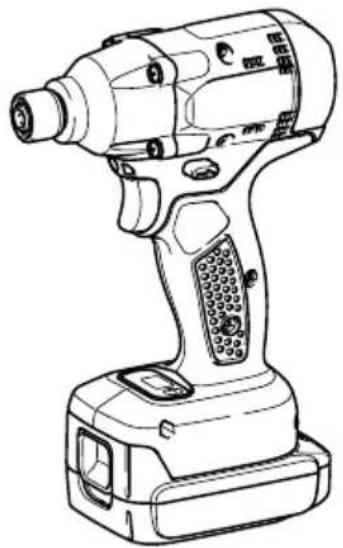

Line drawing of a handheld electric drill press (no text or symbols)

013662

ENGLISH (Original instructions)

SPECIFICATIONS

Model		BTD044	BTD064	BTD104
Capacities	Machine screw 4 mm - 8 mm 4 mm - 8 mm 4 mm - 8 mm
	Standard bolt 5 mm - 10 mm 5 mm - 12 mm 5 mm - 12 mm
	High tensile bolt 5 mm - 6 mm 5 mm - 10 mm 5 mm - 10 mm
No load speed (min ^-1 ) 0 - 2,300 0 - 2,500 0 - 2,700
Impacts per minute 0 - 3,500 0 - 3,500 0 - 3,500
Overall length 144 mm 144 mm 144 mm
Standard battery cartridge(s)Warning: Use only the battery cartridge(s) described.		BL1430A / BL1415NA	BL1430A / BL1415NA	BL1430A / BL1415NA
Net weight 1.2 kg / 1.0 kg 1.3 kg / 1.1 kg 1.3 kg / 1.1 kg
Rated voltage D.C. 14.4 V D.C. 14.4 V D.C. 14.4 V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

END004-5

Symbols

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

Cd Ni-MH Li-ion

Read instruction manual.

Only for EU countries

Do not dispose of electric equipment or battery pack together with household waste material!

In observance of European Directive 2012/19/EU on waste electric and electronic equipment, 2006/66/EC on batteries and accumulators and waste batteries and accumulators and their implementation in accordance with national laws, electric equipment and battery pack that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

ENE033-1

Intended use

The tool is intended for screw driving in wood, metal and plastic.

ENG905-1

Noise

The typical A-weighted noise level determined according to EN60745:

Model BTD044

Sound pressure level ( L_pA ): 89 dB(A)

Sound power level ( L_WA ): 100 dB(A)

Uncertainty (K) : 3 dB(A)

Model BTD064

Sound pressure level ( L_pA ): 91 dB(A)

Sound power level ( L_WA ): 102 dB(A)

Uncertainty (K) : 3 dB(A)

Model BTD104

Sound pressure level ( L_pA ): 93 dB(A)

Sound power level ( L_WA ): 104 dB(A)

Uncertainty (K) : 3 dB(A)

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Model BTD044

Work mode : impact tightening of fasteners of the maximum capacity of the tool

Vibration emission ( a_h ): 5.0 m/s ^2

Uncertainty (K) : 1.5 m/s ^2

Model BTD064

Work mode : impact tightening of fasteners of the maximum capacity of the tool

Vibration emission (ah) : 7.0 m/s²

Uncertainty (K) : 1.5 m/s²

Model BTD104

Work mode : impact tightening of fasteners of the maximum capacity of the tool

Vibration emission ( a_h ): 8.5 m/s ^2

Uncertainty (K) : 1.5 m/s²

ENG901-1

- The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.

- The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

- The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.

- Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENH101-16

For European countries only

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine:

Cordless Impact Driver

Model No./ Type: BTD044, BTD064, BTD104

are of series production and

Conforms to the following European Directives:

2006/42/EC

And are manufactured in accordance with the following standards or standardised documents: EN60745

The technical documentation is kept by:

Makita International Europe Ltd.

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

3.9.2012

000230

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

GEA006-2

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or

under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

1. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
2. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
3. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
4. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
5. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
6. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the

power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

1. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
2. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Follow instruction for lubricating and changing accessories.
3. Keep handles dry, clean and free from oil and grease.

GEB054-1

CORDLESS IMPACT DRIVER SAFETY WARNINGS

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.

3. Hold the tool firmly.

4. Wear ear protectors.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC007-7

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.

(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.

(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ C ( 122^ F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.
4. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged.
   Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
   Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ C - 40^ C ( 50^ F - 104^ F).
   Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge

013663

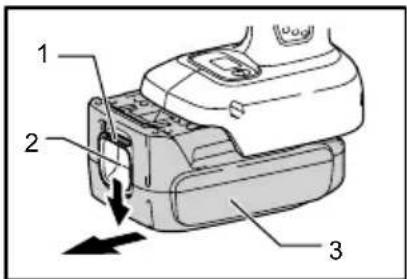

1. Red indicator
2. Button
3. Battery cartridge

CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
- Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

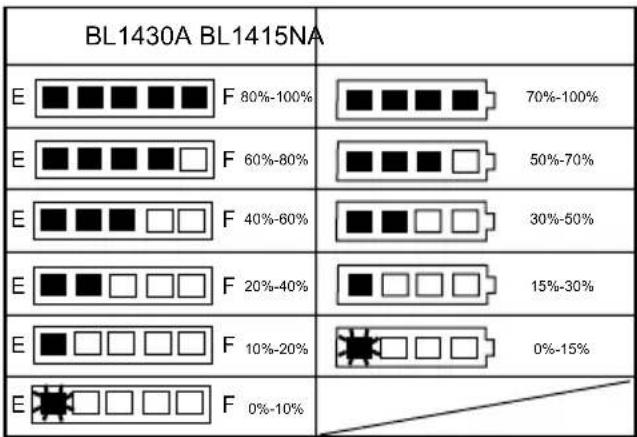

Checking the remaining battery capacity

013539

When charging

When the charging begins, the first (far left) indicating lamp begins to flicker. Then, as charging proceeds, the other lamps light, one after the other, to indicate the battery capacity.

When using

When the tool is switched on, the lamps will light to indicate the remaining battery capacity. When the tool is switched off, the light goes out after approx. 5 seconds. When the orange lamp lights up (or flickers) on BL1430A or flickers on BL1415NA, the tool stops because of little remaining battery capacity (Auto-stop mechanism). Charge the battery cartridge at this time or use a charged battery cartridge at this time.

When the tool is used with the battery that has not been used for a long time and is switched on, no lamps may light up. The tool stops because of little remaining battery capacity at this time. For BL1430A only, use Makita refreshing adapter to refresh the battery.

Auto-stop mechanism

BL1430A	BL1415NA
E □□□□□ F

013540

The tool stops automatically after the battery capacity reaches under 20% on BL1430A or 15% on BL1415NA to prevent the lack of fastening torque. Charge the battery or use a new fully charged one.

Battery protection system (BL1415NA)

The tool is equipped with a battery protection system. This system automatically cuts off power to the motor to extend battery life.

The tool will automatically stop during operation if the tool and/or battery are placed under the following conditions:

• Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, release the switch trigger on the tool and stop the application that caused the tool to become overloaded. Then pull the switch trigger again to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the switch trigger again.

NOTE:

The overheat protection works only with BL1415NA.

Switch action

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

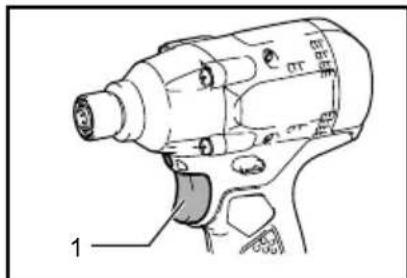

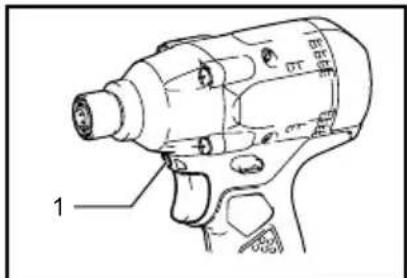

1. Switch trigger

013582

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

Reversing switch action

CAUTION:

• Always check the direction of rotation before operation.
- Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
- When not operating the tool, always set the reversing switch lever to the neutral position.

1. Reversing switch lever

013584

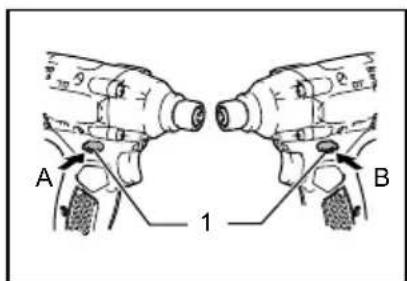

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

Turning on the lamp

CAUTION:

- Do not look in the light or see the source of light directly.

1. Lamp

013583

Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The light automatically goes out approximately 10 seconds after the switch trigger is released.

NOTE:

- Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

Auto-Stop setting for number of impacts

This tool has a convenient auto-stop mechanism that allows you to preset the desired number of impacts in terms of the application. The tool then stops automatically after reaching the preset number of impacts.

Setting for number of impacts

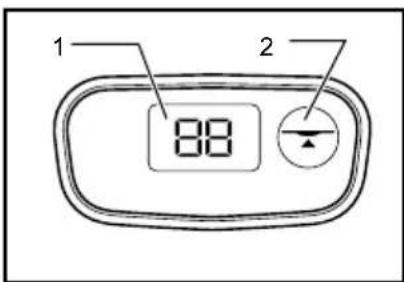

1. Display

2. Indication button

013664

1. Pull the switch trigger, and then release it.
2. Pull the switch trigger approximately 3 seconds while pressing the indication button, and then release the switch trigger and the indication button.

3. The lamp on the left side of the display blinks so that the number of first digit can be changed by pressing the button.

4. Press the button and choose the desired number. The displayed number changes fast by keeping pressing the button. To set the first digit, pull the switch trigger and then release it.

5. The lamp on the right side of the display starts to blink so that the number of second digit can be changed.
6. Press the button and choose the desired number. The displayed number changes fast by keeping pressing the button. To set the second digit, pull the switch trigger and then release it.
7. For the final setting, pull the switch trigger while pressing the indication button. The number of impacts is set at once.
   To reconfigure the number of impacts, pull the trigger without pressing the indication button so that return to 3 above.

Confirming the current setting number

To check the current setting number, pull the trigger once, release it and then press the indication button.

Relation between presetting number and action

Presetting number	Clockwise rotation	Counterclockwise rotation
0	Auto-stop setting does not work.	Auto-stop setting does not work.
01 - 99	After impacting [number of impacts (presetting number x 2) x 0.02] seconds.Green color lamp lights on.Switch off before impacting [number of impacts (presetting number x 2) x 0.02] seconds.Red color lamp lights on.Then, the lamp goes out.	Auto-stop setting does not work.Indication lamp goes out.

003611

NOTE:

- Use presetting number as a guideline. To keep the fastening torque, number of impacts changes automatically by remaining battery capacity.

Indicating lamp

Line drawing of a mechanical device with labeled parts (no text or symbols present)

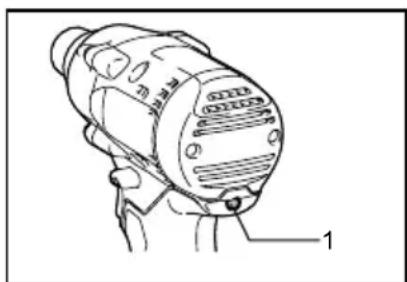

1. Indicating lamp

013665

• After impacting preset numbers, the indicating lamp lights in green color.

• The red color light will light on if the trigger is released before the presetting number of impacts is achieved. It indicates that the operation is incomplete.
• When auto-stop mechanism is working, the indicating lamp lights red while the switch trigger is being pulled.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver bit or socket bit

004521

Use only the driver bit or socket bit shown in the figure. Do not use any other driver bit or socket bit.

For tool with shallow bit hole

A=12mmB=9mm

Use only these type of bit. Follow the procedure (1).(Note) Bit-piece is not necessary.

006348

For tool with deep bit hole

A=17mmB=14mm	To install these types of bits, follow the procedure (1).
A=12mmB=9mm	To install these types of bits, follow the procedure (2).(Note) Bit-piece is necessary for installing the bit.

011405

1. Sleeve
2. Bit
   013580
3. To install the bit, pull the sleeve in the direction of the arrow and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit.

1. Sleeve
2. Bit-piece
3. Bit
   013581
4. To install the bit, pull the sleeve in the direction of the arrow and insert the bit-piece and bit into the sleeve as far as it will go. The bit-piece should be inserted into the sleeve with its pointed end facing in. Then release the sleeve to secure the bit.
   To remove the bit, pull the sleeve in the direction of the arrow and pull the bit out firmly.

NOTE:

- If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the bit will not be secured. In this case, try re-inserting the bit according to the instructions above.

OPERATION

[*1] Presetting number of impacts is impossible for more than 200 impacts (4 seconds).
[*2] Fastening time includes when you pull the trigger completely.

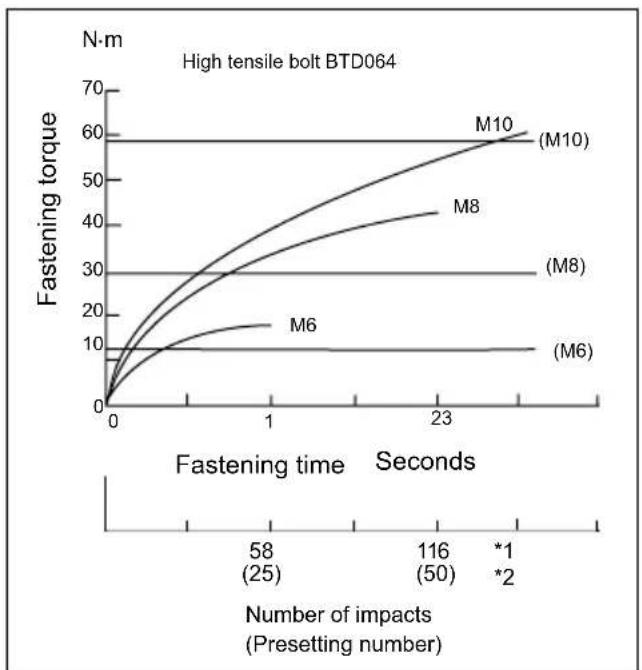

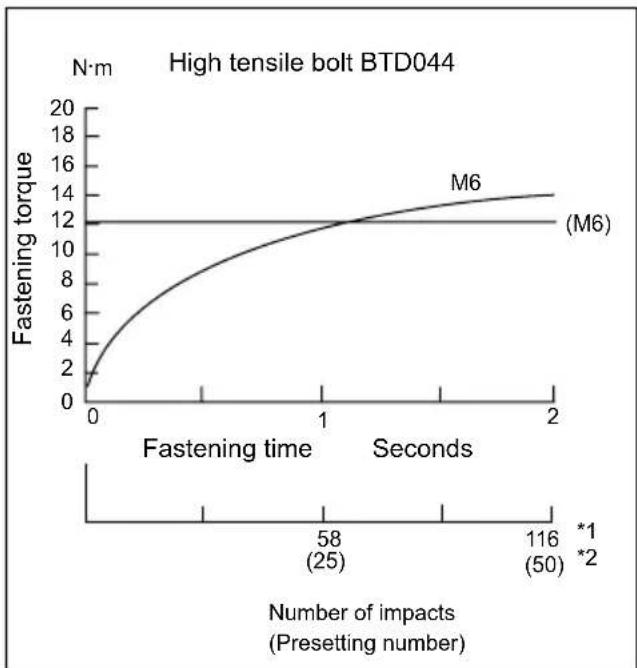

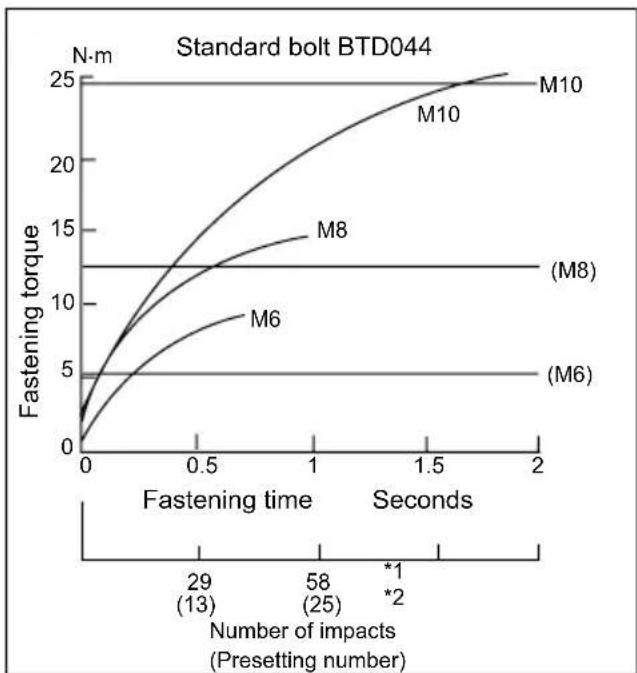

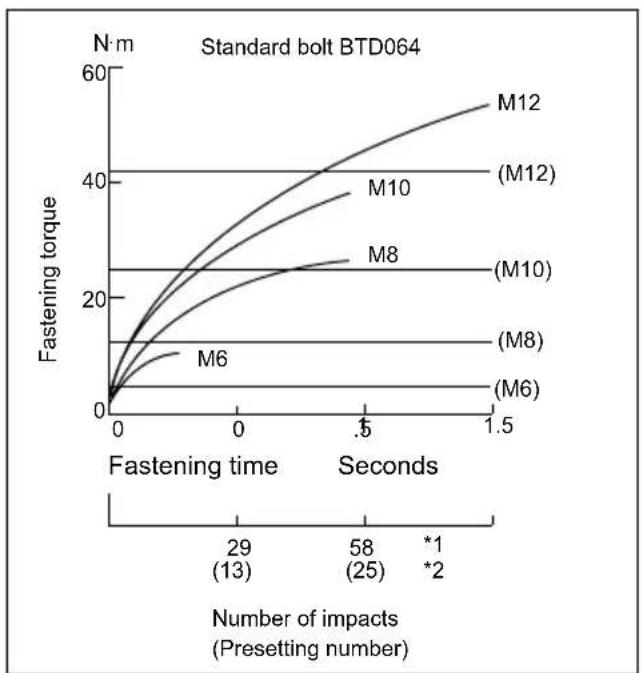

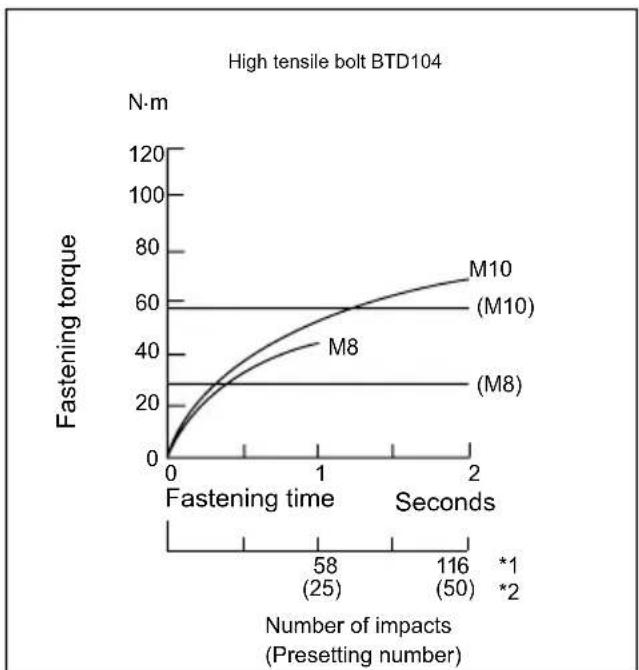

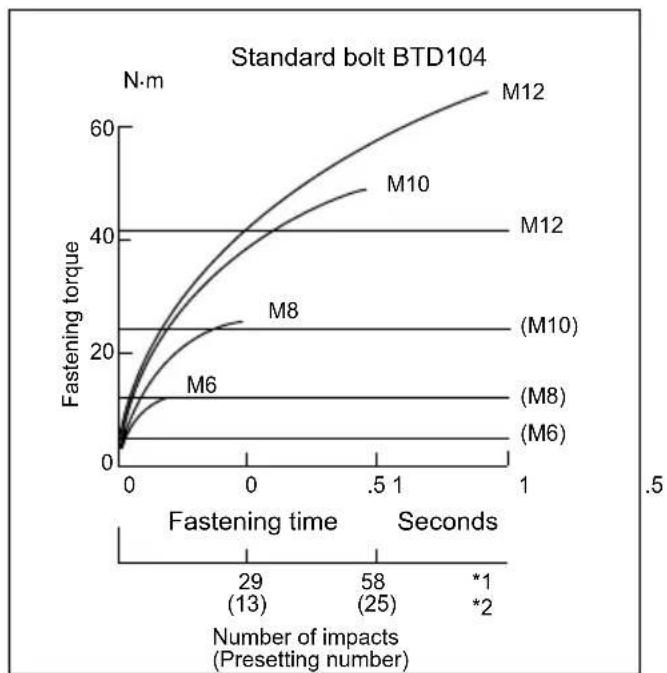

The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fastening torque, fastening time and number of impacts (presetting number) is shown in the figures.

Hold the tool firmly and place the point of the driver bit in the screw head. Apply forward pressure to the tool to the extent that the bit will not slip off the screw and turn the tool on to start operation.

013718

013717

013720

013722

013719

013721

NOTE:

• Use the proper bit for the head of the screw/bolt that you wish to use.
• Hold the tool pointed straight at the screw.
• If you tighten the screw for a time longer than shown in the figures, the screw or the point of the driver bit may be overstressed, stripped, damaged, etc. Before starting your job, always perform a test operation to determine the proper fastening time for your screw.

- If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.

The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench.

1. When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.

2. Driver bit or socket bit Failure to use the correct size driver bit or socket bit will cause a reduction in the fastening torque.

3. Bolt

4. Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter of bolt.

5. Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt and the bolt length.

6. The manner of holding the tool or the material of driving position to be fastened will affect the torque.

7. Operating the tool at low speed will cause a reduction in the fastening torque.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

- Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Replacing carbon brushes

Simple line drawing of a rectangular object connected to a cable with a small component (no text or symbols)

1. Limit mark
   006258

Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

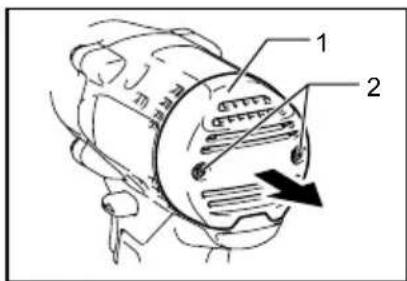

1. Rear cover

2. Screws

013585

Use a screwdriver to remove two screws then remove the rear cover.

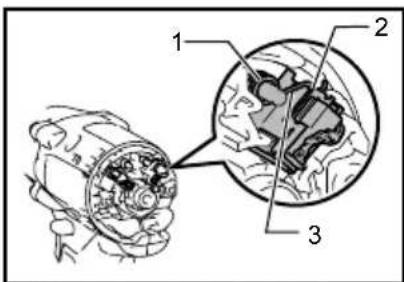

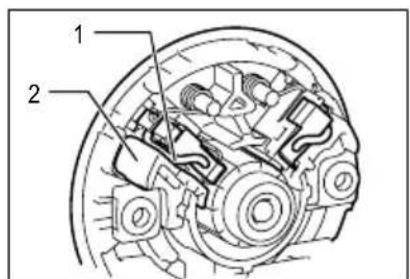

1. Spring

2. Recessed part

3. Arm

013586

Raise the arm part of the spring and then place it in the recessed part of the housing with a slotted bit screwdriver of slender shaft or the like.

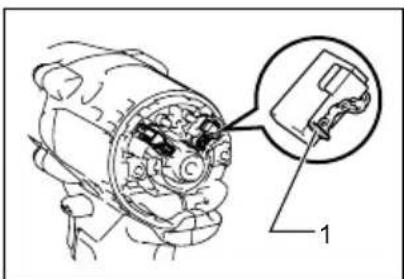

1. Carbon brush cap
   013587

Use pliers to remove the carbon brush cap of the carbon brushes. Take out the worn carbon brushes, insert the new ones and replace the carbon brush cap in reverse.

Mechanical assembly diagram showing two views of a vehicle's internal components (no text or labels)

013588

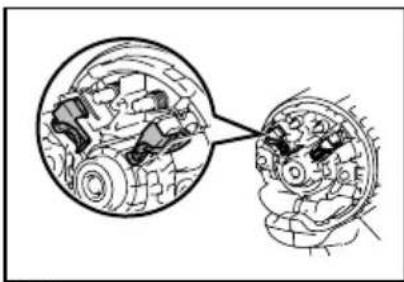

Make sure to place the lead wire in opposite side of the arm.

1. Lead wire
2. Spacer

013577

Put the lead wires between the spacer and the side of brush holder.

1. Hole
2. Carbon brush cap

006304

Make sure that the carbon brush caps fit into the holes in brush holders securely.

Reinstall the rear cover and tighten two screws securely. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Phillips bit
• Socket bit
• Bit piece
  • Protector (white, blue, red)
  • Battery Protector for BL1430A
  • Battery Protector for BL1415NA
• Battery BL1430A
• Battery BL1415NA
• Makita genuine charger
  • Automatic refreshing adapter for BL1430A only

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Makita Corporation

Anjo, Aichi, Japan
