Brand	Makita
Model	BTD062Z
Product Type	Cordless Impact Driver
Capacities - Machine Screw	4 mm - 8 mm
Capacities - Standard Bolt	5 mm - 12 mm
Capacities - High Tensile Bolt	5 mm - 10 mm
No Load Speed	0 - 2,500 min⁻¹
Impacts per Minute	0 - 3,000 min⁻¹
Overall Length	164 mm
Net Weight	1.2 kg
Rated Voltage	D.C. 9.6 V
Battery Type	Nickel Metal Hydride (NiMH) / Lithium-ion compatible
Sound Pressure Level	90 dB(A)
Sound Power Level	101 dB(A)
Vibration Emission (Impact Tightening)	9.0 m/s²
Drive Type	1/4" Hex (6.35 mm) quick-release
Variable Speed Trigger	Yes
Reversing Switch	Yes (with neutral lock)
Auto-Stop Mechanism	Yes (presettable number of impacts, 1-99)
Battery Capacity Indicator	Yes (LED indicator)
Housing Material	Engineered plastics and metal

Frequently Asked Questions - BTD062Z MAKITA

What type of battery does the Makita BTD062Z use?

The Makita BTD062Z uses a 9.6V nickel metal hydride (NiMH) battery cartridge. It is also compatible with Makita lithium-ion batteries of the same voltage.

How do I change the direction of rotation?

To change direction, depress the reversing switch lever on the tool. Press from the A side for clockwise rotation or from the B side for counterclockwise. Always set the lever to the neutral position when not in use.

How do I set the auto-stop for a specific number of impacts?

Insert the battery while pulling the trigger until the indicator lamp flashes. Tap the tool housing once with a screwdriver to enter setting mode. Then, pull and release the trigger, tap the housing for the first digit (green lamp), pull and release, tap for the second digit (red lamp), then pull the trigger and remove the battery to save. The tool will stop after the preset number of impacts.

How do I check the remaining battery capacity?

When the tool is switched on, the indicating lamps light up to show the remaining capacity. The number of lit lamps corresponds to the battery level. The orange lamp indicates low capacity (0-10%). If the orange lamp flickers, the battery needs refreshing.

What safety precautions should I take when using this impact driver?

Always wear eye protection and ear protectors. Hold the tool by insulated gripping surfaces to avoid electric shock if contacting hidden wiring. Ensure a firm footing and keep bystanders away. Do not use the tool in explosive atmospheres.

How do I install or remove a driver bit?

To install a bit, pull the sleeve forward, insert the bit fully into the hex drive, then release the sleeve to lock it. To remove, pull the sleeve and pull out the bit. For shallow bit holes, use a bit-piece if needed.

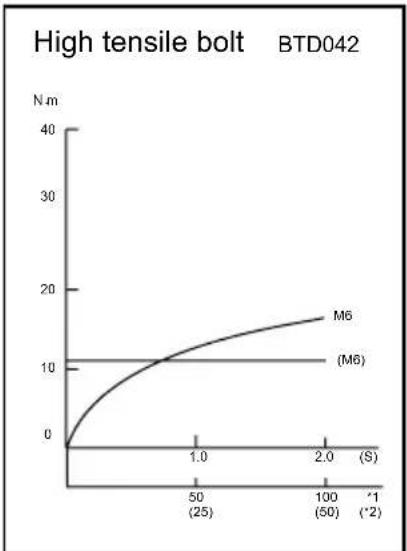

What is the maximum tightening torque?

The maximum tightening torque depends on the fastener size and material. As a guide, for M10 high tensile bolts, the torque can reach up to approximately 60 N·m with a fastening time of 1 second. Always perform a test operation to determine the proper fastening time.

How do I maintain the tool?

Keep the tool clean and dry. Regularly check the carbon brushes for wear and replace them when they reach the limit mark. Use only Makita replacement parts. Never use gasoline or solvents for cleaning. Have repairs done by an authorized service center.

Can I use this tool for drilling?

No, the Makita BTD062Z is an impact driver designed for screw driving in wood, metal, and plastic. It is not intended for drilling. Use a drill for that purpose.

What accessories are available for this model?

Recommended accessories include Phillips bits, socket bits, bit pieces, protective guards (clear, red, blue), and Makita genuine batteries and chargers. An automatic refreshing adapter is also available for battery maintenance.

USER MANUAL BTD062Z MAKITA

Cordless Impact Driver

BTD042

BTD062

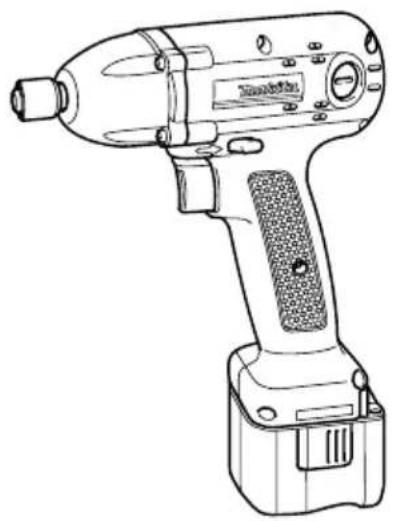

Line drawing of a handheld power tool with no visible text or symbols

001249

ENGLISH (Original instructions)

SPECIFICATIONS

Model		BTD042	BTD062
Capacities	Machine screw 4 mm - 8 mm 4 mm - 8 mm
	Standard bolt 5 mm - 10 mm 5 mm - 12 mm
	High tensile bolt 5 mm - 8 mm 5 mm - 10 mm
No load speed (min ^-1 ) 0 - 2,500 0 - 2,500
Impacts per minute 0 - 3,500 0 - 3,000
Overall length 164 mm 164 mm
Net weight 1.2 kg 1.2 kg
Rated voltage D.C. 9.6 V D.C. 9.6 V

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

END004-4

ENG900-1

Symbols

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

- Read instruction manual.

Only for EU countries

Do not dispose of electric equipment or battery pack together with household waste material!

In observance of European Directive 2002/96/EC on waste electric and electronic equipment, 2006/66/EC on batteries and accumulators and waste batteries and accumulators and their implementation in accordance with national laws, electric equipment and battery pack that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

ENE033-1

Intended use

The tool is intended for screw driving in wood, metal and plastic.

ENG905-1

Noise

The typical A-weighted noise level determined according to EN60745:

Model BTD062

Sound pressure level ( L_pA ): 90 dB(A)

Sound power level ( L_WA ): 101 dB(A)

Uncertainty (K) : 3 dB(A)

Wear ear protection

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Model BTD062

Work mode : impact tightening of fasteners of the maximum capacity of the tool

Vibration emission ( a_h ): 9.0 m/s ^2

Uncertainty (K) : 1.5 m/s²

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENH101-15

For European countries only

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine:

Cordless Impact Driver

Model No./ Type: BTD062

are of series production and

Conforms to the following European Directives: 2006/42/EC

And are manufactured in accordance with the following standards or standardised documents:

EN60745

The technical documentation is kept by our authorised representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

000230

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

GEA006-2

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

1. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

1. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Follow instruction for lubricating and changing accessories.
3. Keep handles dry, clean and free from oil and grease.

GEB054-1

CORDLESS IMPACT DRIVER SAFETY WARNINGS

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
3. Hold the tool firmly.
4. Wear ear protectors.

SAVE THESE INSTRUCTIONS.

⚠ WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC005-2

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may

result in a risk of overheating, possible burns and even an explosion.

1. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

2. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ C ( 122^ F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.
4. Do not use dropped or struck battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged.

Always stop tool operation and charge the battery cartridge when you notice less tool power.

1. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
2. Charge the battery cartridge with room temperature at 10^ C - 40^ C ( 50^ F - 104^ F). Let a hot battery cartridge cool down before charging it.
3. Charge the Nickel Metal Hydride battery cartridge when you do not use it for more than six months.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

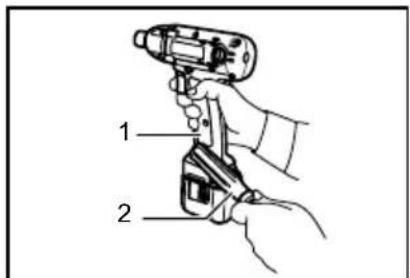

Installing or removing battery cartridge

1. Battery cartridge
2. Button

001251

• To remove the battery cartridge, withdraw it from the tool while pressing the buttons on both sides of the cartridge.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

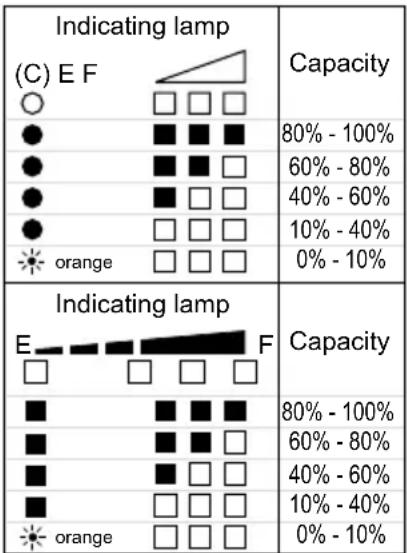

Checking the remaining battery capacity

001254

When charging

When the charging begins, the first (far left) indicating lamp begins to flicker. Then, as charging proceeds, the other lamps light, one after the other, to indicate the battery capacity.

When using

When the tool is switched on, the lamps will light to indicate the remaining battery capacity. When the tool is switched off, the light goes out after approx. 5 seconds. If the battery has not been used for a long time, or is needed refresh charging, the orange lamp begins to flicker. Use Makita refreshing adapter to refresh the battery.

CAUTION:

- A battery cartridge extracted from the charger that has been unplugged with the battery cartridge inserted does not work even if it is inserted in the tool. At this time, recharge it for about five seconds before use.

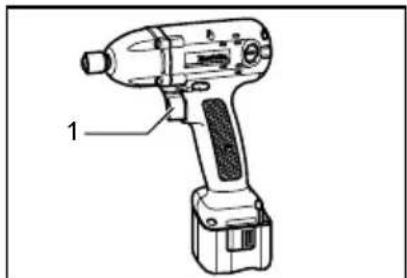

Switch action

Line drawing of a handheld power tool with labeled component (no text or symbols on the device itself)

1. Switch trigger

001255

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

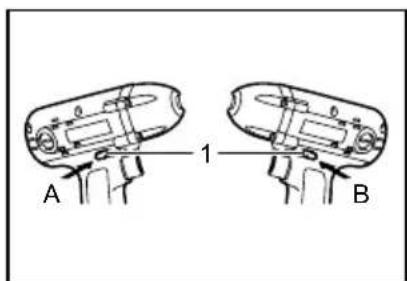

Reversing switch action

1. Reversing switch lever

001257

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position.

Auto-stop mechanism

001258

The tool stops automatically after the battery capacity reaches under 20% to prevent the lack of fastening torque. Charge the battery or use a new fully charged one.

Auto-Stop setting for number of impacts

This tool has a convenient auto-stop mechanism that allows you to preset the desired number of impacts in terms of the application. The tool then stops automatically after reaching the preset number of impacts.

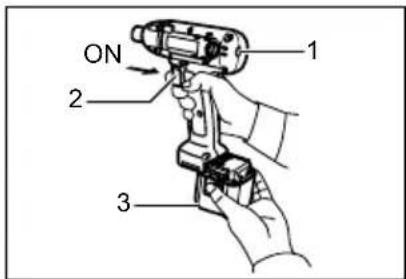

1. Pulling the switch trigger, insert the battery cartridge. Keep on pulling the switch trigger after inserting the battery cartridge. (The indicating lamp on the back of the tool will flash about 10 times, then the lamp will keep lighting up lit.)

001259

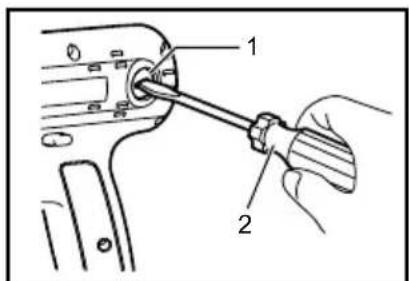

1. Hit the tool housing around the grip once with a screwdriver etc. (The indicating lamp will go out.)

1. Tool housing
2. Screwdriver

001260

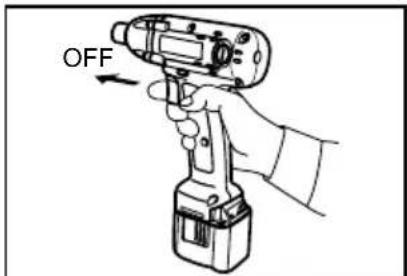

1. Release the switch trigger. (The indicating lamp will keep lighting up lit for 0.5 seconds, then the lamp will go out.)

001261

1. Hit the tool housing preset number of first digit except 0. (The indicating lamp will light up in green color. Then, the light goes out.)

Example:

- When the preset number is 12, hit the tool housing once.

1. Pull the switch trigger, then release it.

2. Hit the tool housing preset number of second digit except 0. (The indicating lamp will light up in red color. Then, the light goes out.)

Example:

- When the preset number is 12, hit the tool housing two times.

1. Pull the switch trigger, then release the switch trigger. (The indicating lamp will light up.)

2. Remove the battery cartridge. (Presetting has finished.) (The indicating lamp will go out.)

CAUTION:

- When you change the presetting, do the same procedure as above 1 - 8.

Confirming the presetting

Switch off the tool and insert the battery cartridge. The indicating lamp will indicate the presetting number. Green lamp shows the first digit. Red lamp shows the second digit.

Example:

- presetting number is 12.

1. Green color lamp flashes once.
2. Red color lamp flashes two times.
3. The lamp goes out.

Relation between presetting number and action

Presetting number	Clockwise rotation	Counterclockwise rotation
0	Auto-stop setting does not work.	Auto-stop setting does not work.
01 - 99	After impacting [number of impacts (presetting number x 2) x 0.02] seconds.Green color lamp lights on.Switch off before impacting [number of impacts (presetting number x 2) x 0.02] seconds.Red color lamp lights on.Then, the lamp goes out.	Auto-stop setting does not work.Indication lamp goes out.

003611

Indicating lamp

• After impacting preset numbers, the indicating lamp lights in green color.
• The red color light will light on if the switch trigger is pulled before the presetting number of impacts is achieved. It indicates that the operation is incomplete.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver bit or socket bit

004521

Use only the driver bit or socket bit shown in the figure. Do not use any other driver bit or socket bit.

For tool with shallow bit hole

A=12mmB=9mm

Use only these type of bit. Follow the procedure (1).(Note) Bit-piece is not necessary.

006348

For tool with deep bit hole

A=17mmB=14mm	To install these types of bits, follow the procedure (1).
A=12mmB=9mm	To install these types of bits, follow the procedure (2).(Note) Bit-piece is necessary for installing the bit.

011405

1. To install the bit, pull the sleeve in the direction of the arrow and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit.

1. Bit

2. Sleeve
   011406

3. To install the bit, pull the sleeve in the direction of the arrow and insert the bit-piece and bit into the sleeve as far as it will go. The bit-piece should be inserted into the sleeve with its pointed end facing in. Then release the sleeve to secure the bit.

1. Bit
2. Bit-piece
3. Sleeve
   011407

To remove the bit, pull the sleeve in the direction of the arrow and pull the bit out firmly.

NOTE:

- If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the bit will not be secured. In this case, try re-inserting the bit according to the instructions

above.

OPERATION

[*1] Presetting number of impacts is impossible for more than 200 impacts (4 seconds).
[*2] Fastening time includes when you pull the switch trigger completely.

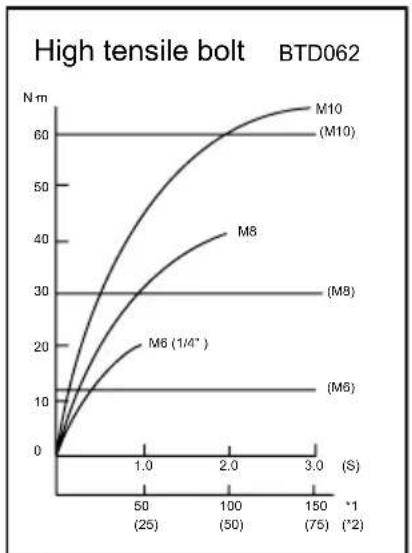

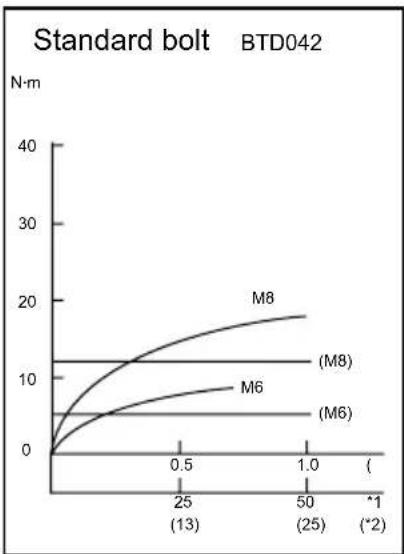

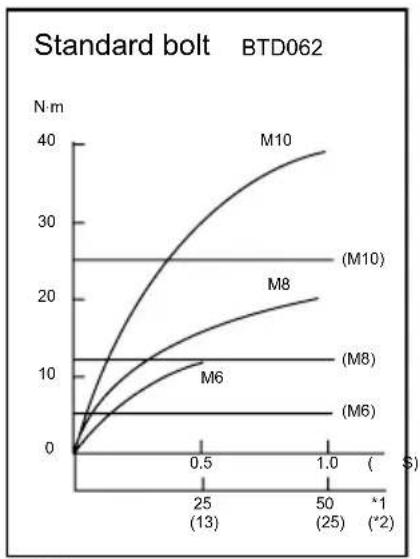

The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fastening torque, fastening time and number of impacts (presetting number) is shown in the figures.

Hold the tool firmly and place the point of the driver bit in the screw head. Apply forward pressure to the tool to the extent that the bit will not slip off the screw and turn the tool on to start operation.

004532

S)

004535

004540

004541

NOTE:

• Use the proper bit for the head of the screw/bolt that you wish to use.
• Hold the tool pointed straight at the screw.
• If you tighten the screw for a time longer than shown in the figures, the screw or the point of the driver bit may be overstressed, stripped, damaged, etc. Before starting your job, always perform a test operation to determine the proper fastening time for your screw.
• If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.

The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench.

1. When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.
2. Driver bit or socket bit Failure to use the correct size driver bit or socket bit will cause a reduction in the fastening torque.

3. Bolt

4. Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter of bolt.
   • Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt and the bolt length.

5. The manner of holding the tool or the material of driving position to be fastened will affect the torque.

6. Operating the tool at low speed will cause a reduction in the fastening torque.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
- Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Replacing carbon brushes

Pure mechanical diagram showing a spring-loaded component with no text or symbols

1. Limit mark

001145

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

1. Brush holder cap
2. Screwdriver

001268

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Phillips bit
• Socket bit
• Bit piece
  • Protector (clear, red, blue)
• Various type of Makita genuine batteries and chargers
  • Automatic refreshing adapter

Makita Corporation

Anjo, Aichi, Japan
