Product Type	Air Purifier
Brand	Tefal
Model	Pure Air Purifier PT3030
Color	White
Dimensions (H x W x D)	450 x 250 x 250 mm
Weight	6.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	50 W (max)
Noise Level	25-55 dB
Coverage Area	40 m²
Filtration Stages	Pre-filter, HEPA H13, Activated Carbon
CADR (Clean Air Delivery Rate)	200 m³/h
Fan Speeds	3 speeds + Auto mode
Timer	1-8 hours
Sleep Mode	Yes
Filter Change Indicator	Yes
Air Quality Sensor	Yes (PM2.5)
Auto Mode	Yes
Child Lock	Yes
Operating Temperature	0-40°C
Warranty	2 years
Included Accessories	User manual, quick start guide
Certifications	CE, RoHS

Frequently Asked Questions - Pure Air Purifier PT3030 TEFAL

How often should I clean the pre-filter?

Clean the pre-filter every 2-4 weeks using a vacuum cleaner or by rinsing it under water. Allow it to dry completely before reinstalling.

When should I replace the HEPA filter?

Replace the HEPA filter every 6-12 months depending on usage and air quality. The filter change indicator will alert you when it's time.

Can I use the purifier 24/7?

Yes, the PT3030 is designed for continuous use. It operates safely and efficiently 24 hours a day, 7 days a week.

Is the PT3030 suitable for large rooms?

The PT3030 is ideal for rooms up to 40 m² (430 sq ft). For larger spaces, consider using multiple units.

How to reset the filter change indicator?

After replacing the filters, press and hold the reset button (usually the timer or fan speed button) for 3 seconds until the indicator light turns off.

Does it have a remote control?

No, the PT3030 does not include a remote control. All functions are controlled via the touch panel on the unit.

What does the air quality indicator mean?

The air quality indicator uses colors: blue (good), amber (moderate), and red (poor). It reflects the current PM2.5 level.

Can I use it without the HEPA filter?

No, operating without the HEPA filter may damage the unit and will not purify the air. Always use all intended filters.

How to clean the air purifier?

Unplug the unit, wipe the exterior with a soft damp cloth. Clean the pre-filter as recommended. Do not use abrasive cleaners or immerse the unit in water.

Is the purifier safe for pets?

Yes, the PT3030 is safe for pets. It captures pet dander and hair, improving air quality. Ensure the unit is placed where pets cannot knock it over.

USER MANUAL Pure Air Purifier PT3030 TEFAL

White portable air conditioner unit with grid pattern and ventilation grille (no visible text or symbols)

PURE AIR PT3030/PT3040

www.tefal.com

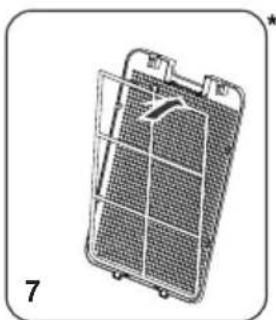

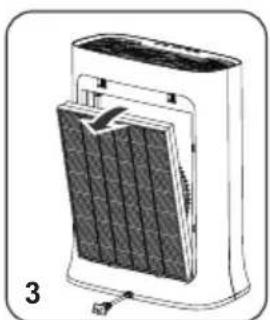

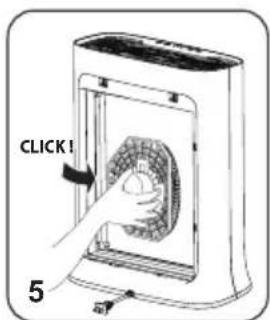

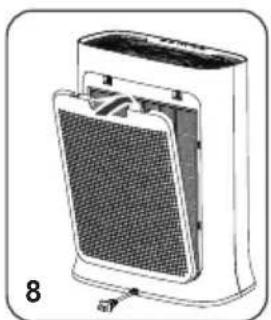

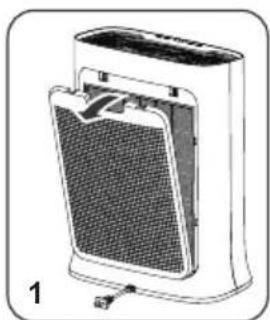

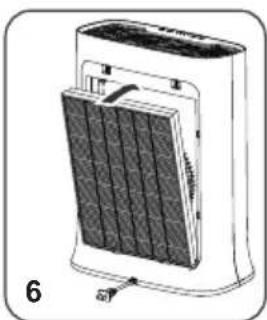

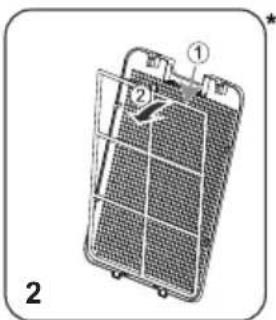

DISASSEMBLING / REASSEMBLING FILTERS

Illustration of a portable air conditioner unit with mesh cover and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with grid-patterned insulation and ventilation slots (no text or symbols)

Two-step illustration showing a hand holding a tablet device and interacting with a wristwatch (no text or symbols present)

Illustration of a portable air conditioner unit with grid-patterned panel and ventilation slots (no text or symbols)

Diagram of a grid-patterned device with a handle, labeled '7' and an asterisk (no text or symbols on the device itself)

Illustration of a portable air purifier with mesh insulation and mounting bracket (no text or symbols)

(only for PT3040 model) / (tолько для модели PT3040) / (僅適用於PT3040型號) / (لطراز PT3040) / (tylko dla modelu PT3040) / (ainult PT3040 mudelil) / (tikai modelim PT3040) /

РАЗБОРКА / ПОВТОРНАЯ СБОРКА ФИЛЬТРОВ - 拆除 / 裝回濾網 - تفكيك/إعادة تجmeg الفلاتر - ZDEJMOWANIE / PONOWNE ZAKŁADANIE FILTRÓW - FILTRITE LAHTIVÖTMINE / UUESTI KOKKUPANEMINE - FILTRU IZJAUKŠANA / SALIKŠANA - FILTRU IŠMONTAVIMAS / SUMONTAVIMAS

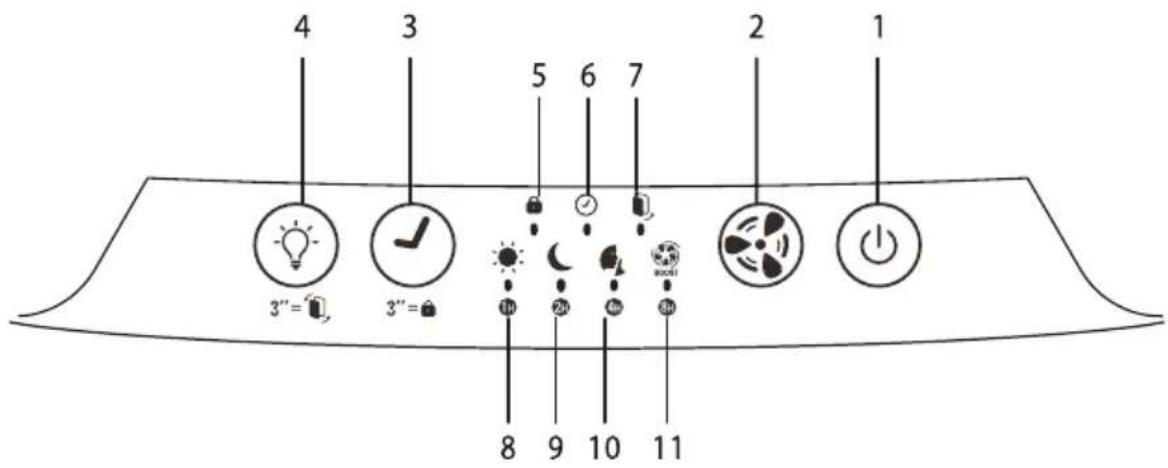

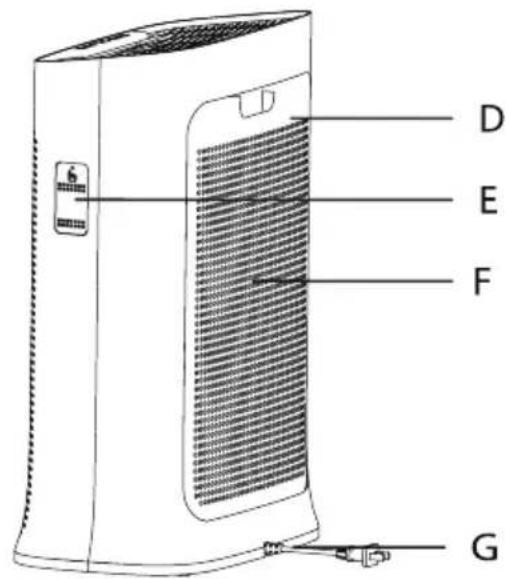

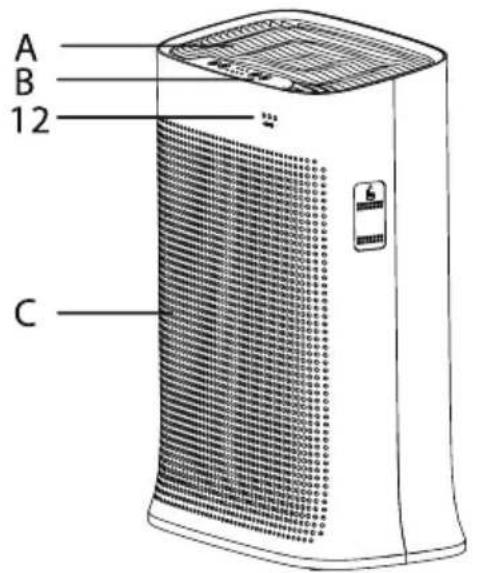

PRODUCT OVERVIEW

Main Unit Control buttons Indicators

A	Air outlet	1	On/off button	5	Child lock indicator
B	Control panel	2	Mode button	6	Timer Indicator
C	Front panel	3	Timer/child lock	7	Replace filter indicator
D	Rear panel	4	Brightness/reset filter button	8	Day time Auto mode indicator
E	Sensor cover			9	Night time Auto mode indicator
F	Air inlet			10	Quiet mode indicator
G	Mains cable			11	Turbo mode indicator

12 Air quality indicator

SAFETY TIPS

It is essential that you read these instructions carefully and observe the following recommendations:

• For your safety, this appliance complies with the applicable standards and regulations (low voltage, electromagnetic compatibility, environmental directives, etc.).
• This appliance should not be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• The appliance can be used by children aged 8 and over and persons with a lack of experience or knowledge or reduced physical, sensory or mental capacities, provided they are supervised, have been trained on the safe use of the appliance and are aware of the risks involved. Children must not play with the appliance.
• If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person so as to avoid any danger.
• Children should not clean or perform maintenance on the appliance without being supervised.
• For maintenance operations, please refer to the "Maintenance" section.
• Keep the appliance and its power cord out of the reach of children aged under 8.

• This appliance is designed for domestic use only. It should not be used for industrial purposes.

• The warranty will be invalidated if damage occurs due to incorrect use.

• Do not operate this appliance in a very dusty and/or humid place or in a location with fire hazards.
• Before use, always make sure that the appliance, plug and power cord are in good condition.
• Never insert objects into the appliance (e.g. needles, etc.).
• Do not pull on the power cord or the appliance, even to unplug it from the wall power outlet.
• Unroll the full length of the cord before use.

VERY IMPORTANT

• Do not cover the air inlets or the outlet grid.
• Do not touch the appliance with wet hands.
• Never allow any liquid to enter the appliance.
• Never use the appliance in a humid place.
• Never use the appliance close to a heat source.
• Never place anything on the appliance or insert anything into it.
• Do not use the appliance close to flammable objects or products (curtains, aerosols, solvents, etc.).
• Never use the appliance in an inclined or horizontal position. Place the appliance on a flat, stable surface.
  • In the case of prolonged absence: switch the appliance off using the button (8) and unplug it.
• Switch off and unplug your appliance before moving it.
• Unplug the air purifier during assembly and cleaning.

OPERATING PRINCIPLE

Tefal Pure Air enables you to breathe pure air in your home and protects your health with up to 3 filtration levels (4 filtration levels for PT3040) as described below. Each level is essential and traps specific pollutant :

2in1 Active Carbon &

Allergy+ Filter

• Smoke
• Unpleasant odors
• Chemical pollutants
  • Volatile Organic Compounds (VOC)
• Allergen and Pollen
• Dust mite
• Germs and Molds
  • Bacteria and Viruses

NanoCaptur+ filter

(only for PT3040 model)

- Formaldehyde

« HOW TO ACHIEVE CLEANER INDOOR AIR »

In addition to using your Pure Air purifier, here are some tips on how to improve the quality of your indoor air:

• Ventilate the rooms for at least 10 min. every day, in summer and winter.
• Maintain your ventilation system.
• Limit the use of household products.
• Do not smoke indoors.
• Avoid home fragrances, incense sticks, scented candles, etc.
• Ventilate whenever any work is being conducted in your home and for several weeks afterwards.
• Avoid green plants that are allergenic or need frequent watering.

WHERE TO INSTALL THE APPLIANCE

Place the purifier on a flat, stable surface in the room requiring treatment.

To allow the air to circulate freely, avoid placing the appliance behind curtains, below a window, item of furniture or shelf unit, or close to any other obstacle, and leave at least 50 cm of free space on each side of the appliance.

Recommended to be used in ambient conditions lower than 35^ C 70%RH.

EN

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Make sure that the plastic packaging protecting the filters has been removed before using the appliance.

Before the first use, ensure the voltage, frequency and power of your appliance suit your electric supply.

Your appliance can operate using an unearthed plug. It is a class II (double electrical insulation).

Before switching on your appliance, ensure that:

• the appliance is completely assembled as described in the safety instructions,
• the appliance is placed on a stable, horizontal surface,
• the appliance is positioned in accordance with the instructions given in this manual,
• the air inlets and the oultet grid are completely unobstructed,
• the filters and panel have been correctly installed (See section "Disassembling / Reassembling filters")

IMPORTANT: You are advised to switch off and unplug the appliance when not in use.

OPERATION

- Power button (1)

- Press this button to turn the air purifier on/off.

- Mode button (2)

- Press this button to select one of the four modes. The corresponding indicator will turn on to indicate the selected mode.

– Daytime auto mode: The fan speed is set to 2 or 3.
– Nighttime auto mode: The fan speed is set to 1 or 2.
- Quiet mode: The fan speed is set to minimum. Use this mode in quiet environments.
- Turbo mode: The fan speed is set to maximum. Use this mode when air quality is poor.

- Timer function (3)

• Press this button to enable/disable the timer.
• Press this button for 3 seconds to enable/disable the child lock.

- Brightness (4)

• Press this button to set the brightness.
• Press this button for 3 seconds to reset the filter.

• Indication of air quality

Air quality indicator (12) is located at the front panel (C) of the appliance. Lights colors indicate the air quality level:

Air Quality Air quality indicator color

Excellent Blue
Average Purple
Poor Red

CARE AND MAINTENANCE

Before performing any maintenance work, switch off the air purifier using the on/off button (1).

Use a damp cloth to clean the surface of the product.

Important: Do not use any abrasive materials, as these may damage the surface of the product.

Frequency of cleaning/replacing the filters :

Filter Clean/replace Frequency Filter codes
Pre filter Clean Every 2 months
2in1 Active Carbon & Allergy+ Filter Replace Every 12 months XD6230
NanoCaptur+ filter (only PT3040 model) Replace		Color changing (see color chart on filter) or every 12 months in case of no saturation.	XD6082

These figures are based on tests in which the air purifier is used for 8 hours per day in quiet mode.

You may need to replace the filters more often depending on the air quality and how often the air purifier is used. The filter replacement indicator (7) will turn on when the filters need to be replaced. To replace the filters, please refer to the section "Disassembling / Reassembling filters".

Important! When the filter replacement indicator turns on, check whether the filters need to be replaced.

- When the filter replacement indicator (7) turns on, this indicates that the 2in1 Active Carbon & Allergy+ filter needs to be replaced.

- The pre-filter can be cleaned with a vacuum cleaner or rinsed in water.

Important: Resetting the filter

After replacing the filter, press the brightness button (4) for 3 seconds to reset the filter settings.

Performing a force reset:

If you replace a filter before the end of its lifespan, press the brightness button (4) for 3 seconds to reset the filter settings.

Caution :

If the granules become "white opaque", filter needs to be removed from the purifier until the granules become transparent again.

If the opaque aspect persists, filter need to be changed.

If the granule become "crumbly", filter need to be changed.

The appliance efficiency can be reduced if the pre-filter is not cleaned regularly.

Never use a pre-filter that is still damp.

The pre-filter is the only filter which can be re-used and washed with water. The 2in1 Active Carbon & Allergy+ filter cannot be cleaned and re-used. Never wash with water. The 2in1 Active Carbon & Allergy+ filter must be replaced after the end of its lifespan. For optimum performance of the appliance, only use filters provided by Tefal. If the Nanocaptur+ filter granules become opaque white or/and crumbly, the filter needs to be changed.

Please note: certain filters may emit a temporary slight odour, due to the transport and storage conditions.

• Avoid handling used filters if you suffer from allergies or asthma.
• Wear gloves when changing the filters, or wash your hands well afterwards.
• Put used filters directly into a closed, air-tight bag before throwing them away to avoid spreading pollutants.

Pollution sensors

The particle sensor need to be cleaned regularly (every 2 months) and appropriately.

Make sure you turn off and unplug the appliance before cleaning the pollution sensors and follow the recommendations below:

1. Clean the air inlet and outlet using a soft brush or cloth.
2. Open the sensor cover located on the left hand side of the appliance.
3. Lightly wet a cotton swab and remove any dust from the lens and the inlet/outlet. Wipe using a dry cotton swab.
4. Clean the sensor using a soft brush or vacuum cleaner.

Hand inserting a card into a smartphone (no text or symbols visible)

EN

IMPORTANT:

Never use a detergent or metal object to clean the sensors.

The efficiency of the sensors may be reduced if not cleaned regularly.

Cleaning frequency varies depending on the operating environment of the appliance. If it is used in a dusty environment, clean the sensors more frequently.

STORAGE

When you are not using the appliance, store it in a cool, dry place with ambient conditions no higher than 35^ C 70%RH.

IN THE EVENT OF A PROBLEM

• Do not disassemble the appliance yourself. A poorly repaired appliance may be dangerous for the user.
• Check the troubleshooting table below before contacting an Approved Service Center:

Problem Check Solution
The appliance does not switch on.	Is the power cord connected?	Connect the power cord to a plug with the correct voltage.
	Are all the display elements off?	Press the on/off button and select the required function.
	Is there a power outage?	You can use your purifier once the power turns on again.
The air flow does not change automatically.	Is the appliance in manual mode? Select the correct operating mode.
The flow is a lot weaker than before.	Does the filter need to be cleaned or replaced?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
There is an unpleasant smell coming from the air outlet.	Is the sensor lens covered with dust?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
The air quality indicator does not change color.	Does the light still indicate poor air quality?	Clean the sensor lens.

WARRANTY

Do not use the appliance and contact an Approved Service Centre if:

– your appliance has been dropped;
– your appliance or its power cord are damaged;
– your appliance no longer functions properly.

You can find a list of Approved Service Centres on the Tefal international warranty card.

HELP PROTECT THE ENVIRONMENT!

Your appliance contains many materials which can be recovered or recycled.

Leave it at a local waste collection point or take to an approved service center so that it can be processed.

These instructions can also be found on our internet site, at www.tefal.com.

Hand inserting a card into a smartphone (no text or symbols visible)

ВАЖНО:

Illustration of a mobile phone with a partially visible screen and antenna (no text or symbols)

Hand holding a smartphone with a screen, no visible text or symbols

重要事項：

切勿用清潔劑或金屬物清潔感應器。

感應器須定期清潔，否則效能會降低。

Illustration of a calculator with an arrow pointing to the screen (no text or symbols on the device itself)

Illustration of a cylindrical container with label and number 2, no readable text or symbols on the object itself.

Line drawing of a hand inserting a card into a smartphone (no text or symbols)

Technical line drawing of an air conditioner unit with fan, cooling panel, and grid cover (no text or symbols)

الفلتر الأولى

• الأترية

•�شر

• شعر الحيوانات

الأليفة

Hand holding a smartphone with a hand pointing at it, no visible text or symbols

WAŻNE:

W PRZYPADKU PROBLEMÓW

Hand inserting a card into a smartphone (no text or symbols visible)

OLULINE:

Illustration of a calculator with an arrow pointing to the top-left button, labeled with number 1 (no text or symbols on the device itself)

Hand inserting a card into a smartphone (no text or symbols visible)

SVARİGI!

Hand inserting a card into a smartphone (no text or symbols visible)

SVARBU.
