Product Type	Air Purifier
Brand	Tefal
Model	Intense Pur Air PU6065
Filtration Stages	4 (Pre-filter, Active Carbon, HEPA, NanoCaptur)
Filtration Efficiency	Up to 99.97% of particles (HEPA filter)
Automatic Mode	Yes, with particle and gas sensors (gas sensor only on PU6065)
Manual Speed Settings	4 speeds
Night Mode	Yes, whisper quiet operation with reduced light
Ionizer Function	Yes (negative ions, can be toggled on/off)
Timer	1, 2, 4, or 8 hours (also delayed start)
Control Panel Lock	Yes
Air Quality Indicator	3 colors: Blue (excellent), Purple (average), Red (poor)
Adjustable Air Outlet	Yes, manually adjustable to 45° or 90°
Pre-filter Cleaning	Every 2-4 weeks (washable with water)
Active Carbon Filter Life	Replace every 12 months
HEPA Filter Life	Replace every 3 years
NanoCaptur Filter Life	Replace when granules change color (check every 6 months)
Sensor Cleaning Interval	Every 2 months
Power Supply	220-240V ~ 50/60Hz (Class II double insulation, unearthed plug)
Safety Features	Automatic shut-off if front door not assembled; complies with low voltage and EMC directives
Spare Parts (PU6065)	HEPA filter XD6071, Active carbon filter XD6061, NanoCaptur filter XD6081
Use	Indoor domestic only

Frequently Asked Questions - Intense Pur Air PU6065 TEFAL

How often should I replace the filters?

The active carbon filter should be replaced every 12 months, the HEPA filter every 3 years, and the NanoCaptur filter when the granules change color (check every 6 months). The pre-filter is washable and should be cleaned every 2 to 4 weeks.

How do I clean the pollution sensors?

Turn off and unplug the appliance. Open the sensor cover on the right side. Use a slightly wet cotton swab to clean the lens and inlet/outlet of the particle sensor, then dry with a dry swab. For the gas sensor (PU6065 only), use a soft brush or vacuum cleaner. Clean every 2 months.

What does the air quality indicator color mean?

Blue indicates excellent air quality, purple indicates average air quality, and red indicates poor air quality. The color changes based on sensor readings.

Can I use the purifier in a humid environment?

No, the appliance is not intended for use in a humid environment (e.g., bathroom). Avoid using near water or with wet hands.

How do I reset the filter change indicator?

After replacing a filter, hold down the reset button for 2 seconds. For forced reset (if replacing early), hold reset for 2 seconds, then briefly press to select the filter, then hold again for 2 seconds.

What is the NanoCaptur filter and when should it be replaced?

The NanoCaptur filter absorbs formaldehyde using translucent granules that change color as they saturate. Check the color chart every 6 months. Replace the filter when the granules reach maximum saturation (color matches the chart's end point).

Is the pre-filter washable?

Yes, the pre-filter is reusable and can be washed with water. Remove dust with a vacuum cleaner or wash gently. Ensure it is completely dry before reinstalling. Never wash the other filters.

How do I adjust the sensor sensitivity?

With the appliance off, hold the filtration speed setting button for 2 seconds. Then briefly press the same button to cycle through low, medium, and high sensitivity. The new setting applies after 10 seconds of inactivity.

How do I activate night mode?

Press the night mode button (14) on the control panel. The appliance will run at a quieter speed and dim the lights. If pollution is detected, it will increase speed slightly but remain quiet.

What should I do if the airflow is weak?

Check if the pre-filter needs cleaning (clean every 2-4 weeks) or if any other filter is due for replacement. Also ensure the air inlets and outlet are unobstructed and the front door is properly closed.

USER MANUAL Intense Pur Air PU6065 TEFAL

Two Tefal air purifiers with brand logos, shown from different angles (no text or symbols on the devices themselves)

INTENSE PURE AIR PU4065/PU6065

www.tefal.com

EN

Please read the instruction manual and safety instructions carefully before using the appliance and keep the instruction manual for reference. For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives etc.).

HK

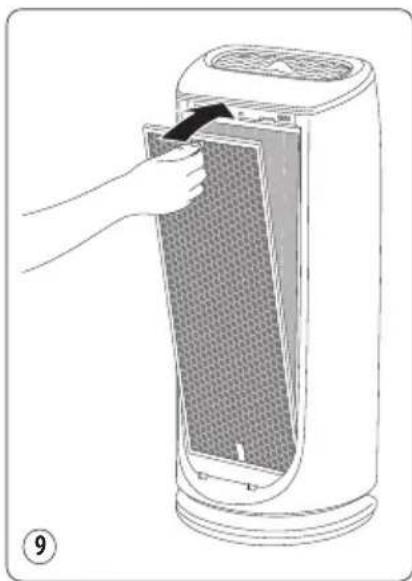

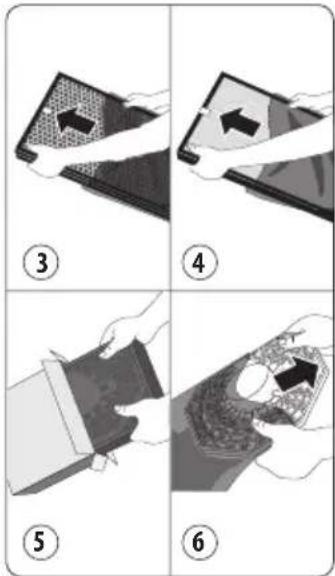

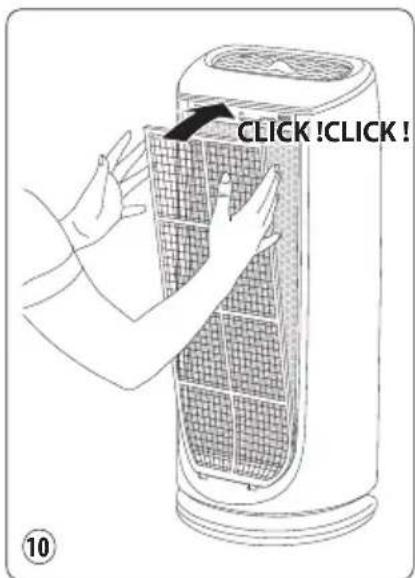

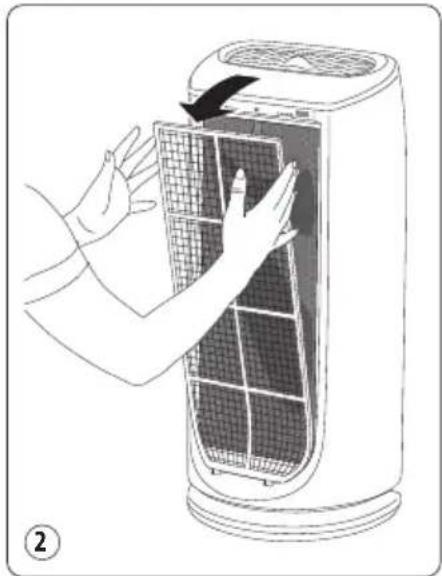

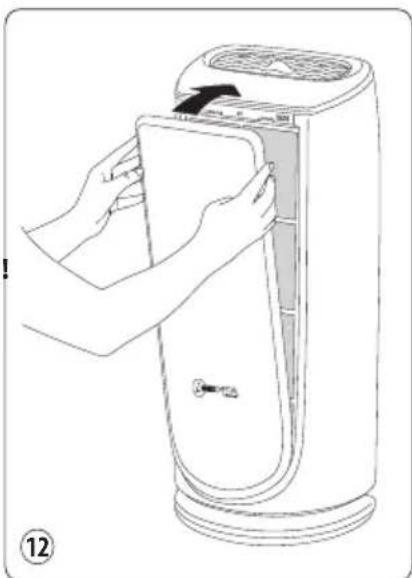

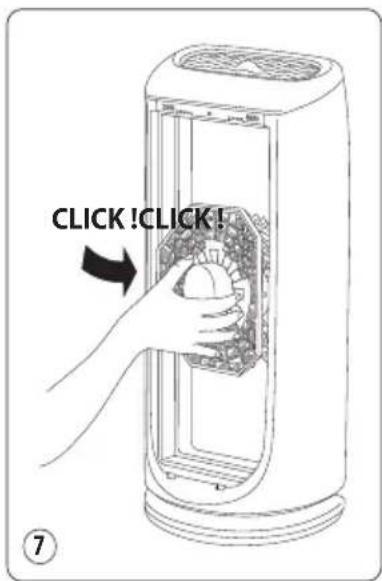

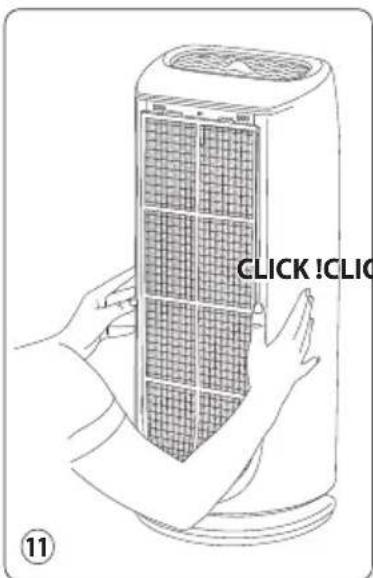

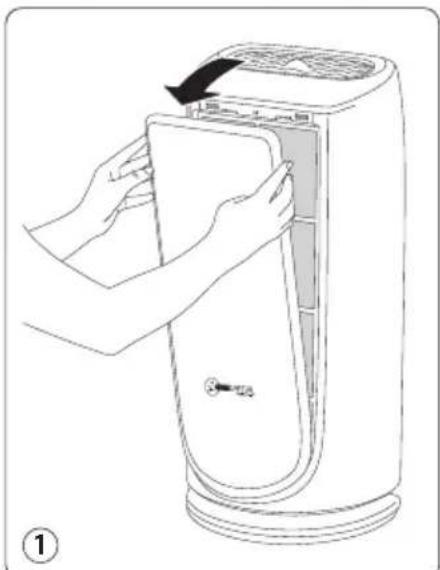

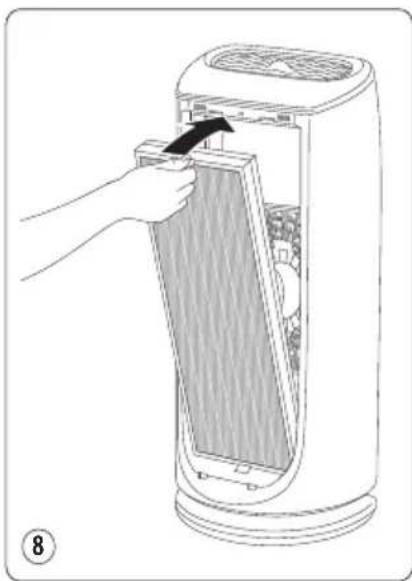

DISASSEMBLING/REASSEMBLING FILTERS

Line drawing of a hand inserting a card into a device (no text or symbols present)

Illustration of hands installing or adjusting a grid-patterned air conditioner unit (no text or symbols visible)

Illustration of a hand inserting a fan into a power grid device (no text or symbols visible)

Illustration of a hand inserting a filter into a power grid device (no text or symbols)

Line drawing of a hand inserting a card into a portable air purifier (no text or symbols)

拆卸 / 重裝濾網 - تارتلفلا بيكرتو كف УСТАНОВКА / СНЯТИЕ ФИЛЬТРОВ -PERTAMA KALI SEBELUM PENGGUNAAN _ PEMASANGAN DAN MENUKAR PENAPIS

SAFETY INSTRUCTIONS

• Before use, always check that the appliance, plug and power cord are in good condition.
• The appliance must be used in normal conditions of use as defined in this notice.
• Never allow any liquid to get into the appliance.
• Do not touch the appliance with wet hands.
• Never insert objects into the appliance (e.g. needles, etc.).
• Do not cover your appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Your appliance must be unplugged before any maintenance.
• For maintenance and adjustment operations, please refer to the "Maintenance" section.
• Ensure that the air purifier is switched off from the supply mains before removing the guard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

RECOMMENDATIONS

The electrical facilities of the room, as well as the installation and use of the appliance must comply with the standards in force in your country.

Do not use your appliance near inflammable objects or products. In general, you should always place the appliance at least 50 cm away from any object (walls, curtains, aerosols, etc.).

Never place anything on the appliance.

Do not pull on the power cord or the appliance, even when unplugging it from a wall socket.

This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.

Always unroll the power cord completely before use.

Do not use the appliance in a dusty room or a location where there is a risk of fire.

This appliance must not be used in a humid environment.

Never use the appliance close to a heat source.

The warranty will be invalidated if damage occurs due to incorrect use.

Do not cover the air inlets or the outlet grid.

Never use the appliance in an inclined or horizontal position. Place the appliance on a flat, stable surface.

In the case of prolonged absence: switch the appliance off using the button (10) and unplug it.

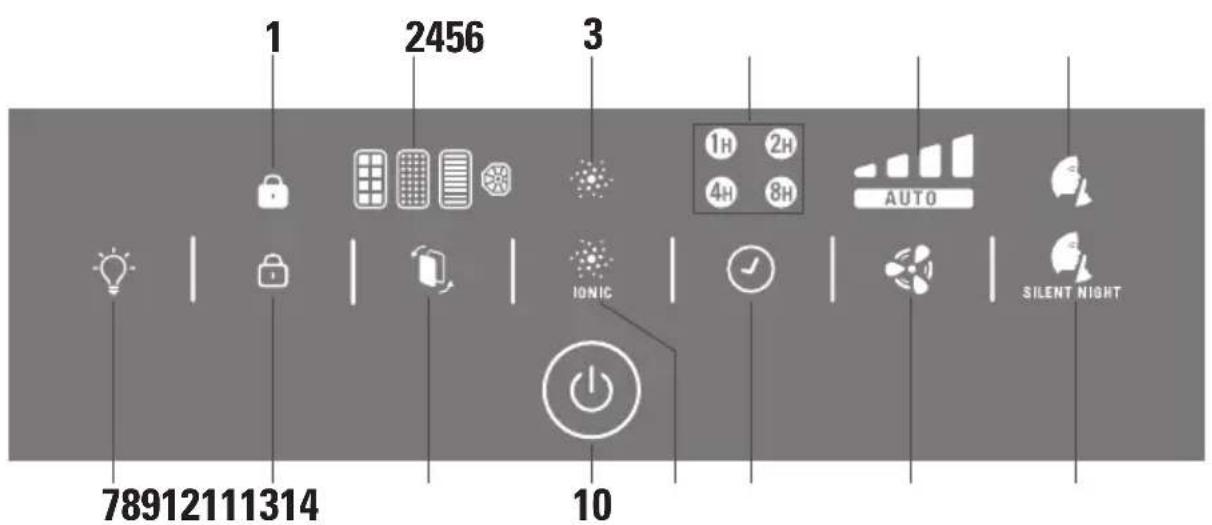

DESCRIPTION

Product description Control panel lights Control buttons

A Air quality indicator

1 Locked control panel

7 Light

B Adjustable air outlet grid

2 Filter change indicator

8 Control Panel Lock

C Control panel

3 lonizer function

9 Filter reset

D Front door 4 Timer / delayed start 10 Start

E Handle

5 Mode display

11 Ionizer function

F Air inlets

6 Night mode

12 Timer / delayed start setting

G Particle sensor

13 Automatic mode / filtration speed selection

H Gas sensor (PU6065 only)

14 Night mode selection

Power cord outlet

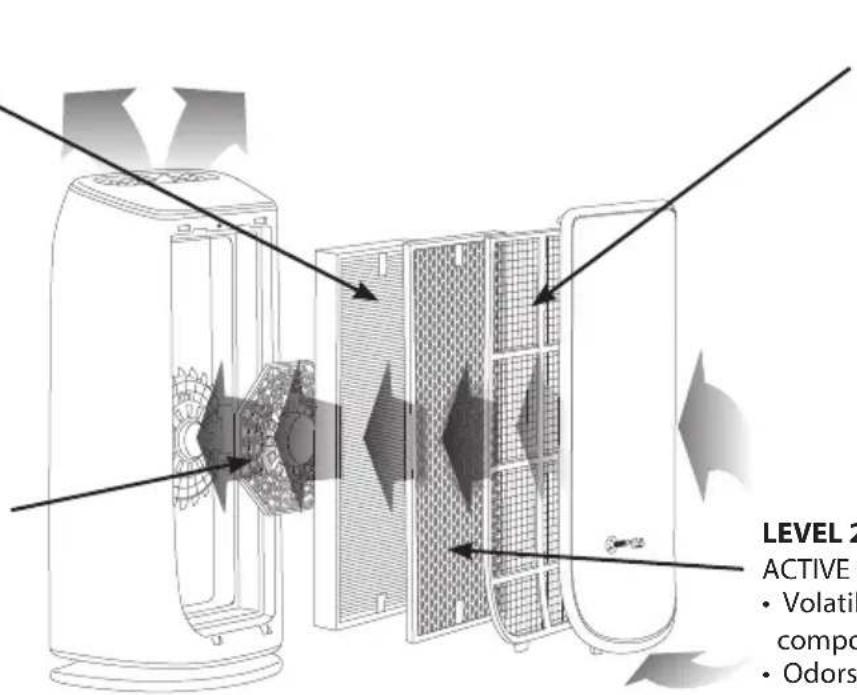

OPERATING PRINCIPLE

The new Intense Pure Air purifier from Tefal enables you to breathe up to 99.97% pure air in your home and protect your health with 4 filtration levels as described below. Each level is essential and traps characteristic pollutants:

LEVEL 3:

HEPA FILTER

• Fine particles (PM2.5)
- Pollen
- Dust mites
• Animal allergens
- Mold
• Bacteria / viruses

LEVEL 4:

NANOCAPTUR FILTER

- Formaldehyde

LEVEL 1:

PRE-FILTER

• Dust
- Hair
• Fur
• Lint

LEVEL 2:

ACTIVE CARBON FILTER

• Volatile organic components (VOCs)
- Odors / gases

« HOW TO ACHIEVE CLEANER INDOOR AIR »

In addition to using your Intense Pure Air purifier, here are some tips on how to improve the quality of your indoor air:

• Ventilate the rooms for at least 10 min. every day, in summer and winter.
• Maintain your ventilation system.
• Limit the use of household products.
• Do not smoke indoors.
• Avoid home fragrances, incense sticks, scented candles, etc.
• Ventilate whenever any work is being conducted in your home and for several weeks afterwards.
• Avoid green plants that are allergenic or need frequent watering.

WHERE TO INSTALL THE APPLIANCE

Place the purifier on a flat, stable surface in the room requiring treatment.

To allow the air to circulate freely, avoid placing the appliance behind curtains, below a window, item of furniture or shelf unit, or close to any other obstacle, and leave at least 50~cm of free space on each side of the appliance.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Make sure that the plastic packaging protecting the filters has been removed before using the appliance.

Before the first use, ensure the voltage, frequency and power of your appliance suit your electric supply.

Your appliance can operate using an unearthed plug. It is a class II (double electrical insulation □).

Before switching on your appliance, ensure that:

- the appliance is completely assembled as described in the safety instructions,

- the appliance is placed on a stable, horizontal surface,

- the appliance is positioned in accordance with the instructions given in this manual,

- the air inlets and the oultet grid are completely unobstructed,

- the 4 filters and front panel have been correctly installed (See section "Disassembling/Reassembling filters").

IMPORTANT: You are advised to switch off and unplug the appliance when not in use.

This appliance is equipped with a device that automatically prevents it from operating if the front door is not correctly assembled.

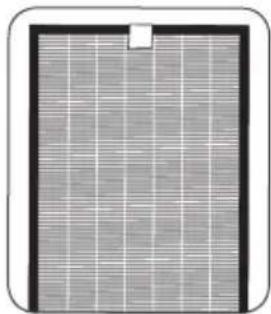

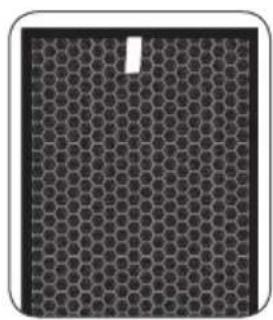

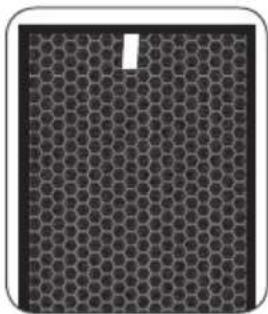

Inserting and replacing the filters

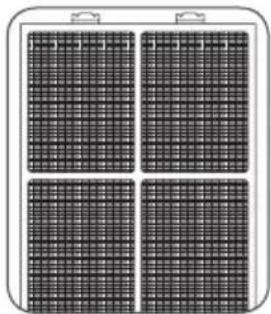

This appliance is equipped with 4 types of filters:

Four identical black-and-white grid panels arranged in a 2x2 grid, enclosed in a rounded rectangular frame (no text or symbols)

Pre-filter

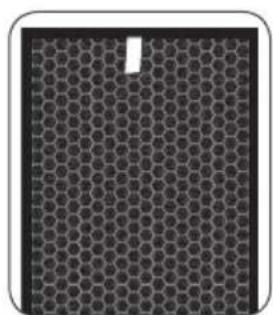

Close-up of a hexagonal grid pattern with a small white dot in the center (no text or symbols)

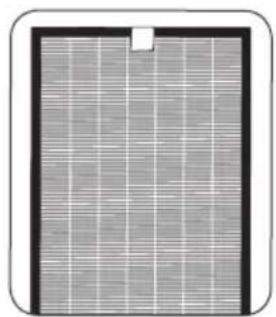

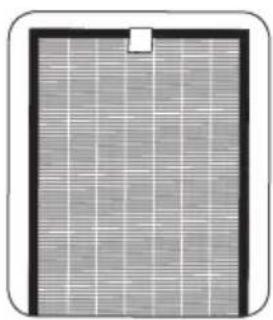

Active carbon filter NanoCaptur filterHEPA filter

Close-up of a solar panel with grid pattern and mounting bracket (no text or symbols)

Geometric octagonal diagram with concentric circles and radial segments, no text or symbols present

NB: For optimum performance of the appliance, only use filters provided by TEFAL.

To replace the filters, follow the instructions in the section "Disassembling/Reassembling filters".

Please note: certain filters may emit a temporary slight odour, due to the transport and storage conditions.

SWITCHING THE APPLIANCE ON

Connect the power cord and press the start button (10).

Your appliance will be preset to automatic mode the first time you turn it on.

Thanks to its infrared particle sensor and its gas sensor (model PU6065 only), it detects the level of pollution in the room and automatically adjusts the filtration speed accordingly.

The air quality indicator changes color to indicate the air quality in the room.

Air quality Air quality indicator color		Filtration speed (in auto mode)
Excellent Blue
Average Purple
Poor Red

EN

Setting the pollution sensors

The appliance is preset to medium sensitivity.

If the air quality indicator remains:

• poor after 2 hours in operation although the air seems to be purified
• excellent for more than 1 hour although the air seems to be polluted

you can adjust the sensor sensitivity as follows:

1. When the air purifier is off, hold down the filtration speed setting button for 2 seconds:

1. Set the sensitivity by briefly pressing the filtration speed setting button:

+ Blue + Purple + Red
Low sensitivity Medium sensitivity High sensitivity

• Select high sensitivity if the air purifier indicates excellent air quality for more than 1 hour although the air seems to be polluted.

• Select low sensitivity if the air purifier continues to indicate poor air quality even though it has been operating for more than 2 hours and the air seems sufficiently purified.

• The new setting is applied if no button is pressed for 10 seconds.

OPERATION

Start

Briefly press this button to switch the air purifier on or off.

Mode / filtration speed selection

auto Automatic: In this operating mode, the filtration speed automatically adjusts according to the air quality detected by the particle sensor and the gas sensor (model PU6065 only). This mode is recommended for general use.

Manual: In this operating mode, you can manually select 1 of the 4 filtration speeds.

Night mode selection

The filtration speed of your appliance is adjusted for a whisper quiet air flow during the night. The light intensity of the appliance is also reduced. If pollution is detected, the filtration speed increases slightly to purify your air but remains quiet to avoid disturbing your sleep.

Light

You can change the light intensity of the appliance as you wish or according to the time of day.

Press Air Quality indicator Control panel
1 Light up	Light up
2 Moderate light	Moderate light
3 Off Moderate light

Ionizer function

The ionizer function releases negative ions into the air. This function is switched off by default. To activate it, briefly press button 11.

Timer / delayed start

If the appliance is on: you can use this button to define the operating duration. Briefly press the button to select the number of operating hours desired (1, 2, 4 or 8) and the appliance will automatically turn off at the end of the selected period.

If the appliance is off: briefly press the button to set the appliance to turn on in a certain number of hours (1, 2, 4 or 8).

3D pure air function (adjustable grid)

You can adjust the position of the air outlet grid manually, as desired. For an optimum, even flow of purified air in the room, set the angle to 45^ ; for maximum comfort, set the angle to 90^ .

Control Panel Lock

EN

The lock system prevents the purifier from being accidentally mis-set during operation.

To activate it, press the button (8) for 3 sec until the locked control panel indicator turns on. To exit this mode, press the button (8) again for 3 seconds, until the indicator turns off. When selected, the other buttons are locked.

MAINTENANCE

Always switch the appliance off with the button (10) and unplug it before conducting any maintenance operation.

You can clean the appliance with a slightly damp cloth.

IMPORTANT: Never use abrasive products which could damage your appliance's appearance.

Filters

Filter Action Cycles
Pre-filter Clean Every 2 to 4 weeks
Active carbon filter Replace Every	12 months
HEPA filter Replace Every 3 years
NanoCaptur filter Replace		Color changing(see Color chart on filter)

This data is based on an average use of 8 hours per day at speed 2.

The recommended frequency for cleaning and replacing the filters may vary depending on the duration of use and the operating environment.

• The light indicates when the pre-filter needs cleaning.
• The light indicates when the active carbon filter needs replacing.
• The light indicates when the HEPA filter needs replacing.
  -The light indicates when the color of the NanoCaptur filter needs checking.

- The NanoCaptur filter contains translucent granules which change color according to the formaldehyde absorption rate. Refer to the color chart on the inside of the panel or the filter itself to establish the filter saturation rate. Once the saturation rate has reached its maximum, the filter must be replaced. You have to check the filter saturation rate every six months.

- The pre-filter can be re-used: remove the dust using a vacuum cleaner or wash with water.

CAUTION:

The appliance's efficiency can be reduced if the pre-filter is not cleaned regularly.

Never use a pre-filter that is still damp.

The pre-filter is the only filter which can be re-used and washed with water. The HEPA, NanoCaptur and active carbon filters cannot be cleaned and re-used. Never wash with water.

To replace the filters, follow the instructions in the section "Disassembling/Reassembling filters".

Your replacement filters are available under the following codes:

Filter Code PU4065 Code PU6065
HEPA filter XD6070 XD6071
Active carbon filter XD6060 XD6061
NanoCaptur filter XD6080 XD6081

IMPORTANT: Resetting the filters

The reset light flashes when a filter needs to be replaced. Once the filter has been replaced, hold down the reset

button for 2 seconds

Forced reset:

If you have replaced a filter before its end of life, force the reset of the filter replacement cycle:

1. Hold the reset button for 2 seconds

1. Press the reset button briefly to select the filter you have changed.
2. After selecting the filter to reset, hold the reset button for 2 seconds. The electronic meter is then reset.
3. If no button is activated for 10 seconds in forced reset mode, the reset mode is canceled.

• Avoid handling used filters if you suffer from allergies or asthma.
• Wear gloves when changing the filters, or wash your hands well afterwards.
• Put used filters directly into a closed, air-tight bag before throwing them away to avoid spreading pollutants.

Pollution sensors

The particle sensor and gas sensor (model PU6065 only) need to be cleaned regularly (every 2 months) and appropriately.

Make sure you turn off and unplug the appliance before cleaning the pollution sensors and follow the recommendations below:

1. Clean the air inlet and outlet using a soft brush or cloth.
2. Open the sensor cover located on the right-hand side of the appliance.
3. Lightly wet a cotton swab and remove any dust from the lens and the inlet/outlet. Wipe using a dry cotton swab.
4. Clean the gas sensor using a soft brush or vacuum cleaner.

Illustration of a hand holding chopsticks near a bottle, with a numbered label (1) in the corner (no text or symbols on the diagram itself)

Line drawing of a hand holding a blood glucose meter, with no text or symbols present

Line drawing of a hand holding a small object near a vertical line, with number 3 in the corner (no text or symbols on the object itself)

IMPORTANT:

Never use a detergent or metal object to clean the sensors.

The efficiency of the sensors may be reduced if not cleaned regularly.

Cleaning frequency varies depending on the operating environment of the appliance. If it is used in a dusty environment, clean the sensors more frequently.

STORAGE

When you are not using the appliance, store it in a cool, dry place.

IN THE EVENT OF A PROBLEM

• Do not disassemble the appliance yourself. A poorly repaired appliance may be dangerous for the user.
• Check the troubleshooting table below before contacting an Approved Service Center:

Problem Check Solution

The appliance will not switch on.	Is the power cord connected?	Connect the power cord to a plug with the correct voltage.
	Are all the display elements off?	Press the start button and select the required function.
	Is there a power outage?	You can use your purifier once the power turns on again.
	Is the front door closed? Close the front door properly.
The air flow does not change automatically.	Is the appliance in manual mode? Select the correct operating mode.
The flow is a lot weaker than before.	Does the filter need to be cleaned or replaced?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
There is an unpleasant smell coming from the air outlet.	Is the sensor lens covered with dust?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
The air quality indicator does not change color.	Does the light still indicate poor air quality?	Clean the sensor lens.
	Does the indicator still indicate poor air quality?	Set the sensor sensitivity to «low» or «medium».
	Does the indicator indicate excellent air quality?	Set the sensor sensitivity to “high” or “medium”.

WARRANTY

Do not use the appliance and contact an Approved Service Centre if:

- your appliance has been dropped;

- your appliance or its power cord are damaged;

- your appliance no longer functions properly.

You can find a list of Approved Service Centres on the ROWENTA and TEFAL international warranty cards.

HELP PROTECT THE ENVIRONMENT!

Your appliance contains many materials which can be recovered or recycled.

Take it to a collection point or an approved service centre for processing.

If this appliance uses batteries: help us look after the environment, by not throwing away your used batteries. Instead, bring them to anyone of the special battery collection points. Do not throw them away with your household waste.

These instructions can also be found on our internet site, at www.rowenta.com and www.tefal.com.

安全提示

Diagram of a device interior showing airflow or heat transfer between two compartments (no text or symbols)

第二層：

活性碳濾網

• 揮發性有機物
• 異味 / 氣體

「如何令室內空氣更潔淨」

Four identical black-and-white grid panels arranged in a 2x2 grid, each with a handle (no text or symbols visible)

Close-up of a hexagonal grid pattern with a small white dot in the center (no text or symbols)

Close-up of a solar panel with grid pattern and mounting bracket (no text or symbols)

HEPA濾網

Octagonal architectural diagram of a circular grid structure with radial divisions (no text or symbols)

Line drawing of a hand holding a blood glucose meter with fingers, no text or symbols present

Line drawing of a hand holding a small electronic device with a numbered circle marker (no text or symbols on the device itself)

重要提示：

Hand holding chopsticks near a small bottle, no text or symbols visible

Illustration of a hand holding a blood glucose meter with fingers, no text or symbols present

Line drawing of a hand holding a small object with a label, no text or symbols present

: هام

ت Connectivity and Privacy of the United States

.11 زر

Four-panel grid panel with four distinct square patterns, no text or symbols visible

فلتر نانو كابتشر

Close-up of a perforated metal panel with hexagonal pattern and a small white mark (no text or symbols)

Close-up of a rectangular solar panel with grid lines and a small square hole (no text or symbols)

فلتر كربون مُنشَ

Geometric octagonal diagram with concentric circles and radial segments, no text or symbols present

m = 311

لحيوانات

• العفن

• بكتيريا/فيروسات

4 المستوى

فلتر نانو کابتشر

• فورمالديهايد

1 المستوى

الترجمة التمهيدي

• غبار

• شعر

صوف

ویر

2 المستوى

فلتر کربون مُقَعَى

m = 311

12

بة الصينة.

• «الصيانة».

• لة الحماية

•

Four identical rectangular panels with grid patterns, each mounted on a top bracket (no text or symbols visible)

Close-up of a hexagonal grid pattern with a small white dot in the center (no text or symbols)

Close-up of a rectangular panel with grid pattern and a small hole, no visible text or symbols

Top-down architectural diagram of a traditional Chinese octagonal grid structure (no text or symbols)

Illustration of a hand holding a small blood glucose meter with a digital display, no text or symbols present

Line drawing of a hand holding a small device with a label, no text or symbols present

ВАЖНО!

1 Panel kawalan dikunci

8 Kunci/buka panel kawalan

9 Set semula penapis

10 Mula

Diagram of a device interior showing airflow or ventilation system with no visible text or symbols

TAHAP 1 :

PRA-PENAPISAN

• Habuk
• Rambut
•Bulu

TAHAP 2 :

PENAPIS KARBON AKTIF

• Komponen organik mudah meruap (KOMMs)
• Bau-bau / Gas

« CARA MEMPEROLEHI UDARA YANG LEBIH BERSIH DI DALAM RUMAH »

Four identical black-and-white grid panels arranged in a square pattern, each with a side bracket (no text or symbols visible)

Close-up of a hexagonal grid pattern with a small white dot in the center (no text or symbols)

Close-up of a rectangular electronic component with grid pattern and mounting bracket (no visible text or symbols)

Top-down architectural plan of a traditional Chinese building with circular layout and grid patterns (no text or symbols)

Pra-penapis Penapis Karbon Aktif Penapis NanoCapturPenapis HEPA

Illustration of a hand holding chopsticks near a bottle, with a numbered label (1) below (no text or symbols on the diagram itself)

Illustration of a hand holding a digital blood glucose meter (no text or symbols present)

Hand holding a small electronic device with a pointer, no visible text or symbols

Illustration of a hand holding a pen and a bottle, with a numbered circle (4) in the corner (no text or symbols on the diagram itself)

PENTING:
